◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51280 - NKR INDONESIA ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-03 - LAMP; REAR AND REAR SIDE ▶
8-03 — LAMP; REAR AND REAR SIDE (#79012) — 90 parça

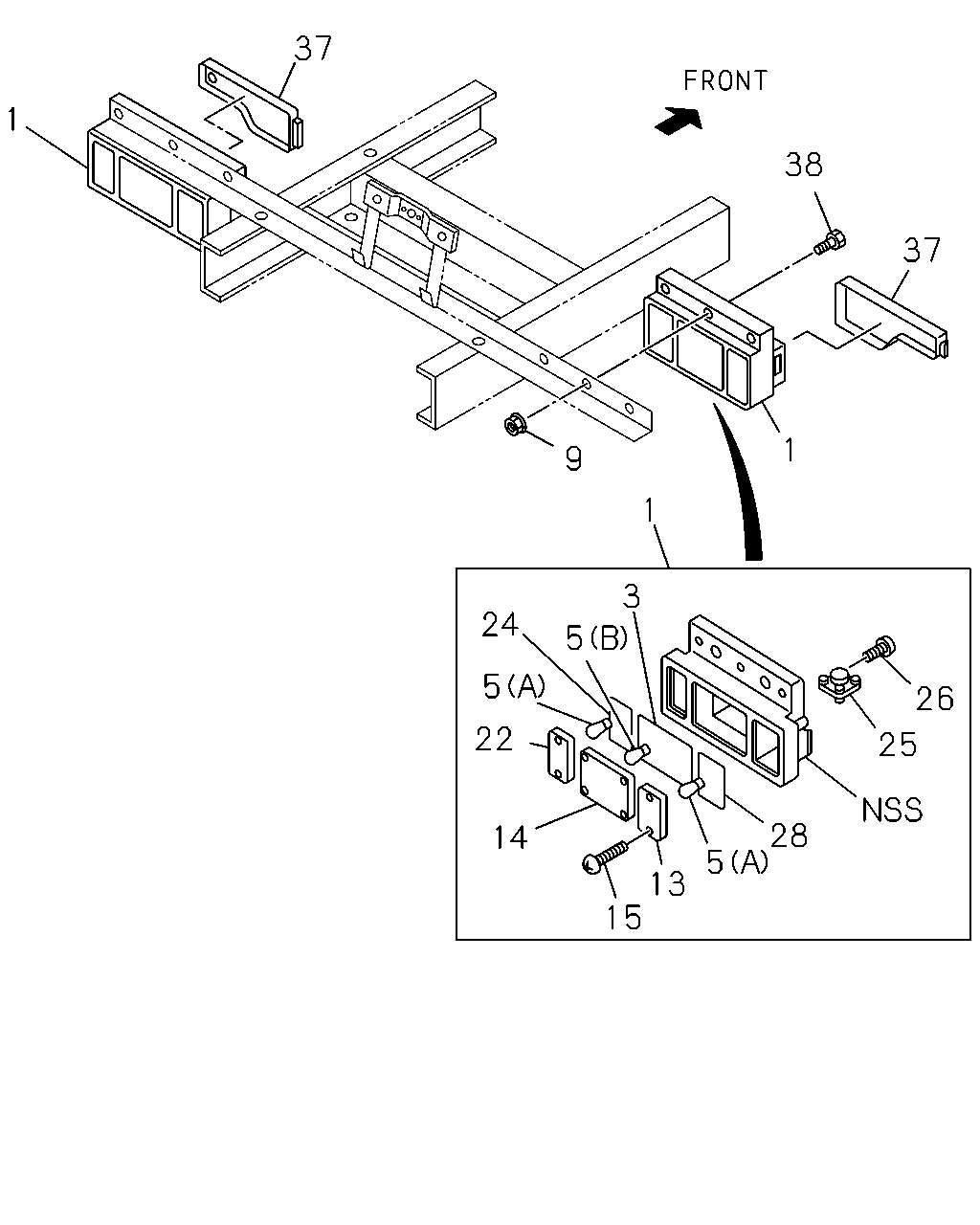

çizim 136002
37 1 38 37 1 9 1 3 24 5 5 26 22 25 28 14 5 13 15
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.679 LAMP ASM; RR COMB
BACK BUZZER<YM9> IDN 		8-97213-370-0 01 1 0211-0609 ● ●
1 02.679 LAMP ASM; RR COMB
BACK BUZZER<YM9> VOLTAGE 24V<7AE> IDN 		8-97213-370-0 01 1 0610-0712 ●
1 02.679 LAMP ASM; RR COMB
BACK BUZZER<YM9> IDN 		8-97213-370-0 01 1 0610-0712 ●
1 02.679 LAMP ASM; RR COMB
BACK BUZZER<YM9> VOLTAGE 24V<7AE> IDN 		8-97213-370-0 01 1 0801-0806 ● ●
1 02.679 LAMP ASM; RR COMB
BACK BUZZER<YM9> VOLTAGE 24V<7AE> IDN 		8-98120-440-0 01 1 0807- ● ●
1 02.679 LAMP ASM; RR COMB
IDN 		8-97213-369-0 01 1 0211-0609 ● ●
1 02.679 LAMP ASM; RR COMB
VOLTAGE 24V<7AE> IDN 		8-97213-369-0 01 1 0610-0712 ●
1 02.679 LAMP ASM; RR COMB
IDN 		8-97213-369-0 01 1 0610-0712 ●
1 02.679 LAMP ASM; RR COMB
VOLTAGE 24V<7AE> IDN 		8-97213-369-0 01 1 0801-0806 ● ●
1 02.679 LAMP ASM; RR COMB
VOLTAGE 24V<7AE> IDN 		8-98034-325-0 01 1 0807- ● ●
1 02.679 LAMP ASM; RR COMB
EXC. BACK BUZZER<YM9> 		8-97213-368-0 01 1 0211-0609 ● ●
1 02.679 LAMP ASM; RR COMB
VOLTAGE 24V<7AE> EXC. BACK BUZZER<YM9> 		8-97213-368-0 01 1 0610-0712 ●
1 02.679 LAMP ASM; RR COMB
EXC. BACK BUZZER<YM9> 		8-97213-368-0 01 1 0610-0712 ●
1 02.679 LAMP ASM; RR COMB
VOLTAGE 24V<7AE> EXC. BACK BUZZER<YM9> 		8-97213-368-0 01 1 0801-0806 ● ●
1 02.679 LAMP ASM; RR COMB
VOLTAGE 24V<7AE> EXC. BACK BUZZER<YM9> IDN 		8-98034-324-0 01 1 0807- ● ●
1 02.679 LAMP ASM; RR COMB
BACK BUZZER<YM9> EXC. VOLTAGE 24V<7AE> IDN 		8-97213-353-0 01 1 0610-0712 ●
1 02.679 LAMP ASM; RR COMB
BACK BUZZER<YM9> EXC. VOLTAGE 24V<7AE> IDN 		8-97213-353-0 01 1 0801-0806 ● ●
1 02.679 LAMP ASM; RR COMB
BACK BUZZER<YM9> EXC. VOLTAGE 24V<7AE> IDN 		8-98120-439-0 01 1 0807- ● ●
1 02.679 LAMP ASM; RR COMB
EXC. BACK BUZZER<YM9>,VOLTAGE 24V<7AE> 		8-97213-351-0 01 1 0610-0712 ●
1 02.679 LAMP ASM; RR COMB
EXC. BACK BUZZER<YM9>,VOLTAGE 24V<7AE> 		8-97213-351-0 01 1 0801-0806 ● ●
1 02.679 LAMP ASM; RR COMB
EXC. BACK BUZZER<YM9>,VOLTAGE 24V<7AE> 		8-98072-024-0 01 1 0807- ● ●
1 02.679 LAMP ASM; RR COMB
EXC. VOLTAGE 24V<7AE> IDN 		8-97213-352-0 01 1 0610-0712 ●
1 02.679 LAMP ASM; RR COMB
EXC. VOLTAGE 24V<7AE> IDN 		8-97213-352-0 01 1 0801-0806 ● ●
1 02.679 LAMP ASM; RR COMB
EXC. VOLTAGE 24V<7AE> IDN 		8-98072-025-0 01 1 0807- ● ●
3 02.684 GASKET; RR COMB LAMP
IDN 		8-94257-505-0 02 1 0211- ● ●
5 08.991 BULB; RR COMB LAMP
(A) 24V 21W IDN 		1-82194-036-0 04 1 0211-0609 ● ●
5 08.991 BULB; RR COMB LAMP
VOLTAGE 24V<7AE> (A) 24V 21W IDN 		1-82194-036-0 04 1 0610-0712 ●
5 08.991 BULB; RR COMB LAMP
VOLTAGE 24V<7AE> (A) 24V 21W IDN 		1-82194-036-0 04 1 0610-0712 ●
5 08.991 BULB; RR COMB LAMP
(A) 24V 21W IDN 		1-82194-036-0 04 1 0610-0712 ●
5 08.991 BULB; RR COMB LAMP
VOLTAGE 24V<7AE> (A) 24V 21W IDN 		1-82194-036-0 04 1 0801-0806 ● ●
5 08.991 BULB; RR COMB LAMP
VOLTAGE 24V<7AE> (A) 24V 21W IDN 		1-82194-036-0 04 1 0801-0806 ● ●
5 08.991 BULB; RR COMB LAMP
BACK BUZZER<YM9> VOLTAGE 24V<7AE> (A) 24V 21W IDN 		1-82194-036-0 04 1 0807- ● ●
5 08.991 BULB; RR COMB LAMP
(B) 24V 21/5W IDN 		1-82194-038-0 02 1 0211-0609 ● ●
5 08.991 BULB; RR COMB LAMP
VOLTAGE 24V<7AE> (B) 24V 21/5W IDN 		1-82194-038-0 02 1 0610-0712 ●
5 08.991 BULB; RR COMB LAMP
VOLTAGE 24V<7AE> (B) 24V 21/5W IDN 		1-82194-038-0 02 1 0610-0712 ●
5 08.991 BULB; RR COMB LAMP
(B) 24V 21/5W IDN 		1-82194-038-0 02 1 0610-0712 ●
5 08.991 BULB; RR COMB LAMP
VOLTAGE 24V<7AE> (B) 24V 21/5W IDN 		1-82194-038-0 02 1 0801-0806 ● ●
5 08.991 BULB; RR COMB LAMP
VOLTAGE 24V<7AE> (B) 24V 21/5W IDN 		1-82194-038-0 02 1 0801-0806 ● ●
5 08.991 BULB; RR COMB LAMP
BACK BUZZER<YM9> VOLTAGE 24V<7AE> (B) 24V 21/5W IDN 		1-82194-038-0 02 1 0807- ● ●
5 08.991 BULB; RR COMB LAMP
EXC. VOLTAGE 24V<7AE> (A) 12V 21W IDN 		8-94124-074-0 04 1 0610-0712 ●
5 08.991 BULB; RR COMB LAMP
EXC. VOLTAGE 24V<7AE> (A) 12V 21W IDN 		8-94124-074-0 04 1 0610-0712 ●
5 08.991 BULB; RR COMB LAMP
EXC. VOLTAGE 24V<7AE> (A) 12V 21W IDN 		8-94124-074-0 04 1 0801- ● ●
5 08.991 BULB; RR COMB LAMP
EXC. VOLTAGE 24V<7AE> (A) 12V 21W IDN 		8-94124-074-0 04 1 0801- ● ●
5 08.991 BULB; RR COMB LAMP
EXC. VOLTAGE 24V<7AE> (B) 12V 21/5W IDN 		8-94125-959-0 02 1 0610-0712 ●
5 08.991 BULB; RR COMB LAMP
EXC. VOLTAGE 24V<7AE> (B) 12V 21/5W IDN 		8-94125-959-0 02 1 0610-0712 ●
5 08.991 BULB; RR COMB LAMP
EXC. VOLTAGE 24V<7AE> (B) 12V 21/5W IDN 		8-94125-959-0 02 1 0801- ● ●
5 08.991 BULB; RR COMB LAMP
EXC. VOLTAGE 24V<7AE> (B) 12V 21/5W IDN 		8-94125-959-0 02 1 0801- ● ●
5 08.991 BULB; RR COMB LAMP
VOLTAGE 24V<7AE> EXC. BACK BUZZER<YM9> (A) 24V 21W IDN 		1-82194-108-0 02 1 0807- ● ●
5 08.991 BULB; RR COMB LAMP
VOLTAGE 24V<7AE> (A) 24V 21W IDN 		1-82194-108-0 02 1 0807- ● ●
5 08.991 BULB; RR COMB LAMP
VOLTAGE 24V<7AE> EXC. BACK BUZZER<YM9> (B) 24V 21/5W IDN 		1-82194-109-0 01 1 0807- ● ●
5 08.991 BULB; RR COMB LAMP
VOLTAGE 24V<7AE> (B) 24V 21/5W IDN 		1-82194-109-0 01 1 0807- ● ●
9 02.689 NUT; LAMP,RR COMB
07.829 M6 FLANGE IDN 		5-09440-004-0 06 1 0211- ● ●
13 02.682 LENS; TURN SIGNAL
IDN 		8-94174-638-0 01 1 0211- ● ●
13 02.682 LENS; TURN SIGNAL
IDN 		8-94174-639-0 01 1 0211- ● ●
14 02.682 LENS; TAIL & STOP,RR COMB LAMP
IDN 		8-94178-624-0 01 1 0211- ● ●
14 02.682 LENS; TAIL & STOP,RR COMB LAMP
IDN 		8-94178-625-0 01 1 0211- ● ●
15 02.664 SCREW; RR COMB LAMP
08.977 M4X20 TAPPING STAINLESS IDN 		0-71190-420-0 16 1 0211- ● ●
22 02.697 LENS; BACKUP,RR COMB LAMP
CLEAR IDN 		8-94257-512-1 02 1 0211- ● ●
24 02.697 GASKET; BACK,LAMP
IDN 		8-94257-506-0 02 1 0211- ● ●
25 02.810 HORN ASM; BACK
BACK BUZZER<YM9> IDN 		8-94257-518-0 01 1 0211- ● ●
26 02.812 SCREW; BACK HORN
BACK BUZZER<YM9> 02.688 M4X12 TAPPING IDN 		9-07076-412-0 02 1 0211- ● ●
26 02.812 SCREW; BACK HORN
09.655 M4X14 TAPPING IDN 		9-07076-414-0 01 1 0211- ● ●
26 02.812 SCREW; BACK HORN
EXC. BACK BUZZER<YM9> 02.688 M4X12 TAPPING IDN 		9-07076-412-0 01 1 0211- ● ●
28 02.684 GASKET; TURN,LAMP
IDN 		8-94257-507-0 02 1 0211- ● ●
37 02.680 COVER; RR COMB LAMP
IDN 		8-94128-858-2 02 1 0211-0308 ● ●
37 02.680 COVER; RR COMB LAMP
IDN 		8-94128-858-4 01 1 0309- ● ●
37 02.680 COVER; RR COMB LAMP
IDN 		8-94129-274-2 02 1 0211-0308 ● ●
37 02.680 COVER; RR COMB LAMP
IDN 		8-94129-274-4 01 1 0309- ● ●
38 02.689 BOLT; LAMP,RR COMB
4JB1-TC ENG(RDT) SPECIAL PACKAGE<7BB> 02.664 M6X20 IDN 		8-94402-623-0 04 1 1402-1405 ● ●
38 02.689 BOLT; LAMP,RR COMB
4HG1-T ENG(RDP) VIN MODEL YEAR 2012(VZC) SPECIAL PACKAGE<7BB> 02.664 M6X20 IDN 		8-94402-623-0 04 1 1402-1405 ●
38 02.689 BOLT; LAMP,RR COMB
4JB1-TC ENG(RDT) SPECIAL PACKAGE<7BB> 02.664 M6X20 IDN 		8-94402-623-0 04 1 1406- ● ●
38 02.689 BOLT; LAMP,RR COMB
4HG1-T ENG(RDP) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) SPECIAL PACKAGE<7BB> 02.664 M6X20 IDN 		8-94402-623-0 04 1 1406- ●
38 02.689 BOLT; LAMP,RR COMB
02.664 M6X20 IDN 		8-94402-623-0 06 1 0211- ● ●

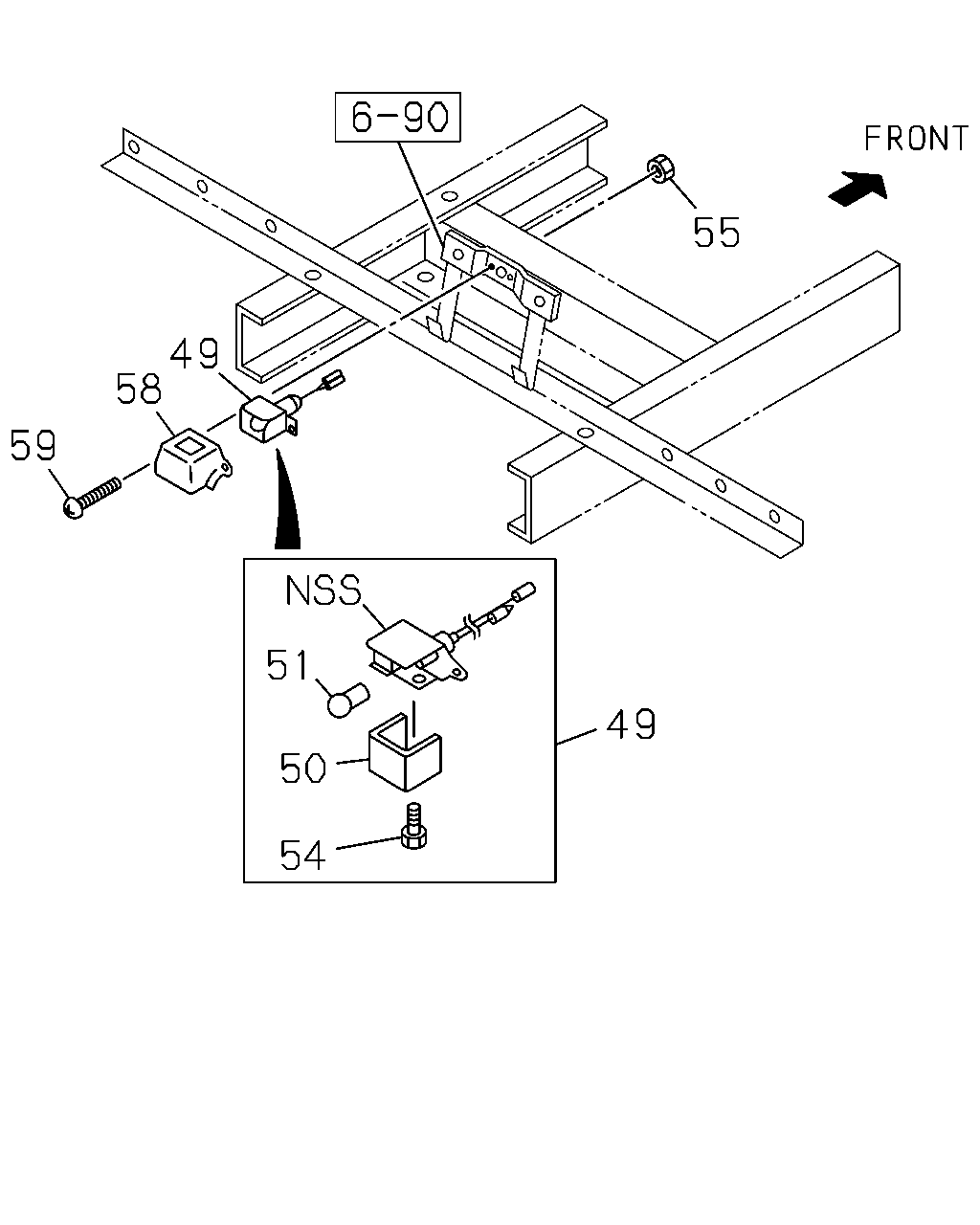

çizim 136524
55 49 58 59 51 49 50 54
BalonParca AdiParca NoAdetTipApplied Date A B
49 02.700 LAMP; LICENSE PLATE
24V 12W IDN 		5-82120-021-1 01 1 0211-0609 ● ●
49 02.700 LAMP; LICENSE PLATE
VOLTAGE 24V<7AE> 24V 12W IDN 		5-82120-021-1 01 1 0610-0712 ●
49 02.700 LAMP; LICENSE PLATE
24V 12W IDN 		5-82120-021-1 01 1 0610-0712 ●
49 02.700 LAMP; LICENSE PLATE
VOLTAGE 24V<7AE> 24V 12W IDN 		5-82120-021-1 01 1 0801- ● ●
49 02.700 LAMP; LICENSE PLATE
EXC. VOLTAGE 24V<7AE> 12V 10W IDN 		5-82120-020-0 01 1 0610-0712 ●
49 02.700 LAMP; LICENSE PLATE
EXC. VOLTAGE 24V<7AE> 12V 10W IDN 		5-82120-020-0 01 1 0801- ● ●
50 02.709 LENS; LICENSE PLATE LAMP
IDN 		5-82125-004-0 01 1 0211- ● ●
51 08.991 BULB; LICENSE PLATE LAMP
24V 12W IDN 		1-82194-004-0 01 1 0211-0609 ● ●
51 08.991 BULB; LICENSE PLATE LAMP
VOLTAGE 24V<7AE> 24V 12W IDN 		1-82194-004-0 01 1 0610-0712 ●
51 08.991 BULB; LICENSE PLATE LAMP
24V 12W IDN 		1-82194-004-0 01 1 0610-0712 ●
51 08.991 BULB; LICENSE PLATE LAMP
VOLTAGE 24V<7AE> 24V 12W IDN 		1-82194-004-0 01 1 0801- ● ●
51 08.991 BULB; LICENSE PLATE LAMP
EXC. VOLTAGE 24V<7AE> 12V 10W IDN 		8-94126-494-0 01 1 0610-0712 ●
51 08.991 BULB; LICENSE PLATE LAMP
EXC. VOLTAGE 24V<7AE> 12V 10W IDN 		8-94126-494-0 01 1 0801- ● ●
54 02.708 SCREW; LICENSE PLATE LAMP
02.709 M4X8 IDN 		8-94419-312-0 01 1 0211- ● ●
55 02.708 NUT; LICENSE PLATE LAMP
03.444 M5 FLANGE 		8-94153-039-0 02 1 0211- ● ●
58 02.705 COVER; LICENSE PLATE LAMP
IDN 		8-97076-590-1 01 1 0211- ● ●
59 02.708 SCREW; TAP,LICENSE LAMP BODY
14.550 M5X20 		9-93490-520-0 02 1 0211- ● ●
