8-01 — LAMP; FRONT AND FRONT SIDE (#79011) — 168 parça

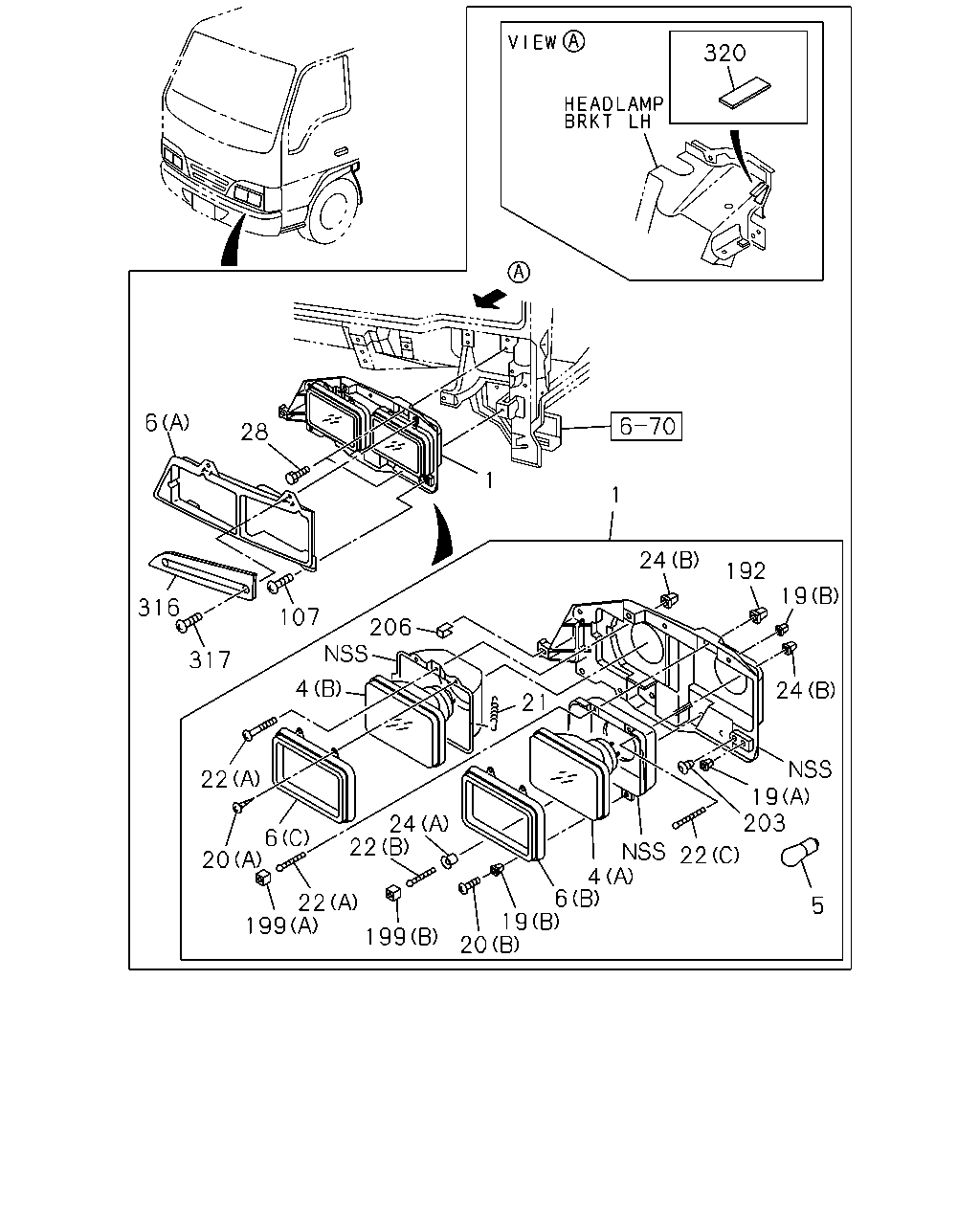

çizim 135690
320 6 28 1 1 24 192 19 316 107 206 317 4 24 21 19 203 22 24 22 6 4 6 19 20 22 20 22 199 5 199
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.725 LAMP ASM; HEAD
24V 55/50W IDN 		8-97855-051-5 01 1 0211-0609 ● ●
1 02.725 LAMP ASM; HEAD
VOLTAGE 24V<7AE> 24V 55/50W IDN 		8-97855-051-5 01 1 0610-0712 ●
1 02.725 LAMP ASM; HEAD
24V 55/50W IDN 		8-97855-051-5 01 1 0610-0712 ●
1 02.725 LAMP ASM; HEAD
VOLTAGE 24V<7AE> 24V 55/50W IDN 		8-97855-051-5 01 1 0801- ● ●
1 02.725 LAMP ASM; HEAD
24V 55/50W IDN 		8-97855-052-5 01 1 0211-0609 ● ●
1 02.725 LAMP ASM; HEAD
VOLTAGE 24V<7AE> 24V 55/50W IDN 		8-97855-052-5 01 1 0610-0712 ●
1 02.725 LAMP ASM; HEAD
24V 55/50W IDN 		8-97855-052-5 01 1 0610-0712 ●
1 02.725 LAMP ASM; HEAD
VOLTAGE 24V<7AE> 24V 55/50W IDN 		8-97855-052-5 01 1 0801- ● ●
1 02.725 LAMP ASM; HEAD
EXC. VOLTAGE 24V<7AE> 12V 45/40W IDN 		8-97855-106-4 01 1 0610-0806 ●
1 02.725 LAMP ASM; HEAD
EXC. VOLTAGE 24V<7AE> 12V 45/40W IDN 		8-97855-106-5 01 1 0807- ● ●
1 02.725 LAMP ASM; HEAD
EXC. VOLTAGE 24V<7AE> 12V 45/40W IDN 		8-97855-107-4 01 1 0610-0806 ●
1 02.725 LAMP ASM; HEAD
EXC. VOLTAGE 24V<7AE> 12V 45/40W IDN 		8-97855-107-5 01 1 0807- ● ●
4 02.727 HEADLAMP UNIT
(A) 24V 55/50W IDN 		8-94101-732-0 02 1 0211-0609 ● ●
4 02.727 HEADLAMP UNIT
VOLTAGE 24V<7AE> (A) 24V 55/50W IDN 		8-94101-732-0 02 1 0610-0712 ●
4 02.727 HEADLAMP UNIT
(A) 24V 55/50W IDN 		8-94101-732-0 02 1 0610-0712 ●
4 02.727 HEADLAMP UNIT
VOLTAGE 24V<7AE> (A) 24V 55/50W IDN 		8-94101-732-0 02 1 0801- ● ●
4 02.727 HEADLAMP UNIT
(B) 24V 55W IDN 		8-94101-740-0 02 1 0211-0609 ● ●
4 02.727 HEADLAMP UNIT
VOLTAGE 24V<7AE> (B) 24V 55W IDN 		8-94101-740-0 02 1 0610-0712 ●
4 02.727 HEADLAMP UNIT
(B) 24V 55W IDN 		8-94101-740-0 02 1 0610-0712 ●
4 02.727 HEADLAMP UNIT
VOLTAGE 24V<7AE> (B) 24V 55W IDN 		8-94101-740-0 02 1 0801- ● ●
4 02.727 HEADLAMP UNIT
EXC. VOLTAGE 24V<7AE> (A) 12V 45/50W IDN 		8-94101-731-0 02 1 0610-0806 ●
4 02.727 HEADLAMP UNIT
EXC. VOLTAGE 24V<7AE> (A) 12V 45/50W IDN 		8-94101-731-0 02 1 0807- ● ●
4 02.727 HEADLAMP UNIT
EXC. VOLTAGE 24V<7AE> (B) 12V 45W IDN 		8-94101-739-0 02 1 0610-0806 ●
4 02.727 HEADLAMP UNIT
EXC. VOLTAGE 24V<7AE> (B) 12V 45W IDN 		8-94101-739-0 02 1 0807- ● ●
5 02.727 BULB; HEADLAMP
24V 55/50W CLEAR IDN 		5-82193-003-0 04 1 0211-0609 ● ●
5 02.727 BULB; HEADLAMP
VOLTAGE 24V<7AE> 24V 55/50W CLEAR IDN 		5-82193-003-0 04 1 0610-0712 ●
5 02.727 BULB; HEADLAMP
24V 55/50W CLEAR IDN 		5-82193-003-0 04 1 0610-0712 ●
5 02.727 BULB; HEADLAMP
VOLTAGE 24V<7AE> 24V 55/50W CLEAR IDN 		5-82193-003-0 04 1 0801- ● ●
5 02.727 BULB; HEADLAMP
EXC. VOLTAGE 24V<7AE> 08.991 12V 45/50W IDN 		5-82193-001-0 04 1 0610-0806 ●
5 02.727 BULB; HEADLAMP
EXC. VOLTAGE 24V<7AE> 08.991 12V 45/50W IDN 		5-82193-001-0 04 1 0807- ● ●
6 02.728 RIM; HEADLAMP
(C) IDN 		1-82114-016-0 02 1 0211-0712 ● ●
6 02.728 RIM; HEADLAMP
(C) IDN 		1-82114-016-0 02 1 0801-0806 ●
6 02.728 RIM; HEADLAMP
VOLTAGE 24V<7AE> (C) IDN 		1-82114-016-0 02 1 0801-0806 ●
6 02.728 RIM; HEADLAMP
(C) IDN 		1-82114-016-0 02 1 0807- ● ●
6 02.728 RIM; HEADLAMP
(A) IDN 		8-97581-088-0 01 1 0211- ● ●
6 02.728 RIM; HEADLAMP
(A) IDN 		8-97581-089-0 01 1 0211- ● ●
6 02.728 RIM; HEADLAMP
(B) IDN 		8-97855-211-0 02 1 0211-0712 ● ●
6 02.728 RIM; HEADLAMP
(B) IDN 		8-97855-211-0 02 1 0801-0806 ●
6 02.728 RIM; HEADLAMP
VOLTAGE 24V<7AE> (B) IDN 		8-97855-211-0 02 1 0801-0806 ●
6 02.728 RIM; HEADLAMP
(B) IDN 		8-97855-211-1 02 1 0807- ● ●
19 02.726 NUT; HEADLAMP
(A) IDN 		8-97044-618-0 08 1 0211-0712 ● ●
19 02.726 NUT; HEADLAMP
(A) IDN 		8-97044-618-0 08 1 0801-0806 ●
19 02.726 NUT; HEADLAMP
VOLTAGE 24V<7AE> (A) IDN 		8-97044-618-0 08 1 0801-0806 ●
19 02.726 NUT; HEADLAMP
(A) IDN 		8-97044-618-0 08 1 0807- ● ●
19 02.726 NUT; HEADLAMP
(B) IDN 		8-97044-623-0 08 1 0211-0712 ● ●
19 02.726 NUT; HEADLAMP
(B) IDN 		8-97044-623-0 08 1 0801-0806 ●
19 02.726 NUT; HEADLAMP
VOLTAGE 24V<7AE> (B) IDN 		8-97044-623-0 08 1 0801-0806 ●
19 02.726 NUT; HEADLAMP
(B) IDN 		8-97044-623-0 08 1 0807- ● ●
20 02.736 SCREW; HEADLAMP
(A) M4X8 IDN 		8-94165-886-0 08 1 0211-0712 ● ●
20 02.736 SCREW; HEADLAMP
(A) M4X8 IDN 		8-94165-886-0 08 1 0801-0806 ●
20 02.736 SCREW; HEADLAMP
VOLTAGE 24V<7AE> (A) M4X8 IDN 		8-94165-886-0 08 1 0801-0806 ●
20 02.736 SCREW; HEADLAMP
(A) M4X8 IDN 		8-94165-886-0 08 1 0807- ● ●
20 02.736 SCREW; HEADLAMP
(B) IDN 		8-97228-675-0 08 1 0211-0712 ● ●
20 02.736 SCREW; HEADLAMP
(B) IDN 		8-97228-675-0 08 1 0801-0806 ●
20 02.736 SCREW; HEADLAMP
VOLTAGE 24V<7AE> (B) IDN 		8-97228-675-0 08 1 0801-0806 ●
20 02.736 SCREW; HEADLAMP
(B) IDN 		8-97228-675-0 08 1 0807- ● ●
21 02.737 SPRING; ADJ HEADLAMP
IDN 		1-82119-021-0 02 1 0211-0712 ● ●
21 02.737 SPRING; ADJ HEADLAMP
IDN 		1-82119-021-0 02 1 0801-0806 ●
21 02.737 SPRING; ADJ HEADLAMP
VOLTAGE 24V<7AE> IDN 		1-82119-021-0 02 1 0801-0806 ●
21 02.737 SPRING; ADJ HEADLAMP
IDN 		1-82119-021-0 02 1 0807- ● ●
22 02.726 SCREW; ADJ,HEADLAMP
(A) IDN 		8-97855-205-0 04 1 0211-0712 ● ●
22 02.726 SCREW; ADJ,HEADLAMP
(A) IDN 		8-97855-205-0 04 1 0801-0806 ●
22 02.726 SCREW; ADJ,HEADLAMP
VOLTAGE 24V<7AE> (A) IDN 		8-97855-205-0 04 1 0801-0806 ●
22 02.726 SCREW; ADJ,HEADLAMP
(A) IDN 		8-97855-205-0 04 1 0807- ● ●
22 02.726 SCREW; ADJ,HEADLAMP
(B) IDN 		8-97855-206-0 02 1 0211-0712 ● ●
22 02.726 SCREW; ADJ,HEADLAMP
(B) IDN 		8-97855-206-0 02 1 0801-0806 ●
22 02.726 SCREW; ADJ,HEADLAMP
VOLTAGE 24V<7AE> (B) IDN 		8-97855-206-0 02 1 0801-0806 ●
22 02.726 SCREW; ADJ,HEADLAMP
(B) IDN 		8-97855-206-0 02 1 0807- ● ●
22 02.726 SCREW; ADJ,HEADLAMP
(C) IDN 		8-97855-207-0 02 1 0211-0712 ● ●
22 02.726 SCREW; ADJ,HEADLAMP
(C) IDN 		8-97855-207-0 02 1 0801-0806 ●
22 02.726 SCREW; ADJ,HEADLAMP
VOLTAGE 24V<7AE> (C) IDN 		8-97855-207-0 02 1 0801-0806 ●
22 02.726 SCREW; ADJ,HEADLAMP
(C) IDN 		8-97855-207-0 02 1 0807- ● ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
(B) IDN 		8-94387-097-0 06 1 0211-0712 ● ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
(B) IDN 		8-94387-097-0 06 1 0801-0806 ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
VOLTAGE 24V<7AE> (B) IDN 		8-94387-097-0 06 1 0801-0806 ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
(B) IDN 		8-94387-097-0 06 1 0807- ● ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
(A) IDN 		8-97855-208-0 02 1 0211-0712 ● ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
(A) IDN 		8-97855-208-0 02 1 0801-0806 ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
VOLTAGE 24V<7AE> (A) IDN 		8-97855-208-0 02 1 0801-0806 ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
(A) IDN 		8-97855-208-0 02 1 0807- ● ●
28 02.762 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-94279-203-0 08 1 0211-0607 ● ●
28 02.762 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-98031-842-0 08 1 0608-1401 ● ●
28 02.762 BOLT; HEADLAMP
M6X23.5 W/LK&PL WASHER 		8-98164-723-0 08 1 1402- ● ●
107 02.729 SCREW; RIM,HEADLAMP
M4X20 TAPPING IDN 		8-97326-998-0 04 1 0211- ● ●
192 02.765 PIVOT; HEADLAMP
02.737 IDN 		8-94381-595-0 02 1 0211-0712 ● ●
192 02.765 PIVOT; HEADLAMP
02.737 IDN 		8-94381-595-0 02 1 0801-0806 ●
192 02.765 PIVOT; HEADLAMP
VOLTAGE 24V<7AE> 02.737 IDN 		8-94381-595-0 02 1 0801-0806 ●
192 02.765 PIVOT; HEADLAMP
02.737 IDN 		8-94381-595-0 02 1 0807- ● ●
199 02.737 BUSHING
(A) IDN 		8-94381-605-0 04 1 0211-0712 ● ●
199 02.737 BUSHING
(A) IDN 		8-94381-605-0 04 1 0801-0806 ●
199 02.737 BUSHING
VOLTAGE 24V<7AE> (A) IDN 		8-94381-605-0 04 1 0801-0806 ●
199 02.737 BUSHING
(A) IDN 		8-94381-605-0 04 1 0807- ● ●
199 02.737 BUSHING
(B) IDN 		8-97855-212-0 02 1 0211-0712 ● ●
199 02.737 BUSHING
(B) IDN 		8-97855-212-0 02 1 0801-0806 ●
199 02.737 BUSHING
VOLTAGE 24V<7AE> (B) IDN 		8-97855-212-0 02 1 0801-0806 ●
199 02.737 BUSHING
(B) IDN 		8-97855-212-0 02 1 0807- ● ●
203 02.726 FASTENER; HEADLAMP
IDN 		8-94382-231-0 04 1 0211-0712 ● ●
203 02.726 FASTENER; HEADLAMP
IDN 		8-94382-231-0 04 1 0801-0806 ●
203 02.726 FASTENER; HEADLAMP
VOLTAGE 24V<7AE> IDN 		8-94382-231-0 04 1 0801-0806 ●
203 02.726 FASTENER; HEADLAMP
IDN 		8-94382-231-0 04 1 0807- ● ●
206 02.727 HOLDER; HEADLAMP
IDN 		8-97868-156-0 02 1 0211-0712 ● ●
206 02.727 HOLDER; HEADLAMP
IDN 		8-97868-156-0 02 1 0801-0806 ●
206 02.727 HOLDER; HEADLAMP
VOLTAGE 24V<7AE> IDN 		8-97868-156-0 02 1 0801-0806 ●
206 02.727 HOLDER; HEADLAMP
IDN 		8-97868-156-0 02 1 0807- ● ●
316 02.726 ORNAMENT; HEAD LAMP
IDN 		8-97867-863-0 01 1 0211-0303 ● ●
316 02.726 ORNAMENT; HEAD LAMP 8-97859-500-0 01 1 0304-0305 ● ●
316 02.726 ORNAMENT; HEAD LAMP 8-97582-966-0 01 1 0306- ● ●
316 02.726 ORNAMENT; HEAD LAMP 8-97867-864-0 01 1 0211-0303 ● ●
316 02.726 ORNAMENT; HEAD LAMP
IDN 		8-97863-622-0 01 1 0304-0305 ● ●
316 02.726 ORNAMENT; HEAD LAMP 8-97582-965-0 01 1 0306- ● ●
317 02.726 SCREW; ORNAMENT
02.729 M4X20 TAPPING IDN 		8-97326-998-0 04 1 0211- ● ●
320 02.726 SEALER; HEADLAMP BRKT
IDN 		8-97850-499-1 01 1 0211- ● ●

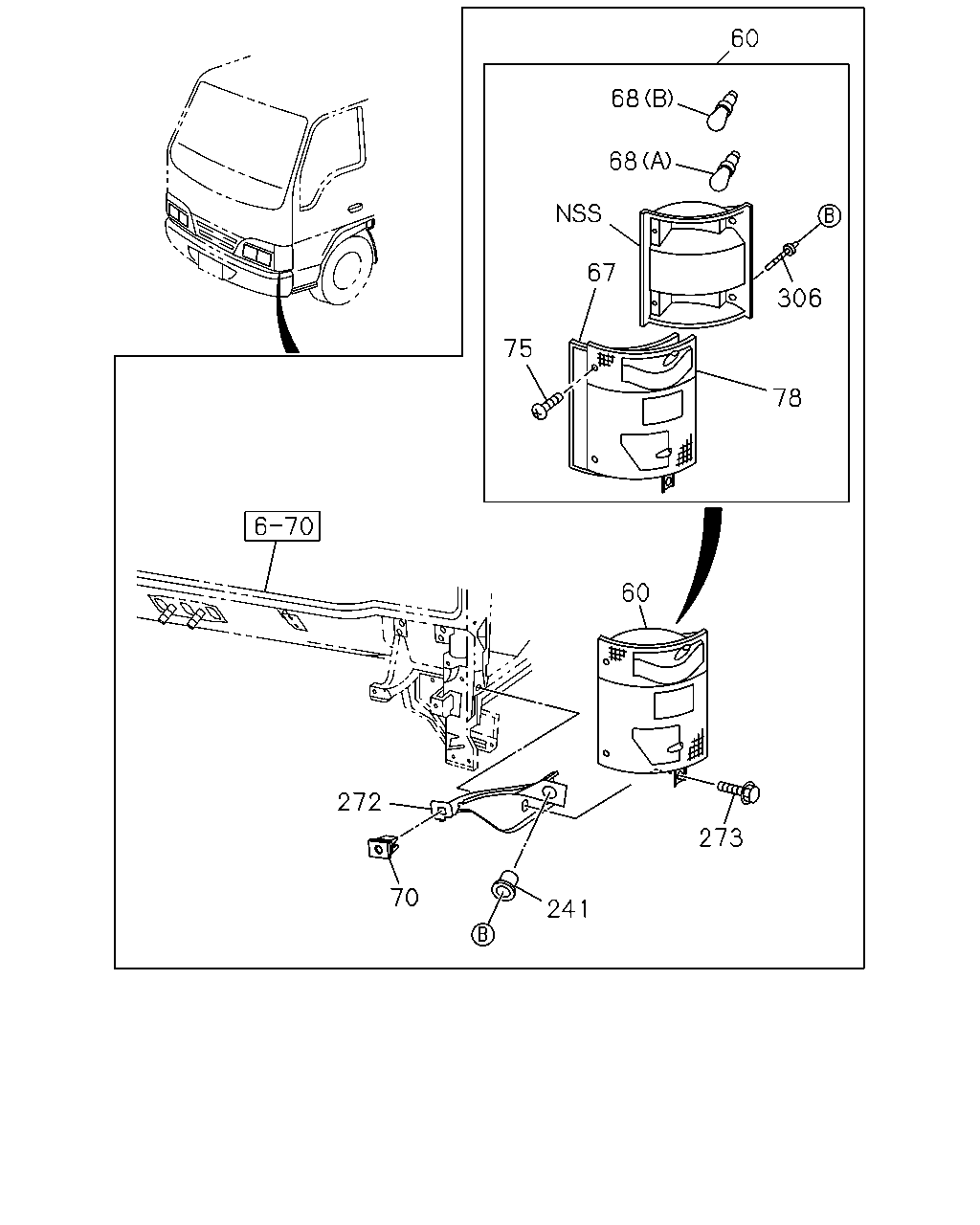

çizim 190677
60 68 68 67 306 75 78 60 272 273 70 241
BalonParca AdiParca NoAdetTipApplied Date A B
60 02.585 LAMP ASM; FRT COMB 8-97855-007-2 01 1 0211-0609 ● ●
60 02.585 LAMP ASM; FRT COMB
VOLTAGE 24V<7AE> 		8-97855-007-2 01 1 0610-0701 ●
60 02.585 LAMP ASM; FRT COMB 8-97855-007-2 01 1 0610-0701 ●
60 02.585 LAMP ASM; FRT COMB
VOLTAGE 24V<7AE> IDN 		8-98053-975-0 01 1 0702-0712 ●
60 02.585 LAMP ASM; FRT COMB
IDN 		8-98053-975-0 01 1 0702-0712 ●
60 02.585 LAMP ASM; FRT COMB
VOLTAGE 24V<7AE> IDN 		8-98053-975-0 01 1 0801- ● ●
60 02.585 LAMP ASM; FRT COMB 8-97855-008-2 01 1 0211-0609 ● ●
60 02.585 LAMP ASM; FRT COMB
VOLTAGE 24V<7AE> 		8-97855-008-2 01 1 0610-0701 ●
60 02.585 LAMP ASM; FRT COMB 8-97855-008-2 01 1 0610-0701 ●
60 02.585 LAMP ASM; FRT COMB
VOLTAGE 24V<7AE> IDN 		8-98053-976-0 01 1 0702-0712 ●
60 02.585 LAMP ASM; FRT COMB
IDN 		8-98053-976-0 01 1 0702-0712 ●
60 02.585 LAMP ASM; FRT COMB
VOLTAGE 24V<7AE> IDN 		8-98053-976-0 01 1 0801- ● ●
60 02.585 LAMP ASM; FRT COMB
EXC. VOLTAGE 24V<7AE> 		8-97855-005-2 01 1 0610-0701 ●
60 02.585 LAMP ASM; FRT COMB
EXC. VOLTAGE 24V<7AE> IDN 		8-98053-977-0 01 1 0702-0806 ●
60 02.585 LAMP ASM; FRT COMB
EXC. VOLTAGE 24V<7AE> IDN 		8-98053-977-0 01 1 0807- ● ●
60 02.585 LAMP ASM; FRT COMB
EXC. VOLTAGE 24V<7AE> 		8-97855-006-2 01 1 0610-0701 ●
60 02.585 LAMP ASM; FRT COMB
EXC. VOLTAGE 24V<7AE> IDN 		8-98053-978-0 01 1 0702-0806 ●
60 02.585 LAMP ASM; FRT COMB
EXC. VOLTAGE 24V<7AE> IDN 		8-98053-978-0 01 1 0807- ● ●
67 02.590 GASKET; FRT COMB LAMP
IDN 		8-97855-121-0 02 1 0211-0712 ● ●
67 02.590 GASKET; FRT COMB LAMP
IDN 		8-97855-121-0 02 1 0801-0806 ●
67 02.590 GASKET; FRT COMB LAMP
VOLTAGE 24V<7AE> IDN 		8-97855-121-0 02 1 0801-0806 ●
67 02.590 GASKET; FRT COMB LAMP
IDN 		8-97855-121-0 02 1 0807- ● ●
68 08.991 BULB; FRT COMB LAMP
(A) 24V 30/10W IDN 		1-82194-065-0 02 1 0211-0609 ● ●
68 08.991 BULB; FRT COMB LAMP
VOLTAGE 24V<7AE> (A) 24V 30/10W IDN 		1-82194-065-0 02 1 0610-0712 ●
68 08.991 BULB; FRT COMB LAMP
(A) 24V 30/10W IDN 		1-82194-065-0 02 1 0610-0712 ●
68 08.991 BULB; FRT COMB LAMP
VOLTAGE 24V<7AE> (A) 24V 30/10W IDN 		1-82194-065-0 02 1 0801- ● ●
68 08.991 BULB; FRT COMB LAMP
(B) 24V 25W IDN 		9-82691-347-0 02 1 0211-0609 ● ●
68 08.991 BULB; FRT COMB LAMP
VOLTAGE 24V<7AE> (B) 24V 25W IDN 		9-82691-347-0 02 1 0610-0712 ●
68 08.991 BULB; FRT COMB LAMP
(B) 24V 25W IDN 		9-82691-347-0 02 1 0610-0712 ●
68 08.991 BULB; FRT COMB LAMP
VOLTAGE 24V<7AE> (B) 24V 25W IDN 		9-82691-347-0 02 1 0801- ● ●
68 08.991 BULB; FRT COMB LAMP
EXC. VOLTAGE 24V<7AE> (B) 12V 21W IDN 		8-94124-074-0 02 1 0610-0806 ●
68 08.991 BULB; FRT COMB LAMP
EXC. VOLTAGE 24V<7AE> (B) 12V 21W IDN 		8-94124-074-0 02 1 0807- ● ●
68 08.991 BULB; FRT COMB LAMP
EXC. VOLTAGE 24V<7AE> (A) 12V 27/8W IDN 		8-97094-889-0 02 1 0610-0806 ●
68 08.991 BULB; FRT COMB LAMP
EXC. VOLTAGE 24V<7AE> (A) 12V 27/8W IDN 		8-97094-889-0 02 1 0807- ● ●
70 02.587 GROMMET; SCREW,FRT COMB LAMP
IDN 		8-97030-792-0 04 1 0211- ● ●
75 02.587 SCREW; FRT COMB LAMP
08.977 M4X20 TAPPING STAINLESS IDN 		0-71190-420-0 08 1 0211-0712 ● ●
75 02.587 SCREW; FRT COMB LAMP
08.977 M4X20 TAPPING STAINLESS IDN 		0-71190-420-0 08 1 0801-0806 ●
75 02.587 SCREW; FRT COMB LAMP
VOLTAGE 24V<7AE> 08.977 M4X20 TAPPING STAINLESS IDN 		0-71190-420-0 08 1 0801-0806 ●
75 02.587 SCREW; FRT COMB LAMP
08.977 M4X20 TAPPING STAINLESS IDN 		0-71190-420-0 08 1 0807- ● ●
78 02.589 LENS ASM; FRT COMB
IDN 		8-97855-128-0 01 1 0211-0712 ● ●
78 02.589 LENS ASM; FRT COMB
IDN 		8-97855-128-0 01 1 0801-0806 ●
78 02.589 LENS ASM; FRT COMB
VOLTAGE 24V<7AE> IDN 		8-97855-128-0 01 1 0801-0806 ●
78 02.589 LENS ASM; FRT COMB
IDN 		8-97855-128-0 01 1 0807- ● ●
78 02.589 LENS ASM; FRT COMB
IDN 		8-97855-131-0 01 1 0211-0712 ● ●
78 02.589 LENS ASM; FRT COMB
IDN 		8-97855-131-0 01 1 0801-0806 ●
78 02.589 LENS ASM; FRT COMB
VOLTAGE 24V<7AE> IDN 		8-97855-131-0 01 1 0801-0806 ●
78 02.589 LENS ASM; FRT COMB
IDN 		8-97855-131-0 01 1 0807- ● ●
241 02.726 GROMMET; FRT LAMP
IDN 		8-94452-095-0 04 1 0211- ● ●
272 02.726 BRACKET; FRT COMB LAMP
IDN 		8-97853-236-2 01 1 0211- ● ●
272 02.726 BRACKET; FRT COMB LAMP
IDN 		8-97853-237-2 01 1 0211- ● ●
273 02.726 BOLT; BRKT
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0211-1210 ● ●
273 02.726 BOLT; BRKT
02.587 M6X19.5 W/LK&PL WASHER IDN 		8-97360-226-0 02 1 1211- ● ●
306 02.587 PIVOT; FRT COMB LAMP
IDN 		8-97219-053-0 04 1 0211-0712 ● ●
306 02.587 PIVOT; FRT COMB LAMP
IDN 		8-97219-053-0 04 1 0801-0806 ●
306 02.587 PIVOT; FRT COMB LAMP
VOLTAGE 24V<7AE> IDN 		8-97219-053-0 04 1 0801-0806 ●
306 02.587 PIVOT; FRT COMB LAMP
IDN 		8-97219-053-0 04 1 0807- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
