7-60 — SEAT BELT (#79010) — 26 parça

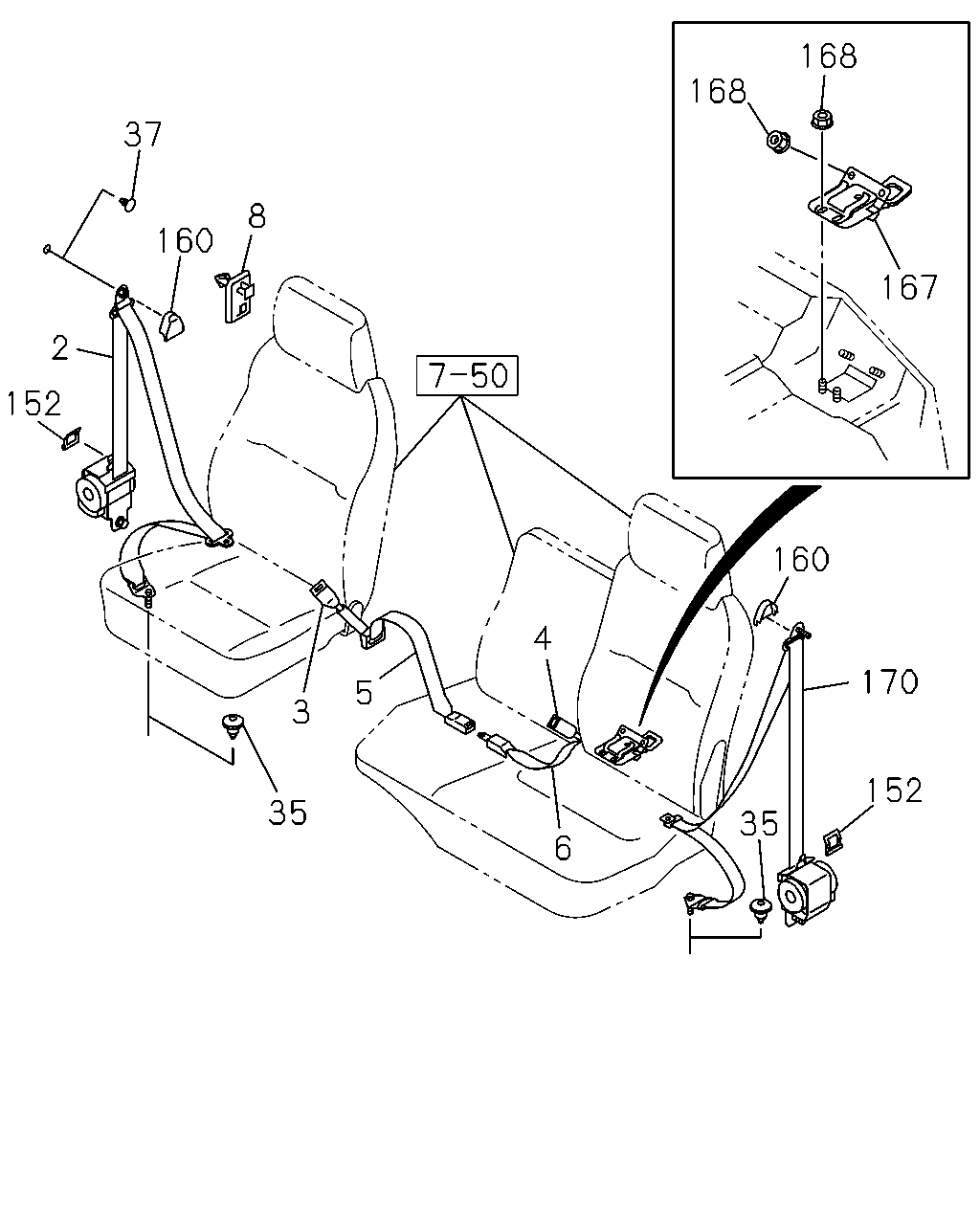

168 168 37 8 160 167 2 152 160 4 170 5 3 152 35 35 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	16.714 BELT; SEAT,TONGUE SIDE SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> DARK GRAY IDN	8-97394-511-1	01	1	0211-	●	●
2	16.714 BELT; SEAT,TONGUE SIDE SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY	8-97392-992-2	01	1	0211-	●	●
3	16.714 BELT; SEAT,BUCKLE SIDE SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> ,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY IDN	8-97394-701-0	01	1	0211-	●	●
4	16.714 BELT; PASSENGER SEAT,BUCKLE SIDE SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> ,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY	8-97326-220-0	01	1	0211-	●	●
5	16.714 BELT; CENTER SEAT,BUCKLE SIDE DARK GRAY IDN	8-97326-221-0	01	1	0211-0409	●	●
5	16.714 BELT; CENTER SEAT,BUCKLE SIDE DARK GRAY IDN	8-97401-281-0	01	1	0410-0503	●	●
5	16.714 BELT; CENTER SEAT,BUCKLE SIDE DARK GRAY	8-97401-501-0	01	1	0504-0512	●	●
5	16.714 BELT; CENTER SEAT,BUCKLE SIDE DARK GRAY	8-97406-749-0	01	1	0601-	●	●
6	16.714 BELT; CENTER SEAT,TONGUE SIDE DARK GRAY	8-97326-224-1	01	1	0211-	●	●
8	16.714 HOOK; SEAT BELT SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> IDN	8-94276-268-1	02	1	0211-	●	●
35	16.714 GROMMET; SEAT BELT ANCHOR EXC. SEAT BELT DRIVER & PASSENGER 2 POINT <AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> OD=22	9-61168-535-0	03	1	0211-	●	●
37	16.714 PLUG; SEAT BELT ANCHOR EXC. SEAT BELT DRIVER & PASSENGER 2 POINT <AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> L=18.5	8-94279-726-0	02	1	0211-0503	●	●
37	16.714 PLUG; SEAT BELT ANCHOR EXC. SEAT BELT DRIVER & PASSENGER 2 POINT <AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> L=18.5	8-94279-726-0	02	1	0505-	●	●
152	16.714 PROTECTOR SEAT BELT FRT 3 POINT W/RETRACTOR<A49> IDN	8-97287-563-0	02	1	0211-	●	●
160	16.714 COVER; THROUGH ANCHOR SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY IDN	8-97854-897-0	02	1	0211-	●	●
167	16.714 PLATE; ANCHOR IDN	8-97869-412-2	01	1	0211-	●	●
168	16.714 NUT; ANCHOR PLATE 00.854 M8 FLANGE	5-09440-005-0	04	1	0211-0712	●	●
168	16.714 NUT; ANCHOR PLATE 01.062 M8 FLANGE IDN	0-91180-108-0	04	1	0801-	●	●
170	16.714 BELT; PASSENGER SEAT,TONGUE SIDE SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> DARK GRAY IDN	8-97394-511-1	01	1	0211-	●	●
170	16.714 BELT; PASSENGER SEAT,TONGUE SIDE SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY	8-97392-992-2	01	1	0211-	●	●

177 161 166 165 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
161	16.714 REINFORCEMENT; SEAT BELT ANCHOR IDN	8-97850-462-3	01	1	0211-	●	●
165	16.714 HOOK; SEAT BELT ANCHOR IDN	8-97869-415-0	01	1	0211-	●	●
166	16.714 BOLT; SEAT BELT ANCHOR 02.559 M8X25 FLANGE IDN	0-28680-825-0	04	1	0211-0512	●	●
166	16.714 BOLT; SEAT BELT ANCHOR 06.216 M8X25 FLANGE IDN	0-28650-825-0	04	1	0601-	●	●
177	16.714 NUT 07.833 M8 W/LK WASHER IDN	8-94327-073-0	01	1	0211-0805	●	●
177	16.714 NUT 03.417 M8 W/LK WASHER IDN	8-97581-234-0	01	1	0806-	●	●
