Isuzu WW
▶
TRUCKS
▶
NKR
▶
51280 - NKR INDONESIA
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-50 - FRONT SEAT
▶
7-50 — FRONT SEAT
(#79009) — 47 parça
Tümü
A - NKB5SC
B - NKC5SF
◀
[750A] DRIVER SEAT (24 parça)

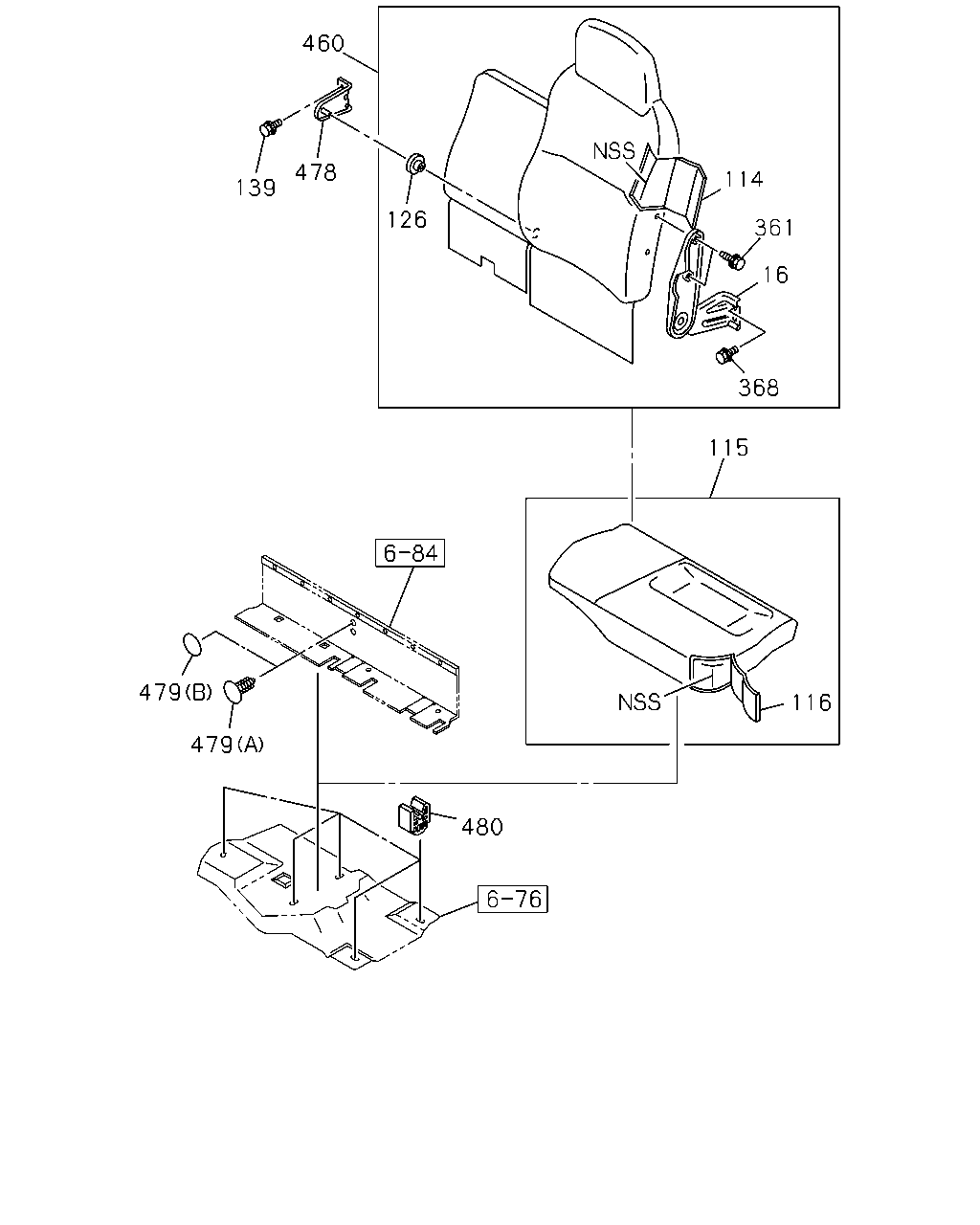

[750A] PASSENGER SEAT (23 parça)
▶
1
18
228
24
2
16
99
17
71
19
12
13
15
69
382
67
63
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> DARK GRAY
8-97299-777-4
01
1
0211-
●
●
1
16.720 BACK ASM; SEAT
EXC. SEAT CLOTH<7FL> DARK GRAY
8-97197-356-4
01
1
0211-
●
●
2
16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY
8-97299-783-2
01
1
0211-
●
●
2
16.724 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY IDN
8-97197-370-2
01
1
0211-
●
●
12
16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> DARK GRAY
8-97299-788-2
01
1
0211-
●
●
12
16.670 CUSHION; SEAT,FRT
EXC. SEAT CLOTH<7FL> DARK GRAY
8-97197-384-2
01
1
0211-
●
●
13
16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> DARK GRAY
8-97299-793-2
01
1
0211-
●
●
13
16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT CLOTH<7FL> DARK GRAY
8-97197-395-1
01
1
0211-
●
●
15
16.716 FRAME; CUSHION,FRT SEAT
8-97854-055-1
01
1
0211-
●
●
16
16.682 ADJUSTER ASM; RECLINING
DRIVER
8-97854-057-3
01
1
0211-
●
●
16
16.682 ADJUSTER ASM; RECLINING
PASSENGER BLACK W/KNOB
8-97859-273-3
01
1
0211-
●
●
17
16.682 BOLT; RECLINING
M8X20
8-97255-906-0
02
1
0211-
●
●
18
16.682 COVER; RECLINING
DARK GRAY
8-97867-020-0
01
1
0211-
●
●
19
16.686 SCREW; COVER
16.802 M5X16 TAPPING W/PL WASHER IDN
0-74310-516-0
01
1
0211-0308
●
●
19
16.686 SCREW; COVER
16.802 M5X16 TAPPING W/PL WASHER IDN
0-74310-516-0
01
1
0412-0604
●
●
19
16.686 SCREW; COVER
03.885 M5X16 TAPPING W/PL WASHER IDN
0-74360-516-0
01
1
0605-
●
●
24
16.682 KNOB; RECLINING,FRT,SEAT
DARK GRAY
8-97867-021-0
01
1
0211-
●
●
63
16.682 ADJUSTER; SEAT SLIDE
8-97854-059-3
01
1
0211-
●
●
67
16.682 BOLT; FRT SEAT TO BODY
16.320 M8X24.5 W/LK&PL WASHER IDN
8-94279-217-0
01
1
0211-
●
●
69
16.682 NUT; FRT SEAT
M8 IDN
1-09984-109-0
01
1
0211-
●
●
71
16.682 BOLT; ADJ TO SEAT
M8X20
8-97255-906-0
02
1
0211-
●
●
99
16.716 BUSHING; SEAT BACK
8-97854-087-0
01
1
0211-
●
●
228
16.714 SCREW; KNOB
11.377 M4X6
8-97042-273-0
01
1
0211-
●
●
382
16.682 WASHER; PL,DRIVER SEAT
06.514 ID=8.4 OD=22 IDN
8-94127-883-1
01
1
0211-
●
●
460
478
114
139
126
361
16
368
115
479
116
479
480
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
16
16.682 ADJUSTER ASM; RECLINING
DRIVER
8-97854-057-3
01
1
0211-
●
●
16
16.682 ADJUSTER ASM; RECLINING
PASSENGER BLACK W/KNOB
8-97859-273-3
01
1
0211-
●
●
114
16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY
8-97299-795-2
01
1
0211-
●
●
114
16.724 COVER; TRIM,PASSENGER SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY IDN
8-97197-402-3
01
1
0211-
●
●
115
16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY
8-97394-721-2
01
1
0211-0507
●
●
115
16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY
8-97400-509-3
01
1
0508-
●
●
115
16.720 CUSHION ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> DARK GRAY IDN
8-97394-722-2
01
1
0211-
●
●
116
16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
EXC. SEAT CLOTH<7FL> DARK GRAY IDN
8-97394-777-1
01
1
0211-
●
●
116
16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> DARK GRAY
8-97394-776-2
01
1
0211-0507
●
●
116
16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> DARK GRAY
8-97418-756-2
01
1
0508-0909
●
●
116
16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> DARK GRAY
8-97418-756-2
01
1
0910-
●
●
126
16.686 BUSHING; HINGE,RECLINING
8-97854-900-0
01
1
0211-
●
●
139
16.679 BOLT; PASSENGER SEAT
16.320 M8X24.5 W/LK&PL WASHER IDN
8-94279-217-0
03
1
0211-
●
●
361
16.682 BOLT; ADJ,RECLINING
M8X18
8-94279-109-1
02
1
0211-
●
●
368
16.682 BOLT; SEAT
16.320 M8X24.5 W/LK&PL WASHER IDN
8-94279-217-0
01
1
0211-
●
●
460
16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY
8-97394-715-1
01
1
0211-0404
●
●
460
16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY
8-97299-594-4
01
1
0405-
●
●
460
16.670 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> DARK GRAY
8-97394-716-1
01
1
0211-0404
●
●
460
16.670 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> DARK GRAY IDN
8-97196-580-6
01
1
0405-
●
●
478
16.716 BRACKET ASM; HINGE,PASSENGER SEA
IDN
8-97868-186-0
01
1
0211-
●
●
479
16.716 PLUG; HINGE
04.931 (A) OD=15 L=14.5 IDN
1-76378-157-0
02
1
0211-0506
●
●
479
16.716 PLUG; HINGE
16.165 (B) OD=25 BLACK
1-76798-019-0
02
1
0507-
●
●
480
16.716 CLIP; CUSHION
IDN
8-94279-977-0
05
1
0211-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
