Sayfa 7-41 - Isuzu EPC

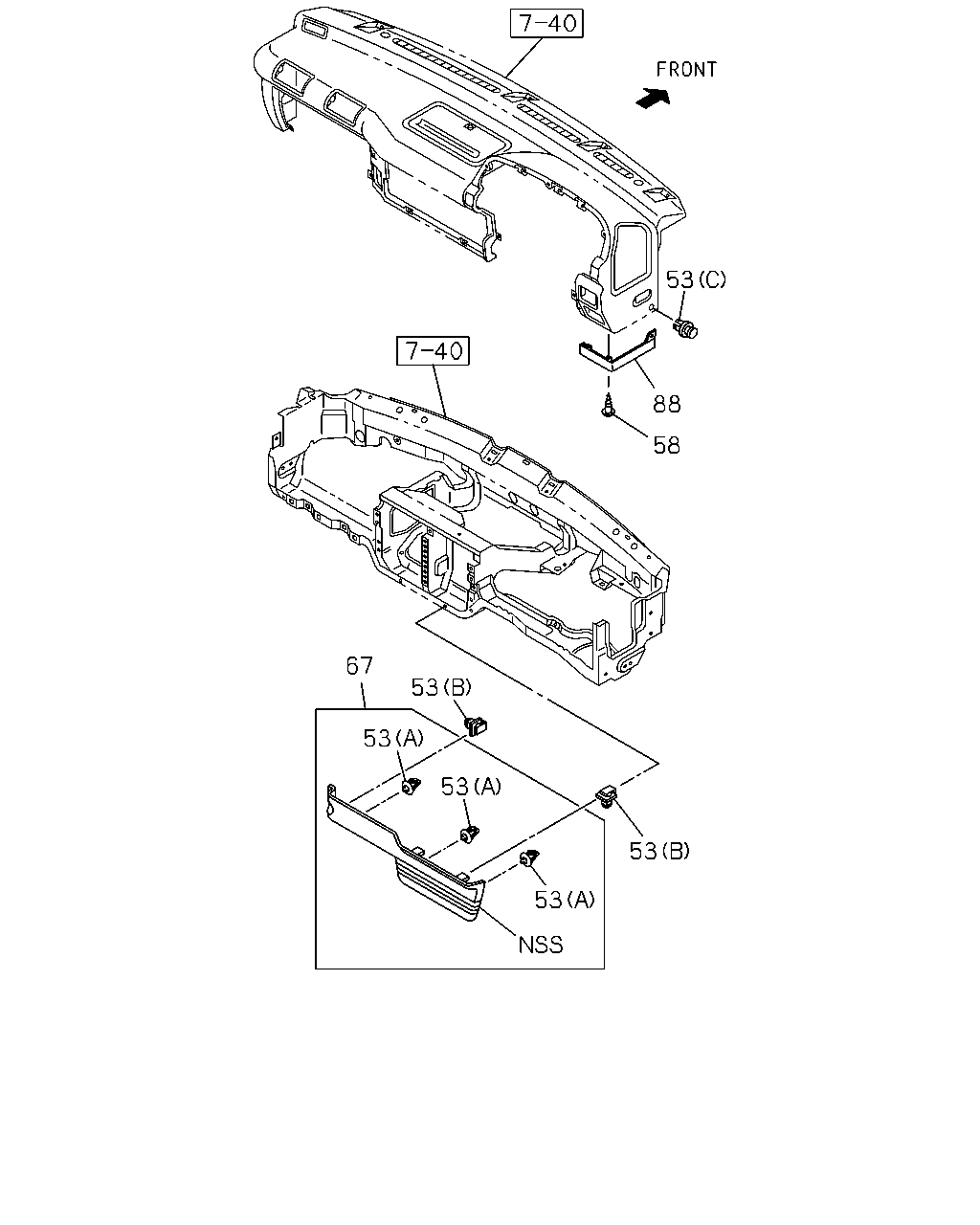

7-41 — UNDER COVER; INSTRUMENT (#79006) — 8 parça

53 88 58 67 53 53 53 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	16.085 CLIP; UNDER COVER 16.100 (A)	8-97853-169-0	03	1	0211-	●	●
53	16.085 CLIP; UNDER COVER (B) IDN	8-97853-249-5	03	1	0211-	●	●
53	16.085 CLIP; UNDER COVER 06.521 (C) DARK GRAY IDN	8-97857-542-0	01	1	0211-0603	●	●
53	16.085 CLIP; UNDER COVER 06.521 (C) DARK GRAY IDN	8-97582-246-0	01	1	0604-	●	●
58	09.264 SCREW; UNDER COVER 16.067 M5X14	8-94279-325-0	02	1	0211-0612	●	●
58	09.264 SCREW; UNDER COVER 09.655 M5X14 TAPPING W/TORQUES	8-98061-856-0	02	1	0701-	●	●
67	16.081 COVER; UNDER,INST PNL IDN	8-97856-660-4	01	1	0211-	●	●
88	16.081 COVER; UNDER,INST PNL SIDE DARK GRAY IDN	8-97859-801-2	01	1	0211-	●	●
