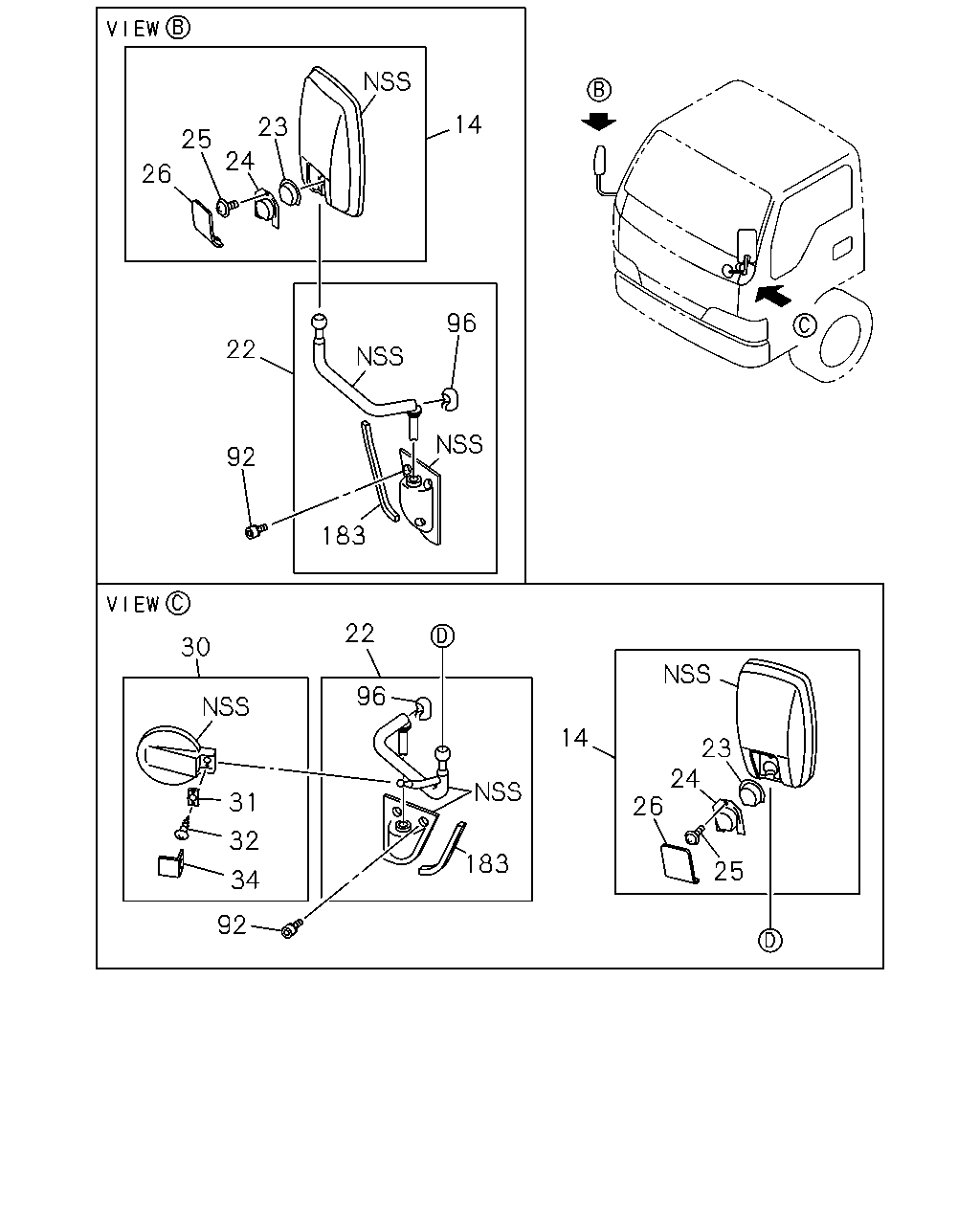

7-20 — MIRROR AND MIRROR STAY (#79003) — 70 parça

14 23 25 24 26 96 22 92 183 22 30 96 14 23 24 26 31 32 183 25 34 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	16.068 MIRROR ASM; OUTSIDE IDN	8-94262-542-3	01	1	0211-	●	●
14	16.068 MIRROR ASM; OUTSIDE IDN	8-94262-542-3	01	1	0211-	●	●
22	16.069 STAY; OUTSIDE MIRROR UNDER MIRROR<RR9>	8-97866-942-2	01	1	0211-1404	●
22	16.069 STAY; OUTSIDE MIRROR UNDER MIRROR<RR9>	8-97866-942-2	01	1	1405-	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37> UNDER MIRROR<RR9>	8-97866-942-2	01	1	1405-		●
22	16.069 STAY; OUTSIDE MIRROR	8-97868-237-2	01	1	0211-	●	●
22	16.069 STAY; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9> IDN	8-97856-739-9	01	1	0211-1404	●
22	16.069 STAY; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9> IDN	8-97856-739-9	01	1	1405-	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37> EXC. UNDER MIRROR<RR9> IDN	8-97856-739-9	01	1	1405-		●
22	16.069 STAY; OUTSIDE MIRROR UNDER MIRROR<RR9>	8-97866-944-3	01	1	0211-1404		●
22	16.069 STAY; OUTSIDE MIRROR UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF>	8-97866-944-3	01	1	1405-		●
22	16.069 STAY; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9>	8-97856-557-9	01	1	0211-1404		●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> EXC. UNDER MIRROR<RR9>	8-97856-557-9	01	1	1405-		●
23	16.069 WASHER; OUTSIDE MIRROR T=2.0 IDN	8-94262-545-0	01	1	0211-	●	●
23	16.069 WASHER; OUTSIDE MIRROR T=2.0 IDN	8-94262-545-0	01	1	0211-	●	●
24	16.069 HOLDER; OUTSIDE MIRROR T=1.6 IDN	8-94262-546-1	01	1	0211-	●	●
24	16.069 HOLDER; OUTSIDE MIRROR T=1.6 IDN	8-94262-546-1	01	1	0211-	●	●
25	16.069 SCREW; OUTSIDE MIRROR M6X30 IDN	8-94279-365-0	01	1	0211-	●	●
25	16.069 SCREW; OUTSIDE MIRROR M6X30 IDN	8-94279-365-0	01	1	0211-	●	●
26	16.069 COVER; OUTSIDE MIRROR T=2.3 IDN	8-94262-547-2	01	1	0211-	●	●
26	16.069 COVER; OUTSIDE MIRROR T=2.3 IDN	8-94262-547-2	01	1	0211-	●	●
30	16.068 MIRROR; UNDER UNDER MIRROR<RR9>	8-94262-625-2	01	1	0211-1404	●	●
30	16.068 MIRROR; UNDER UNDER MIRROR<RR9>	8-94262-625-2	01	1	1405-	●
30	16.068 MIRROR; UNDER O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> UNDER MIRROR<RR9>	8-94262-625-2	01	1	1405-		●
31	16.069 PLATE; MIRROR UNDER MIRROR<RR9>	8-94262-631-0	01	1	0211-1404	●	●
31	16.069 PLATE; MIRROR UNDER MIRROR<RR9>	8-94262-631-0	01	1	1405-	●
31	16.069 PLATE; MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> UNDER MIRROR<RR9>	8-94262-631-0	01	1	1405-		●
32	16.069 SCREW; UNDER MIRROR UNDER MIRROR<RR9> M5X18	8-94279-372-0	02	1	0211-1404	●	●
32	16.069 SCREW; UNDER MIRROR UNDER MIRROR<RR9> M5X18	8-94279-372-0	02	1	1405-	●
32	16.069 SCREW; UNDER MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> UNDER MIRROR<RR9> M5X18	8-94279-372-0	02	1	1405-		●
34	16.069 CAP; MIRROR UNDER MIRROR<RR9>	8-94262-629-0	01	1	0211-1404	●	●
34	16.069 CAP; MIRROR UNDER MIRROR<RR9>	8-94262-629-0	01	1	1405-	●
34	16.069 CAP; MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> UNDER MIRROR<RR9>	8-94262-629-0	01	1	1405-		●
92	16.069 BOLT; STAY BRKT,MIRROR M8X30 W/LK WASHER	8-94279-183-1	06	1	0211-0611	●	●
92	16.069 BOLT; STAY BRKT,MIRROR M8X30 W/LK WASHER	8-98020-347-0	06	1	0612-	●	●
96	16.069 CAP; MIRROR STAY OD=40	8-97853-206-2	01	1	0211-	●	●
96	16.069 CAP; MIRROR STAY OD=40	8-97853-206-2	01	1	0211-	●	●
183	16.069 FINISHER; MIRROR 16.588	8-97857-925-0	01	1	0211-	●	●
183	16.069 FINISHER; MIRROR 16.588	8-97857-925-0	01	1	0211-	●	●

4 162 2 159 3 158 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.068 MIRROR; ROOM TRAY ROOF HEAD<7EJ> DARK GRAY	8-97868-633-1	01	1	0211-0609	●	●
1	16.068 MIRROR; ROOM VOLTAGE 24V<7AE> TRAY ROOF HEAD<7EJ> DARK GRAY	8-97868-633-1	01	1	0610-0712	●
1	16.068 MIRROR; ROOM TRAY ROOF HEAD<7EJ> DARK GRAY	8-97868-633-1	01	1	0610-0712		●
1	16.068 MIRROR; ROOM VOLTAGE 24V<7AE> TRAY ROOF HEAD<7EJ> DARK GRAY	8-97868-633-1	01	1	0801-	●	●
1	16.068 MIRROR; ROOM EXC. TRAY ROOF HEAD<7EJ> DARK GRAY	8-97868-351-2	01	1	0211-0609	●	●
1	16.068 MIRROR; ROOM VOLTAGE 24V<7AE> EXC. TRAY ROOF HEAD<7EJ> DARK GRAY	8-97868-351-2	01	1	0610-0712	●
1	16.068 MIRROR; ROOM EXC. TRAY ROOF HEAD<7EJ> DARK GRAY	8-97868-351-2	01	1	0610-0712		●
1	16.068 MIRROR; ROOM VOLTAGE 24V<7AE> EXC. TRAY ROOF HEAD<7EJ> DARK GRAY	8-97868-351-2	01	1	0801-	●	●
1	16.068 MIRROR; ROOM TRAY ROOF HEAD<7EJ> EXC. VOLTAGE 24V<7AE> DARK GRAY	8-97868-663-1	01	1	0610-0712	●
1	16.068 MIRROR; ROOM TRAY ROOF HEAD<7EJ> EXC. VOLTAGE 24V<7AE> DARK GRAY	8-97868-663-1	01	1	0801-	●	●
1	16.068 MIRROR; ROOM EXC. VOLTAGE 24V<7AE>,TRAY ROOF HEAD<7EJ> DARK GRAY IDN	8-97868-348-2	01	1	0610-0712	●
1	16.068 MIRROR; ROOM EXC. VOLTAGE 24V<7AE>,TRAY ROOF HEAD<7EJ> DARK GRAY IDN	8-97868-348-2	01	1	0801-	●	●
2	16.069 SCREW; MIRROR TO BODY 03.671 M5X20	5-09981-059-0	02	1	0211-0405	●	●
2	16.069 SCREW; MIRROR TO BODY TRAY ROOF HEAD<7EJ> 03.671 M5X20	5-09981-059-0	02	1	0406-0612	●	●
2	16.069 SCREW; MIRROR TO BODY TRAY ROOF HEAD<7EJ> 09.647 M5X20 TAPPING HEXALOBULAR	0-72180-520-0	02	1	0701-0702	●	●
2	16.069 SCREW; MIRROR TO BODY TRAY ROOF HEAD<7EJ> 03.671 M5X20	5-09981-059-0	02	1	0703-	●	●
2	16.069 SCREW; MIRROR TO BODY EXC. TRAY ROOF HEAD<7EJ> 16.263 M5X16 IDN	8-94279-341-0	02	1	0406-0612	●	●
2	16.069 SCREW; MIRROR TO BODY EXC. TRAY ROOF HEAD<7EJ> M5X16 W/TORQUES	8-98061-741-0	02	1	0701-0702	●	●
2	16.069 SCREW; MIRROR TO BODY EXC. TRAY ROOF HEAD<7EJ> 16.263 M5X16 IDN	8-94279-341-0	02	1	0703-	●	●
3	16.069 STOPPER; RR VIEW MIRROR WINDSHIELD WEATHERSTRIP TYPE<7EL> L=31 IDN	8-97859-098-2	01	1	0211-	●	●
3	16.069 STOPPER; RR VIEW MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> L=22	8-97857-352-1	01	1	0211-	●	●
4	16.069 GROMMET; SCREW,ROOM MIRROR 16.588 IDN	8-94279-039-0	01	1	0211-0405	●	●
4	16.069 GROMMET; SCREW,ROOM MIRROR TRAY ROOF HEAD<7EJ> 16.588 IDN	8-94279-039-0	01	1	0406-	●	●
158	16.495 LENS; ROOM LAMP 16.068	5-73117-108-1	01	1	0211-	●	●
159	08.991 BULB; ROOM LAMP 24V 10W	5-82194-030-0	01	1	0211-0609	●	●
159	08.991 BULB; ROOM LAMP VOLTAGE 24V<7AE> 24V 10W	5-82194-030-0	01	1	0610-0712	●
159	08.991 BULB; ROOM LAMP 24V 10W	5-82194-030-0	01	1	0610-0712		●
159	08.991 BULB; ROOM LAMP VOLTAGE 24V<7AE> 24V 10W	5-82194-030-0	01	1	0801-	●	●
159	08.991 BULB; ROOM LAMP EXC. VOLTAGE 24V<7AE> 12V 10W IDN	8-97128-771-0	01	1	0610-0712	●
159	08.991 BULB; ROOM LAMP EXC. VOLTAGE 24V<7AE> 12V 10W IDN	8-97128-771-0	01	1	0801-	●	●
162	16.069 SEAL; ROOM LAMP TRAY ROOF HEAD<7EJ>	8-97856-532-0	01	1	0211-	●	●
