◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51280 - NKR INDONESIA ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#79002) — 49 parça
çizim 132771
35 35 96 9 5 5
BalonParca AdiParca NoAdetTipApplied Date A B
5 05.880 LABEL; TIRE AIR PRESSURE
4HF1-S ENG(RLS) FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25(22H),FR T 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15- 25(25H) CAUTION SPANISH<YN1> (A) 		8-94400-943-0 01 1 0211-0507 ●
5 05.880 LABEL; TIRE AIR PRESSURE
4HF1-N ENG(RJZ) FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25(22H),FR T 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15- 25(25H) CAUTION SPANISH<YN1> (A) 		8-94400-943-0 01 1 0508- ●
5 05.880 LABEL; TIRE AIR PRESSURE
4HF1-S ENG(RLS) FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25(22H),FR T 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15- 25(25H) EXC. CAUTION SPANISH<YN1> (B) IDN 		8-94178-979-0 01 1 0211-0507 ●
5 05.880 LABEL; TIRE AIR PRESSURE
4HF1-N ENG(RJZ) FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25(22H),FR T 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15- 25(25H) EXC. CAUTION SPANISH<YN1> (B) IDN 		8-94178-979-0 01 1 0508- ●
5 05.880 LABEL; TIRE AIR PRESSURE
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) CAUTION SPANISH<YN1> (A) 		8-98096-198-3 01 1 1004- ●
5 05.880 LABEL; TIRE AIR PRESSURE
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) EXC. CAUTION SPANISH<YN1> (A) 		8-98096-197-3 01 1 1004- ●
9 08.808 PLATE; NAME,SPD RANGE
4HG1 ENG(RJH),4HF1-S ENG(RLS) M/T MYY5T(RSM) CAUTION SPANISH<YN1> 		8-94158-942-0 01 1 0211-0507 ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) M/T MYY5T(RSM) CAUTION SPANISH<YN1> 		8-94158-942-0 01 1 0508-0609 ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) M/T MYY5T(RSM) CAUTION SPANISH<YN1> 		8-94158-942-0 01 1 0610-1206 ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) M/T MYY5T(RSM) CAUTION SPANISH<YN1> EXC. TACHOMETER<U16> 		8-94158-942-0 01 1 1207- ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HG1 ENG(RJH),4HF1-S ENG(RLS) M/T MYY5T(RSM) EXC. CAUTION SPANISH<YN1> IDN 		8-94158-940-0 01 1 0211-0507 ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) M/T MYY5T(RSM) EXC. CAUTION SPANISH<YN1> IDN 		8-94158-940-0 01 1 0508-0609 ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) M/T MYY5T(RSM) EXC. CAUTION SPANISH<YN1> IDN 		8-94158-940-0 01 1 0610-1206 ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) M/T MYY5T(RSM) EXC. TACHOMETER<U16>,CAUTION SPANISH<YN1> IDN 		8-94158-940-0 01 1 1207- ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JB1-TC ENG(RDT) CAUTION SPANISH<YN1> 		8-94158-938-0 01 1 0610-0712 ●
9 08.808 PLATE; NAME,SPD RANGE
4JB1-TC ENG(RDT) CAUTION SPANISH<YN1> 		8-94158-938-0 01 1 0801-1206 ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JB1-TC ENG(RDT) CAUTION SPANISH<YN1> EXC. TACHOMETER<U16> 		8-94158-938-0 01 1 1207- ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JB1-TC ENG(RDT) EXC. CAUTION SPANISH<YN1> 		8-94158-936-0 01 1 0610-0712 ●
9 08.808 PLATE; NAME,SPD RANGE
4JB1-TC ENG(RDT) EXC. CAUTION SPANISH<YN1> 		8-94158-936-0 01 1 0801-1206 ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JB1-TC ENG(RDT) EXC. TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-936-0 01 1 1207- ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (B) 		5-85881-328-1 01 1 0610- ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> (A) 		8-97857-419-1 01 1 0610-1005 ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> (A) 		8-98070-512-0 01 1 1006- ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (A) 		8-97856-228-0 01 1 0610-1005 ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (A) IDN 		8-98067-809-0 01 1 1006- ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JB1-TC ENG(RDT) 		8-97066-479-1 01 1 0610-0712 ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JB1-TC ENG(RDT) 		8-97066-479-1 01 1 0801- ● ●

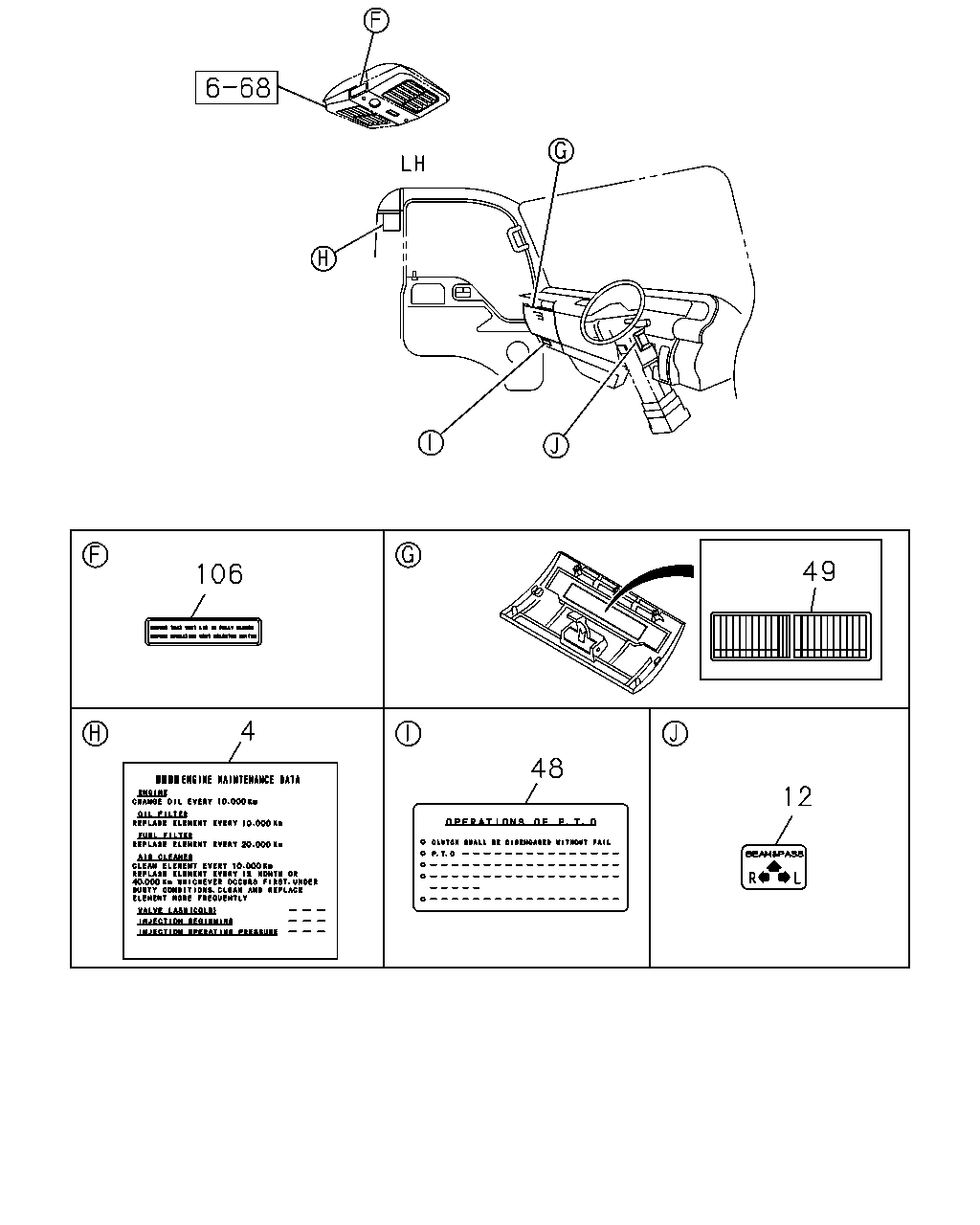

çizim 133236
49 106 4 48 12
BalonParca AdiParca NoAdetTipApplied Date A B
4 00.004 LABEL; ENG MAINTENANCE
4HF1-S ENG(RLS) CAUTION SPANISH<YN1> EXC. ENGINE POWER N-SPEC(7QV) 		8-97189-399-0 01 1 0211-0507 ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1-S ENG(RLS) EXC. CAUTION SPANISH<YN1>,ENGINE POWER N-SPEC(7QV) 		8-97189-398-0 01 1 0211-0507 ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1-S ENG(RLS) CAUTION SPANISH<YN1> 		8-97215-749-0 01 1 0211-0507 ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1-S ENG(RLS) CAUTION SPANISH<YN1> ENGINE POWER N-SPEC(7QV) 		8-97215-749-0 01 1 0211-0507 ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1-N ENG(RJZ) CAUTION SPANISH<YN1> 		8-97215-749-0 01 1 0508- ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1-S ENG(RLS) EXC. CAUTION SPANISH<YN1> IDN 		8-97215-748-0 01 1 0211-0507 ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. CAUTION SPANISH<YN1> IDN 		8-97215-748-0 01 1 0211-0507 ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1-N ENG(RJZ) EXC. CAUTION SPANISH<YN1> IDN 		8-97215-748-0 01 1 0508- ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HG1 ENG(RJH) EXC. CAUTION SPANISH<YN1> IDN 		8-97189-401-1 01 1 0211- ●
4 00.004 LABEL; ENG MAINTENANCE
4HG1-T ENG(RDP) IDN 		8-97187-424-0 01 1 0610- ●
4 00.004 LABEL; ENG MAINTENANCE
4JB1-TC ENG(RDT) EXC. CAUTION SPANISH<YN1> IDN 		8-97205-917-0 01 1 0610-0712 ●
4 00.004 LABEL; ENG MAINTENANCE
4JB1-TC ENG(RDT) EXC. CAUTION SPANISH<YN1> IDN 		8-97205-917-0 01 1 0801- ● ●
12 02.459 LABEL; TURN
IDN 		8-94273-445-0 01 1 0211- ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> 		8-94313-054-0 01 1 0211- ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) EXC. CAUTION SPANISH<YN1> 		8-94469-277-0 01 1 0211- ● ●
49 08.808 PLATE; CAUTION,FUSE BOX
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97182-191-0 01 1 0211-0507 ● ●
49 08.808 PLATE; CAUTION,FUSE BOX
4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN 		8-97377-715-0 01 1 0508-0609 ● ●
49 08.808 PLATE; CAUTION,FUSE BOX
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN 		8-97377-715-0 01 1 0610- ● ●
49 08.808 PLATE; CAUTION,FUSE BOX
4JB1-TC ENG(RDT) 		8-97381-167-0 01 1 0610-0712 ●
49 08.808 PLATE; CAUTION,FUSE BOX
4JB1-TC ENG(RDT) 		8-97381-167-0 01 1 0801- ● ●
106 08.808 PLATE; CAUTION,ROOF VENT
ROOF VENTILATOR<C55> CAUTION SPANISH<YN1> 		8-97580-590-0 01 1 0211- ● ●
106 08.808 PLATE; CAUTION,ROOF VENT
ROOF VENTILATOR<C55> EXC. CAUTION SPANISH<YN1> 		8-97580-589-0 01 1 0211- ● ●
