Isuzu WW
▶
TRUCKS
▶
NKR
▶
51280 - NKR INDONESIA
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-90 - REAR BUMPER
▶

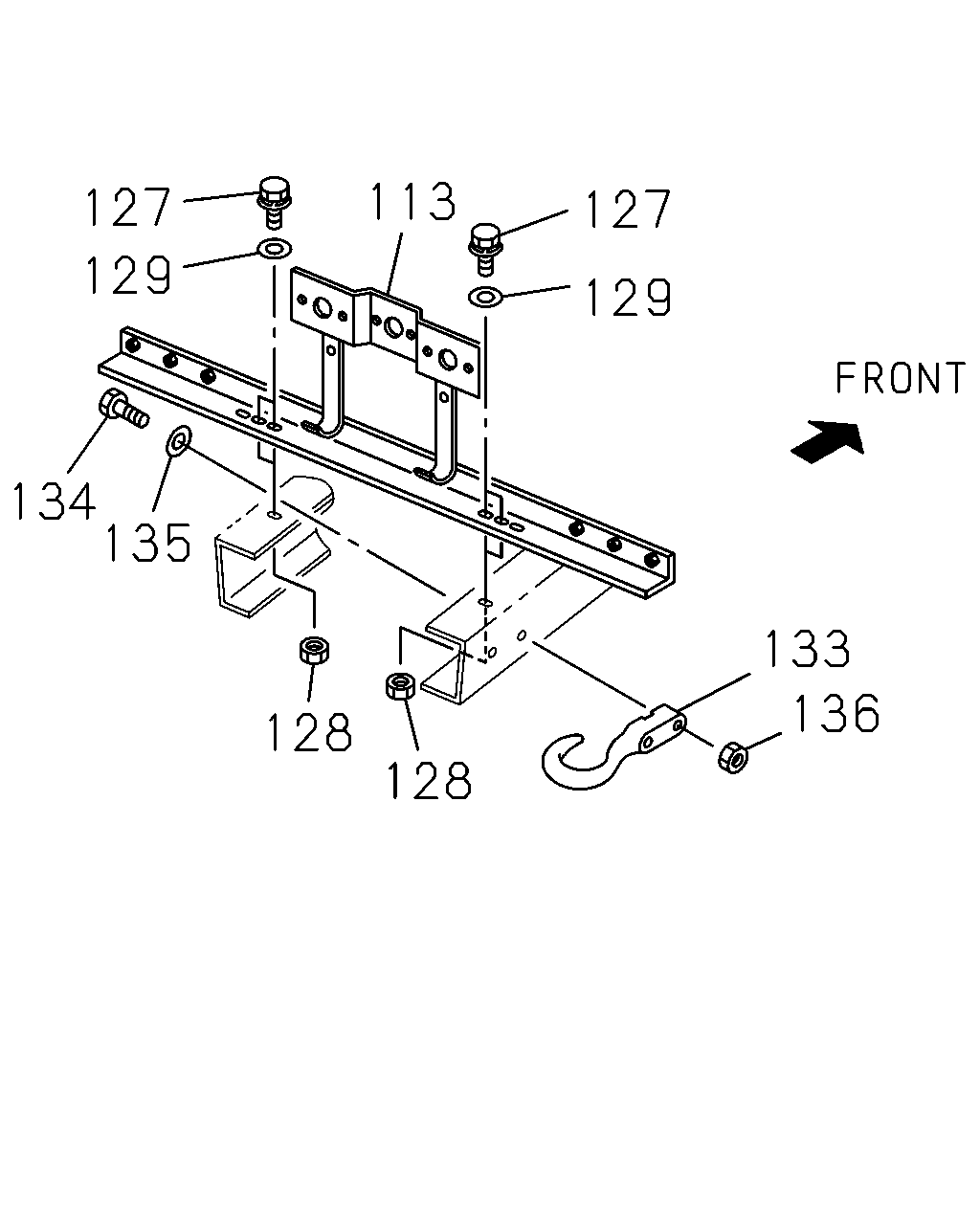

6-90 — REAR BUMPER
(#79000) — 22 parça
Tümü
A - NKB5SC
B - NKC5SF
113
127
127
129
129
134
135
133
136
128
128
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
113
07.800 BRACKET; LICENSE PLATE
02.662 IDN
8-97096-644-3
01
1
0211-0806
●
●
113
07.800 BRACKET; LICENSE PLATE
IDN
8-98029-390-3
01
1
0807-
●
●
127
02.662 BOLT; CROSS PLATE
03.483 M8X40 W/LK&PL WASHER
0-50140-840-0
02
1
0211-0403
●
●
127
02.662 BOLT; CROSS PLATE
03.704 M8X40 FLANGE
0-28680-840-0
02
1
0404-0512
●
●
127
02.662 BOLT; CROSS PLATE
00.685 M8X40 FLANGE
0-28650-840-0
02
1
0601-
●
●
128
02.662 NUT; CROSS PLATE
02.559 M8
9-09110-408-0
02
1
0211-0512
●
●
128
02.662 NUT; CROSS PLATE
02.334 M8 IDN
0-91110-508-0
02
1
0601-0709
●
●
128
02.662 NUT; CROSS PLATE
01.062 M8 FLANGE IDN
0-91180-108-0
02
1
0710-
●
●
129
03.162 WASHER; PL,CROSS PLATE
03.706 ID=8.4 OD=26 IDN
0-91614-808-0
02
1
0809-
●
133
07.112 HOOK
07.330 IDN
8-94183-262-0
01
1
0211-
●
133
07.112 HOOK
07.068 IDN
8-94249-270-2
01
1
0211-
●
134
07.068 BOLT; HOOK
00.004 M10X45 W/LK WASHER
0-50041-045-0
02
1
0211-0909
●
134
07.068 BOLT; HOOK
M10X45 W/LK WASHER
0-50541-045-0
02
1
0910-
●
134
07.068 BOLT; HOOK
07.039 M14X50
0-10806-450-0
02
1
0211-0512
●
134
07.068 BOLT; HOOK
07.039 M14X50
0-10856-450-0
02
1
0601-
●
135
07.068 WASHER; LK,HOOK
05.422 ID=14.2
9-09150-814-0
02
1
0211-0603
●
135
07.068 WASHER; LK,HOOK
06.174 ID=14.2
0-91510-814-0
02
1
0604-0610
●
136
07.068 NUT; HOOK
00.002 M10
9-09110-510-0
02
1
0211-0512
●
136
07.068 NUT; HOOK
00.833 M10
0-91110-510-0
02
1
0601-
●
136
07.068 NUT; HOOK
07.529 M14 IDN
9-99110-514-0
02
1
0211-0512
●
136
07.068 NUT; HOOK
07.833 M14
0-91110-514-0
02
1
0601-0610
●
136
07.068 NUT; HOOK
00.429 M14 FLANGE
0-91180-214-0
02
1
0611-
●
