◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10808 - FRR-G/FSR/FTR TAIWAN ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#7900) — 19 parça

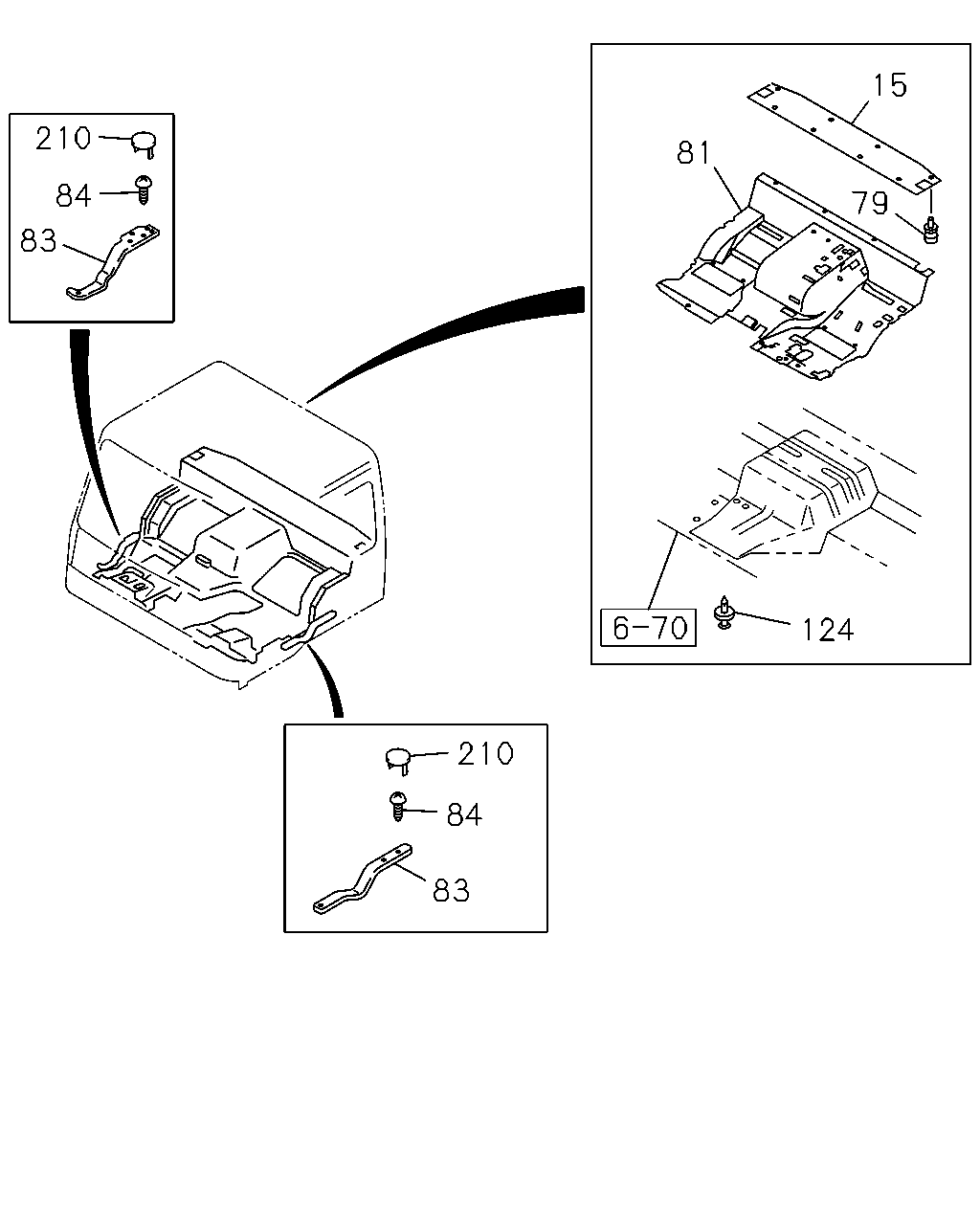

çizim 99417
15 210 81 79 84 83 124 210 84 83
BalonParca AdiParca NoAdetTipApplied Date A B C
15 MAT; FLOOR REAR
MATTRESS SLEEPER CAB<E40> LOW ROOF<6XQ> 		1-73238-945-2 01 1 9905-9911 ●
15 MAT; FLOOR REAR
MATTRESS SLEEPER CAB<E40> LOW ROOF<6XQ> 		1-73236-245-0 01 1 9912-0202 ●
15 MAT; FLOOR REAR
MATTRESS SLEEPER CAB<E40> LOW ROOF<6XQ> 		1-73236-522-1 01 1 0203- ●
79 HOOK; MALE
BLACK 		8-94279-089-0 08 1 9905-0301 ● ●
79 HOOK; MALE
BLACK 		8-94279-089-0 08 1 0302- ● ● ●
81 MAT; FLOOR,CENTER 1-73236-502-2 01 1 0302-0302 ●
81 MAT; FLOOR,CENTER 1-73236-237-5 01 1 9905-0202 ● ●
81 MAT; FLOOR,CENTER 1-73236-485-1 01 1 0203-0302 ● ●
81 MAT; FLOOR,CENTER 1-73236-485-2 01 1 0303- ● ● ●
83 PLATE; KICKING,FLOOR MAT 1-76798-046-0 01 1 9905-0301 ● ●
83 PLATE; KICKING,FLOOR MAT 1-76798-046-0 01 1 0302- ● ● ●
83 PLATE; KICKING,FLOOR MAT 1-76798-045-0 01 1 9905-0301 ● ●
83 PLATE; KICKING,FLOOR MAT 1-76798-045-0 01 1 0302- ● ● ●
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 9905-0301 ● ●
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 0302- ● ● ●
124 FASTENER 1-09470-007-0 04 1 9905-0301 ● ●
124 FASTENER 1-09470-007-0 04 1 0302- ● ● ●
210 COVER; KICKING PLATE 1-76337-461-0 09 1 9905-0301 ● ●
210 COVER; KICKING PLATE 1-76337-461-0 09 1 0302- ● ● ●
