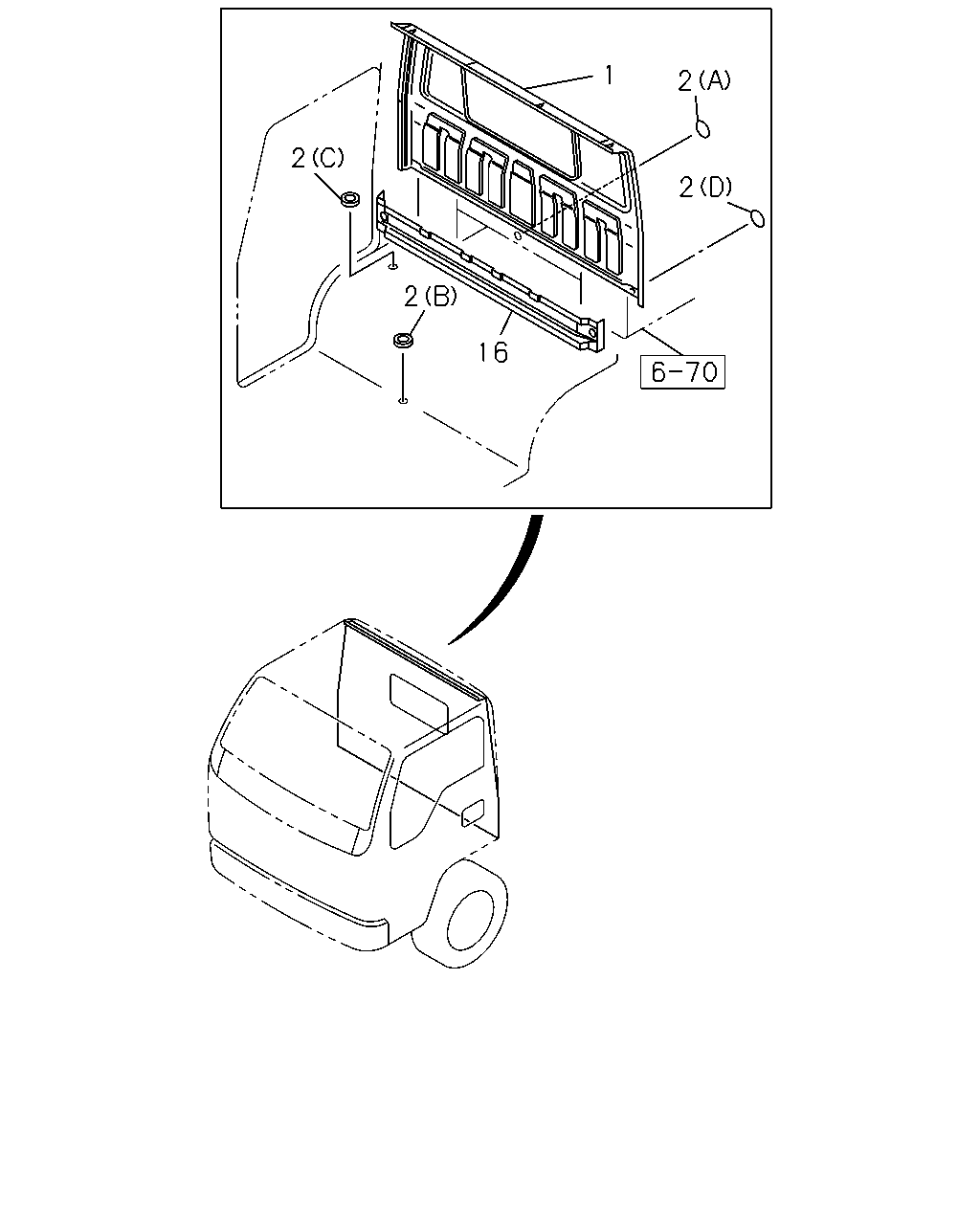

6-80 — BACK PANEL (#78997) — 17 parça

1 2 2 2 2 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.587 PANEL; BACK OUTER	8-97851-352-2	02	1	0211-0609	●	●
1	16.587 PANEL; BACK OUTER 4JB1-TC ENG(RDT)	8-97851-352-2	01	1	0610-0712	●
1	16.587 PANEL; BACK OUTER 4JB1-TC ENG(RDT)	8-97851-352-2	01	1	0801-1404	●	●
1	16.587 PANEL; BACK OUTER 4JB1-TC ENG(RDT)	8-97851-352-2	01	1	1405-	●	●
1	16.587 PANEL; BACK OUTER 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B)	8-97851-352-2	01	1	1405-		●
1	16.587 PANEL; BACK OUTER 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-97851-352-2	02	1	0610-1404	●	●
1	16.587 PANEL; BACK OUTER 4HF1-N ENG(RJZ)	8-97851-352-2	02	1	1405-	●
1	16.587 PANEL; BACK OUTER 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) EXC. MINI BUS CHASSIS(V4B)	8-97851-352-2	02	1	1405-		●
1	16.587 PANEL; BACK OUTER 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW)	8-97851-352-2	02	1	1405-		●
1	16.587 PANEL; BACK OUTER 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-97851-352-2	02	1	1405-		●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 16.165 (A) OD=25 BLACK	1-76798-019-0	04	1	0211-	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 02.580 (D) OD=36 T=0.05 BLACK IDN	5-76777-035-0	02	1	0211-0710	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 16.545 (D) OD=32 BLACK	8-98031-126-0	02	1	0711-	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 08.155 (B) OD=28.5 IDN	8-94279-711-0	02	1	0211-	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 00.785 (C) OD=16.2 IDN	8-94492-493-0	02	1	0211-0512	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 16.547 (C) OD=15.0 IDN	8-94279-040-0	02	1	0601-	●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL IDN	8-97867-215-0	01	1	0211-	●	●
