◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51280 - NKR INDONESIA ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#78995) — 53 parça

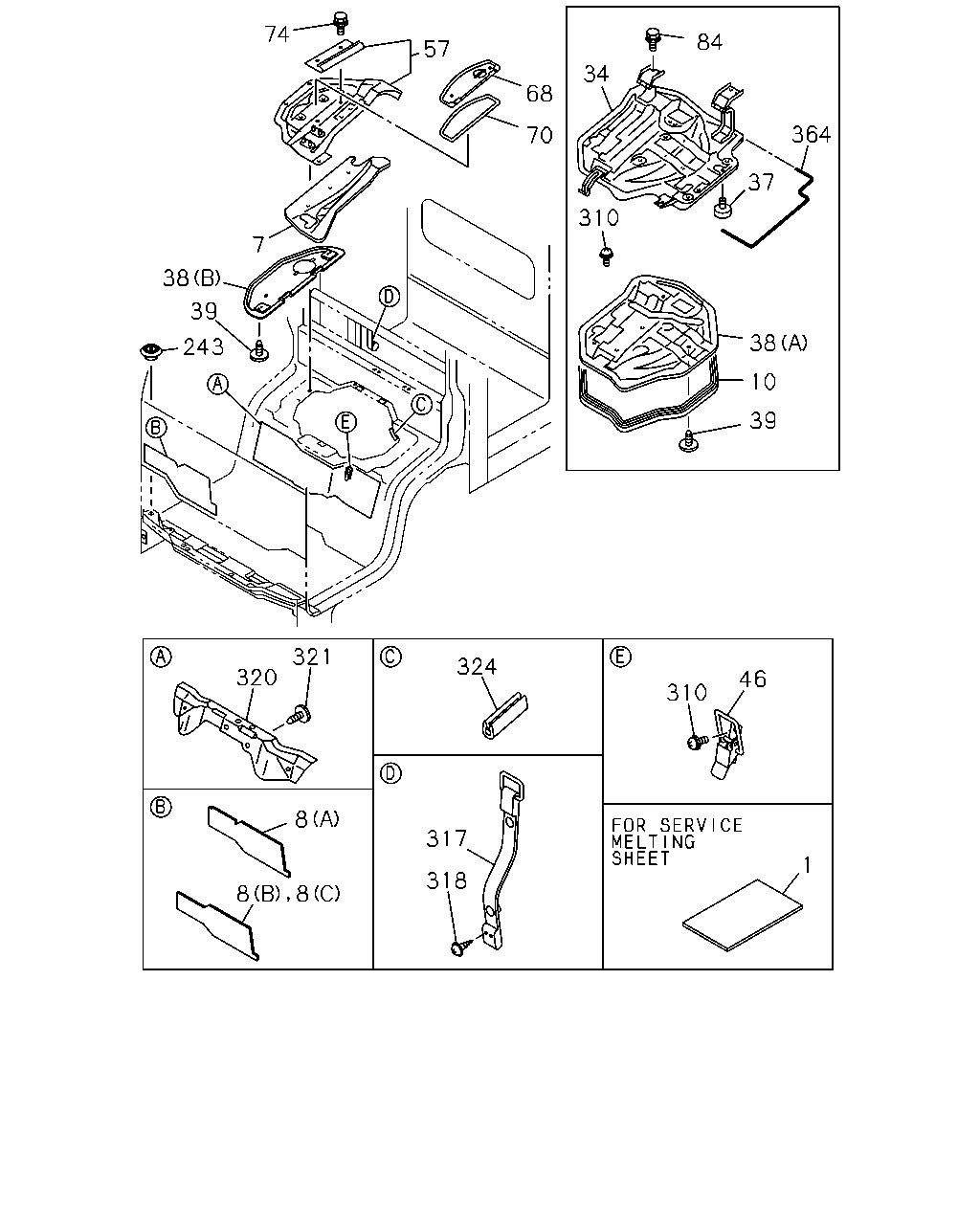

çizim 132179
74 84 57 34 68 364 70 37 310 7 38 39 38 243 10 39 321 324 320 46 310 8 317 1 318 8 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.850 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY 		8-94262-093-0 AR 1 0211- ● ●
7 16.545 INSULATOR; SUPPORT COVER
IDN 		8-97853-544-3 01 1 0211-0609 ● ●
7 16.545 INSULATOR; SUPPORT COVER
EXC. MANUAL TILT CAB<RWZ> IDN 		8-97853-544-3 01 1 0610- ● ●
7 16.545 INSULATOR; SUPPORT COVER
MANUAL TILT CAB<RWZ> 		8-97853-543-3 01 1 0610- ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(A) IDN 		8-97853-603-2 01 1 0211-0506 ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(B) IDN 		8-97581-658-3 01 1 0507-0606 ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(C) IDN 		8-98019-713-2 02 1 0607- ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(A) IDN 		8-97853-604-2 01 1 0211-0506 ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(B) IDN 		8-97581-659-3 01 1 0507-0606 ● ●
10 16.549 SEAL; ENG COVER
IDN 		8-97853-010-4 01 1 0211- ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
IDN 		8-97850-673-1 01 1 0211- ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
16.155 OD=30 T=10 IDN 		5-74917-001-2 02 1 0211- ● ●
38 16.549 INSULATOR; ENG COVER
(B) IDN 		8-97856-803-0 01 1 0211-0609 ● ●
38 16.549 INSULATOR; ENG COVER
EXC. MANUAL TILT CAB<RWZ> (B) IDN 		8-97856-803-0 01 1 0610- ● ●
38 16.549 INSULATOR; ENG COVER
(A) IDN 		8-97859-917-0 01 1 0211- ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 IDN 		8-94279-952-0 05 1 0211-0609 ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 IDN 		8-94279-952-0 05 1 0211-0609 ● ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> OD=30 IDN 		8-94279-952-0 05 1 0610- ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 IDN 		8-94279-952-0 05 1 0610- ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 IDN 		8-94279-952-0 02 1 0211-0609 ● ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> OD=30 IDN 		8-94279-952-0 02 1 0610- ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> OD=30 IDN 		8-94279-952-0 07 1 0610- ● ●
46 16.549 HOOK ASM; ENG COVER
IDN 		8-97853-632-2 02 1 0211- ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
IDN 		8-97866-688-1 01 1 0211-0609 ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> IDN 		8-97866-688-1 01 1 0610- ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
MANUAL TILT CAB<RWZ> 		8-97866-687-1 01 1 0610- ● ●
68 16.549 COVER ASM; SUB,ENG COVER
IDN 		8-97853-712-3 01 1 0211-0312 ● ●
68 16.549 COVER ASM; SUB,ENG COVER
IDN 		8-97583-489-0 01 1 0401-0608 ● ●
68 16.549 COVER ASM; SUB,ENG COVER
IDN 		8-98040-141-0 01 1 0609-0609 ● ●
68 16.549 COVER ASM; SUB,ENG COVER
EXC. MANUAL TILT CAB<RWZ> IDN 		8-98040-141-0 01 1 0610- ● ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR
IDN 		8-97853-050-1 01 1 0211-0609 ● ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> IDN 		8-97853-050-1 01 1 0610- ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0211-0512 ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
01.531 M8X20 FLANGE IDN 		0-28650-820-0 04 1 0601- ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.559 M8X25 FLANGE IDN 		0-28680-825-0 01 1 0211-0512 ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
06.216 M8X25 FLANGE IDN 		0-28650-825-0 01 1 0601- ● ●
84 16.549 BOLT; ENG COVER HINGE
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0211-0512 ● ●
84 16.549 BOLT; ENG COVER HINGE
01.531 M8X20 FLANGE IDN 		0-28650-820-0 04 1 0601- ● ●
243 16.547 GROMMET; STOPPER,CHECK HOLE LID
OD=12.1 IDN 		8-97898-423-0 01 1 0211- ● ●
310 16.549 SCREW; ENG COVER HOOK
16.320 M6X20 W/LK&PL WASHER IDN 		8-94279-403-0 04 1 0211-0612 ● ●
310 16.549 SCREW; ENG COVER HOOK
16.570 M6X16 IDN 		0-38050-616-0 04 1 0701-0810 ● ●
310 16.549 SCREW; ENG COVER HOOK
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 0811- ● ●
317 16.549 BAND; ENGINE COVER
L=535 BLACK IDN 		8-97867-201-1 01 1 0211- ● ●
318 16.549 SCREW; BAND
16.802 M5X16 TAPPING W/PL WASHER IDN 		0-74310-516-0 02 1 0211-0604 ● ●
318 16.549 SCREW; BAND
03.885 M5X16 TAPPING W/PL WASHER IDN 		0-74360-516-0 02 1 0605-0612 ● ●
318 16.549 SCREW; BAND
16.570 M5X16 TAPPING HEXALOBULAR IDN 		0-72380-516-0 02 1 0701- ● ●
320 16.549 INSULATOR; FLOOR,FRT
IDN 		8-97856-277-6 01 1 0211- ● ●
321 16.549 CLIP; INSULATOR,FLOOR
OD=30 IDN 		8-94279-952-0 04 1 0211-0304 ● ●
321 16.549 CLIP; INSULATOR,FLOOR
OD=30 IDN 		8-94279-952-0 03 1 0305- ● ●
324 16.545 FINISHER; FLOOR PANEL
L=140 IDN 		8-97892-742-0 01 1 0211- ● ●
364 16.545 FINISHER; ENG COVER SIDE
L=1100 IDN 		8-97892-744-0 01 1 0211- ● ●
çizim 132517
371 248
BalonParca AdiParca NoAdetTipApplied Date A B
248 16.850 SEAL; EXT,FRT & RR
02.580 OD=36 T=0.05 BLACK IDN 		5-76777-035-0 04 1 0307- ● ●
371 16.549 GROMMET; LOCATION HOLE
16.547 14.5X14.5 BLACK IDN 		8-94279-714-0 02 1 0304- ● ●
