Sayfa 6-75 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51280 - NKR INDONESIA ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶

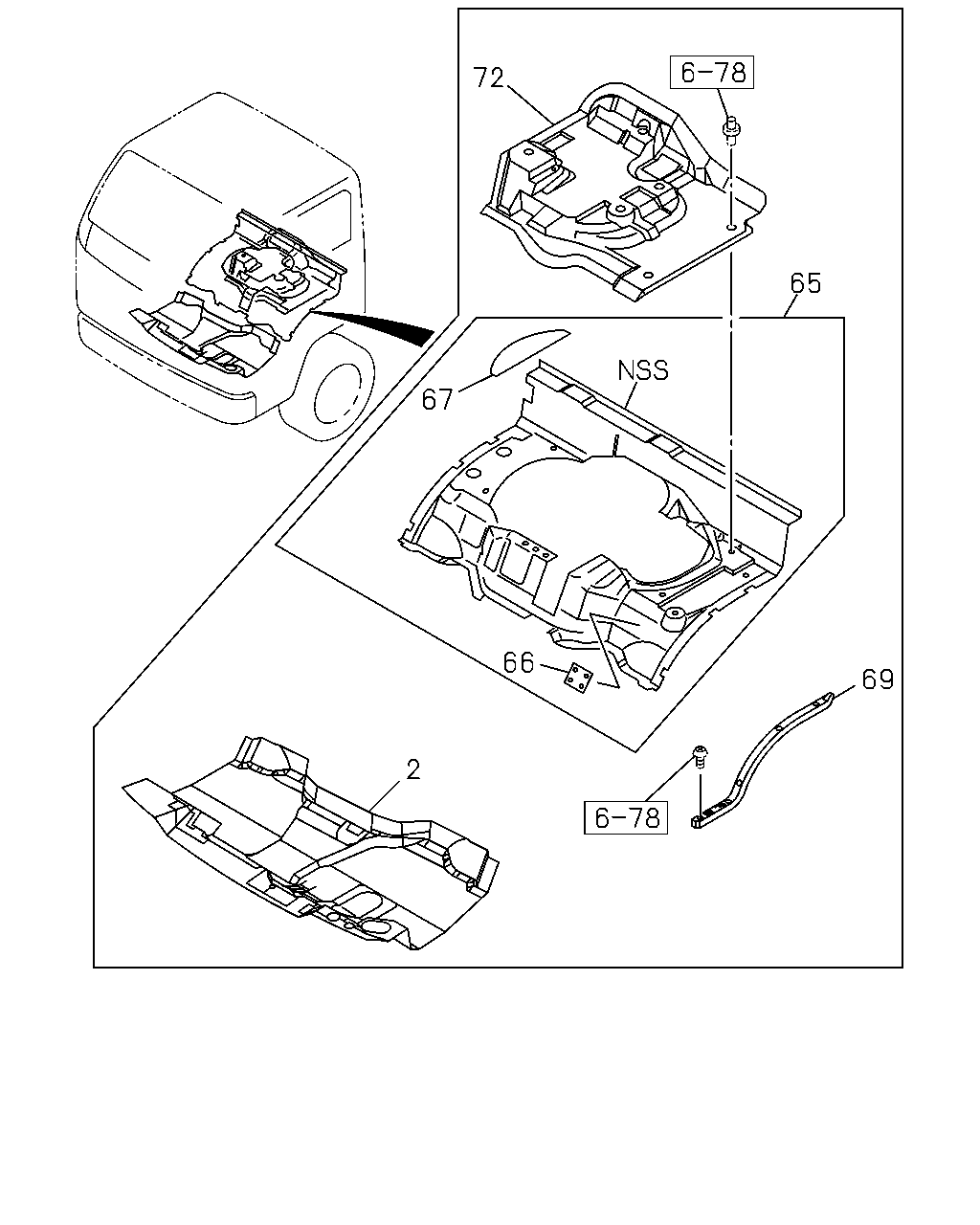

6-75 — MAT AND CARPET (#78994) — 11 parça

72 65 67 66 69 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97996-652-4	01	1	0211-	●	●
2	16.800 MAT; FLOOR EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY IDN	8-97996-650-4	01	1	0211-	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97996-696-1	01	1	0211-0609	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. MANUAL TILT CAB<RWZ> DARK GRAY	8-97996-696-1	01	1	0610-	●	●
66	16.549 HOOK; COVER DARK GRAY	8-97997-582-0	02	1	0211-0609	●	●
66	16.549 HOOK; COVER EXC. MANUAL TILT CAB<RWZ> DARK GRAY	8-97997-582-0	02	1	0610-	●	●
67	16.549 LID; COVER DARK GRAY	8-97997-586-0	01	1	0211-0609	●	●
67	16.549 LID; COVER EXC. MANUAL TILT CAB<RWZ> DARK GRAY	8-97997-586-0	01	1	0610-	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE DARK GRAY IDN	8-97857-551-1	01	1	0211-	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE DARK GRAY IDN	8-97857-552-1	01	1	0211-	●	●
72	16.800 MAT; SILENCER,ENG COVER DARK GRAY IDN	8-97996-720-1	01	1	0211-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
