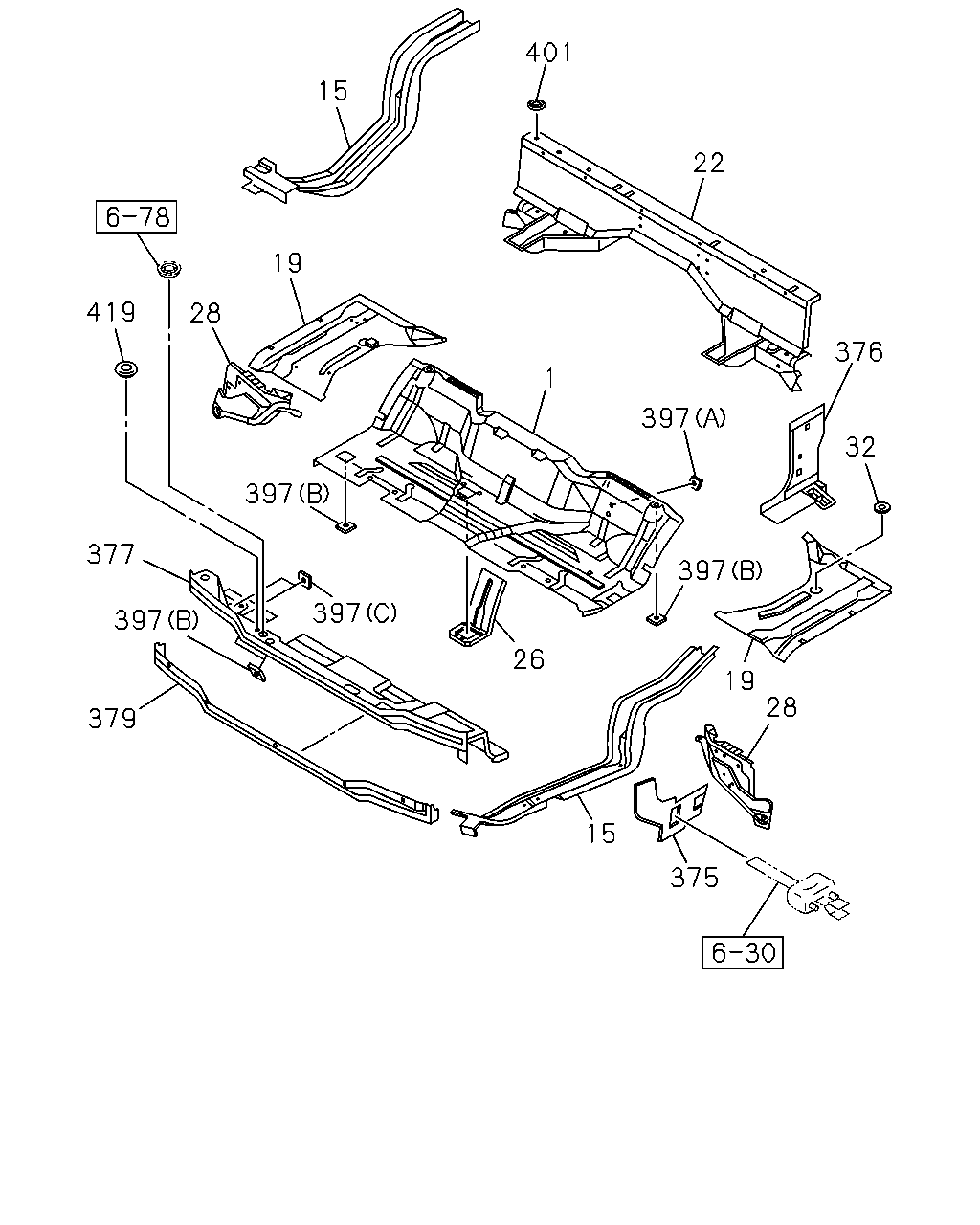

6-70 — FLOOR PANEL (#78993) — 125 parça

401 15 22 19 419 28 376 1 397 32 397 377 397 397 397 26 19 28 379 15 375

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.545 PANEL; FLOOR IDN	8-97850-491-3	01	1	0211-0303	●	●
1	16.545 PANEL; FLOOR IDN	8-97581-771-0	01	1	0304-0609	●	●
1	16.545 PANEL; FLOOR FLOOR REMOTE SHIFT<M11> EXC. MANUAL TILT CAB<RWZ> IDN	8-97581-771-0	01	1	0610-0712	●
1	16.545 PANEL; FLOOR EXC. MANUAL TILT CAB<RWZ> IDN	8-97581-771-0	01	1	0610-0712		●
1	16.545 PANEL; FLOOR FLOOR REMOTE SHIFT<M11> EXC. MANUAL TILT CAB<RWZ> IDN	8-97581-771-0	01	1	0801-	●	●
1	16.545 PANEL; FLOOR FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> IDN	8-97581-770-0	01	1	0610-0712	●
1	16.545 PANEL; FLOOR MANUAL TILT CAB<RWZ> IDN	8-97581-770-0	01	1	0610-0712		●
1	16.545 PANEL; FLOOR FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> IDN	8-97581-770-0	01	1	0801-	●	●
15	16.545 FRAME; UNDER	8-97850-059-9	01	1	0211-0505	●	●
15	16.545 FRAME; UNDER	8-98013-405-0	01	1	0506-0609	●	●
15	16.545 FRAME; UNDER FLOOR REMOTE SHIFT<M11>	8-98013-405-0	01	1	0610-0712	●
15	16.545 FRAME; UNDER	8-98013-405-0	01	1	0610-0712		●
15	16.545 FRAME; UNDER FLOOR REMOTE SHIFT<M11>	8-98013-405-0	01	1	0801-	●	●
15	16.545 FRAME; UNDER	8-97850-060-9	01	1	0211-0609	●	●
15	16.545 FRAME; UNDER FLOOR REMOTE SHIFT<M11>	8-97850-060-9	01	1	0610-0712	●
15	16.545 FRAME; UNDER	8-97850-060-9	01	1	0610-0712		●
15	16.545 FRAME; UNDER FLOOR REMOTE SHIFT<M11>	8-97850-060-9	01	1	0801-	●	●
19	16.545 PANEL; FLOOR SIDE,REAR	8-97850-002-6	01	1	0211-0609	●	●
19	16.545 PANEL; FLOOR SIDE,REAR FLOOR REMOTE SHIFT<M11>	8-97850-002-7	01	1	0610-0712	●
19	16.545 PANEL; FLOOR SIDE,REAR	8-97850-002-7	01	1	0610-0712		●
19	16.545 PANEL; FLOOR SIDE,REAR FLOOR REMOTE SHIFT<M11>	8-97850-002-7	01	1	0801-	●	●
19	16.545 PANEL; FLOOR SIDE,REAR IDN	8-97850-008-4	01	1	0211-0609	●	●
19	16.545 PANEL; FLOOR SIDE,REAR FLOOR REMOTE SHIFT<M11> IDN	8-97850-008-5	01	1	0610-0712	●
19	16.545 PANEL; FLOOR SIDE,REAR IDN	8-97850-008-5	01	1	0610-0712		●
19	16.545 PANEL; FLOOR SIDE,REAR FLOOR REMOTE SHIFT<M11> IDN	8-97850-008-5	01	1	0801-	●	●
22	16.545 FRAME; FLOOR REAR	8-97850-519-7	01	1	0211-0609	●	●
22	16.545 FRAME; FLOOR REAR FLOOR REMOTE SHIFT<M11> EXC. MANUAL TILT CAB<RWZ>	8-97850-519-9	01	1	0610-0712	●
22	16.545 FRAME; FLOOR REAR EXC. MANUAL TILT CAB<RWZ>	8-97850-519-9	01	1	0610-0712		●
22	16.545 FRAME; FLOOR REAR FLOOR REMOTE SHIFT<M11> EXC. MANUAL TILT CAB<RWZ>	8-97850-519-9	01	1	0801-0801	●	●
22	16.545 FRAME; FLOOR REAR FLOOR REMOTE SHIFT<M11> EXC. MANUAL TILT CAB<RWZ> IDN	8-98110-275-3	01	1	0801-	●	●
22	16.545 FRAME; FLOOR REAR FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ>	8-97866-659-9	01	1	0610-0712	●
22	16.545 FRAME; FLOOR REAR MANUAL TILT CAB<RWZ>	8-97866-659-9	01	1	0610-0712		●
22	16.545 FRAME; FLOOR REAR FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ>	8-97866-659-9	01	1	0801-	●	●
26	16.545 PANEL; GEAR CONT REINF	8-97850-005-6	01	1	0211-0609	●	●
26	16.545 PANEL; GEAR CONT REINF FLOOR REMOTE SHIFT<M11>	8-97850-005-6	01	1	0610-0712	●
26	16.545 PANEL; GEAR CONT REINF	8-97850-005-6	01	1	0610-0712		●
26	16.545 PANEL; GEAR CONT REINF FLOOR REMOTE SHIFT<M11>	8-97850-005-6	01	1	0801-	●	●
28	16.545 GUSSET; FLOOR PANEL SIDE	8-97850-017-7	01	1	0211-0609	●	●
28	16.545 GUSSET; FLOOR PANEL SIDE FLOOR REMOTE SHIFT<M11>	8-97850-017-7	01	1	0610-0712	●
28	16.545 GUSSET; FLOOR PANEL SIDE	8-97850-017-7	01	1	0610-0712		●
28	16.545 GUSSET; FLOOR PANEL SIDE FLOOR REMOTE SHIFT<M11>	8-97850-017-7	01	1	0801-1106	●	●
28	16.545 GUSSET; FLOOR PANEL SIDE FLOOR REMOTE SHIFT<M11>	8-98170-771-0	01	1	1107-	●	●
28	16.545 GUSSET; FLOOR PANEL SIDE	8-97850-338-5	01	1	0211-0609	●	●
28	16.545 GUSSET; FLOOR PANEL SIDE FLOOR REMOTE SHIFT<M11>	8-97850-338-5	01	1	0610-0712	●
28	16.545 GUSSET; FLOOR PANEL SIDE	8-97850-338-5	01	1	0610-0712		●
28	16.545 GUSSET; FLOOR PANEL SIDE FLOOR REMOTE SHIFT<M11>	8-97850-338-5	01	1	0801-1106	●	●
28	16.545 GUSSET; FLOOR PANEL SIDE FLOOR REMOTE SHIFT<M11>	8-98170-770-0	01	1	1107-	●	●
32	16.547 GROMMET; FLOOR PANEL,LOCATION HO 08.131 OD=53.5 IDN	8-94356-253-0	02	1	0211-	●	●
375	16.545 CLOSING; PILLAR	8-97850-086-5	01	1	0211-0609	●	●
375	16.545 CLOSING; PILLAR FLOOR REMOTE SHIFT<M11>	8-97850-086-5	01	1	0610-0712	●
375	16.545 CLOSING; PILLAR	8-97850-086-5	01	1	0610-0712		●
375	16.545 CLOSING; PILLAR FLOOR REMOTE SHIFT<M11>	8-97850-086-5	01	1	0801-	●	●
375	16.545 CLOSING; PILLAR	8-97850-087-4	01	1	0211-0609	●	●
375	16.545 CLOSING; PILLAR FLOOR REMOTE SHIFT<M11>	8-97850-087-4	01	1	0610-0712	●
375	16.545 CLOSING; PILLAR	8-97850-087-4	01	1	0610-0712		●
375	16.545 CLOSING; PILLAR FLOOR REMOTE SHIFT<M11>	8-97850-087-4	01	1	0801-	●	●
376	16.545 CLOSING; PILLAR,LWR	8-97850-320-6	01	1	0211-0609	●	●
376	16.545 CLOSING; PILLAR,LWR FLOOR REMOTE SHIFT<M11>	8-97850-320-6	01	1	0610-0712	●
376	16.545 CLOSING; PILLAR,LWR	8-97850-320-6	01	1	0610-0712		●
376	16.545 CLOSING; PILLAR,LWR FLOOR REMOTE SHIFT<M11>	8-97850-320-6	01	1	0801-	●	●
376	16.545 CLOSING; PILLAR,LWR	8-97850-923-1	01	1	0211-0609	●	●
376	16.545 CLOSING; PILLAR,LWR FLOOR REMOTE SHIFT<M11>	8-97850-923-1	01	1	0610-0712	●
376	16.545 CLOSING; PILLAR,LWR	8-97850-923-1	01	1	0610-0712		●
376	16.545 CLOSING; PILLAR,LWR FLOOR REMOTE SHIFT<M11>	8-97850-923-1	01	1	0801-	●	●
377	16.545 RAIL ASM; MTG,FRT IDN	8-97850-477-4	01	1	0211-0303	●	●
377	16.545 RAIL ASM; MTG,FRT IDN	8-97581-788-1	01	1	0304-0609	●	●
377	16.545 RAIL ASM; MTG,FRT FLOOR REMOTE SHIFT<M11> EXC. MANUAL TILT CAB<RWZ> IDN	8-97581-788-1	01	1	0610-0712	●
377	16.545 RAIL ASM; MTG,FRT EXC. MANUAL TILT CAB<RWZ> IDN	8-97581-788-1	01	1	0610-0712		●
377	16.545 RAIL ASM; MTG,FRT FLOOR REMOTE SHIFT<M11> EXC. MANUAL TILT CAB<RWZ> IDN	8-97581-788-1	01	1	0801-	●	●
377	16.545 RAIL ASM; MTG,FRT FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> IDN	8-97997-547-1	01	1	0610-0712	●
377	16.545 RAIL ASM; MTG,FRT MANUAL TILT CAB<RWZ> IDN	8-97997-547-1	01	1	0610-0712		●
377	16.545 RAIL ASM; MTG,FRT FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> IDN	8-97997-547-1	01	1	0801-	●	●
379	16.545 PANEL IDN	8-97850-050-2	01	1	0211-0306	●	●
379	16.545 PANEL	8-97581-639-0	01	1	0307-0609	●	●
379	16.545 PANEL FLOOR REMOTE SHIFT<M11>	8-97581-639-0	01	1	0610-0712	●
379	16.545 PANEL	8-97581-639-0	01	1	0610-0712		●
379	16.545 PANEL FLOOR REMOTE SHIFT<M11>	8-97581-639-0	01	1	0801-	●	●
397	16.545 NUT; PIERCE FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> (A) M6 IDN	9-09114-046-0	04	1	0610-0712	●
397	16.545 NUT; PIERCE MANUAL TILT CAB<RWZ> (A) M6 IDN	9-09114-046-0	04	1	0610-0712		●
397	16.545 NUT; PIERCE FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> (A) M6 IDN	9-09114-046-0	04	1	0801-	●	●
397	16.545 NUT; PIERCE FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 16.588 (B) M8	9-09114-048-0	04	1	0610-0712	●
397	16.545 NUT; PIERCE MANUAL TILT CAB<RWZ> 16.588 (B) M8	9-09114-048-0	04	1	0610-0712		●
397	16.545 NUT; PIERCE FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 16.588 (B) M8	9-09114-048-0	04	1	0801-	●	●
397	16.545 NUT; PIERCE FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> (C) M10	9-09114-030-0	03	1	0610-0712	●
397	16.545 NUT; PIERCE MANUAL TILT CAB<RWZ> (C) M10	9-09114-030-0	03	1	0610-0712		●
397	16.545 NUT; PIERCE FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> (C) M10	9-09114-030-0	03	1	0801-	●	●
397	16.545 NUT; PIERCE FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 16.588 (B) M8	9-09114-048-0	05	1	0610-0712	●
397	16.545 NUT; PIERCE MANUAL TILT CAB<RWZ> 16.588 (B) M8	9-09114-048-0	05	1	0610-0712		●
397	16.545 NUT; PIERCE FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 16.588 (B) M8	9-09114-048-0	05	1	0801-	●	●
401	16.545 GROMMET; HOLE OD=24.5 T=7.5 IDN	8-97224-683-0	01	1	0211-	●	●
401	16.545 GROMMET; HOLE 16.547 OD=12.1 IDN	8-97898-423-0	01	1	0211-	●	●
419	04.012 GROMMET; CONT SHAFT,FLOOR PANEL EXC. PTO TRANSMISSION SIDE(V66) 16.802 OD=36	1-09983-092-0	01	1	0211-	●	●

378 377 380 398 381 380 378

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
377	16.545 RAIL ASM; MTG,FRT IDN	8-97850-477-4	01	1	0211-0303	●	●
377	16.545 RAIL ASM; MTG,FRT IDN	8-97581-788-1	01	1	0304-0609	●	●
377	16.545 RAIL ASM; MTG,FRT FLOOR REMOTE SHIFT<M11> EXC. MANUAL TILT CAB<RWZ> IDN	8-97581-788-1	01	1	0610-0712	●
377	16.545 RAIL ASM; MTG,FRT EXC. MANUAL TILT CAB<RWZ> IDN	8-97581-788-1	01	1	0610-0712		●
377	16.545 RAIL ASM; MTG,FRT FLOOR REMOTE SHIFT<M11> EXC. MANUAL TILT CAB<RWZ> IDN	8-97581-788-1	01	1	0801-	●	●
377	16.545 RAIL ASM; MTG,FRT FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> IDN	8-97997-547-1	01	1	0610-0712	●
377	16.545 RAIL ASM; MTG,FRT MANUAL TILT CAB<RWZ> IDN	8-97997-547-1	01	1	0610-0712		●
377	16.545 RAIL ASM; MTG,FRT FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> IDN	8-97997-547-1	01	1	0801-	●	●
378	16.545 GASSET; LWR IDN	8-97850-671-0	01	1	0211-0305	●	●
378	16.545 GASSET; LWR	8-97581-827-2	01	1	0306-0609	●	●
378	16.545 GASSET; LWR FLOOR REMOTE SHIFT<M11>	8-97581-827-2	01	1	0610-0712	●
378	16.545 GASSET; LWR	8-97581-827-2	01	1	0610-0712		●
378	16.545 GASSET; LWR FLOOR REMOTE SHIFT<M11>	8-97581-827-2	01	1	0801-	●	●
378	16.545 GASSET; LWR	8-97850-672-1	01	1	0211-0305	●	●
378	16.545 GASSET; LWR	8-97581-828-2	01	1	0306-0609	●	●
378	16.545 GASSET; LWR FLOOR REMOTE SHIFT<M11>	8-97581-828-2	01	1	0610-0712	●
378	16.545 GASSET; LWR	8-97581-828-2	01	1	0610-0712		●
378	16.545 GASSET; LWR FLOOR REMOTE SHIFT<M11>	8-97581-828-2	01	1	0801-	●	●
380	16.545 BRACKET; HEAD LAMP IDN	8-97850-090-2	01	1	0211-0609	●	●
380	16.545 BRACKET; HEAD LAMP FLOOR REMOTE SHIFT<M11> IDN	8-97850-090-2	01	1	0610-0712	●
380	16.545 BRACKET; HEAD LAMP IDN	8-97850-090-2	01	1	0610-0712		●
380	16.545 BRACKET; HEAD LAMP FLOOR REMOTE SHIFT<M11> IDN	8-97850-090-2	01	1	0801-	●	●
380	16.545 BRACKET; HEAD LAMP IDN	8-97850-705-0	01	1	0211-0609	●	●
380	16.545 BRACKET; HEAD LAMP FLOOR REMOTE SHIFT<M11> IDN	8-97850-705-0	01	1	0610-0712	●
380	16.545 BRACKET; HEAD LAMP IDN	8-97850-705-0	01	1	0610-0712		●
380	16.545 BRACKET; HEAD LAMP FLOOR REMOTE SHIFT<M11> IDN	8-97850-705-0	01	1	0801-	●	●
381	16.545 BRACKET; AIR INTAKE DUCT,FRT FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ>	8-97850-221-5	01	1	0610-0712	●
381	16.545 BRACKET; AIR INTAKE DUCT,FRT MANUAL TILT CAB<RWZ>	8-97850-221-5	01	1	0610-0712		●
381	16.545 BRACKET; AIR INTAKE DUCT,FRT FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ>	8-97850-221-5	01	1	0801-	●	●
398	16.545 BRACKET; PIPE SUPPORT	8-97850-318-1	01	1	0211-0609	●	●
398	16.545 BRACKET; PIPE SUPPORT FLOOR REMOTE SHIFT<M11>	8-97850-318-1	01	1	0610-0712	●
398	16.545 BRACKET; PIPE SUPPORT	8-97850-318-1	01	1	0610-0712		●
398	16.545 BRACKET; PIPE SUPPORT FLOOR REMOTE SHIFT<M11>	8-97850-318-1	01	1	0801-	●	●
