◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10808 - FRR-G/FSR/FTR TAIWAN ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#7899) — 45 parça

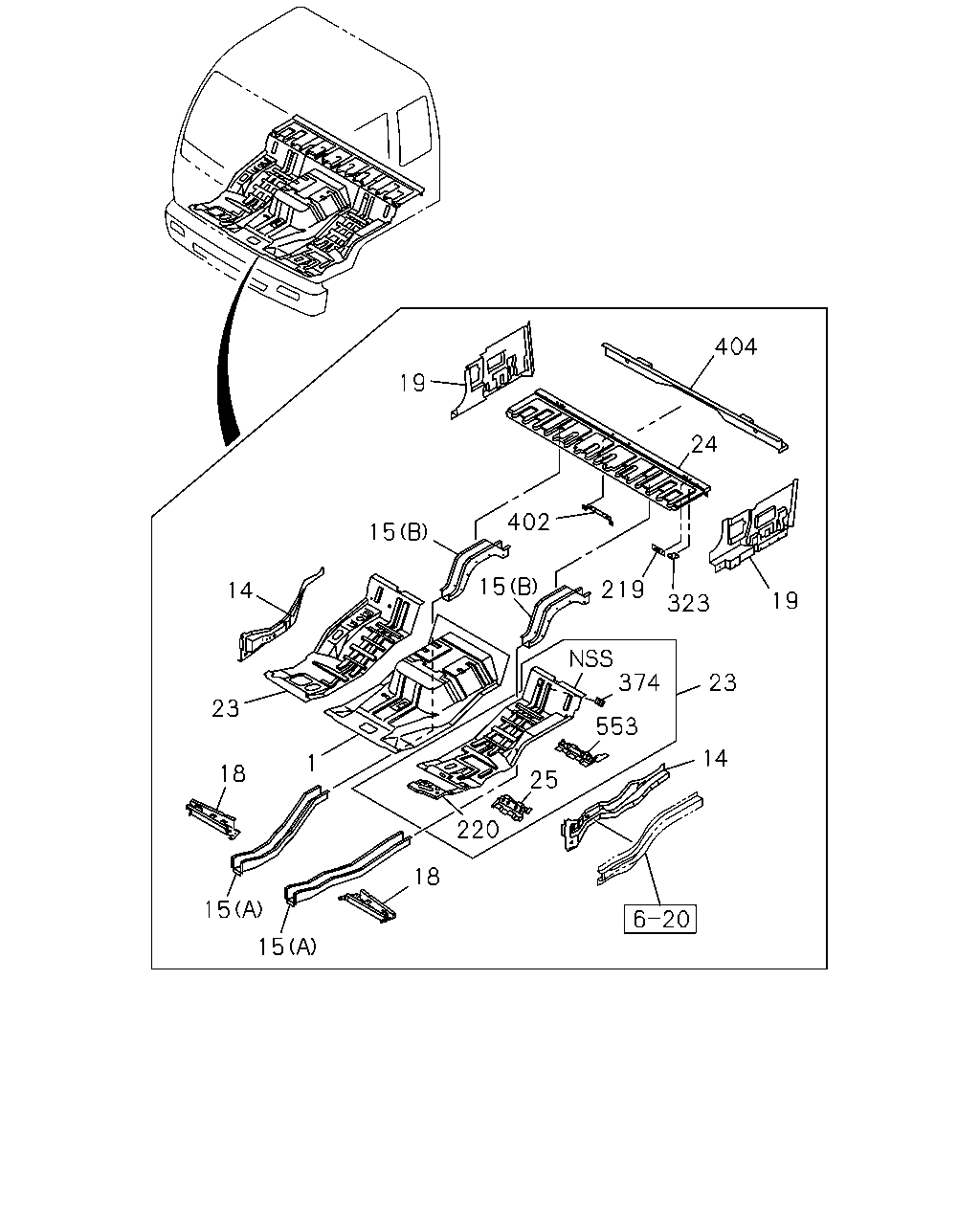

çizim 27057
404 19 24 402 15 15 219 14 19 323 374 23 23 553 14 1 18 25 220 18 15 15
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PANEL; FLOOR 1-62183-532-0 01 1 9905-0301 ● ●
1 PANEL; FLOOR 1-62183-532-0 01 1 0302- ● ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 9905-0301 ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 0302- ● ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 9905-0301 ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 0302- ● ● ●
15 FRAME; UNDER
(A) 		1-62483-083-2 01 1 9905-0301 ● ●
15 FRAME; UNDER
(A) 		1-62483-083-3 01 1 0302- ● ● ●
15 FRAME; UNDER
(B) 		1-62483-160-0 01 1 9905-0012 ● ●
15 FRAME; UNDER
(B) 		1-62483-154-3 01 1 0101-0301 ● ●
15 FRAME; UNDER
(B) 		1-62483-154-3 01 1 0302- ● ● ●
15 FRAME; UNDER
(A) 		1-62482-930-9 01 1 9905-0103 ● ●
15 FRAME; UNDER
(A) 		1-62483-333-0 01 1 0104-0301 ● ●
15 FRAME; UNDER
(A) 		1-62483-333-1 01 1 0302- ● ● ●
15 FRAME; UNDER
(B) 		1-62483-159-0 01 1 9905-0012 ● ●
15 FRAME; UNDER
(B) 		1-62483-153-3 01 1 0101-0301 ● ●
15 FRAME; UNDER
(B) 		1-62483-153-3 01 1 0302- ● ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62483-105-4 01 1 9905-0301 ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62483-105-5 01 1 0302- ● ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62483-096-4 01 1 9905-0301 ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62483-096-5 01 1 0302- ● ● ●
19 PANEL; FLOOR SIDE,REAR 1-62482-924-6 01 1 9905-0301 ● ●
19 PANEL; FLOOR SIDE,REAR 1-62482-924-6 01 1 0302- ● ● ●
19 PANEL; FLOOR SIDE,REAR 1-62482-923-5 01 1 9905-0301 ● ●
19 PANEL; FLOOR SIDE,REAR 1-62482-923-5 01 1 0302- ● ● ●
23 PANEL; FLOOR,SIDE 1-62172-800-0 01 1 0302- ●
23 PANEL; FLOOR,SIDE 1-62183-274-6 01 1 0302- ●
23 PANEL; FLOOR,SIDE 1-62183-207-7 01 1 9905- ● ●
23 PANEL; FLOOR,SIDE 1-62183-126-4 01 1 9905- ● ●
24 PANEL; BED PAN 1-62182-940-9 01 1 9905-0301 ● ●
24 PANEL; BED PAN 1-62182-940-9 01 1 0302- ● ● ●
25 REINFORCEMENT; FRAME FLOOR,FRT 1-62172-780-2 01 1 9907-0301 ● ●
25 REINFORCEMENT; FRAME FLOOR,FRT 1-62172-780-2 01 1 0302- ● ● ●
219 PATCH; AIR DUCT LWR 1-62182-941-0 01 1 9905-0301 ● ●
219 PATCH; AIR DUCT LWR 1-62182-941-0 01 1 0302- ● ● ●
220 PATCH 1-62183-191-2 01 1 9905- ● ●
323 PATCH; HAND LEVER 1-62182-961-0 01 1 9905-0301 ● ●
323 PATCH; HAND LEVER 1-62182-961-0 01 1 0302- ● ● ●
374 NUT; FLOOR
M6 		1-09984-110-0 05 1 9905-0301 ● ●
374 NUT; FLOOR
M6 		1-09984-110-0 05 1 0302- ● ● ●
402 PATCH; CAB LOCK 1-62182-947-2 01 1 9905-0301 ● ●
402 PATCH; CAB LOCK 1-62182-947-2 01 1 0302- ● ● ●
404 RAIL ASM; MTG,RR 1-62483-123-1 01 1 0302- ●
404 RAIL ASM; MTG,RR 1-62482-955-4 01 1 9905- ● ●
553 REINFORCEMENT; SEAT STAND RR 1-62172-797-0 01 1 0302- ●
