◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51280 - NKR INDONESIA ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-07 - FRONT WINDOW GLASS AND WEATHERSTRIP ▶
6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP (#78982) — 15 parça

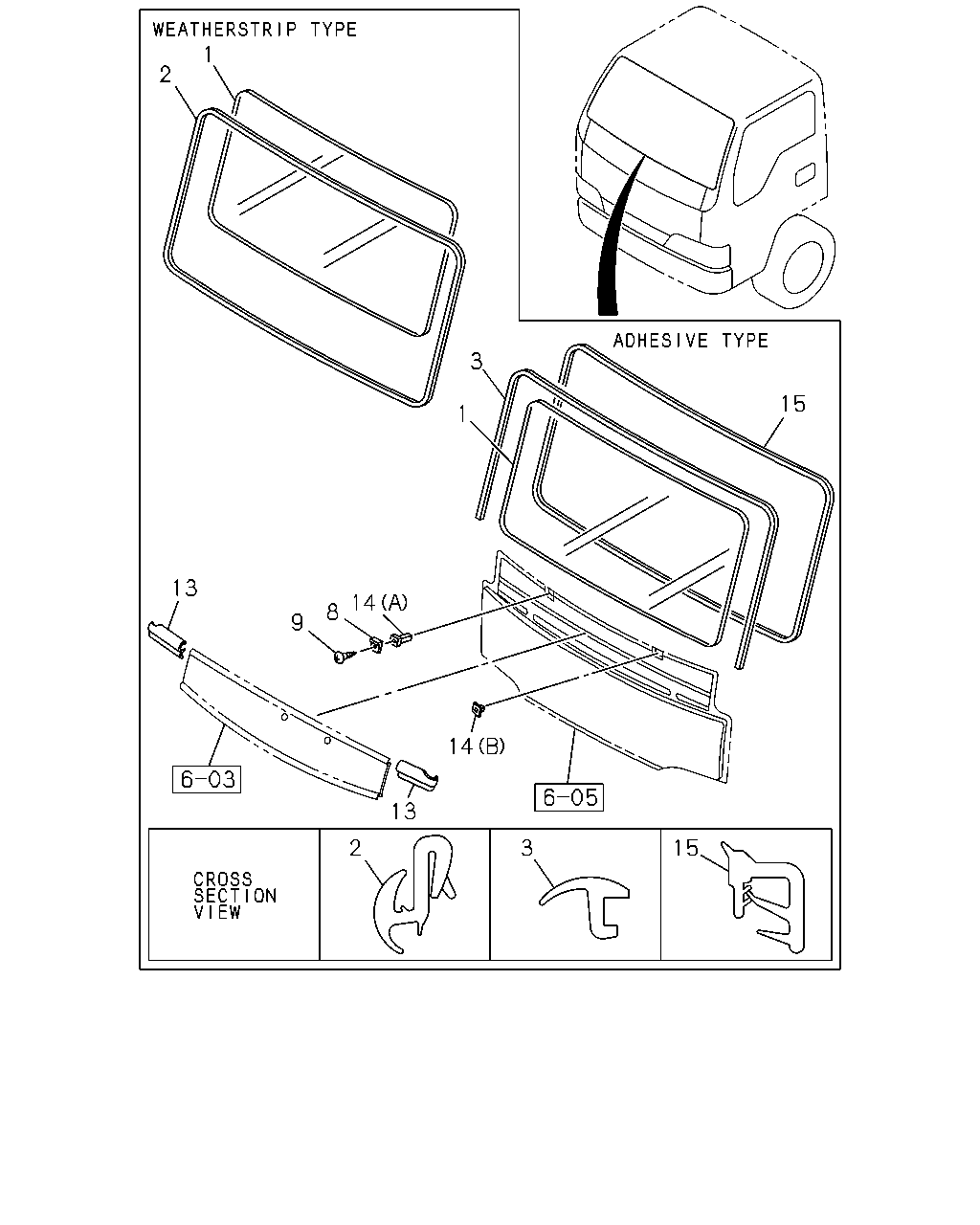

çizim 126457
1 2 13 9 8 14 14 13 2 3 15 15 3 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.005 GLASS; WINDSHIELD
IDN 		8-97117-890-0 01 1 0211- ● ●
2 16.040 WEATHERSTRIP; WINDSHIELD GLASS
WINDSHIELD WEATHERSTRIP TYPE<7EL> IDN 		8-97856-351-4 01 1 0211- ● ●
3 16.470 MOLDING; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97890-214-3 01 1 0211- ● ●
8 16.041 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97859-215-0 02 1 0211-0305 ● ●
8 16.041 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-733-1 02 1 0306-1304 ● ●
8 16.041 STOPPER; WINDSHIELD GLASS
KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-733-1 02 1 1305- ● ●
9 16.041 SCREW; STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.067 M5X14 		8-94279-325-0 02 1 0211-1304 ● ●
9 16.041 SCREW; STOPPER
KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.067 M5X14 		8-94279-325-0 02 1 1305- ● ●
13 16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-786-3 01 1 0211- ● ●
13 16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-787-4 01 1 0211- ● ●
14 16.041 GROMMET; SCREW,STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 (A) D=7.8X7.8 L=18 NATURAL IDN 		8-94279-043-0 02 1 0306-1304 ● ●
14 16.041 GROMMET; SCREW,STOPPER
KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 (A) D=7.8X7.8 L=18 NATURAL IDN 		8-94279-043-0 02 1 1305- ● ●
14 16.041 GROMMET; SCREW,STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>, KDPREPARATORY PACK VAR.4<7TV> 12.182 (B) D=7.9X7.9 L=11.4 M5 		8-94367-528-0 02 1 1305- ● ●
14 16.041 GROMMET; SCREW,STOPPER
WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.547 (B) 14.5X14.5 BLACK IDN 		8-94279-714-0 04 1 0211- ● ●
15 16.041 FINISHER; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> DARK GRAY 		8-97859-856-7 01 1 0211- ● ●
