5-20 — BATTERY CARRIER (#78977) — 116 parça

16 7 26 15 2 14 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	02.333 BRACKET; BATTERY 4HF1-S ENG(RLS) IDN	8-94259-139-1	01	1	0211-0507	●
2	02.333 BRACKET; BATTERY 4HF1-N ENG(RJZ) IDN	8-94259-139-1	01	1	0508-	●
7	02.333 BOLT; BRKT TO FRAME 4HF1-S ENG(RLS) 03.417 M10X25 FLANGE	0-28081-025-0	02	1	0211-0507	●
7	02.333 BOLT; BRKT TO FRAME 4HF1-N ENG(RJZ) 03.417 M10X25 FLANGE	0-28081-025-0	02	1	0508-0512	●
7	02.333 BOLT; BRKT TO FRAME 4HF1-N ENG(RJZ) 09.171 M10X25 FLANGE IDN	0-28051-025-0	02	1	0601-	●
14	02.333 NUT; BRKT TO FRAME 4HF1-S ENG(RLS) 08.917 M10 FLANGE	0-91150-210-0	02	1	0211-0507	●
14	02.333 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) 08.917 M10 FLANGE	0-91150-210-0	02	1	0508-0602	●
14	02.333 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-1409	●
14	02.333 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) 03.162 M10 FLANGE IDN	0-91180-110-0	02	1	1410-	●
15	02.333 BRACKET; BATTERY 4HF1-S ENG(RLS) IDN	8-94259-139-1	01	1	0211-0507	●
15	02.333 BRACKET; BATTERY 4HF1-N ENG(RJZ) IDN	8-94259-139-1	01	1	0508-	●
16	02.334 BOLT; BRKT TO FRAME 4HF1-S ENG(RLS) 03.417 M10X25 FLANGE	0-28081-025-0	02	1	0211-0507	●
16	02.334 BOLT; BRKT TO FRAME 4HF1-N ENG(RJZ) 03.417 M10X25 FLANGE	0-28081-025-0	02	1	0508-0512	●
16	02.334 BOLT; BRKT TO FRAME 4HF1-N ENG(RJZ) 09.171 M10X25 FLANGE IDN	0-28051-025-0	02	1	0601-	●
24	02.334 NUT; BRKT TO FRAME 4HF1-S ENG(RLS) 08.917 M10 FLANGE	0-91150-210-0	02	1	0211-0507	●
24	02.334 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) 08.917 M10 FLANGE	0-91150-210-0	02	1	0508-0602	●
24	02.334 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-1409	●
24	02.334 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) 03.162 M10 FLANGE IDN	0-91180-110-0	02	1	1410-	●
26	02.334 NUT; BRKT 4HG1 ENG(RJH),4HF1-S ENG(RLS) 08.917 M10 FLANGE	0-91150-210-0	04	1	0211-0507	●	●
26	02.334 NUT; BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 08.917 M10 FLANGE	0-91150-210-0	04	1	0508-0602	●	●
26	02.334 NUT; BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 04.085 M10 FLANGE	0-91180-210-0	04	1	0603-0609	●	●
26	02.334 NUT; BRKT 4JB1-TC ENG(RDT) BATTERY 95D31R<6DN> 04.085 M10 FLANGE	0-91180-210-0	04	1	0610-0612	●
26	02.334 NUT; BRKT 4HF1-N ENG(RJZ) 04.085 M10 FLANGE	0-91180-210-0	04	1	0610-0612	●
26	02.334 NUT; BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 04.085 M10 FLANGE	0-91180-210-0	04	1	0610-0612		●
26	02.334 NUT; BRKT 4JB1-TC ENG(RDT) BATTERY 95D31R<6DN> 04.085 M10 FLANGE	0-91180-210-0	04	1	0701-0712	●
26	02.334 NUT; BRKT 4HF1-N ENG(RJZ) 04.085 M10 FLANGE	0-91180-210-0	04	1	0701-0712	●
26	02.334 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 04.085 M10 FLANGE	0-91180-210-0	04	1	0701-0712		●
26	02.334 NUT; BRKT 4JB1-TC ENG(RDT) BATTERY 95D31R<6DN> 04.085 M10 FLANGE	0-91180-210-0	04	1	0801-	●
26	02.334 NUT; BRKT 4HF1-N ENG(RJZ) 04.085 M10 FLANGE	0-91180-210-0	04	1	0801-	●
26	02.334 NUT; BRKT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 04.085 M10 FLANGE	0-91180-210-0	04	1	0801-		●
26	02.334 NUT; BRKT 4HG1 ENG(RJH),4HF1-S ENG(RLS) 08.917 M10 FLANGE	0-91150-210-0	02	1	0211-0507		●
26	02.334 NUT; BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 08.917 M10 FLANGE	0-91150-210-0	02	1	0508-0602		●
26	02.334 NUT; BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-0609		●
26	02.334 NUT; BRKT 4JB1-TC ENG(RDT) EXC. BATTERY 95D31R<6DN> 04.085 M10 FLANGE	0-91180-210-0	02	1	0610-	●
26	02.334 NUT; BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 04.085 M10 FLANGE	0-91180-210-0	02	1	0610-		●
26	02.334 NUT; BRKT 4JB1-TC ENG(RDT) BATTERY NX200-10<S9C> 04.085 M10 FLANGE	0-91180-210-0	01	1	0801-		●

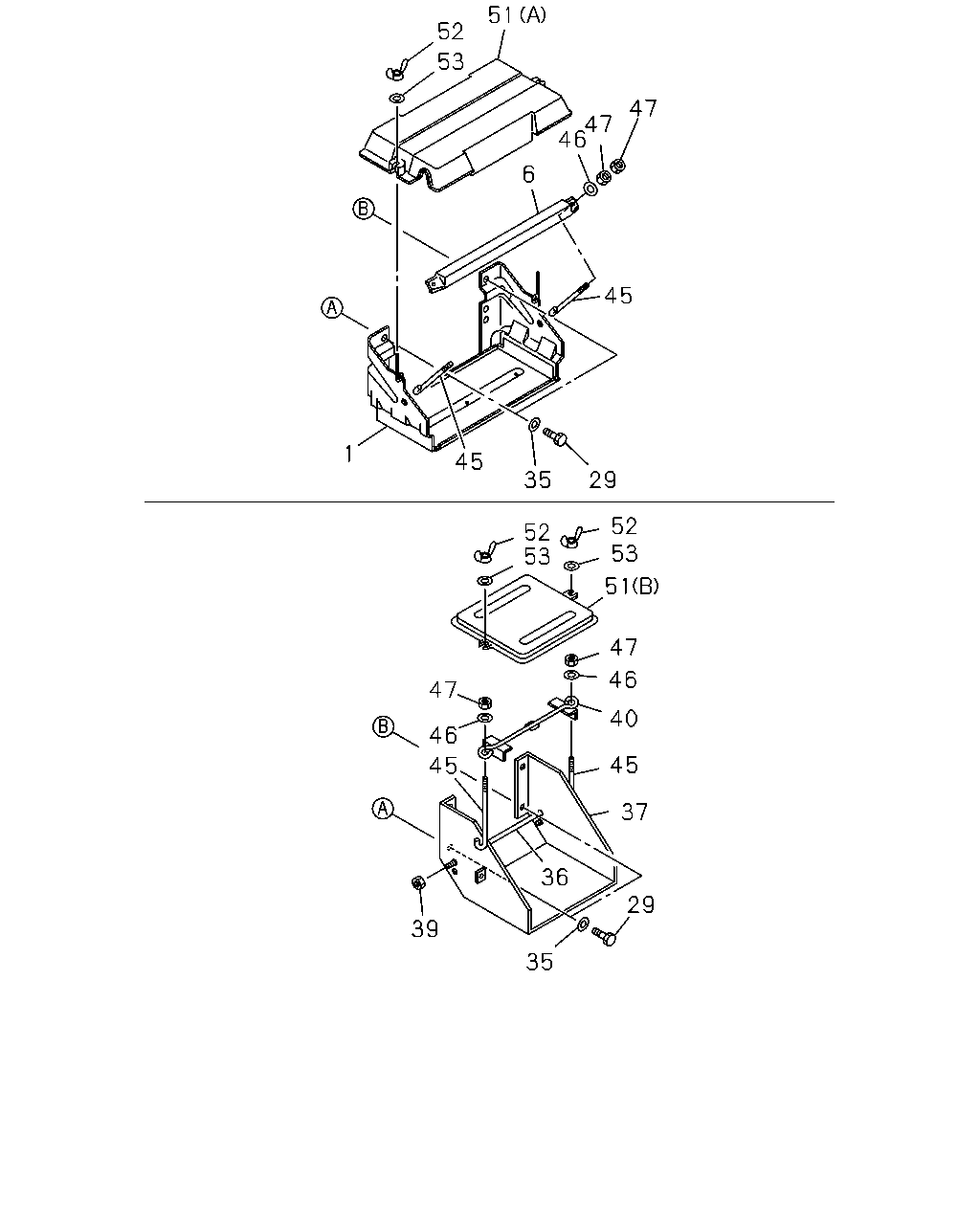

51 52 53 47 47 46 6 45 1 45 35 29 52 53 52 53 51 47 46 47 40 46 45 45 37 36 29 39 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	02.333 CARRIER; BATTERY BATTERY 95D31R<6DN> IDN	8-97072-544-0	01	1	0610-0712	●
1	02.333 CARRIER; BATTERY BATTERY 95D31R<6DN> IDN	8-97072-544-0	01	1	0801-	●	●
1	02.333 CARRIER; BATTERY BATTERY NX200-10<S9C>	5-53613-024-3	01	1	0801-		●
6	02.333 BRACKET; BATTERY CARRIER BATTERY 95D31R<6DN> IDN	8-94108-314-0	01	1	0610-0712	●
6	02.333 BRACKET; BATTERY CARRIER BATTERY 95D31R<6DN> IDN	8-94108-314-0	01	1	0801-	●	●
6	02.333 BRACKET; BATTERY CARRIER BATTERY NX200-10<S9C>	9-53616-153-0	01	1	0801-		●
29	02.334 BOLT; BRKT TO FRAME 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0211-0512	●	●
29	02.334 BOLT; BRKT TO FRAME 04.439 M10X30 W/LK WASHER IDN	0-50541-030-0	04	1	0601-	●	●
35	02.334 WASHER; PL,BATTERY CARRIER 16.682 ID=10.5 OD=22	9-09160-610-0	04	1	0211-0605	●	●
35	02.334 WASHER; PL,BATTERY CARRIER 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	0606-	●	●
36	02.334 STOPPER; BATTERY BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC> IDN	8-94145-894-0	01	1	0211-	●	●
37	02.333 BRACKET; BATTERY BATTERY 80D26R<6KC>,BATTERY 65D23R<7DQ>, BATTERY 75D23R<7PC> IDN	8-97356-174-0	01	1	0211-0610	●	●
37	02.333 BRACKET; BATTERY BATTERY 80D26R<6KC>,BATTERY 65D23R<7DQ>, BATTERY 75D23R<7PC> IDN	8-97384-068-2	01	1	0611-0612	●	●
37	02.333 BRACKET; BATTERY BATTERY 80D26R<6KC>,BATTERY 65D23R<7DQ>, BATTERY 75D23R<7PC> IDN	8-97384-067-2	01	1	0701-	●	●
39	02.334 NUT; STOPPER,BATTERY BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC> 04.594 M6 FLANGE	0-91150-106-0	01	1	0211-0602	●	●
39	02.334 NUT; STOPPER,BATTERY BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC> 01.062 M6 FLANGE IDN	0-91180-106-0	01	1	0603-	●	●
40	02.335 CLAMP; BATTERY 4HG1 ENG(RJH),4HF1-S ENG(RLS) IDN	5-53615-004-1	01	1	0211-0507	●	●
40	02.335 CLAMP; BATTERY 4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	5-53615-004-1	01	1	0508-0609	●	●
40	02.335 CLAMP; BATTERY 4JB1-TC ENG(RDT) BATTERY 80D26R<6KC> IDN	5-53615-004-1	01	1	0610-0612	●
40	02.335 CLAMP; BATTERY 4HF1-N ENG(RJZ) IDN	5-53615-004-1	01	1	0610-0612	●
40	02.335 CLAMP; BATTERY 4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	5-53615-004-1	01	1	0610-0612		●
40	02.335 CLAMP; BATTERY 4JB1-TC ENG(RDT) BATTERY 80D26R<6KC> IDN	5-53615-004-1	01	1	0701-0712	●
40	02.335 CLAMP; BATTERY 4HF1-N ENG(RJZ) IDN	5-53615-004-1	01	1	0701-0712	●
40	02.335 CLAMP; BATTERY 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	5-53615-004-1	01	1	0701-0712		●
40	02.335 CLAMP; BATTERY 4JB1-TC ENG(RDT) BATTERY 80D26R<6KC> IDN	5-53615-004-1	01	1	0801-	●	●
40	02.335 CLAMP; BATTERY 4HF1-N ENG(RJZ) IDN	5-53615-004-1	01	1	0801-	●
40	02.335 CLAMP; BATTERY 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	5-53615-004-1	01	1	0801-		●
45	02.334 ROD; TENSION,BATTERY L=120 IDN	9-53616-615-0	02	1	0211-	●	●
46	02.334 WASHER; PL,BATTERY TO CARRIER 4HG1 ENG(RJH),4HF1-S ENG(RLS) 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0211-0507	●	●
46	02.334 WASHER; PL,BATTERY TO CARRIER 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0508-0605	●	●
46	02.334 WASHER; PL,BATTERY TO CARRIER 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.277 ID=8.4 OD=22 IDN	0-91614-708-0	02	1	0606-0609	●	●
46	02.334 WASHER; PL,BATTERY TO CARRIER 4JB1-TC ENG(RDT) BATTERY 80D26R<6KC> 02.277 ID=8.4 OD=22 IDN	0-91614-708-0	02	1	0610-0612	●
46	02.334 WASHER; PL,BATTERY TO CARRIER 4HF1-N ENG(RJZ) 02.277 ID=8.4 OD=22 IDN	0-91614-708-0	02	1	0610-0612	●
46	02.334 WASHER; PL,BATTERY TO CARRIER 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.277 ID=8.4 OD=22 IDN	0-91614-708-0	02	1	0610-0612		●
46	02.334 WASHER; PL,BATTERY TO CARRIER 4JB1-TC ENG(RDT) BATTERY 80D26R<6KC> 02.277 ID=8.4 OD=22 IDN	0-91614-708-0	02	1	0701-0712	●
46	02.334 WASHER; PL,BATTERY TO CARRIER 4HF1-N ENG(RJZ) 02.277 ID=8.4 OD=22 IDN	0-91614-708-0	02	1	0701-0712	●
46	02.334 WASHER; PL,BATTERY TO CARRIER 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.277 ID=8.4 OD=22 IDN	0-91614-708-0	02	1	0701-0712		●
46	02.334 WASHER; PL,BATTERY TO CARRIER 4JB1-TC ENG(RDT) BATTERY 80D26R<6KC> 02.277 ID=8.4 OD=22 IDN	0-91614-708-0	02	1	0801-	●	●
46	02.334 WASHER; PL,BATTERY TO CARRIER 4HF1-N ENG(RJZ) 02.277 ID=8.4 OD=22 IDN	0-91614-708-0	02	1	0801-	●
46	02.334 WASHER; PL,BATTERY TO CARRIER 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.277 ID=8.4 OD=22 IDN	0-91614-708-0	02	1	0801-		●
46	02.334 WASHER; PL,BATTERY TO CARRIER BATTERY 95D31R<6DN> 03.417 ID=8.4 OD=16 IDN	0-91610-508-0	02	1	0610-0712	●
46	02.334 WASHER; PL,BATTERY TO CARRIER BATTERY 95D31R<6DN> 03.417 ID=8.4 OD=16 IDN	0-91610-508-0	02	1	0801-	●
46	02.334 WASHER; PL,BATTERY TO CARRIER BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> 03.417 ID=8.4 OD=16 IDN	0-91610-508-0	02	1	0801-		●
47	02.334 NUT; BRKT 4HG1 ENG(RJH),4HF1-S ENG(RLS) 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0507	●	●
47	02.334 NUT; BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 07.633 M8 FLANGE	0-91150-108-0	02	1	0508-0602	●	●
47	02.334 NUT; BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	0603-0609	●	●
47	02.334 NUT; BRKT 4JB1-TC ENG(RDT) BATTERY 80D26R<6KC> 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	0610-0612	●
47	02.334 NUT; BRKT 4HF1-N ENG(RJZ) 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	0610-0612	●
47	02.334 NUT; BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	0610-0612		●
47	02.334 NUT; BRKT 4JB1-TC ENG(RDT) BATTERY 80D26R<6KC> 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	0701-0712	●
47	02.334 NUT; BRKT 4HF1-N ENG(RJZ) 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	0701-0712	●
47	02.334 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	0701-0712		●
47	02.334 NUT; BRKT 4JB1-TC ENG(RDT) BATTERY 80D26R<6KC> 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	0801-	●	●
47	02.334 NUT; BRKT 4HF1-N ENG(RJZ) 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	0801-	●
47	02.334 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	0801-		●
47	02.334 NUT; BRKT BATTERY 95D31R<6DN> M8 IDN	0-91110-508-0	04	1	0610-0712	●
47	02.334 NUT; BRKT BATTERY 95D31R<6DN> M8 IDN	0-91110-508-0	04	1	0801-	●
47	02.334 NUT; BRKT BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> M8 IDN	0-91110-508-0	04	1	0801-		●
51	02.335 COVER; BATTERY 4HG1 ENG(RJH),4HF1-S ENG(RLS) (B) IDN	8-97120-747-0	01	1	0211-0507	●	●
51	02.335 COVER; BATTERY 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) IDN	8-97120-747-0	01	1	0508-0612	●	●
51	02.335 COVER; BATTERY 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) IDN	8-97120-747-0	01	1	0701-	●	●
51	02.335 COVER; BATTERY 4JB1-TC ENG(RDT) BATTERY 80D26R<6KC> (B)	8-97218-309-0	01	1	0610-0712	●
51	02.335 COVER; BATTERY 4JB1-TC ENG(RDT) BATTERY 80D26R<6KC> (B)	8-97218-309-0	01	1	0801-	●	●
51	02.335 COVER; BATTERY BATTERY 95D31R<6DN> (A) IDN	8-97313-780-0	01	1	0610-0712	●
51	02.335 COVER; BATTERY BATTERY 95D31R<6DN> (A) IDN	8-97313-780-0	01	1	0801-	●	●
51	02.335 COVER; BATTERY BATTERY NX200-10<S9C> 02.345 (A)	9-53612-046-2	01	1	0801-		●
52	02.335 NUT; WING,COVER FIX 4HG1 ENG(RJH),4HF1-S ENG(RLS) M8 WING NUT IDN	9-09118-408-0	02	1	0211-0507	●	●
52	02.335 NUT; WING,COVER FIX 4HG1 ENG(RJH),4HF1-N ENG(RJZ) M8 WING NUT IDN	9-09118-408-0	02	1	0508-0512	●	●
52	02.335 NUT; WING,COVER FIX 4HG1 ENG(RJH),4HF1-N ENG(RJZ) M8 WING NUT IDN	0-91118-408-0	02	1	0601-0609	●	●
52	02.335 NUT; WING,COVER FIX 4JB1-TC ENG(RDT) BATTERY 80D26R<6KC> M8 WING NUT IDN	0-91118-408-0	02	1	0610-0612	●
52	02.335 NUT; WING,COVER FIX 4HF1-N ENG(RJZ) M8 WING NUT IDN	0-91118-408-0	02	1	0610-0612	●
52	02.335 NUT; WING,COVER FIX 4HG1 ENG(RJH),4HF1-N ENG(RJZ) M8 WING NUT IDN	0-91118-408-0	02	1	0610-0612		●
52	02.335 NUT; WING,COVER FIX 4JB1-TC ENG(RDT) BATTERY 80D26R<6KC> M8 WING NUT IDN	0-91118-408-0	02	1	0701-0712	●
52	02.335 NUT; WING,COVER FIX 4HF1-N ENG(RJZ) M8 WING NUT IDN	0-91118-408-0	02	1	0701-0712	●
52	02.335 NUT; WING,COVER FIX 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) M8 WING NUT IDN	0-91118-408-0	02	1	0701-0712		●
52	02.335 NUT; WING,COVER FIX 4JB1-TC ENG(RDT) BATTERY 80D26R<6KC> M8 WING NUT IDN	0-91118-408-0	02	1	0801-	●	●
52	02.335 NUT; WING,COVER FIX 4HF1-N ENG(RJZ) M8 WING NUT IDN	0-91118-408-0	02	1	0801-	●
52	02.335 NUT; WING,COVER FIX 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) M8 WING NUT IDN	0-91118-408-0	02	1	0801-		●
52	02.335 NUT; WING,COVER FIX BATTERY NX200-10<S9C> M5 WING NUT	0-91118-405-0	02	1	0801-		●
53	02.335 WASHER; PL,COVER FIX BATTERY NX200-10<S9C> ID=5.3 OD=16 IDN	0-91614-705-0	02	1	0801-		●
