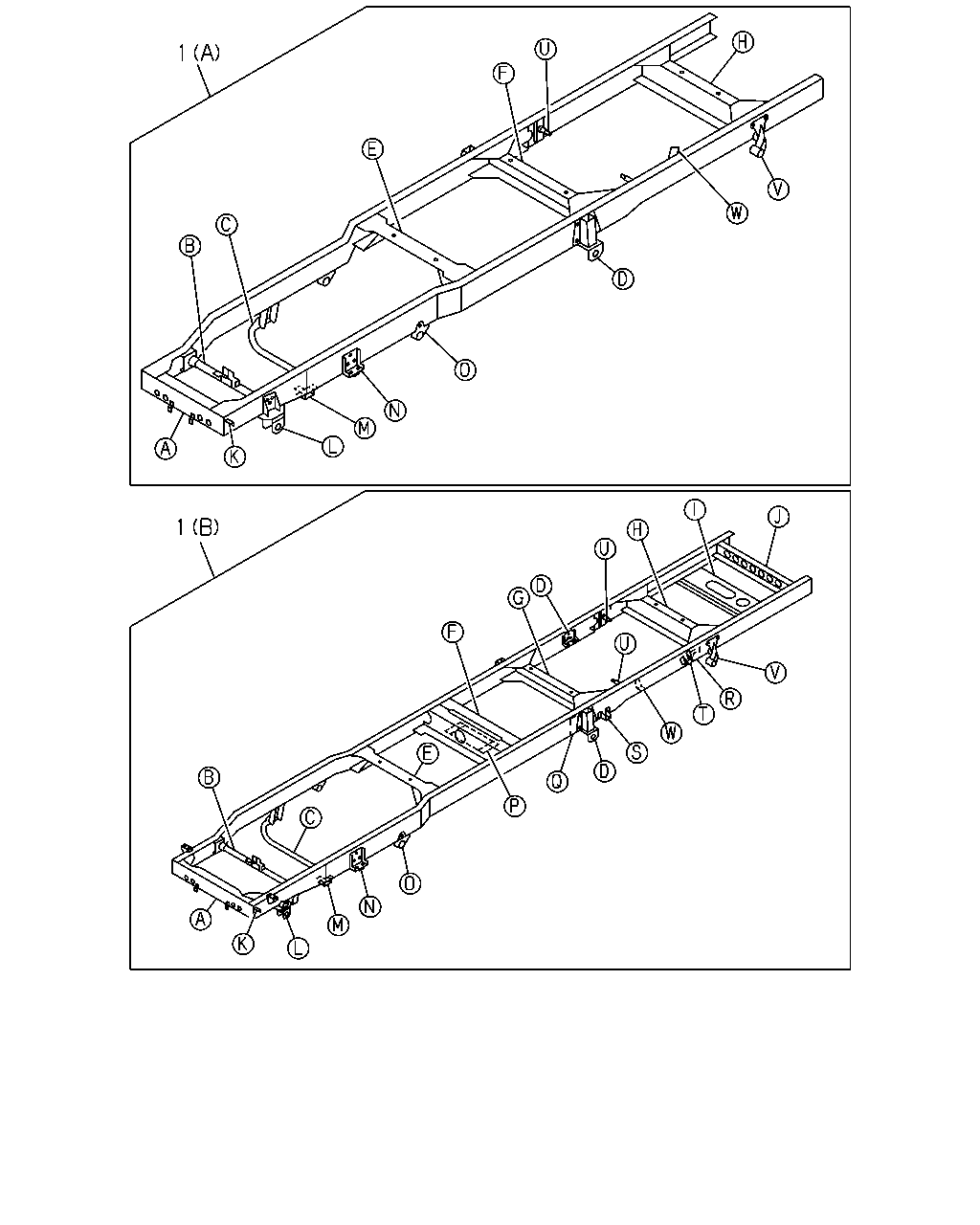

5-01 — FRAME AND OTHER PARTS (#78974) — 304 parça

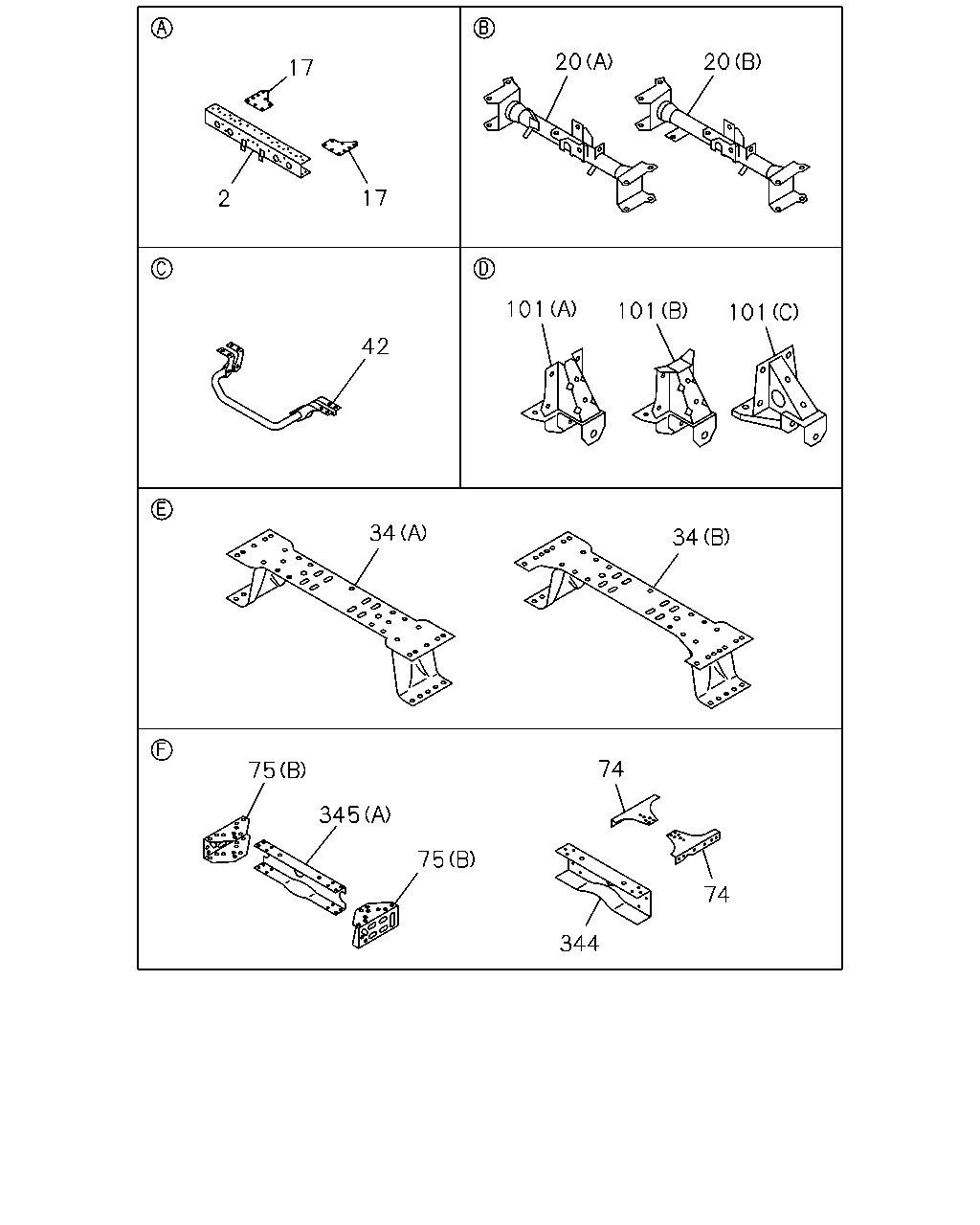

17 17 2 42 34 34 101 101 101 20 20 74 74 344 75 345 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	07.010 MEMBER; CROSS,1ST	8-97034-332-2	01	1	0211-	●	●
17	07.039 GUSSET; 1ST C/MBR	8-97088-205-1	02	1	0211-	●	●
20	07.012 MEMBER; CROSS,2ND (B)	8-97078-581-1	01	1	0211-0609	●	●
20	07.012 MEMBER; CROSS,2ND 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B)	8-97078-581-1	01	1	0610-	●	●
20	07.012 MEMBER; CROSS,2ND 4JB1-TC ENG(RDT) (A)	8-97145-718-0	01	1	0610-0712	●
20	07.012 MEMBER; CROSS,2ND 4JB1-TC ENG(RDT) (A)	8-97145-718-0	01	1	0801-	●	●
34	07.012 MEMBER; CROSS,3RD (A)	8-97352-432-1	01	1	0211-0507	●
34	07.012 MEMBER; CROSS,3RD 4HF1-N ENG(RJZ) (A)	8-97352-432-1	01	1	0508-	●
34	07.012 MEMBER; CROSS,3RD (B)	8-97039-671-1	01	1	0211-1405		●
34	07.012 MEMBER; CROSS,3RD 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B)	8-97039-671-1	01	1	1406-1506		●
34	07.012 MEMBER; CROSS,3RD 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B)	8-97039-671-1	01	1	1507-		●
34	07.012 MEMBER; CROSS,3RD 4JB1-TC ENG(RDT) MINI BUS CHASSIS(V4B) (B)	8-97039-671-1	01	1	1507-		●
34	07.012 MEMBER; CROSS,3RD 4JB1-TC ENG(RDT) (A) IDN	8-97039-670-1	01	1	0610-	●
34	07.012 MEMBER; CROSS,3RD 4JB1-TC ENG(RDT) (A)	8-97115-578-0	01	1	0801-1506		●
34	07.012 MEMBER; CROSS,3RD 4JB1-TC ENG(RDT) EXC. MINI BUS CHASSIS(V4B) (A)	8-97115-578-0	01	1	1507-		●
42	07.011 MEMBER; CROSS,ENG MTG IDN	8-97165-923-1	01	1	0211-0609	●	●
42	07.011 MEMBER; CROSS,ENG MTG 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97165-923-1	01	1	0610-	●	●
42	07.011 MEMBER; CROSS,ENG MTG 4JB1-TC ENG(RDT) IDN	8-94246-127-7	01	1	0610-0712	●
42	07.011 MEMBER; CROSS,ENG MTG 4JB1-TC ENG(RDT) IDN	8-94246-127-7	01	1	0801-	●	●
74	07.039 GUSSET; 4TH C/MBR RH-UPPER, LH-LOWER	8-97101-837-1	02	1	0211-		●
74	07.039 GUSSET; 4TH C/MBR RH-LOWER, LH-UPPER	8-97101-838-1	02	1	0211-		●
75	07.039 GUSSET; 5TH C/MBR (B)	8-94258-075-3	02	1	0211-0507	●
75	07.039 GUSSET; 5TH C/MBR 4HF1-N ENG(RJZ) (B)	8-94258-075-3	02	1	0508-0609	●
75	07.039 GUSSET; 5TH C/MBR (B)	8-94258-075-3	02	1	0610-	●
75	07.039 GUSSET; 5TH C/MBR (A) RH-UPPER,LH-LOWER IDN	8-97062-499-0	02	1	0211-		●
75	07.039 GUSSET; 5TH C/MBR (A) RH-LOWER,LH-UPPER IDN	8-97062-500-0	02	1	0211-		●
101	07.112 BRACKET; RR SPR,FRT 4HG1-T ENG(RDP) VIN MODEL YEAR 2014(VZE) MINI BUS CHASSIS(V4B) EXC. FRONT STABILIZER SHAFT<F59> (C) IDN	8-98034-042-0	02	1	1406-1407		●
101	07.112 BRACKET; RR SPR,FRT 4HG1-T ENG(RDP) MINI BUS CHASSIS(V4B) (C) IDN	8-98034-042-0	02	1	1408-1506		●
101	07.112 BRACKET; RR SPR,FRT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) (C) IDN	8-98034-042-0	02	1	1507-		●
101	07.112 BRACKET; RR SPR,FRT (B) IDN	8-94258-093-1	02	1	0211-0507	●
101	07.112 BRACKET; RR SPR,FRT 4HF1-N ENG(RJZ) (B) IDN	8-94258-093-1	02	1	0508-0609	●
101	07.112 BRACKET; RR SPR,FRT (B) IDN	8-94258-093-1	02	1	0610-	●
101	07.112 BRACKET; RR SPR,FRT (A)	8-97034-156-1	02	1	0211-1405		●
101	07.112 BRACKET; RR SPR,FRT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. MINI BUS CHASSIS(V4B) (A)	8-97034-156-1	02	1	1406-1506		●
101	07.112 BRACKET; RR SPR,FRT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. MINI BUS CHASSIS(V4B) (A)	8-97034-156-1	02	1	1507-		●
101	07.112 BRACKET; RR SPR,FRT 4HG1-T ENG(RDP),4HG1 ENG(RJH) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) MINI BUS CHASSIS(V4B) (A)	8-97034-156-1	02	1	1507-		●
101	07.112 BRACKET; RR SPR,FRT 4JB1-TC ENG(RDT) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. MINI BUS CHASSIS(V4B) (A)	8-97034-156-1	02	1	1507-		●
344	07.012 MEMBER; CROSS,4TH	8-97078-707-3	01	1	0211-		●
345	07.012 MEMBER; CROSS,5TH (A)	8-97081-061-2	01	1	0211-0507	●
345	07.012 MEMBER; CROSS,5TH 4HF1-N ENG(RJZ) (A)	8-97081-061-2	01	1	0508-0609	●
345	07.012 MEMBER; CROSS,5TH (A)	8-97081-061-2	01	1	0610-	●
345	07.012 MEMBER; CROSS,5TH (B)	8-97062-497-3	01	1	0211-		●

376 376 376 376 376 376 376 376 376 376 376 376 376 376 376 376 376 176 176 40 60 414 414 113 414 118 62 64 123 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	08.155 BOLT; BRKT TO FRAME HEAVY DUTY FRAME<6WB> 09.171 M10X25 FLANGE IDN	0-28051-025-0	04	1	1106-1201		●
40	08.155 BOLT; BRKT TO FRAME VIN MODEL YEAR 2012(VZC) 09.171 M10X25 FLANGE IDN	0-28051-025-0	04	1	1202-1206		●
60	05.601 BOLT; MBR VIN MODEL YEAR 2012(VZC) HEAVY DUTY FRAME<6WB> 03.890 M10X30 FLANGE	0-28051-030-0	06	1	1202-1206		●
60	05.601 BOLT; MBR VIN MODEL YEAR 2012(VZC) 03.890 M10X30 FLANGE	0-28051-030-0	06	1	1207-1405		●
60	05.601 BOLT; MBR VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 03.890 M10X30 FLANGE	0-28051-030-0	06	1	1406-1410		●
60	05.601 BOLT; MBR G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 03.890 M10X30 FLANGE	0-28051-030-0	06	1	1411-		●
62	05.601 NUT; MBR VIN MODEL YEAR 2012(VZC) HEAVY DUTY FRAME<6WB> 03.162 M10 FLANGE IDN	0-91180-110-0	06	1	1202-1206		●
62	05.601 NUT; MBR VIN MODEL YEAR 2012(VZC) 03.162 M10 FLANGE IDN	0-91180-110-0	06	1	1207-1405		●
62	05.601 NUT; MBR VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 03.162 M10 FLANGE IDN	0-91180-110-0	06	1	1406-1410		●
62	05.601 NUT; MBR G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 03.162 M10 FLANGE IDN	0-91180-110-0	06	1	1411-		●
64	05.601 NUT; BRKT TO FRAME HEAVY DUTY FRAME<6WB> 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	1106-1201		●
64	05.601 NUT; BRKT TO FRAME VIN MODEL YEAR 2012(VZC) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	1202-1206		●
113	07.535 BOLT; SPR STOPPER HEAVY DUTY FRAME<6WB> 06.008 M12X40 FLANGE	0-28061-240-0	24	1	1109-1201		●
113	07.535 BOLT; SPR STOPPER VIN MODEL YEAR 2012(VZC) 06.008 M12X40 FLANGE	0-28061-240-0	24	1	1202-1405		●
113	07.535 BOLT; SPR STOPPER VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 06.008 M12X40 FLANGE	0-28061-240-0	24	1	1406-1410		●
113	07.535 BOLT; SPR STOPPER G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 06.008 M12X40 FLANGE	0-28061-240-0	24	1	1411-		●
118	07.529 NUT; STOPPER 07.242 M8 LOCK NUT	9-09131-508-0	04	1	0211-0603		●
118	07.529 NUT; STOPPER M8 LOCK NUT	0-91370-008-0	04	1	0604-1405		●
118	07.529 NUT; STOPPER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. MINI BUS CHASSIS(V4B) M8 LOCK NUT	0-91370-008-0	04	1	1406-1506		●
118	07.529 NUT; STOPPER 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. MINI BUS CHASSIS(V4B) M8 LOCK NUT	0-91370-008-0	04	1	1507-		●
118	07.529 NUT; STOPPER 4HG1-T ENG(RDP),4HG1 ENG(RJH) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) MINI BUS CHASSIS(V4B) M8 LOCK NUT	0-91370-008-0	04	1	1507-		●
118	07.529 NUT; STOPPER 4JB1-TC ENG(RDT) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. MINI BUS CHASSIS(V4B) M8 LOCK NUT	0-91370-008-0	04	1	1507-		●
123	07.039 NUT 4HG1-T ENG(RDP) MINI BUS CHASSIS(V4B) 05.816 (A) M12 FLANGE	0-91180-212-0	06	1	1411-1506		●
123	07.039 NUT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) 05.816 (A) M12 FLANGE	0-91180-212-0	06	1	1507-		●
123	07.039 NUT VIN MODEL YEAR 2012(VZC) 04.085 (B) M10 FLANGE	0-91180-210-0	02	1	1204-1405		●
123	07.039 NUT VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 04.085 (B) M10 FLANGE	0-91180-210-0	02	1	1406-1410		●
123	07.039 NUT G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 04.085 (B) M10 FLANGE	0-91180-210-0	02	1	1411-		●
123	07.039 NUT HEAVY DUTY FRAME<6WB> 05.816 (A) M12 FLANGE	0-91180-212-0	12	1	1106-1108		●
123	07.039 NUT HEAVY DUTY FRAME<6WB> 05.816 (A) M12 FLANGE	0-91180-212-0	54	1	1109-1201		●
123	07.039 NUT VIN MODEL YEAR 2012(VZC) 05.816 (A) M12 FLANGE	0-91180-212-0	54	1	1202-1405		●
123	07.039 NUT VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 05.816 (A) M12 FLANGE	0-91180-212-0	54	1	1406-1410		●
123	07.039 NUT G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 05.816 (A) M12 FLANGE	0-91180-212-0	54	1	1411-		●
176	04.085 BOLT; C/MBR,ENG MTG HEAVY DUTY FRAME<6WB> 03.890 (A) M10X30 FLANGE	0-28051-030-0	08	1	1109-1201		●
176	04.085 BOLT; C/MBR,ENG MTG VIN MODEL YEAR 2012(VZC) 03.890 (A) M10X30 FLANGE	0-28051-030-0	08	1	1202-1405		●
176	04.085 BOLT; C/MBR,ENG MTG VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 03.890 (A) M10X30 FLANGE	0-28051-030-0	08	1	1406-1410		●
176	04.085 BOLT; C/MBR,ENG MTG 4HG1-T ENG(RDP) VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) MINI BUS CHASSIS(V4B) 03.890 (A) M10X30 FLANGE	0-28051-030-0	08	1	1411-1506		●
176	04.085 BOLT; C/MBR,ENG MTG G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 03.890 (A) M10X30 FLANGE	0-28051-030-0	08	1	1411-1506		●
176	04.085 BOLT; C/MBR,ENG MTG G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 03.890 (A) M10X30 FLANGE	0-28051-030-0	08	1	1507-		●
176	04.085 BOLT; C/MBR,ENG MTG 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) 03.890 (A) M10X30 FLANGE	0-28051-030-0	08	1	1507-		●
176	04.085 BOLT; C/MBR,ENG MTG 03.417 (B) M10X25 FLANGE	0-28081-025-0	08	1	0211-0512	●	●
176	04.085 BOLT; C/MBR,ENG MTG 09.171 (B) M10X25 FLANGE IDN	0-28051-025-0	08	1	0601-1410	●	●
176	04.085 BOLT; C/MBR,ENG MTG 09.171 (B) M10X25 FLANGE IDN	0-28051-025-0	08	1	1411-1506	●
176	04.085 BOLT; C/MBR,ENG MTG 4JB1-TC ENG(RDT) 09.171 (B) M10X25 FLANGE IDN	0-28051-025-0	08	1	1411-1506		●
176	04.085 BOLT; C/MBR,ENG MTG 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. MINI BUS CHASSIS(V4B) 09.171 (B) M10X25 FLANGE IDN	0-28051-025-0	08	1	1411-1506		●
176	04.085 BOLT; C/MBR,ENG MTG 09.171 (B) M10X25 FLANGE IDN	0-28051-025-0	08	1	1507-	●
176	04.085 BOLT; C/MBR,ENG MTG 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 09.171 (B) M10X25 FLANGE IDN	0-28051-025-0	08	1	1507-		●
176	04.085 BOLT; C/MBR,ENG MTG 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 09.171 (B) M10X25 FLANGE IDN	0-28051-025-0	08	1	1507-		●
176	04.085 BOLT; C/MBR,ENG MTG 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) 09.171 (B) M10X25 FLANGE IDN	0-28051-025-0	08	1	1507-		●
376	07.039 RIVET; FRAME (A) D8X20 TAPER END	9-06750-820-0	AR	1	0211-	●	●
376	07.039 RIVET; FRAME 07.011 (B) D8X22 TAPER END	9-06750-822-0	AR	1	0211-	●	●
376	07.039 RIVET; FRAME 07.011 (C) D8X24 TAPER END	9-06750-824-0	AR	1	0211-	●	●
376	07.039 RIVET; FRAME 07.395 (D) D8X26 TAPER END	9-06750-826-0	AR	1	0211-	●	●
376	07.039 RIVET; FRAME 07.395 (E) D8X28 TAPER END	9-06750-828-0	AR	1	0211-	●	●
376	07.039 RIVET; FRAME 07.011 (F) D8X30 TAPER END	9-06750-830-0	AR	1	0211-	●	●
376	07.039 RIVET; FRAME (G) D10X24 TAPER END IDN	9-06751-024-0	AR	1	0211-	●	●
376	07.039 RIVET; FRAME (H) D10X26 TAPER END	9-06751-026-0	AR	1	0211-	●	●
376	07.039 RIVET; FRAME (I) D10X28 TAPER END	9-06751-028-0	AR	1	0211-	●	●
376	07.039 RIVET; FRAME (J) D10X30 TAPER END IDN	9-06751-030-0	AR	1	0211-	●	●
376	07.039 RIVET; FRAME (K) D10X32 TAPER END	9-06751-032-0	AR	1	0211-	●	●
376	07.039 RIVET; FRAME (L) M10X34 TAPER END	9-06751-034-0	AR	1	0211-	●	●
376	07.039 RIVET; FRAME (M) D10X36 TAPER END IDN	9-06751-036-0	AR	1	0211-	●	●
376	07.039 RIVET; FRAME (N) M10X38 TAPER END	9-06751-038-0	AR	1	0211-	●	●
376	07.039 RIVET; FRAME 07.105 (O) D12X30 TAPER END	9-06751-230-0	AR	1	0211-	●	●
376	07.039 RIVET; FRAME 07.535 (P) D12X34 TAPER END	9-06751-234-0	AR	1	0211-	●	●
376	07.039 RIVET; FRAME 07.112 (Q) D12X38 TAPER END	9-06751-238-0	AR	1	0211-	●	●
414	07.011 BOLT VIN MODEL YEAR 2012(VZC) 07.068 (C) M10X30 FLANGE	0-28661-030-0	02	1	1204-1405		●
414	07.011 BOLT VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 07.068 (C) M10X30 FLANGE	0-28661-030-0	02	1	1406-1410		●
414	07.011 BOLT G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 07.068 (C) M10X30 FLANGE	0-28661-030-0	02	1	1411-		●
414	07.011 BOLT HEAVY DUTY FRAME<6WB> 09.003 (A) M12X30 FLANGE	0-28051-230-0	06	1	1109-1201		●
414	07.011 BOLT VIN MODEL YEAR 2012(VZC) 09.003 (A) M12X30 FLANGE	0-28051-230-0	06	1	1202-1405		●
414	07.011 BOLT VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 09.003 (A) M12X30 FLANGE	0-28051-230-0	06	1	1406-1410		●
414	07.011 BOLT 4HG1-T ENG(RDP) VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) MINI BUS CHASSIS(V4B) 09.003 (A) M12X30 FLANGE	0-28051-230-0	06	1	1411-1506		●
414	07.011 BOLT G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 09.003 (A) M12X30 FLANGE	0-28051-230-0	06	1	1411-1506		●
414	07.011 BOLT G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 09.003 (A) M12X30 FLANGE	0-28051-230-0	06	1	1507-		●
414	07.011 BOLT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) 09.003 (A) M12X30 FLANGE	0-28051-230-0	06	1	1507-		●
414	07.011 BOLT HEAVY DUTY FRAME<6WB> 06.008 (B) M12X40 FLANGE	0-28061-240-0	24	1	1109-1201		●
414	07.011 BOLT VIN MODEL YEAR 2012(VZC) 06.008 (B) M12X40 FLANGE	0-28061-240-0	24	1	1202-1405		●
414	07.011 BOLT VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 06.008 (B) M12X40 FLANGE	0-28061-240-0	24	1	1406-1410		●
414	07.011 BOLT G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 06.008 (B) M12X40 FLANGE	0-28061-240-0	24	1	1411-		●

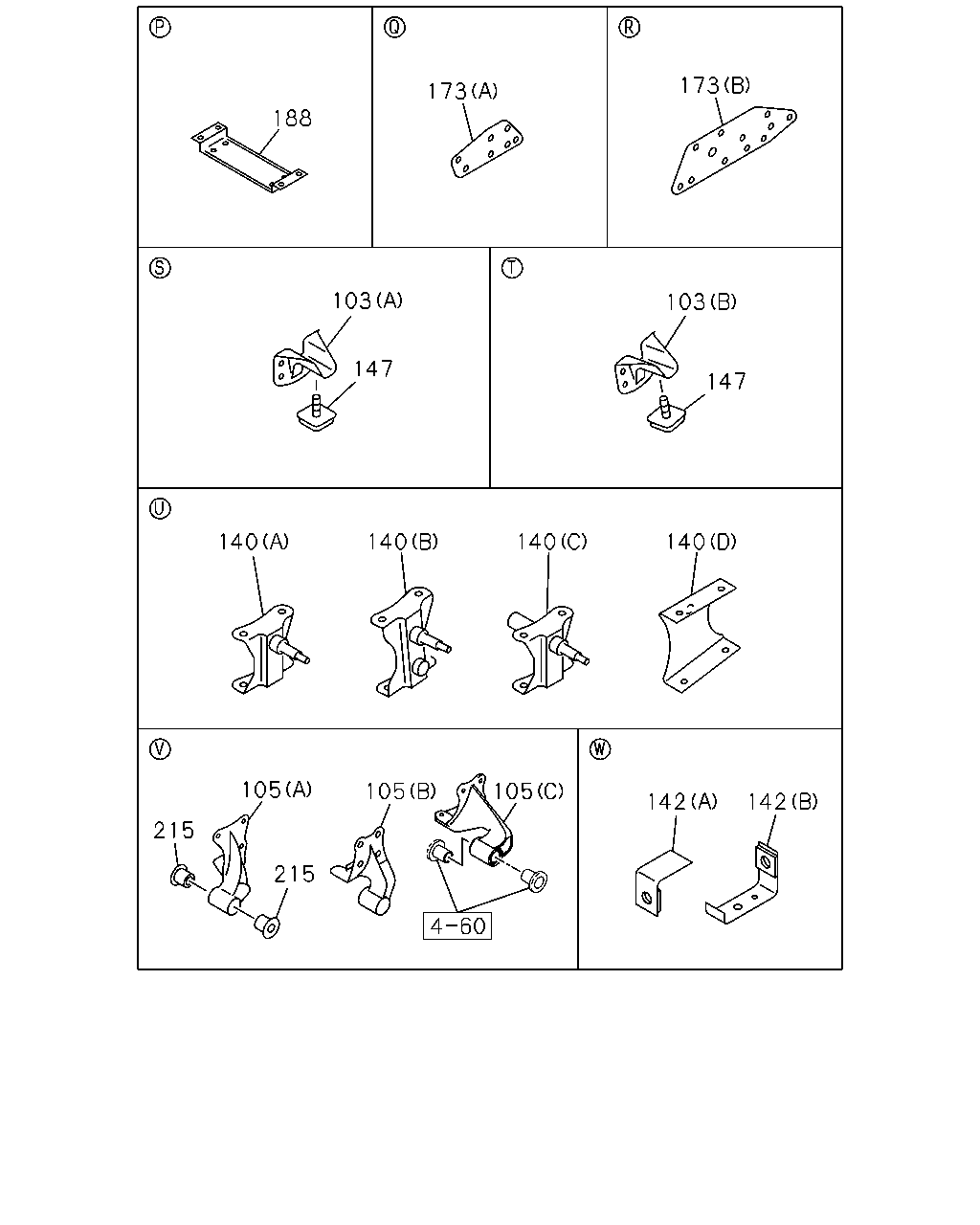

188 173 173 103 147 103 147 140 140 140 140 105 105 105 142 142 215 215

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
103	07.420 STOPPER; SUB SPR (A) IDN	8-97223-748-0	02	1	0211-1405		●
103	07.420 STOPPER; SUB SPR 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. MINI BUS CHASSIS(V4B) (A) IDN	8-97223-748-0	02	1	1406-1506		●
103	07.420 STOPPER; SUB SPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. MINI BUS CHASSIS(V4B) (A) IDN	8-97223-748-0	02	1	1507-		●
103	07.420 STOPPER; SUB SPR 4HG1-T ENG(RDP),4HG1 ENG(RJH) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) MINI BUS CHASSIS(V4B) (A) IDN	8-97223-748-0	02	1	1507-		●
103	07.420 STOPPER; SUB SPR 4JB1-TC ENG(RDT) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. MINI BUS CHASSIS(V4B) (A) IDN	8-97223-748-0	02	1	1507-		●
103	07.420 STOPPER; SUB SPR (B) IDN	8-97223-750-0	02	1	0211-1405		●
103	07.420 STOPPER; SUB SPR 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. MINI BUS CHASSIS(V4B) (B) IDN	8-97223-750-0	02	1	1406-1506		●
103	07.420 STOPPER; SUB SPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. MINI BUS CHASSIS(V4B) (B) IDN	8-97223-750-0	02	1	1507-		●
103	07.420 STOPPER; SUB SPR 4HG1-T ENG(RDP),4HG1 ENG(RJH) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) MINI BUS CHASSIS(V4B) (B) IDN	8-97223-750-0	02	1	1507-		●
103	07.420 STOPPER; SUB SPR 4JB1-TC ENG(RDT) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. MINI BUS CHASSIS(V4B) (B) IDN	8-97223-750-0	02	1	1507-		●
105	07.112 BRACKET; RR SPR,RR 4HG1-T ENG(RDP) VIN MODEL YEAR 2014(VZE) MINI BUS CHASSIS(V4B) EXC. FRONT STABILIZER SHAFT<F59> (C)	8-98031-058-0	01	1	1406-1407		●
105	07.112 BRACKET; RR SPR,RR 4HG1-T ENG(RDP) MINI BUS CHASSIS(V4B) (C)	8-98031-058-0	01	1	1408-1506		●
105	07.112 BRACKET; RR SPR,RR 4HG1-T ENG(RDP),4JB1-TC ENG(RDT) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) (C)	8-98031-058-0	01	1	1507-		●
105	07.112 BRACKET; RR SPR,RR 4HG1-T ENG(RDP) VIN MODEL YEAR 2014(VZE) MINI BUS CHASSIS(V4B) EXC. FRONT STABILIZER SHAFT<F59> (C)	8-98031-059-0	01	1	1406-1407		●
105	07.112 BRACKET; RR SPR,RR 4HG1-T ENG(RDP) MINI BUS CHASSIS(V4B) (C)	8-98031-059-0	01	1	1408-1506		●
105	07.112 BRACKET; RR SPR,RR 4HG1-T ENG(RDP),4JB1-TC ENG(RDT) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) (C)	8-98031-059-0	01	1	1507-		●
105	07.112 BRACKET; RR SPR,RR (B) IDN	8-94126-620-1	01	1	0211-0507	●
105	07.112 BRACKET; RR SPR,RR 4HF1-N ENG(RJZ) (B) IDN	8-94126-620-1	01	1	0508-0609	●
105	07.112 BRACKET; RR SPR,RR (B) IDN	8-94126-620-1	01	1	0610-	●
105	07.112 BRACKET; RR SPR,RR (B) IDN	8-94126-621-1	01	1	0211-0507	●
105	07.112 BRACKET; RR SPR,RR 4HF1-N ENG(RJZ) (B) IDN	8-94126-621-1	01	1	0508-0609	●
105	07.112 BRACKET; RR SPR,RR (B) IDN	8-94126-621-1	01	1	0610-	●
105	07.112 BRACKET; RR SPR,RR (A) IDN	8-94459-511-1	01	1	0211-1405		●
105	07.112 BRACKET; RR SPR,RR 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. MINI BUS CHASSIS(V4B) (A) IDN	8-94459-511-1	01	1	1406-1506		●
105	07.112 BRACKET; RR SPR,RR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. MINI BUS CHASSIS(V4B) (A) IDN	8-94459-511-1	01	1	1507-		●
105	07.112 BRACKET; RR SPR,RR 4HG1-T ENG(RDP),4HG1 ENG(RJH) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) MINI BUS CHASSIS(V4B) (A) IDN	8-94459-511-1	01	1	1507-		●
105	07.112 BRACKET; RR SPR,RR 4JB1-TC ENG(RDT) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. MINI BUS CHASSIS(V4B) (A) IDN	8-94459-511-1	01	1	1507-		●
105	07.112 BRACKET; RR SPR,RR (A) IDN	8-94459-512-1	01	1	0211-1405		●
105	07.112 BRACKET; RR SPR,RR 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. MINI BUS CHASSIS(V4B) (A) IDN	8-94459-512-1	01	1	1406-1506		●
105	07.112 BRACKET; RR SPR,RR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. MINI BUS CHASSIS(V4B) (A) IDN	8-94459-512-1	01	1	1507-		●
105	07.112 BRACKET; RR SPR,RR 4HG1-T ENG(RDP),4HG1 ENG(RJH) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) MINI BUS CHASSIS(V4B) (A) IDN	8-94459-512-1	01	1	1507-		●
105	07.112 BRACKET; RR SPR,RR 4JB1-TC ENG(RDT) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. MINI BUS CHASSIS(V4B) (A) IDN	8-94459-512-1	01	1	1507-		●
140	07.112 BRACKET; S/ABS,RR 4HG1-T ENG(RDP) VIN MODEL YEAR 2014(VZE) MINI BUS CHASSIS(V4B) EXC. FRONT STABILIZER SHAFT<F59> (D) IDN	8-97163-956-0	01	1	1406-1407		●
140	07.112 BRACKET; S/ABS,RR 4HG1-T ENG(RDP) MINI BUS CHASSIS(V4B) (D) IDN	8-97163-956-0	01	1	1408-1506		●
140	07.112 BRACKET; S/ABS,RR 4HG1-T ENG(RDP),4JB1-TC ENG(RDT) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) (D) IDN	8-97163-956-0	01	1	1507-		●
140	07.112 BRACKET; S/ABS,RR 4HG1-T ENG(RDP) VIN MODEL YEAR 2014(VZE) MINI BUS CHASSIS(V4B) EXC. FRONT STABILIZER SHAFT<F59> (D) IDN	8-97163-957-0	01	1	1406-1407		●
140	07.112 BRACKET; S/ABS,RR 4HG1-T ENG(RDP) MINI BUS CHASSIS(V4B) (D) IDN	8-97163-957-0	01	1	1408-1506		●
140	07.112 BRACKET; S/ABS,RR 4HG1-T ENG(RDP),4JB1-TC ENG(RDT) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) (D) IDN	8-97163-957-0	01	1	1507-		●
140	07.112 BRACKET; S/ABS,RR (A) IDN	8-94258-103-1	01	1	0211-0507	●
140	07.112 BRACKET; S/ABS,RR 4HF1-N ENG(RJZ) (A) IDN	8-94258-103-1	01	1	0508-0609	●
140	07.112 BRACKET; S/ABS,RR (A) IDN	8-94258-103-1	01	1	0610-	●
140	07.112 BRACKET; S/ABS,RR (A) IDN	8-94258-104-1	01	1	0211-0507	●
140	07.112 BRACKET; S/ABS,RR 4HF1-N ENG(RJZ) (A) IDN	8-94258-104-1	01	1	0508-0609	●
140	07.112 BRACKET; S/ABS,RR (A) IDN	8-94258-104-1	01	1	0610-	●
140	07.112 BRACKET; S/ABS,RR 07.395 (C)	8-94101-303-0	01	1	0211-1405		●
140	07.112 BRACKET; S/ABS,RR 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. MINI BUS CHASSIS(V4B) 07.395 (C)	8-94101-303-0	01	1	1406-1506		●
140	07.112 BRACKET; S/ABS,RR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. MINI BUS CHASSIS(V4B) 07.395 (C)	8-94101-303-0	01	1	1507-		●
140	07.112 BRACKET; S/ABS,RR 4HG1-T ENG(RDP),4HG1 ENG(RJH) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) MINI BUS CHASSIS(V4B) 07.395 (C)	8-94101-303-0	01	1	1507-		●
140	07.112 BRACKET; S/ABS,RR 4JB1-TC ENG(RDT) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. MINI BUS CHASSIS(V4B) 07.395 (C)	8-94101-303-0	01	1	1507-		●
140	07.112 BRACKET; S/ABS,RR (B)	8-97012-285-0	01	1	0211-1405		●
140	07.112 BRACKET; S/ABS,RR 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. MINI BUS CHASSIS(V4B) (B)	8-97012-285-0	01	1	1406-1506		●
140	07.112 BRACKET; S/ABS,RR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. MINI BUS CHASSIS(V4B) (B)	8-97012-285-0	01	1	1507-		●
140	07.112 BRACKET; S/ABS,RR 4HG1-T ENG(RDP),4HG1 ENG(RJH) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) MINI BUS CHASSIS(V4B) (B)	8-97012-285-0	01	1	1507-		●
140	07.112 BRACKET; S/ABS,RR 4JB1-TC ENG(RDT) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. MINI BUS CHASSIS(V4B) (B)	8-97012-285-0	01	1	1507-		●
142	04.845 BRACKET; FLEX HOSE,BRAKE (B)	8-97035-308-0	01	1	0211-		●
142	04.845 BRACKET; FLEX HOSE,BRAKE 4JB1-TC ENG(RDT) (A) IDN	8-97047-775-1	01	1	0610-	●
147	07.535 RUBBER; SUB SPRING	8-97254-387-0	04	1	0211-1405		●
147	07.535 RUBBER; SUB SPRING 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. MINI BUS CHASSIS(V4B)	8-97254-387-0	04	1	1406-1506		●
147	07.535 RUBBER; SUB SPRING 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. MINI BUS CHASSIS(V4B)	8-97254-387-0	04	1	1507-		●
147	07.535 RUBBER; SUB SPRING 4HG1-T ENG(RDP),4HG1 ENG(RJH) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) MINI BUS CHASSIS(V4B)	8-97254-387-0	04	1	1507-		●
147	07.535 RUBBER; SUB SPRING 4JB1-TC ENG(RDT) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. MINI BUS CHASSIS(V4B)	8-97254-387-0	04	1	1507-		●
173	07.112 STIFFENER; RR SPRING (B)	8-94403-508-2	01	1	0211-0502		●
173	07.112 STIFFENER; RR SPRING (B)	8-94408-191-2	01	1	0211-0211		●
173	07.112 STIFFENER; RR SPRING (B)	8-94408-191-2	02	1	0212-0502		●
173	07.112 STIFFENER; RR SPRING (B) IDN	8-97213-460-4	02	1	0503-		●
173	07.112 STIFFENER; RR SPRING (A)	8-94372-324-1	02	1	0211-1405		●
173	07.112 STIFFENER; RR SPRING 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. MINI BUS CHASSIS(V4B) (A)	8-94372-324-1	02	1	1406-1506		●
173	07.112 STIFFENER; RR SPRING 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. MINI BUS CHASSIS(V4B) (A)	8-94372-324-1	02	1	1507-		●
173	07.112 STIFFENER; RR SPRING 4HG1-T ENG(RDP),4HG1 ENG(RJH) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) MINI BUS CHASSIS(V4B) (A)	8-94372-324-1	02	1	1507-		●
173	07.112 STIFFENER; RR SPRING 4JB1-TC ENG(RDT) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. MINI BUS CHASSIS(V4B) (A)	8-94372-324-1	02	1	1507-		●
188	07.039 BRACKET; SUPPORT,CTR BRG IDN	8-97078-869-1	01	1	0211-		●
215	07.524 BUSHING; BRKT,RR SPRING IDN	8-97184-699-1	04	1	0211-1405		●
215	07.524 BUSHING; BRKT,RR SPRING 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. MINI BUS CHASSIS(V4B) IDN	8-97184-699-1	04	1	1406-1506		●
215	07.524 BUSHING; BRKT,RR SPRING 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. MINI BUS CHASSIS(V4B) IDN	8-97184-699-1	04	1	1507-		●
215	07.524 BUSHING; BRKT,RR SPRING 4HG1-T ENG(RDP),4HG1 ENG(RJH) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) MINI BUS CHASSIS(V4B) IDN	8-97184-699-1	04	1	1507-		●
215	07.524 BUSHING; BRKT,RR SPRING 4JB1-TC ENG(RDT) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. MINI BUS CHASSIS(V4B) IDN	8-97184-699-1	04	1	1507-		●

75 198 75 198 137 139 345 24 358 130 39 51 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	07.105 BRACKET; FRT SPR,FRT	8-94366-818-1	01	1	0211-0507	●
24	07.105 BRACKET; FRT SPR,FRT 4HF1-N ENG(RJZ)	8-94366-818-1	01	1	0508-0609	●
24	07.105 BRACKET; FRT SPR,FRT	8-94366-818-1	01	1	0610-1405	●
24	07.105 BRACKET; FRT SPR,FRT	8-94366-818-1	01	1	1406-1506	●
24	07.105 BRACKET; FRT SPR,FRT 4HG1-T ENG(RDP) MINI BUS CHASSIS(V4B)	8-94366-818-1	01	1	1406-1506		●
24	07.105 BRACKET; FRT SPR,FRT	8-94366-818-1	01	1	1507-	●
24	07.105 BRACKET; FRT SPR,FRT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT) MINI BUS CHASSIS(V4B)	8-94366-818-1	01	1	1507-		●
24	07.105 BRACKET; FRT SPR,FRT	8-97065-789-1	01	1	0211-0507	●
24	07.105 BRACKET; FRT SPR,FRT 4HF1-N ENG(RJZ)	8-97065-789-1	01	1	0508-0609	●
24	07.105 BRACKET; FRT SPR,FRT	8-97065-789-1	01	1	0610-1405	●
24	07.105 BRACKET; FRT SPR,FRT	8-97065-789-1	01	1	1406-1506	●
24	07.105 BRACKET; FRT SPR,FRT 4HG1-T ENG(RDP) MINI BUS CHASSIS(V4B)	8-97065-789-1	01	1	1406-1506		●
24	07.105 BRACKET; FRT SPR,FRT	8-97065-789-1	01	1	1507-	●
24	07.105 BRACKET; FRT SPR,FRT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT) MINI BUS CHASSIS(V4B)	8-97065-789-1	01	1	1507-		●
24	07.105 BRACKET; FRT SPR,FRT	8-94366-816-1	01	1	0211-1405		●
24	07.105 BRACKET; FRT SPR,FRT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. MINI BUS CHASSIS(V4B)	8-94366-816-1	01	1	1406-1506		●
24	07.105 BRACKET; FRT SPR,FRT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. MINI BUS CHASSIS(V4B)	8-94366-816-1	01	1	1507-		●
24	07.105 BRACKET; FRT SPR,FRT 4HG1-T ENG(RDP),4HG1 ENG(RJH) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) MINI BUS CHASSIS(V4B)	8-94366-816-1	01	1	1507-		●
24	07.105 BRACKET; FRT SPR,FRT 4JB1-TC ENG(RDT) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. MINI BUS CHASSIS(V4B)	8-94366-816-1	01	1	1507-		●
24	07.105 BRACKET; FRT SPR,FRT	8-97065-788-1	01	1	0211-1405		●
24	07.105 BRACKET; FRT SPR,FRT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. MINI BUS CHASSIS(V4B)	8-97065-788-1	01	1	1406-1506		●
24	07.105 BRACKET; FRT SPR,FRT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. MINI BUS CHASSIS(V4B)	8-97065-788-1	01	1	1507-		●
24	07.105 BRACKET; FRT SPR,FRT 4HG1-T ENG(RDP),4HG1 ENG(RJH) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) MINI BUS CHASSIS(V4B)	8-97065-788-1	01	1	1507-		●
24	07.105 BRACKET; FRT SPR,FRT 4JB1-TC ENG(RDT) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. MINI BUS CHASSIS(V4B)	8-97065-788-1	01	1	1507-		●
39	07.112 BRACKET; FRT SPR,RR IDN	8-94258-091-0	02	1	0211-	●	●
51	07.011 BRACKET; ENG SUPPORT,OUTER 00.029 IDN	8-94258-086-1	02	1	0211-	●	●
63	01.270 BRACKET; RAD MTG IDN	8-94257-950-1	01	1	0211-	●	●
75	07.039 GUSSET; 5TH C/MBR (B)	8-94258-075-3	02	1	0211-0507	●
75	07.039 GUSSET; 5TH C/MBR 4HF1-N ENG(RJZ) (B)	8-94258-075-3	02	1	0508-0609	●
75	07.039 GUSSET; 5TH C/MBR (B)	8-94258-075-3	02	1	0610-	●
75	07.039 GUSSET; 5TH C/MBR (A) RH-UPPER,LH-LOWER IDN	8-97062-499-0	02	1	0211-		●
75	07.039 GUSSET; 5TH C/MBR (A) RH-LOWER,LH-UPPER IDN	8-97062-500-0	02	1	0211-		●
130	07.014 MEMBER; CROSS,END	8-94257-620-2	01	1	0211-		●
137	07.629 BRACKET; SPARE TIRE IDN	8-97076-885-1	01	1	0211-		●
139	07.012 MEMBER; CROSS,6TH 4HG1-T ENG(RDP) VIN MODEL YEAR 2014(VZE) MINI BUS CHASSIS(V4B) EXC. FRONT STABILIZER SHAFT<F59> IDN	8-97695-395-0	01	1	1406-1407		●
139	07.012 MEMBER; CROSS,6TH 4HG1-T ENG(RDP) MINI BUS CHASSIS(V4B) IDN	8-97695-395-0	01	1	1408-1506		●
139	07.012 MEMBER; CROSS,6TH 4HG1-T ENG(RDP),4JB1-TC ENG(RDT) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) IDN	8-97695-395-0	01	1	1507-		●
139	07.012 MEMBER; CROSS,6TH IDN	8-97045-542-2	01	1	0211-0507	●
139	07.012 MEMBER; CROSS,6TH 4HF1-N ENG(RJZ) IDN	8-97045-542-2	01	1	0508-0609	●
139	07.012 MEMBER; CROSS,6TH IDN	8-97045-542-2	01	1	0610-	●
139	07.012 MEMBER; CROSS,6TH	8-97062-498-1	01	1	0211-1405		●
139	07.012 MEMBER; CROSS,6TH 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. MINI BUS CHASSIS(V4B)	8-97062-498-1	01	1	1406-1506		●
139	07.012 MEMBER; CROSS,6TH 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. MINI BUS CHASSIS(V4B)	8-97062-498-1	01	1	1507-		●
139	07.012 MEMBER; CROSS,6TH 4HG1-T ENG(RDP),4HG1 ENG(RJH) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) MINI BUS CHASSIS(V4B)	8-97062-498-1	01	1	1507-		●
139	07.012 MEMBER; CROSS,6TH 4JB1-TC ENG(RDT) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. MINI BUS CHASSIS(V4B)	8-97062-498-1	01	1	1507-		●
198	07.039 GUSSET; 6TH C/MBR 4HG1-T ENG(RDP) MINI BUS CHASSIS(V4B) UPPER IDN	8-97695-397-0	01	1	1409-1506		●
198	07.039 GUSSET; 6TH C/MBR 4HG1-T ENG(RDP),4JB1-TC ENG(RDT) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) UPPER IDN	8-97695-397-0	01	1	1507-		●
198	07.039 GUSSET; 6TH C/MBR 4HG1-T ENG(RDP) VIN MODEL YEAR 2014(VZE) MINI BUS CHASSIS(V4B) EXC. FRONT STABILIZER SHAFT<F59> IDN	8-97695-396-0	02	1	1406-1407		●
198	07.039 GUSSET; 6TH C/MBR 4HG1-T ENG(RDP) MINI BUS CHASSIS(V4B) IDN	8-97695-396-0	02	1	1408-1408		●
198	07.039 GUSSET; 6TH C/MBR 4HG1-T ENG(RDP) MINI BUS CHASSIS(V4B) UPPER IDN	8-97695-396-0	01	1	1409-1506		●
198	07.039 GUSSET; 6TH C/MBR 4HG1-T ENG(RDP),4JB1-TC ENG(RDT) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) UPPER IDN	8-97695-396-0	01	1	1507-		●
198	07.039 GUSSET; 6TH C/MBR 4HG1-T ENG(RDP) VIN MODEL YEAR 2014(VZE) MINI BUS CHASSIS(V4B) EXC. FRONT STABILIZER SHAFT<F59> LOWER IDN	8-97695-412-0	02	1	1406-1407		●
198	07.039 GUSSET; 6TH C/MBR 4HG1-T ENG(RDP) MINI BUS CHASSIS(V4B) LOWER IDN	8-97695-412-0	02	1	1408-1506		●
198	07.039 GUSSET; 6TH C/MBR 4HG1-T ENG(RDP),4JB1-TC ENG(RDT) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) LOWER IDN	8-97695-412-0	02	1	1507-		●
198	07.039 GUSSET; 6TH C/MBR IDN	8-94258-081-1	02	1	0211-0507	●
198	07.039 GUSSET; 6TH C/MBR 4HF1-N ENG(RJZ) IDN	8-94258-081-1	02	1	0508-0609	●
198	07.039 GUSSET; 6TH C/MBR IDN	8-94258-081-1	02	1	0610-	●
198	07.039 GUSSET; 6TH C/MBR RH-LOWER,LH-UPPER IDN	8-97062-499-0	02	1	0211-1405		●
198	07.039 GUSSET; 6TH C/MBR 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. MINI BUS CHASSIS(V4B) RH-LOWER,LH-UPPER IDN	8-97062-499-0	02	1	1406-1506		●
198	07.039 GUSSET; 6TH C/MBR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. MINI BUS CHASSIS(V4B) RH-LOWER,LH-UPPER IDN	8-97062-499-0	02	1	1507-		●
198	07.039 GUSSET; 6TH C/MBR 4HG1-T ENG(RDP),4HG1 ENG(RJH) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) MINI BUS CHASSIS(V4B) RH-LOWER,LH-UPPER IDN	8-97062-499-0	02	1	1507-		●
198	07.039 GUSSET; 6TH C/MBR 4JB1-TC ENG(RDT) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. MINI BUS CHASSIS(V4B) RH-LOWER,LH-UPPER IDN	8-97062-499-0	02	1	1507-		●
198	07.039 GUSSET; 6TH C/MBR RH-UPPER,LH-LOWER IDN	8-97062-500-0	02	1	0211-1405		●
198	07.039 GUSSET; 6TH C/MBR 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. MINI BUS CHASSIS(V4B) RH-UPPER,LH-LOWER IDN	8-97062-500-0	02	1	1406-1506		●
198	07.039 GUSSET; 6TH C/MBR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. MINI BUS CHASSIS(V4B) RH-UPPER,LH-LOWER IDN	8-97062-500-0	02	1	1507-		●
198	07.039 GUSSET; 6TH C/MBR 4HG1-T ENG(RDP),4HG1 ENG(RJH) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) MINI BUS CHASSIS(V4B) RH-UPPER,LH-LOWER IDN	8-97062-500-0	02	1	1507-		●
198	07.039 GUSSET; 6TH C/MBR 4JB1-TC ENG(RDT) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. MINI BUS CHASSIS(V4B) RH-UPPER,LH-LOWER IDN	8-97062-500-0	02	1	1507-		●
345	07.012 MEMBER; CROSS,5TH (A)	8-97081-061-2	01	1	0211-0507	●
345	07.012 MEMBER; CROSS,5TH 4HF1-N ENG(RJZ) (A)	8-97081-061-2	01	1	0508-0609	●
345	07.012 MEMBER; CROSS,5TH (A)	8-97081-061-2	01	1	0610-	●
345	07.012 MEMBER; CROSS,5TH (B)	8-97062-497-3	01	1	0211-		●
358	07.039 BRACKET; CAB EARTH	8-97065-790-3	01	1	0211-0310	●	●
358	07.039 BRACKET; CAB EARTH	8-97210-488-0	01	1	0311-0507	●
358	07.039 BRACKET; CAB EARTH 4HF1-N ENG(RJZ)	8-97210-488-0	01	1	0508-0712	●
358	07.039 BRACKET; CAB EARTH 4HF1-N ENG(RJZ)	8-97210-488-0	01	1	0801-1405	●
358	07.039 BRACKET; CAB EARTH 4JB1-TC ENG(RDT)	8-97210-488-0	01	1	0801-1405		●
358	07.039 BRACKET; CAB EARTH 4HF1-N ENG(RJZ)	8-97210-488-0	01	1	1406-1506	●
358	07.039 BRACKET; CAB EARTH 4JB1-TC ENG(RDT)	8-97210-488-0	01	1	1406-1506		●
358	07.039 BRACKET; CAB EARTH 4HG1-T ENG(RDP) MINI BUS CHASSIS(V4B)	8-97210-488-0	01	1	1406-1506		●
358	07.039 BRACKET; CAB EARTH 4HF1-N ENG(RJZ)	8-97210-488-0	01	1	1507-	●
358	07.039 BRACKET; CAB EARTH 4JB1-TC ENG(RDT) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. MINI BUS CHASSIS(V4B)	8-97210-488-0	01	1	1507-		●
358	07.039 BRACKET; CAB EARTH 4HG1-T ENG(RDP),4JB1-TC ENG(RDT) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B)	8-97210-488-0	01	1	1507-		●
358	07.039 BRACKET; CAB EARTH	8-97210-488-0	02	1	0311-0609		●
358	07.039 BRACKET; CAB EARTH 4JB1-TC ENG(RDT)	8-97210-488-0	02	1	0610-1405	●
358	07.039 BRACKET; CAB EARTH 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-97210-488-0	02	1	0610-1405		●
358	07.039 BRACKET; CAB EARTH 4JB1-TC ENG(RDT)	8-97210-488-0	02	1	1406-1506	●
358	07.039 BRACKET; CAB EARTH 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. MINI BUS CHASSIS(V4B)	8-97210-488-0	02	1	1406-1506		●
358	07.039 BRACKET; CAB EARTH 4JB1-TC ENG(RDT)	8-97210-488-0	02	1	1507-	●
358	07.039 BRACKET; CAB EARTH 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. MINI BUS CHASSIS(V4B)	8-97210-488-0	02	1	1507-		●
358	07.039 BRACKET; CAB EARTH 4HG1-T ENG(RDP),4HG1 ENG(RJH) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) MINI BUS CHASSIS(V4B)	8-97210-488-0	02	1	1507-		●

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	07.003 FRAME ASM 4JB1-TC ENG(RDT) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) (B)	8-97695-725-0	01	1	1507-		●
1	07.003 FRAME ASM 4HG1-T ENG(RDP) FRONT STABILIZER SHAFT<F59> VIN MODEL YEAR 2014(VZE) MINI BUS CHASSIS(V4B) (B) IDN	8-98281-569-0	01	1	1406-1407		●
1	07.003 FRAME ASM 4HG1-T ENG(RDP) FRONT STABILIZER SHAFT<F59> VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) MINI BUS CHASSIS(V4B) (B) IDN	8-98281-569-0	01	1	1408-1506		●
1	07.003 FRAME ASM 4HG1-T ENG(RDP) FRONT STABILIZER SHAFT<F59> G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) (B) IDN	8-98281-569-0	01	1	1507-		●
1	07.003 FRAME ASM 4HG1-T ENG(RDP) VIN MODEL YEAR 2014(VZE) MINI BUS CHASSIS(V4B) EXC. FRONT STABILIZER SHAFT<F59> (B) IDN	8-98281-189-0	01	1	1406-1407		●
1	07.003 FRAME ASM 4HG1-T ENG(RDP) VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) MINI BUS CHASSIS(V4B) EXC. FRONT STABILIZER SHAFT<F59> (B) IDN	8-98281-189-0	01	1	1408-1506		●
1	07.003 FRAME ASM 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) EXC. FRONT STABILIZER SHAFT<F59> (B) IDN	8-98281-189-0	01	1	1507-		●
1	07.003 FRAME ASM (A)	8-97352-157-2	01	1	0211-0507	●
1	07.003 FRAME ASM 4HF1-N ENG(RJZ) (A)	8-97352-157-2	01	1	0508-	●
1	07.003 FRAME ASM (B)	8-97352-166-1	01	1	0211-1405		●
1	07.003 FRAME ASM 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. VIN MODEL YEAR 2014(VZE),MINI BUS CHASSIS(V4B) (B)	8-97352-166-1	01	1	1406-1407		●
1	07.003 FRAME ASM 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. MINI BUS CHASSIS(V4B) (B)	8-97352-166-1	01	1	1408-1506		●
1	07.003 FRAME ASM 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. MINI BUS CHASSIS(V4B) (B)	8-97352-166-1	01	1	1507-		●
1	07.003 FRAME ASM 4HG1-T ENG(RDP),4HG1 ENG(RJH) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) MINI BUS CHASSIS(V4B) (B)	8-97352-166-1	01	1	1507-		●
1	07.003 FRAME ASM 4JB1-TC ENG(RDT) (A)	8-97205-852-2	01	1	0610-	●
1	07.003 FRAME ASM 4JB1-TC ENG(RDT) (B)	8-98106-846-0	01	1	0801-1506		●
1	07.003 FRAME ASM 4JB1-TC ENG(RDT) EXC. MINI BUS CHASSIS(V4B) (B)	8-98106-846-0	01	1	1507-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
