Sayfa 4-80 - Isuzu EPC

4-80 — ROAD WHEEL (#78973) — 220 parça

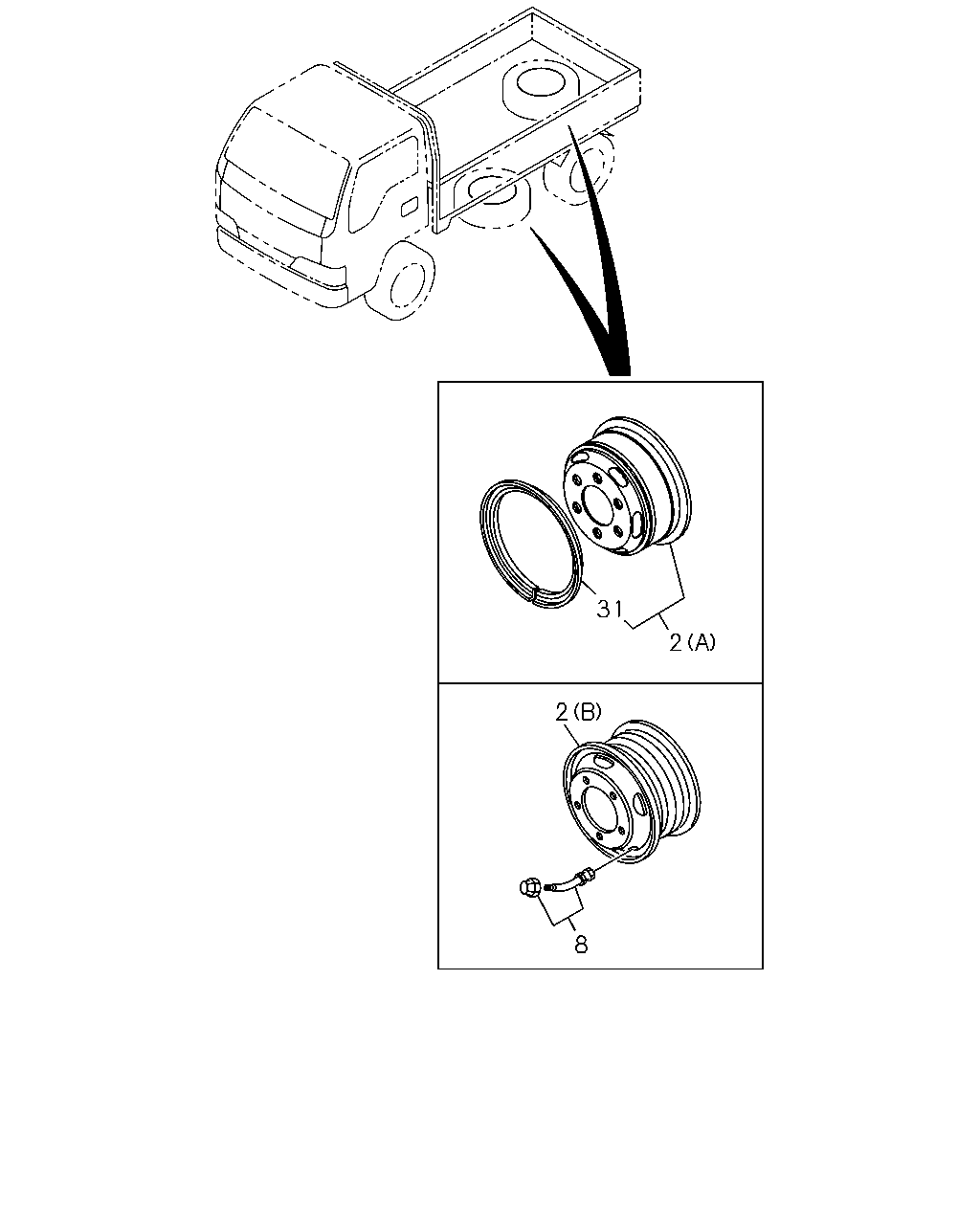

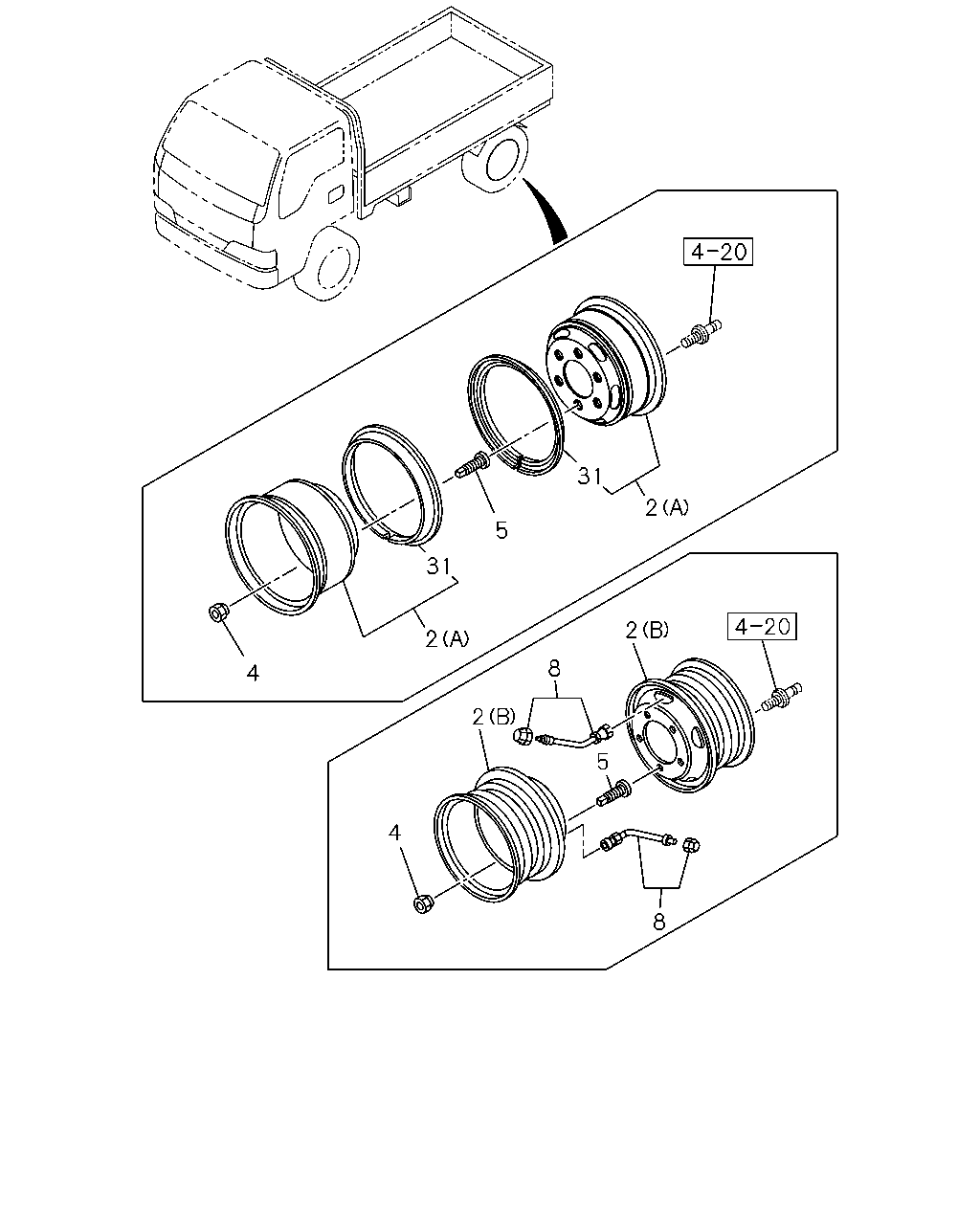

31 2 5 31 2 4 4 2 8 2 8 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	05.803 WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE IDN	8-94438-670-4	01	1	1105-	●
2	05.803 WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE IDN	8-94438-670-4	06	1	1105-	●
2	05.803 WHEEL; DISC FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25(22H) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE IDN	8-94116-196-0	01	1	0211-1404		●
2	05.803 WHEEL; DISC FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25(22H) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE IDN	8-94116-196-0	01	1	1405-	●	●
2	05.803 WHEEL; DISC FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25(22H) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE IDN	8-94116-196-0	04	1	0211-		●
2	05.803 WHEEL; DISC FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX1 5-25(25H) (A) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE IDN	8-94116-196-0	02	1	0211-1003		●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) (A) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE IDN	8-94116-196-0	02	1	1004-		●
2	05.803 WHEEL; DISC FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX1 5-25(25H) (A) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	01	1	0211-1003		●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) (A) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	01	1	1004-1404		●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) (A) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	01	1	1405-	●	●
2	05.803 WHEEL; DISC FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX1 5-25(25H) (A) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	02	1	0211-1003		●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) (A) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	02	1	1004-1404		●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) (A) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	02	1	1405-	●	●
2	05.803 WHEEL; DISC FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-115 (AQE),FRT&RR 7-16-8 16X5.5F-115(94H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H), FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	01	1	0211-	●
2	05.803 WHEEL; DISC FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-115 (AQE),FRT&RR 7-16-8 16X5.5F-115(94H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H), FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	06	1	0211-	●
2	05.803 WHEEL; DISC FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	0607-	●
2	05.803 WHEEL; DISC FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	0607-	●
4	05.813 NUT; WHEEL,RR AXLE VIN MODEL YEAR 2012(VZC) M30 RH THREAD	8-97359-809-0	06	1	1105-1405	●
4	05.813 NUT; WHEEL,RR AXLE FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) M30 RH THREAD	8-97359-809-0	06	1	1406-	●
4	05.813 NUT; WHEEL,RR AXLE VIN MODEL YEAR 2012(VZC) M30 LH THREAD	8-97359-810-0	06	1	1105-1405	●
4	05.813 NUT; WHEEL,RR AXLE FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) M30 LH THREAD	8-97359-810-0	06	1	1406-	●
4	05.813 NUT; WHEEL,RR AXLE M14 RH THREAD	5-42333-008-0	06	1	0211-0610		●
4	05.813 NUT; WHEEL,RR AXLE M14 RH THREAD	8-98007-905-0	06	1	0611-1406		●
4	05.813 NUT; WHEEL,RR AXLE FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25(22H),FRT 7-15-10 5.5FX15-25 RR 7.5-15- 12 6GSX15-25(25H) M14 RH THREAD	8-98007-905-0	06	1	1407-	●	●
4	05.813 NUT; WHEEL,RR AXLE M14 LH THREAD	5-42334-002-0	06	1	0211-0610		●
4	05.813 NUT; WHEEL,RR AXLE M14 LH THREAD	8-98007-906-0	06	1	0611-1406		●
4	05.813 NUT; WHEEL,RR AXLE FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25(22H),FRT 7-15-10 5.5FX15-25 RR 7.5-15- 12 6GSX15-25(25H) M14 LH THREAD	8-98007-906-0	06	1	1407-	●	●
4	05.813 NUT; WHEEL,RR AXLE M27 RH THREAD	8-94365-145-0	05	1	0211-0610	●
4	05.813 NUT; WHEEL,RR AXLE M27 RH THREAD	8-98007-824-0	05	1	0611-1104	●
4	05.813 NUT; WHEEL,RR AXLE EXC. VIN MODEL YEAR 2012(VZC) M27 RH THREAD	8-98007-824-0	05	1	1105-1405	●
4	05.813 NUT; WHEEL,RR AXLE FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-115 (AQE),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR 177A(98H) M27 RH THREAD	8-98007-824-0	05	1	1406-	●
4	05.813 NUT; WHEEL,RR AXLE M27 LH THREAD	8-94365-146-0	05	1	0211-0610	●
4	05.813 NUT; WHEEL,RR AXLE M27 LH THREAD	8-98007-825-0	05	1	0611-1104	●
4	05.813 NUT; WHEEL,RR AXLE EXC. VIN MODEL YEAR 2012(VZC) M27 LH THREAD	8-98007-825-0	05	1	1105-1405	●
4	05.813 NUT; WHEEL,RR AXLE FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-115 (AQE),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR 177A(98H) M27 LH THREAD	8-98007-825-0	05	1	1406-	●
5	05.813 NUT; WHEEL,INNER,RR AXLE VIN MODEL YEAR 2012(VZC) OUTER M30,INNER M20 RH THREAD IDN	8-97359-805-0	06	1	1105-1405	●
5	05.813 NUT; WHEEL,INNER,RR AXLE FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) OUTER M30,INNER M20 RH THREAD IDN	8-97359-805-0	06	1	1406-	●
5	05.813 NUT; WHEEL,INNER,RR AXLE VIN MODEL YEAR 2012(VZC) OUTER M30,INNER M20 LH THREAD IDN	8-97359-806-0	06	1	1105-1405	●
5	05.813 NUT; WHEEL,INNER,RR AXLE FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) OUTER M30,INNER M20 LH THREAD IDN	8-97359-806-0	06	1	1406-	●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 RH THREAD	8-94365-143-1	05	1	0211-0610	●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 RH THREAD	8-98007-810-0	05	1	0611-1104	●
5	05.813 NUT; WHEEL,INNER,RR AXLE EXC. VIN MODEL YEAR 2012(VZC) OUTER M27,INNER M18 RH THREAD	8-98007-810-0	05	1	1105-1405	●
5	05.813 NUT; WHEEL,INNER,RR AXLE FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-115 (AQE),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR 177A(98H) OUTER M27,INNER M18 RH THREAD	8-98007-810-0	05	1	1406-	●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 LH THREAD	8-94365-144-1	05	1	0211-0610	●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 LH THREAD	8-98007-811-0	05	1	0611-1104	●
5	05.813 NUT; WHEEL,INNER,RR AXLE EXC. VIN MODEL YEAR 2012(VZC) OUTER M27,INNER M18 LH THREAD	8-98007-811-0	05	1	1105-1405	●
5	05.813 NUT; WHEEL,INNER,RR AXLE FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-115 (AQE),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR 177A(98H) OUTER M27,INNER M18 LH THREAD	8-98007-811-0	05	1	1406-	●
8	05.875 VALVE; TIRE FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB) SPARE IDN	8-98221-106-0	01	1	0607-	●
8	05.875 VALVE; TIRE FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB) FRONT,REAR IDN	8-98221-106-0	06	1	0607-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) SPARE 16X6.00GS STAMP, BLACK IDN	8-94412-585-0	01	1	1105-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) FRONT,REAR 16X6.00GS STAMP, BLACK IDN	8-94412-585-0	06	1	1105-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25(22H) SPARE 15X5.50F STAMP, BLACK IDN	8-94135-599-0	01	1	0211-1404		●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25(22H) SPARE 15X5.50F STAMP, BLACK IDN	8-94135-599-0	01	1	1405-	●	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25(22H) FRONT,REAR 15X5.50F STAMP, BLACK IDN	8-94135-599-0	04	1	0211-		●
31	05.839 RING; SIDE,DISC WHEEL FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX1 5-25(25H) FRONT 15X5.50F STAMP, BLACK IDN	8-94135-599-0	02	1	0211-1003		●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) FRONT 15X5.50F STAMP, BLACK IDN	8-94135-599-0	02	1	1004-		●
31	05.839 RING; SIDE,DISC WHEEL FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX1 5-25(25H) SPARE 15X6.00GS STAMP, BLACK	8-94135-600-0	01	1	0211-1003		●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) SPARE 15X6.00GS STAMP, BLACK	8-94135-600-0	01	1	1004-1404		●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) SPARE 15X6.00GS STAMP, BLACK	8-94135-600-0	01	1	1405-	●	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX1 5-25(25H) REAR 15X6.00GS STAMP, BLACK	8-94135-600-0	02	1	0211-1003		●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) REAR 15X6.00GS STAMP, BLACK	8-94135-600-0	02	1	1004-1404		●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) REAR 15X6.00GS STAMP, BLACK	8-94135-600-0	02	1	1405-	●	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-115 (AQE),FRT&RR 7-16-8 16X5.5F-115(94H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H), FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) SPARE 16X5.50F STAMP, BLACK IDN	8-94135-601-0	01	1	0211-	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-115 (AQE),FRT&RR 7-16-8 16X5.5F-115(94H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H), FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) FRONT,REAR 16X5.50F STAMP, BLACK IDN	8-94135-601-0	06	1	0211-	●

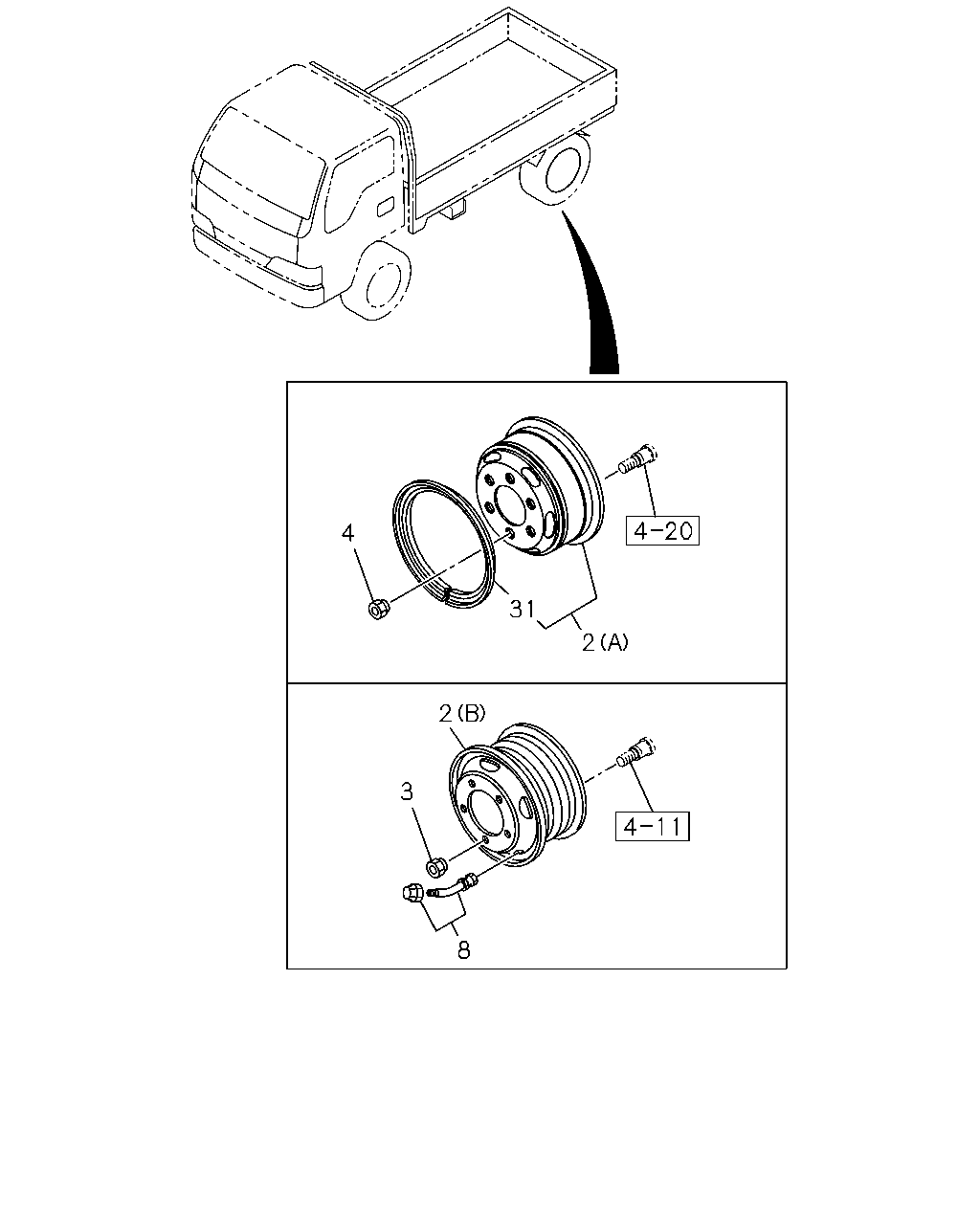

31 2 4 2 3 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	05.803 WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE IDN	8-94438-670-4	01	1	1105-	●
2	05.803 WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE IDN	8-94438-670-4	06	1	1105-	●
2	05.803 WHEEL; DISC FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25(22H) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE IDN	8-94116-196-0	01	1	0211-1404		●
2	05.803 WHEEL; DISC FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25(22H) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE IDN	8-94116-196-0	01	1	1405-	●	●
2	05.803 WHEEL; DISC FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25(22H) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE IDN	8-94116-196-0	04	1	0211-		●
2	05.803 WHEEL; DISC FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX1 5-25(25H) (A) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE IDN	8-94116-196-0	02	1	0211-1003		●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) (A) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE IDN	8-94116-196-0	02	1	1004-		●
2	05.803 WHEEL; DISC FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX1 5-25(25H) (A) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	01	1	0211-1003		●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) (A) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	01	1	1004-1404		●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) (A) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	01	1	1405-	●	●
2	05.803 WHEEL; DISC FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX1 5-25(25H) (A) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	02	1	0211-1003		●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) (A) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	02	1	1004-1404		●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) (A) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	02	1	1405-	●	●
2	05.803 WHEEL; DISC FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-115 (AQE),FRT&RR 7-16-8 16X5.5F-115(94H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H), FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	01	1	0211-	●
2	05.803 WHEEL; DISC FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-115 (AQE),FRT&RR 7-16-8 16X5.5F-115(94H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H), FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	06	1	0211-	●
2	05.803 WHEEL; DISC FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	0607-	●
2	05.803 WHEEL; DISC FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	0607-	●
3	05.813 NUT; WHEEL,FRT AXLE VIN MODEL YEAR 2012(VZC) M20 RH THREAD	8-97359-807-0	06	1	1105-1405	●
3	05.813 NUT; WHEEL,FRT AXLE FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) M20 RH THREAD	8-97359-807-0	06	1	1406-	●
3	05.813 NUT; WHEEL,FRT AXLE VIN MODEL YEAR 2012(VZC) M20 LH THREAD	8-97359-808-0	06	1	1105-1405	●
3	05.813 NUT; WHEEL,FRT AXLE FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) M20 LH THREAD	8-97359-808-0	06	1	1406-	●
3	05.813 NUT; WHEEL,FRT AXLE M14 RH THREAD	5-42333-008-0	06	1	0211-0610		●
3	05.813 NUT; WHEEL,FRT AXLE M14 RH THREAD	8-98007-905-0	06	1	0611-1405		●
3	05.813 NUT; WHEEL,FRT AXLE FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25(22H),FRT 7-15-10 5.5FX15-25 RR 7.5-15- 12 6GSX15-25(25H) M14 RH THREAD	8-98007-905-0	06	1	1406-	●	●
3	05.813 NUT; WHEEL,FRT AXLE M14 LH THREAD	5-42334-002-0	06	1	0211-0610		●
3	05.813 NUT; WHEEL,FRT AXLE M14 LH THREAD	8-98007-906-0	06	1	0611-1405		●
3	05.813 NUT; WHEEL,FRT AXLE FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25(22H),FRT 7-15-10 5.5FX15-25 RR 7.5-15- 12 6GSX15-25(25H) M14 LH THREAD	8-98007-906-0	06	1	1406-	●	●
3	05.813 NUT; WHEEL,FRT AXLE M18 RH THREAD	8-94365-147-0	05	1	0211-0610	●
3	05.813 NUT; WHEEL,FRT AXLE M18 RH THREAD	8-98007-907-0	05	1	0611-1104	●
3	05.813 NUT; WHEEL,FRT AXLE EXC. VIN MODEL YEAR 2012(VZC) M18 RH THREAD	8-98007-907-0	05	1	1105-1405	●
3	05.813 NUT; WHEEL,FRT AXLE FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-115 (AQE),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR 177A(98H) M18 RH THREAD	8-98007-907-0	05	1	1406-	●
3	05.813 NUT; WHEEL,FRT AXLE M18 LH THREAD	8-94365-148-0	05	1	0211-0610	●
3	05.813 NUT; WHEEL,FRT AXLE M18 LH THREAD	8-98007-908-0	05	1	0611-1104	●
3	05.813 NUT; WHEEL,FRT AXLE EXC. VIN MODEL YEAR 2012(VZC) M18 LH THREAD	8-98007-908-0	05	1	1105-1405	●
3	05.813 NUT; WHEEL,FRT AXLE FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-115 (AQE),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR 177A(98H) M18 LH THREAD	8-98007-908-0	05	1	1406-	●
4	05.813 NUT; WHEEL,RR AXLE VIN MODEL YEAR 2012(VZC) M30 RH THREAD	8-97359-809-0	06	1	1105-1405	●
4	05.813 NUT; WHEEL,RR AXLE FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) M30 RH THREAD	8-97359-809-0	06	1	1406-	●
4	05.813 NUT; WHEEL,RR AXLE VIN MODEL YEAR 2012(VZC) M30 LH THREAD	8-97359-810-0	06	1	1105-1405	●
4	05.813 NUT; WHEEL,RR AXLE FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) M30 LH THREAD	8-97359-810-0	06	1	1406-	●
4	05.813 NUT; WHEEL,RR AXLE M14 RH THREAD	5-42333-008-0	06	1	0211-0610		●
4	05.813 NUT; WHEEL,RR AXLE M14 RH THREAD	8-98007-905-0	06	1	0611-1406		●
4	05.813 NUT; WHEEL,RR AXLE FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25(22H),FRT 7-15-10 5.5FX15-25 RR 7.5-15- 12 6GSX15-25(25H) M14 RH THREAD	8-98007-905-0	06	1	1407-	●	●
4	05.813 NUT; WHEEL,RR AXLE M14 LH THREAD	5-42334-002-0	06	1	0211-0610		●
4	05.813 NUT; WHEEL,RR AXLE M14 LH THREAD	8-98007-906-0	06	1	0611-1406		●
4	05.813 NUT; WHEEL,RR AXLE FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25(22H),FRT 7-15-10 5.5FX15-25 RR 7.5-15- 12 6GSX15-25(25H) M14 LH THREAD	8-98007-906-0	06	1	1407-	●	●
4	05.813 NUT; WHEEL,RR AXLE M27 RH THREAD	8-94365-145-0	05	1	0211-0610	●
4	05.813 NUT; WHEEL,RR AXLE M27 RH THREAD	8-98007-824-0	05	1	0611-1104	●
4	05.813 NUT; WHEEL,RR AXLE EXC. VIN MODEL YEAR 2012(VZC) M27 RH THREAD	8-98007-824-0	05	1	1105-1405	●
4	05.813 NUT; WHEEL,RR AXLE FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-115 (AQE),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR 177A(98H) M27 RH THREAD	8-98007-824-0	05	1	1406-	●
4	05.813 NUT; WHEEL,RR AXLE M27 LH THREAD	8-94365-146-0	05	1	0211-0610	●
4	05.813 NUT; WHEEL,RR AXLE M27 LH THREAD	8-98007-825-0	05	1	0611-1104	●
4	05.813 NUT; WHEEL,RR AXLE EXC. VIN MODEL YEAR 2012(VZC) M27 LH THREAD	8-98007-825-0	05	1	1105-1405	●
4	05.813 NUT; WHEEL,RR AXLE FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-115 (AQE),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR 177A(98H) M27 LH THREAD	8-98007-825-0	05	1	1406-	●
8	05.875 VALVE; TIRE FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB) SPARE IDN	8-98221-106-0	01	1	0607-	●
8	05.875 VALVE; TIRE FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB) FRONT,REAR IDN	8-98221-106-0	06	1	0607-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) SPARE 16X6.00GS STAMP, BLACK IDN	8-94412-585-0	01	1	1105-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) FRONT,REAR 16X6.00GS STAMP, BLACK IDN	8-94412-585-0	06	1	1105-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25(22H) SPARE 15X5.50F STAMP, BLACK IDN	8-94135-599-0	01	1	0211-1404		●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25(22H) SPARE 15X5.50F STAMP, BLACK IDN	8-94135-599-0	01	1	1405-	●	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25(22H) FRONT,REAR 15X5.50F STAMP, BLACK IDN	8-94135-599-0	04	1	0211-		●
31	05.839 RING; SIDE,DISC WHEEL FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX1 5-25(25H) FRONT 15X5.50F STAMP, BLACK IDN	8-94135-599-0	02	1	0211-1003		●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) FRONT 15X5.50F STAMP, BLACK IDN	8-94135-599-0	02	1	1004-		●
31	05.839 RING; SIDE,DISC WHEEL FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX1 5-25(25H) SPARE 15X6.00GS STAMP, BLACK	8-94135-600-0	01	1	0211-1003		●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) SPARE 15X6.00GS STAMP, BLACK	8-94135-600-0	01	1	1004-1404		●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) SPARE 15X6.00GS STAMP, BLACK	8-94135-600-0	01	1	1405-	●	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX1 5-25(25H) REAR 15X6.00GS STAMP, BLACK	8-94135-600-0	02	1	0211-1003		●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) REAR 15X6.00GS STAMP, BLACK	8-94135-600-0	02	1	1004-1404		●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) REAR 15X6.00GS STAMP, BLACK	8-94135-600-0	02	1	1405-	●	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-115 (AQE),FRT&RR 7-16-8 16X5.5F-115(94H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H), FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) SPARE 16X5.50F STAMP, BLACK IDN	8-94135-601-0	01	1	0211-	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-115 (AQE),FRT&RR 7-16-8 16X5.5F-115(94H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H), FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) FRONT,REAR 16X5.50F STAMP, BLACK IDN	8-94135-601-0	06	1	0211-	●

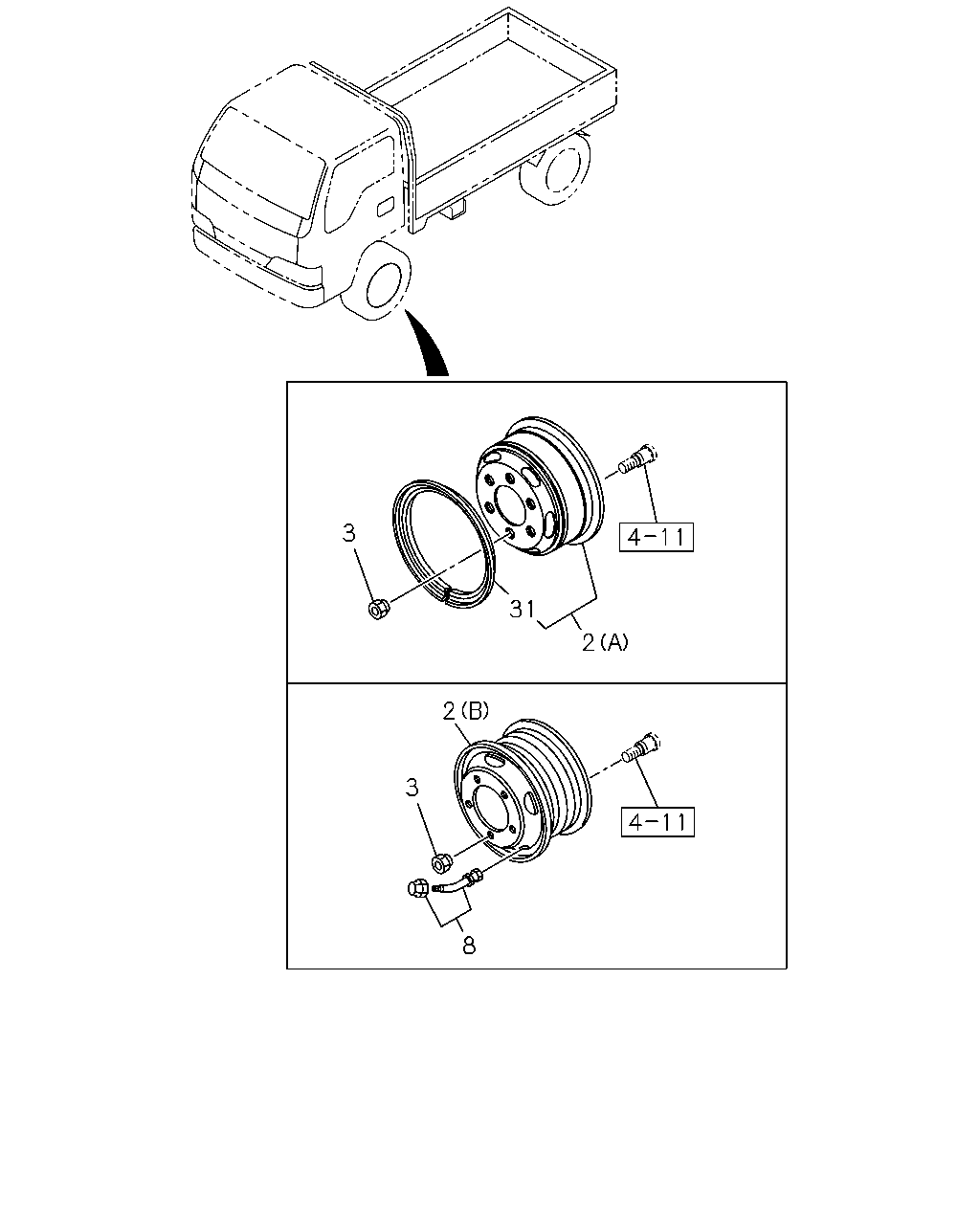

3 31 2 2 3 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	05.803 WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE IDN	8-94438-670-4	01	1	1105-	●
2	05.803 WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE IDN	8-94438-670-4	06	1	1105-	●
2	05.803 WHEEL; DISC FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25(22H) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE IDN	8-94116-196-0	01	1	0211-1404		●
2	05.803 WHEEL; DISC FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25(22H) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE IDN	8-94116-196-0	01	1	1405-	●	●
2	05.803 WHEEL; DISC FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25(22H) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE IDN	8-94116-196-0	04	1	0211-		●
2	05.803 WHEEL; DISC FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX1 5-25(25H) (A) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE IDN	8-94116-196-0	02	1	0211-1003		●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) (A) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE IDN	8-94116-196-0	02	1	1004-		●
2	05.803 WHEEL; DISC FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX1 5-25(25H) (A) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	01	1	0211-1003		●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) (A) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	01	1	1004-1404		●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) (A) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	01	1	1405-	●	●
2	05.803 WHEEL; DISC FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX1 5-25(25H) (A) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	02	1	0211-1003		●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) (A) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	02	1	1004-1404		●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) (A) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	02	1	1405-	●	●
2	05.803 WHEEL; DISC FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-115 (AQE),FRT&RR 7-16-8 16X5.5F-115(94H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H), FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	01	1	0211-	●
2	05.803 WHEEL; DISC FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-115 (AQE),FRT&RR 7-16-8 16X5.5F-115(94H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H), FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	06	1	0211-	●
2	05.803 WHEEL; DISC FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	0607-	●
2	05.803 WHEEL; DISC FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	0607-	●
3	05.813 NUT; WHEEL,FRT AXLE VIN MODEL YEAR 2012(VZC) M20 RH THREAD	8-97359-807-0	06	1	1105-1405	●
3	05.813 NUT; WHEEL,FRT AXLE FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) M20 RH THREAD	8-97359-807-0	06	1	1406-	●
3	05.813 NUT; WHEEL,FRT AXLE VIN MODEL YEAR 2012(VZC) M20 LH THREAD	8-97359-808-0	06	1	1105-1405	●
3	05.813 NUT; WHEEL,FRT AXLE FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) M20 LH THREAD	8-97359-808-0	06	1	1406-	●
3	05.813 NUT; WHEEL,FRT AXLE M14 RH THREAD	5-42333-008-0	06	1	0211-0610		●
3	05.813 NUT; WHEEL,FRT AXLE M14 RH THREAD	8-98007-905-0	06	1	0611-1405		●
3	05.813 NUT; WHEEL,FRT AXLE FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25(22H),FRT 7-15-10 5.5FX15-25 RR 7.5-15- 12 6GSX15-25(25H) M14 RH THREAD	8-98007-905-0	06	1	1406-	●	●
3	05.813 NUT; WHEEL,FRT AXLE M14 LH THREAD	5-42334-002-0	06	1	0211-0610		●
3	05.813 NUT; WHEEL,FRT AXLE M14 LH THREAD	8-98007-906-0	06	1	0611-1405		●
3	05.813 NUT; WHEEL,FRT AXLE FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25(22H),FRT 7-15-10 5.5FX15-25 RR 7.5-15- 12 6GSX15-25(25H) M14 LH THREAD	8-98007-906-0	06	1	1406-	●	●
3	05.813 NUT; WHEEL,FRT AXLE M18 RH THREAD	8-94365-147-0	05	1	0211-0610	●
3	05.813 NUT; WHEEL,FRT AXLE M18 RH THREAD	8-98007-907-0	05	1	0611-1104	●
3	05.813 NUT; WHEEL,FRT AXLE EXC. VIN MODEL YEAR 2012(VZC) M18 RH THREAD	8-98007-907-0	05	1	1105-1405	●
3	05.813 NUT; WHEEL,FRT AXLE FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-115 (AQE),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR 177A(98H) M18 RH THREAD	8-98007-907-0	05	1	1406-	●
3	05.813 NUT; WHEEL,FRT AXLE M18 LH THREAD	8-94365-148-0	05	1	0211-0610	●
3	05.813 NUT; WHEEL,FRT AXLE M18 LH THREAD	8-98007-908-0	05	1	0611-1104	●
3	05.813 NUT; WHEEL,FRT AXLE EXC. VIN MODEL YEAR 2012(VZC) M18 LH THREAD	8-98007-908-0	05	1	1105-1405	●
3	05.813 NUT; WHEEL,FRT AXLE FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-115 (AQE),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR 177A(98H) M18 LH THREAD	8-98007-908-0	05	1	1406-	●
8	05.875 VALVE; TIRE FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB) SPARE IDN	8-98221-106-0	01	1	0607-	●
8	05.875 VALVE; TIRE FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB) FRONT,REAR IDN	8-98221-106-0	06	1	0607-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) SPARE 16X6.00GS STAMP, BLACK IDN	8-94412-585-0	01	1	1105-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) FRONT,REAR 16X6.00GS STAMP, BLACK IDN	8-94412-585-0	06	1	1105-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25(22H) SPARE 15X5.50F STAMP, BLACK IDN	8-94135-599-0	01	1	0211-1404		●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25(22H) SPARE 15X5.50F STAMP, BLACK IDN	8-94135-599-0	01	1	1405-	●	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25(22H) FRONT,REAR 15X5.50F STAMP, BLACK IDN	8-94135-599-0	04	1	0211-		●
31	05.839 RING; SIDE,DISC WHEEL FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX1 5-25(25H) FRONT 15X5.50F STAMP, BLACK IDN	8-94135-599-0	02	1	0211-1003		●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) FRONT 15X5.50F STAMP, BLACK IDN	8-94135-599-0	02	1	1004-		●
31	05.839 RING; SIDE,DISC WHEEL FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX1 5-25(25H) SPARE 15X6.00GS STAMP, BLACK	8-94135-600-0	01	1	0211-1003		●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) SPARE 15X6.00GS STAMP, BLACK	8-94135-600-0	01	1	1004-1404		●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) SPARE 15X6.00GS STAMP, BLACK	8-94135-600-0	01	1	1405-	●	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX1 5-25(25H) REAR 15X6.00GS STAMP, BLACK	8-94135-600-0	02	1	0211-1003		●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) REAR 15X6.00GS STAMP, BLACK	8-94135-600-0	02	1	1004-1404		●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) REAR 15X6.00GS STAMP, BLACK	8-94135-600-0	02	1	1405-	●	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-115 (AQE),FRT&RR 7-16-8 16X5.5F-115(94H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H), FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) SPARE 16X5.50F STAMP, BLACK IDN	8-94135-601-0	01	1	0211-	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-115 (AQE),FRT&RR 7-16-8 16X5.5F-115(94H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H), FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) FRONT,REAR 16X5.50F STAMP, BLACK IDN	8-94135-601-0	06	1	0211-	●

31 2 2 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	05.803 WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE IDN	8-94438-670-4	01	1	1105-	●
2	05.803 WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE IDN	8-94438-670-4	06	1	1105-	●
2	05.803 WHEEL; DISC FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25(22H) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE IDN	8-94116-196-0	01	1	0211-1404		●
2	05.803 WHEEL; DISC FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25(22H) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE IDN	8-94116-196-0	01	1	1405-	●	●
2	05.803 WHEEL; DISC FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25(22H) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE IDN	8-94116-196-0	04	1	0211-		●
2	05.803 WHEEL; DISC FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX1 5-25(25H) (A) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE IDN	8-94116-196-0	02	1	0211-1003		●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) (A) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE IDN	8-94116-196-0	02	1	1004-		●
2	05.803 WHEEL; DISC FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX1 5-25(25H) (A) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	01	1	0211-1003		●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) (A) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	01	1	1004-1404		●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) (A) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	01	1	1405-	●	●
2	05.803 WHEEL; DISC FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX1 5-25(25H) (A) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	02	1	0211-1003		●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) (A) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	02	1	1004-1404		●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) (A) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	02	1	1405-	●	●
2	05.803 WHEEL; DISC FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-115 (AQE),FRT&RR 7-16-8 16X5.5F-115(94H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H), FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	01	1	0211-	●
2	05.803 WHEEL; DISC FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-115 (AQE),FRT&RR 7-16-8 16X5.5F-115(94H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H), FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	06	1	0211-	●
2	05.803 WHEEL; DISC FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	0607-	●
2	05.803 WHEEL; DISC FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	0607-	●
8	05.875 VALVE; TIRE FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB) SPARE IDN	8-98221-106-0	01	1	0607-	●
8	05.875 VALVE; TIRE FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB) FRONT,REAR IDN	8-98221-106-0	06	1	0607-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) SPARE 16X6.00GS STAMP, BLACK IDN	8-94412-585-0	01	1	1105-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) FRONT,REAR 16X6.00GS STAMP, BLACK IDN	8-94412-585-0	06	1	1105-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25(22H) SPARE 15X5.50F STAMP, BLACK IDN	8-94135-599-0	01	1	0211-1404		●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25(22H) SPARE 15X5.50F STAMP, BLACK IDN	8-94135-599-0	01	1	1405-	●	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25(22H) FRONT,REAR 15X5.50F STAMP, BLACK IDN	8-94135-599-0	04	1	0211-		●
31	05.839 RING; SIDE,DISC WHEEL FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX1 5-25(25H) FRONT 15X5.50F STAMP, BLACK IDN	8-94135-599-0	02	1	0211-1003		●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) FRONT 15X5.50F STAMP, BLACK IDN	8-94135-599-0	02	1	1004-		●
31	05.839 RING; SIDE,DISC WHEEL FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX1 5-25(25H) SPARE 15X6.00GS STAMP, BLACK	8-94135-600-0	01	1	0211-1003		●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) SPARE 15X6.00GS STAMP, BLACK	8-94135-600-0	01	1	1004-1404		●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) SPARE 15X6.00GS STAMP, BLACK	8-94135-600-0	01	1	1405-	●	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX1 5-25(25H) REAR 15X6.00GS STAMP, BLACK	8-94135-600-0	02	1	0211-1003		●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) REAR 15X6.00GS STAMP, BLACK	8-94135-600-0	02	1	1004-1404		●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) REAR 15X6.00GS STAMP, BLACK	8-94135-600-0	02	1	1405-	●	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-115 (AQE),FRT&RR 7-16-8 16X5.5F-115(94H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H), FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) SPARE 16X5.50F STAMP, BLACK IDN	8-94135-601-0	01	1	0211-	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-115 (AQE),FRT&RR 7-16-8 16X5.5F-115(94H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H), FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) FRONT,REAR 16X5.50F STAMP, BLACK IDN	8-94135-601-0	06	1	0211-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
