◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51280 - NKR INDONESIA ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65A - REAR LEAF SPRING ▶
4-65A — REAR LEAF SPRING (#78971) — 14 parça

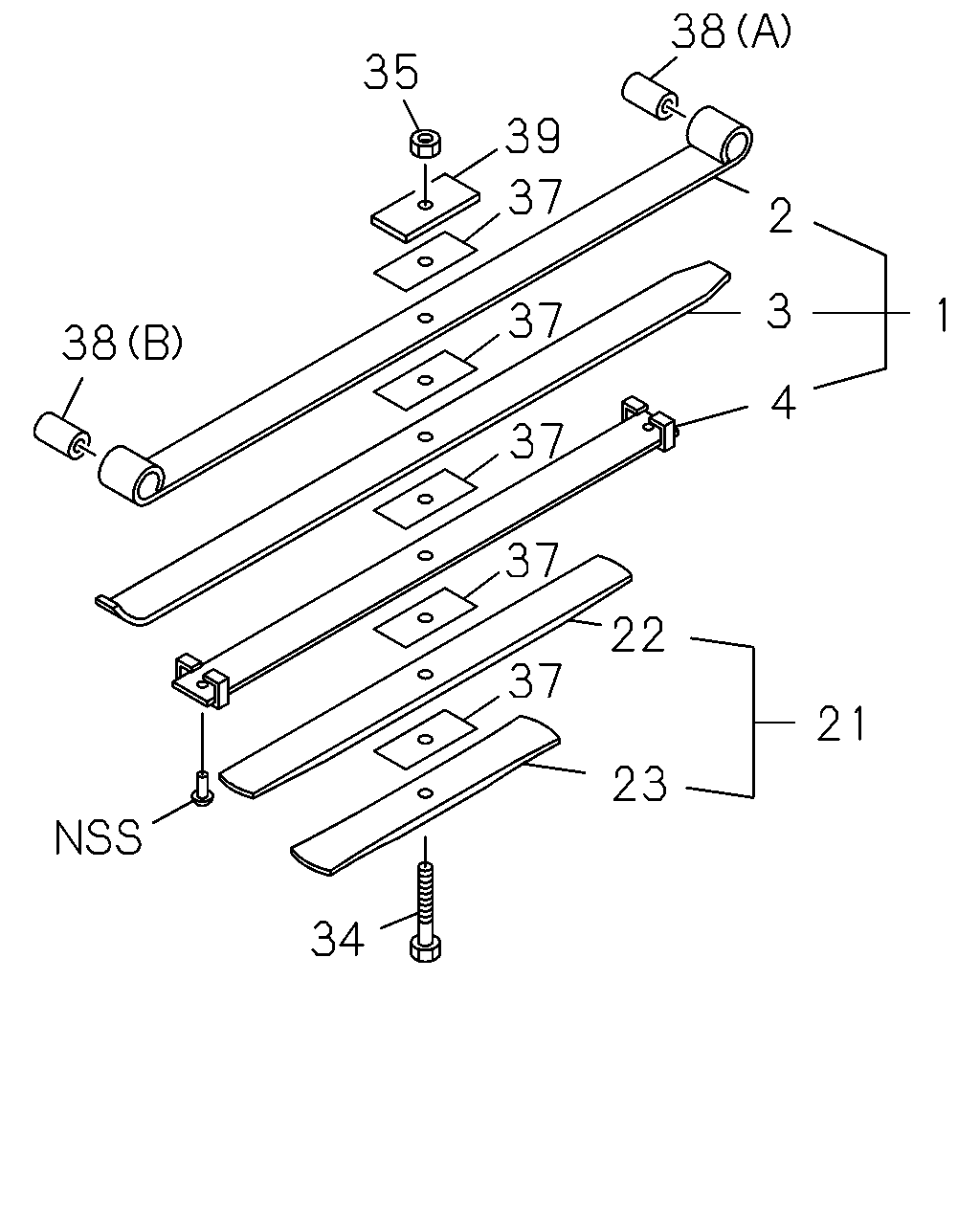

çizim 125060
38 35 39 37 2 3 1 37 38 4 37 37 22 37 21 23 34
BalonParca AdiParca NoAdetTipApplied Date
1 07.503 SPRING ASM; LEAF,RR MAIN
IDN ASM PART: A = 8-97033-505-1, 97033505 		8-97085-589-0 01 1 -
2 07.505 SPRING; LEAF,NO 1,RR MAIN
IDN ASM PART: A = 8-97033-505-1, 97033505 		8-97085-590-0 01 1 -
3 07.505 SPRING; LEAF,NO 2,RR MAIN
IDN ASM PART: A = 8-97033-505-1, 97033505 		8-97085-591-0 01 1 -
4 07.505 SPRING; LEAF,NO 3,RR MAIN
IDN ASM PART: A = 8-97033-505-1, 97033505 		8-97085-592-0 01 1 -
21 07.503 SPRING ASM; LEAF,RR SUB
IDN ASM PART: A = 8-97033-505-1, 97033505 		8-97085-593-0 01 1 -
22 07.505 SPRING; LEAF,NO 1,RR SUB
IDN ASM PART: A = 8-97033-505-1, 97033505 		8-97085-594-0 01 1 -
23 07.505 SPRING; LEAF,NO 2,RR SUB
IDN ASM PART: A = 8-97033-505-1, 97033505 		8-97085-595-0 01 1 -
34 07.506 BOLT; CENTER,LEAF SPR,RR MAIN
L=100, IDN ASM PART: A = 8-97033-505-1, 97033505 		8-94165-306-0 01 1 -
35 07.506 NUT; CENTER BOLT,LEAF SPR,RR
04.634, M12 ASM PART: A = 8-97033-505-1, 97033505 		9-99110-512-0 01 1 -
37 07.518 SPACER; CENTER,LEAF SPR,RR
T=1 ASM PART: A = 8-97033-505-1, 97033505 		8-94448-734-0 05 1 -
38 07.505 BUSHING; LEAF SPR,RR
(A), BEST VALUE PARTS ASM PART: A = 8-97033-505-1, 97033505 		5-87610-162-0 01 1 -
38 07.505 BUSHING; LEAF SPR,RR
07.105, (B) ASM PART: A = 8-97033-505-1, 97033505 		8-94130-354-0 01 1 -
38 07.505 BUSHING; LEAF SPR,RR
(A), OD=42 L=85.2 ASM PART: A = 8-97033-505-1, 97033505 		8-97034-380-0 01 1 -
39 07.518 SEAT; LEAF SPR,RR MAIN
T=12 ASM PART: A = 8-97033-505-1, 97033505 		8-94407-146-1 01 1 -
