Sayfa 4-61 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51280 - NKR INDONESIA ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-61 - SHOCK ABSORBER; REAR SUSPENSION ▶

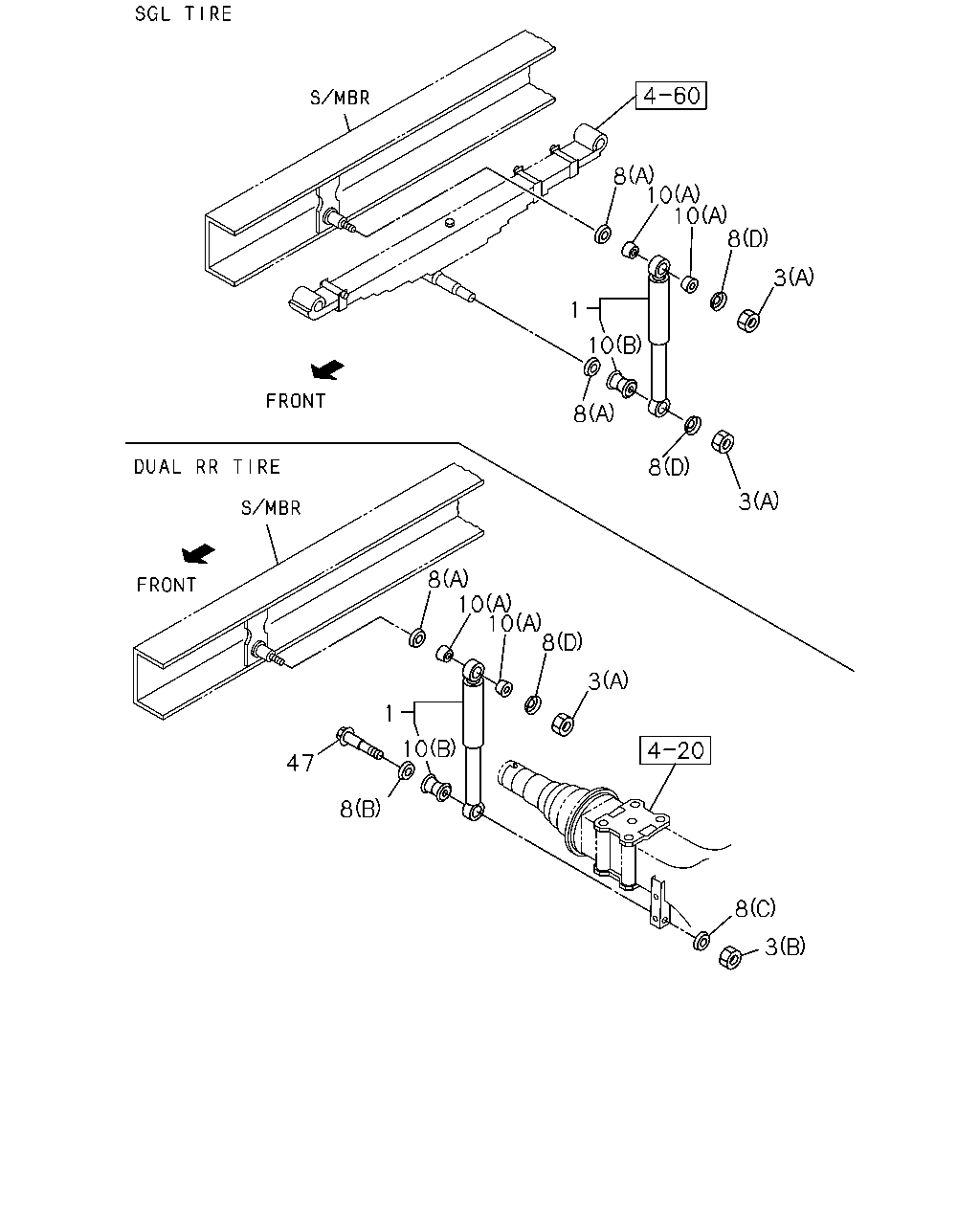

4-61 — SHOCK ABSORBER; REAR SUSPENSION (#78970) — 27 parça

8 10 10 8 3 1 10 8 8 3 8 10 10 8 3 1 10 47 8 8 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	07.395 ABSORBER ASM; SHOCK,RR IDN	8-97253-657-1	02	1	0211-	●
1	07.395 ABSORBER ASM; SHOCK,RR IDN	8-97253-651-2	02	1	0211-1506		●
1	07.395 ABSORBER ASM; SHOCK,RR BEST VALUE PARTS IDN	5-87610-155-0	02	1	0211-	●
1	07.395 ABSORBER ASM; SHOCK,RR BEST VALUE PARTS IDN	5-87610-132-0	02	1	0211-1506		●
1	07.395 ABSORBER ASM; SHOCK,RR IDN	8-98316-233-0	02	1	1507-		●
3	07.347 NUT; S/ABS 05.816 (A) M12	9-99110-412-0	04	1	0211-0512	●
3	07.347 NUT; S/ABS 05.002 (A) M12	0-91110-512-0	04	1	0601-	●
3	07.347 NUT; S/ABS 06.172 (A) M14	9-99111-414-0	02	1	0211-0512		●
3	07.347 NUT; S/ABS 06.515 (A) M14	0-91111-514-0	02	1	0601-0612		●
3	07.347 NUT; S/ABS 07.833 (A) M14	0-91110-514-0	02	1	0701-		●
3	07.347 NUT; S/ABS 04.681 (B) M16	9-99111-516-0	02	1	0211-0512		●
3	07.347 NUT; S/ABS 00.785 (B) M16 IDN	0-91111-516-0	02	1	0601-		●
8	07.347 WASHER; S/ABS (A) ID=16.5	9-51679-021-0	04	1	0211-	●
8	07.347 WASHER; S/ABS (D) ID=12.5	9-51679-022-0	04	1	0211-	●
8	07.347 WASHER; S/ABS 07.516 (B) ID=16.4	8-94137-482-1	02	1	0211-0610		●
8	07.347 WASHER; S/ABS 07.516 (B) ID=16.4	8-97360-118-0	02	1	0611-		●
8	07.347 WASHER; S/ABS 07.172 (C) ID=16.5 IDN	8-97070-925-1	02	1	0211-0611		●
8	07.347 WASHER; S/ABS 07.427 (C) ID=16.5 IDN	8-98011-489-0	02	1	0612-		●
8	07.347 WASHER; S/ABS (D) ID=15.0	9-51679-012-0	02	1	0211-0611		●
8	07.347 WASHER; S/ABS (D) ID=15	8-97360-056-0	02	1	0612-		●
8	07.347 WASHER; S/ABS (A) ID=20.0	9-51679-013-0	02	1	0211-0611		●
8	07.347 WASHER; S/ABS (A) ID=20.0	8-97360-057-0	02	1	0612-		●
10	07.388 BUSHING; RUBBER,S/ABS 07.347 (A) KYB IDN	8-94132-727-1	04	1	0211-	●
10	07.388 BUSHING; RUBBER,S/ABS 07.347 (B) TOKICO	8-94224-694-0	02	1	0211-	●
10	07.388 BUSHING; RUBBER,S/ABS (B) TOKICO	8-94382-149-0	02	1	0211-		●
10	07.388 BUSHING; RUBBER,S/ABS (A) TOKICO IDN	9-51631-014-0	04	1	0211-		●
47	07.347 PIN; S/ABS SETTING	8-97316-972-0	02	1	0211-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
