◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51280 - NKR INDONESIA ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#78969) — 66 parça

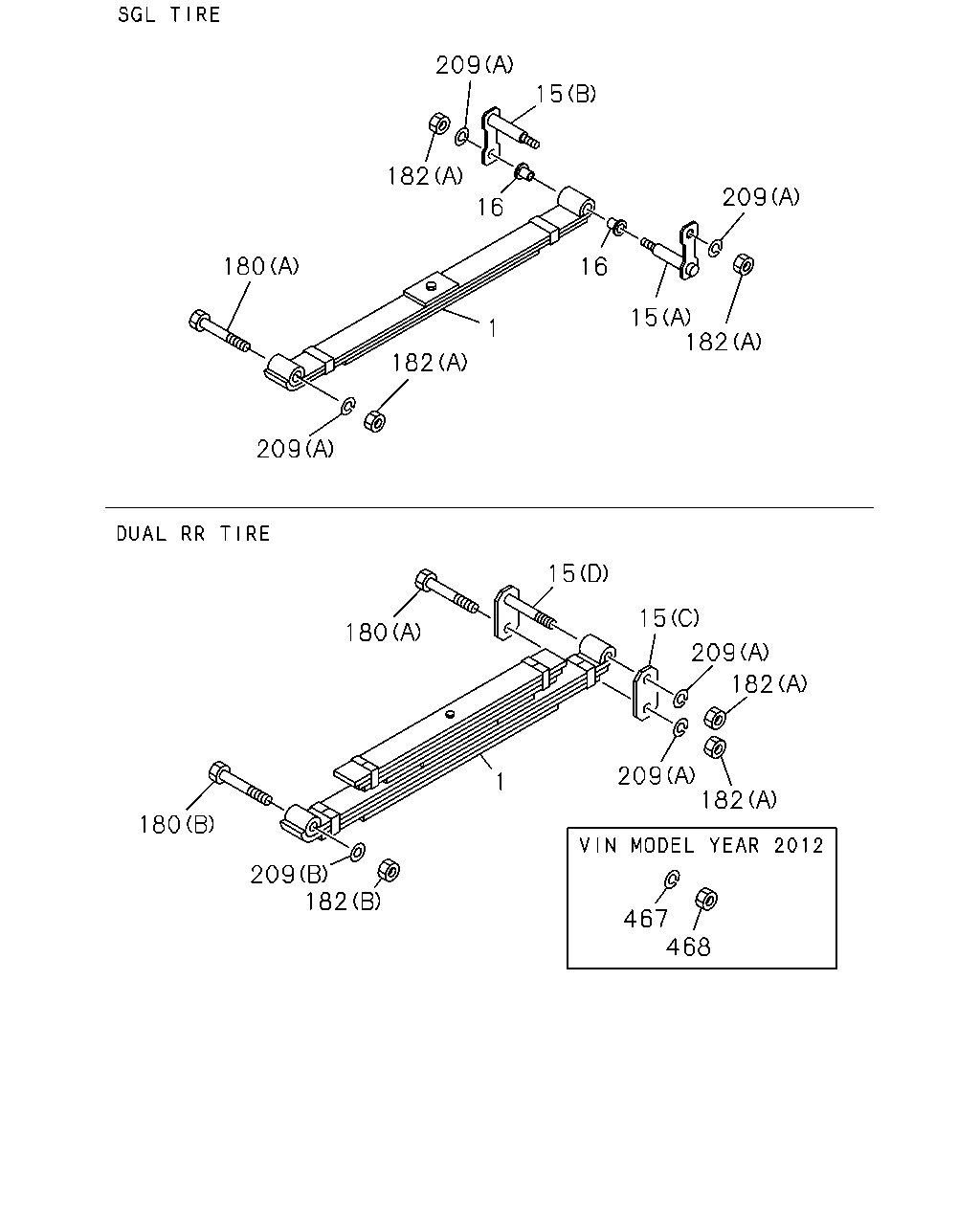

çizim 124767
209 15 182 209 16 180 16 15 182 1 182 209 15 15 180 209 182 209 182 1 180 209 182 467 468
BalonParca AdiParca NoAdetTipApplied Date A B
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 5-LEAF IDN 		8-97033-505-1 02 1 0211- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.5-6.0TON(RPU) 10-LEAF IDN 		8-97073-224-1 02 1 0211-0712 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) 10-LEAF IDN 		8-97073-224-1 02 1 0801- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.5-7.0TON(RPW) 10-LEAF IDN 		8-97070-509-1 02 1 0211- ●
15 07.523 SHACKLE; RR SPR
(A) OUTSIDE IDN 		8-94113-322-3 02 1 0211- ●
15 07.523 SHACKLE; RR SPR
(B) INSIDE IDN 		8-97033-966-1 02 1 0211- ●
15 07.523 SHACKLE; RR SPR
(C) IDN 		8-94118-511-3 02 1 0211- ●
15 07.523 SHACKLE; RR SPR
(D) IDN 		8-94118-512-4 02 1 0211-0611 ●
15 07.523 SHACKLE; RR SPR
(D) IDN 		8-97360-011-0 02 1 0612- ●
16 07.524 BUSHING; SHACKLE,RR SPR
IDN 		8-94113-323-2 04 1 0211- ●
16 07.524 BUSHING; SHACKLE,RR SPR
BEST VALUE PARTS IDN 		5-87610-160-0 04 1 0211- ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 IDN 		9-51361-602-2 02 1 0211-0611 ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 IDN 		8-98011-487-0 02 1 0612- ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE 		8-97076-850-2 02 1 0211-0610 ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 FLANGE 		8-97360-110-0 02 1 0611- ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 IDN 		8-97033-967-0 02 1 0211-0611 ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 IDN 		8-98011-488-0 02 1 0612- ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97076-848-0 02 1 0211-0610 ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97360-112-0 02 1 0611- ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 08.915 (A) M16 IDN 		9-99110-516-0 02 1 0211-0512 ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 06.509 (A) M16 IDN 		0-91110-516-0 02 1 0601- ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 08.915 (A) M16 IDN 		9-99110-516-0 04 1 0211-0512 ● ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 06.509 (A) M16 IDN 		0-91110-516-0 04 1 0601- ● ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16 FLANGE 		8-97147-389-0 02 1 0211-0610 ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE 		8-97360-125-0 02 1 0611- ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16 FLANGE 		8-97147-389-0 04 1 0211-0610 ● ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE 		8-97360-125-0 04 1 0611- ● ●
182 07.529 NUT; PIN,RR SPR
06.216 (B) M18 IDN 		9-99110-518-0 02 1 0211-0512 ●
182 07.529 NUT; PIN,RR SPR
(B) M18 IDN 		0-91110-518-0 02 1 0601- ●
209 07.529 WASHER; PL
KD PREPARATORY PACK<6HF> 07.172 (A) ID=16.5 IDN 		8-97070-925-1 02 1 0211-0611 ●
209 07.529 WASHER; PL
KD PREPARATORY PACK<6HF> 07.427 (A) ID=16.5 IDN 		8-98011-489-0 02 1 0612- ●
209 07.529 WASHER; PL
KD PREPARATORY PACK<6HF> 07.172 (A) ID=16.5 IDN 		8-97070-925-1 04 1 0211-0611 ● ●
209 07.529 WASHER; PL
KD PREPARATORY PACK<6HF> 07.427 (A) ID=16.5 IDN 		8-98011-489-0 04 1 0612- ● ●
209 07.529 WASHER; PL
(B) ID=19 IDN 		8-97073-435-1 02 1 0211-0611 ●
209 07.529 WASHER; PL
(B) ID=19 IDN 		8-97360-119-0 02 1 0612- ●
467 07.529 NUT; SPRING PIN
VIN MODEL YEAR 2012(VZC) 00.833 M10 		0-91110-510-0 06 1 1201-1405 ●
467 07.529 NUT; SPRING PIN
VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 00.833 M10 		0-91110-510-0 06 1 1406- ●
468 07.529 WASHER; LK,SPRING PIN
VIN MODEL YEAR 2012(VZC) 02.277 ID=10.2 IDN 		0-91510-810-0 06 1 1201-1405 ●
468 07.529 WASHER; LK,SPRING PIN
VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 02.277 ID=10.2 IDN 		0-91510-810-0 06 1 1406- ●
çizim 190657
4 157 1 6 5 227 225
BalonParca AdiParca NoAdetTipApplied Date A B
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 5-LEAF IDN 		8-97033-505-1 02 1 0211- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.5-6.0TON(RPU) 10-LEAF IDN 		8-97073-224-1 02 1 0211-0712 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) 10-LEAF IDN 		8-97073-224-1 02 1 0801- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.5-7.0TON(RPW) 10-LEAF IDN 		8-97070-509-1 02 1 0211- ●
4 07.516 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 320MM(6CP),REAR AXLEHEAVY DUTY 343MM(8BW) REAR SPRING HEAVY DUTY<G50> G.V.W. 6.5-7.0TON(RPW) L=275 IDN 		8-94127-924-3 04 1 1510- ●
4 07.516 U-BOLT; RR SPR
L=235 IDN 		8-94127-920-3 04 1 0211- ●
4 07.516 U-BOLT; RR SPR
G.V.W. 5.5-6.0TON(RPU) L=265 IDN 		8-94127-923-3 04 1 0211-0712 ●
4 07.516 U-BOLT; RR SPR
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) L=265 IDN 		8-94127-923-3 04 1 0801- ●
4 07.516 U-BOLT; RR SPR
G.V.W. 6.5-7.0TON(RPW) L=285 		8-97141-874-0 04 1 0211-1509 ●
4 07.516 U-BOLT; RR SPR
G.V.W. 6.5-7.0TON(RPW) EXC. REAR SPRING HEAVY DUTY<G50> L=285 		8-97141-874-0 04 1 1510- ●
5 07.529 NUT; U-BOLT,RR SPR
07.516 M16 		8-94107-767-0 08 1 0211-0611 ● ●
5 07.529 NUT; U-BOLT,RR SPR
07.417 M16 		8-97360-121-0 08 1 0612- ● ●
6 07.516 WASHER; PL,U-BOLT
ID=16.4 		8-94137-482-1 08 1 0211-0610 ● ●
6 07.516 WASHER; PL,U-BOLT
ID=16.4 		8-97360-118-0 08 1 0611- ● ●
157 07.518 CLAMP; UPR,RR SPR
REAR AXLE HEAVY DUTY 343MM(8BW) 07.506 L=150 T=4.5 		8-98297-180-0 02 1 1510- ●
157 07.518 CLAMP; UPR,RR SPR
L=130 T=4.5 IDN 		8-94119-069-2 02 1 0211-0712 ●
157 07.518 CLAMP; UPR,RR SPR
G.V.W. 5.5-6.0TON(RPU) L=130 T=4.5 IDN 		8-94119-069-2 02 1 0211-0712 ●
157 07.518 CLAMP; UPR,RR SPR
L=130 T=4.5 IDN 		8-94119-069-2 02 1 0801-1404 ●
157 07.518 CLAMP; UPR,RR SPR
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) L=130 T=4.5 IDN 		8-94119-069-2 02 1 0801-1404 ●
157 07.518 CLAMP; UPR,RR SPR
L=130 T=4.5 IDN 		8-94119-069-2 02 1 1405- ●
157 07.518 CLAMP; UPR,RR SPR
G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) L=130 T=4.5 IDN 		8-94119-069-2 02 1 1405- ●
157 07.518 CLAMP; UPR,RR SPR
G.V.W. 6.5-7.0TON(RPW) L=140 T=4.5 		8-94118-509-1 02 1 0211-1509 ●
157 07.518 CLAMP; UPR,RR SPR
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.5-7.0TON(RPW) L=140 T=4.5 		8-94118-509-1 02 1 1510- ●
225 07.535 RUBBER; CUSHION,RR SPR
IDN 		8-94142-044-4 02 1 0211- ●
225 07.535 RUBBER; CUSHION,RR SPR
IDN 		8-94118-510-5 02 1 0211- ●
227 07.535 NUT; CUSHION RUBBER
05.586 M12 FLANGE 		0-91150-112-0 02 1 0211-0602 ● ●
227 07.535 NUT; CUSHION RUBBER
02.042 M12 FLANGE IDN 		0-91180-112-0 02 1 0603- ● ●
