◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51280 - NKR INDONESIA ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55B - FRONT LEAF SPRING ▶
4-55B — FRONT LEAF SPRING (#78968) — 17 parça

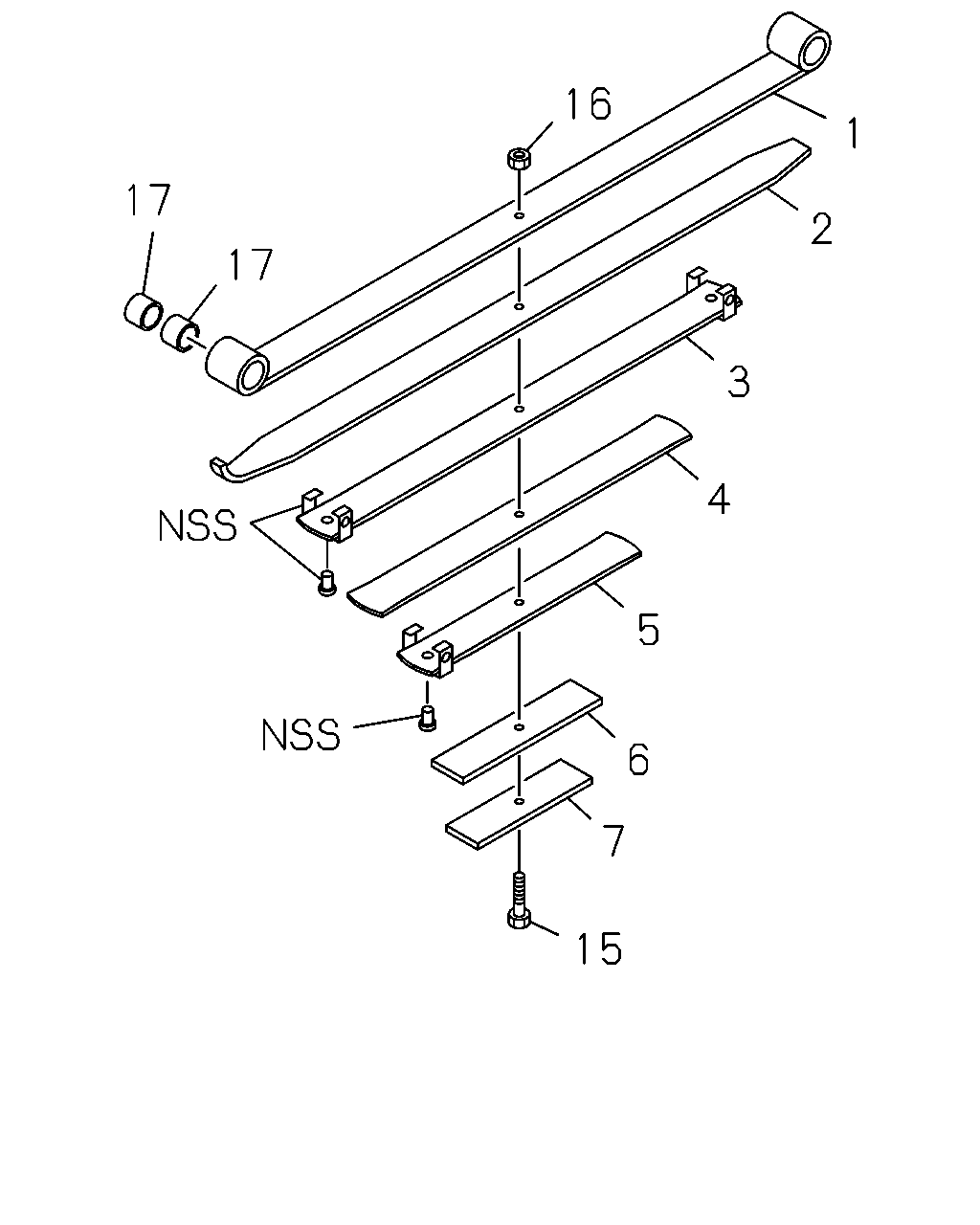

çizim 124733
16 1 17 2 17 3 4 5 6 7 15
BalonParca AdiParca NoAdetTipApplied Date
1 07.415 SPRING; LEAF,NO 1,FRT
IDN ASM PART: A = 8-94343-094-3, 94343094 		8-94327-457-1 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
IDN ASM PART: B = 8-94343-095-3, 94343095 		8-94327-458-1 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
IDN ASM PART: B = 8-94343-095-3, 94343095 		8-94158-819-1 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
IDN ASM PART: A = 8-94343-094-3, 94343094 		8-94158-826-1 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
IDN ASM PART: B = 8-94343-095-3, 94343095 		8-94158-820-3 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
IDN ASM PART: A = 8-94343-094-3, 94343094 		8-94158-827-3 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
IDN ASM PART: B = 8-94343-095-3, 94343095 		8-94158-821-1 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
IDN ASM PART: A = 8-94343-094-3, 94343094 		8-94158-828-1 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
IDN ASM PART: B = 8-94343-095-3, 94343095 		8-94158-822-3 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
IDN ASM PART: A = 8-94343-094-3, 94343094 		8-94158-829-3 01 1 -
6 07.415 SPRING; LEAF,NO 6,FRT
IDN ASM PART: B = 8-94343-095-3, 94343095 		8-94158-823-1 01 1 -
6 07.415 SPRING; LEAF,NO 6,FRT
IDN ASM PART: A = 8-94343-094-3, 94343094 		8-94158-830-0 01 1 -
7 07.415 SPRING; LEAF,NO 7,FRT
IDN ASM PART: B = 8-94343-095-3, 94343095 		8-94158-824-1 01 1 -
7 07.415 SPRING; LEAF,NO 7,FRT
IDN ASM PART: A = 8-94343-094-3, 94343094 		8-94158-831-1 01 1 -
15 07.428 BOLT; CENTER,LEAF SPR,FRT
L=72, IDN ASM PART: A = 8-94343-094-3, 94343094, B = 8-94343-095-3, 94343095 		8-94165-278-0 01 1 -
16 07.506 NUT; CENTER BOLT,LEAF SPR,FRT
M10, IDN ASM PART: A = 8-94343-094-3, 94343094, B = 8-94343-095-3, 94343095 		9-09110-010-0 01 1 -
17 07.413 BUSHING; LEAF SPR,FRT
OD=56 ASM PART: A = 8-94343-094-3, 94343094, B = 8-94343-095-3, 94343095 		8-94463-020-0 04 1 -
