◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51280 - NKR INDONESIA ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#78966) — 57 parça

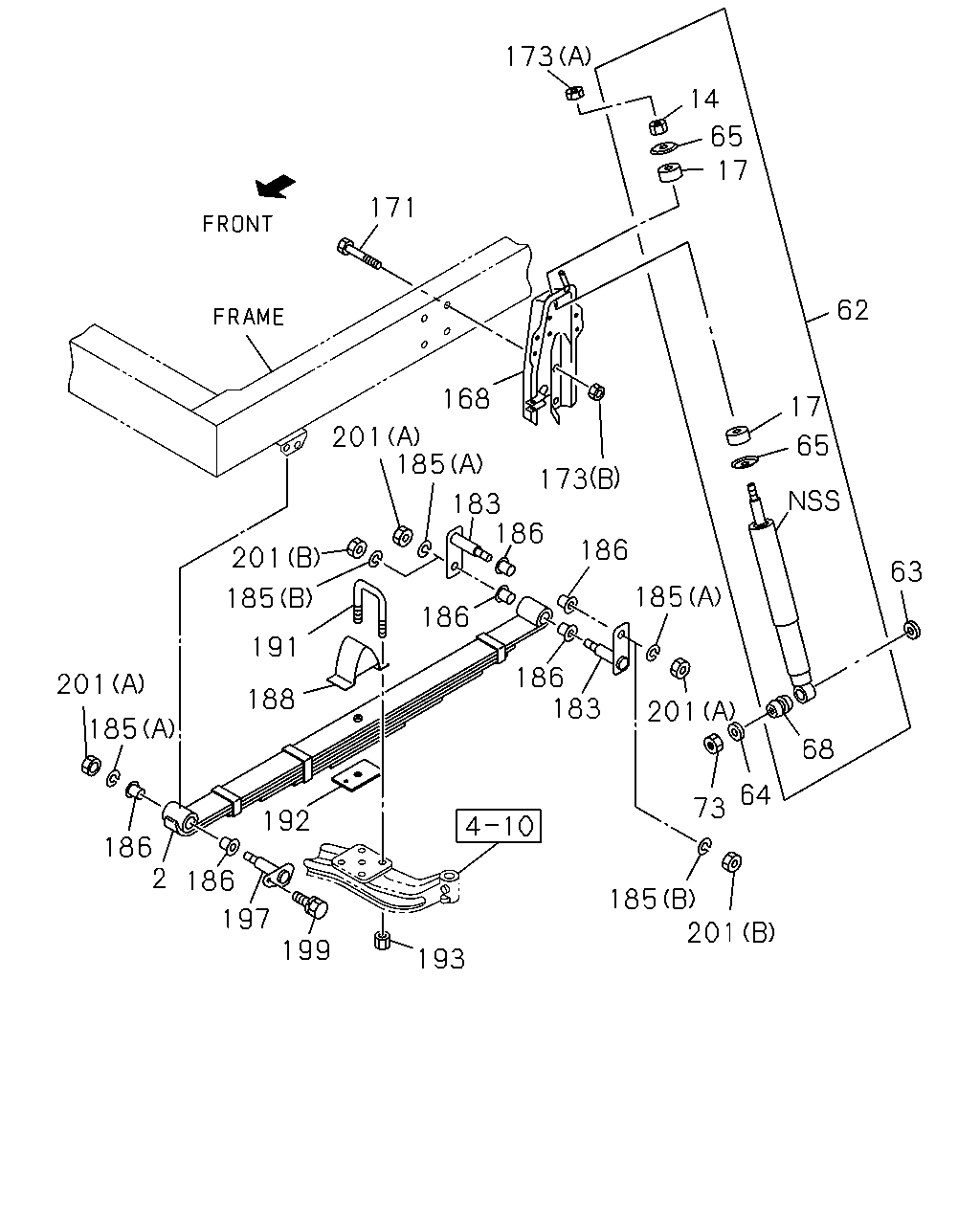

çizim 190656
173 14 65 17 171 62 168 17 201 185 65 173 183 186 201 186 63 185 185 186 191 186 183 201 188 201 185 68 64 73 192 186 2 186 185 201 197 199 193
BalonParca AdiParca NoAdetTipApplied Date A B
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF IDN 		8-97071-625-2 01 1 0211- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF IDN 		8-97071-626-2 01 1 0211- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 5.5-6.0TON(RPU) 7-LEAF IDN 		8-94343-094-3 01 1 0211-0712 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) 7-LEAF IDN 		8-94343-094-3 01 1 0801- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 5.5-6.0TON(RPU) 7-LEAF IDN 		8-94343-095-3 01 1 0211-0712 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) 7-LEAF IDN 		8-94343-095-3 01 1 0801- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 6.5-7.0TON(RPW) 9-LEAF IDN 		8-97182-183-0 01 1 0211- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 6.5-7.0TON(RPW) 9-LEAF IDN 		8-97182-185-0 01 1 0211- ●
14 07.389 NUT; S/ABS,UPR
M10 		8-94317-772-0 02 1 0211- ● ●
17 07.388 BUSHING; RUBBER,S/ABS
TOKICO 		9-51631-603-0 04 1 0211- ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT
IDN 		8-97260-214-1 02 1 0211- ●
62 07.345 ABSORBER ASM; SHOCK,FRT
IDN 		8-97253-605-1 02 1 0211- ●
62 07.345 ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS IDN 		5-87610-127-1 02 1 0211- ●
62 07.345 ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS IDN 		5-87610-152-0 02 1 0211- ●
63 07.347 WASHER; PL,S/ABS,LWR
07.529 ID=17 OD=32 		9-09164-616-0 02 1 0211-1011 ● ●
63 07.347 WASHER; PL,S/ABS,LWR
ID=17 OD=32 		0-91614-616-0 02 1 1012- ● ●
64 07.347 WASHER; S/ABS,LWR
ID=12.5 		9-51679-022-0 02 1 0211- ● ●
65 07.347 WASHER; S/ABS
07.245 ID=10.5 OD=38 IDN 		9-51631-062-0 04 1 0211- ● ●
68 07.388 BUSHING; S/ABS
07.347 TOKICO 		8-94224-694-0 02 1 0211- ● ●
73 07.347 NUT; BRKT,SHOCK
M12 		9-99111-512-0 02 1 0211-0512 ● ●
73 07.347 NUT; BRKT,SHOCK
04.439 M12 		0-91111-512-0 02 1 0601- ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP 8-97316-007-1 01 1 0211- ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP 8-97316-015-1 01 1 0211- ● ●
171 07.395 BOLT; S/ABS BRKT
03.405 M10X30 FLANGE 		0-28681-030-0 08 1 0211-0512 ● ●
171 07.395 BOLT; S/ABS BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 08 1 0601- ● ●
173 07.395 NUT; S/ABS
06.822 (A) M10 		9-09111-410-0 02 1 0211-0306 ● ●
173 07.395 NUT; S/ABS
08.917 (B) M10 FLANGE 		0-91150-210-0 08 1 0211-0602 ● ●
173 07.395 NUT; S/ABS
04.085 (B) M10 FLANGE 		0-91180-210-0 08 1 0603-1403 ● ●
173 07.395 NUT; S/ABS
03.162 (B) M10 FLANGE IDN 		0-91180-110-0 08 1 1404- ● ●
183 07.436 SHACKLE; FRT SUSP
IDN 		8-94468-235-2 04 1 0211-0607 ● ●
183 07.436 SHACKLE; FRT SUSP
IDN 		8-98034-341-0 04 1 0608- ● ●
185 07.427 WASHER; LK,PIN
KD PREPARATORY PACK<6HF> 07.172 (A) ID=16.5 IDN 		8-97070-925-1 06 1 0211-0607 ● ●
185 07.427 WASHER; LK,PIN
KD PREPARATORY PACK<6HF> 07.172 (A) ID=16.5 IDN 		8-97070-925-1 02 1 0608-0611 ● ●
185 07.427 WASHER; LK,PIN
KD PREPARATORY PACK<6HF> (A) ID=16.5 IDN 		8-98011-489-0 02 1 0612- ● ●
185 07.427 WASHER; LK,PIN
(B) ID=16.5 IDN 		8-98011-489-0 04 1 0608- ● ●
186 07.105 BUSHING; SHACKLE
IDN 		8-97081-531-0 12 1 0211- ● ●
188 07.436 RUBBER; CLAMP,U-BOLT,FRT SPR
IDN 		8-94150-265-3 02 1 0211- ● ●
191 07.417 U-BOLT; FRT SPR
FRONT STABILIZER SHAFT<F59> L=95 IDN 		8-97304-073-1 02 1 0211- ●
191 07.417 U-BOLT; FRT SPR
FRONT STABILIZER SHAFT<F59> L=105 IDN 		8-97304-074-1 02 1 0211- ●
191 07.417 U-BOLT; FRT SPR
EXC. FRONT STABILIZER SHAFT<F59> L=95 IDN 		8-97304-073-1 04 1 0211- ●
191 07.417 U-BOLT; FRT SPR
G.V.W. 5.5-6.0TON(RPU) L=105 IDN 		8-97304-074-1 04 1 0211-0712 ●
191 07.417 U-BOLT; FRT SPR
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) L=105 IDN 		8-97304-074-1 04 1 0801-1404 ●
191 07.417 U-BOLT; FRT SPR
G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) L=105 IDN 		8-97304-074-1 04 1 1405- ●
191 07.417 U-BOLT; FRT SPR
G.V.W. 6.5-7.0TON(RPW) L=135 IDN 		8-97304-077-1 04 1 0211- ●
192 07.436 PIECE; DIST
07.425 		8-94249-413-1 02 1 0211- ●
193 07.417 NUT; U BOLT
M14 FLANGE 		8-94137-483-0 08 1 0211-0610 ● ●
193 07.417 NUT; U BOLT
06.174 M14 FLANGE 		8-97360-124-0 08 1 0611- ● ●
197 07.427 PIN; FRT SPR,FRT
IDN 		8-94117-900-1 02 1 0211- ● ●
199 07.427 BOLT
03.405 M10X25 FLANGE 		0-28681-025-0 02 1 0211-0512 ● ●
199 07.427 BOLT
00.029 M10X25 FLANGE IDN 		0-28651-025-0 02 1 0601- ● ●
201 07.427 NUT; PIN LK
KD PREPARATORY PACK<6HF> 06.870 (A) M16 IDN 		9-99110-416-0 06 1 0211-0512 ● ●
201 07.427 NUT; PIN LK
KD PREPARATORY PACK<6HF> 06.509 (A) M16 IDN 		0-91110-516-0 06 1 0601-0607 ● ●
201 07.427 NUT; PIN LK
KD PREPARATORY PACK<6HF> 06.509 (A) M16 IDN 		0-91110-516-0 02 1 0608- ● ●
201 07.427 NUT; PIN LK
EXC. KD PREPARATORY PACK<6HF> 07.529 (A) M16 FLANGE 		8-97147-389-0 06 1 0211-0607 ● ●
201 07.427 NUT; PIN LK
EXC. KD PREPARATORY PACK<6HF> 07.529 (A) M16 FLANGE 		8-97147-389-0 02 1 0608-0610 ● ●
201 07.427 NUT; PIN LK
EXC. KD PREPARATORY PACK<6HF> (A) M16 FLANGE 		8-97360-125-0 02 1 0611- ● ●
201 07.427 NUT; PIN LK
06.509 (B) M16 IDN 		0-91110-516-0 04 1 0608- ● ●
