4-36 — POWER STEERING CONTROL; ENGINE SIDE (#78963) — 79 parça

23 42 1 7 29 36 7 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. (A)	8-97136-573-1	01	1	0211-0304	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. (B)	8-97357-214-0	01	1	0305-0409	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. (B)	8-97388-650-0	01	1	0410-0609	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) POWER STEERING<N40> (B)	8-97388-650-1	01	1	0610-0812	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) POWER STEERING<N40> (B)	8-98138-130-2	01	1	0901-	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JB1-TC ENG(RDT) POWER STEERING<N40> (C)	8-97354-730-1	01	1	0610-0712	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JB1-TC ENG(RDT) POWER STEERING<N40> (C)	8-97354-730-1	01	1	0801-1303	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JB1-TC ENG(RDT) POWER STEERING<N40> (C)	8-98217-772-0	01	1	1304-	●	●
7	09.181 BOLT; OIL PUMP,P/S 00.685 M10X28 FLANGE	0-28181-028-0	02	1	0211-0609	●	●
7	09.181 BOLT; OIL PUMP,P/S 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) POWER STEERING<N40> 00.685 M10X28 FLANGE	0-28181-028-0	02	1	0610-0805	●	●
7	09.181 BOLT; OIL PUMP,P/S 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) POWER STEERING<N40> 04.439 M10X28 FLANGE	8-98044-944-0	02	1	0806-1010	●	●
7	09.181 BOLT; OIL PUMP,P/S 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) POWER STEERING<N40> 00.780 M10X30 FLANGE	0-28751-030-0	02	1	1011-	●	●
23	06.660 GEAR; OIL PUMP	8-97114-550-0	01	1	0211-0304	●	●
29	09.171 BOLT; BRKT,POWER STRG (F) M14X20 FLANGE	0-28881-420-0	01	1	0211-0512	●	●
29	09.171 BOLT; BRKT,POWER STRG (F) M14X20 FLANGE	0-28851-420-0	01	1	0601-0609	●	●
29	09.171 BOLT; BRKT,POWER STRG 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) POWER STEERING<N40> (F) M14X20 FLANGE	0-28851-420-0	01	1	0610-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JB1-TC ENG(RDT) POWER STEERING<N40> 00.386 (D) M8X100 FLANGE	0-28050-800-0	01	1	0610-0712	●
29	09.171 BOLT; BRKT,POWER STRG 4JB1-TC ENG(RDT) POWER STEERING<N40> 00.386 (D) M8X100 FLANGE	0-28050-800-0	01	1	0801-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JB1-TC ENG(RDT) POWER STEERING<N40> 02.343 (A) M8X16 FLANGE	0-28050-816-0	03	1	0610-0712	●
29	09.171 BOLT; BRKT,POWER STRG 4JB1-TC ENG(RDT) POWER STEERING<N40> 02.343 (A) M8X16 FLANGE	0-28050-816-0	03	1	0801-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JB1-TC ENG(RDT) POWER STEERING<N40> 04.686 (E) M8X60 FLANGE	0-28050-860-0	01	1	0610-0712	●
29	09.171 BOLT; BRKT,POWER STRG 4JB1-TC ENG(RDT) POWER STEERING<N40> 04.686 (E) M8X60 FLANGE	0-28050-860-0	01	1	0801-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JB1-TC ENG(RDT) POWER STEERING<N40> 09.181 (C) M10X100 FLANGE	0-28051-000-0	01	1	0610-0712	●
29	09.171 BOLT; BRKT,POWER STRG 4JB1-TC ENG(RDT) POWER STEERING<N40> 09.181 (C) M10X100 FLANGE	0-28051-000-0	01	1	0801-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JB1-TC ENG(RDT) POWER STEERING<N40> 02.343 (B) M10X20 FLANGE IDN	0-28651-020-0	05	1	0610-0712	●
29	09.171 BOLT; BRKT,POWER STRG 4JB1-TC ENG(RDT) POWER STEERING<N40> 02.343 (B) M10X20 FLANGE IDN	0-28651-020-0	05	1	0801-	●	●
36	06.606 BRACKET; PLATE,P/S PUMP	8-97112-866-0	01	1	0211-0609	●	●
36	06.606 BRACKET; PLATE,P/S PUMP 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) POWER STEERING<N40>	8-97112-866-0	01	1	0610-	●	●
42	06.672 NUT; ADJ PLATE 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0602	●	●
42	06.672 NUT; ADJ PLATE 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	0603-0609	●	●
42	06.672 NUT; ADJ PLATE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) POWER STEERING<N40> 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	0610-	●	●
42	06.672 NUT; ADJ PLATE 4JB1-TC ENG(RDT) POWER STEERING<N40> 03.162 M10 FLANGE IDN	0-91180-110-0	01	1	0610-0712	●
42	06.672 NUT; ADJ PLATE 4JB1-TC ENG(RDT) POWER STEERING<N40> 03.162 M10 FLANGE IDN	0-91180-110-0	01	1	0801-	●	●

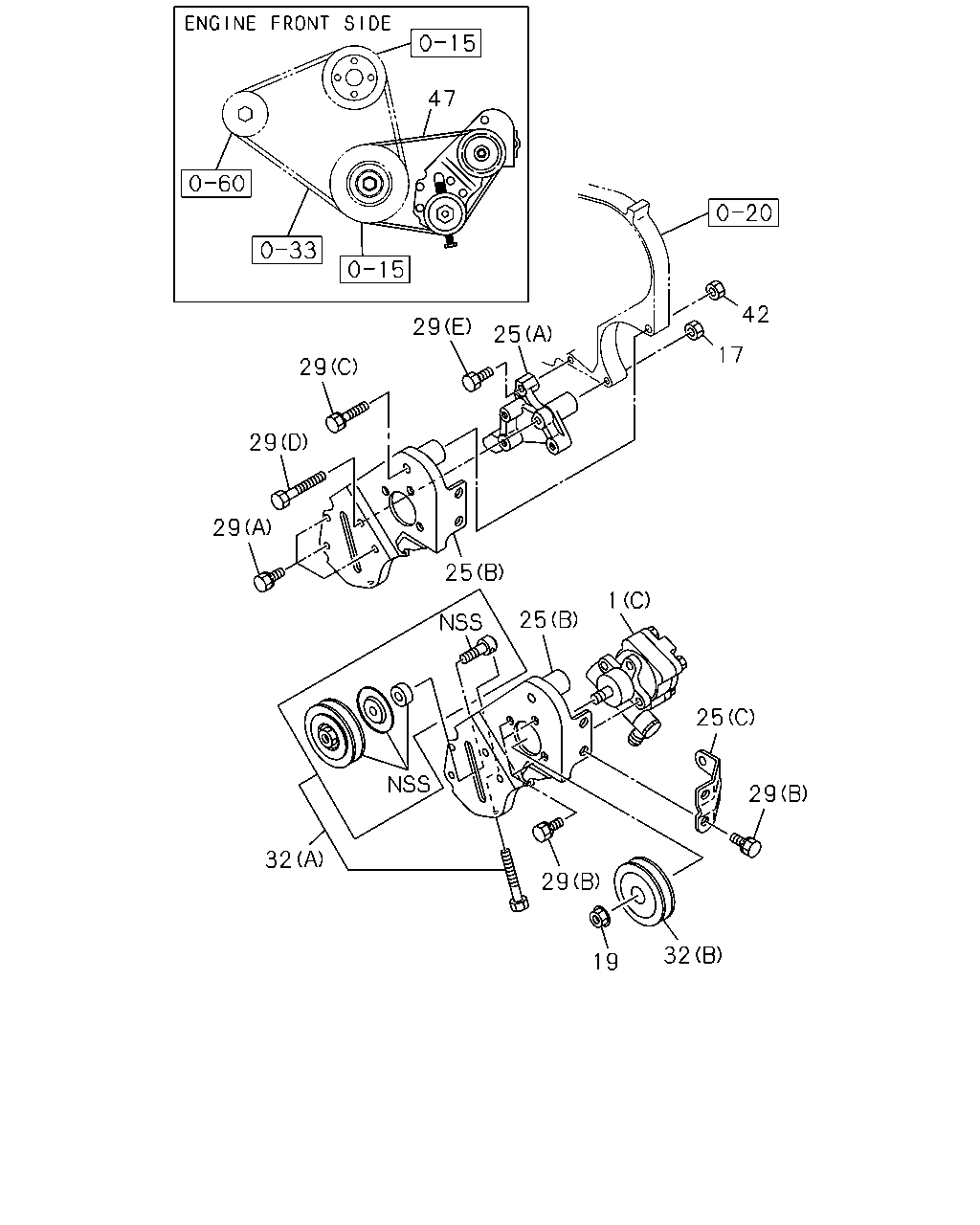

47 42 17 25 29 29 29 29 25 25 1 25 29 32 19 29 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. (A)	8-97136-573-1	01	1	0211-0304	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. (B)	8-97357-214-0	01	1	0305-0409	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. (B)	8-97388-650-0	01	1	0410-0609	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) POWER STEERING<N40> (B)	8-97388-650-1	01	1	0610-0812	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) POWER STEERING<N40> (B)	8-98138-130-2	01	1	0901-	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JB1-TC ENG(RDT) POWER STEERING<N40> (C)	8-97354-730-1	01	1	0610-0712	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JB1-TC ENG(RDT) POWER STEERING<N40> (C)	8-97354-730-1	01	1	0801-1303	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JB1-TC ENG(RDT) POWER STEERING<N40> (C)	8-98217-772-0	01	1	1304-	●	●
17	06.606 NUT; POWER STRG PUMP 4JB1-TC ENG(RDT) POWER STEERING<N40> 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0610-0712	●
17	06.606 NUT; POWER STRG PUMP 4JB1-TC ENG(RDT) POWER STEERING<N40> 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0801-	●	●
19	07.874 NUT; PULLEY,OIL PUMP 4JB1-TC ENG(RDT) POWER STEERING<N40> 06.606 M12	8-94139-015-0	01	1	0610-0610	●
19	07.874 NUT; PULLEY,OIL PUMP 4JB1-TC ENG(RDT) POWER STEERING<N40> 07.395 M12 IDN	8-97360-126-0	01	1	0611-0712	●
19	07.874 NUT; PULLEY,OIL PUMP 4JB1-TC ENG(RDT) POWER STEERING<N40> 07.395 M12 IDN	8-97360-126-0	01	1	0801-	●	●
25	06.606 BRACKET; P/S PUMP 4JB1-TC ENG(RDT) POWER STEERING<N40> (B)	8-97065-974-0	01	1	0610-0712	●
25	06.606 BRACKET; P/S PUMP 4JB1-TC ENG(RDT) POWER STEERING<N40> (B)	8-97065-974-0	01	1	0801-	●	●
25	06.606 BRACKET; P/S PUMP 4JB1-TC ENG(RDT) POWER STEERING<N40> (A)	8-97107-869-0	01	1	0610-0712	●
25	06.606 BRACKET; P/S PUMP 4JB1-TC ENG(RDT) POWER STEERING<N40> (A)	8-97107-869-0	01	1	0801-	●	●
25	06.606 BRACKET; P/S PUMP 4JB1-TC ENG(RDT) POWER STEERING<N40> (C)	8-97107-872-0	01	1	0610-0712	●
25	06.606 BRACKET; P/S PUMP 4JB1-TC ENG(RDT) POWER STEERING<N40> (C)	8-97107-872-0	01	1	0801-	●	●
29	09.171 BOLT; BRKT,POWER STRG (F) M14X20 FLANGE	0-28881-420-0	01	1	0211-0512	●	●
29	09.171 BOLT; BRKT,POWER STRG (F) M14X20 FLANGE	0-28851-420-0	01	1	0601-0609	●	●
29	09.171 BOLT; BRKT,POWER STRG 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) POWER STEERING<N40> (F) M14X20 FLANGE	0-28851-420-0	01	1	0610-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JB1-TC ENG(RDT) POWER STEERING<N40> 00.386 (D) M8X100 FLANGE	0-28050-800-0	01	1	0610-0712	●
29	09.171 BOLT; BRKT,POWER STRG 4JB1-TC ENG(RDT) POWER STEERING<N40> 00.386 (D) M8X100 FLANGE	0-28050-800-0	01	1	0801-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JB1-TC ENG(RDT) POWER STEERING<N40> 02.343 (A) M8X16 FLANGE	0-28050-816-0	03	1	0610-0712	●
29	09.171 BOLT; BRKT,POWER STRG 4JB1-TC ENG(RDT) POWER STEERING<N40> 02.343 (A) M8X16 FLANGE	0-28050-816-0	03	1	0801-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JB1-TC ENG(RDT) POWER STEERING<N40> 04.686 (E) M8X60 FLANGE	0-28050-860-0	01	1	0610-0712	●
29	09.171 BOLT; BRKT,POWER STRG 4JB1-TC ENG(RDT) POWER STEERING<N40> 04.686 (E) M8X60 FLANGE	0-28050-860-0	01	1	0801-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JB1-TC ENG(RDT) POWER STEERING<N40> 09.181 (C) M10X100 FLANGE	0-28051-000-0	01	1	0610-0712	●
29	09.171 BOLT; BRKT,POWER STRG 4JB1-TC ENG(RDT) POWER STEERING<N40> 09.181 (C) M10X100 FLANGE	0-28051-000-0	01	1	0801-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JB1-TC ENG(RDT) POWER STEERING<N40> 02.343 (B) M10X20 FLANGE IDN	0-28651-020-0	05	1	0610-0712	●
29	09.171 BOLT; BRKT,POWER STRG 4JB1-TC ENG(RDT) POWER STEERING<N40> 02.343 (B) M10X20 FLANGE IDN	0-28651-020-0	05	1	0801-	●	●
32	06.665 PULLEY; IDLER,P/S 4JB1-TC ENG(RDT) POWER STEERING<N40> 06.655 (A)	8-94128-866-0	01	1	0610-0712	●
32	06.665 PULLEY; IDLER,P/S 4JB1-TC ENG(RDT) POWER STEERING<N40> 06.655 (A)	8-94128-866-0	01	1	0801-	●	●
32	06.665 PULLEY; IDLER,P/S 4JB1-TC ENG(RDT) POWER STEERING<N40> (B)	8-97084-332-2	01	1	0610-0712	●
32	06.665 PULLEY; IDLER,P/S 4JB1-TC ENG(RDT) POWER STEERING<N40> (B)	8-97084-332-2	01	1	0801-1303	●	●
32	06.665 PULLEY; IDLER,P/S 4JB1-TC ENG(RDT) POWER STEERING<N40> (B)	8-98217-771-0	01	1	1304-	●	●
42	06.672 NUT; ADJ PLATE 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0602	●	●
42	06.672 NUT; ADJ PLATE 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	0603-0609	●	●
42	06.672 NUT; ADJ PLATE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) POWER STEERING<N40> 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	0610-	●	●
42	06.672 NUT; ADJ PLATE 4JB1-TC ENG(RDT) POWER STEERING<N40> 03.162 M10 FLANGE IDN	0-91180-110-0	01	1	0610-0712	●
42	06.672 NUT; ADJ PLATE 4JB1-TC ENG(RDT) POWER STEERING<N40> 03.162 M10 FLANGE IDN	0-91180-110-0	01	1	0801-	●	●
47	01.066 BELT; P/S PUMP 4JB1-TC ENG(RDT) POWER STEERING<N40>	8-97085-131-0	01	1	0610-0712	●
47	01.066 BELT; P/S PUMP 4JB1-TC ENG(RDT) POWER STEERING<N40>	8-97085-131-0	01	1	0801-	●	●
47	01.066 BELT; P/S PUMP 4JB1-TC ENG(RDT) POWER STEERING<N40> BEST VALUE PARTS	5-87610-096-0	01	1	0610-0712	●
47	01.066 BELT; P/S PUMP 4JB1-TC ENG(RDT) POWER STEERING<N40> BEST VALUE PARTS	5-87610-096-0	01	1	0801-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
