6-47 — MUD GUARD AND INSULATOR (#7896) — 336 parça

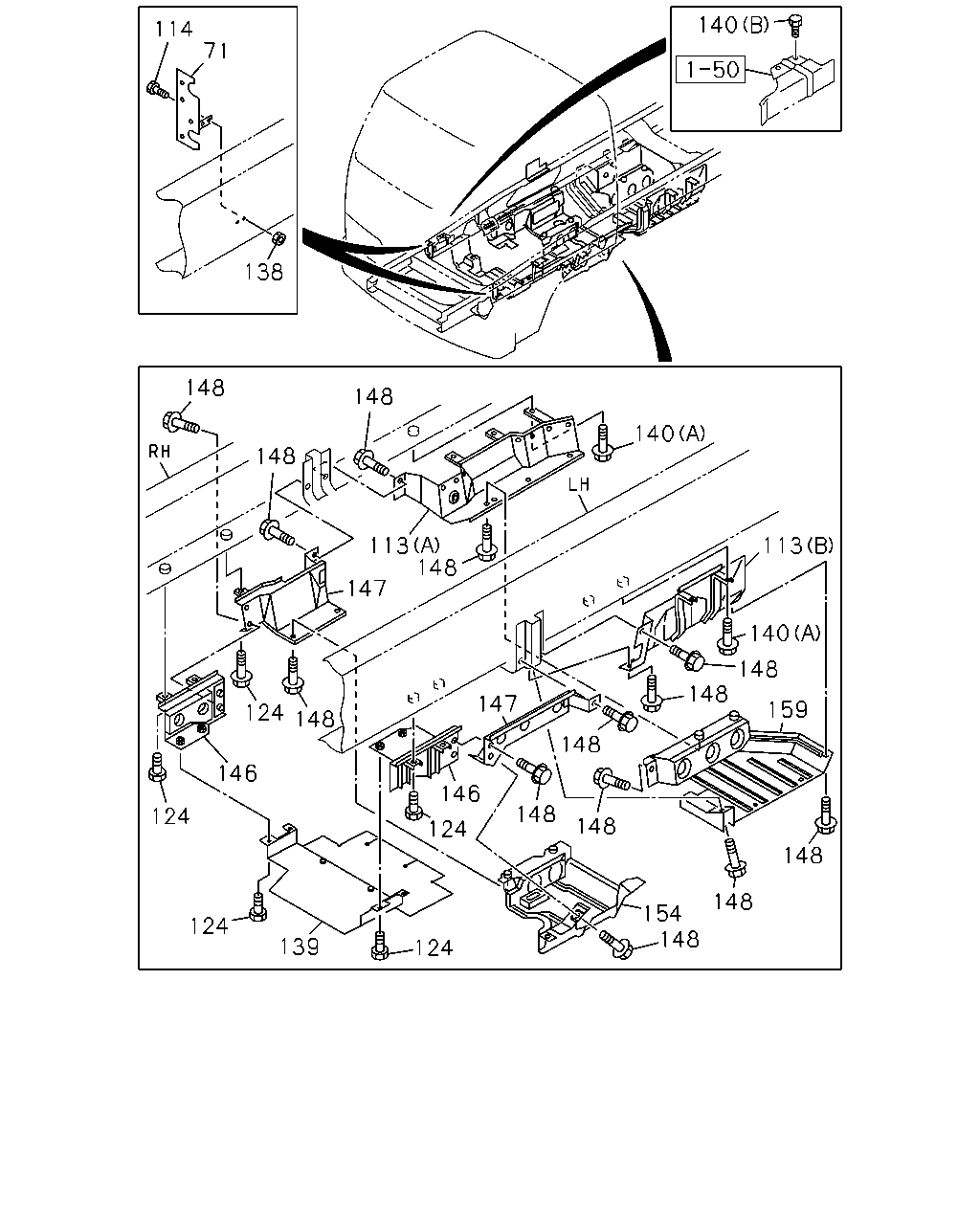

140 114 71 138 148 148 140 148 113 148 113 147 140 148 148 147 159 124 148 148 146 146 148 124 148 124 148 148 154 148 124 139 124

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
71	RUBBER; SEAL	1-21593-089-0	01	1	0302-	●
71	RUBBER; SEAL	1-21593-090-1	01	1	0302-	●
113	PANEL; SIDE 6HK1-TCN ENG(82L) FIRE FIGHTING TRUCK(RA9) ANTI NOISE EQUIPMENT ECE<SLK> (A)	1-53194-626-1	01	1	0506-		●
113	PANEL; SIDE 6HK1-TCN ENG(82L) ANTI NOISE EQUIPMENT ECE<SLK> (A)	1-53192-909-2	01	1	0505-0505		●
113	PANEL; SIDE 6HK1-TCN ENG(82L) ANTI NOISE EQUIPMENT ECE<SLK> EXC. FIRE FIGHTING TRUCK(RA9) (A)	1-53192-909-2	01	1	0506-		●
113	PANEL; SIDE 6HK1-TCN ENG(82L) ANTI NOISE EQUIPMENT ECE<SLK> (B)	1-53194-608-0	01	1	0505-0506		●
113	PANEL; SIDE 6HK1-TCN ENG(82L) ANTI NOISE EQUIPMENT ECE<SLK> (B)	1-53194-643-0	01	1	0507-		●
114	BOLT M8X25 FLANGE	0-28680-825-0	04	1	0302-0512	●
114	BOLT M8X25 FLANGE	0-28650-825-0	04	1	0601-	●
124	BOLT; BRKT 6HK1-TCS ENG(80L) ANTI NOISE EQUIPMENT ECE<SLK> M8X25 FLANGE	0-28680-825-0	08	1	0505-0512	●		●
124	BOLT; BRKT ANTI NOISE EQUIPMENT ECE<SLK> M8X25 FLANGE	0-28680-825-0	08	1	0505-0512		●
124	BOLT; BRKT ANTI NOISE EQUIPMENT ECE<SLK> M8X25 FLANGE	0-28650-825-0	08	1	0601-	●	●	●
138	NUT M8 FLANGE	0-91150-108-0	04	1	0302-0602	●
138	NUT M8 FLANGE	0-91180-108-0	04	1	0603-	●
139	PANEL; SIDE 6HK1-TCS ENG(80L) ANTI NOISE EQUIPMENT ECE<SLK>	1-53192-917-2	01	1	0505-0505	●		●
139	PANEL; SIDE ANTI NOISE EQUIPMENT ECE<SLK>	1-53192-917-2	01	1	0505-0505		●
139	PANEL; SIDE 6HK1-TCS ENG(80L) ANTI NOISE EQUIPMENT ECE<SLK>	1-53194-625-1	01	1	0506-	●		●
139	PANEL; SIDE ANTI NOISE EQUIPMENT ECE<SLK>	1-53194-625-1	01	1	0506-		●
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) ANTI NOISE EQUIPMENT ECE<SLK> (A) M8X25 FLANGE	0-28680-825-0	04	1	0505-0512	●		●
140	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT ECE<SLK> (A) M8X25 FLANGE	0-28680-825-0	04	1	0505-0512		●
140	BOLT; SIDE PANEL 6HK1-TCN ENG(82L) ANTI NOISE EQUIPMENT ECE<SLK> (A) M8X25 FLANGE	0-28680-825-0	04	1	0505-0512		●
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) ANTI NOISE EQUIPMENT ECE<SLK> (A) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●		●
140	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT ECE<SLK> (A) M8X25 FLANGE	0-28650-825-0	04	1	0601-		●
140	BOLT; SIDE PANEL 6HK1-TCN ENG(82L) ANTI NOISE EQUIPMENT ECE<SLK> (A) M8X25 FLANGE	0-28650-825-0	04	1	0601-		●
140	BOLT; SIDE PANEL (B) M8X20 FLANGE	0-28680-820-0	01	1	0012-0301		●	●
140	BOLT; SIDE PANEL (B) M8X20 FLANGE	0-28680-820-0	01	1	0302-0512	●	●	●
140	BOLT; SIDE PANEL (B) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●	●
146	PANEL; SIDE,UNDER,FRT 6HK1-TCS ENG(80L) ANTI NOISE EQUIPMENT ECE<SLK>	1-53192-939-0	01	1	0505-	●
146	PANEL; SIDE,UNDER,FRT 6HK1-TCS ENG(80L) ANTI NOISE EQUIPMENT ECE<SLK>	1-53192-937-1	01	1	0505-0507	●
146	PANEL; SIDE,UNDER,FRT 6HK1-TCS ENG(80L) ANTI NOISE EQUIPMENT ECE<SLK>	1-53194-648-0	01	1	0508-	●
146	PANEL; SIDE,UNDER,FRT 6HK1-TCS ENG(80L) ANTI NOISE EQUIPMENT ECE<SLK>	1-53192-936-0	01	1	0505-0509			●
146	PANEL; SIDE,UNDER,FRT ANTI NOISE EQUIPMENT ECE<SLK>	1-53192-936-0	01	1	0505-0509		●
146	PANEL; SIDE,UNDER,FRT 6HK1-TCS ENG(80L) ANTI NOISE EQUIPMENT ECE<SLK>	1-53194-653-0	01	1	0510-			●
146	PANEL; SIDE,UNDER,FRT ANTI NOISE EQUIPMENT ECE<SLK>	1-53194-653-0	01	1	0510-		●
146	PANEL; SIDE,UNDER,FRT 6HK1-TCS ENG(80L) ANTI NOISE EQUIPMENT ECE<SLK>	1-53192-938-0	01	1	0505-			●
146	PANEL; SIDE,UNDER,FRT ANTI NOISE EQUIPMENT ECE<SLK>	1-53192-938-0	01	1	0505-		●
147	PANEL; SIDE,UNDER,RR 6HK1-TCS ENG(80L) ANTI NOISE EQUIPMENT ECE<SLK>	1-53193-051-1	01	1	0505-	●
147	PANEL; SIDE,UNDER,RR 6HK1-TCS ENG(80L) ANTI NOISE EQUIPMENT ECE<SLK>	1-53192-923-1	01	1	0505-0507	●
147	PANEL; SIDE,UNDER,RR 6HK1-TCS ENG(80L) ANTI NOISE EQUIPMENT ECE<SLK>	1-53194-397-0	01	1	0508-	●
147	PANEL; SIDE,UNDER,RR 6HK1-TCS ENG(80L) ANTI NOISE EQUIPMENT ECE<SLK>	1-53192-924-0	01	1	0505-0506			●
147	PANEL; SIDE,UNDER,RR ANTI NOISE EQUIPMENT ECE<SLK>	1-53192-924-0	01	1	0505-0506		●
147	PANEL; SIDE,UNDER,RR 6HK1-TCS ENG(80L) ANTI NOISE EQUIPMENT ECE<SLK>	1-53194-644-2	01	1	0507-0602			●
147	PANEL; SIDE,UNDER,RR ANTI NOISE EQUIPMENT ECE<SLK>	1-53194-644-2	01	1	0507-0602		●
147	PANEL; SIDE,UNDER,RR 6HK1-TCS ENG(80L) ANTI NOISE EQUIPMENT ECE<SLK>	1-53194-663-0	01	1	0603-			●
147	PANEL; SIDE,UNDER,RR ANTI NOISE EQUIPMENT ECE<SLK>	1-53194-663-0	01	1	0603-		●
147	PANEL; SIDE,UNDER,RR 6HK1-TCS ENG(80L) ANTI NOISE EQUIPMENT ECE<SLK>	1-53193-043-1	01	1	0505-			●
147	PANEL; SIDE,UNDER,RR ANTI NOISE EQUIPMENT ECE<SLK>	1-53193-043-1	01	1	0505-		●
148	BOLT; PANEL TO PANEL 6HK1-TCS ENG(80L) ANTI NOISE EQUIPMENT ECE<SLK> M8X22 W/LK&PL WASHER	1-09030-084-0	02	1	0508-0509	●
148	BOLT; PANEL TO PANEL ANTI NOISE EQUIPMENT ECE<SLK> M8X22 W/LK&PL WASHER	1-09030-084-0	04	1	0510-	●	●	●
148	BOLT; PANEL TO PANEL 6HK1-TCN ENG(82L) ANTI NOISE EQUIPMENT ECE<SLK> M8X22 W/LK&PL WASHER	1-09030-084-0	08	1	0508-		●
148	BOLT; PANEL TO PANEL 6HK1-TCS ENG(80L) ANTI NOISE EQUIPMENT ECE<SLK> M8X22 W/LK&PL WASHER	1-09030-084-0	08	1	0505-0507	●		●
148	BOLT; PANEL TO PANEL ANTI NOISE EQUIPMENT ECE<SLK> M8X22 W/LK&PL WASHER	1-09030-084-0	08	1	0505-0507		●
148	BOLT; PANEL TO PANEL 6HK1-TCN ENG(82L) ANTI NOISE EQUIPMENT ECE<SLK> M8X22 W/LK&PL WASHER	1-09030-084-0	08	1	0505-0507		●
148	BOLT; PANEL TO PANEL 6HK1-TCS ENG(80L) ANTI NOISE EQUIPMENT ECE<SLK> M8X22 W/LK&PL WASHER	1-09030-084-0	04	1	0508-0509	●		●
148	BOLT; PANEL TO PANEL 6HK1-TCS ENG(80L) ANTI NOISE EQUIPMENT ECE<SLK> M8X22 W/LK&PL WASHER	1-09030-084-0	04	1	0508-0509			●
148	BOLT; PANEL TO PANEL ANTI NOISE EQUIPMENT ECE<SLK> M8X22 W/LK&PL WASHER	1-09030-084-0	04	1	0508-0509		●
148	BOLT; PANEL TO PANEL ANTI NOISE EQUIPMENT ECE<SLK> M8X22 W/LK&PL WASHER	1-09030-084-0	04	1	0508-0509		●
148	BOLT; PANEL TO PANEL ANTI NOISE EQUIPMENT ECE<SLK> M8X22 W/LK&PL WASHER	1-09030-084-0	02	1	0510-	●	●	●
154	PANEL; SIDE,UNDER ENG CTR 6HK1-TCS ENG(80L) ANTI NOISE EQUIPMENT ECE<SLK>	1-53192-920-1	01	1	0505-	●
154	PANEL; SIDE,UNDER ENG CTR 6HK1-TCS ENG(80L) ANTI NOISE EQUIPMENT ECE<SLK>	1-53192-919-1	01	1	0505-			●
154	PANEL; SIDE,UNDER ENG CTR ANTI NOISE EQUIPMENT ECE<SLK>	1-53192-919-1	01	1	0505-		●
159	PANEL; SIDE,TRANS,CTR 6HK1-TCN ENG(82L) FIRE FIGHTING TRUCK(RA9) ANTI NOISE EQUIPMENT ECE<SLK>	1-53194-627-1	01	1	0506-		●
159	PANEL; SIDE,TRANS,CTR 6HK1-TCN ENG(82L) ANTI NOISE EQUIPMENT ECE<SLK>	1-53193-116-1	01	1	0505-0505		●
159	PANEL; SIDE,TRANS,CTR 6HK1-TCN ENG(82L) ANTI NOISE EQUIPMENT ECE<SLK> EXC. FIRE FIGHTING TRUCK(RA9)	1-53193-116-1	01	1	0506-		●

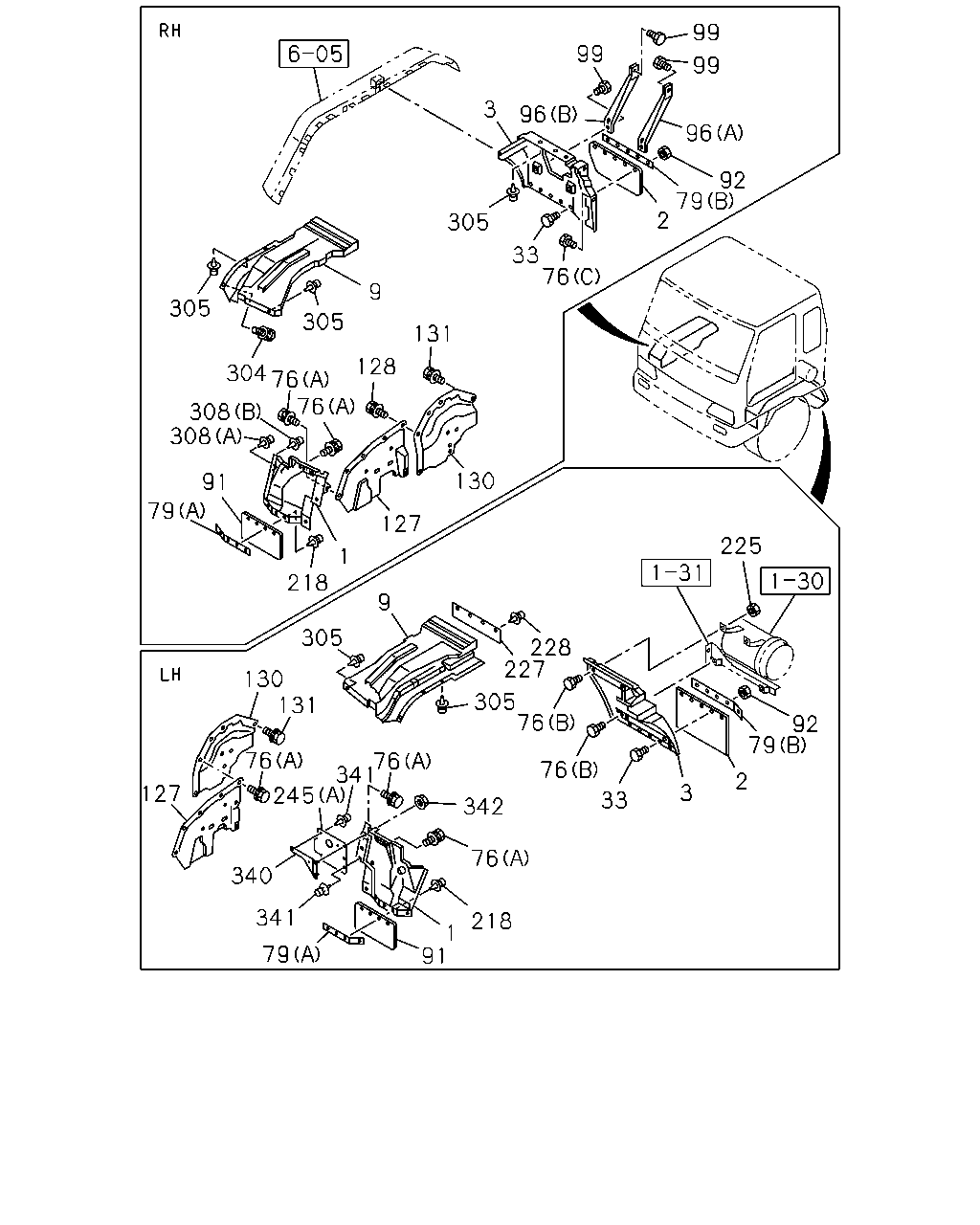

99 99 99 3 96 96 92 79 2 305 33 76 9 305 305 131 128 304 76 76 308 308 130 91 79 127 225 1 218 9 305 228 227 130 131 305 76 92 79 76 76 341 76 2 3 127 245 33 342 76 340 341 218 1 91 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	GUARD; MUD,FRT	1-79938-995-1	01	1	9905-0301			●
1	GUARD; MUD,FRT 6HK1-TCS ENG(80L)	1-79938-995-1	01	1	9905-0301		●
1	GUARD; MUD,FRT 6HK1-TCS ENG(80L)	1-79938-995-1	01	1	0302-	●	●	●
1	GUARD; MUD,FRT	1-79938-810-8	01	1	9905-0301		●	●
1	GUARD; MUD,FRT	1-79938-810-8	01	1	0302-	●	●	●
1	GUARD; MUD,FRT 6HK1-TCN ENG(82L)	1-79938-812-8	01	1	9905-		●
2	COVER; MUD,TIRE RR	1-79931-270-0	01	1	0302-	●
2	COVER; MUD,TIRE RR	1-79930-484-2	01	1	9905-			●
2	COVER; MUD,TIRE RR	1-79930-693-1	01	1	9905-			●
2	COVER; MUD,TIRE RR	1-79931-255-2	01	1	9905-0301		●
2	COVER; MUD,TIRE RR	1-79931-255-2	01	1	0302-	●	●
2	COVER; MUD,TIRE RR	1-79931-271-0	01	1	9905-		●
3	GUARD; MUD,RR	1-79938-961-2	01	1	9905-			●
3	GUARD; MUD,RR	1-79936-011-0	01	1	9905-			●
3	GUARD; MUD,RR	1-79938-959-2	01	1	9905-0301		●
3	GUARD; MUD,RR	1-79938-959-2	01	1	0302-	●	●
3	GUARD; MUD,RR	1-79936-012-0	01	1	9905-0301		●
3	GUARD; MUD,RR	1-79936-012-0	01	1	0302-	●	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-822-9	01	1	9905-0304			●
9	GUARD; SPLASH,WHEEL HOUSE	1-79936-037-1	01	1	0305-			●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-821-9	01	1	9905-0304			●
9	GUARD; SPLASH,WHEEL HOUSE	1-79936-036-1	01	1	0305-			●
9	GUARD; SPLASH,WHEEL HOUSE	1-79936-007-2	01	1	9905-0301		●
9	GUARD; SPLASH,WHEEL HOUSE	1-79936-007-2	01	1	0302-	●	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-955-3	01	1	9905-0301		●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-955-3	01	1	0302-	●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	07	1	0111-0301		●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	06	1	0302-	●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	09	1	9905-			●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	13	1	9905-0110		●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	06	1	0111-0301		●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	07	1	0302-	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	9905-0301		●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	0302-	●	●	●
76	BOLT; MUD GUARD (C) M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	9905-0301		●	●
76	BOLT; MUD GUARD (C) M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	0302-	●	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	9905-0301		●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	0302-	●	●	●
79	RETAINER; MUD COVER (B)	1-79930-962-1	01	1	9905-			●
79	RETAINER; MUD COVER (B) L=509	1-79930-695-1	01	1	9905-			●
79	RETAINER; MUD COVER (A)	1-79931-044-0	02	1	9905-0301		●	●
79	RETAINER; MUD COVER (A)	1-79931-044-0	02	1	0302-	●	●	●
79	RETAINER; MUD COVER (B)	1-79931-269-0	01	1	9905-0301		●
79	RETAINER; MUD COVER (B)	1-79931-269-0	01	1	0302-	●	●
79	RETAINER; MUD COVER (C)	1-79931-288-0	01	1	9905-0301		●
79	RETAINER; MUD COVER (C)	1-79931-288-0	01	1	0302-	●	●
91	COVER; MUD,FRT	1-79931-214-1	02	1	9905-0301		●	●
91	COVER; MUD,FRT	1-79931-214-1	02	1	0302-	●	●	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	08	1	0302-0602	●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	08	1	0603-	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	04	1	0111-0602		●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	04	1	0603-		●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	09	1	9905-0602			●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	09	1	0603-			●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	07	1	9905-0110		●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	03	1	0111-0301		●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	03	1	0302-0602	●	●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	03	1	0603-	●	●
96	STAY; MUD GUARD (D)	1-53497-577-2	01	1	0302-	●
96	STAY; MUD GUARD (E)	1-53497-592-1	01	1	0304-	●
96	STAY; MUD GUARD (A)	1-79938-737-0	01	1	9905-9908			●
96	STAY; MUD GUARD (A)	1-79938-737-0	01	1	9909-0301		●	●
96	STAY; MUD GUARD (A)	1-79938-737-0	01	1	0302-	●	●	●
96	STAY; MUD GUARD (B)	1-79938-738-0	01	1	9905-9908			●
96	STAY; MUD GUARD (B)	1-79938-738-1	01	1	9909-0301		●	●
96	STAY; MUD GUARD (B)	1-79938-738-1	01	1	0302-	●	●	●
96	STAY; MUD GUARD (D)	1-53497-637-0	01	1	9905-		●
96	STAY; MUD GUARD (B)	1-79938-968-2	01	1	9905-9908		●
96	STAY; MUD GUARD (A)	1-79938-969-1	01	1	9905-9908		●
96	STAY; MUD GUARD (C)	1-79938-996-0	01	1	9905-9908		●
99	BOLT; STAY TO MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	9905-0301		●	●
99	BOLT; STAY TO MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0302-	●	●	●
127	APRON; FRT	1-53192-956-1	01	1	0302-	●
127	APRON; FRT	1-53192-957-2	01	1	0302-	●
127	APRON; FRT	1-53193-222-1	01	1	9905-		●	●
127	APRON; FRT	1-53192-301-3	01	1	9905-		●	●
128	BOLT; APRON,FRT M8X25 W/LK&PL WASHER	8-94331-747-1	10	1	9905-0301		●	●
128	BOLT; APRON,FRT M8X25 W/LK&PL WASHER	8-94331-747-1	10	1	0302-	●	●	●
130	PANEL; SHUTTER NOISE	1-53192-955-2	01	1	0302-	●
130	PANEL; SHUTTER NOISE	1-53192-307-4	01	1	9905-		●	●
130	PANEL; SHUTTER NOISE	1-53193-704-1	01	1	9905-0301		●	●
130	PANEL; SHUTTER NOISE	1-53193-704-1	01	1	0302-	●	●	●
131	BOLT; PANEL M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	9905-0301		●	●
131	BOLT; PANEL M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	0302-	●	●	●
218	FASTENER; RUBBER	1-09470-001-0	08	1	9905-0301		●	●
218	FASTENER; RUBBER	1-09470-001-0	08	1	0302-	●	●	●
225	NUT; MUD GUARD M8 FLANGE	0-91150-108-0	02	1	9905-0602			●
225	NUT; MUD GUARD M8 FLANGE	0-91180-108-0	02	1	0603-			●
225	NUT; MUD GUARD M8 FLANGE	0-91150-108-0	03	1	9905-0301		●
225	NUT; MUD GUARD M8 FLANGE	0-91150-108-0	03	1	0302-0602	●	●
225	NUT; MUD GUARD M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
227	SEAL; MUD GUARD	1-79938-953-1	01	1	9905-0301		●	●
227	SEAL; MUD GUARD	1-79938-953-1	01	1	0302-	●	●	●
228	FASTENER; MUD GUARD SEAL D8X13.5	1-09987-248-1	04	1	9905-0301		●	●
228	FASTENER; MUD GUARD SEAL D8X13.5	1-09987-248-1	04	1	0302-	●	●	●
245	RUBBER; SHUTTER,RAD (B)	1-79938-927-0	01	1	0302-	●
245	RUBBER; SHUTTER,RAD (A)	1-79936-023-0	01	1	9905-9907			●
245	RUBBER; SHUTTER,RAD 6HK1-TCS ENG(80L) (A)	1-79936-023-0	01	1	9905-9907		●
245	RUBBER; SHUTTER,RAD (A)	1-79936-027-0	01	1	9908-0301			●
245	RUBBER; SHUTTER,RAD 6HK1-TCS ENG(80L) (A)	1-79936-027-0	01	1	9908-0301		●
245	RUBBER; SHUTTER,RAD 6HK1-TCS ENG(80L) (A)	1-79936-027-0	01	1	0302-	●	●	●
304	BOLT; SPLASH GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	9905-0301		●	●
304	BOLT; SPLASH GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	0302-	●	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	01	1	0405-	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	08	1	9905-			●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	05	1	9905-0301		●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	05	1	0302-	●	●	●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	04	1	0302-0404	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	02	1	9905-0404		●	●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	02	1	9905-0404		●	●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	04	1	0405-	●	●	●
340	BRACKET; RUBBER,SHUTTER	1-79936-024-1	01	1	9905-0301			●
340	BRACKET; RUBBER,SHUTTER 6HK1-TCS ENG(80L)	1-79936-024-1	01	1	9905-0301		●
340	BRACKET; RUBBER,SHUTTER 6HK1-TCS ENG(80L)	1-79936-024-1	01	1	0302-	●	●	●
341	CLIP; RUBBER ID=6X6 OD=8	1-09987-194-0	03	1	9905-0301			●
341	CLIP; RUBBER 6HK1-TCS ENG(80L) ID=6X6 OD=8	1-09987-194-0	03	1	9905-0301		●
341	CLIP; RUBBER 6HK1-TCS ENG(80L) ID=6X6 OD=8	1-09987-194-0	03	1	0302-	●	●	●
342	NUT; BRKT,RUBBER M8 FLANGE	0-91150-108-0	02	1	9905-9907			●
342	NUT; BRKT,RUBBER 6HK1-TCS ENG(80L) M8 FLANGE	0-91150-108-0	02	1	9905-9907		●
342	NUT; BRKT,RUBBER M8 FLANGE	8-97046-127-0	02	1	9908-0301			●
342	NUT; BRKT,RUBBER 6HK1-TCS ENG(80L) M8 FLANGE	8-97046-127-0	02	1	9908-0301		●
342	NUT; BRKT,RUBBER 6HK1-TCS ENG(80L) M8 FLANGE	8-97046-127-0	02	1	0302-	●	●	●

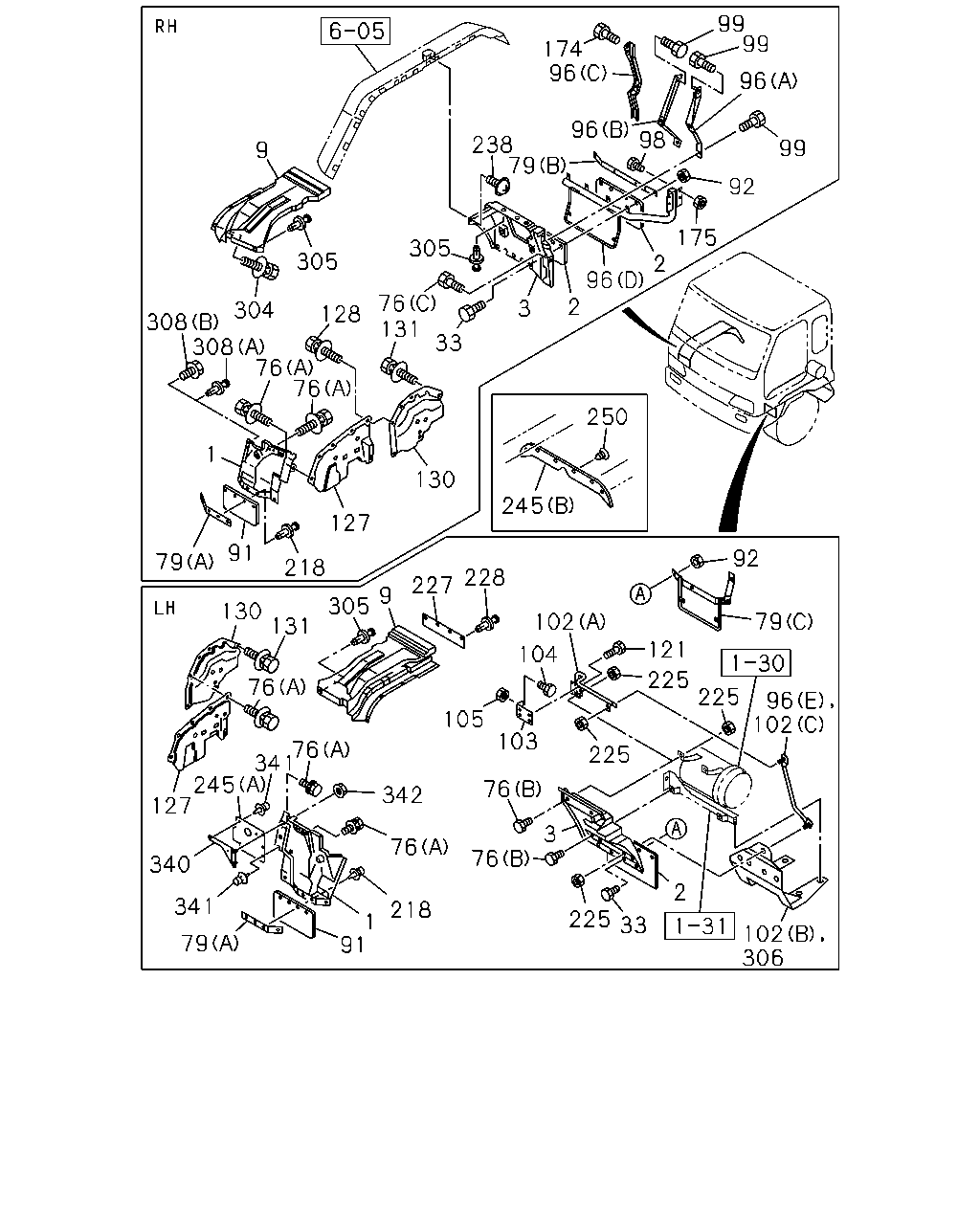

99 99 174 96 96 96 98 238 79 99 9 92 175 305 305 2 96 2 76 131 3 304 128 308 308 33 76 76 250 1 130 245 127 91 92 79 218 228 227 9 305 130 102 79 131 121 104 225 225 76 96 102 103 105 225 76 341 245 127 76 3 342 76 76 340 2 341 218 225 33 1 91 102 306 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	GUARD; MUD,FRT	1-79938-995-1	01	1	9905-0301			●
1	GUARD; MUD,FRT 6HK1-TCS ENG(80L)	1-79938-995-1	01	1	9905-0301		●
1	GUARD; MUD,FRT 6HK1-TCS ENG(80L)	1-79938-995-1	01	1	0302-	●	●	●
1	GUARD; MUD,FRT	1-79938-810-8	01	1	9905-0301		●	●
1	GUARD; MUD,FRT	1-79938-810-8	01	1	0302-	●	●	●
1	GUARD; MUD,FRT 6HK1-TCN ENG(82L)	1-79938-812-8	01	1	9905-		●
2	COVER; MUD,TIRE RR	1-79931-270-0	01	1	0302-	●
2	COVER; MUD,TIRE RR	1-79930-484-2	01	1	9905-			●
2	COVER; MUD,TIRE RR	1-79930-693-1	01	1	9905-			●
2	COVER; MUD,TIRE RR	1-79931-255-2	01	1	9905-0301		●
2	COVER; MUD,TIRE RR	1-79931-255-2	01	1	0302-	●	●
2	COVER; MUD,TIRE RR	1-79931-271-0	01	1	9905-		●
3	GUARD; MUD,RR	1-79938-961-2	01	1	9905-			●
3	GUARD; MUD,RR	1-79936-011-0	01	1	9905-			●
3	GUARD; MUD,RR	1-79938-959-2	01	1	9905-0301		●
3	GUARD; MUD,RR	1-79938-959-2	01	1	0302-	●	●
3	GUARD; MUD,RR	1-79936-012-0	01	1	9905-0301		●
3	GUARD; MUD,RR	1-79936-012-0	01	1	0302-	●	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-822-9	01	1	9905-0304			●
9	GUARD; SPLASH,WHEEL HOUSE	1-79936-037-1	01	1	0305-			●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-821-9	01	1	9905-0304			●
9	GUARD; SPLASH,WHEEL HOUSE	1-79936-036-1	01	1	0305-			●
9	GUARD; SPLASH,WHEEL HOUSE	1-79936-007-2	01	1	9905-0301		●
9	GUARD; SPLASH,WHEEL HOUSE	1-79936-007-2	01	1	0302-	●	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-955-3	01	1	9905-0301		●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-955-3	01	1	0302-	●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	07	1	0111-0301		●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	06	1	0302-	●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	09	1	9905-			●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	13	1	9905-0110		●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	06	1	0111-0301		●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	07	1	0302-	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	9905-0301		●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	0302-	●	●	●
76	BOLT; MUD GUARD (C) M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	9905-0301		●	●
76	BOLT; MUD GUARD (C) M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	0302-	●	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	9905-0301		●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	0302-	●	●	●
79	RETAINER; MUD COVER (B)	1-79930-962-1	01	1	9905-			●
79	RETAINER; MUD COVER (B) L=509	1-79930-695-1	01	1	9905-			●
79	RETAINER; MUD COVER (A)	1-79931-044-0	02	1	9905-0301		●	●
79	RETAINER; MUD COVER (A)	1-79931-044-0	02	1	0302-	●	●	●
79	RETAINER; MUD COVER (B)	1-79931-269-0	01	1	9905-0301		●
79	RETAINER; MUD COVER (B)	1-79931-269-0	01	1	0302-	●	●
79	RETAINER; MUD COVER (C)	1-79931-288-0	01	1	9905-0301		●
79	RETAINER; MUD COVER (C)	1-79931-288-0	01	1	0302-	●	●
91	COVER; MUD,FRT	1-79931-214-1	02	1	9905-0301		●	●
91	COVER; MUD,FRT	1-79931-214-1	02	1	0302-	●	●	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	08	1	0302-0602	●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	08	1	0603-	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	04	1	0111-0602		●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	04	1	0603-		●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	09	1	9905-0602			●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	09	1	0603-			●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	07	1	9905-0110		●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	03	1	0111-0301		●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	03	1	0302-0602	●	●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	03	1	0603-	●	●
96	STAY; MUD GUARD (D)	1-53497-577-2	01	1	0302-	●
96	STAY; MUD GUARD (E)	1-53497-592-1	01	1	0304-	●
96	STAY; MUD GUARD (A)	1-79938-737-0	01	1	9905-9908			●
96	STAY; MUD GUARD (A)	1-79938-737-0	01	1	9909-0301		●	●
96	STAY; MUD GUARD (A)	1-79938-737-0	01	1	0302-	●	●	●
96	STAY; MUD GUARD (B)	1-79938-738-0	01	1	9905-9908			●
96	STAY; MUD GUARD (B)	1-79938-738-1	01	1	9909-0301		●	●
96	STAY; MUD GUARD (B)	1-79938-738-1	01	1	0302-	●	●	●
96	STAY; MUD GUARD (D)	1-53497-637-0	01	1	9905-		●
96	STAY; MUD GUARD (B)	1-79938-968-2	01	1	9905-9908		●
96	STAY; MUD GUARD (A)	1-79938-969-1	01	1	9905-9908		●
96	STAY; MUD GUARD (C)	1-79938-996-0	01	1	9905-9908		●
98	BOLT; STAY TO BRKT M8X30 FLANGE	0-28680-830-0	04	1	9905-0301		●
98	BOLT; STAY TO BRKT M8X30 FLANGE	0-28680-830-0	04	1	0302-0512	●	●
98	BOLT; STAY TO BRKT M8X30 FLANGE	0-28650-830-0	04	1	0601-	●	●
99	BOLT; STAY TO MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	9905-0301		●	●
99	BOLT; STAY TO MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0302-	●	●	●
102	STAY; LWR,MUD GUARD (C)	1-53497-592-1	01	1	0302-0303	●
102	STAY; LWR,MUD GUARD (A)	1-53497-535-0	01	1	9905-0301		●
102	STAY; LWR,MUD GUARD (A)	1-53497-535-0	01	1	0302-	●	●
102	STAY; LWR,MUD GUARD (B)	1-53497-618-0	01	1	9905-0301		●
102	STAY; LWR,MUD GUARD (B)	1-53497-618-0	01	1	0302-0303	●	●
103	BRACKET ASM; RR MUD FLAP	1-53497-486-2	01	1	9905-0301		●
103	BRACKET ASM; RR MUD FLAP	1-53497-486-2	01	1	0302-	●	●
104	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	9905-0301		●
104	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	0302-0512	●	●
104	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9905-0301		●
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0302-0602	●	●
105	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
121	BOLT M10X30 FLANGE	0-28681-030-0	04	1	9905-0301		●
121	BOLT M10X30 FLANGE	0-28681-030-0	04	1	0302-0304	●	●
121	BOLT M10X25 FLANGE	0-28681-025-0	04	1	0305-0512	●	●
121	BOLT M10X25 FLANGE	0-28651-025-0	04	1	0601-	●	●
127	APRON; FRT	1-53192-956-1	01	1	0302-	●
127	APRON; FRT	1-53192-957-2	01	1	0302-	●
127	APRON; FRT	1-53193-222-1	01	1	9905-		●	●
127	APRON; FRT	1-53192-301-3	01	1	9905-		●	●
128	BOLT; APRON,FRT M8X25 W/LK&PL WASHER	8-94331-747-1	10	1	9905-0301		●	●
128	BOLT; APRON,FRT M8X25 W/LK&PL WASHER	8-94331-747-1	10	1	0302-	●	●	●
130	PANEL; SHUTTER NOISE	1-53192-955-2	01	1	0302-	●
130	PANEL; SHUTTER NOISE	1-53192-307-4	01	1	9905-		●	●
130	PANEL; SHUTTER NOISE	1-53193-704-1	01	1	9905-0301		●	●
130	PANEL; SHUTTER NOISE	1-53193-704-1	01	1	0302-	●	●	●
131	BOLT; PANEL M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	9905-0301		●	●
131	BOLT; PANEL M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	0302-	●	●	●
174	BOLT; STAY FIX M6X20 W/LK&PL WASHER	8-94279-203-0	03	1	9905-9908		●
175	NUT; STAY FIX M8 FLANGE	0-91150-108-0	04	1	9905-0301		●
175	NUT; STAY FIX M8 FLANGE	0-91150-108-0	04	1	0302-0602	●	●
175	NUT; STAY FIX M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
218	FASTENER; RUBBER	1-09470-001-0	08	1	9905-0301		●	●
218	FASTENER; RUBBER	1-09470-001-0	08	1	0302-	●	●	●
225	NUT; MUD GUARD M8 FLANGE	0-91150-108-0	02	1	9905-0602			●
225	NUT; MUD GUARD M8 FLANGE	0-91180-108-0	02	1	0603-			●
225	NUT; MUD GUARD M8 FLANGE	0-91150-108-0	03	1	9905-0301		●
225	NUT; MUD GUARD M8 FLANGE	0-91150-108-0	03	1	0302-0602	●	●
225	NUT; MUD GUARD M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
227	SEAL; MUD GUARD	1-79938-953-1	01	1	9905-0301		●	●
227	SEAL; MUD GUARD	1-79938-953-1	01	1	0302-	●	●	●
228	FASTENER; MUD GUARD SEAL D8X13.5	1-09987-248-1	04	1	9905-0301		●	●
228	FASTENER; MUD GUARD SEAL D8X13.5	1-09987-248-1	04	1	0302-	●	●	●
238	SCREW; MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	01	1	9905-0301		●
238	SCREW; MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	01	1	0302-	●	●
245	RUBBER; SHUTTER,RAD (B)	1-79938-927-0	01	1	0302-	●
245	RUBBER; SHUTTER,RAD (A)	1-79936-023-0	01	1	9905-9907			●
245	RUBBER; SHUTTER,RAD 6HK1-TCS ENG(80L) (A)	1-79936-023-0	01	1	9905-9907		●
245	RUBBER; SHUTTER,RAD (A)	1-79936-027-0	01	1	9908-0301			●
245	RUBBER; SHUTTER,RAD 6HK1-TCS ENG(80L) (A)	1-79936-027-0	01	1	9908-0301		●
245	RUBBER; SHUTTER,RAD 6HK1-TCS ENG(80L) (A)	1-79936-027-0	01	1	0302-	●	●	●
250	FASTENER; SHUTTER	1-09987-189-0	06	1	0302-	●
304	BOLT; SPLASH GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	9905-0301		●	●
304	BOLT; SPLASH GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	0302-	●	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	01	1	0405-	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	08	1	9905-			●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	05	1	9905-0301		●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	05	1	0302-	●	●	●
306	BRACKET; MUD GUARD	1-53497-618-0	01	1	0304-	●	●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	04	1	0302-0404	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	02	1	9905-0404		●	●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	02	1	9905-0404		●	●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	04	1	0405-	●	●	●
340	BRACKET; RUBBER,SHUTTER	1-79936-024-1	01	1	9905-0301			●
340	BRACKET; RUBBER,SHUTTER 6HK1-TCS ENG(80L)	1-79936-024-1	01	1	9905-0301		●
340	BRACKET; RUBBER,SHUTTER 6HK1-TCS ENG(80L)	1-79936-024-1	01	1	0302-	●	●	●
341	CLIP; RUBBER ID=6X6 OD=8	1-09987-194-0	03	1	9905-0301			●
341	CLIP; RUBBER 6HK1-TCS ENG(80L) ID=6X6 OD=8	1-09987-194-0	03	1	9905-0301		●
341	CLIP; RUBBER 6HK1-TCS ENG(80L) ID=6X6 OD=8	1-09987-194-0	03	1	0302-	●	●	●
342	NUT; BRKT,RUBBER M8 FLANGE	0-91150-108-0	02	1	9905-9907			●
342	NUT; BRKT,RUBBER 6HK1-TCS ENG(80L) M8 FLANGE	0-91150-108-0	02	1	9905-9907		●
342	NUT; BRKT,RUBBER M8 FLANGE	8-97046-127-0	02	1	9908-0301			●
342	NUT; BRKT,RUBBER 6HK1-TCS ENG(80L) M8 FLANGE	8-97046-127-0	02	1	9908-0301		●
342	NUT; BRKT,RUBBER 6HK1-TCS ENG(80L) M8 FLANGE	8-97046-127-0	02	1	0302-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
