1 |

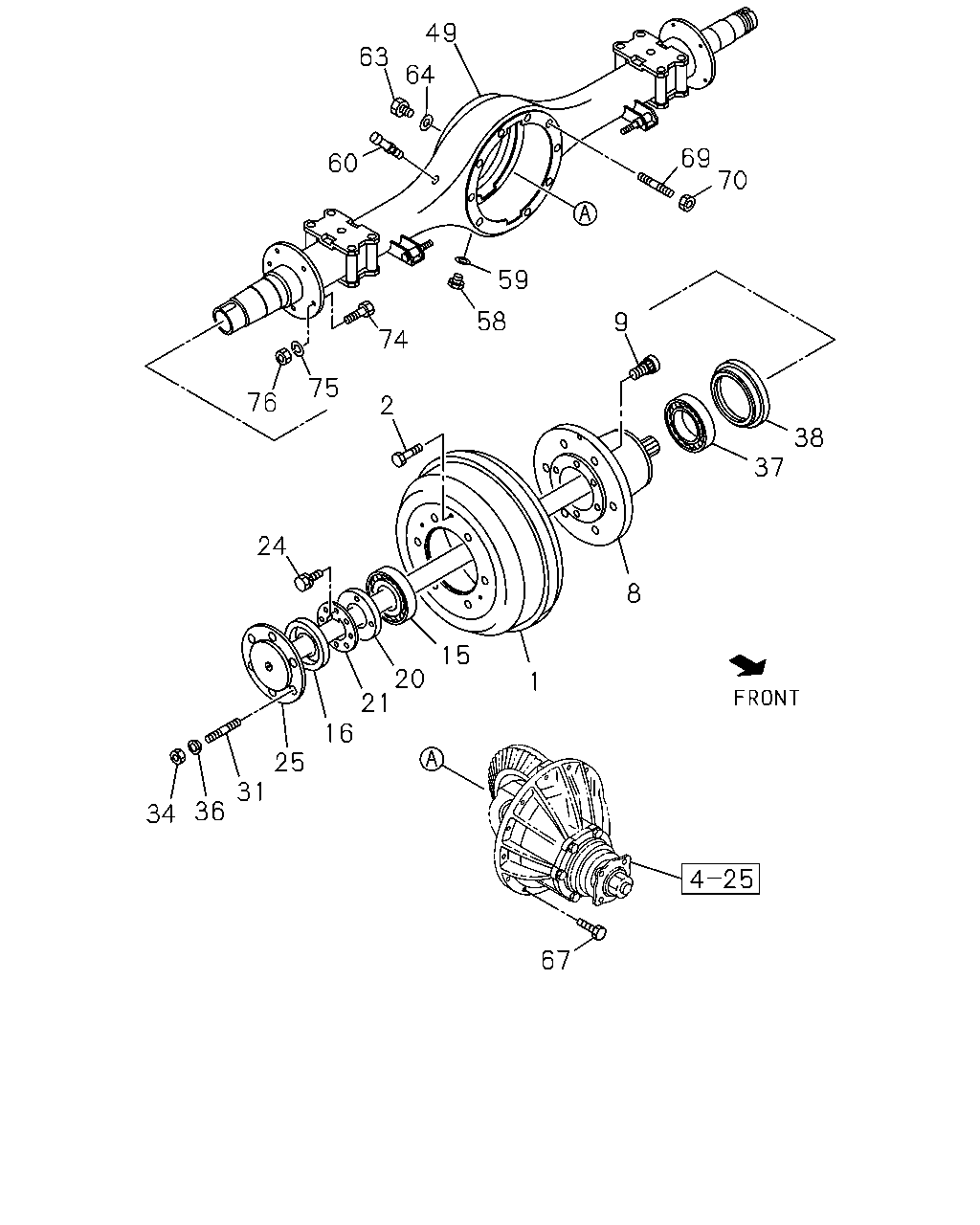

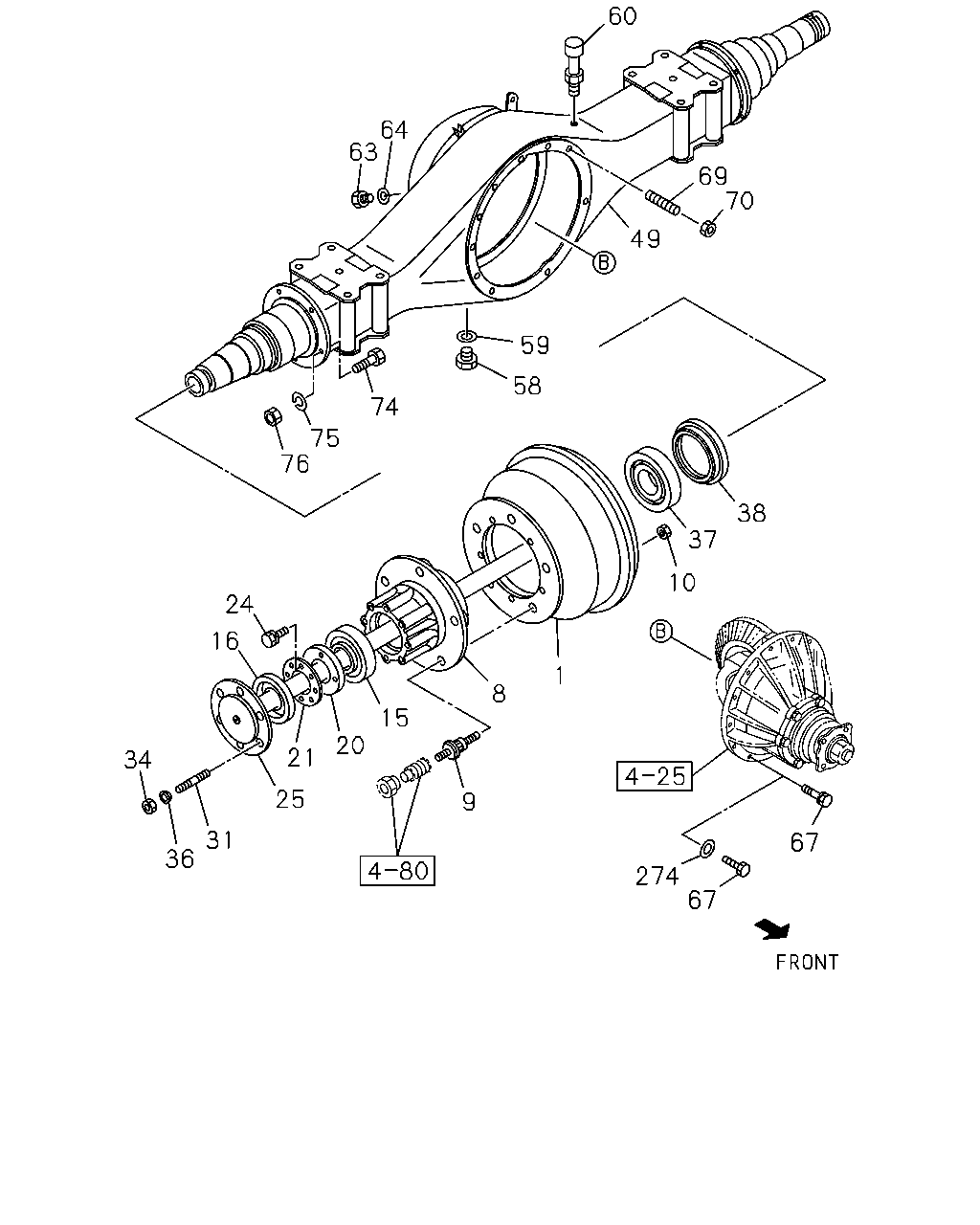

05.809 DRUM; BRK,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
REAR SPRING HEAVY DUTY<G50>
|
8-97081-219-2 |
02 |
1 |
1106-1509 |
● |
|
| |
1 |
05.809 DRUM; BRK,RR
REAR AXLE HEAVY DUTY 320MM(6CP),REAR
AXLEHEAVY DUTY 343MM(8BW)
REAR SPRING HEAVY DUTY<G50>
|
8-97081-219-2 |
02 |
1 |
1510- |
● |
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 5.5-6.0TON(RPU)
IDN
|
8-97034-770-3 |
02 |
1 |
0211-0311 |
● |
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 5.5-6.0TON(RPU)
EXC. MINI BUS CHASSIS(V4B)
IDN
|
8-97034-770-3 |
02 |
1 |
0312-0712 |
● |
|
| |
1 |
05.809 DRUM; BRK,RR
4HG1-T ENG(RDP),4HF1-N ENG(RJZ)
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 5.5-6.0TON(RPU)
EXC. MINI BUS CHASSIS(V4B)
IDN
|
8-97034-770-3 |
02 |
1 |
0801-1310 |
● |
|
| |
1 |
05.809 DRUM; BRK,RR
4JB1-TC ENG(RDT)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR
RATIO 41/7(R41)
G.V.W. 5.5-6.0TON(RPU)
IDN
|
8-97034-770-3 |
02 |
1 |
0801-1310 |
● |
|
| |
1 |
05.809 DRUM; BRK,RR
4HG1-T ENG(RDP),4HF1-N ENG(RJZ)
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 5.5-6.0TON(RPU)
EXC. MINI BUS CHASSIS(V4B)
IDN
|
8-98248-900-0 |
02 |
1 |
1311- |
● |
|
| |
1 |
05.809 DRUM; BRK,RR
4JB1-TC ENG(RDT)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR
RATIO 41/7(R41)
G.V.W. 5.5-6.0TON(RPU)
IDN
|
8-98248-900-0 |
02 |
1 |
1311- |
● |
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 6.5-7.0TON(RPW)
IDN
|
8-97036-367-1 |
02 |
1 |
0211-0311 |
● |
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 5.5-6.0TON(RPU)
MINI BUS CHASSIS(V4B)
IDN
|
8-97036-367-1 |
02 |
1 |
0312-0610 |
● |
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 6.5-7.0TON(RPW)
IDN
|
8-97036-367-1 |
02 |
1 |
0312-0610 |
● |
|
| |
1 |
05.809 DRUM; BRK,RR
4HG1-T ENG(RDP),4HF1-N ENG(RJZ)
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 5.5-6.0TON(RPU)
MINI BUS CHASSIS(V4B)
IDN
|
8-97036-367-1 |
02 |
1 |
0611-1105 |
● |
|
| |
1 |
05.809 DRUM; BRK,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 6.5-7.0TON(RPW)
IDN
|
8-97036-367-1 |
02 |
1 |
0611-1105 |
● |
|
| |
1 |
05.809 DRUM; BRK,RR
4HG1-T ENG(RDP),4HF1-N ENG(RJZ)
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 5.5-6.0TON(RPU)
MINI BUS CHASSIS(V4B)
IDN
|
8-97036-367-1 |
02 |
1 |
1106- |
● |
|
| |
1 |
05.809 DRUM; BRK,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. REAR SPRING HEAVY DUTY<G50>
IDN
|
8-97036-367-1 |
02 |
1 |
1106- |
● |
|
| |
1 |
05.809 DRUM; BRK,RR
|
8-94455-285-2 |
02 |
1 |
0211-1404 |
|
● |
| |
1 |
05.809 DRUM; BRK,RR
|
8-94455-285-2 |
02 |
1 |
1405-1506 |
|
● |
| |
1 |
05.809 DRUM; BRK,RR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR
RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C)
|
8-94455-285-2 |
02 |
1 |
1405-1506 |
● |
|
| |
1 |
05.809 DRUM; BRK,RR
|
8-94455-285-2 |
02 |
1 |
1507- |
|
● |
| |
1 |
05.809 DRUM; BRK,RR
4JB1-TC ENG(RDT)
MINI BUS CHASSIS(V4B)
|
8-94455-285-2 |
02 |
1 |
1507- |
● |
|
| |
1 |
05.809 DRUM; BRK,RR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR
RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C)
|
8-94455-285-2 |
02 |
1 |
1507- |
● |
|
| |
1 |
05.809 DRUM; BRK,RR
4JB1-TC ENG(RDT)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42),FINAL GEAR
RATIO 39/6(R43)
|
8-94382-884-4 |
02 |
1 |
0801- |
● |
|
| |
8 |
05.809 HUB; RR AXLE
REAR AXLE HEAVY DUTY 343MM(8BW)
|
8-97107-549-2 |
02 |
1 |
1510- |
● |
|
| |
8 |
05.809 HUB; RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP)
REAR SPRING HEAVY DUTY<G50>
|
8-97081-323-2 |
02 |
1 |
1106- |
● |
|
| |
8 |
05.809 HUB; RR AXLE
|
5-42311-009-3 |
02 |
1 |
0211-1404 |
|
● |
| |
8 |
05.809 HUB; RR AXLE
|
5-42311-009-3 |
02 |
1 |
1405-1506 |
|
● |
| |
8 |
05.809 HUB; RR AXLE
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR
RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C)
|
5-42311-009-3 |
02 |
1 |
1405-1506 |
● |
|
| |
8 |
05.809 HUB; RR AXLE
|
5-42311-009-3 |
02 |
1 |
1507- |
|
● |
| |
8 |
05.809 HUB; RR AXLE
4JB1-TC ENG(RDT)
MINI BUS CHASSIS(V4B)
|
5-42311-009-3 |
02 |
1 |
1507- |
● |
|
| |
8 |
05.809 HUB; RR AXLE
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR
RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C)
|
5-42311-009-3 |
02 |
1 |
1507- |
● |
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 5.5-6.0TON(RPU)
|
8-97026-139-3 |
02 |
1 |
0211-0311 |
● |
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 5.5-6.0TON(RPU)
EXC. MINI BUS CHASSIS(V4B)
|
8-97026-139-3 |
02 |
1 |
0312-0712 |
● |
|
| |
8 |
05.809 HUB; RR AXLE
4HG1-T ENG(RDP),4HF1-N ENG(RJZ)
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 5.5-6.0TON(RPU)
EXC. MINI BUS CHASSIS(V4B)
|
8-97026-139-3 |
02 |
1 |
0801- |
● |
|
| |
8 |
05.809 HUB; RR AXLE
4JB1-TC ENG(RDT)
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-97026-139-3 |
02 |
1 |
0801- |
● |
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 6.5-7.0TON(RPW)
IDN
|
8-97122-626-0 |
02 |
1 |
0211-0610 |
● |
|
| |
8 |
05.809 HUB; RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 6.5-7.0TON(RPW)
IDN
|
8-97122-626-0 |
02 |
1 |
0611-1105 |
● |
|
| |
8 |
05.809 HUB; RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. REAR SPRING HEAVY DUTY<G50>
IDN
|
8-97122-626-0 |
02 |
1 |
1106- |
● |
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 5.5-6.0TON(RPU)
MINI BUS CHASSIS(V4B)
|
8-97173-549-0 |
02 |
1 |
0312-0609 |
● |
|
| |
8 |
05.809 HUB; RR AXLE
4HG1-T ENG(RDP),4HF1-N ENG(RJZ)
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 5.5-6.0TON(RPU)
MINI BUS CHASSIS(V4B)
|
8-97173-549-0 |
02 |
1 |
0610- |
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 6.5-7.0TON(RPW)
M18X29,M20X55 RH THREAD
|
8-97017-043-2 |
10 |
1 |
0611-0611 |
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 6.5-7.0TON(RPW)
M18X29,M20X55 RH THREAD
|
8-97017-043-2 |
10 |
1 |
0611-1105 |
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. REAR SPRING HEAVY DUTY<G50>
M18X29,M20X55 RH THREAD
|
8-97017-043-2 |
10 |
1 |
1106- |
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 6.5-7.0TON(RPW)
M18X29 LH THREAD,M20X55 RH THREAD
|
8-97017-044-2 |
10 |
1 |
0611-0611 |
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 6.5-7.0TON(RPW)
M18X29 LH THREAD,M20X55 RH THREAD
|
8-97017-044-2 |
10 |
1 |
0611-1105 |
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. REAR SPRING HEAVY DUTY<G50>
M18X29 LH THREAD,M20X55 RH THREAD
|
8-97017-044-2 |
10 |
1 |
1106- |
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP)
REAR SPRING HEAVY DUTY<G50>
M20X28,M22X57 RH THREAD
|
8-97081-584-4 |
06 |
1 |
1106-1509 |
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP),REAR
AXLEHEAVY DUTY 343MM(8BW)
REAR SPRING HEAVY DUTY<G50>
M20X28,M22X57 RH THREAD
|
8-97081-584-4 |
06 |
1 |
1510- |
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP)
REAR SPRING HEAVY DUTY<G50>
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-4 |
06 |
1 |
1106-1509 |
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP),REAR
AXLEHEAVY DUTY 343MM(8BW)
REAR SPRING HEAVY DUTY<G50>
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-4 |
06 |
1 |
1510- |
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
M14X50 RH THREAD
|
9-42331-605-5 |
06 |
1 |
0211-1404 |
|
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
M14X50 RH THREAD
|
9-42331-605-5 |
06 |
1 |
1405-1506 |
|
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR
RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C)
M14X50 RH THREAD
|
9-42331-605-5 |
06 |
1 |
1405-1506 |
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
M14X50 RH THREAD
|
9-42331-605-5 |
06 |
1 |
1507- |
|
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4JB1-TC ENG(RDT)
MINI BUS CHASSIS(V4B)
M14X50 RH THREAD
|
9-42331-605-5 |
06 |
1 |
1507- |
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR
RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C)
M14X50 RH THREAD
|
9-42331-605-5 |
06 |
1 |
1507- |
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
M14X50 LH THREAD
|
9-42332-605-5 |
06 |
1 |
0211-1404 |
|
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
M14X50 LH THREAD
|
9-42332-605-5 |
06 |
1 |
1405-1506 |
|
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR
RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C)
M14X50 LH THREAD
|
9-42332-605-5 |
06 |
1 |
1405-1506 |
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
M14X50 LH THREAD
|
9-42332-605-5 |
06 |
1 |
1507- |
|
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4JB1-TC ENG(RDT)
MINI BUS CHASSIS(V4B)
M14X50 LH THREAD
|
9-42332-605-5 |
06 |
1 |
1507- |
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR
RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C)
M14X50 LH THREAD
|
9-42332-605-5 |
06 |
1 |
1507- |
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 5.5-6.0TON(RPU)
M18X29,M20X43.5 RH THREAD
|
8-94383-436-1 |
05 |
1 |
0211-0311 |
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 5.5-6.0TON(RPU)
EXC. MINI BUS CHASSIS(V4B)
M18X29,M20X43.5 RH THREAD
|
8-94383-436-2 |
05 |
1 |
0312-0712 |
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4HG1-T ENG(RDP),4HF1-N ENG(RJZ)
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 5.5-6.0TON(RPU)
EXC. MINI BUS CHASSIS(V4B)
M18X29,M20X43.5 RH THREAD
|
8-94383-436-2 |
05 |
1 |
0801- |
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4JB1-TC ENG(RDT)
REAR AXLE HEAVY DUTY 292MM(G73)
M18X29,M20X43.5 RH THREAD
|
8-94383-436-2 |
05 |
1 |
0801- |
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 5.5-6.0TON(RPU)
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-1 |
05 |
1 |
0211-0311 |
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 5.5-6.0TON(RPU)
EXC. MINI BUS CHASSIS(V4B)
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-2 |
05 |
1 |
0312-0712 |
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4HG1-T ENG(RDP),4HF1-N ENG(RJZ)
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 5.5-6.0TON(RPU)
EXC. MINI BUS CHASSIS(V4B)
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-2 |
05 |
1 |
0801- |
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4JB1-TC ENG(RDT)
REAR AXLE HEAVY DUTY 292MM(G73)
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-2 |
05 |
1 |
0801- |
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 6.5-7.0TON(RPW)
M18X29,M20X55 RH THREAD
|
8-97017-043-1 |
05 |
1 |
0211-0311 |
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 5.5-6.0TON(RPU)
MINI BUS CHASSIS(V4B)
M18X29,M20X55 RH THREAD
|
8-97017-043-1 |
05 |
1 |
0312-0610 |
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 6.5-7.0TON(RPW)
M18X29,M20X55 RH THREAD
|
8-97017-043-1 |
05 |
1 |
0312-0610 |
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4HG1-T ENG(RDP),4HF1-N ENG(RJZ)
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 5.5-6.0TON(RPU)
MINI BUS CHASSIS(V4B)
M18X29,M20X55 RH THREAD
|
8-97017-043-2 |
05 |
1 |
0611- |
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 6.5-7.0TON(RPW)
M18X29 LH THREAD,M20X55 RH THREAD
|
8-97017-044-1 |
05 |
1 |
0211-0311 |
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 5.5-6.0TON(RPU)
MINI BUS CHASSIS(V4B)
M18X29 LH THREAD,M20X55 RH THREAD
|
8-97017-044-1 |
05 |
1 |
0312-0610 |
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 6.5-7.0TON(RPW)
M18X29 LH THREAD,M20X55 RH THREAD
|
8-97017-044-1 |
05 |
1 |
0312-0610 |
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4HG1-T ENG(RDP),4HF1-N ENG(RJZ)
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 5.5-6.0TON(RPU)
MINI BUS CHASSIS(V4B)
M18X29 LH THREAD,M20X55 RH THREAD
|
8-97017-044-2 |
05 |
1 |
0611- |
● |
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
G.V.W. 6.5-7.0TON(RPW)
05.812
M20
|
0-91110-520-0 |
20 |
1 |
0601-0610 |
● |
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 6.5-7.0TON(RPW)
05.812
M20
|
0-91110-520-0 |
20 |
1 |
0611-1105 |
● |
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. REAR SPRING HEAVY DUTY<G50>
05.812
M20
|
0-91110-520-0 |
20 |
1 |
1106- |
● |
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP)
REAR SPRING HEAVY DUTY<G50>
07.172
M22
|
0-91110-522-0 |
12 |
1 |
1106-1509 |
● |
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP),REAR
AXLEHEAVY DUTY 343MM(8BW)
REAR SPRING HEAVY DUTY<G50>
07.172
M22
|
0-91110-522-0 |
12 |
1 |
1510- |
● |
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
00.050
M20
|
9-99110-520-0 |
10 |
1 |
0211-0512 |
● |
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
G.V.W. 5.5-6.0TON(RPU)
05.812
M20
|
0-91110-520-0 |
10 |
1 |
0601-0712 |
● |
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73)
05.812
M20
|
0-91110-520-0 |
10 |
1 |
0801- |
● |
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
NSK
|
9-00093-082-0 |
04 |
1 |
0211-0304 |
|
● |
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
G.V.W. 5.5-6.0TON(RPU)
NSK
|
9-00093-082-0 |
04 |
1 |
0211-0304 |
● |
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
NSK
|
9-00093-082-0 |
02 |
1 |
0305-0712 |
|
● |
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
G.V.W. 5.5-6.0TON(RPU)
NSK
|
9-00093-082-0 |
02 |
1 |
0305-0712 |
● |
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
NSK
|
9-00093-082-0 |
02 |
1 |
0801- |
|
● |
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73)
NSK
|
9-00093-082-0 |
02 |
1 |
0801- |
● |
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
G.V.W. 6.5-7.0TON(RPW)
NSK
|
9-00093-607-0 |
02 |
1 |
0211-0610 |
● |
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 6.5-7.0TON(RPW)
NSK
|
9-00093-607-0 |
02 |
1 |
0611-1509 |
● |
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP),REAR
AXLEHEAVY DUTY 343MM(8BW)
G.V.W. 6.5-7.0TON(RPW)
NSK
|
9-00093-607-0 |
02 |
1 |
1510- |
● |
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
BEST VALUE PARTS
|
5-87610-140-0 |
04 |
1 |
0211-0304 |
|
● |
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
G.V.W. 5.5-6.0TON(RPU)
BEST VALUE PARTS
|
5-87610-140-0 |
04 |
1 |
0211-0304 |
● |
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
BEST VALUE PARTS
|
5-87610-140-0 |
02 |
1 |
0305-0712 |
|
● |
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
G.V.W. 5.5-6.0TON(RPU)
BEST VALUE PARTS
|
5-87610-140-0 |
02 |
1 |
0305-0712 |
● |
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
BEST VALUE PARTS
|
5-87610-140-0 |
02 |
1 |
0801- |
|
● |
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73)
BEST VALUE PARTS
|
5-87610-140-0 |
02 |
1 |
0801- |
● |
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
G.V.W. 6.5-7.0TON(RPW)
BEST VALUE PARTS
|
5-87610-139-0 |
02 |
1 |
0211-0610 |
● |
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 6.5-7.0TON(RPW)
BEST VALUE PARTS
|
5-87610-139-0 |
02 |
1 |
0611-1509 |
● |
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP),REAR
AXLEHEAVY DUTY 343MM(8BW)
G.V.W. 6.5-7.0TON(RPW)
BEST VALUE PARTS
|
5-87610-139-0 |
02 |
1 |
1510- |
● |
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
TKK
|
8-94336-315-2 |
02 |
1 |
0211-0712 |
|
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
G.V.W. 5.5-6.0TON(RPU)
TKK
|
8-94336-315-2 |
02 |
1 |
0211-0712 |
● |
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
TKK
|
8-94336-315-2 |
02 |
1 |
0801-1207 |
|
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
REAR AXLE HEAVY DUTY 292MM(G73)
TKK
|
8-94336-315-2 |
02 |
1 |
0801-1207 |
● |
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
NOK
|
8-98202-911-0 |
02 |
1 |
1208- |
|
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
REAR AXLE HEAVY DUTY 292MM(G73)
NOK
|
8-98202-911-0 |
02 |
1 |
1208- |
● |
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
NOK
|
8-94367-961-1 |
02 |
1 |
0211-0712 |
|
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
G.V.W. 5.5-6.0TON(RPU)
NOK
|
8-94367-961-1 |
02 |
1 |
0211-0712 |
● |
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
NOK
|
8-94367-961-1 |
02 |
1 |
0801-1106 |
|
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
REAR AXLE HEAVY DUTY 292MM(G73)
NOK
|
8-94367-961-1 |
02 |
1 |
0801-1106 |
● |
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
G.V.W. 6.5-7.0TON(RPW)
TKK
|
8-94336-317-2 |
02 |
1 |
0211-0610 |
● |
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 6.5-7.0TON(RPW)
TKK
|
8-94336-317-2 |
02 |
1 |
0611-1207 |
● |
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 6.5-7.0TON(RPW)
NOK
|
8-98202-912-0 |
02 |
1 |
1208-1509 |
● |
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
REAR AXLE HEAVY DUTY 320MM(6CP),REAR
AXLEHEAVY DUTY 343MM(8BW)
G.V.W. 6.5-7.0TON(RPW)
NOK
|
8-98202-912-0 |
02 |
1 |
1510- |
● |
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
G.V.W. 6.5-7.0TON(RPW)
NOK
|
8-94367-960-1 |
02 |
1 |
0211-0610 |
● |
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 6.5-7.0TON(RPW)
NOK
|
8-94367-960-1 |
02 |
1 |
0611-1106 |
● |
|
| |
20 |
05.830 NUT; BRG,RR HUB
M52
|
8-97137-092-0 |
02 |
1 |
0211-0712 |
|
● |
| |
20 |
05.830 NUT; BRG,RR HUB
G.V.W. 5.5-6.0TON(RPU)
M52
|
8-97137-092-0 |
02 |
1 |
0211-0712 |
● |
|
| |
20 |
05.830 NUT; BRG,RR HUB
M52
|
8-97137-092-0 |
02 |
1 |
0801-1303 |
|
● |
| |
20 |
05.830 NUT; BRG,RR HUB
REAR AXLE HEAVY DUTY 292MM(G73)
M52
|
8-97137-092-0 |
02 |
1 |
0801-1303 |
● |
|
| |
20 |
05.830 NUT; BRG,RR HUB
M52
|
8-98236-850-0 |
02 |
1 |
1304- |
|
● |
| |
20 |
05.830 NUT; BRG,RR HUB
REAR AXLE HEAVY DUTY 292MM(G73)
M52
|
8-98236-850-0 |
02 |
1 |
1304- |
● |
|
| |
20 |
05.830 NUT; BRG,RR HUB
G.V.W. 6.5-7.0TON(RPW)
M55
|
8-97137-094-0 |
02 |
1 |
0211-0610 |
● |
|
| |
20 |
05.830 NUT; BRG,RR HUB
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 6.5-7.0TON(RPW)
M55
|
8-97137-094-0 |
02 |
1 |
0611-1509 |
● |
|
| |
20 |
05.830 NUT; BRG,RR HUB
REAR AXLE HEAVY DUTY 320MM(6CP),REAR
AXLEHEAVY DUTY 343MM(8BW)
G.V.W. 6.5-7.0TON(RPW)
M55
|
8-97137-094-0 |
02 |
1 |
1510- |
● |
|
| |
21 |
05.830 WASHER; LK,BRG NUT
ID=52
|
9-09853-214-0 |
02 |
1 |
0211-0712 |
|
● |
| |
21 |
05.830 WASHER; LK,BRG NUT
G.V.W. 5.5-6.0TON(RPU)
ID=52
|
9-09853-214-0 |
02 |
1 |
0211-0712 |
● |
|
| |
21 |
05.830 WASHER; LK,BRG NUT
ID=52
|
9-09853-214-1 |
02 |
1 |
0801- |
|
● |
| |
21 |
05.830 WASHER; LK,BRG NUT
REAR AXLE HEAVY DUTY 292MM(G73)
ID=52
|
9-09853-214-1 |
02 |
1 |
0801- |
● |
|
| |
21 |
05.830 WASHER; LK,BRG NUT
G.V.W. 6.5-7.0TON(RPW)
ID=55
|
9-09653-002-0 |
02 |
1 |
0211-0610 |
● |
|
| |
21 |
05.830 WASHER; LK,BRG NUT
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 6.5-7.0TON(RPW)
ID=55
|
9-09653-002-0 |
02 |
1 |
0611-1509 |
● |
|
| |
21 |
05.830 WASHER; LK,BRG NUT
REAR AXLE HEAVY DUTY 320MM(6CP),REAR
AXLEHEAVY DUTY 343MM(8BW)
G.V.W. 6.5-7.0TON(RPW)
ID=55
|
9-09653-002-1 |
02 |
1 |
1510- |
● |
|
| |
24 |
05.830 BOLT; LK WASHER
REAR AXLE HEAVY DUTY 343MM(8BW)
03.162
M6X12 FLANGE
|
0-28050-612-0 |
04 |
1 |
1510-1510 |
● |
|
| |
24 |
05.830 BOLT; LK WASHER
03.162
M6X12 FLANGE
|
0-28050-612-0 |
04 |
1 |
1510- |
● |
● |
| |
24 |
05.830 BOLT; LK WASHER
00.685
M6X12 W/LK WASHER
|
0-50040-612-0 |
04 |
1 |
0211-0512 |
● |
● |
| |
24 |
05.830 BOLT; LK WASHER
03.342
M6X12 W/LK WASHER
|
0-50540-612-0 |
04 |
1 |
0601-0611 |
● |
● |
| |
24 |
05.830 BOLT; LK WASHER
03.671
M6X10 FLANGE
IDN
|
0-28050-610-0 |
04 |
1 |
0612-1506 |
● |
● |
| |
24 |
05.830 BOLT; LK WASHER
03.671
M6X10 FLANGE
IDN
|
0-28050-610-0 |
04 |
1 |
1507-1509 |
|
● |
| |
24 |
05.830 BOLT; LK WASHER
REAR AXLE HEAVY DUTY 292MM(G73),REAR
AXLEHEAVY DUTY 320MM(6CP)
03.671
M6X10 FLANGE
IDN
|
0-28050-610-0 |
04 |
1 |
1507-1509 |
● |
|
| |
25 |
05.420 SHAFT; AXLE,RR
REAR AXLE HEAVY DUTY 343MM(8BW)
|
8-98272-242-0 |
02 |
1 |
1510- |
● |
|
| |
25 |
05.420 SHAFT; AXLE,RR
|
8-94366-192-0 |
02 |
1 |
0211-1404 |
|
● |
| |
25 |
05.420 SHAFT; AXLE,RR
|
8-94366-192-0 |
02 |
1 |
1405-1506 |
|
● |
| |
25 |
05.420 SHAFT; AXLE,RR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR
RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C)
|
8-94366-192-0 |
02 |
1 |
1405-1506 |
● |
|
| |
25 |
05.420 SHAFT; AXLE,RR
|
8-94366-192-0 |
02 |
1 |
1507- |
|
● |
| |
25 |
05.420 SHAFT; AXLE,RR
4JB1-TC ENG(RDT)
MINI BUS CHASSIS(V4B)
|
8-94366-192-0 |
02 |
1 |
1507- |
● |
|
| |
25 |
05.420 SHAFT; AXLE,RR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR
RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C)
|
8-94366-192-0 |
02 |
1 |
1507- |
● |
|
| |
25 |
05.420 SHAFT; AXLE,RR
G.V.W. 5.5-6.0TON(RPU)
|
8-97032-496-0 |
02 |
1 |
0211-0712 |
● |
|
| |
25 |
05.420 SHAFT; AXLE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-97032-496-0 |
02 |
1 |
0801-0909 |
● |
|
| |
25 |
05.420 SHAFT; AXLE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 5.5-6.0TON(RPU)
|
8-97032-496-0 |
02 |
1 |
0910- |
● |
|
| |
25 |
05.420 SHAFT; AXLE,RR
G.V.W. 6.5-7.0TON(RPW)
|
8-97126-893-0 |
02 |
1 |
0211-0610 |
● |
|
| |
25 |
05.420 SHAFT; AXLE,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 6.5-7.0TON(RPW)
|
8-97126-893-0 |
02 |
1 |
0611-0804 |
● |
|
| |
25 |
05.420 SHAFT; AXLE,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 6.5-7.0TON(RPW)
IDN
|
8-98098-425-0 |
02 |
1 |
0805-0906 |
● |
|
| |
25 |
05.420 SHAFT; AXLE,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/6(6YB)
IDN
|
8-98098-425-0 |
02 |
1 |
0907- |
● |
|
| |
25 |
05.420 SHAFT; AXLE,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41),FINAL GEAR
RATIO 43/7(R42)
G.V.W. 6.5-7.0TON(RPW)
IDN
|
8-98151-846-0 |
02 |
1 |
0907-0909 |
● |
|
| |
25 |
05.420 SHAFT; AXLE,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41),FINAL GEAR
RATIO 43/7(R42),FINAL GEAR RATIO 39/6(R43)
G.V.W. 6.5-7.0TON(RPW)
IDN
|
8-98151-846-0 |
02 |
1 |
0910- |
● |
|
| |
31 |
05.422 STUD; AXLE SHAFT TO HUB
M10X30 L=49
|
5-09300-066-1 |
12 |
1 |
0211-0709 |
|
● |
| |
31 |
05.422 STUD; AXLE SHAFT TO HUB
M10X30 L=49
|
8-97359-803-0 |
12 |
1 |
0710-1404 |
|
● |
| |
31 |
05.422 STUD; AXLE SHAFT TO HUB
M10X30 L=49
|
8-97359-803-0 |
12 |
1 |
1405-1506 |
|
● |
| |
31 |
05.422 STUD; AXLE SHAFT TO HUB
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR
RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C)
M10X30 L=49
|
8-97359-803-0 |
12 |
1 |
1405-1506 |
● |
|
| |
31 |
05.422 STUD; AXLE SHAFT TO HUB
M10X30 L=49
|
8-97359-803-0 |
12 |
1 |
1507- |
|
● |
| |
31 |
05.422 STUD; AXLE SHAFT TO HUB
4JB1-TC ENG(RDT)
MINI BUS CHASSIS(V4B)
M10X30 L=49
|
8-97359-803-0 |
12 |
1 |
1507- |
● |
|
| |
31 |
05.422 STUD; AXLE SHAFT TO HUB
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR
RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C)
M10X30 L=49
|
8-97359-803-0 |
12 |
1 |
1507- |
● |
|
| |
31 |
05.422 STUD; AXLE SHAFT TO HUB
M10X30 L=49
|
5-09300-066-1 |
16 |
1 |
0211-0709 |
● |
|
| |
31 |
05.422 STUD; AXLE SHAFT TO HUB
M10X30 L=49
|
8-97359-803-0 |
16 |
1 |
0710-1105 |
● |
|
| |
31 |
05.422 STUD; AXLE SHAFT TO HUB
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR
RATIO 41/8(RU1),FINAL GEAR RATIO 41/7(R41),
FINAL GEAR RATIO 43/7(R42),FINAL GEAR RATI
O 39/6(R43),FINAL GEAR RATIO 41/6(6YB)
M10X30 L=49
|
8-97359-803-0 |
16 |
1 |
1106-1509 |
● |
|
| |
31 |
05.422 STUD; AXLE SHAFT TO HUB
M10X30 L=49
|
8-97359-803-0 |
16 |
1 |
1510- |
● |
|
| |
34 |
05.387 NUT; AXLE SHAFT
08.917
M10 FLANGE
|
0-91150-210-0 |
12 |
1 |
0211-0602 |
|
● |
| |
34 |
05.387 NUT; AXLE SHAFT
04.085
M10 FLANGE
|
0-91180-210-0 |
12 |
1 |
0603-1404 |
|
● |
| |
34 |
05.387 NUT; AXLE SHAFT
04.085
M10 FLANGE
|
0-91180-210-0 |
12 |
1 |
1405-1506 |
|
● |
| |
34 |
05.387 NUT; AXLE SHAFT
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR
RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C)
04.085
M10 FLANGE
|
0-91180-210-0 |
12 |
1 |
1405-1506 |
● |
|
| |
34 |
05.387 NUT; AXLE SHAFT
04.085
M10 FLANGE
|
0-91180-210-0 |
12 |
1 |
1507- |
|
● |
| |
34 |
05.387 NUT; AXLE SHAFT
4JB1-TC ENG(RDT)
MINI BUS CHASSIS(V4B)
04.085
M10 FLANGE
|
0-91180-210-0 |
12 |
1 |
1507- |
● |
|
| |
34 |
05.387 NUT; AXLE SHAFT
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR
RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C)
04.085
M10 FLANGE
|
0-91180-210-0 |
12 |
1 |
1507- |
● |
|
| |
34 |
05.387 NUT; AXLE SHAFT
08.917
M10 FLANGE
|
0-91150-210-0 |
16 |
1 |
0211-0602 |
● |
|
| |
34 |
05.387 NUT; AXLE SHAFT
04.085
M10 FLANGE
|
0-91180-210-0 |
16 |
1 |
0603-1105 |
● |
|
| |
34 |
05.387 NUT; AXLE SHAFT
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR
RATIO 41/8(RU1),FINAL GEAR RATIO 41/7(R41),
FINAL GEAR RATIO 43/7(R42),FINAL GEAR RATI
O 39/6(R43),FINAL GEAR RATIO 41/6(6YB)
04.085
M10 FLANGE
|
0-91180-210-0 |
16 |
1 |
1106-1509 |
● |
|
| |
34 |
05.387 NUT; AXLE SHAFT
04.085
M10 FLANGE
|
0-91180-210-0 |
16 |
1 |
1510- |
● |
|
| |
36 |
05.422 WASHER; SPECIAL,AXLE SHAFT
ID=10.5
|
9-09855-207-0 |
12 |
1 |
0211-0709 |
|
● |
| |
36 |
05.422 WASHER; SPECIAL,AXLE SHAFT
ID=10.5
|
8-97360-004-0 |
12 |
1 |
0710-1404 |
|
● |
| |
36 |
05.422 WASHER; SPECIAL,AXLE SHAFT
ID=10.5
|
8-97360-004-0 |
12 |
1 |
1405-1506 |
|
● |
| |
36 |
05.422 WASHER; SPECIAL,AXLE SHAFT
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR
RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C)
ID=10.5
|
8-97360-004-0 |
12 |
1 |
1405-1506 |
● |
|
| |
36 |
05.422 WASHER; SPECIAL,AXLE SHAFT
ID=10.5
|
8-97360-004-0 |
12 |
1 |
1507- |
|
● |
| |
36 |
05.422 WASHER; SPECIAL,AXLE SHAFT
4JB1-TC ENG(RDT)
MINI BUS CHASSIS(V4B)
ID=10.5
|
8-97360-004-0 |
12 |
1 |
1507- |
● |
|
| |
36 |
05.422 WASHER; SPECIAL,AXLE SHAFT
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR
RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C)
ID=10.5
|
8-97360-004-0 |
12 |
1 |
1507- |
● |
|
| |
36 |
05.422 WASHER; SPECIAL,AXLE SHAFT
ID=10.5
|
9-09855-207-0 |
16 |
1 |
0211-0709 |
● |
|
| |
36 |
05.422 WASHER; SPECIAL,AXLE SHAFT
ID=10.5
|
8-97360-004-0 |
16 |
1 |
0710-1105 |
● |
|
| |
36 |
05.422 WASHER; SPECIAL,AXLE SHAFT
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR
RATIO 41/8(RU1),FINAL GEAR RATIO 41/7(R41),
FINAL GEAR RATIO 43/7(R42),FINAL GEAR RATI
O 39/6(R43),FINAL GEAR RATIO 41/6(6YB)
ID=10.5
|
8-97360-004-0 |
16 |
1 |
1106-1509 |
● |
|
| |
36 |
05.422 WASHER; SPECIAL,AXLE SHAFT
4JB1-TC ENG(RDT)
EXC. MINI BUS CHASSIS(V4B)
ID=10.5
|
8-97360-004-0 |
16 |
1 |
1510- |
● |
|
| |
36 |
05.422 WASHER; SPECIAL,AXLE SHAFT
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR
RATIO 41/8(RU1),FINAL GEAR RATIO 43/7(R42),
FINAL GEAR RATIO 39/6(R43),FINAL GEAR RATI
O 41/6(6YB)
ID=10.5
|
8-97360-004-0 |
16 |
1 |
1510- |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
REAR AXLE HEAVY DUTY 343MM(8BW)
NSK
IDN
|
8-97122-938-0 |
02 |
1 |
1510- |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
REAR AXLE HEAVY DUTY 343MM(8BW)
JTEKT
IDN
|
8-97123-119-0 |
02 |
1 |
1510- |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
NSK
|
9-00093-081-0 |
04 |
1 |
0211-0304 |
|
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 5.5-6.0TON(RPU)
NSK
|
9-00093-081-0 |
04 |
1 |
0211-0304 |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
NSK
|
9-00093-081-0 |
02 |
1 |
0305-0712 |
|
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 5.5-6.0TON(RPU)
NSK
|
9-00093-081-0 |
02 |
1 |
0305-0712 |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
NSK
|
9-00093-081-0 |
02 |
1 |
0801- |
|
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73)
NSK
|
9-00093-081-0 |
02 |
1 |
0801- |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 6.5-7.0TON(RPW)
NSK
|
9-00093-624-0 |
02 |
1 |
0211-0610 |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 6.5-7.0TON(RPW)
NSK
|
9-00093-624-0 |
02 |
1 |
0611- |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
BEST VALUE PARTS
|
5-87610-142-0 |
04 |
1 |
0211-0304 |
|
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 5.5-6.0TON(RPU)
BEST VALUE PARTS
|
5-87610-142-0 |
04 |
1 |
0211-0304 |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
BEST VALUE PARTS
|
5-87610-142-0 |
02 |
1 |
0305-0712 |
|
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 5.5-6.0TON(RPU)
BEST VALUE PARTS
|
5-87610-142-0 |
02 |
1 |
0305-0712 |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
BEST VALUE PARTS
|
5-87610-142-0 |
02 |
1 |
0801- |
|
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73)
BEST VALUE PARTS
|
5-87610-142-0 |
02 |
1 |
0801- |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 6.5-7.0TON(RPW)
BEST VALUE PARTS
|
5-87610-141-0 |
02 |
1 |
0211-0610 |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 6.5-7.0TON(RPW)
BEST VALUE PARTS
|
5-87610-141-0 |
02 |
1 |
0611- |
● |
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
REAR AXLE HEAVY DUTY 343MM(8BW)
NOK
|
8-97122-937-0 |
02 |
1 |
1510- |
● |
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
TKK
|
8-94336-314-1 |
02 |
1 |
0211-0712 |
|
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 5.5-6.0TON(RPU)
TKK
|
8-94336-314-1 |
02 |
1 |
0211-0712 |
● |
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
TKK
|
8-94336-314-1 |
02 |
1 |
0801- |
|
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
REAR AXLE HEAVY DUTY 292MM(G73)
TKK
|
8-94336-314-1 |
02 |
1 |
0801- |
● |
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
NOK
|
8-94367-959-0 |
02 |
1 |
0211-0712 |
|
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 5.5-6.0TON(RPU)
NOK
|
8-94367-959-0 |
02 |
1 |
0211-0712 |
● |
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
NOK
|
8-94367-959-0 |
02 |
1 |
0801- |
|
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
REAR AXLE HEAVY DUTY 292MM(G73)
NOK
|
8-94367-959-0 |
02 |
1 |
0801- |
● |
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 6.5-7.0TON(RPW)
TKK
|
8-94336-316-1 |
02 |
1 |
0211-0610 |
● |
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 6.5-7.0TON(RPW)
TKK
|
8-94336-316-1 |
02 |
1 |
0611- |
● |
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 6.5-7.0TON(RPW)
NOK
|
8-94367-958-0 |
02 |
1 |
0211-0610 |
● |
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 6.5-7.0TON(RPW)
NOK
|
8-94367-958-0 |
02 |
1 |
0611- |
● |
|
| |
49 |
05.387 CASE; RR AXLE
REAR AXLE HEAVY DUTY 343MM(8BW)
|
8-98272-076-0 |
01 |
1 |
1510-1511 |
● |
|
| |
49 |
05.387 CASE; RR AXLE
REAR AXLE HEAVY DUTY 343MM(8BW)
|
8-98327-595-0 |
01 |
1 |
1512- |
● |
|
| |
49 |
05.387 CASE; RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 4.0-4.5TON(RPR)
|
8-98061-921-0 |
01 |
1 |
1405- |
● |
|
| |
49 |
05.387 CASE; RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP)
REAR SPRING HEAVY DUTY<G50>
|
8-98192-225-0 |
01 |
1 |
1106- |
● |
|
| |
49 |
05.387 CASE; RR AXLE
|
8-97304-377-2 |
01 |
1 |
0211- |
|
● |
| |
49 |
05.387 CASE; RR AXLE
G.V.W. 5.5-6.0TON(RPU)
IDN
|
8-97032-861-4 |
01 |
1 |
0211-0712 |
● |
|
| |
49 |
05.387 CASE; RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73)
IDN
|
8-97032-861-5 |
01 |
1 |
0801-0909 |
● |
|
| |
49 |
05.387 CASE; RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 5.5-6.0TON(RPU)
IDN
|
8-97032-861-5 |
01 |
1 |
0910- |
● |
|
| |
49 |
05.387 CASE; RR AXLE
G.V.W. 6.5-7.0TON(RPW)
IDN
|
8-97122-348-3 |
01 |
1 |
0211-0610 |
● |
|
| |
49 |
05.387 CASE; RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 6.5-7.0TON(RPW)
IDN
|
8-97122-348-3 |
01 |
1 |
0611-0906 |
● |
|
| |
49 |
05.387 CASE; RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/6(6YB)
IDN
|
8-97122-348-4 |
01 |
1 |
0907- |
● |
|
| |
49 |
05.387 CASE; RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41),FINAL GEAR
RATIO 43/7(R42)
G.V.W. 6.5-7.0TON(RPW)
IDN
|
8-98151-843-0 |
01 |
1 |
0907-0909 |
● |
|
| |
49 |
05.387 CASE; RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41),FINAL GEAR
RATIO 43/7(R42),FINAL GEAR RATIO 39/6(R43)
G.V.W. 6.5-7.0TON(RPW)
IDN
|
8-98151-843-0 |
01 |
1 |
0910-1105 |
● |
|
| |
49 |
05.387 CASE; RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41),FINAL GEAR
RATIO 43/7(R42),FINAL GEAR RATIO 39/6(R43)
EXC. REAR SPRING HEAVY DUTY<G50>
IDN
|
8-98151-843-0 |
01 |
1 |
1106- |
● |
|
| |
58 |
05.508 PLUG; DRAIN,AXLE CASE
M16X12.5
IDN
|
8-97109-869-0 |
01 |
1 |
0211-0611 |
● |
● |
| |
58 |
05.508 PLUG; DRAIN,AXLE CASE
M16X12.5
|
8-97307-060-0 |
01 |
1 |
0612- |
● |
● |
| |
59 |
05.400 GASKET; DRAIN PLUG
01.252
ID=16.2 OD=24
|
9-09571-416-0 |
01 |
1 |
0211- |
● |
● |
| |
60 |
05.387 BREATHER; RR AXLE CASE
L=30
|
8-94416-611-1 |
01 |
1 |
0211-0409 |
● |
● |
| |
60 |
05.387 BREATHER; RR AXLE CASE
L=29
|
8-97383-656-0 |
01 |
1 |
0410-0606 |
● |
● |
| |
60 |
05.387 BREATHER; RR AXLE CASE
L=29
|
8-98006-960-0 |
01 |
1 |
0607- |
● |
● |
| |
63 |
05.400 PLUG; OIL FILLER,AXLE CASE
REAR AXLE HEAVY DUTY 343MM(8BW)
M24X17 FLANGE
|
1-09604-022-0 |
01 |
1 |
1510- |
● |
|
| |
63 |
05.400 PLUG; OIL FILLER,AXLE CASE
04.103
M20X10.5
|
9-09662-005-0 |
01 |
1 |
0211-0611 |
● |
● |
| |
63 |
05.400 PLUG; OIL FILLER,AXLE CASE
M20X10.5
|
8-98009-333-0 |
01 |
1 |
0612-1506 |
● |
● |
| |
63 |
05.400 PLUG; OIL FILLER,AXLE CASE
M20X10.5
|
8-98009-333-0 |
01 |
1 |
1507- |
|
● |
| |
63 |
05.400 PLUG; OIL FILLER,AXLE CASE
REAR AXLE HEAVY DUTY 292MM(G73),REAR
AXLEHEAVY DUTY 320MM(6CP)
M20X10.5
|
8-98009-333-0 |
01 |
1 |
1507- |
● |
|
| |
64 |
05.400 GASKET; OIL FILLER,AXLE CASE
REAR AXLE HEAVY DUTY 343MM(8BW)
04.109
ID=26.8
|
9-09920-605-0 |
01 |
1 |
1510- |
● |
|
| |
64 |
05.400 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30
|
8-94462-734-0 |
01 |
1 |
0211-1506 |
● |
● |
| |
64 |
05.400 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30
|
8-94462-734-0 |
01 |
1 |
1507- |
|
● |
| |
64 |
05.400 GASKET; OIL FILLER,AXLE CASE
REAR AXLE HEAVY DUTY 292MM(G73),REAR
AXLEHEAVY DUTY 320MM(6CP)
ID=20 OD=30
|
8-94462-734-0 |
01 |
1 |
1507- |
● |
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 343MM(8BW)
M10X35
|
1-09000-398-0 |
08 |
1 |
1510- |
● |
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 343MM(8BW)
M10X55
|
1-09000-429-1 |
04 |
1 |
1510- |
● |
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER
|
0-50061-040-0 |
11 |
1 |
0211-0712 |
|
● |
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
G.V.W. 5.5-6.0TON(RPU)
M10X40 W/LK WASHER
|
0-50061-040-0 |
11 |
1 |
0211-0712 |
● |
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER
|
0-50061-040-0 |
11 |
1 |
0801-0909 |
|
● |
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
M10X40 W/LK WASHER
|
0-50061-040-0 |
11 |
1 |
0801-0909 |
● |
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
06.156
M10X40 W/LK WASHER
IDN
|
0-50561-040-0 |
11 |
1 |
0910- |
|
● |
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
06.156
M10X40 W/LK WASHER
IDN
|
0-50561-040-0 |
11 |
1 |
0910- |
● |
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
G.V.W. 6.5-7.0TON(RPW)
M10X40 W/LK WASHER
|
0-50061-040-0 |
07 |
1 |
0211-0610 |
● |
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 6.5-7.0TON(RPW)
M10X40 W/LK WASHER
|
0-50061-040-0 |
07 |
1 |
0611-0909 |
● |
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 6.5-7.0TON(RPW)
06.156
M10X40 W/LK WASHER
IDN
|
0-50561-040-0 |
07 |
1 |
0910- |
● |
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
G.V.W. 6.5-7.0TON(RPW)
M10X50 W/LK WASHER
|
0-50061-050-0 |
04 |
1 |
0211-0610 |
● |
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 6.5-7.0TON(RPW)
M10X50 W/LK WASHER
|
0-50061-050-0 |
04 |
1 |
0611-0909 |
● |
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 6.5-7.0TON(RPW)
M10X50 W/LK WASHER
IDN
|
0-50561-050-0 |
04 |
1 |
0910- |
● |
|
| |
69 |
05.387 STUD; AXLE CASE
M10X40.5 L=52.5
IDN
|
8-97026-282-0 |
02 |
1 |
0211-0610 |
● |
● |
| |
69 |
05.387 STUD; AXLE CASE
M10X40.5 L=52.5
|
8-97359-802-0 |
02 |
1 |
0611-1506 |
● |
● |
| |
69 |
05.387 STUD; AXLE CASE
M10X40.5 L=52.5
|
8-97359-802-0 |
02 |
1 |
1507- |
|
● |
| |
69 |
05.387 STUD; AXLE CASE
REAR AXLE HEAVY DUTY 292MM(G73),REAR
AXLEHEAVY DUTY 320MM(6CP)
M10X40.5 L=52.5
|
8-97359-802-0 |
02 |
1 |
1507- |
● |
|
| |
70 |
05.387 NUT; CARRIER
08.917
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
0211-0602 |
● |
● |
| |
70 |
05.387 NUT; CARRIER
04.085
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0603-1506 |
● |
● |
| |
70 |
05.387 NUT; CARRIER
04.085
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1507- |
|
● |
| |
70 |
05.387 NUT; CARRIER
REAR AXLE HEAVY DUTY 292MM(G73),REAR
AXLEHEAVY DUTY 320MM(6CP)
04.085
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1507- |
● |
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
|
8-97259-178-0 |
12 |
1 |
0211-0610 |
|
● |
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
IDN
|
8-98007-877-0 |
12 |
1 |
0611-1404 |
|
● |
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
IDN
|
8-98007-877-0 |
12 |
1 |
1405-1506 |
|
● |
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR
RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C)
IDN
|
8-98007-877-0 |
12 |
1 |
1405-1506 |
● |
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
IDN
|
8-98007-877-0 |
12 |
1 |
1507- |
|
● |
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
4JB1-TC ENG(RDT)
MINI BUS CHASSIS(V4B)
IDN
|
8-98007-877-0 |
12 |
1 |
1507- |
● |
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR
RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C)
IDN
|
8-98007-877-0 |
12 |
1 |
1507- |
● |
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
M12X32
|
5-09000-078-0 |
12 |
1 |
0211-0611 |
● |
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
M12X32
|
8-97359-819-0 |
12 |
1 |
0612-1105 |
● |
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR
RATIO 41/8(RU1),FINAL GEAR RATIO 41/7(R41),
FINAL GEAR RATIO 43/7(R42),FINAL GEAR RATI
O 39/6(R43),FINAL GEAR RATIO 41/6(6YB)
M12X32
|
8-97359-819-0 |
12 |
1 |
1106-1509 |
● |
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
4JB1-TC ENG(RDT)
EXC. MINI BUS CHASSIS(V4B)
M12X32
|
8-97359-819-0 |
12 |
1 |
1510- |
● |
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR
RATIO 41/8(RU1),FINAL GEAR RATIO 43/7(R42),
FINAL GEAR RATIO 39/6(R43),FINAL GEAR RATI
O 41/6(6YB)
M12X32
|
8-97359-819-0 |
12 |
1 |
1510- |
● |
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
00.002
ID=10.2
|
9-09150-610-0 |
12 |
1 |
0211-0603 |
|
● |
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
00.002
ID=10.2
IDN
|
0-91510-610-0 |
12 |
1 |
0604-0611 |
|
● |
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
02.277
ID=10.2
IDN
|
0-91510-810-0 |
12 |
1 |
0612-1404 |
|
● |
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
02.277
ID=10.2
IDN
|
0-91510-810-0 |
12 |
1 |
1405-1506 |
|
● |
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR
RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C)
02.277
ID=10.2
IDN
|
0-91510-810-0 |
12 |
1 |
1405-1506 |
● |
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
02.277
ID=10.2
IDN
|
0-91510-810-0 |
12 |
1 |
1507- |
|
● |
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
4JB1-TC ENG(RDT)
MINI BUS CHASSIS(V4B)
02.277
ID=10.2
IDN
|
0-91510-810-0 |
12 |
1 |
1507- |
● |
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR
RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C)
02.277
ID=10.2
IDN
|
0-91510-810-0 |
12 |
1 |
1507- |
● |
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
06.515
ID=12.2
|
9-09150-612-0 |
12 |
1 |
0211-0603 |
● |
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
00.002
ID=12.2
|
0-91510-612-0 |
12 |
1 |
0604-0611 |
● |
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
07.347
ID=12.2
|
0-91510-812-0 |
12 |
1 |
0612-1105 |
● |
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR
RATIO 41/8(RU1),FINAL GEAR RATIO 41/7(R41),
FINAL GEAR RATIO 43/7(R42),FINAL GEAR RATI
O 39/6(R43),FINAL GEAR RATIO 41/6(6YB)
07.347
ID=12.2
|
0-91510-812-0 |
12 |
1 |
1106-1509 |
● |
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
4JB1-TC ENG(RDT)
EXC. MINI BUS CHASSIS(V4B)
07.347
ID=12.2
|
0-91510-812-0 |
12 |
1 |
1510- |
● |
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR
RATIO 41/8(RU1),FINAL GEAR RATIO 43/7(R42),
FINAL GEAR RATIO 39/6(R43),FINAL GEAR RATI
O 41/6(6YB)
07.347
ID=12.2
|
0-91510-812-0 |
12 |
1 |
1510- |
● |
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
00.002
M10
|
9-09110-510-0 |
12 |
1 |
0211-0512 |
|
● |
| |
76 |
05.002 NUT; RR BRK ASM SETTING
00.833
M10
|
0-91110-510-0 |
12 |
1 |
0601-1404 |
|
● |
| |
76 |
05.002 NUT; RR BRK ASM SETTING
00.833
M10
|
0-91110-510-0 |
12 |
1 |
1405-1506 |
|
● |
| |
76 |
05.002 NUT; RR BRK ASM SETTING
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR
RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C)
00.833
M10
|
0-91110-510-0 |
12 |
1 |
1405-1506 |
● |
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
00.833
M10
|
0-91110-510-0 |
12 |
1 |
1507- |
|
● |
| |
76 |
05.002 NUT; RR BRK ASM SETTING
4JB1-TC ENG(RDT)
MINI BUS CHASSIS(V4B)
00.833
M10
|
0-91110-510-0 |
12 |
1 |
1507- |
● |
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR
RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C)
00.833
M10
|
0-91110-510-0 |
12 |
1 |
1507- |
● |
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
04.634
M12
IDN
|
9-99110-512-0 |
12 |
1 |
0211-0512 |
● |
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
M12
|
0-91110-512-0 |
12 |
1 |
0601-1105 |
● |
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR
RATIO 41/8(RU1),FINAL GEAR RATIO 41/7(R41),
FINAL GEAR RATIO 43/7(R42),FINAL GEAR RATI
O 39/6(R43),FINAL GEAR RATIO 41/6(6YB)
M12
|
0-91110-512-0 |
12 |
1 |
1106-1509 |
● |
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
4JB1-TC ENG(RDT)
EXC. MINI BUS CHASSIS(V4B)
M12
|
0-91110-512-0 |
12 |
1 |
1510- |
● |
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR
RATIO 41/8(RU1),FINAL GEAR RATIO 43/7(R42),
FINAL GEAR RATIO 39/6(R43),FINAL GEAR RATI
O 41/6(6YB)
M12
|
0-91110-512-0 |
12 |
1 |
1510- |
● |
|
| |
274 |
05.822 WASHER; HSG
REAR AXLE HEAVY DUTY 343MM(8BW)
02.277
ID=10.2
IDN
|
0-91510-810-0 |
12 |
1 |
1510- |
● |
|
