4-10 — FRONT AXLE (#78955) — 80 parça

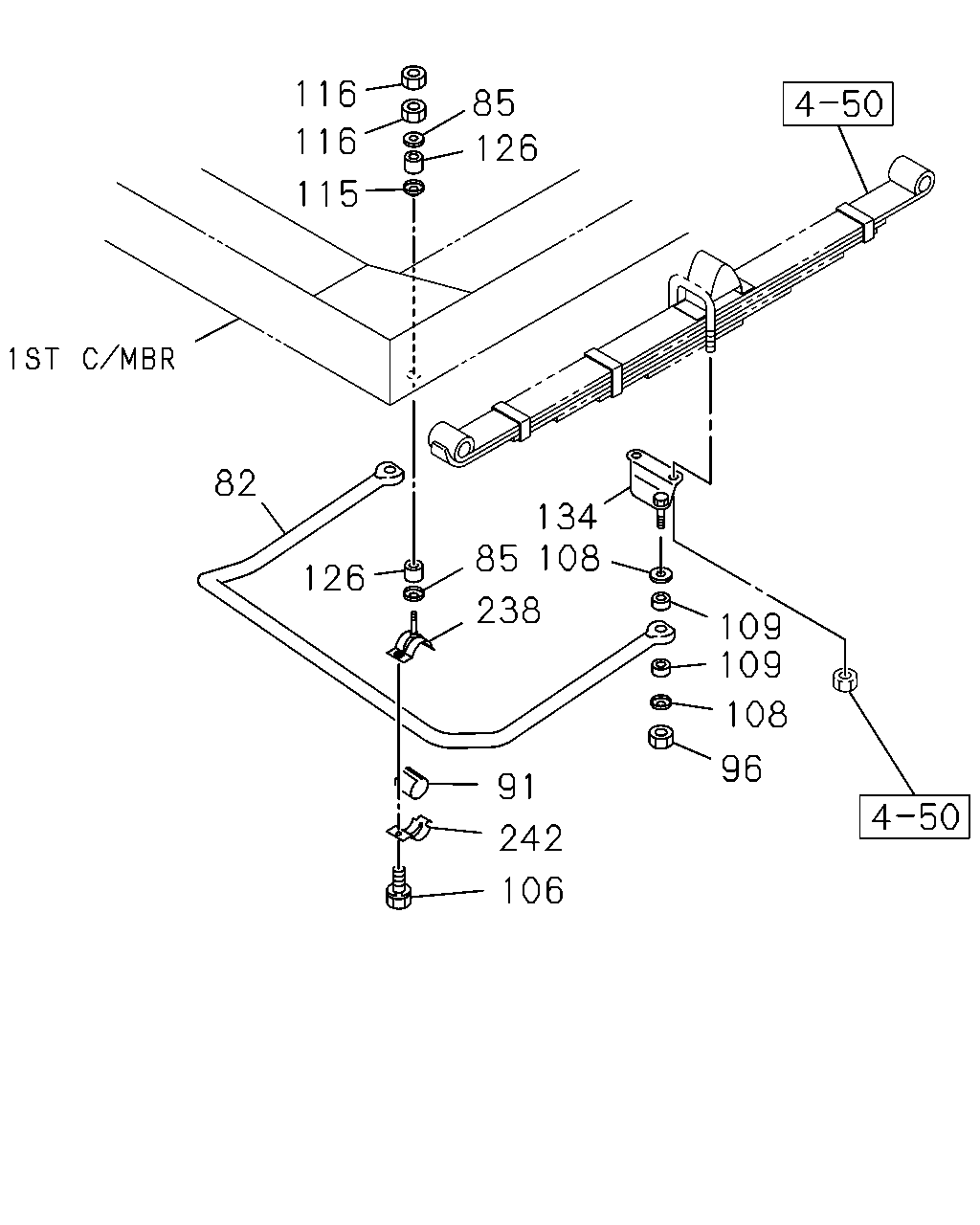

116 85 126 116 115 82 134 108 85 126 238 109 109 108 96 91 242 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
82	07.241 BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59> IDN	8-97170-624-1	01	1	0211-	●
85	07.242 WASHER; STAB TO FRAME FRONT STABILIZER SHAFT<F59> 07.245 IDN	9-51779-027-0	04	1	0211-	●
91	07.243 BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59> IDN	8-97170-752-0	02	1	0211-	●
96	07.242 NUT; STAB BAR TO CONT ARM FRONT STABILIZER SHAFT<F59> 06.164 M10 LOCK NUT	9-09131-510-0	02	1	0211-0603	●
96	07.242 NUT; STAB BAR TO CONT ARM FRONT STABILIZER SHAFT<F59> 03.704 M10 LOCK NUT IDN	0-91370-010-0	02	1	0604-	●
106	06.216 BOLT; CAP FIX FRONT STABILIZER SHAFT<F59> 09.171 M10X30 W/LK WASHER	0-50041-030-0	02	1	0211-0512	●
106	06.216 BOLT; CAP FIX FRONT STABILIZER SHAFT<F59> 04.439 M10X30 W/LK WASHER IDN	0-50541-030-0	02	1	0601-	●
108	07.242 CAP FRONT STABILIZER SHAFT<F59> IDN	8-97170-631-0	04	1	0211-	●
109	07.244 BUFFER; STAB BAR FRONT STABILIZER SHAFT<F59> IDN	8-97170-622-0	04	1	0211-	●
115	07.242 WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> 07.245 ID=15.0 OD=32	9-51631-049-0	02	1	0211-0406	●
115	07.242 WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> ID=15.0 OD=32 IDN	8-97387-669-0	02	1	0407-	●
116	07.242 NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> 06.164 M10 LOCK NUT	9-09131-510-0	02	1	0211-0603	●
116	07.242 NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> 03.704 M10 LOCK NUT IDN	0-91370-010-0	02	1	0604-	●
126	07.243 RUBBER; MTG,STAB BAR FRONT STABILIZER SHAFT<F59> 07.244 IDN	5-51631-017-0	04	1	0211-	●
134	07.242 BRACKET; STAB TO AXLE FRONT STABILIZER SHAFT<F59> IDN	8-97304-055-0	01	1	0211-	●
134	07.242 BRACKET; STAB TO AXLE FRONT STABILIZER SHAFT<F59> IDN	8-97304-056-0	01	1	0211-	●
238	07.240 ROD LINK ASM; STABILIZER,FRT FRONT STABILIZER SHAFT<F59> 07.242 IDN	8-97170-751-0	02	1	0211-	●
242	07.242 CAP; LINK ROD FRONT STABILIZER SHAFT<F59> IDN	8-97170-746-0	02	1	0211-	●

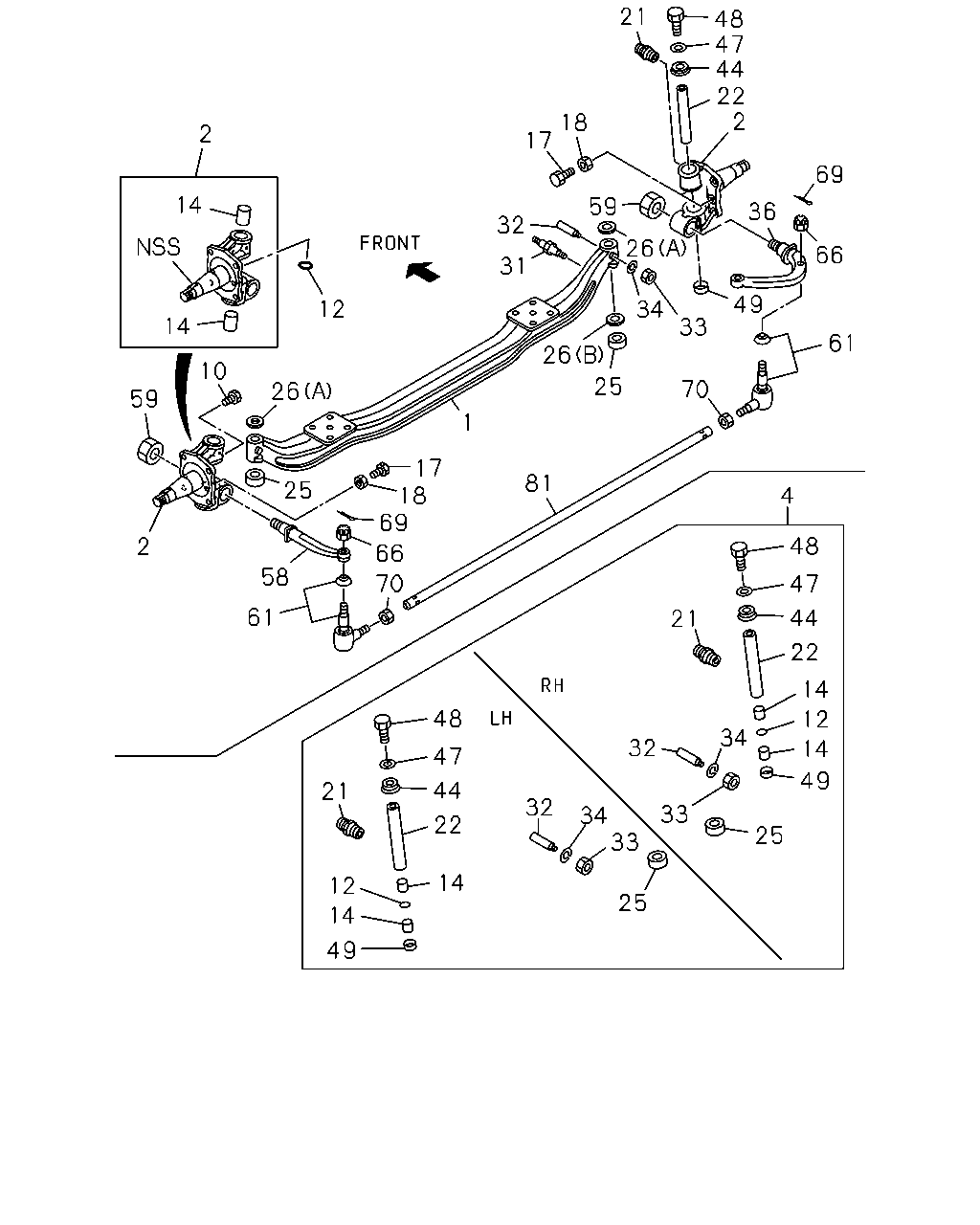

21 48 47 44 22 2 18 2 17 69 14 59 26 36 32 66 31 49 12 34 14 33 61 26 10 25 70 26 59 1 17 18 69 81 25 4 48 2 66 58 70 47 61 21 44 22 14 48 12 34 32 14 47 49 21 44 32 33 34 33 22 25 14 12 25 14 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.008 AXLE; FRT	8-97137-585-4	01	1	0211-	●	●
2	06.020 KNUCKLE; FRT AXLE	8-97261-545-2	01	1	0211-	●	●
2	06.020 KNUCKLE; FRT AXLE	8-97261-546-2	01	1	0211-	●	●
4	06.203 KING PIN KIT	5-87831-608-1	01	1	0211-0402	●	●
4	06.203 KING PIN KIT	5-87832-220-0	01	1	0403-0507	●	●
4	06.203 KING PIN KIT	5-87832-183-2	01	1	0508-0610	●	●
4	06.203 KING PIN KIT	5-87832-209-0	01	1	0611-0707	●	●
4	06.203 KING PIN KIT	5-87832-220-2	01	1	0708-	●	●
10	06.009 PLUG; PLATE,KNUCKLE	8-94107-661-0	01	1	0211-0610	●	●
10	06.009 PLUG; PLATE,KNUCKLE	8-97360-117-0	01	1	0611-	●	●
12	06.021 GASKET; KNUCKLE 06.225	9-09561-230-0	02	1	0211-0707	●	●
12	06.021 GASKET; KNUCKLE	8-98084-500-0	02	1	0708-	●	●
14	06.021 BUSHING; KING PIN DAIDO WO/NOTCH	8-94107-672-3	04	1	0211-	●	●
14	06.021 BUSHING; KING PIN JBK	8-94127-925-2	04	1	0211-0809	●	●
17	06.009 BOLT; STOPPER KNUCKLE M12X24 EYE-BOLT	5-09000-208-1	03	1	0211-0611	●	●
17	06.009 BOLT; STOPPER KNUCKLE M12X24 EYE-BOLT	8-97360-059-0	03	1	0612-	●	●
18	06.216 NUT; STOPPER BOLT,KNUCKLE 07.347 M12	9-99111-512-0	03	1	0211-0512	●	●
18	06.216 NUT; STOPPER BOLT,KNUCKLE 04.439 M12	0-91111-512-0	03	1	0601-	●	●
21	06.166 NIPPLE; GREASE,KING PIN 08.984 M6 STRAIGHT	9-09031-006-0	04	1	0211-0607	●	●
21	06.166 NIPPLE; GREASE,KING PIN 05.601 M6 STRAIGHT IDN	0-90301-406-0	04	1	0608-	●	●
22	06.203 PIN; KING,FRT AXLE	8-94360-792-1	02	1	0211-	●	●
25	06.210 BEARING; THRUST,KING PIN 06.021 OD=54 ID=30.2 T=13.8	8-94248-883-3	01	1	0211-	●	●
25	06.210 BEARING; THRUST,KING PIN OD=51.6 ID=30.5 T=15.6	8-97141-943-1	01	1	0211-	●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.50	8-94162-574-0	AR	1	0211-	●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.55	8-94162-575-0	AR	1	0211-	●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.60	8-94162-576-0	AR	1	0211-	●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.65	8-94162-577-0	AR	1	0211-	●	●
26	06.022 SHIM; KING PIN,BRG 05.460 (B) T=1.95	8-94168-490-0	01	1	0211-1404	●	●
26	06.022 SHIM; KING PIN,BRG 05.460 (B) T=1.95	8-94168-490-0	01	1	1405-	●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.70	8-94174-352-0	AR	1	0211-	●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.80	8-94174-354-0	AR	1	0211-	●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.90	8-94174-356-0	AR	1	0211-	●	●
31	07.347 PIN; S/ABS,LWR	8-97141-944-0	02	1	0211-	●	●
32	06.216 BOLT; KEY,KING PIN	8-97141-945-2	02	1	0211-	●	●
33	06.216 NUT; KEY BOLT 09.011 M10	9-09110-410-0	02	1	0211-0512	●	●
33	06.216 NUT; KEY BOLT 00.833 M10	0-91110-510-0	02	1	0601-	●	●
34	06.216 WASHER; LK,KEY BOLT 00.002 ID=10.2	9-09150-510-0	02	1	0211-0603	●	●
34	06.216 WASHER; LK,KEY BOLT 06.606 ID=10.2	0-91510-510-0	02	1	0604-	●	●
36	06.103 ARM; KNUCKLE	8-97204-075-5	01	1	0211-	●	●
44	06.225 COVER; KING PIN OD=36	8-94248-675-1	02	1	0211-0611	●	●
44	06.225 COVER; KING PIN OD=36	8-97360-023-0	02	1	0612-	●	●
47	06.225 WASHER; PL,COVER,KING PIN 06.896 ID=10.5	9-09164-510-0	02	1	0211-0402	●	●
48	06.225 BOLT; COVER 04.642 M10X16	0-20801-016-0	02	1	0211-0402	●	●
48	06.225 BOLT; COVER 04.640 M10X12 FLANGE	0-28081-012-0	02	1	0403-0512	●	●
48	06.225 BOLT; COVER M10X12 FLANGE	0-28051-012-0	02	1	0601-	●	●
49	06.225 CAP; KNUCKLE	8-97261-587-0	02	1	0211-0611	●	●
49	06.225 CAP; KNUCKLE	8-97360-024-0	02	1	0612-	●	●
58	06.103 ARM; TIE ROD	8-97138-303-1	01	1	0211-	●	●
59	06.104 NUT; TIE ROD ARM	8-94247-724-0	02	1	0211-0611	●	●
59	06.104 NUT; TIE ROD ARM	8-97360-123-0	02	1	0612-	●	●
61	06.233 ROD END; TIE ROD	8-97142-100-1	01	1	0211-	●	●
61	06.233 ROD END; TIE ROD	8-97142-101-1	01	1	0211-	●	●
66	06.234 NUT; TIE ROD END 08.917 M16 SLOTTED	9-99116-516-0	02	1	0211-0605	●	●
66	06.234 NUT; TIE ROD END M16 SLOTTED	0-91116-516-0	02	1	0606-1204	●	●
66	06.234 NUT; TIE ROD END 06.216 M16 SLOTTED	8-98049-689-0	02	1	1205-	●	●
69	06.255 PIN; SPLIT,TIE ROD END 01.271 OD=3.7 L=20	9-08114-020-0	02	1	0211-0606	●	●
69	06.255 PIN; SPLIT,TIE ROD END OD=3.7 L=20	0-81124-020-0	02	1	0607-	●	●
70	06.234 NUT; TIE ROD END M20 LH THREAD	8-94254-726-0	01	1	0211-	●	●
70	06.234 NUT; TIE ROD END M20	9-99111-420-0	01	1	0211-0512	●	●
70	06.234 NUT; TIE ROD END M20	0-91111-520-0	01	1	0601-0610	●	●
70	06.234 NUT; TIE ROD END M20 RH THREAD	8-98043-530-0	01	1	0611-	●	●
81	06.230 ROD; TIE	8-97142-023-0	01	1	0211-	●	●
