4-01 — PROPELLER SHAFT (#78954) — 212 parça

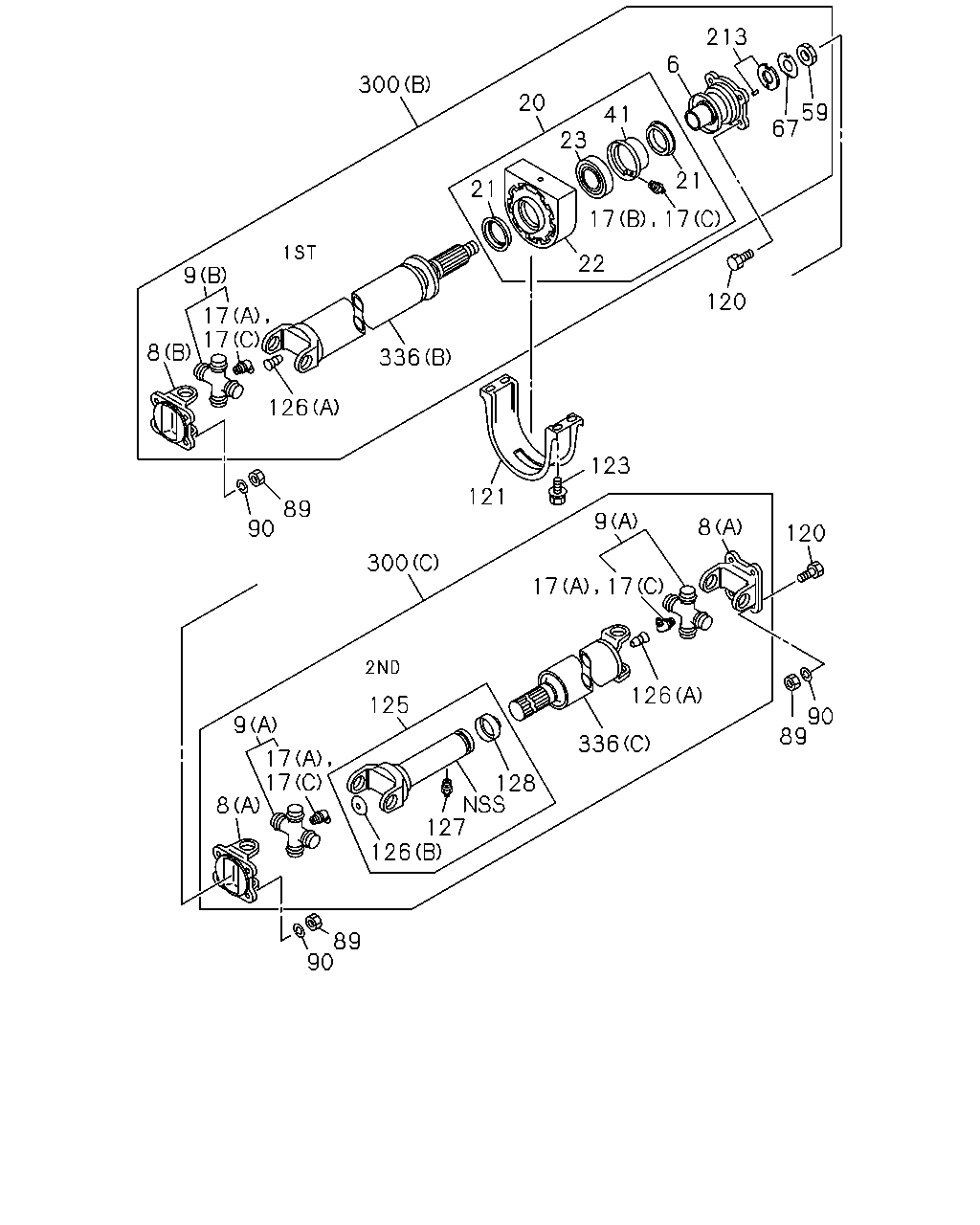

213 6 300 20 59 67 41 23 21 21 17 17 22 9 120 17 17 8 336 126 123 121 89 90 9 8 120 300 17 17 126 125 90 89 9 336 17 17 128 127 126 8 89 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	05.600 COUPLING ASM; DRIVER,PROP SHAFT M/T MYY5T(RSM)	8-97036-123-0	01	1	0211-	●
6	05.600 COUPLING ASM; DRIVER,PROP SHAFT M/T MSB5M(RM5) IDN	8-94258-907-1	01	1	0801-	●
8	05.544 YOKE; FLANGE,PROP SHAFT (A)	8-97225-254-0	02	1	0211-0301	●
8	05.544 YOKE; FLANGE,PROP SHAFT M/T MYY5T(RSM) (A) D=80	8-97322-663-0	02	1	0211-0302		●
8	05.544 YOKE; FLANGE,PROP SHAFT M/T MYY5T(RSM) (A) D=80	8-97322-663-0	02	1	0303-	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT M/T MYY5T(RSM) (B) D=80	8-97322-663-0	01	1	0211-	●
8	05.544 YOKE; FLANGE,PROP SHAFT M/T MSB5M(RM5) (A) IDN	8-97211-116-0	02	1	0610-0712		●
8	05.544 YOKE; FLANGE,PROP SHAFT M/T MSB5M(RM5) (A) IDN	8-97211-116-0	02	1	0801-	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT M/T MSB5M(RM5) (B) IDN	8-97211-116-0	01	1	0801-	●
9	05.548 JOURNAL ASM; PROP SHAFT (A)	8-97080-505-0	02	1	0211-0301	●
9	05.548 JOURNAL ASM; PROP SHAFT M/T MYY5T(RSM) (A) IDN	8-97322-749-0	02	1	0211-0302		●
9	05.548 JOURNAL ASM; PROP SHAFT M/T MYY5T(RSM) (A) IDN	8-97322-749-0	02	1	0303-0612	●	●
9	05.548 JOURNAL ASM; PROP SHAFT M/T MYY5T(RSM) (A) IDN	8-98033-605-1	02	1	0701-	●	●
9	05.548 JOURNAL ASM; PROP SHAFT M/T MYY5T(RSM) (B) IDN	8-97322-749-0	01	1	0211-0612	●
9	05.548 JOURNAL ASM; PROP SHAFT M/T MYY5T(RSM) (B) IDN	8-98033-605-1	01	1	0701-	●
9	05.548 JOURNAL ASM; PROP SHAFT M/T MSB5M(RM5) (A) IDN	8-97211-135-0	02	1	0610-0712		●
9	05.548 JOURNAL ASM; PROP SHAFT M/T MSB5M(RM5) (A) IDN	8-97211-135-0	02	1	0801-	●	●
9	05.548 JOURNAL ASM; PROP SHAFT M/T MSB5M(RM5) (B) IDN	8-97211-135-0	01	1	0801-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT M/T MYY5T(RSM) 05.556 (A) PT1/8 ELBOW	9-09031-210-0	02	1	0211-0301	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT M/T MYY5T(RSM) 05.556 (A) PT1/8 ELBOW	9-09031-210-0	02	1	0302-0302		●
17	05.601 NIPPLE; GREASE,PROP SHAFT M/T MYY5T(RSM) 05.556 (A) PT1/8 ELBOW	9-09031-210-0	02	1	0303-0512	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT M/T MYY5T(RSM) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	0601-	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT M/T MYY5T(RSM) 08.984 (B) M6 STRAIGHT	9-09031-006-0	01	1	0211-0607	●
17	05.601 NIPPLE; GREASE,PROP SHAFT M/T MYY5T(RSM) (B) M6 STRAIGHT IDN	0-90301-406-0	01	1	0608-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT M/T MYY5T(RSM) 05.556 (A) PT1/8 ELBOW	9-09031-210-0	01	1	0211-0512	●
17	05.601 NIPPLE; GREASE,PROP SHAFT M/T MYY5T(RSM) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	0601-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT M/T MSB5M(RM5) (C) M6 STRAIGHT IDN	0-90301-406-0	02	1	0610-0712		●
17	05.601 NIPPLE; GREASE,PROP SHAFT M/T MSB5M(RM5) (C) M6 STRAIGHT IDN	0-90301-406-0	02	1	0801-	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT M/T MSB5M(RM5) (C) M6 STRAIGHT IDN	0-90301-406-0	02	1	0801-	●
20	05.600 BEARING ASM; CTR,PROP SHAFT M/T MYY5T(RSM) W/NIPPLE;GREASE DOWN SIDE	5-37510-007-1	01	1	0211-0702	●
20	05.600 BEARING ASM; CTR,PROP SHAFT M/T MYY5T(RSM)	8-98020-880-0	01	1	0703-	●
20	05.600 BEARING ASM; CTR,PROP SHAFT M/T MSB5M(RM5) W/NIPPLE;GREASE DOWN SIDE IDN	5-37510-008-0	01	1	0801-	●
21	05.590 SEAL; OIL,CENTER BRG M/T MYY5T(RSM) 05.601 ID=49	5-09625-067-1	02	1	0211-	●
21	05.590 SEAL; OIL,CENTER BRG M/T MSB5M(RM5) ID=39 IDN	5-09625-063-0	02	1	0801-	●
22	05.600 RUBBER; CUSHION,CENTER BRG,1ST M/T MYY5T(RSM)	5-37516-005-2	01	1	0211-0612	●
22	05.600 RUBBER; CUSHION,CENTER BRG,1ST M/T MYY5T(RSM)	8-98020-875-0	01	1	0701-	●
22	05.600 RUBBER; CUSHION,CENTER BRG,1ST M/T MSB5M(RM5) IDN	5-37516-006-1	01	1	0801-	●
23	05.600 BEARING; CENTER,PROP SHAFT M/T MYY5T(RSM) OD=80	5-09800-068-0	01	1	0211-	●
23	05.600 BEARING; CENTER,PROP SHAFT M/T MSB5M(RM5) D=75 IDN	5-09800-067-0	01	1	0801-	●
41	05.601 COVER; CENTER BRG,PROP SHAFT M/T MYY5T(RSM)	5-37512-004-0	01	1	0211-0612	●
41	05.601 COVER; CENTER BRG,PROP SHAFT M/T MYY5T(RSM)	8-98020-795-0	01	1	0701-	●
41	05.601 COVER; CENTER BRG,PROP SHAFT M/T MSB5M(RM5) IDN	5-37512-005-0	01	1	0801-	●
59	05.586 NUT; RET TO SUPPORT M/T MYY5T(RSM) M30	8-97160-857-0	01	1	0211-0303	●
59	05.586 NUT; RET TO SUPPORT M/T MYY5T(RSM) 04.412 M27 H=25	8-97253-126-0	01	1	0304-0612	●
59	05.586 NUT; RET TO SUPPORT M/T MYY5T(RSM) 04.525 M27 H=25	8-97360-410-0	01	1	0701-	●
59	05.586 NUT; RET TO SUPPORT M/T MSB5M(RM5) ID=20 IDN	9-09841-038-0	01	1	0801-	●
67	05.586 WASHER; PROP SHAFT TO COUPLING D M/T MSB5M(RM5) ID=20.5 OD=47 T=1.2	9-09855-214-0	01	1	0801-	●
89	05.586 NUT; YOKE TO RR AXLE 4HF1-S ENG(RLS) M12	8-94477-841-0	08	1	0211-0507		●
89	05.586 NUT; YOKE TO RR AXLE 4HF1-N ENG(RJZ) M12	8-94477-841-0	08	1	0508-0610		●
89	05.586 NUT; YOKE TO RR AXLE 4HF1-N ENG(RJZ) M12	8-97365-450-1	08	1	0611-		●
89	05.586 NUT; YOKE TO RR AXLE 4HG1 ENG(RJH),4HF1-S ENG(RLS) M12	8-94477-841-0	12	1	0211-0507	●
89	05.586 NUT; YOKE TO RR AXLE 4HG1 ENG(RJH),4HF1-N ENG(RJZ) M12	8-94477-841-0	12	1	0508-0609	●
89	05.586 NUT; YOKE TO RR AXLE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) M12	8-94477-841-0	12	1	0610-0610	●
89	05.586 NUT; YOKE TO RR AXLE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) M12	8-97365-450-1	12	1	0611-	●
89	05.586 NUT; YOKE TO RR AXLE 4JB1-TC ENG(RDT) M10	8-94159-009-1	08	1	0610-0610		●
89	05.586 NUT; YOKE TO RR AXLE 4JB1-TC ENG(RDT) M10 IDN	8-98056-949-0	08	1	0611-		●
89	05.586 NUT; YOKE TO RR AXLE 4JB1-TC ENG(RDT) M10 IDN	8-98056-949-0	12	1	0801-	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4HF1-S ENG(RLS) 00.002 ID=12.2	9-09150-812-0	08	1	0211-0507		●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4HF1-N ENG(RJZ) 00.002 ID=12.2	9-09150-812-0	08	1	0508-0603		●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4HF1-N ENG(RJZ) 07.347 ID=12.2	0-91510-812-0	08	1	0604-		●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4HG1 ENG(RJH),4HF1-S ENG(RLS) 00.002 ID=12.2	9-09150-812-0	12	1	0211-0507	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 00.002 ID=12.2	9-09150-812-0	12	1	0508-0603	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 07.347 ID=12.2	0-91510-812-0	12	1	0604-0609	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 07.347 ID=12.2	0-91510-812-0	12	1	0610-	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4JB1-TC ENG(RDT) 00.002 ID=10.2 IDN	0-91510-610-0	08	1	0610-		●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4JB1-TC ENG(RDT) 00.002 ID=10.2 IDN	0-91510-610-0	12	1	0801-	●
120	05.586 BOLT; YOKE TO RR AXLE 4HF1-S ENG(RLS) M12X35	8-94477-842-0	04	1	0211-0507		●
120	05.586 BOLT; YOKE TO RR AXLE 4HF1-N ENG(RJZ) M12X35	8-94477-842-0	04	1	0508-0610		●
120	05.586 BOLT; YOKE TO RR AXLE 4HF1-N ENG(RJZ) M12X35	8-97365-451-1	04	1	0611-		●
120	05.586 BOLT; YOKE TO RR AXLE 4HG1 ENG(RJH),4HF1-S ENG(RLS) M12X35	8-94477-842-0	08	1	0211-0507	●
120	05.586 BOLT; YOKE TO RR AXLE 4HG1 ENG(RJH),4HF1-N ENG(RJZ) M12X35	8-94477-842-0	08	1	0508-0609	●
120	05.586 BOLT; YOKE TO RR AXLE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) M12X35	8-94477-842-0	08	1	0610-0610	●
120	05.586 BOLT; YOKE TO RR AXLE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) M12X35	8-97365-451-1	08	1	0611-	●
120	05.586 BOLT; YOKE TO RR AXLE 4JB1-TC ENG(RDT) M10X29	8-97168-458-1	04	1	0610-0610		●
120	05.586 BOLT; YOKE TO RR AXLE 4JB1-TC ENG(RDT) M10X29 IDN	8-98056-948-0	04	1	0611-		●
120	05.586 BOLT; YOKE TO RR AXLE 4JB1-TC ENG(RDT) M10X29 IDN	8-98056-948-0	08	1	0801-	●
121	05.598 RETAINER; CUSHION RUBBER	8-97035-623-1	01	1	0211-	●
123	05.601 BOLT; RET 01.252 M10X25 W/LK&PL WASHER	0-50141-025-0	04	1	0211-0512	●
123	05.601 BOLT; RET M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	0601-	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT L=191	8-97036-126-1	01	1	0211-0301	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT M/T MYY5T(RSM) L=183	8-97327-979-0	01	1	0211-0302		●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT M/T MYY5T(RSM) L=183 IDN	8-97327-979-1	01	1	0303-	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT M/T MSB5M(RM5) L=177 IDN	8-97211-131-0	01	1	0610-0712		●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT M/T MSB5M(RM5) L=177 IDN	8-97211-131-0	01	1	0801-	●	●
126	05.556 PLUG; SPLINED YOKE M/T MYY5T(RSM) (B)	8-94366-900-0	01	1	0211-0301	●	●
126	05.556 PLUG; SPLINED YOKE M/T MYY5T(RSM) (B)	8-94366-900-0	01	1	0302-0302		●
126	05.556 PLUG; SPLINED YOKE M/T MYY5T(RSM) (B)	8-94366-900-0	01	1	0303-	●	●
126	05.556 PLUG; SPLINED YOKE M/T MYY5T(RSM) (A) IDN	1-09600-023-0	01	1	0211-	●	●
126	05.556 PLUG; SPLINED YOKE M/T MYY5T(RSM) (A) IDN	1-09600-023-0	01	1	0211-	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE M/T MYY5T(RSM) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0211-0301	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE M/T MYY5T(RSM) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0302-0302		●
127	05.586 NIPPLE; GREASE,SPLINED YOKE M/T MYY5T(RSM) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0303-0607	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE M/T MYY5T(RSM) 05.601 M6 STRAIGHT IDN	0-90301-406-0	01	1	0608-0609	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 05.601 M6 STRAIGHT IDN	0-90301-406-0	01	1	0610-	●	●
128	05.586 SEAL; SLEEVE M/T MYY5T(RSM)	8-97145-746-0	01	1	0211-0301	●	●
128	05.586 SEAL; SLEEVE M/T MYY5T(RSM)	8-97145-746-0	01	1	0302-0302		●
128	05.586 SEAL; SLEEVE M/T MYY5T(RSM)	8-97145-746-0	01	1	0303-	●	●
128	05.586 SEAL; SLEEVE M/T MSB5M(RM5) 05.545 IDN	8-97020-597-1	01	1	0610-0712		●
128	05.586 SEAL; SLEEVE M/T MSB5M(RM5) 05.545 IDN	8-97020-597-1	01	1	0801-	●	●
213	05.586 WASHER ASM; PROP SHAFT TO COUPLI M/T MSB5M(RM5)	9-09855-212-0	01	1	0801-	●
300	05.544 SHAFT ASM; PROP,RR (C) L=1050 IDN	8-97206-688-0	01	1	0211-0301	●
300	05.544 SHAFT ASM; PROP,RR 4HG1 ENG(RJH),4HF1-S ENG(RLS) (C) L=1090 IDN	8-97364-108-2	01	1	0302-0507	●
300	05.544 SHAFT ASM; PROP,RR 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (C) L=1090 IDN	8-97364-108-3	01	1	0508-0609	●
300	05.544 SHAFT ASM; PROP,RR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (C) L=1090 IDN	8-97364-108-3	01	1	0610-	●
300	05.544 SHAFT ASM; PROP,RR M/T MYY5T(RSM) (A) L=984 IDN	8-97308-055-3	01	1	0211-		●
300	05.544 SHAFT ASM; PROP,RR M/T MYY5T(RSM) (B) L=802 IDN	8-97308-048-4	01	1	0211-	●
300	05.544 SHAFT ASM; PROP,RR M/T MSB5M(RM5) (A) L=1134 IDN	8-98002-497-0	01	1	0610-		●
300	05.544 SHAFT ASM; PROP,RR M/T MSB5M(RM5) (C) L=1044 IDN	8-98002-488-0	01	1	0801-	●
300	05.544 SHAFT ASM; PROP,RR M/T MSB5M(RM5) (B) L=914 IDN	8-97211-669-0	01	1	0801-	●
336	05.600 TUBE; PROP SHAFT (C)	8-97207-012-0	01	1	0211-0301	●
336	05.600 TUBE; PROP SHAFT 4HG1 ENG(RJH),4HF1-S ENG(RLS) (C)	8-97364-419-2	01	1	0302-0507	●
336	05.600 TUBE; PROP SHAFT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (C)	8-97364-419-2	01	1	0508-0609	●
336	05.600 TUBE; PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (C)	8-97364-419-2	01	1	0610-	●
336	05.600 TUBE; PROP SHAFT M/T MYY5T(RSM) (A)	8-97327-986-2	01	1	0211-		●
336	05.600 TUBE; PROP SHAFT M/T MYY5T(RSM) (B)	8-97332-526-2	01	1	0211-	●
336	05.600 TUBE; PROP SHAFT M/T MSB5M(RM5) (A)	8-97213-161-0	01	1	0610-		●
336	05.600 TUBE; PROP SHAFT M/T MSB5M(RM5) (C)	8-97213-167-0	01	1	0801-	●
336	05.600 TUBE; PROP SHAFT M/T MSB5M(RM5) (B)	8-97213-164-0	01	1	0801-	●

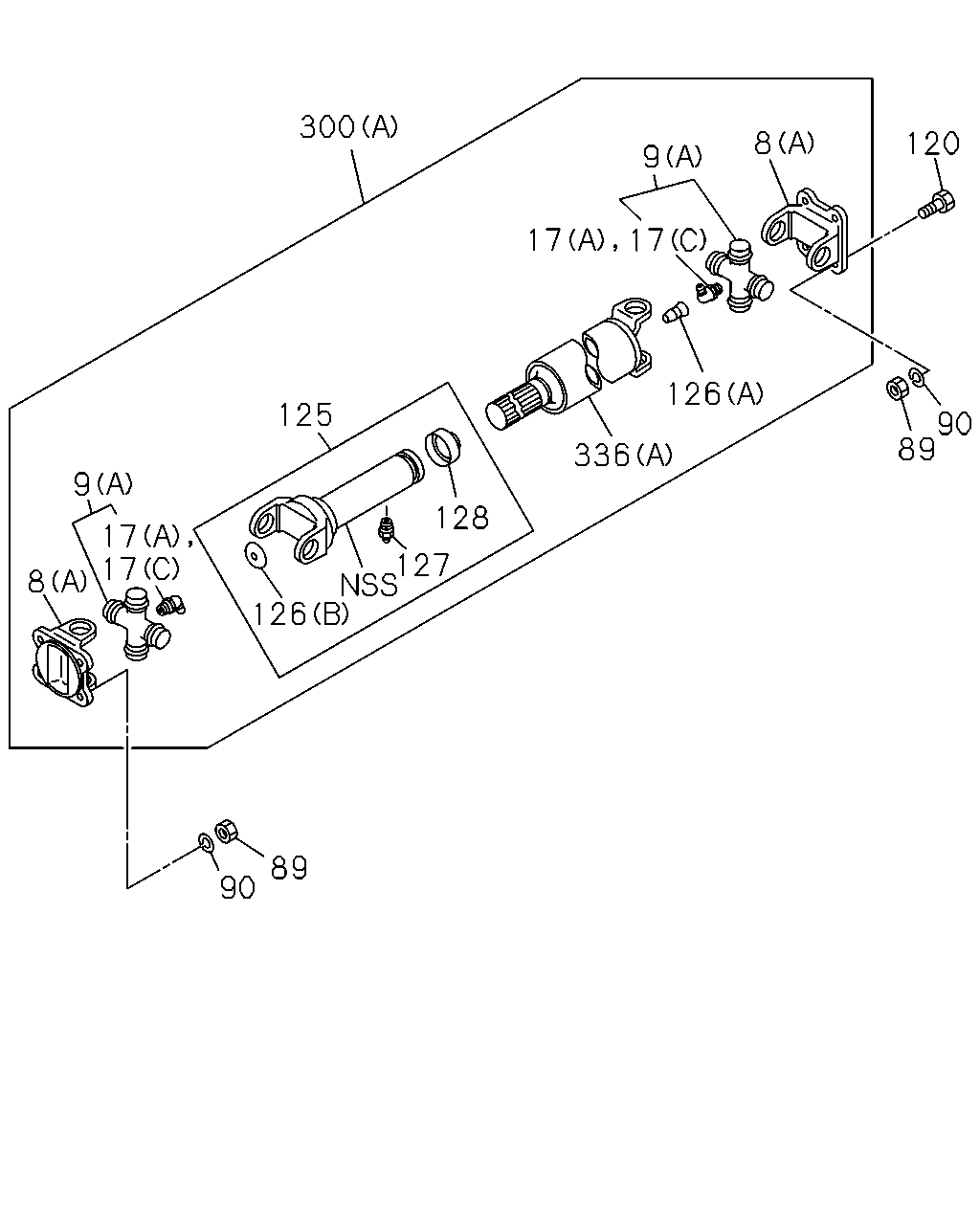

300 8 120 9 17 17 126 125 90 89 336 9 128 17 17 127 126 8 89 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	05.544 YOKE; FLANGE,PROP SHAFT (A)	8-97225-254-0	02	1	0211-0301	●
8	05.544 YOKE; FLANGE,PROP SHAFT M/T MYY5T(RSM) (A) D=80	8-97322-663-0	02	1	0211-0302		●
8	05.544 YOKE; FLANGE,PROP SHAFT M/T MYY5T(RSM) (A) D=80	8-97322-663-0	02	1	0303-	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT M/T MYY5T(RSM) (B) D=80	8-97322-663-0	01	1	0211-	●
8	05.544 YOKE; FLANGE,PROP SHAFT M/T MSB5M(RM5) (A) IDN	8-97211-116-0	02	1	0610-0712		●
8	05.544 YOKE; FLANGE,PROP SHAFT M/T MSB5M(RM5) (A) IDN	8-97211-116-0	02	1	0801-	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT M/T MSB5M(RM5) (B) IDN	8-97211-116-0	01	1	0801-	●
9	05.548 JOURNAL ASM; PROP SHAFT (A)	8-97080-505-0	02	1	0211-0301	●
9	05.548 JOURNAL ASM; PROP SHAFT M/T MYY5T(RSM) (A) IDN	8-97322-749-0	02	1	0211-0302		●
9	05.548 JOURNAL ASM; PROP SHAFT M/T MYY5T(RSM) (A) IDN	8-97322-749-0	02	1	0303-0612	●	●
9	05.548 JOURNAL ASM; PROP SHAFT M/T MYY5T(RSM) (A) IDN	8-98033-605-1	02	1	0701-	●	●
9	05.548 JOURNAL ASM; PROP SHAFT M/T MYY5T(RSM) (B) IDN	8-97322-749-0	01	1	0211-0612	●
9	05.548 JOURNAL ASM; PROP SHAFT M/T MYY5T(RSM) (B) IDN	8-98033-605-1	01	1	0701-	●
9	05.548 JOURNAL ASM; PROP SHAFT M/T MSB5M(RM5) (A) IDN	8-97211-135-0	02	1	0610-0712		●
9	05.548 JOURNAL ASM; PROP SHAFT M/T MSB5M(RM5) (A) IDN	8-97211-135-0	02	1	0801-	●	●
9	05.548 JOURNAL ASM; PROP SHAFT M/T MSB5M(RM5) (B) IDN	8-97211-135-0	01	1	0801-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT M/T MYY5T(RSM) 05.556 (A) PT1/8 ELBOW	9-09031-210-0	02	1	0211-0301	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT M/T MYY5T(RSM) 05.556 (A) PT1/8 ELBOW	9-09031-210-0	02	1	0302-0302		●
17	05.601 NIPPLE; GREASE,PROP SHAFT M/T MYY5T(RSM) 05.556 (A) PT1/8 ELBOW	9-09031-210-0	02	1	0303-0512	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT M/T MYY5T(RSM) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	0601-	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT M/T MYY5T(RSM) 08.984 (B) M6 STRAIGHT	9-09031-006-0	01	1	0211-0607	●
17	05.601 NIPPLE; GREASE,PROP SHAFT M/T MYY5T(RSM) (B) M6 STRAIGHT IDN	0-90301-406-0	01	1	0608-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT M/T MYY5T(RSM) 05.556 (A) PT1/8 ELBOW	9-09031-210-0	01	1	0211-0512	●
17	05.601 NIPPLE; GREASE,PROP SHAFT M/T MYY5T(RSM) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	0601-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT M/T MSB5M(RM5) (C) M6 STRAIGHT IDN	0-90301-406-0	02	1	0610-0712		●
17	05.601 NIPPLE; GREASE,PROP SHAFT M/T MSB5M(RM5) (C) M6 STRAIGHT IDN	0-90301-406-0	02	1	0801-	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT M/T MSB5M(RM5) (C) M6 STRAIGHT IDN	0-90301-406-0	02	1	0801-	●
89	05.586 NUT; YOKE TO RR AXLE 4HF1-S ENG(RLS) M12	8-94477-841-0	08	1	0211-0507		●
89	05.586 NUT; YOKE TO RR AXLE 4HF1-N ENG(RJZ) M12	8-94477-841-0	08	1	0508-0610		●
89	05.586 NUT; YOKE TO RR AXLE 4HF1-N ENG(RJZ) M12	8-97365-450-1	08	1	0611-		●
89	05.586 NUT; YOKE TO RR AXLE 4HG1 ENG(RJH),4HF1-S ENG(RLS) M12	8-94477-841-0	12	1	0211-0507	●
89	05.586 NUT; YOKE TO RR AXLE 4HG1 ENG(RJH),4HF1-N ENG(RJZ) M12	8-94477-841-0	12	1	0508-0609	●
89	05.586 NUT; YOKE TO RR AXLE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) M12	8-94477-841-0	12	1	0610-0610	●
89	05.586 NUT; YOKE TO RR AXLE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) M12	8-97365-450-1	12	1	0611-	●
89	05.586 NUT; YOKE TO RR AXLE 4JB1-TC ENG(RDT) M10	8-94159-009-1	08	1	0610-0610		●
89	05.586 NUT; YOKE TO RR AXLE 4JB1-TC ENG(RDT) M10 IDN	8-98056-949-0	08	1	0611-		●
89	05.586 NUT; YOKE TO RR AXLE 4JB1-TC ENG(RDT) M10 IDN	8-98056-949-0	12	1	0801-	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4HF1-S ENG(RLS) 00.002 ID=12.2	9-09150-812-0	08	1	0211-0507		●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4HF1-N ENG(RJZ) 00.002 ID=12.2	9-09150-812-0	08	1	0508-0603		●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4HF1-N ENG(RJZ) 07.347 ID=12.2	0-91510-812-0	08	1	0604-		●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4HG1 ENG(RJH),4HF1-S ENG(RLS) 00.002 ID=12.2	9-09150-812-0	12	1	0211-0507	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 00.002 ID=12.2	9-09150-812-0	12	1	0508-0603	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 07.347 ID=12.2	0-91510-812-0	12	1	0604-0609	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 07.347 ID=12.2	0-91510-812-0	12	1	0610-	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4JB1-TC ENG(RDT) 00.002 ID=10.2 IDN	0-91510-610-0	08	1	0610-		●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4JB1-TC ENG(RDT) 00.002 ID=10.2 IDN	0-91510-610-0	12	1	0801-	●
120	05.586 BOLT; YOKE TO RR AXLE 4HF1-S ENG(RLS) M12X35	8-94477-842-0	04	1	0211-0507		●
120	05.586 BOLT; YOKE TO RR AXLE 4HF1-N ENG(RJZ) M12X35	8-94477-842-0	04	1	0508-0610		●
120	05.586 BOLT; YOKE TO RR AXLE 4HF1-N ENG(RJZ) M12X35	8-97365-451-1	04	1	0611-		●
120	05.586 BOLT; YOKE TO RR AXLE 4HG1 ENG(RJH),4HF1-S ENG(RLS) M12X35	8-94477-842-0	08	1	0211-0507	●
120	05.586 BOLT; YOKE TO RR AXLE 4HG1 ENG(RJH),4HF1-N ENG(RJZ) M12X35	8-94477-842-0	08	1	0508-0609	●
120	05.586 BOLT; YOKE TO RR AXLE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) M12X35	8-94477-842-0	08	1	0610-0610	●
120	05.586 BOLT; YOKE TO RR AXLE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) M12X35	8-97365-451-1	08	1	0611-	●
120	05.586 BOLT; YOKE TO RR AXLE 4JB1-TC ENG(RDT) M10X29	8-97168-458-1	04	1	0610-0610		●
120	05.586 BOLT; YOKE TO RR AXLE 4JB1-TC ENG(RDT) M10X29 IDN	8-98056-948-0	04	1	0611-		●
120	05.586 BOLT; YOKE TO RR AXLE 4JB1-TC ENG(RDT) M10X29 IDN	8-98056-948-0	08	1	0801-	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT L=191	8-97036-126-1	01	1	0211-0301	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT M/T MYY5T(RSM) L=183	8-97327-979-0	01	1	0211-0302		●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT M/T MYY5T(RSM) L=183 IDN	8-97327-979-1	01	1	0303-	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT M/T MSB5M(RM5) L=177 IDN	8-97211-131-0	01	1	0610-0712		●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT M/T MSB5M(RM5) L=177 IDN	8-97211-131-0	01	1	0801-	●	●
126	05.556 PLUG; SPLINED YOKE M/T MYY5T(RSM) (B)	8-94366-900-0	01	1	0211-0301	●	●
126	05.556 PLUG; SPLINED YOKE M/T MYY5T(RSM) (B)	8-94366-900-0	01	1	0302-0302		●
126	05.556 PLUG; SPLINED YOKE M/T MYY5T(RSM) (B)	8-94366-900-0	01	1	0303-	●	●
126	05.556 PLUG; SPLINED YOKE M/T MYY5T(RSM) (A) IDN	1-09600-023-0	01	1	0211-	●	●
126	05.556 PLUG; SPLINED YOKE M/T MYY5T(RSM) (A) IDN	1-09600-023-0	01	1	0211-	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE M/T MYY5T(RSM) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0211-0301	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE M/T MYY5T(RSM) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0302-0302		●
127	05.586 NIPPLE; GREASE,SPLINED YOKE M/T MYY5T(RSM) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0303-0607	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE M/T MYY5T(RSM) 05.601 M6 STRAIGHT IDN	0-90301-406-0	01	1	0608-0609	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 05.601 M6 STRAIGHT IDN	0-90301-406-0	01	1	0610-	●	●
128	05.586 SEAL; SLEEVE M/T MYY5T(RSM)	8-97145-746-0	01	1	0211-0301	●	●
128	05.586 SEAL; SLEEVE M/T MYY5T(RSM)	8-97145-746-0	01	1	0302-0302		●
128	05.586 SEAL; SLEEVE M/T MYY5T(RSM)	8-97145-746-0	01	1	0303-	●	●
128	05.586 SEAL; SLEEVE M/T MSB5M(RM5) 05.545 IDN	8-97020-597-1	01	1	0610-0712		●
128	05.586 SEAL; SLEEVE M/T MSB5M(RM5) 05.545 IDN	8-97020-597-1	01	1	0801-	●	●
300	05.544 SHAFT ASM; PROP,RR (C) L=1050 IDN	8-97206-688-0	01	1	0211-0301	●
300	05.544 SHAFT ASM; PROP,RR 4HG1 ENG(RJH),4HF1-S ENG(RLS) (C) L=1090 IDN	8-97364-108-2	01	1	0302-0507	●
300	05.544 SHAFT ASM; PROP,RR 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (C) L=1090 IDN	8-97364-108-3	01	1	0508-0609	●
300	05.544 SHAFT ASM; PROP,RR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (C) L=1090 IDN	8-97364-108-3	01	1	0610-	●
300	05.544 SHAFT ASM; PROP,RR M/T MYY5T(RSM) (A) L=984 IDN	8-97308-055-3	01	1	0211-		●
300	05.544 SHAFT ASM; PROP,RR M/T MYY5T(RSM) (B) L=802 IDN	8-97308-048-4	01	1	0211-	●
300	05.544 SHAFT ASM; PROP,RR M/T MSB5M(RM5) (A) L=1134 IDN	8-98002-497-0	01	1	0610-		●
300	05.544 SHAFT ASM; PROP,RR M/T MSB5M(RM5) (C) L=1044 IDN	8-98002-488-0	01	1	0801-	●
300	05.544 SHAFT ASM; PROP,RR M/T MSB5M(RM5) (B) L=914 IDN	8-97211-669-0	01	1	0801-	●
336	05.600 TUBE; PROP SHAFT (C)	8-97207-012-0	01	1	0211-0301	●
336	05.600 TUBE; PROP SHAFT 4HG1 ENG(RJH),4HF1-S ENG(RLS) (C)	8-97364-419-2	01	1	0302-0507	●
336	05.600 TUBE; PROP SHAFT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (C)	8-97364-419-2	01	1	0508-0609	●
336	05.600 TUBE; PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (C)	8-97364-419-2	01	1	0610-	●
336	05.600 TUBE; PROP SHAFT M/T MYY5T(RSM) (A)	8-97327-986-2	01	1	0211-		●
336	05.600 TUBE; PROP SHAFT M/T MYY5T(RSM) (B)	8-97332-526-2	01	1	0211-	●
336	05.600 TUBE; PROP SHAFT M/T MSB5M(RM5) (A)	8-97213-161-0	01	1	0610-		●
336	05.600 TUBE; PROP SHAFT M/T MSB5M(RM5) (C)	8-97213-167-0	01	1	0801-	●
336	05.600 TUBE; PROP SHAFT M/T MSB5M(RM5) (B)	8-97213-164-0	01	1	0801-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
