Sayfa 3-60 - Isuzu EPC

3-60 — BRAKE PIPING; VACUUM (#78953) — 285 parça

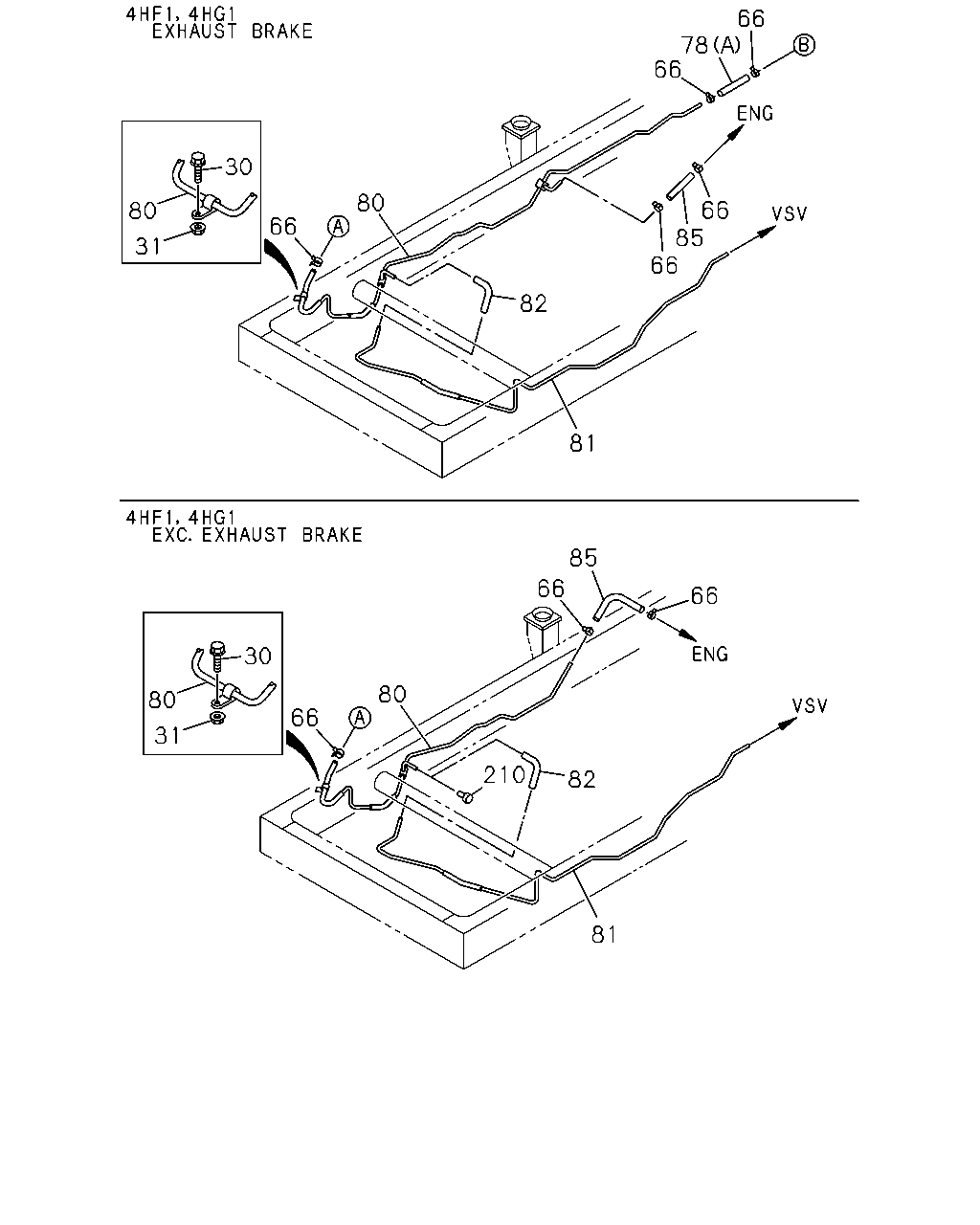

66 78 66 30 80 66 85 66 80 66 31 82 81 85 66 66 30 80 80 66 31 210 82 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	04.686 BOLT; CLIP,VAC PIPE 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0211-0512	●	●
30	04.686 BOLT; CLIP,VAC PIPE 03.162 M6X20 FLANGE IDN	0-28650-620-0	01	1	0601-	●	●
31	04.686 NUT; CLIP,VAC PIPE 04.594 M6 FLANGE	0-91150-106-0	01	1	0211-0602	●	●
31	04.686 NUT; CLIP,VAC PIPE 01.062 M6 FLANGE IDN	0-91180-106-0	01	1	0603-	●	●
66	04.930 CLIP; VAC HOSE,M/VAC EXHAUST BRAKE<NF8> ID=16 IDN	8-94238-568-0	05	1	0211-0911	●	●
66	04.930 CLIP; VAC HOSE,M/VAC EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	05	1	0912-	●	●
66	04.930 CLIP; VAC HOSE,M/VAC EXC. EXHAUST BRAKE<NF8> ID=16 IDN	8-94238-568-0	03	1	0211-0911	●	●
66	04.930 CLIP; VAC HOSE,M/VAC EXC. EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	03	1	0912-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> 03.630 (B) L=230 SERVICED BY L=3000	0-08258-300-0	01	1	0211-0303	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> 03.630 (B) L=230 SERVICED BY L=3000	0-08258-300-0	01	1	0211-0303		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> 03.630 (B) L=230 SERVICED BY L=3000	0-08258-300-0	01	1	0304-0507		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 03.630 (B) L=230 SERVICED BY L=3000	0-08258-300-0	01	1	0508-0609		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 03.630 (B) L=230 SERVICED BY L=3000	0-08258-300-0	01	1	0610-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> 03.630 (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0211-0507	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> 03.630 (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0211-0507		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 03.630 (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0508-0609	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 03.630 (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0508-0609		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 03.630 (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0610-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 03.630 (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0610-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> 03.630 (B) L=350 SERVICED BY L=3000	0-08258-300-0	01	1	0304-0507	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 03.630 (B) L=350 SERVICED BY L=3000	0-08258-300-0	01	1	0508-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.630 (A) L=160 SERVICED BY L=3000	0-08258-300-0	01	1	0610-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.630 (B) L=400 SERVICED BY L=3000	0-08258-300-0	01	1	0610-0612	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.630 (B) L=490 SERVICED BY L=3000	0-08258-300-0	01	1	0701-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.630 (A) L=110 SERVICED BY L=3000	0-08258-300-0	01	1	0801-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (B) IDN	8-97028-386-2	01	1	0801-		●
80	04.930 PIPE; VAC,ENG SIDE 4HF1-S ENG(RLS) EXC. EXHAUST BRAKE<NF8>	8-97325-973-0	01	1	0211-0507	●
80	04.930 PIPE; VAC,ENG SIDE 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. EXHAUST BRAKE<NF8>	8-97325-973-0	01	1	0211-0507		●
80	04.930 PIPE; VAC,ENG SIDE 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> IDN	8-97325-974-0	01	1	0211-0507	●
80	04.930 PIPE; VAC,ENG SIDE 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> IDN	8-97325-974-0	01	1	0508-	●
80	04.930 PIPE; VAC,ENG SIDE 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> IDN	8-97325-975-0	01	1	0211-0507		●
80	04.930 PIPE; VAC,ENG SIDE 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> IDN	8-97325-975-0	01	1	0508-		●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> IDN	8-97301-513-0	01	1	0610-	●
80	04.930 PIPE; VAC,ENG SIDE 4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> IDN	8-97361-326-0	01	1	0610-		●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>	8-97070-034-1	01	1	0610-0712	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>	8-97070-034-1	01	1	0801-	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-97171-960-1	01	1	0801-		●
81	04.930 PIPE; VAC,VSV 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> IDN	8-97325-991-0	01	1	0211-0304	●
81	04.930 PIPE; VAC,VSV 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> IDN	8-97325-991-0	01	1	0211-0304	●
81	04.930 PIPE; VAC,VSV 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> IDN	8-97325-991-0	01	1	0211-0304		●
81	04.930 PIPE; VAC,VSV 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> IDN	8-97325-991-0	01	1	0211-0304		●
81	04.930 PIPE; VAC,VSV 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> IDN	8-97367-543-0	01	1	0305-0507	●
81	04.930 PIPE; VAC,VSV 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> IDN	8-97367-543-0	01	1	0305-0507	●
81	04.930 PIPE; VAC,VSV 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> IDN	8-97367-543-0	01	1	0305-0507		●
81	04.930 PIPE; VAC,VSV 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> IDN	8-97367-543-0	01	1	0305-0507		●
81	04.930 PIPE; VAC,VSV 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> IDN	8-97367-543-0	01	1	0508-	●
81	04.930 PIPE; VAC,VSV 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> IDN	8-97367-543-0	01	1	0508-	●
81	04.930 PIPE; VAC,VSV 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> IDN	8-97367-543-0	01	1	0508-		●
81	04.930 PIPE; VAC,VSV 4HG1 ENG(RJH),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> IDN	8-97367-543-0	01	1	0508-		●
81	04.930 PIPE; VAC,VSV 4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> IDN	8-97367-544-0	01	1	0610-		●
82	04.931 HOSE; VAC,VSV 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> 08.962 L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0211-0507	●
82	04.931 HOSE; VAC,VSV 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> 08.962 L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0211-0507	●
82	04.931 HOSE; VAC,VSV 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> 08.962 L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0211-0507		●
82	04.931 HOSE; VAC,VSV 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> 08.962 L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0211-0507		●
82	04.931 HOSE; VAC,VSV 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 08.962 L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0508-0609	●
82	04.931 HOSE; VAC,VSV 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 08.962 L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0508-0609		●
82	04.931 HOSE; VAC,VSV 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 08.962 L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0610-	●
82	04.931 HOSE; VAC,VSV 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 08.962 L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0610-		●
85	04.931 HOSE; VAC,ENG SIDE L=138	8-97315-080-1	01	1	0211-0609	●	●
85	04.931 HOSE; VAC,ENG SIDE 4HF1-N ENG(RJZ) L=138	8-97315-080-1	01	1	0610-	●
85	04.931 HOSE; VAC,ENG SIDE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) L=138	8-97315-080-1	01	1	0610-		●
85	04.931 HOSE; VAC,ENG SIDE 4JB1-TC ENG(RDT) L=130 IDN	8-94438-246-0	01	1	0610-0712	●
85	04.931 HOSE; VAC,ENG SIDE 4JB1-TC ENG(RDT) L=130 IDN	8-94438-246-0	01	1	0801-	●	●
210	04.931 RUBBER; CAP 4HF1-S ENG(RLS) EXC. AIR CONDITIONER MANUAL CONT(C60), EXHAUST BRAKE<NF8>	8-97108-680-0	01	1	0211-0507	●
210	04.931 RUBBER; CAP 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. AIR CONDITIONER MANUAL CONT(C60), EXHAUST BRAKE<NF8>	8-97108-680-0	01	1	0211-0507		●
210	04.931 RUBBER; CAP 4HF1-N ENG(RJZ) EXC. AIR CONDITIONER MANUAL CONT(C60), EXHAUST BRAKE<NF8>	8-97108-680-0	01	1	0508-0609	●
210	04.931 RUBBER; CAP 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. AIR CONDITIONER MANUAL CONT(C60), EXHAUST BRAKE<NF8>	8-97108-680-0	01	1	0508-0609		●
210	04.931 RUBBER; CAP 4HF1-N ENG(RJZ) EXC. AIR CONDITIONER MANUAL CONT(C60), EXHAUST BRAKE<NF8>	8-97108-680-0	01	1	0610-	●
210	04.931 RUBBER; CAP 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. AIR CONDITIONER MANUAL CONT(C60), EXHAUST BRAKE<NF8>	8-97108-680-0	01	1	0610-		●

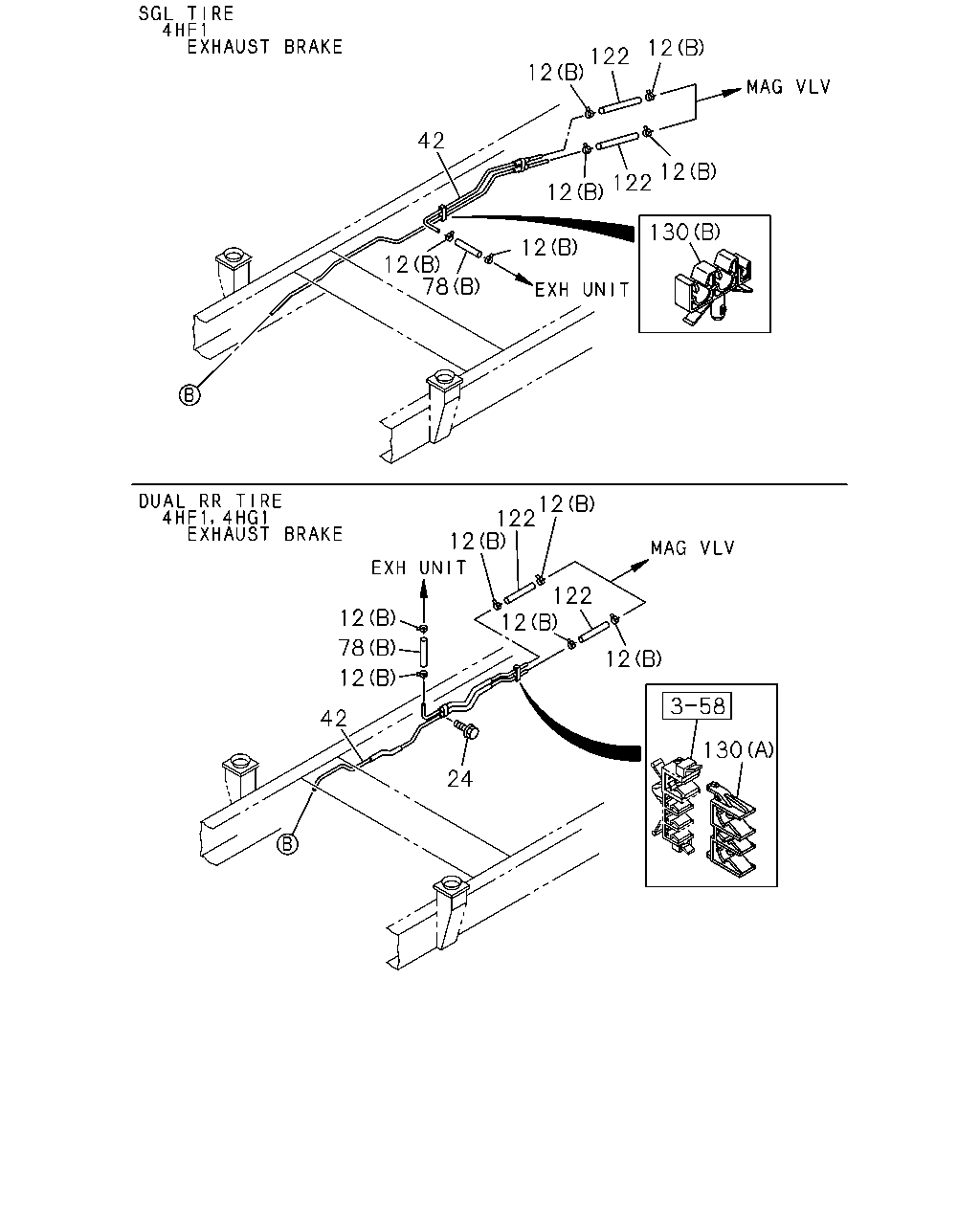

12 122 12 42 12 122 12 130 12 12 78 12 122 12 122 12 12 78 12 12 42 130 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (B) ID=16 IDN	8-94238-568-0	06	1	0211-0911	●	●
12	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 03.162 (B) ID=16	8-98008-098-0	06	1	0912-	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH<S2T> 04.930 (A) ID=14.5	8-94167-480-0	02	1	0211-	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH<S2T> 04.930 (A) ID=14.5	8-94167-480-0	02	1	0211-	●	●
12	04.681 CLIP; HOSE 04.930 (A) ID=14.5	8-94167-480-0	03	1	0211-	●	●
24	04.686 BOLT; BRKT EXHAUST BRAKE<NF8> 02.559 M8X25 FLANGE IDN	0-28680-825-0	01	1	0211-0512	●	●
24	04.686 BOLT; BRKT EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	0601-	●	●
42	04.685 PIPE; VAC,UNION TO MAG VLV 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> IDN	8-97325-995-1	01	1	0211-0507	●
42	04.685 PIPE; VAC,UNION TO MAG VLV 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> IDN	8-97325-995-1	01	1	0508-	●
42	04.685 PIPE; VAC,UNION TO MAG VLV 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> IDN	8-97325-999-1	01	1	0211-0507		●
42	04.685 PIPE; VAC,UNION TO MAG VLV 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> IDN	8-97325-999-1	01	1	0508-0609		●
42	04.685 PIPE; VAC,UNION TO MAG VLV 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> IDN	8-97325-999-1	01	1	0610-		●
42	04.685 PIPE; VAC,UNION TO MAG VLV 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 06.671	8-97258-369-0	01	1	0610-	●
42	04.685 PIPE; VAC,UNION TO MAG VLV 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> IDN	8-97225-306-1	01	1	0801-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> 03.630 (B) L=230 SERVICED BY L=3000	0-08258-300-0	01	1	0211-0303	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> 03.630 (B) L=230 SERVICED BY L=3000	0-08258-300-0	01	1	0211-0303		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> 03.630 (B) L=230 SERVICED BY L=3000	0-08258-300-0	01	1	0304-0507		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 03.630 (B) L=230 SERVICED BY L=3000	0-08258-300-0	01	1	0508-0609		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 03.630 (B) L=230 SERVICED BY L=3000	0-08258-300-0	01	1	0610-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> 03.630 (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0211-0507	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> 03.630 (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0211-0507		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 03.630 (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0508-0609	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 03.630 (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0508-0609		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 03.630 (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0610-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 03.630 (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0610-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> 03.630 (B) L=350 SERVICED BY L=3000	0-08258-300-0	01	1	0304-0507	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 03.630 (B) L=350 SERVICED BY L=3000	0-08258-300-0	01	1	0508-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.630 (A) L=160 SERVICED BY L=3000	0-08258-300-0	01	1	0610-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.630 (B) L=400 SERVICED BY L=3000	0-08258-300-0	01	1	0610-0612	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.630 (B) L=490 SERVICED BY L=3000	0-08258-300-0	01	1	0701-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.630 (A) L=110 SERVICED BY L=3000	0-08258-300-0	01	1	0801-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (B) IDN	8-97028-386-2	01	1	0801-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> 03.630 L=140 SERVICED BY L=3000	0-08258-300-0	02	1	0211-0507	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 03.630 L=140 SERVICED BY L=3000	0-08258-300-0	02	1	0508-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> 03.630 L=180 SERVICED BY L=3000	0-08258-300-0	02	1	0211-0507		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 03.630 L=180 SERVICED BY L=3000	0-08258-300-0	02	1	0508-0609		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 03.630 L=180 SERVICED BY L=3000	0-08258-300-0	02	1	0610-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.630 L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0610-0610	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.630 L=300 SERVICED BY L=3000	0-08258-300-0	02	1	0610-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.630 L=330 SERVICED BY L=3000	0-08258-300-0	02	1	0801-		●
130	04.930 CLIP; VAC PIPE TO FRAME 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> (B) ID=10X2 & 4.76	8-97170-259-0	02	1	0211-0507	●
130	04.930 CLIP; VAC PIPE TO FRAME 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> (B) ID=10X2 & 4.76	8-97170-259-0	02	1	0508-	●
130	04.930 CLIP; VAC PIPE TO FRAME 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0211-0507		●
130	04.930 CLIP; VAC PIPE TO FRAME 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0508-0609		●
130	04.930 CLIP; VAC PIPE TO FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0610-		●
130	04.930 CLIP; VAC PIPE TO FRAME 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (C) ID=10 H=40 IDN	8-94462-219-0	01	1	0610-	●
130	04.930 CLIP; VAC PIPE TO FRAME 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (D) ID=10X2 H=47.5	8-97018-605-0	01	1	0610-	●
130	04.930 CLIP; VAC PIPE TO FRAME 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (D) ID=10X2 H=37.5 IDN	8-97018-546-0	01	1	0801-		●

116 12 203 39 12 13 116 12 39 162 12 13 12 162 39 39 39 184 165 39 39 156 173 12 162 12 39 203

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (B) ID=16 IDN	8-94238-568-0	06	1	0211-0911	●	●
12	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 03.162 (B) ID=16	8-98008-098-0	06	1	0912-	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH<S2T> 04.930 (A) ID=14.5	8-94167-480-0	02	1	0211-	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH<S2T> 04.930 (A) ID=14.5	8-94167-480-0	02	1	0211-	●	●
12	04.681 CLIP; HOSE 04.930 (A) ID=14.5	8-94167-480-0	03	1	0211-	●	●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH<S2T> 04.931 (B) 3WAY	8-94167-478-0	01	1	0211-	●	●
13	04.681 JOINT; HOSE,VAC 04.686 (A) 3WAY	8-94441-184-0	01	1	0211-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> 04.930 (B) ID=16 IDN	8-94238-568-0	06	1	0211-	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (C) ID=16	5-09707-023-2	02	1	0211-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH<S2T> 04.930 (B) ID=16 IDN	8-94238-568-0	03	1	0211-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH<S2T> (A) ID=25.5	8-97077-492-0	01	1	0211-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> (B)	8-97035-968-0	01	1	0211-0403	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> (B)	8-97379-286-1	01	1	0404-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> (A)	8-97314-596-1	01	1	0211-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH<S2T> (A)	8-97314-597-1	01	1	0211-	●	●
156	04.931 JOINT; 3 WAY POWER ASSIST CLUTCH<S2T> 04.686 3WAY	8-94441-184-0	01	1	0211-	●	●
162	04.931 HOSE; VAC POWER ASSIST CLUTCH<S2T> (A)	8-97178-659-0	01	1	0211-	●	●
162	04.931 HOSE; VAC EXC. POWER ASSIST CLUTCH<S2T> (B) IDN	8-97102-369-2	01	1	0211-	●	●
162	04.931 HOSE; VAC EXC. POWER ASSIST CLUTCH<S2T> (E)	5-87411-837-0	01	1	0211-	●	●
162	04.931 HOSE; VAC EXC. POWER ASSIST CLUTCH<S2T> (F)	5-87411-838-0	01	1	0211-	●	●
162	04.931 HOSE; VAC EXC. POWER ASSIST CLUTCH<S2T> (G)	5-87411-840-0	01	1	0211-	●	●
162	04.931 HOSE; VAC POWER ASSIST CLUTCH<S2T> (C)	5-87411-841-0	01	1	0404-	●	●
162	04.931 HOSE; VAC POWER ASSIST CLUTCH<S2T> (D)	5-87411-842-0	01	1	0404-	●	●
165	04.686 BOLT; BRKT 04.439 M6X16 FLANGE	0-28680-616-0	02	1	0211-0512	●	●
165	04.686 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0601-	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE	8-97129-875-0	01	1	0211-	●	●
184	04.685 BRACKET; UNION FIX IDN	8-97035-967-3	01	1	0211-	●	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH<S2T> (B)	8-94386-540-0	01	1	0211-0412	●	●
203	04.690 VALVE; CHECK (B)	8-94386-540-0	01	1	0501-	●	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH<S2T> (A)	8-94104-021-0	01	1	0211-	●	●

162 162 12 116 203 12 12 162 13 39 39 184 39 39 165 39 173 39 162 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (B) ID=16 IDN	8-94238-568-0	06	1	0211-0911	●	●
12	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 03.162 (B) ID=16	8-98008-098-0	06	1	0912-	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH<S2T> 04.930 (A) ID=14.5	8-94167-480-0	02	1	0211-	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH<S2T> 04.930 (A) ID=14.5	8-94167-480-0	02	1	0211-	●	●
12	04.681 CLIP; HOSE 04.930 (A) ID=14.5	8-94167-480-0	03	1	0211-	●	●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH<S2T> 04.931 (B) 3WAY	8-94167-478-0	01	1	0211-	●	●
13	04.681 JOINT; HOSE,VAC 04.686 (A) 3WAY	8-94441-184-0	01	1	0211-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> 04.930 (B) ID=16 IDN	8-94238-568-0	06	1	0211-	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (C) ID=16	5-09707-023-2	02	1	0211-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH<S2T> 04.930 (B) ID=16 IDN	8-94238-568-0	03	1	0211-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH<S2T> (A) ID=25.5	8-97077-492-0	01	1	0211-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> (B)	8-97035-968-0	01	1	0211-0403	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> (B)	8-97379-286-1	01	1	0404-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> (A)	8-97314-596-1	01	1	0211-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH<S2T> (A)	8-97314-597-1	01	1	0211-	●	●
162	04.931 HOSE; VAC POWER ASSIST CLUTCH<S2T> (A)	8-97178-659-0	01	1	0211-	●	●
162	04.931 HOSE; VAC EXC. POWER ASSIST CLUTCH<S2T> (B) IDN	8-97102-369-2	01	1	0211-	●	●
162	04.931 HOSE; VAC EXC. POWER ASSIST CLUTCH<S2T> (E)	5-87411-837-0	01	1	0211-	●	●
162	04.931 HOSE; VAC EXC. POWER ASSIST CLUTCH<S2T> (F)	5-87411-838-0	01	1	0211-	●	●
162	04.931 HOSE; VAC EXC. POWER ASSIST CLUTCH<S2T> (G)	5-87411-840-0	01	1	0211-	●	●
162	04.931 HOSE; VAC POWER ASSIST CLUTCH<S2T> (C)	5-87411-841-0	01	1	0404-	●	●
162	04.931 HOSE; VAC POWER ASSIST CLUTCH<S2T> (D)	5-87411-842-0	01	1	0404-	●	●
165	04.686 BOLT; BRKT 04.439 M6X16 FLANGE	0-28680-616-0	02	1	0211-0512	●	●
165	04.686 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0601-	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE	8-97129-875-0	01	1	0211-	●	●
184	04.685 BRACKET; UNION FIX IDN	8-97035-967-3	01	1	0211-	●	●
202	04.686 SEAL EXC. POWER ASSIST CLUTCH<S2T> 16.165 OD=20 T=0.05 BLACK IDN	5-76777-036-0	01	1	0211-	●	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH<S2T> (B)	8-94386-540-0	01	1	0211-0412	●	●
203	04.690 VALVE; CHECK (B)	8-94386-540-0	01	1	0501-	●	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH<S2T> (A)	8-94104-021-0	01	1	0211-	●	●

12 122 12 12 12 12 30 106 130 122 78 80 31 12 31 78 66 106 24 42 66 30 130 66 66 80 66 85 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (B) ID=16 IDN	8-94238-568-0	06	1	0211-0911	●	●
12	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 03.162 (B) ID=16	8-98008-098-0	06	1	0912-	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH<S2T> 04.930 (A) ID=14.5	8-94167-480-0	02	1	0211-	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH<S2T> 04.930 (A) ID=14.5	8-94167-480-0	02	1	0211-	●	●
12	04.681 CLIP; HOSE 04.930 (A) ID=14.5	8-94167-480-0	03	1	0211-	●	●
24	04.686 BOLT; BRKT EXHAUST BRAKE<NF8> 02.559 M8X25 FLANGE IDN	0-28680-825-0	01	1	0211-0512	●	●
24	04.686 BOLT; BRKT EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	0601-	●	●
30	04.686 BOLT; CLIP,VAC PIPE 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0211-0512	●	●
30	04.686 BOLT; CLIP,VAC PIPE 03.162 M6X20 FLANGE IDN	0-28650-620-0	01	1	0601-	●	●
31	04.686 NUT; CLIP,VAC PIPE 04.594 M6 FLANGE	0-91150-106-0	01	1	0211-0602	●	●
31	04.686 NUT; CLIP,VAC PIPE 01.062 M6 FLANGE IDN	0-91180-106-0	01	1	0603-	●	●
42	04.685 PIPE; VAC,UNION TO MAG VLV 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> IDN	8-97325-995-1	01	1	0211-0507	●
42	04.685 PIPE; VAC,UNION TO MAG VLV 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> IDN	8-97325-995-1	01	1	0508-	●
42	04.685 PIPE; VAC,UNION TO MAG VLV 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> IDN	8-97325-999-1	01	1	0211-0507		●
42	04.685 PIPE; VAC,UNION TO MAG VLV 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> IDN	8-97325-999-1	01	1	0508-0609		●
42	04.685 PIPE; VAC,UNION TO MAG VLV 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> IDN	8-97325-999-1	01	1	0610-		●
42	04.685 PIPE; VAC,UNION TO MAG VLV 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 06.671	8-97258-369-0	01	1	0610-	●
42	04.685 PIPE; VAC,UNION TO MAG VLV 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> IDN	8-97225-306-1	01	1	0801-		●
66	04.930 CLIP; VAC HOSE,M/VAC EXHAUST BRAKE<NF8> ID=16 IDN	8-94238-568-0	05	1	0211-0911	●	●
66	04.930 CLIP; VAC HOSE,M/VAC EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	05	1	0912-	●	●
66	04.930 CLIP; VAC HOSE,M/VAC EXC. EXHAUST BRAKE<NF8> ID=16 IDN	8-94238-568-0	03	1	0211-0911	●	●
66	04.930 CLIP; VAC HOSE,M/VAC EXC. EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	03	1	0912-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> 03.630 (B) L=230 SERVICED BY L=3000	0-08258-300-0	01	1	0211-0303	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> 03.630 (B) L=230 SERVICED BY L=3000	0-08258-300-0	01	1	0211-0303		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> 03.630 (B) L=230 SERVICED BY L=3000	0-08258-300-0	01	1	0304-0507		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 03.630 (B) L=230 SERVICED BY L=3000	0-08258-300-0	01	1	0508-0609		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 03.630 (B) L=230 SERVICED BY L=3000	0-08258-300-0	01	1	0610-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> 03.630 (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0211-0507	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> 03.630 (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0211-0507		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 03.630 (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0508-0609	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 03.630 (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0508-0609		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 03.630 (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0610-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 03.630 (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0610-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> 03.630 (B) L=350 SERVICED BY L=3000	0-08258-300-0	01	1	0304-0507	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 03.630 (B) L=350 SERVICED BY L=3000	0-08258-300-0	01	1	0508-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.630 (A) L=160 SERVICED BY L=3000	0-08258-300-0	01	1	0610-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.630 (B) L=400 SERVICED BY L=3000	0-08258-300-0	01	1	0610-0612	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.630 (B) L=490 SERVICED BY L=3000	0-08258-300-0	01	1	0701-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.630 (A) L=110 SERVICED BY L=3000	0-08258-300-0	01	1	0801-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (B) IDN	8-97028-386-2	01	1	0801-		●
80	04.930 PIPE; VAC,ENG SIDE 4HF1-S ENG(RLS) EXC. EXHAUST BRAKE<NF8>	8-97325-973-0	01	1	0211-0507	●
80	04.930 PIPE; VAC,ENG SIDE 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. EXHAUST BRAKE<NF8>	8-97325-973-0	01	1	0211-0507		●
80	04.930 PIPE; VAC,ENG SIDE 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> IDN	8-97325-974-0	01	1	0211-0507	●
80	04.930 PIPE; VAC,ENG SIDE 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> IDN	8-97325-974-0	01	1	0508-	●
80	04.930 PIPE; VAC,ENG SIDE 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> IDN	8-97325-975-0	01	1	0211-0507		●
80	04.930 PIPE; VAC,ENG SIDE 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> IDN	8-97325-975-0	01	1	0508-		●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> IDN	8-97301-513-0	01	1	0610-	●
80	04.930 PIPE; VAC,ENG SIDE 4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> IDN	8-97361-326-0	01	1	0610-		●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>	8-97070-034-1	01	1	0610-0712	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>	8-97070-034-1	01	1	0801-	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-97171-960-1	01	1	0801-		●
85	04.931 HOSE; VAC,ENG SIDE L=138	8-97315-080-1	01	1	0211-0609	●	●
85	04.931 HOSE; VAC,ENG SIDE 4HF1-N ENG(RJZ) L=138	8-97315-080-1	01	1	0610-	●
85	04.931 HOSE; VAC,ENG SIDE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) L=138	8-97315-080-1	01	1	0610-		●
85	04.931 HOSE; VAC,ENG SIDE 4JB1-TC ENG(RDT) L=130 IDN	8-94438-246-0	01	1	0610-0712	●
85	04.931 HOSE; VAC,ENG SIDE 4JB1-TC ENG(RDT) L=130 IDN	8-94438-246-0	01	1	0801-	●	●
106	04.930 CLIP; PIPE 4JB1-TC ENG(RDT) 04.686 (A) ID=13 & 7 L=16 & 14 IDN	1-09700-070-0	01	1	0610-0712	●
106	04.930 CLIP; PIPE 4JB1-TC ENG(RDT) 04.686 (A) ID=13 & 7 L=16 & 14 IDN	1-09700-070-0	01	1	0801-	●	●
106	04.930 CLIP; PIPE 4JB1-TC ENG(RDT) 03.485 (B) ID=10 H=36 IDN	8-94249-686-1	02	1	0610-0712	●
106	04.930 CLIP; PIPE 4JB1-TC ENG(RDT) 03.485 (B) ID=10 H=36 IDN	8-94249-686-1	02	1	0801-	●	●
106	04.930 CLIP; PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (C) ID=10 H=40 IDN	8-94462-219-0	01	1	0801-1308		●
106	04.930 CLIP; PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (C) ID=10 H=40 IDN	8-94462-219-0	02	1	1309-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> 03.630 L=140 SERVICED BY L=3000	0-08258-300-0	02	1	0211-0507	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 03.630 L=140 SERVICED BY L=3000	0-08258-300-0	02	1	0508-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> 03.630 L=180 SERVICED BY L=3000	0-08258-300-0	02	1	0211-0507		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 03.630 L=180 SERVICED BY L=3000	0-08258-300-0	02	1	0508-0609		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 03.630 L=180 SERVICED BY L=3000	0-08258-300-0	02	1	0610-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.630 L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0610-0610	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.630 L=300 SERVICED BY L=3000	0-08258-300-0	02	1	0610-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.630 L=330 SERVICED BY L=3000	0-08258-300-0	02	1	0801-		●
130	04.930 CLIP; VAC PIPE TO FRAME 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> (B) ID=10X2 & 4.76	8-97170-259-0	02	1	0211-0507	●
130	04.930 CLIP; VAC PIPE TO FRAME 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> (B) ID=10X2 & 4.76	8-97170-259-0	02	1	0508-	●
130	04.930 CLIP; VAC PIPE TO FRAME 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0211-0507		●
130	04.930 CLIP; VAC PIPE TO FRAME 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0508-0609		●
130	04.930 CLIP; VAC PIPE TO FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0610-		●
130	04.930 CLIP; VAC PIPE TO FRAME 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (C) ID=10 H=40 IDN	8-94462-219-0	01	1	0610-	●
130	04.930 CLIP; VAC PIPE TO FRAME 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (D) ID=10X2 H=47.5	8-97018-605-0	01	1	0610-	●
130	04.930 CLIP; VAC PIPE TO FRAME 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (D) ID=10X2 H=37.5 IDN	8-97018-546-0	01	1	0801-		●

106 66 80 85 66 66 30 30 106 31 80 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	04.686 BOLT; CLIP,VAC PIPE 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0211-0512	●	●
30	04.686 BOLT; CLIP,VAC PIPE 03.162 M6X20 FLANGE IDN	0-28650-620-0	01	1	0601-	●	●
31	04.686 NUT; CLIP,VAC PIPE 04.594 M6 FLANGE	0-91150-106-0	01	1	0211-0602	●	●
31	04.686 NUT; CLIP,VAC PIPE 01.062 M6 FLANGE IDN	0-91180-106-0	01	1	0603-	●	●
66	04.930 CLIP; VAC HOSE,M/VAC EXHAUST BRAKE<NF8> ID=16 IDN	8-94238-568-0	05	1	0211-0911	●	●
66	04.930 CLIP; VAC HOSE,M/VAC EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	05	1	0912-	●	●
66	04.930 CLIP; VAC HOSE,M/VAC EXC. EXHAUST BRAKE<NF8> ID=16 IDN	8-94238-568-0	03	1	0211-0911	●	●
66	04.930 CLIP; VAC HOSE,M/VAC EXC. EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	03	1	0912-	●	●
80	04.930 PIPE; VAC,ENG SIDE 4HF1-S ENG(RLS) EXC. EXHAUST BRAKE<NF8>	8-97325-973-0	01	1	0211-0507	●
80	04.930 PIPE; VAC,ENG SIDE 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. EXHAUST BRAKE<NF8>	8-97325-973-0	01	1	0211-0507		●
80	04.930 PIPE; VAC,ENG SIDE 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> IDN	8-97325-974-0	01	1	0211-0507	●
80	04.930 PIPE; VAC,ENG SIDE 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> IDN	8-97325-974-0	01	1	0508-	●
80	04.930 PIPE; VAC,ENG SIDE 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> IDN	8-97325-975-0	01	1	0211-0507		●
80	04.930 PIPE; VAC,ENG SIDE 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> IDN	8-97325-975-0	01	1	0508-		●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> IDN	8-97301-513-0	01	1	0610-	●
80	04.930 PIPE; VAC,ENG SIDE 4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> IDN	8-97361-326-0	01	1	0610-		●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>	8-97070-034-1	01	1	0610-0712	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>	8-97070-034-1	01	1	0801-	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-97171-960-1	01	1	0801-		●
85	04.931 HOSE; VAC,ENG SIDE L=138	8-97315-080-1	01	1	0211-0609	●	●
85	04.931 HOSE; VAC,ENG SIDE 4HF1-N ENG(RJZ) L=138	8-97315-080-1	01	1	0610-	●
85	04.931 HOSE; VAC,ENG SIDE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) L=138	8-97315-080-1	01	1	0610-		●
85	04.931 HOSE; VAC,ENG SIDE 4JB1-TC ENG(RDT) L=130 IDN	8-94438-246-0	01	1	0610-0712	●
85	04.931 HOSE; VAC,ENG SIDE 4JB1-TC ENG(RDT) L=130 IDN	8-94438-246-0	01	1	0801-	●	●
106	04.930 CLIP; PIPE 4JB1-TC ENG(RDT) 04.686 (A) ID=13 & 7 L=16 & 14 IDN	1-09700-070-0	01	1	0610-0712	●
106	04.930 CLIP; PIPE 4JB1-TC ENG(RDT) 04.686 (A) ID=13 & 7 L=16 & 14 IDN	1-09700-070-0	01	1	0801-	●	●
106	04.930 CLIP; PIPE 4JB1-TC ENG(RDT) 03.485 (B) ID=10 H=36 IDN	8-94249-686-1	02	1	0610-0712	●
106	04.930 CLIP; PIPE 4JB1-TC ENG(RDT) 03.485 (B) ID=10 H=36 IDN	8-94249-686-1	02	1	0801-	●	●
106	04.930 CLIP; PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (C) ID=10 H=40 IDN	8-94462-219-0	01	1	0801-1308		●
106	04.930 CLIP; PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (C) ID=10 H=40 IDN	8-94462-219-0	02	1	1309-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
