◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51280 - NKR INDONESIA ▶ 3 - Brakes, Brake System ▶ 3-58 - FIXING PARTS; OIL PIPING ▶
3-58 — FIXING PARTS; OIL PIPING (#78952) — 251 parça

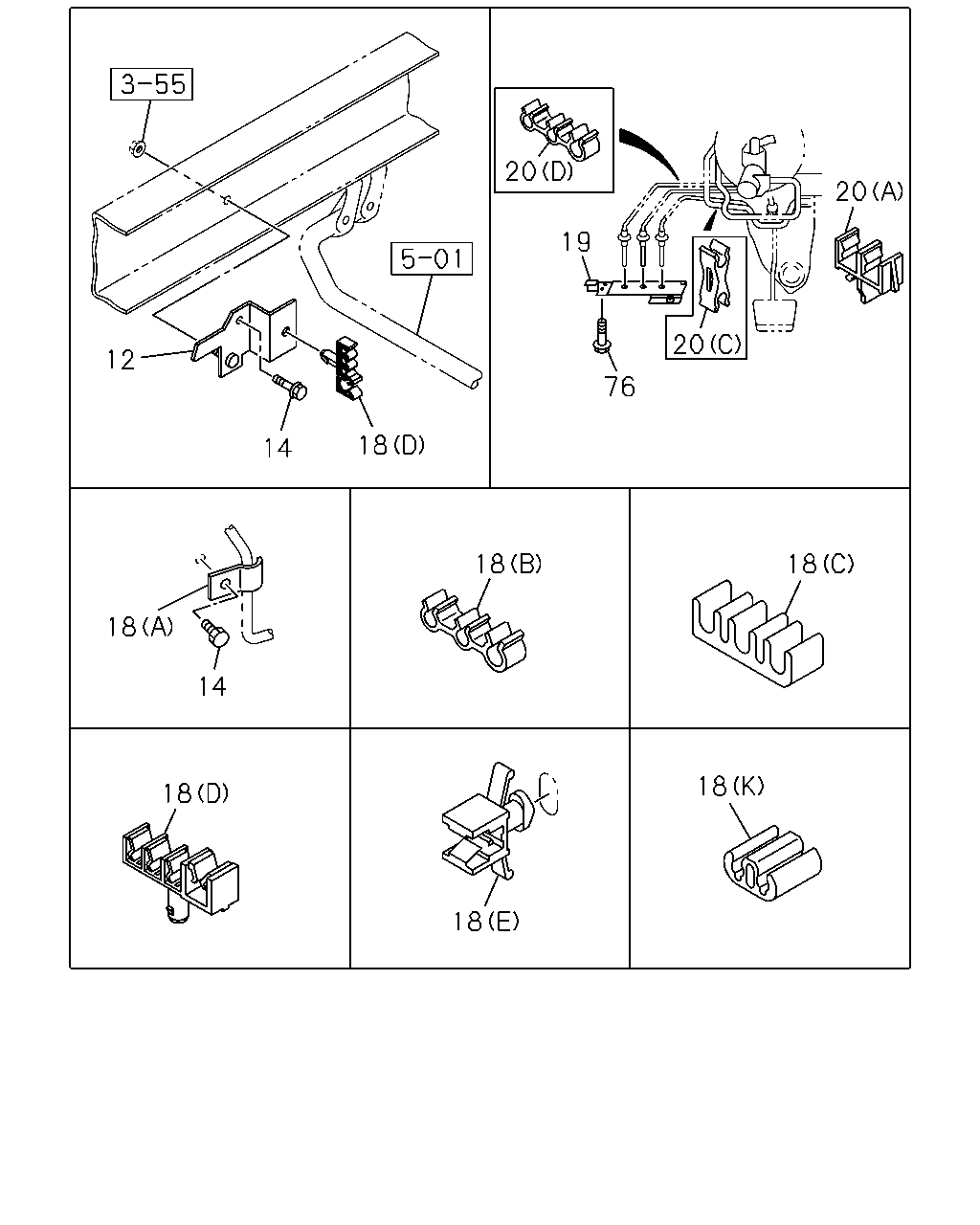

çizim 121572
20 20 19 20 12 76 18 14 18 18 18 14 18 18 18
BalonParca AdiParca NoAdetTipApplied Date A B
12 04.686 BRACKET; OIL PIPE
4HF1-S ENG(RLS) 		8-97349-917-0 01 1 0211-0507 ●
12 04.686 BRACKET; OIL PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97349-917-0 01 1 0211-0507 ●
12 04.686 BRACKET; OIL PIPE
4HF1-N ENG(RJZ) 		8-97349-917-1 01 1 0508-0609 ●
12 04.686 BRACKET; OIL PIPE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97349-917-1 01 1 0508-0609 ●
12 04.686 BRACKET; OIL PIPE
4HF1-N ENG(RJZ) 		8-97349-917-1 01 1 0610- ●
12 04.686 BRACKET; OIL PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97349-917-1 01 1 0610- ●
14 04.686 BOLT; CLIP,OIL PIPE
4HF1-S ENG(RLS) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0211-0507 ●
14 04.686 BOLT; CLIP,OIL PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0211-0507 ●
14 04.686 BOLT; CLIP,OIL PIPE
4HF1-N ENG(RJZ) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0508-0512 ●
14 04.686 BOLT; CLIP,OIL PIPE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0508-0512 ●
14 04.686 BOLT; CLIP,OIL PIPE
4HF1-N ENG(RJZ) 01.531 M8X20 FLANGE IDN 		0-28650-820-0 02 1 0601-0609 ●
14 04.686 BOLT; CLIP,OIL PIPE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.531 M8X20 FLANGE IDN 		0-28650-820-0 02 1 0601-0609 ●
14 04.686 BOLT; CLIP,OIL PIPE
4HF1-N ENG(RJZ) 01.531 M8X20 FLANGE IDN 		0-28650-820-0 02 1 0610- ●
14 04.686 BOLT; CLIP,OIL PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.531 M8X20 FLANGE IDN 		0-28650-820-0 02 1 0610- ●
18 04.686 CLIP; BRK PIPE
4HF1-S ENG(RLS) (F) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 0211-0507 ●
18 04.686 CLIP; BRK PIPE
4HF1-S ENG(RLS) (F) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 0211-0507 ●
18 04.686 CLIP; BRK PIPE
4HF1-N ENG(RJZ) (F) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 0508- ●
18 04.686 CLIP; BRK PIPE
4HF1-N ENG(RJZ) (F) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 0508- ●
18 04.686 CLIP; BRK PIPE
4HF1-S ENG(RLS) (D) ID=10 & 4.76X3 		8-97168-819-0 02 1 0211-0507 ●
18 04.686 CLIP; BRK PIPE
4HF1-S ENG(RLS) (D) ID=10 & 4.76X3 		8-97168-819-0 02 1 0211-0507 ●
18 04.686 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS) (D) ID=10 & 4.76X3 		8-97168-819-0 02 1 0211-0507 ●
18 04.686 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS) (D) ID=10 & 4.76X3 		8-97168-819-0 02 1 0211-0507 ●
18 04.686 CLIP; BRK PIPE
4HF1-N ENG(RJZ) (D) ID=10 & 4.76X3 		8-97168-819-0 02 1 0508-0609 ●
18 04.686 CLIP; BRK PIPE
4HF1-N ENG(RJZ) (D) ID=10 & 4.76X3 		8-97168-819-0 02 1 0508-0609 ●
18 04.686 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (D) ID=10 & 4.76X3 		8-97168-819-0 02 1 0508-0609 ●
18 04.686 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (D) ID=10 & 4.76X3 		8-97168-819-0 02 1 0508-0609 ●
18 04.686 CLIP; BRK PIPE
4HF1-N ENG(RJZ) (D) ID=10 & 4.76X3 		8-97168-819-0 02 1 0610- ●
18 04.686 CLIP; BRK PIPE
4HF1-N ENG(RJZ) (D) ID=10 & 4.76X3 		8-97168-819-0 02 1 0610- ●
18 04.686 CLIP; BRK PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (D) ID=10 & 4.76X3 		8-97168-819-0 02 1 0610- ●
18 04.686 CLIP; BRK PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (D) ID=10 & 4.76X3 		8-97168-819-0 02 1 0610- ●
18 04.686 CLIP; BRK PIPE
4HF1-S ENG(RLS) (A) B=18 L=20 IDN 		1-09700-372-0 02 1 0211-0507 ●
18 04.686 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) B=18 L=20 IDN 		1-09700-372-0 02 1 0211-0507 ●
18 04.686 CLIP; BRK PIPE
4HF1-N ENG(RJZ) (A) B=18 L=20 IDN 		1-09700-372-0 02 1 0508-0609 ●
18 04.686 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) B=18 L=20 IDN 		1-09700-372-0 02 1 0508-0609 ●
18 04.686 CLIP; BRK PIPE
4HF1-N ENG(RJZ) (A) B=18 L=20 IDN 		1-09700-372-0 02 1 0610- ●
18 04.686 CLIP; BRK PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) B=18 L=20 IDN 		1-09700-372-0 02 1 0610- ●
18 04.686 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS) (B) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 0211-0507 ● ●
18 04.686 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) ID=6.4 & 4.8X2 		8-94146-043-0 02 1 0508-0609 ● ●
18 04.686 CLIP; BRK PIPE
4HF1-N ENG(RJZ) (B) ID=6.4 & 4.8X2 		8-94146-043-0 02 1 0610- ●
18 04.686 CLIP; BRK PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) ID=6.4 & 4.8X2 		8-94146-043-0 02 1 0610- ●
18 04.686 CLIP; BRK PIPE
03.162 (H) ID=10 & 6.4 & 4.8 IDN 		8-97064-484-1 02 1 0211-0507 ● ●
18 04.686 CLIP; BRK PIPE
4HF1-N ENG(RJZ) 03.162 (H) ID=10 & 6.4 & 4.8 IDN 		8-97064-484-1 02 1 0508-0609 ●
18 04.686 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.162 (H) ID=10 & 6.4 & 4.8 IDN 		8-97064-484-1 02 1 0508-0609 ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) 03.162 (H) ID=10 & 6.4 & 4.8 IDN 		8-97064-484-1 03 1 0610-0712 ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) 03.162 (H) ID=10 & 6.4 & 4.8 IDN 		8-97064-484-1 03 1 0610-0712 ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) 03.162 (H) ID=10 & 6.4 & 4.8 IDN 		8-97064-484-1 03 1 0801-1308 ● ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) 03.162 (H) ID=10 & 6.4 & 4.8 IDN 		8-97064-484-1 03 1 0801-1308 ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) 03.162 (H) ID=10 & 6.4 & 4.8 IDN 		8-97064-484-1 03 1 1309- ● ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.162 (H) ID=10 & 6.4 & 4.8 IDN 		8-97064-484-1 03 1 1309- ●
18 04.686 CLIP; BRK PIPE
4HF1-S ENG(RLS) (J) ID=10 & 4.76X3 		8-97326-158-1 02 1 0211-0507 ●
18 04.686 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS) (J) ID=10 & 4.76X3 		8-97326-158-1 02 1 0211-0507 ●
18 04.686 CLIP; BRK PIPE
4HF1-N ENG(RJZ) (J) ID=10 & 4.76X3 		8-97326-158-1 02 1 0508-0609 ●
18 04.686 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (J) ID=10 & 4.76X3 		8-97326-158-1 02 1 0508-0609 ●
18 04.686 CLIP; BRK PIPE
4HF1-N ENG(RJZ) (J) ID=10 & 4.76X3 		8-97326-158-1 02 1 0610-1401 ●
18 04.686 CLIP; BRK PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (J) ID=10 & 4.76X3 		8-97326-158-1 02 1 0610-1401 ●
18 04.686 CLIP; BRK PIPE
4HF1-N ENG(RJZ) (J) ID=10 & 4.76X3 		8-97326-158-1 02 1 1402-1405 ●
18 04.686 CLIP; BRK PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (J) ID=10 & 4.76X3 		8-97326-158-1 02 1 1402-1405 ●
18 04.686 CLIP; BRK PIPE
4HG1-T ENG(RDP) VIN MODEL YEAR 2012(VZC) SPECIAL PACKAGE<7BB> EXC. HEAVY DUTY FRAME<6WB> (J) ID=10 & 4.76X3 		8-97326-158-1 02 1 1402-1405 ●
18 04.686 CLIP; BRK PIPE
4HF1-N ENG(RJZ) (J) ID=10 & 4.76X3 		8-97326-158-1 02 1 1406-1410 ●
18 04.686 CLIP; BRK PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (J) ID=10 & 4.76X3 		8-97326-158-1 02 1 1406-1410 ●
18 04.686 CLIP; BRK PIPE
4HG1-T ENG(RDP) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) SPECIAL PACKAGE<7BB> EXC. HEAVY DUTY FRAME<6WB> (J) ID=10 & 4.76X3 		8-97326-158-1 02 1 1406-1410 ●
18 04.686 CLIP; BRK PIPE
4HF1-N ENG(RJZ) (J) ID=10 & 4.76X3 		8-97326-158-1 02 1 1411- ●
18 04.686 CLIP; BRK PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (J) ID=10 & 4.76X3 		8-97326-158-1 02 1 1411- ●
18 04.686 CLIP; BRK PIPE
4HF1-S ENG(RLS) (J) ID=10 & 4.76X3 		8-97326-158-1 05 1 0211-0507 ●
18 04.686 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS) (J) ID=10 & 4.76X3 		8-97326-158-1 05 1 0211-0507 ●
18 04.686 CLIP; BRK PIPE
4HF1-N ENG(RJZ) (J) ID=10 & 4.76X3 		8-97326-158-1 05 1 0508-0609 ●
18 04.686 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (J) ID=10 & 4.76X3 		8-97326-158-1 05 1 0508-0609 ●
18 04.686 CLIP; BRK PIPE
4HF1-N ENG(RJZ) (J) ID=10 & 4.76X3 		8-97326-158-1 05 1 0610- ●
18 04.686 CLIP; BRK PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (J) ID=10 & 4.76X3 		8-97326-158-1 05 1 0610- ●
18 04.686 CLIP; BRK PIPE
4HF1-S ENG(RLS) 03.162 (H) ID=10 & 6.4 & 4.8 IDN 		8-97064-484-1 01 1 0211-0507 ●
18 04.686 CLIP; BRK PIPE
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) 03.162 (H) ID=10 & 6.4 & 4.8 IDN 		8-97064-484-1 01 1 0211-0507 ●
18 04.686 CLIP; BRK PIPE
4HF1-N ENG(RJZ) 03.162 (H) ID=10 & 6.4 & 4.8 IDN 		8-97064-484-1 01 1 0508-0712 ● ●
18 04.686 CLIP; BRK PIPE
4HF1-N ENG(RJZ) 03.162 (H) ID=10 & 6.4 & 4.8 IDN 		8-97064-484-1 01 1 0801-1308 ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 03.162 (H) ID=10 & 6.4 & 4.8 IDN 		8-97064-484-1 01 1 0801-1308 ●
18 04.686 CLIP; BRK PIPE
4HF1-N ENG(RJZ) 03.162 (H) ID=10 & 6.4 & 4.8 IDN 		8-97064-484-1 01 1 1309- ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.162 (H) ID=10 & 6.4 & 4.8 IDN 		8-97064-484-1 01 1 1309- ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 03.162 (H) ID=10 & 6.4 & 4.8 IDN 		8-97064-484-1 01 1 1309- ●
18 04.686 CLIP; BRK PIPE
(F) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 02 1 0211-0609 ● ●
18 04.686 CLIP; BRK PIPE
(F) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 02 1 0610- ● ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) (F) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 02 1 0610- ●
18 04.686 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS) (J) ID=10 & 4.76X3 		8-97326-158-1 03 1 0211-0507 ●
18 04.686 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (J) ID=10 & 4.76X3 		8-97326-158-1 03 1 0508-0609 ●
18 04.686 CLIP; BRK PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (J) ID=10 & 4.76X3 		8-97326-158-1 03 1 0610- ●
18 04.686 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS) (K) ID=4.8X2 		8-94389-060-0 01 1 0302-0507 ●
18 04.686 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (K) ID=4.8X2 		8-94389-060-0 01 1 0508-0609 ●
18 04.686 CLIP; BRK PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (K) ID=4.8X2 		8-94389-060-0 01 1 0610-0910 ●
18 04.686 CLIP; BRK PIPE
4HF1-N ENG(RJZ) (K) ID=4.8X2 		8-94389-060-0 01 1 0911- ●
18 04.686 CLIP; BRK PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (K) ID=4.8X2 		8-94389-060-0 01 1 0911- ●
18 04.686 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS) (J) ID=10 & 4.76X3 		8-97326-158-1 01 1 0302-0507 ●
18 04.686 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (J) ID=10 & 4.76X3 		8-97326-158-1 01 1 0508-0609 ●
18 04.686 CLIP; BRK PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (J) ID=10 & 4.76X3 		8-97326-158-1 01 1 0610-1401 ●
18 04.686 CLIP; BRK PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (J) ID=10 & 4.76X3 		8-97326-158-1 01 1 1402-1405 ●
18 04.686 CLIP; BRK PIPE
4HG1-T ENG(RDP) VIN MODEL YEAR 2012(VZC) HEAVY DUTY FRAME<6WB> SPECIAL PACKAGE<7BB> (J) ID=10 & 4.76X3 		8-97326-158-1 01 1 1402-1405 ●
18 04.686 CLIP; BRK PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (J) ID=10 & 4.76X3 		8-97326-158-1 01 1 1406-1410 ●
18 04.686 CLIP; BRK PIPE
4HG1-T ENG(RDP) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) HEAVY DUTY FRAME<6WB> SPECIAL PACKAGE<7BB> (J) ID=10 & 4.76X3 		8-97326-158-1 01 1 1406-1410 ●
18 04.686 CLIP; BRK PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (J) ID=10 & 4.76X3 		8-97326-158-1 01 1 1411- ●
18 04.686 CLIP; BRK PIPE
4HG1-T ENG(RDP) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) SPECIAL PACKAGE<7BB> (J) ID=10 & 4.76X3 		8-97326-158-1 01 1 1411- ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) (G) ID=4.8X2 IDN 		8-94316-410-0 02 1 0610- ●
18 04.686 CLIP; BRK PIPE
4HF1-N ENG(RJZ) 03.162 (H) ID=10 & 6.4 & 4.8 IDN 		8-97064-484-1 02 1 0610-1308 ●
18 04.686 CLIP; BRK PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.162 (H) ID=10 & 6.4 & 4.8 IDN 		8-97064-484-1 02 1 0610-1308 ●
18 04.686 CLIP; BRK PIPE
4HF1-N ENG(RJZ) 03.162 (H) ID=10 & 6.4 & 4.8 IDN 		8-97064-484-1 02 1 1309- ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> 03.162 (H) ID=10 & 6.4 & 4.8 IDN 		8-97064-484-1 02 1 1309- ●
18 04.686 CLIP; BRK PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.162 (H) ID=10 & 6.4 & 4.8 IDN 		8-97064-484-1 02 1 1309- ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) (L) ID=10 & 4.76X3 		8-97168-820-0 02 1 0701- ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) 04.685 (C) ID=4.76X3 IDN 		8-94122-333-0 01 1 0610-0712 ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) 04.685 (C) ID=4.76X3 IDN 		8-94122-333-0 01 1 0801- ● ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) (I) ID=6.5 & 4.8X2 IDN 		8-94131-710-2 01 1 0610-0712 ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) (I) ID=6.5 & 4.8X2 IDN 		8-94131-710-2 01 1 0801- ● ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) (I) ID=6.5 & 4.8X2 IDN 		8-94131-710-2 01 1 0801- ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) (E) ID=4.8 H=26 IDN 		8-94249-685-0 01 1 0610-0712 ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) (E) ID=4.8 H=26 IDN 		8-94249-685-0 01 1 0610-0712 ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) (E) ID=4.8 H=26 IDN 		8-94249-685-0 01 1 0801- ● ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) (E) ID=4.8 H=26 IDN 		8-94249-685-0 01 1 0801- ● ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) (E) ID=4.8 H=26 IDN 		8-94249-685-0 01 1 0801- ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) (G) ID=4.8X2 IDN 		8-94316-410-0 01 1 0801- ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) (E) ID=4.8 H=26 IDN 		8-94249-685-0 02 1 0801- ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) (E) ID=4.8 H=26 IDN 		8-94249-685-0 02 1 0801- ●
19 04.686 BRACKET; OIL PIPE 8-97042-258-4 01 1 0211- ● ●
20 04.686 CLIP; BRK PIPE
(E) ID=6.35 & 4.76X2 		8-94107-732-1 01 1 0211- ● ●
20 04.686 CLIP; BRK PIPE
(A) ID=4.8X2 		8-94113-470-0 01 1 0211- ● ●
20 04.686 CLIP; BRK PIPE
(D) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 0211- ● ●
20 04.686 CLIP; BRK PIPE
04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 0211- ● ●
20 04.686 CLIP; BRK PIPE
(B) ID=6.35 & 4.76X2 		8-94250-923-2 01 1 0211- ● ●
76 04.686 BOLT; BRKT,OIL PIPE
02.559 M8X25 FLANGE IDN 		0-28680-825-0 02 1 0211-0512 ● ●
76 04.686 BOLT; BRKT,OIL PIPE
06.216 M8X25 FLANGE IDN 		0-28650-825-0 02 1 0601- ● ●

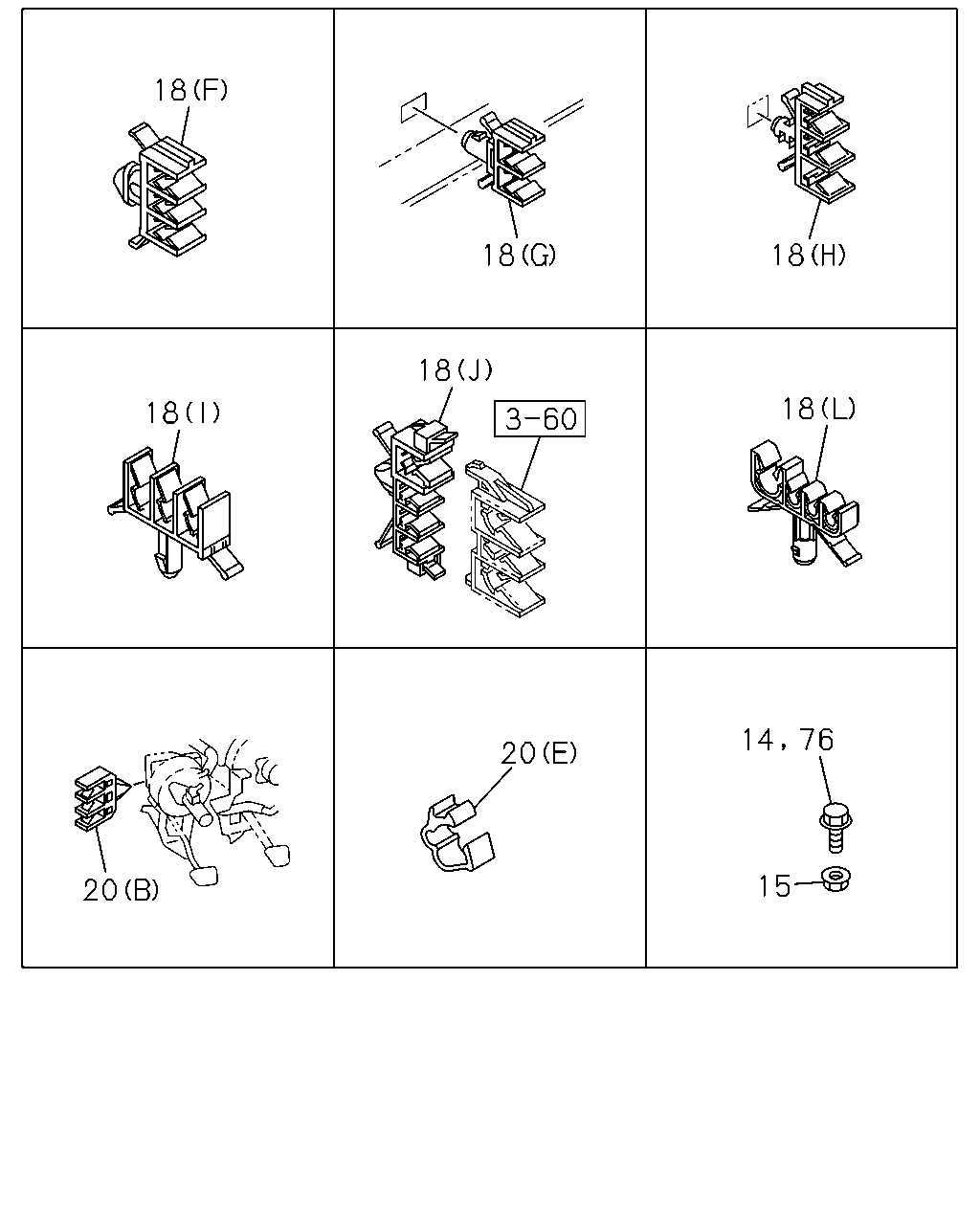

çizim 121611
18 18 18 18 18 18 20 15 20 14 76
BalonParca AdiParca NoAdetTipApplied Date A B
14 04.686 BOLT; CLIP,OIL PIPE
4HF1-S ENG(RLS) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0211-0507 ●
14 04.686 BOLT; CLIP,OIL PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0211-0507 ●
14 04.686 BOLT; CLIP,OIL PIPE
4HF1-N ENG(RJZ) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0508-0512 ●
14 04.686 BOLT; CLIP,OIL PIPE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0508-0512 ●
14 04.686 BOLT; CLIP,OIL PIPE
4HF1-N ENG(RJZ) 01.531 M8X20 FLANGE IDN 		0-28650-820-0 02 1 0601-0609 ●
14 04.686 BOLT; CLIP,OIL PIPE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.531 M8X20 FLANGE IDN 		0-28650-820-0 02 1 0601-0609 ●
14 04.686 BOLT; CLIP,OIL PIPE
4HF1-N ENG(RJZ) 01.531 M8X20 FLANGE IDN 		0-28650-820-0 02 1 0610- ●
14 04.686 BOLT; CLIP,OIL PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.531 M8X20 FLANGE IDN 		0-28650-820-0 02 1 0610- ●
15 04.686 NUT; CLIP,OIL PIPE
4HF1-S ENG(RLS) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0507 ●
15 04.686 NUT; CLIP,OIL PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0507 ●
15 04.686 NUT; CLIP,OIL PIPE
4HF1-N ENG(RJZ) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0508-0602 ●
15 04.686 NUT; CLIP,OIL PIPE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0508-0602 ●
15 04.686 NUT; CLIP,OIL PIPE
4HF1-N ENG(RJZ) 01.062 M8 FLANGE IDN 		0-91180-108-0 02 1 0603-0609 ●
15 04.686 NUT; CLIP,OIL PIPE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 M8 FLANGE IDN 		0-91180-108-0 02 1 0603-0609 ●
15 04.686 NUT; CLIP,OIL PIPE
4HF1-N ENG(RJZ) 01.062 M8 FLANGE IDN 		0-91180-108-0 02 1 0610- ●
15 04.686 NUT; CLIP,OIL PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 M8 FLANGE IDN 		0-91180-108-0 02 1 0610- ●
18 04.686 CLIP; BRK PIPE
4HF1-S ENG(RLS) (F) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 0211-0507 ●
18 04.686 CLIP; BRK PIPE
4HF1-S ENG(RLS) (F) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 0211-0507 ●
18 04.686 CLIP; BRK PIPE
4HF1-N ENG(RJZ) (F) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 0508- ●
18 04.686 CLIP; BRK PIPE
4HF1-N ENG(RJZ) (F) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 0508- ●
18 04.686 CLIP; BRK PIPE
4HF1-S ENG(RLS) (D) ID=10 & 4.76X3 		8-97168-819-0 02 1 0211-0507 ●
18 04.686 CLIP; BRK PIPE
4HF1-S ENG(RLS) (D) ID=10 & 4.76X3 		8-97168-819-0 02 1 0211-0507 ●
18 04.686 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS) (D) ID=10 & 4.76X3 		8-97168-819-0 02 1 0211-0507 ●
18 04.686 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS) (D) ID=10 & 4.76X3 		8-97168-819-0 02 1 0211-0507 ●
18 04.686 CLIP; BRK PIPE
4HF1-N ENG(RJZ) (D) ID=10 & 4.76X3 		8-97168-819-0 02 1 0508-0609 ●
18 04.686 CLIP; BRK PIPE
4HF1-N ENG(RJZ) (D) ID=10 & 4.76X3 		8-97168-819-0 02 1 0508-0609 ●
18 04.686 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (D) ID=10 & 4.76X3 		8-97168-819-0 02 1 0508-0609 ●
18 04.686 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (D) ID=10 & 4.76X3 		8-97168-819-0 02 1 0508-0609 ●
18 04.686 CLIP; BRK PIPE
4HF1-N ENG(RJZ) (D) ID=10 & 4.76X3 		8-97168-819-0 02 1 0610- ●
18 04.686 CLIP; BRK PIPE
4HF1-N ENG(RJZ) (D) ID=10 & 4.76X3 		8-97168-819-0 02 1 0610- ●
18 04.686 CLIP; BRK PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (D) ID=10 & 4.76X3 		8-97168-819-0 02 1 0610- ●
18 04.686 CLIP; BRK PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (D) ID=10 & 4.76X3 		8-97168-819-0 02 1 0610- ●
18 04.686 CLIP; BRK PIPE
4HF1-S ENG(RLS) (A) B=18 L=20 IDN 		1-09700-372-0 02 1 0211-0507 ●
18 04.686 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) B=18 L=20 IDN 		1-09700-372-0 02 1 0211-0507 ●
18 04.686 CLIP; BRK PIPE
4HF1-N ENG(RJZ) (A) B=18 L=20 IDN 		1-09700-372-0 02 1 0508-0609 ●
18 04.686 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) B=18 L=20 IDN 		1-09700-372-0 02 1 0508-0609 ●
18 04.686 CLIP; BRK PIPE
4HF1-N ENG(RJZ) (A) B=18 L=20 IDN 		1-09700-372-0 02 1 0610- ●
18 04.686 CLIP; BRK PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) B=18 L=20 IDN 		1-09700-372-0 02 1 0610- ●
18 04.686 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS) (B) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 0211-0507 ● ●
18 04.686 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) ID=6.4 & 4.8X2 		8-94146-043-0 02 1 0508-0609 ● ●
18 04.686 CLIP; BRK PIPE
4HF1-N ENG(RJZ) (B) ID=6.4 & 4.8X2 		8-94146-043-0 02 1 0610- ●
18 04.686 CLIP; BRK PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) ID=6.4 & 4.8X2 		8-94146-043-0 02 1 0610- ●
18 04.686 CLIP; BRK PIPE
03.162 (H) ID=10 & 6.4 & 4.8 IDN 		8-97064-484-1 02 1 0211-0507 ● ●
18 04.686 CLIP; BRK PIPE
4HF1-N ENG(RJZ) 03.162 (H) ID=10 & 6.4 & 4.8 IDN 		8-97064-484-1 02 1 0508-0609 ●
18 04.686 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.162 (H) ID=10 & 6.4 & 4.8 IDN 		8-97064-484-1 02 1 0508-0609 ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) 03.162 (H) ID=10 & 6.4 & 4.8 IDN 		8-97064-484-1 03 1 0610-0712 ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) 03.162 (H) ID=10 & 6.4 & 4.8 IDN 		8-97064-484-1 03 1 0610-0712 ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) 03.162 (H) ID=10 & 6.4 & 4.8 IDN 		8-97064-484-1 03 1 0801-1308 ● ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) 03.162 (H) ID=10 & 6.4 & 4.8 IDN 		8-97064-484-1 03 1 0801-1308 ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) 03.162 (H) ID=10 & 6.4 & 4.8 IDN 		8-97064-484-1 03 1 1309- ● ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.162 (H) ID=10 & 6.4 & 4.8 IDN 		8-97064-484-1 03 1 1309- ●
18 04.686 CLIP; BRK PIPE
4HF1-S ENG(RLS) (J) ID=10 & 4.76X3 		8-97326-158-1 02 1 0211-0507 ●
18 04.686 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS) (J) ID=10 & 4.76X3 		8-97326-158-1 02 1 0211-0507 ●
18 04.686 CLIP; BRK PIPE
4HF1-N ENG(RJZ) (J) ID=10 & 4.76X3 		8-97326-158-1 02 1 0508-0609 ●
18 04.686 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (J) ID=10 & 4.76X3 		8-97326-158-1 02 1 0508-0609 ●
18 04.686 CLIP; BRK PIPE
4HF1-N ENG(RJZ) (J) ID=10 & 4.76X3 		8-97326-158-1 02 1 0610-1401 ●
18 04.686 CLIP; BRK PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (J) ID=10 & 4.76X3 		8-97326-158-1 02 1 0610-1401 ●
18 04.686 CLIP; BRK PIPE
4HF1-N ENG(RJZ) (J) ID=10 & 4.76X3 		8-97326-158-1 02 1 1402-1405 ●
18 04.686 CLIP; BRK PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (J) ID=10 & 4.76X3 		8-97326-158-1 02 1 1402-1405 ●
18 04.686 CLIP; BRK PIPE
4HG1-T ENG(RDP) VIN MODEL YEAR 2012(VZC) SPECIAL PACKAGE<7BB> EXC. HEAVY DUTY FRAME<6WB> (J) ID=10 & 4.76X3 		8-97326-158-1 02 1 1402-1405 ●
18 04.686 CLIP; BRK PIPE
4HF1-N ENG(RJZ) (J) ID=10 & 4.76X3 		8-97326-158-1 02 1 1406-1410 ●
18 04.686 CLIP; BRK PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (J) ID=10 & 4.76X3 		8-97326-158-1 02 1 1406-1410 ●
18 04.686 CLIP; BRK PIPE
4HG1-T ENG(RDP) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) SPECIAL PACKAGE<7BB> EXC. HEAVY DUTY FRAME<6WB> (J) ID=10 & 4.76X3 		8-97326-158-1 02 1 1406-1410 ●
18 04.686 CLIP; BRK PIPE
4HF1-N ENG(RJZ) (J) ID=10 & 4.76X3 		8-97326-158-1 02 1 1411- ●
18 04.686 CLIP; BRK PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (J) ID=10 & 4.76X3 		8-97326-158-1 02 1 1411- ●
18 04.686 CLIP; BRK PIPE
4HF1-S ENG(RLS) (J) ID=10 & 4.76X3 		8-97326-158-1 05 1 0211-0507 ●
18 04.686 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS) (J) ID=10 & 4.76X3 		8-97326-158-1 05 1 0211-0507 ●
18 04.686 CLIP; BRK PIPE
4HF1-N ENG(RJZ) (J) ID=10 & 4.76X3 		8-97326-158-1 05 1 0508-0609 ●
18 04.686 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (J) ID=10 & 4.76X3 		8-97326-158-1 05 1 0508-0609 ●
18 04.686 CLIP; BRK PIPE
4HF1-N ENG(RJZ) (J) ID=10 & 4.76X3 		8-97326-158-1 05 1 0610- ●
18 04.686 CLIP; BRK PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (J) ID=10 & 4.76X3 		8-97326-158-1 05 1 0610- ●
18 04.686 CLIP; BRK PIPE
4HF1-S ENG(RLS) 03.162 (H) ID=10 & 6.4 & 4.8 IDN 		8-97064-484-1 01 1 0211-0507 ●
18 04.686 CLIP; BRK PIPE
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) 03.162 (H) ID=10 & 6.4 & 4.8 IDN 		8-97064-484-1 01 1 0211-0507 ●
18 04.686 CLIP; BRK PIPE
4HF1-N ENG(RJZ) 03.162 (H) ID=10 & 6.4 & 4.8 IDN 		8-97064-484-1 01 1 0508-0712 ● ●
18 04.686 CLIP; BRK PIPE
4HF1-N ENG(RJZ) 03.162 (H) ID=10 & 6.4 & 4.8 IDN 		8-97064-484-1 01 1 0801-1308 ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 03.162 (H) ID=10 & 6.4 & 4.8 IDN 		8-97064-484-1 01 1 0801-1308 ●
18 04.686 CLIP; BRK PIPE
4HF1-N ENG(RJZ) 03.162 (H) ID=10 & 6.4 & 4.8 IDN 		8-97064-484-1 01 1 1309- ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.162 (H) ID=10 & 6.4 & 4.8 IDN 		8-97064-484-1 01 1 1309- ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 03.162 (H) ID=10 & 6.4 & 4.8 IDN 		8-97064-484-1 01 1 1309- ●
18 04.686 CLIP; BRK PIPE
(F) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 02 1 0211-0609 ● ●
18 04.686 CLIP; BRK PIPE
(F) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 02 1 0610- ● ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) (F) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 02 1 0610- ●
18 04.686 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS) (J) ID=10 & 4.76X3 		8-97326-158-1 03 1 0211-0507 ●
18 04.686 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (J) ID=10 & 4.76X3 		8-97326-158-1 03 1 0508-0609 ●
18 04.686 CLIP; BRK PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (J) ID=10 & 4.76X3 		8-97326-158-1 03 1 0610- ●
18 04.686 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS) (K) ID=4.8X2 		8-94389-060-0 01 1 0302-0507 ●
18 04.686 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (K) ID=4.8X2 		8-94389-060-0 01 1 0508-0609 ●
18 04.686 CLIP; BRK PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (K) ID=4.8X2 		8-94389-060-0 01 1 0610-0910 ●
18 04.686 CLIP; BRK PIPE
4HF1-N ENG(RJZ) (K) ID=4.8X2 		8-94389-060-0 01 1 0911- ●
18 04.686 CLIP; BRK PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (K) ID=4.8X2 		8-94389-060-0 01 1 0911- ●
18 04.686 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS) (J) ID=10 & 4.76X3 		8-97326-158-1 01 1 0302-0507 ●
18 04.686 CLIP; BRK PIPE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (J) ID=10 & 4.76X3 		8-97326-158-1 01 1 0508-0609 ●
18 04.686 CLIP; BRK PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (J) ID=10 & 4.76X3 		8-97326-158-1 01 1 0610-1401 ●
18 04.686 CLIP; BRK PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (J) ID=10 & 4.76X3 		8-97326-158-1 01 1 1402-1405 ●
18 04.686 CLIP; BRK PIPE
4HG1-T ENG(RDP) VIN MODEL YEAR 2012(VZC) HEAVY DUTY FRAME<6WB> SPECIAL PACKAGE<7BB> (J) ID=10 & 4.76X3 		8-97326-158-1 01 1 1402-1405 ●
18 04.686 CLIP; BRK PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (J) ID=10 & 4.76X3 		8-97326-158-1 01 1 1406-1410 ●
18 04.686 CLIP; BRK PIPE
4HG1-T ENG(RDP) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) HEAVY DUTY FRAME<6WB> SPECIAL PACKAGE<7BB> (J) ID=10 & 4.76X3 		8-97326-158-1 01 1 1406-1410 ●
18 04.686 CLIP; BRK PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (J) ID=10 & 4.76X3 		8-97326-158-1 01 1 1411- ●
18 04.686 CLIP; BRK PIPE
4HG1-T ENG(RDP) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) SPECIAL PACKAGE<7BB> (J) ID=10 & 4.76X3 		8-97326-158-1 01 1 1411- ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) (G) ID=4.8X2 IDN 		8-94316-410-0 02 1 0610- ●
18 04.686 CLIP; BRK PIPE
4HF1-N ENG(RJZ) 03.162 (H) ID=10 & 6.4 & 4.8 IDN 		8-97064-484-1 02 1 0610-1308 ●
18 04.686 CLIP; BRK PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.162 (H) ID=10 & 6.4 & 4.8 IDN 		8-97064-484-1 02 1 0610-1308 ●
18 04.686 CLIP; BRK PIPE
4HF1-N ENG(RJZ) 03.162 (H) ID=10 & 6.4 & 4.8 IDN 		8-97064-484-1 02 1 1309- ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> 03.162 (H) ID=10 & 6.4 & 4.8 IDN 		8-97064-484-1 02 1 1309- ●
18 04.686 CLIP; BRK PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.162 (H) ID=10 & 6.4 & 4.8 IDN 		8-97064-484-1 02 1 1309- ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) (L) ID=10 & 4.76X3 		8-97168-820-0 02 1 0701- ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) 04.685 (C) ID=4.76X3 IDN 		8-94122-333-0 01 1 0610-0712 ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) 04.685 (C) ID=4.76X3 IDN 		8-94122-333-0 01 1 0801- ● ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) (I) ID=6.5 & 4.8X2 IDN 		8-94131-710-2 01 1 0610-0712 ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) (I) ID=6.5 & 4.8X2 IDN 		8-94131-710-2 01 1 0801- ● ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) (I) ID=6.5 & 4.8X2 IDN 		8-94131-710-2 01 1 0801- ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) (E) ID=4.8 H=26 IDN 		8-94249-685-0 01 1 0610-0712 ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) (E) ID=4.8 H=26 IDN 		8-94249-685-0 01 1 0610-0712 ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) (E) ID=4.8 H=26 IDN 		8-94249-685-0 01 1 0801- ● ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) (E) ID=4.8 H=26 IDN 		8-94249-685-0 01 1 0801- ● ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) (E) ID=4.8 H=26 IDN 		8-94249-685-0 01 1 0801- ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) (G) ID=4.8X2 IDN 		8-94316-410-0 01 1 0801- ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) (E) ID=4.8 H=26 IDN 		8-94249-685-0 02 1 0801- ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) (E) ID=4.8 H=26 IDN 		8-94249-685-0 02 1 0801- ●
20 04.686 CLIP; BRK PIPE
(E) ID=6.35 & 4.76X2 		8-94107-732-1 01 1 0211- ● ●
20 04.686 CLIP; BRK PIPE
(A) ID=4.8X2 		8-94113-470-0 01 1 0211- ● ●
20 04.686 CLIP; BRK PIPE
(D) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 0211- ● ●
20 04.686 CLIP; BRK PIPE
04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 0211- ● ●
20 04.686 CLIP; BRK PIPE
(B) ID=6.35 & 4.76X2 		8-94250-923-2 01 1 0211- ● ●
76 04.686 BOLT; BRKT,OIL PIPE
02.559 M8X25 FLANGE IDN 		0-28680-825-0 02 1 0211-0512 ● ●
76 04.686 BOLT; BRKT,OIL PIPE
06.216 M8X25 FLANGE IDN 		0-28650-825-0 02 1 0601- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
