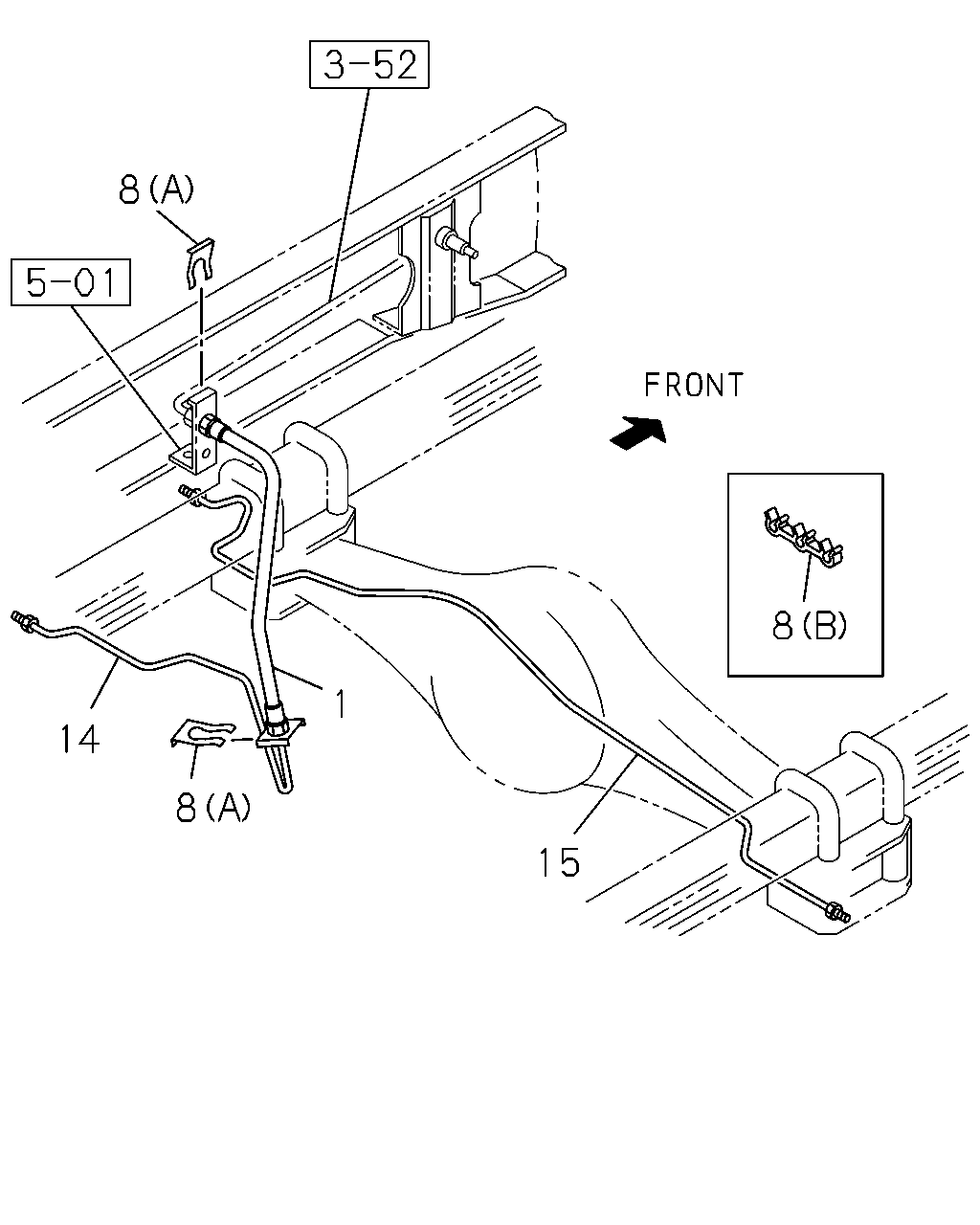

3-55 — BRAKE PIPING; OIL,REAR (#78951) — 24 parça

8 8 1 14 8 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.680 HOSE; FLEX,RR BRK L=405	8-97089-061-0	01	1	0211-0507	●
1	04.680 HOSE; FLEX,RR BRK 4HF1-N ENG(RJZ) L=405	8-97089-061-0	01	1	0508-	●
1	04.680 HOSE; FLEX,RR BRK L=370	8-97035-574-0	01	1	0211-0609		●
1	04.680 HOSE; FLEX,RR BRK 4JB1-TC ENG(RDT) L=370	8-97035-574-0	01	1	0610-	●
1	04.680 HOSE; FLEX,RR BRK L=370	8-97035-574-0	01	1	0610-		●
8	04.686 CLIP; RR BRK 04.681 (A)	8-94137-662-0	02	1	0211-0610	●	●
8	04.686 CLIP; RR BRK (A)	8-97360-054-0	02	1	0611-	●	●
8	04.686 CLIP; RR BRK (B)	8-97076-471-0	01	1	0211-	●	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL REAR AXLE HEAVY DUTY 343MM(8BW)	8-98319-319-0	01	1	1510-		●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) IDN	8-98021-860-0	01	1	1405-		●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL IDN	8-97306-902-0	01	1	0211-	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL REAR AXLE HEAVY DUTY 292MM(G73) IDN	8-97070-590-0	01	1	0211-1404		●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL REAR AXLE HEAVY DUTY 292MM(G73) EXC. MINI BUS CHASSIS(V4B) IDN	8-97070-590-0	01	1	1405-		●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) IDN	8-97070-590-0	01	1	1405-		●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL REAR AXLE HEAVY DUTY 320MM(6CP) IDN	8-97122-716-0	01	1	0211-0610		●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL REAR AXLE HEAVY DUTY 320MM(6CP) IDN	8-98021-872-0	01	1	0611-		●
15	04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL REAR AXLE HEAVY DUTY 343MM(8BW)	8-98319-320-0	01	1	1510-		●
15	04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL REAR AXLE HEAVY DUTY 292MM(G73) IDN	8-97070-591-0	01	1	0211-0712		●
15	04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 5.5-6.0TON(RPU) IDN	8-97070-591-0	01	1	0801-		●
15	04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL IDN	8-97047-813-2	01	1	0211-1404	●
15	04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL IDN	8-97047-813-2	01	1	1405-	●
15	04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) IDN	8-97047-813-2	01	1	1405-		●
15	04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL REAR AXLE HEAVY DUTY 320MM(6CP) IDN	8-97122-717-0	01	1	0211-0610		●
15	04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL REAR AXLE HEAVY DUTY 320MM(6CP) IDN	8-98021-873-0	01	1	0611-		●
