◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51280 - NKR INDONESIA ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#78950) — 81 parça

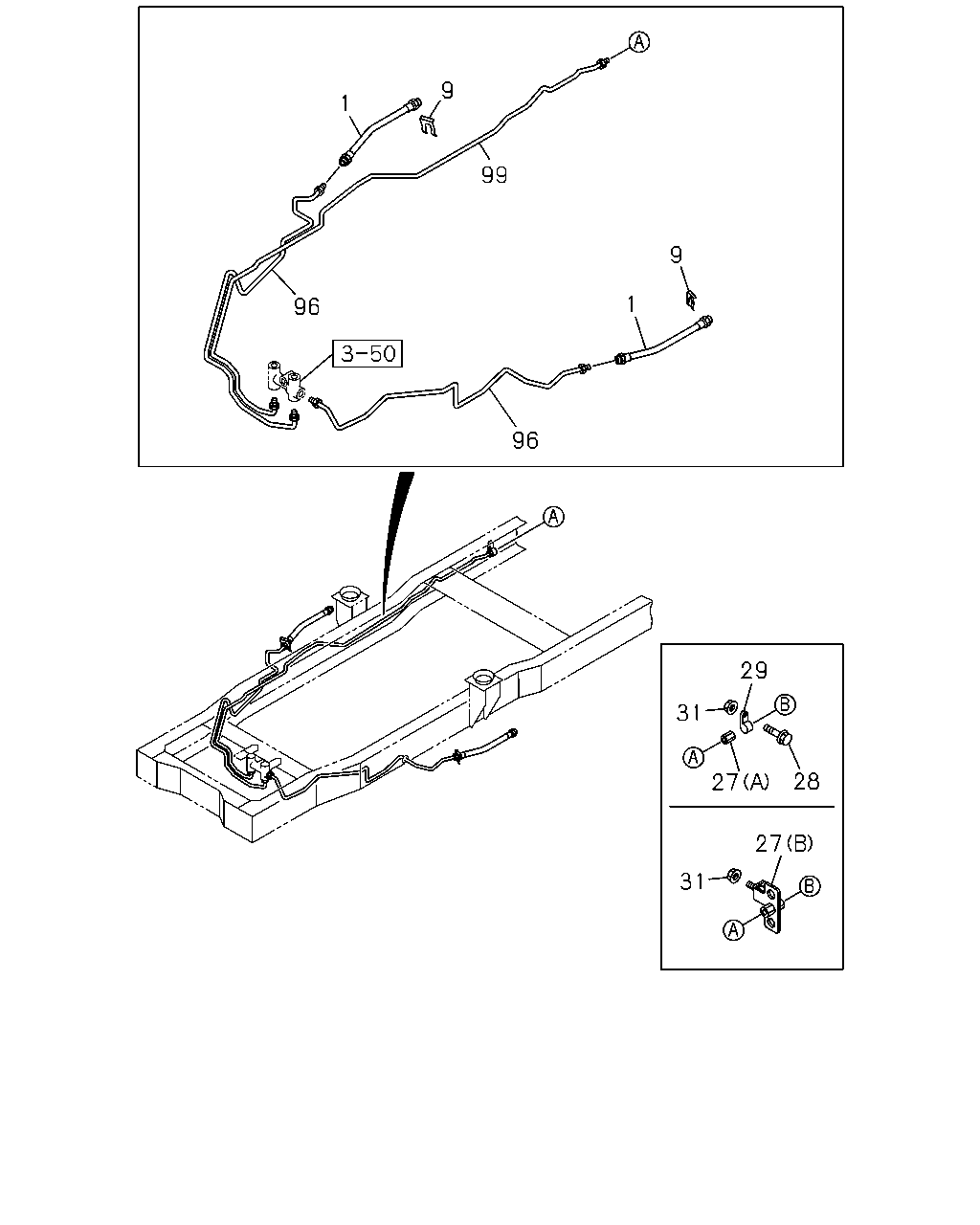

çizim 119666
9 1 99 9 1 96 29 31 28 27 27 31 96
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.680 HOSE; FLEX,FRT BRK
L=310 		8-97035-063-1 02 1 0211- ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0211-0610 ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0211-0610 ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0611- ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0611- ● ●
27 04.686 UNION; BRK PIPE
(B) 		8-97287-444-1 01 1 0211-0609 ● ●
27 04.686 UNION; BRK PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) 		8-97287-444-1 01 1 0610-1007 ● ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT) (A) M10 STRAIGHT IDN 		0-92107-005-0 01 1 0610-0712 ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT) (A) M10 STRAIGHT IDN 		0-92107-005-0 01 1 0801-1007 ● ●
27 04.686 UNION; BRK PIPE
(A) M10 STRAIGHT IDN 		0-92107-005-0 01 1 1008- ● ●
28 04.686 BOLT; UNION CLIP
4JB1-TC ENG(RDT) 00.685 M6X25 FLANGE IDN 		0-28650-625-0 01 1 0610-0712 ●
28 04.686 BOLT; UNION CLIP
4JB1-TC ENG(RDT) 00.685 M6X25 FLANGE IDN 		0-28650-625-0 01 1 0801-0911 ● ●
28 04.686 BOLT; UNION CLIP
4JB1-TC ENG(RDT) 00.685 M6X25 FLANGE IDN 		0-28650-625-0 01 1 0912- ● ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT) ID=16 L=20 IDN 		0-95235-532-0 01 1 0610-0712 ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT) ID=16 L=20 IDN 		0-95235-532-0 01 1 0801- ● ●
31 04.686 NUT; UNION CLIP
04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0602 ● ●
31 04.686 NUT; UNION CLIP
01.062 M6 FLANGE IDN 		0-91180-106-0 01 1 0603-1007 ● ●
31 04.686 NUT; UNION CLIP
4JB1-TC ENG(RDT) 01.062 M6 FLANGE IDN 		0-91180-106-0 01 1 1008- ● ●
96 04.686 PIPE ASM; 6 WAY
4HF1-S ENG(RLS) IDN 		8-97325-915-1 01 1 0211-0507 ●
96 04.686 PIPE ASM; 6 WAY
4HG1 ENG(RJH),4HF1-S ENG(RLS) IDN 		8-97325-915-1 01 1 0211-0507 ●
96 04.686 PIPE ASM; 6 WAY
4HF1-N ENG(RJZ) IDN 		8-97325-915-1 01 1 0508-1007 ●
96 04.686 PIPE ASM; 6 WAY
4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN 		8-97325-915-1 01 1 0508-1007 ●
96 04.686 PIPE ASM; 6 WAY
4HF1-N ENG(RJZ) IDN 		8-98167-272-0 01 1 1008- ●
96 04.686 PIPE ASM; 6 WAY
4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN 		8-98167-272-0 01 1 1008- ●
96 04.686 PIPE ASM; 6 WAY
4HF1-S ENG(RLS) IDN 		8-97325-919-1 01 1 0211-0507 ●
96 04.686 PIPE ASM; 6 WAY
4HG1 ENG(RJH),4HF1-S ENG(RLS) IDN 		8-97325-919-1 01 1 0211-0507 ●
96 04.686 PIPE ASM; 6 WAY
4HF1-N ENG(RJZ) IDN 		8-97325-919-1 01 1 0508- ●
96 04.686 PIPE ASM; 6 WAY
4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN 		8-97325-919-1 01 1 0508- ●
96 04.686 PIPE ASM; 6 WAY
4HG1-T ENG(RDP) IDN 		8-97361-322-0 01 1 0610- ●
96 04.686 PIPE ASM; 6 WAY
4HG1-T ENG(RDP) IDN 		8-97361-323-0 01 1 0610- ●
96 04.686 PIPE ASM; 6 WAY
4HG1-T ENG(RDP) 04.685 L=918 IDN 		8-94249-679-4 01 1 0610-0612 ●
96 04.686 PIPE ASM; 6 WAY
4JB1-TC ENG(RDT) 04.685 L=918 IDN 		8-94249-679-4 01 1 0701-0712 ●
96 04.686 PIPE ASM; 6 WAY
4JB1-TC ENG(RDT) 04.685 L=918 IDN 		8-94249-679-4 01 1 0801- ● ●
96 04.686 PIPE ASM; 6 WAY
4JB1-TC ENG(RDT) IDN 		8-97205-104-0 01 1 0610-0712 ●
96 04.686 PIPE ASM; 6 WAY
4JB1-TC ENG(RDT) IDN 		8-97205-104-0 01 1 0801- ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HG1 ENG(RJH),4HF1-S ENG(RLS) IDN 		8-97325-929-1 01 1 0211-0301 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HG1 ENG(RJH),4HF1-S ENG(RLS) IDN 		8-97363-974-0 01 1 0302-0507 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN 		8-97363-974-0 01 1 0508-1007 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HF1-S ENG(RLS) 		8-97325-930-1 01 1 0211-0507 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HF1-N ENG(RJZ) 		8-97325-930-1 01 1 0508-1007 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HF1-N ENG(RJZ) IDN 		8-98167-273-0 01 1 1008- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1-TC ENG(RDT) IDN 		8-97205-103-0 01 1 0610-1108 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1-TC ENG(RDT) 		8-98187-608-0 01 1 1109- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1-TC ENG(RDT) IDN 		8-98106-749-0 01 1 0801- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HG1-T ENG(RDP) IDN 		8-97363-966-0 01 1 0610-1007 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN 		8-97363-966-0 01 1 1008- ●
çizim 190753
13
BalonParca AdiParca NoAdetTipApplied Date A B
13 04.685 PIPE; OIL,UNION TO UNION
4HF1-S ENG(RLS) IDN 		8-97325-933-0 01 1 0211-0507 ●
13 04.685 PIPE; OIL,UNION TO UNION
4HF1-N ENG(RJZ) IDN 		8-97325-933-0 01 1 0508-0606 ●
13 04.685 PIPE; OIL,UNION TO UNION
4HF1-N ENG(RJZ) IDN 		8-97325-933-0 01 1 0607-0609 ●
13 04.685 PIPE; OIL,UNION TO UNION
4HF1-N ENG(RJZ) IDN 		8-97325-933-0 01 1 0607-0609 ●
13 04.685 PIPE; OIL,UNION TO UNION
4HF1-N ENG(RJZ) IDN 		8-97325-933-0 01 1 0610-0612 ●
13 04.685 PIPE; OIL,UNION TO UNION
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) IDN 		8-97325-933-0 01 1 0610-0612 ●
13 04.685 PIPE; OIL,UNION TO UNION
4HF1-N ENG(RJZ) IDN 		8-97325-933-0 01 1 0701-1007 ●
13 04.685 PIPE; OIL,UNION TO UNION
4HF1-N ENG(RJZ) IDN 		8-98167-274-0 01 1 1008- ●
13 04.685 PIPE; OIL,UNION TO UNION
4HG1 ENG(RJH),4HF1-S ENG(RLS) IDN 		8-97325-935-0 01 1 0211-0507 ●
13 04.685 PIPE; OIL,UNION TO UNION
4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN 		8-97325-935-0 01 1 0508-0609 ●
13 04.685 PIPE; OIL,UNION TO UNION
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN 		8-97325-935-0 01 1 0610-1007 ●
13 04.685 PIPE; OIL,UNION TO UNION
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN 		8-98167-275-0 01 1 1008- ●
13 04.685 PIPE; OIL,UNION TO UNION
4JB1-TC ENG(RDT) 		8-97300-213-0 01 1 0701- ●
13 04.685 PIPE; OIL,UNION TO UNION
4JB1-TC ENG(RDT) IDN 		8-97178-897-0 01 1 0801- ●

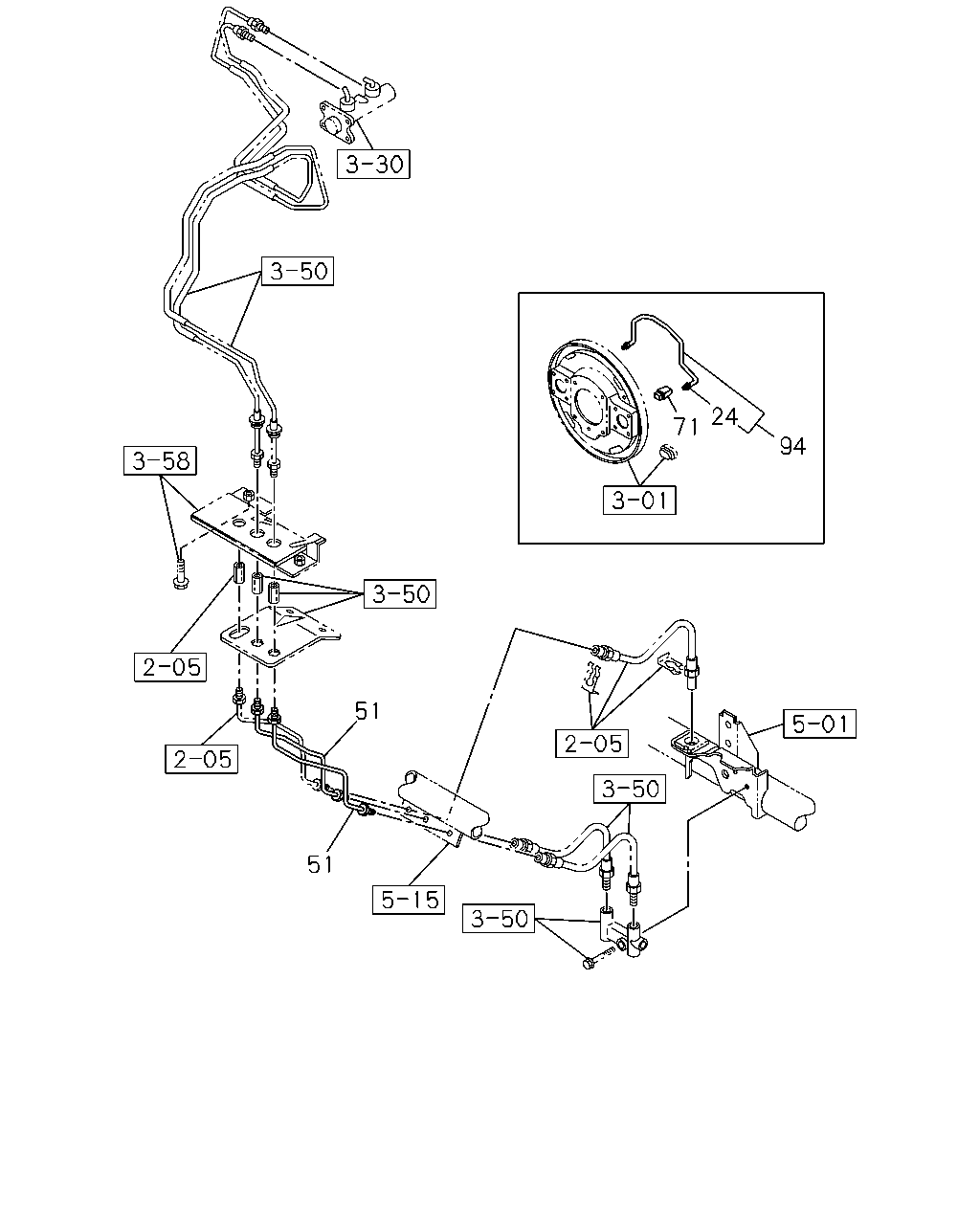

çizim 190759
24 71 94 51 51
BalonParca AdiParca NoAdetTipApplied Date A B
24 04.686 NUT; UNION,OIL PIPE
08.963 		9-09217-625-0 02 1 0211-0607 ●
24 04.686 NUT; UNION,OIL PIPE 0-92107-605-0 02 1 0608-1404 ●
24 04.686 NUT; UNION,OIL PIPE
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25(22H),FRT 7-15-10 5.5FX15-25 RR 7.5-15- 12 6GSX15-25(25H) 		0-92107-605-0 02 1 1405- ●
24 04.686 NUT; UNION,OIL PIPE
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25(22H),FRT 7-15-10 5.5FX15-25 RR 7.5-15- 12 6GSX15-25(25H) G.V.W. 4.0-4.5TON(RPR) 		0-92107-605-0 02 1 1405- ●
51 04.685 PIPE; BRK
IDN 		8-97035-978-0 02 1 0211- ● ●
71 04.686 GROMMET; OIL PIPE
05.002 IDN 		9-09756-034-0 02 1 0211-0311 ●
71 04.686 GROMMET; OIL PIPE
G.V.W. 5.5-6.0TON(RPU) 05.002 IDN 		9-09756-034-0 02 1 0211-0311 ●
71 04.686 GROMMET; OIL PIPE
05.002 IDN 		9-09756-034-0 02 1 0312-1404 ●
71 04.686 GROMMET; OIL PIPE
G.V.W. 5.5-6.0TON(RPU) EXC. MINI BUS CHASSIS(V4B) 05.002 IDN 		9-09756-034-0 02 1 0312-1404 ●
71 04.686 GROMMET; OIL PIPE
05.002 IDN 		9-09756-034-0 02 1 1405- ●
71 04.686 GROMMET; OIL PIPE
G.V.W. 5.5-6.0TON(RPU) EXC. MINI BUS CHASSIS(V4B) 05.002 IDN 		9-09756-034-0 02 1 1405- ●
71 04.686 GROMMET; OIL PIPE
G.V.W. 4.0-4.5TON(RPR) 05.002 IDN 		9-09756-034-0 02 1 1405- ●
71 04.686 GROMMET; OIL PIPE
G.V.W. 6.5-7.0TON(RPW) 05.002 		8-97044-742-1 02 1 0211-0311 ●
71 04.686 GROMMET; OIL PIPE
G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) 05.002 		8-97044-742-1 02 1 0312- ●
71 04.686 GROMMET; OIL PIPE
G.V.W. 6.5-7.0TON(RPW) 05.002 		8-97044-742-1 02 1 0312- ●
94 04.685 PIPE; BRK,W/C TO W/C 8-97019-222-0 01 1 0211-1404 ●
94 04.685 PIPE; BRK,W/C TO W/C
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25(22H),FRT 7-15-10 5.5FX15-25 RR 7.5-15- 12 6GSX15-25(25H) 		8-97019-222-0 01 1 1405- ●
94 04.685 PIPE; BRK,W/C TO W/C
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25(22H),FRT 7-15-10 5.5FX15-25 RR 7.5-15- 12 6GSX15-25(25H) G.V.W. 4.0-4.5TON(RPR) 		8-97019-222-0 01 1 1405- ●
94 04.685 PIPE; BRK,W/C TO W/C 8-97019-223-0 01 1 0211-1404 ●
94 04.685 PIPE; BRK,W/C TO W/C
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25(22H),FRT 7-15-10 5.5FX15-25 RR 7.5-15- 12 6GSX15-25(25H) 		8-97019-223-0 01 1 1405- ●
94 04.685 PIPE; BRK,W/C TO W/C
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25(22H),FRT 7-15-10 5.5FX15-25 RR 7.5-15- 12 6GSX15-25(25H) G.V.W. 4.0-4.5TON(RPR) 		8-97019-223-0 01 1 1405- ●
