◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10808 - FRR-G/FSR/FTR TAIWAN ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#7895) — 32 parça

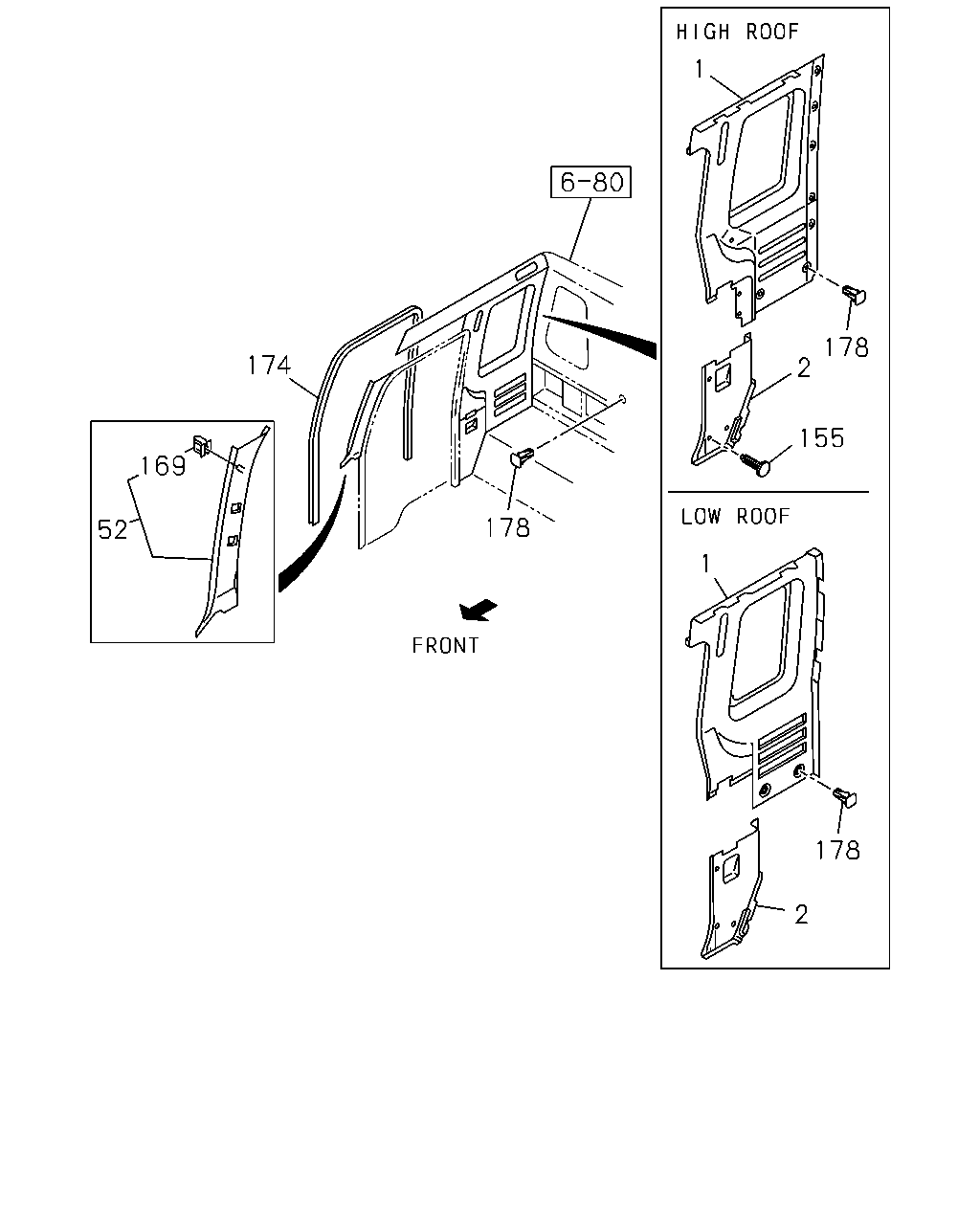

çizim 26996
1 178 174 2 155 169 178 52 1 178 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73348-965-3 01 1 9905-0301 ●
1 TRIM; ROOM,QUARTER WINDOW UPR
LOW ROOF<6XQ> 		1-73348-965-3 01 1 9905-0301 ●
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73348-965-3 01 1 0302- ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR
LOW ROOF<6XQ> 		1-73348-965-3 01 1 0302- ●
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73348-964-3 01 1 9905-0301 ●
1 TRIM; ROOM,QUARTER WINDOW UPR
LOW ROOF<6XQ> 		1-73348-964-3 01 1 9905-0301 ●
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73348-964-3 01 1 0302- ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR
LOW ROOF<6XQ> 		1-73348-964-3 01 1 0302- ●
1 TRIM; ROOM,QUARTER WINDOW UPR
HIGH ROOF<S2F> 		1-73348-961-6 01 1 9905- ●
1 TRIM; ROOM,QUARTER WINDOW UPR
HIGH ROOF<S2F> 		1-73348-960-6 01 1 9905- ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73348-967-2 01 1 9905- ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73348-966-2 01 1 9905- ●
2 TRIM; ROOM,QUARTER WINDOW LWR
HIGH ROOF<S2F> 		1-73348-927-3 01 1 9905- ●
2 TRIM; ROOM,QUARTER WINDOW LWR
HIGH ROOF<S2F> 		1-73348-926-3 01 1 9905- ●
2 TRIM; ROOM,QUARTER WINDOW LWR
LOW ROOF<6XQ> 		1-73348-978-2 01 1 9905-0301 ●
2 TRIM; ROOM,QUARTER WINDOW LWR
LOW ROOF<6XQ> 		1-73348-978-2 01 1 0302- ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73348-978-2 01 1 0302- ●
2 TRIM; ROOM,QUARTER WINDOW LWR
LOW ROOF<6XQ> 		1-73348-977-2 01 1 9905-0301 ●
2 TRIM; ROOM,QUARTER WINDOW LWR
LOW ROOF<6XQ> 		1-73348-977-2 01 1 0302- ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73348-977-2 01 1 0302- ●
52 COVER; TRIM,FRT PILLAR 1-73347-833-0 01 1 9905-0301 ● ●
52 COVER; TRIM,FRT PILLAR 1-73347-833-0 01 1 0302- ● ● ●
52 COVER; TRIM,FRT PILLAR 1-73348-939-0 01 1 9905-0301 ● ●
52 COVER; TRIM,FRT PILLAR 1-73348-939-0 01 1 0302- ● ● ●
155 CLIP; TRIM,QUARTER
OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 9905-0301 ● ●
155 CLIP; TRIM,QUARTER
OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 0302- ● ● ●
169 CLIP; TRIM COVER,FRT PILLAR 8-94313-458-0 02 1 9905-0301 ● ●
169 CLIP; TRIM COVER,FRT PILLAR 8-94313-458-0 02 1 0302- ● ● ●
174 FINISHER; BODY SIDE 1-76718-175-4 02 1 9905-0301 ● ●
174 FINISHER; BODY SIDE 1-76718-175-4 02 1 0302- ● ● ●
178 CLIP; TRIM COVER
OD=6.2 LIGHT GRAY 		1-09983-178-0 09 1 9905-0301 ● ●
178 CLIP; TRIM COVER
OD=6.2 LIGHT GRAY 		1-09983-178-0 09 1 0302- ● ● ●
