◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51280 - NKR INDONESIA ▶ 3 - Brakes, Brake System ▶ 3-50 - BRAKE PIPING; OIL,MASTER CYLINDER ▶
3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#78949) — 13 parça

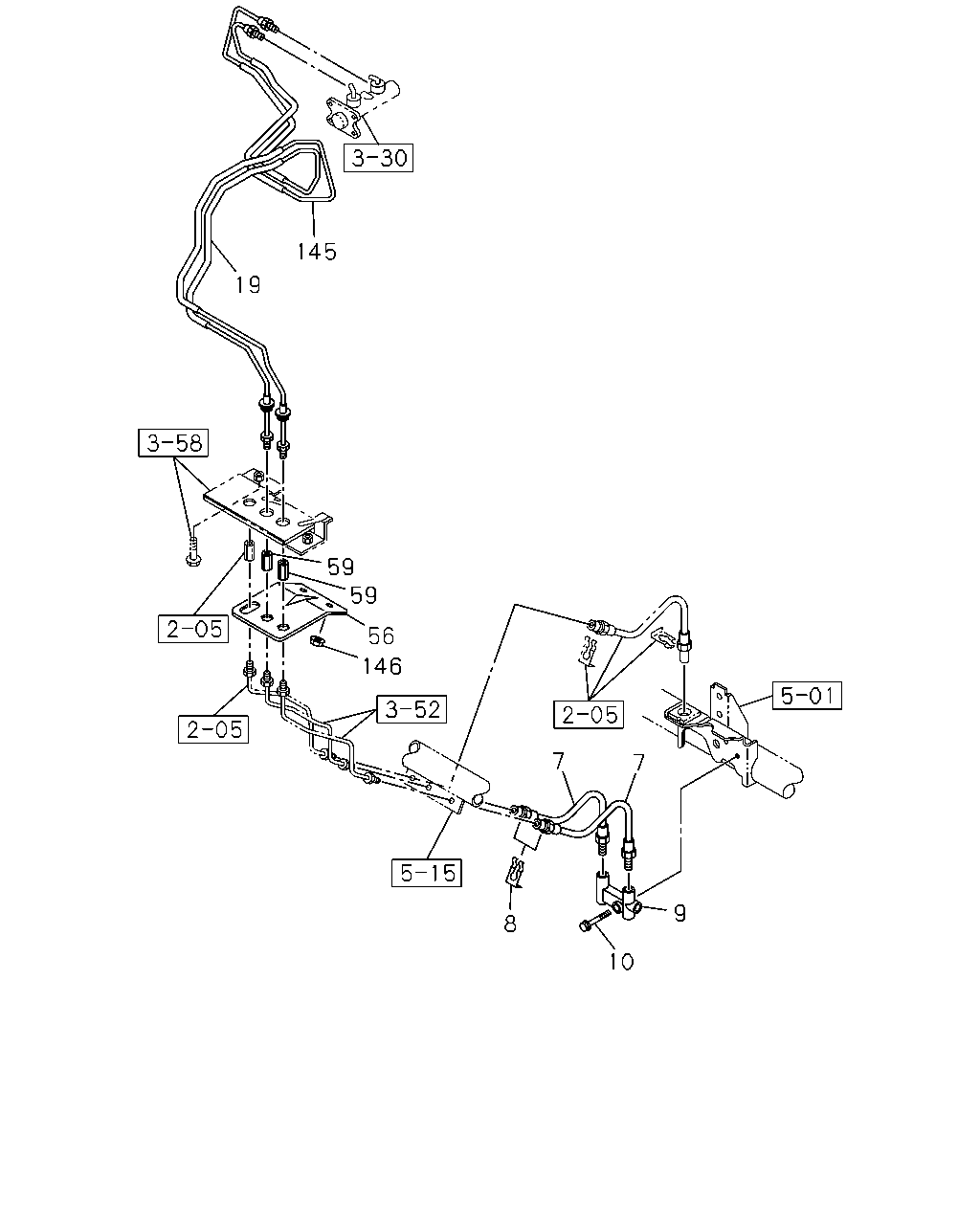

çizim 119834
145 19 59 59 56 146 7 7 9 8 10
BalonParca AdiParca NoAdetTipApplied Date A B
7 04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT 8-97171-031-0 02 1 0211- ● ●
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
00.785 		8-94167-006-0 02 1 0211-0610 ● ●
8 04.681 CLIP; FLEX HOSE,CABLE SIDE 8-97365-304-0 02 1 0611- ● ●
9 04.686 JOINT; BRK & CLU PIPE,CAB SIDE 5-47456-009-1 01 1 0211- ● ●
10 04.686 BOLT; JOINT
03.163 M6X40 FLANGE 		0-28680-640-0 01 1 0211-0512 ● ●
10 04.686 BOLT; JOINT
00.685 M6X40 FLANGE 		0-28650-640-0 01 1 0601- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION 8-97314-590-0 01 1 0211- ● ●
56 04.686 BRACKET; UNION,BRK
IDN 		8-97078-564-1 01 1 0211- ● ●
59 04.686 UNION; BRK PIPE
08.963 M10 STRAIGHT 		9-09227-005-0 02 1 0211-0607 ● ●
59 04.686 UNION; BRK PIPE
M10 STRAIGHT IDN 		0-92107-005-0 02 1 0608- ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION 8-97314-583-0 01 1 0211- ● ●
146 04.685 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0602 ● ●
146 04.685 NUT; BRKT
01.062 M8 FLANGE IDN 		0-91180-108-0 02 1 0603- ● ●
