◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51280 - NKR INDONESIA ▶ 3 - Brakes, Brake System ▶ 3-30 - BRAKE MASTER CYLINDER ▶
3-30 — BRAKE MASTER CYLINDER (#78947) — 133 parça

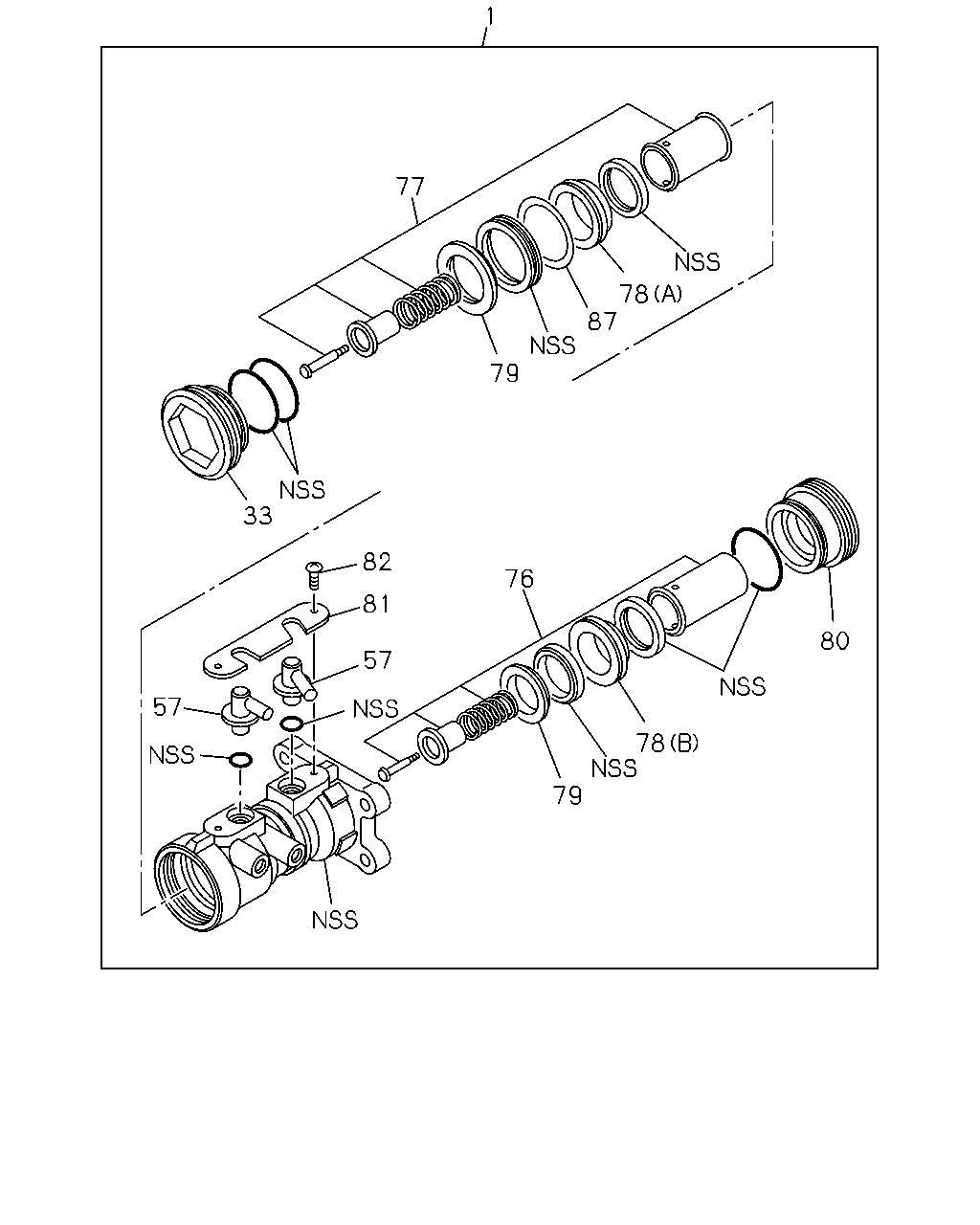

çizim 117129
1 77 78 87 79 33 82 76 81 80 57 57 78 79
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.650 CYLINDER ASM; BRK MASTER 8-97224-373-0 01 1 0211-0311 ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 5.5-6.0TON(RPU) 		8-97224-373-0 01 1 0211-0311 ●
1 04.650 CYLINDER ASM; BRK MASTER 8-97224-373-0 01 1 0312-0712 ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 5.5-6.0TON(RPU) EXC. MINI BUS CHASSIS(V4B) 		8-97224-373-0 01 1 0312-0712 ●
1 04.650 CYLINDER ASM; BRK MASTER 8-97224-373-0 01 1 0801-1404 ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 5.0-5.5TON(RPT) 		8-97224-373-0 01 1 0801-1404 ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 5.5-6.0TON(RPU) EXC. MINI BUS CHASSIS(V4B) 		8-97224-373-0 01 1 0801-1404 ●
1 04.650 CYLINDER ASM; BRK MASTER 8-97224-373-0 01 1 1405- ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 		8-97224-373-0 01 1 1405- ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 5.5-6.0TON(RPU) EXC. MINI BUS CHASSIS(V4B) 		8-97224-373-0 01 1 1405- ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 6.5-7.0TON(RPW) 		8-97224-370-0 01 1 0211-0311 ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) 		8-97224-370-0 01 1 0312- ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 6.5-7.0TON(RPW) 		8-97224-370-0 01 1 0312- ●
33 04.661 PLUG; END,M/CYL 8-97186-696-0 01 1 0211-0311 ●
33 04.661 PLUG; END,M/CYL
G.V.W. 5.5-6.0TON(RPU) 		8-97186-696-0 01 1 0211-0311 ●
33 04.661 PLUG; END,M/CYL 8-97186-696-0 01 1 0312-0712 ●
33 04.661 PLUG; END,M/CYL
G.V.W. 5.5-6.0TON(RPU) EXC. MINI BUS CHASSIS(V4B) 		8-97186-696-0 01 1 0312-0712 ●
33 04.661 PLUG; END,M/CYL 8-97186-696-0 01 1 0801-1404 ●
33 04.661 PLUG; END,M/CYL
G.V.W. 5.0-5.5TON(RPT) 		8-97186-696-0 01 1 0801-1404 ●
33 04.661 PLUG; END,M/CYL
G.V.W. 5.5-6.0TON(RPU) EXC. MINI BUS CHASSIS(V4B) 		8-97186-696-0 01 1 0801-1404 ●
33 04.661 PLUG; END,M/CYL 8-97186-696-0 01 1 1405- ●
33 04.661 PLUG; END,M/CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 		8-97186-696-0 01 1 1405- ●
33 04.661 PLUG; END,M/CYL
G.V.W. 5.5-6.0TON(RPU) EXC. MINI BUS CHASSIS(V4B) 		8-97186-696-0 01 1 1405- ●
33 04.661 PLUG; END,M/CYL
G.V.W. 6.5-7.0TON(RPW) 		8-97186-697-0 01 1 0211-0311 ●
33 04.661 PLUG; END,M/CYL
G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) 		8-97186-697-0 01 1 0312- ●
33 04.661 PLUG; END,M/CYL
G.V.W. 6.5-7.0TON(RPW) 		8-97186-697-0 01 1 0312- ●
57 04.651 NIPPLE; BRK M/CYL 8-97130-442-0 02 1 0211- ● ●
76 04.653 PISTON ASM; PRIMARY 8-97224-636-0 01 1 0211-0311 ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 5.5-6.0TON(RPU) 		8-97224-636-0 01 1 0211-0311 ●
76 04.653 PISTON ASM; PRIMARY 8-97224-636-0 01 1 0312-0712 ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 5.5-6.0TON(RPU) EXC. MINI BUS CHASSIS(V4B) 		8-97224-636-0 01 1 0312-0712 ●
76 04.653 PISTON ASM; PRIMARY 8-97224-636-0 01 1 0801-1404 ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 5.0-5.5TON(RPT) 		8-97224-636-0 01 1 0801-1404 ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 5.5-6.0TON(RPU) EXC. MINI BUS CHASSIS(V4B) 		8-97224-636-0 01 1 0801-1404 ●
76 04.653 PISTON ASM; PRIMARY 8-97224-636-0 01 1 1405- ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 		8-97224-636-0 01 1 1405- ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 5.5-6.0TON(RPU) EXC. MINI BUS CHASSIS(V4B) 		8-97224-636-0 01 1 1405- ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 6.5-7.0TON(RPW) 		8-97224-643-0 01 1 0211-0311 ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) 		8-97224-643-0 01 1 0312- ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 6.5-7.0TON(RPW) 		8-97224-643-0 01 1 0312- ●
77 04.653 PISTON ASM; SECONDARY 8-97224-635-0 01 1 0211-0311 ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 5.5-6.0TON(RPU) 		8-97224-635-0 01 1 0211-0311 ●
77 04.653 PISTON ASM; SECONDARY 8-97224-635-0 01 1 0312-0712 ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 5.5-6.0TON(RPU) EXC. MINI BUS CHASSIS(V4B) 		8-97224-635-0 01 1 0312-0712 ●
77 04.653 PISTON ASM; SECONDARY 8-97224-635-0 01 1 0801-1404 ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 5.0-5.5TON(RPT) 		8-97224-635-0 01 1 0801-1404 ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 5.5-6.0TON(RPU) EXC. MINI BUS CHASSIS(V4B) 		8-97224-635-0 01 1 0801-1404 ●
77 04.653 PISTON ASM; SECONDARY 8-97224-635-0 01 1 1405- ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 		8-97224-635-0 01 1 1405- ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 5.5-6.0TON(RPU) EXC. MINI BUS CHASSIS(V4B) 		8-97224-635-0 01 1 1405- ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 6.5-7.0TON(RPW) 		8-97224-642-0 01 1 0211-0311 ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) 		8-97224-642-0 01 1 0312- ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 6.5-7.0TON(RPW) 		8-97224-642-0 01 1 0312- ●
78 04.651 BUSHING; MASTER CYL
(A) 		8-97130-454-0 01 1 0211-0311 ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 5.5-6.0TON(RPU) (A) 		8-97130-454-0 01 1 0211-0311 ●
78 04.651 BUSHING; MASTER CYL
(A) 		8-97130-454-0 01 1 0312-0712 ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 5.5-6.0TON(RPU) EXC. MINI BUS CHASSIS(V4B) (A) 		8-97130-454-0 01 1 0312-0712 ●
78 04.651 BUSHING; MASTER CYL
(A) 		8-97130-454-0 01 1 0801-1404 ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 5.0-5.5TON(RPT) (A) 		8-97130-454-0 01 1 0801-1404 ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 5.5-6.0TON(RPU) EXC. MINI BUS CHASSIS(V4B) (A) 		8-97130-454-0 01 1 0801-1404 ●
78 04.651 BUSHING; MASTER CYL
(A) 		8-97130-454-0 01 1 1405- ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) (A) 		8-97130-454-0 01 1 1405- ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 5.5-6.0TON(RPU) EXC. MINI BUS CHASSIS(V4B) (A) 		8-97130-454-0 01 1 1405- ●
78 04.651 BUSHING; MASTER CYL
(B) 		8-97217-310-0 01 1 0211-0311 ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 5.5-6.0TON(RPU) (B) 		8-97217-310-0 01 1 0211-0311 ●
78 04.651 BUSHING; MASTER CYL
(B) 		8-97217-310-0 01 1 0312-0712 ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 5.5-6.0TON(RPU) EXC. MINI BUS CHASSIS(V4B) (B) 		8-97217-310-0 01 1 0312-0712 ●
78 04.651 BUSHING; MASTER CYL
(B) 		8-97217-310-0 01 1 0801-1404 ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 5.0-5.5TON(RPT) (B) 		8-97217-310-0 01 1 0801-1404 ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 5.5-6.0TON(RPU) EXC. MINI BUS CHASSIS(V4B) (B) 		8-97217-310-0 01 1 0801-1404 ●
78 04.651 BUSHING; MASTER CYL
(B) 		8-97217-310-0 01 1 1405- ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) (B) 		8-97217-310-0 01 1 1405- ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 5.5-6.0TON(RPU) EXC. MINI BUS CHASSIS(V4B) (B) 		8-97217-310-0 01 1 1405- ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 6.5-7.0TON(RPW) (A) 		8-97130-455-0 01 1 0211-0311 ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) (A) 		8-97130-455-0 01 1 0312- ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 6.5-7.0TON(RPW) (A) 		8-97130-455-0 01 1 0312- ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 6.5-7.0TON(RPW) (B) 		8-97217-312-0 01 1 0211-0311 ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) (B) 		8-97217-312-0 01 1 0312- ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 6.5-7.0TON(RPW) (B) 		8-97217-312-0 01 1 0312- ●
79 04.651 SUPPORTER; CUP 8-97130-462-0 02 1 0211-0311 ●
79 04.651 SUPPORTER; CUP
G.V.W. 5.5-6.0TON(RPU) 		8-97130-462-0 02 1 0211-0311 ●
79 04.651 SUPPORTER; CUP 8-97130-462-0 02 1 0312-0712 ●
79 04.651 SUPPORTER; CUP
G.V.W. 5.5-6.0TON(RPU) EXC. MINI BUS CHASSIS(V4B) 		8-97130-462-0 02 1 0312-0712 ●
79 04.651 SUPPORTER; CUP 8-97130-462-0 02 1 0801-1404 ●
79 04.651 SUPPORTER; CUP
G.V.W. 5.0-5.5TON(RPT) 		8-97130-462-0 02 1 0801-1404 ●
79 04.651 SUPPORTER; CUP
G.V.W. 5.5-6.0TON(RPU) EXC. MINI BUS CHASSIS(V4B) 		8-97130-462-0 02 1 0801-1404 ●
79 04.651 SUPPORTER; CUP 8-97130-462-0 02 1 1405- ●
79 04.651 SUPPORTER; CUP
G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 		8-97130-462-0 02 1 1405- ●
79 04.651 SUPPORTER; CUP
G.V.W. 5.5-6.0TON(RPU) EXC. MINI BUS CHASSIS(V4B) 		8-97130-462-0 02 1 1405- ●
79 04.651 SUPPORTER; CUP
G.V.W. 6.5-7.0TON(RPW) 		8-97130-463-0 02 1 0211-0311 ●
79 04.651 SUPPORTER; CUP
G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) 		8-97130-463-0 02 1 0312- ●
79 04.651 SUPPORTER; CUP
G.V.W. 6.5-7.0TON(RPW) 		8-97130-463-0 02 1 0312- ●
80 04.651 COVER; MASTER CYL 8-97130-448-0 01 1 0211-0311 ●
80 04.651 COVER; MASTER CYL
G.V.W. 5.5-6.0TON(RPU) 		8-97130-448-0 01 1 0211-0311 ●
80 04.651 COVER; MASTER CYL 8-97130-448-0 01 1 0312-0712 ●
80 04.651 COVER; MASTER CYL
G.V.W. 5.5-6.0TON(RPU) EXC. MINI BUS CHASSIS(V4B) 		8-97130-448-0 01 1 0312-0712 ●
80 04.651 COVER; MASTER CYL 8-97130-448-0 01 1 0801-1404 ●
80 04.651 COVER; MASTER CYL
G.V.W. 5.0-5.5TON(RPT) 		8-97130-448-0 01 1 0801-1404 ●
80 04.651 COVER; MASTER CYL
G.V.W. 5.5-6.0TON(RPU) EXC. MINI BUS CHASSIS(V4B) 		8-97130-448-0 01 1 0801-1404 ●
80 04.651 COVER; MASTER CYL 8-97130-448-0 01 1 1405- ●
80 04.651 COVER; MASTER CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 		8-97130-448-0 01 1 1405- ●
80 04.651 COVER; MASTER CYL
G.V.W. 5.5-6.0TON(RPU) EXC. MINI BUS CHASSIS(V4B) 		8-97130-448-0 01 1 1405- ●
80 04.651 COVER; MASTER CYL
G.V.W. 6.5-7.0TON(RPW) 		8-97130-449-0 01 1 0211-0311 ●
80 04.651 COVER; MASTER CYL
G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) 		8-97130-449-0 01 1 0312- ●
80 04.651 COVER; MASTER CYL
G.V.W. 6.5-7.0TON(RPW) 		8-97130-449-0 01 1 0312- ●
81 04.651 HOLDER; NIPPLE 8-97130-445-0 01 1 0211- ● ●
82 04.651 SCREW; HOLDER 8-97130-446-0 02 1 0211- ● ●
87 04.662 SPACER; CUP 8-97130-458-0 01 1 0211-0311 ●
87 04.662 SPACER; CUP
G.V.W. 5.5-6.0TON(RPU) 		8-97130-458-0 01 1 0211-0311 ●
87 04.662 SPACER; CUP 8-97130-458-0 01 1 0312-0712 ●
87 04.662 SPACER; CUP
G.V.W. 5.5-6.0TON(RPU) EXC. MINI BUS CHASSIS(V4B) 		8-97130-458-0 01 1 0312-0712 ●
87 04.662 SPACER; CUP 8-97130-458-0 01 1 0801-1404 ●
87 04.662 SPACER; CUP
G.V.W. 5.0-5.5TON(RPT) 		8-97130-458-0 01 1 0801-1404 ●
87 04.662 SPACER; CUP
G.V.W. 5.5-6.0TON(RPU) EXC. MINI BUS CHASSIS(V4B) 		8-97130-458-0 01 1 0801-1404 ●
87 04.662 SPACER; CUP 8-97130-458-0 01 1 1405- ●
87 04.662 SPACER; CUP
G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 		8-97130-458-0 01 1 1405- ●
87 04.662 SPACER; CUP
G.V.W. 5.5-6.0TON(RPU) EXC. MINI BUS CHASSIS(V4B) 		8-97130-458-0 01 1 1405- ●
87 04.662 SPACER; CUP
G.V.W. 6.5-7.0TON(RPW) 		8-97130-459-0 01 1 0211-0311 ●
87 04.662 SPACER; CUP
G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) 		8-97130-459-0 01 1 0312- ●
87 04.662 SPACER; CUP
G.V.W. 6.5-7.0TON(RPW) 		8-97130-459-0 01 1 0312- ●

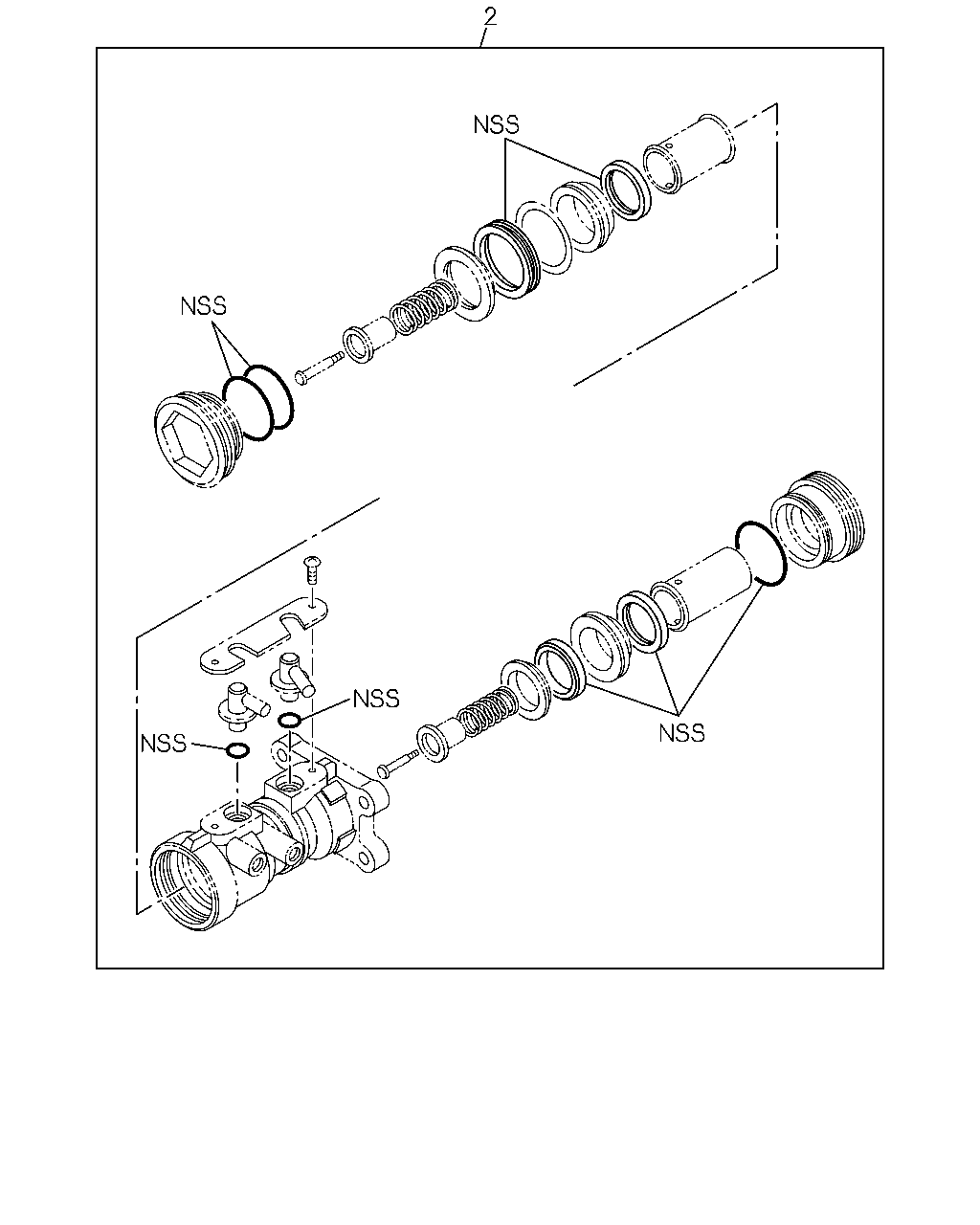

çizim 190756
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 04.649 REPAIR KIT; BRK,M/CYL 8-97130-470-0 01 1 0211-0311 ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 5.5-6.0TON(RPU) 		8-97130-470-0 01 1 0211-0311 ●
2 04.649 REPAIR KIT; BRK,M/CYL 8-97130-470-0 01 1 0312-0712 ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 5.5-6.0TON(RPU) EXC. MINI BUS CHASSIS(V4B) 		8-97130-470-0 01 1 0312-0712 ●
2 04.649 REPAIR KIT; BRK,M/CYL 8-97130-470-0 01 1 0801-1404 ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 5.0-5.5TON(RPT) 		8-97130-470-0 01 1 0801-1404 ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 5.5-6.0TON(RPU) EXC. MINI BUS CHASSIS(V4B) 		8-97130-470-0 01 1 0801-1404 ●
2 04.649 REPAIR KIT; BRK,M/CYL 8-97130-470-0 01 1 1405- ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 		8-97130-470-0 01 1 1405- ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 5.5-6.0TON(RPU) EXC. MINI BUS CHASSIS(V4B) 		8-97130-470-0 01 1 1405- ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 6.5-7.0TON(RPW) 		8-97130-471-0 01 1 0211-0311 ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) 		8-97130-471-0 01 1 0312- ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 6.5-7.0TON(RPW) 		8-97130-471-0 01 1 0312- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
