3-11 — PARKING BRAKE CONTROL (#78945) — 75 parça

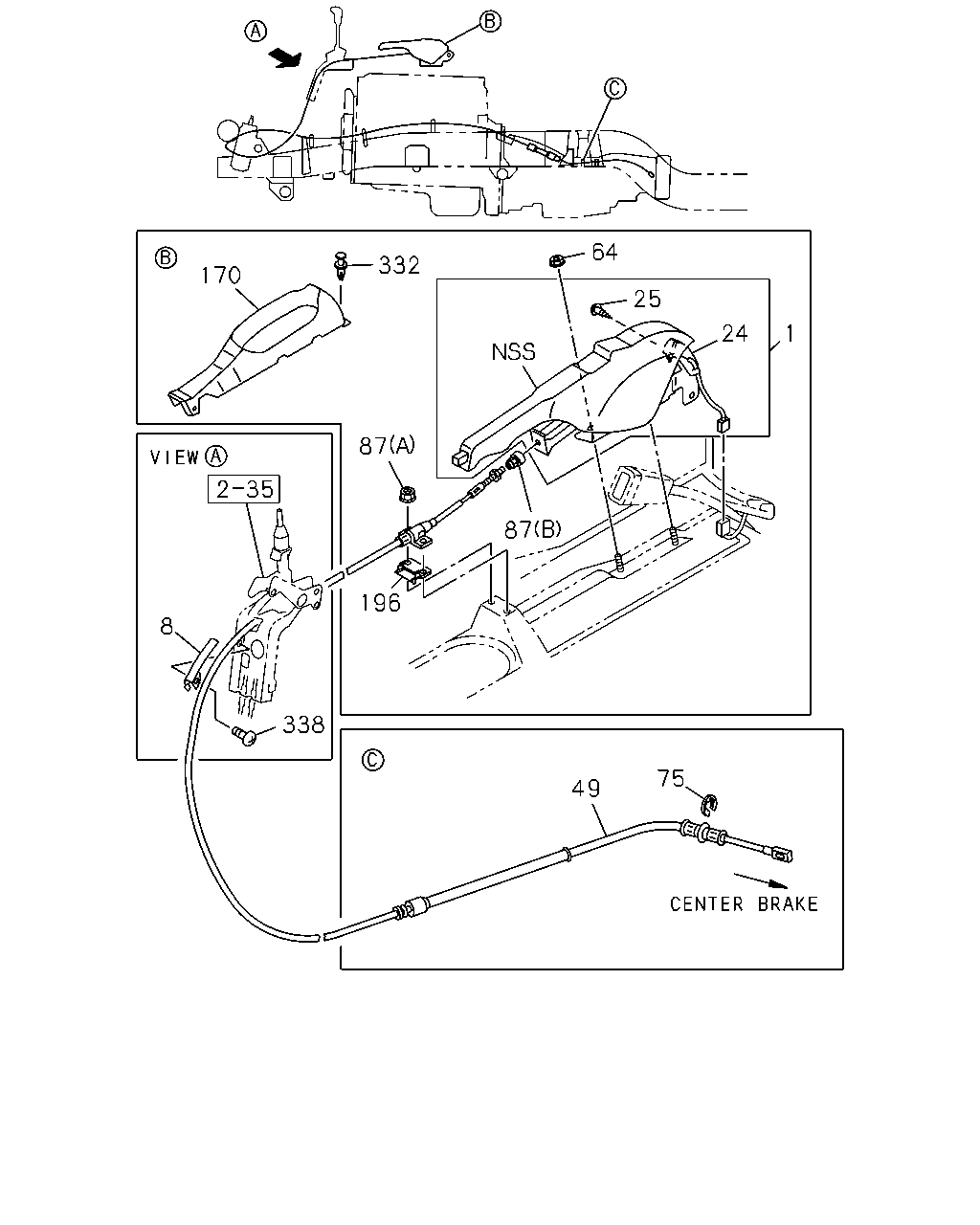

çizim 115570
64 332 170 25 24 1 87 196 8 338 75 49
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97996-542-2 01 1 0211-1305 ● ●
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97427-541-0 01 1 1306- ● ●
8 04.592 GUIDE; PARKING BRK
IDN 		8-97190-672-0 01 1 0211- ● ●
24 04.589 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 0211-1305 ● ●
24 04.589 SWITCH ASM; PARK BRK 8-98238-611-0 01 1 1306- ● ●
25 04.589 SCREW; SW,PARKING BRK 8-98152-463-0 01 1 0211- ● ●
49 04.779 CABLE; PARKING BRK
IDN 		8-97350-540-0 01 1 0211-0507 ● ●
49 04.779 CABLE; PARKING BRK
4HF1-N ENG(RJZ) IDN 		8-97350-540-0 01 1 0508- ●
49 04.779 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN 		8-97350-540-0 01 1 0508- ●
49 04.779 CABLE; PARKING BRK
4HG1-T ENG(RDP) IDN 		8-97361-329-0 01 1 0610- ●
49 04.779 CABLE; PARKING BRK
4JB1-TC ENG(RDT) IDN 		8-97184-270-0 01 1 0610-0712 ●
49 04.779 CABLE; PARKING BRK
4JB1-TC ENG(RDT) IDN 		8-97184-270-0 01 1 0801- ● ●
64 04.595 NUT; PARKING BRK
07.833 M8 W/LK WASHER IDN 		8-94327-073-0 02 1 0211-0610 ● ●
64 04.595 NUT; PARKING BRK
16.682 M8 LOCK NUT FLANGE 		0-91380-008-0 02 1 0611- ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
04.681 ID=12 		9-09185-412-0 01 1 0211-0604 ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
ID=12 		0-91805-512-0 01 1 0605- ● ●
87 04.785 NUT
(B) M6 		8-97088-730-1 01 1 0211-0310 ● ●
87 04.785 NUT
(B) M6 		1-71996-312-0 01 1 0311-0611 ● ●
87 04.785 NUT
(B) M6 		8-98034-313-1 01 1 0612- ● ●
87 04.785 NUT
07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 0211-0602 ● ●
87 04.785 NUT
01.062 (A) M8 FLANGE IDN 		0-91180-108-0 02 1 0603- ● ●
170 04.595 COVER; PARKING BRK LEVER
DARK GRAY IDN 		8-97155-172-1 01 1 0211-1001 ● ●
170 04.595 COVER; PARKING BRK LEVER
DARK GRAY 		8-97412-945-0 01 1 1002- ● ●
196 04.784 SPACER; CABLE TO LEVER 8-97066-277-2 01 1 0211-0611 ● ●
196 04.784 SPACER; CABLE TO LEVER 8-98034-201-0 01 1 0612- ● ●
332 04.785 CLIP; COVER
03.602 D6X12.5 		8-94146-425-0 01 1 0211- ● ●
338 04.785 SCREW; GUIDE
16.270 M6X10 		9-03497-610-0 01 1 0211-0604 ● ●
338 04.785 SCREW; GUIDE
M6X10 		0-34218-610-0 01 1 0605- ● ●
çizim 190750
225 89 224 91 181
BalonParca AdiParca NoAdetTipApplied Date A B
89 04.785 BRACKET; CLIP
4JB1-TC ENG(RDT) 		8-97113-984-1 01 1 0610-0712 ●
89 04.785 BRACKET; CLIP
4JB1-TC ENG(RDT) 		8-97113-984-1 01 1 0801- ● ●
91 04.785 CLIP; PARKING BRK CABLE
00.799 (A) ID=13 L=20 		1-09701-138-1 01 1 0211-0507 ● ●
91 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 00.799 (A) ID=13 L=20 		1-09701-138-1 01 1 0508-0609 ● ●
91 04.785 CLIP; PARKING BRK CABLE
4HF1-N ENG(RJZ) 00.799 (A) ID=13 L=20 		1-09701-138-1 01 1 0610- ●
91 04.785 CLIP; PARKING BRK CABLE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 00.799 (A) ID=13 L=20 		1-09701-138-1 01 1 0610- ●
91 04.785 CLIP; PARKING BRK CABLE
4JB1-TC ENG(RDT) (B) ID=13 L=50 		0-95235-286-0 01 1 0610-0712 ●
91 04.785 CLIP; PARKING BRK CABLE
4JB1-TC ENG(RDT) (B) ID=13 L=50 		0-95235-286-0 01 1 0801- ● ●
181 04.785 BOLT; BRKT
4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE IDN 		0-28650-825-0 01 1 0610-0712 ●
181 04.785 BOLT; BRKT
4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE IDN 		0-28650-825-0 01 1 0801- ● ●
224 04.785 BOLT; CABLE CLIP
03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0211-0512 ● ●
224 04.785 BOLT; CABLE CLIP
00.029 M10X25 FLANGE IDN 		0-28651-025-0 01 1 0601-0609 ● ●
224 04.785 BOLT; CABLE CLIP
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 00.029 M10X25 FLANGE IDN 		0-28651-025-0 01 1 0610- ● ●
224 04.785 BOLT; CABLE CLIP
4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE IDN 		0-28650-825-0 01 1 0610-0712 ●
224 04.785 BOLT; CABLE CLIP
4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE IDN 		0-28650-825-0 01 1 0801- ● ●
225 04.785 NUT; CABLE CLIP
M10 FLANGE 		0-91150-110-0 01 1 0211-0507 ● ●
225 04.785 NUT; CABLE CLIP
4HG1 ENG(RJH),4HF1-N ENG(RJZ) M10 FLANGE 		0-91150-110-0 01 1 0508-0602 ● ●
225 04.785 NUT; CABLE CLIP
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.162 M10 FLANGE IDN 		0-91180-110-0 01 1 0603-0609 ● ●
225 04.785 NUT; CABLE CLIP
4HF1-N ENG(RJZ) 03.162 M10 FLANGE IDN 		0-91180-110-0 01 1 0610- ●
225 04.785 NUT; CABLE CLIP
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.162 M10 FLANGE IDN 		0-91180-110-0 01 1 0610- ●
225 04.785 NUT; CABLE CLIP
4JB1-TC ENG(RDT) 01.062 M8 FLANGE IDN 		0-91180-108-0 01 1 0610-0712 ●
225 04.785 NUT; CABLE CLIP
4JB1-TC ENG(RDT) 01.062 M8 FLANGE IDN 		0-91180-108-0 01 1 0801- ● ●
çizim 190754
324 236 225 91 224
BalonParca AdiParca NoAdetTipApplied Date A B
91 04.785 CLIP; PARKING BRK CABLE
00.799 (A) ID=13 L=20 		1-09701-138-1 01 1 0211-0507 ● ●
91 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 00.799 (A) ID=13 L=20 		1-09701-138-1 01 1 0508-0609 ● ●
91 04.785 CLIP; PARKING BRK CABLE
4HF1-N ENG(RJZ) 00.799 (A) ID=13 L=20 		1-09701-138-1 01 1 0610- ●
91 04.785 CLIP; PARKING BRK CABLE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 00.799 (A) ID=13 L=20 		1-09701-138-1 01 1 0610- ●
91 04.785 CLIP; PARKING BRK CABLE
4JB1-TC ENG(RDT) (B) ID=13 L=50 		0-95235-286-0 01 1 0610-0712 ●
91 04.785 CLIP; PARKING BRK CABLE
4JB1-TC ENG(RDT) (B) ID=13 L=50 		0-95235-286-0 01 1 0801- ● ●
224 04.785 BOLT; CABLE CLIP
03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0211-0512 ● ●
224 04.785 BOLT; CABLE CLIP
00.029 M10X25 FLANGE IDN 		0-28651-025-0 01 1 0601-0609 ● ●
224 04.785 BOLT; CABLE CLIP
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 00.029 M10X25 FLANGE IDN 		0-28651-025-0 01 1 0610- ● ●
224 04.785 BOLT; CABLE CLIP
4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE IDN 		0-28650-825-0 01 1 0610-0712 ●
224 04.785 BOLT; CABLE CLIP
4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE IDN 		0-28650-825-0 01 1 0801- ● ●
225 04.785 NUT; CABLE CLIP
M10 FLANGE 		0-91150-110-0 01 1 0211-0507 ● ●
225 04.785 NUT; CABLE CLIP
4HG1 ENG(RJH),4HF1-N ENG(RJZ) M10 FLANGE 		0-91150-110-0 01 1 0508-0602 ● ●
225 04.785 NUT; CABLE CLIP
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.162 M10 FLANGE IDN 		0-91180-110-0 01 1 0603-0609 ● ●
225 04.785 NUT; CABLE CLIP
4HF1-N ENG(RJZ) 03.162 M10 FLANGE IDN 		0-91180-110-0 01 1 0610- ●
225 04.785 NUT; CABLE CLIP
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.162 M10 FLANGE IDN 		0-91180-110-0 01 1 0610- ●
225 04.785 NUT; CABLE CLIP
4JB1-TC ENG(RDT) 01.062 M8 FLANGE IDN 		0-91180-108-0 01 1 0610-0712 ●
225 04.785 NUT; CABLE CLIP
4JB1-TC ENG(RDT) 01.062 M8 FLANGE IDN 		0-91180-108-0 01 1 0801- ● ●
236 04.785 BOLT; BRKT TO FRAME
02.559 M8X25 FLANGE IDN 		0-28680-825-0 02 1 0211-0507 ● ●
236 04.785 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.559 M8X25 FLANGE IDN 		0-28680-825-0 02 1 0508-0512 ● ●
236 04.785 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 06.216 M8X25 FLANGE IDN 		0-28650-825-0 02 1 0601-0609 ● ●
236 04.785 BOLT; BRKT TO FRAME
4HF1-N ENG(RJZ) 06.216 M8X25 FLANGE IDN 		0-28650-825-0 02 1 0610- ●
236 04.785 BOLT; BRKT TO FRAME
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 06.216 M8X25 FLANGE IDN 		0-28650-825-0 02 1 0610- ●
324 04.785 BRACKET 8-97357-242-0 01 1 0211-0609 ● ●
324 04.785 BRACKET
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97357-242-0 01 1 0610- ● ●
