Sayfa 3-08 - Isuzu EPC

3-08 — PARKING BRAKE (#78943) — 243 parça

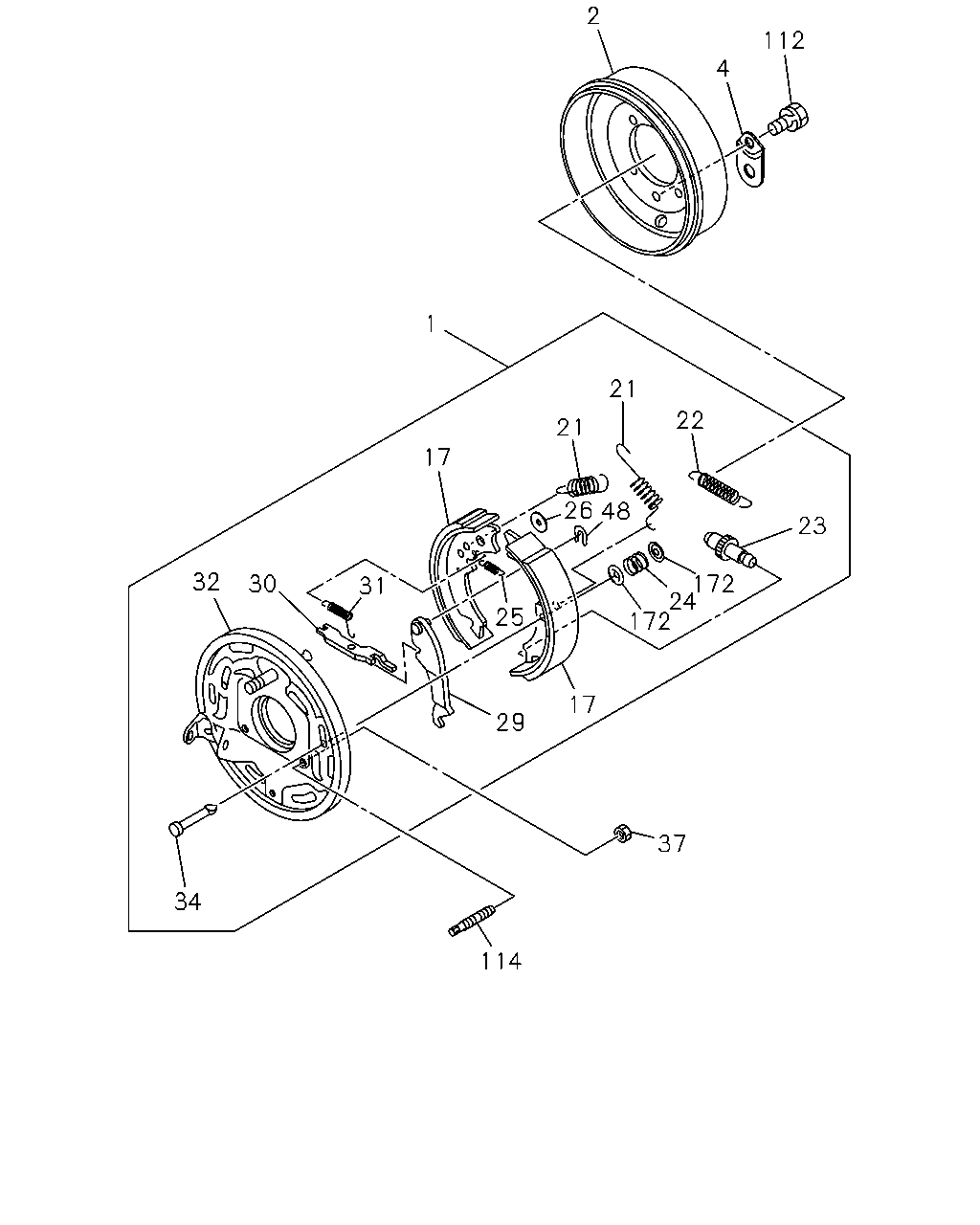

2 112 4 1 21 22 21 17 23 32 31 30 172 24 172 25 17 29 37 34 114 26 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	05.610 BRAKE ASM; CENTER,PARKING	8-97308-175-0	01	1	0211-0507	●	●
1	05.610 BRAKE ASM; CENTER,PARKING 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-97308-175-0	01	1	0508-0611	●	●
1	05.610 BRAKE ASM; CENTER,PARKING 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-98029-922-0	01	1	0612-0702	●	●
1	05.610 BRAKE ASM; CENTER,PARKING 4HF1-N ENG(RJZ)	8-98029-922-0	01	1	0703-	●
1	05.610 BRAKE ASM; CENTER,PARKING 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-98029-922-0	01	1	0703-		●
1	05.610 BRAKE ASM; CENTER,PARKING 4JB1-TC ENG(RDT)	8-97034-553-2	01	1	0610-0712	●
1	05.610 BRAKE ASM; CENTER,PARKING 4JB1-TC ENG(RDT)	8-97034-553-2	01	1	0801-	●	●
2	05.605 DRUM; PARKING BRK IDN	8-97033-989-1	01	1	0211-0507	●	●
2	05.605 DRUM; PARKING BRK 4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97033-989-1	01	1	0508-0702	●	●
2	05.605 DRUM; PARKING BRK 4HF1-N ENG(RJZ) IDN	8-97033-989-1	01	1	0703-	●
2	05.605 DRUM; PARKING BRK 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97033-989-1	01	1	0703-		●
2	05.605 DRUM; PARKING BRK 4JB1-TC ENG(RDT) IDN	5-46210-005-3	01	1	0610-0712	●
2	05.605 DRUM; PARKING BRK 4JB1-TC ENG(RDT) IDN	5-46210-005-3	01	1	0801-	●	●
4	05.606 COVER; ADJ HOLE	5-46219-001-0	01	1	0211-0507	●	●
4	05.606 COVER; ADJ HOLE 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	5-46219-001-0	01	1	0508-0604	●	●
4	05.606 COVER; ADJ HOLE 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-98029-820-0	01	1	0605-0702	●	●
4	05.606 COVER; ADJ HOLE 4HF1-N ENG(RJZ)	8-98029-820-0	01	1	0703-	●
4	05.606 COVER; ADJ HOLE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-98029-820-0	01	1	0703-		●
4	05.606 COVER; ADJ HOLE 4JB1-TC ENG(RDT) IDN	5-42319-003-0	01	1	0610-0712	●
4	05.606 COVER; ADJ HOLE 4JB1-TC ENG(RDT) IDN	5-42319-003-0	01	1	0801-	●	●
17	05.606 SHOE; PARKING BRK	8-97020-250-2	02	1	0211-0507	●	●
17	05.606 SHOE; PARKING BRK 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-97020-250-2	02	1	0508-0702	●	●
17	05.606 SHOE; PARKING BRK 4HF1-N ENG(RJZ)	8-97020-250-2	02	1	0703-	●
17	05.606 SHOE; PARKING BRK 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-97020-250-2	02	1	0703-		●
17	05.606 SHOE; PARKING BRK 4JB1-TC ENG(RDT)	8-97042-933-1	02	1	0610-0712	●
17	05.606 SHOE; PARKING BRK 4JB1-TC ENG(RDT)	8-97042-933-1	02	1	0801-	●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE 05.605	8-94132-157-0	02	1	0211-0507	●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 05.605	8-94132-157-0	02	1	0508-0702	●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE 4HF1-N ENG(RJZ) 05.605	8-94132-157-0	02	1	0703-	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 05.605	8-94132-157-0	02	1	0703-		●
21	05.606 SPRING; RETURN,PARKING BRK SHOE 4JB1-TC ENG(RDT)	9-09942-552-1	01	1	0610-0712	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE 4JB1-TC ENG(RDT)	9-09942-552-1	01	1	0801-	●	●
22	05.606 SPRING; ADJ SCREW,PARKING BRK 05.605	8-94107-618-0	01	1	0211-0507	●	●
22	05.606 SPRING; ADJ SCREW,PARKING BRK 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 05.605	8-94107-618-0	01	1	0508-0702	●	●
22	05.606 SPRING; ADJ SCREW,PARKING BRK 4HF1-N ENG(RJZ) 05.605	8-94107-618-0	01	1	0703-	●
22	05.606 SPRING; ADJ SCREW,PARKING BRK 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 05.605	8-94107-618-0	01	1	0703-		●
22	05.606 SPRING; ADJ SCREW,PARKING BRK 4JB1-TC ENG(RDT)	9-09942-340-1	01	1	0610-0712	●
22	05.606 SPRING; ADJ SCREW,PARKING BRK 4JB1-TC ENG(RDT)	9-09942-340-1	01	1	0801-	●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE	5-47165-025-0	01	1	0211-0507	●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	5-47165-025-0	01	1	0508-0609	●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE	5-47165-025-0	01	1	0610-0611	●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE 4JB1-TC ENG(RDT)	5-47165-025-0	01	1	0612-0712	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE 4JB1-TC ENG(RDT)	5-47165-025-0	01	1	0801-	●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-98043-954-0	01	1	0612-0702	●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE 4HF1-N ENG(RJZ)	8-98043-954-0	01	1	0703-	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-98043-954-0	01	1	0703-		●
24	05.605 SPRING; BRK SHOE	8-94132-155-0	02	1	0211-0507	●	●
24	05.605 SPRING; BRK SHOE 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-94132-155-0	02	1	0508-0702	●	●
24	05.605 SPRING; BRK SHOE 4HF1-N ENG(RJZ)	8-94132-155-1	02	1	0703-	●
24	05.605 SPRING; BRK SHOE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-94132-155-1	02	1	0703-		●
24	05.605 SPRING; BRK SHOE 4JB1-TC ENG(RDT)	9-09941-062-1	02	1	0610-0712	●
24	05.605 SPRING; BRK SHOE 4JB1-TC ENG(RDT)	9-09941-062-1	02	1	0801-	●	●
25	05.605 SPRING; SHOE ALIGNMENT	8-94132-156-0	01	1	0211-0507	●	●
25	05.605 SPRING; SHOE ALIGNMENT 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-94132-156-0	01	1	0508-0702	●	●
25	05.605 SPRING; SHOE ALIGNMENT 4HF1-N ENG(RJZ)	8-94132-156-0	01	1	0703-	●
25	05.605 SPRING; SHOE ALIGNMENT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-94132-156-0	01	1	0703-		●
26	05.605 PLATE; SHOE GUIDE	9-09851-986-0	01	1	0211-0507	●	●
26	05.605 PLATE; SHOE GUIDE 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	9-09851-986-0	01	1	0508-0611	●	●
26	05.605 PLATE; SHOE GUIDE 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-98043-959-0	01	1	0612-0702	●	●
26	05.605 PLATE; SHOE GUIDE 4HF1-N ENG(RJZ)	8-98043-959-0	01	1	0703-	●
26	05.605 PLATE; SHOE GUIDE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-98043-959-0	01	1	0703-		●
29	04.591 LEVER; PARKING BRK 05.605	8-97027-125-0	01	1	0211-0507	●	●
29	04.591 LEVER; PARKING BRK 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 05.605	8-97027-125-0	01	1	0508-0611	●	●
29	04.591 LEVER; PARKING BRK 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-98043-949-0	01	1	0612-0702	●	●
29	04.591 LEVER; PARKING BRK 4HF1-N ENG(RJZ)	8-98043-949-0	01	1	0703-	●
29	04.591 LEVER; PARKING BRK 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-98043-949-0	01	1	0703-		●
29	04.591 LEVER; PARKING BRK 4JB1-TC ENG(RDT)	8-94128-765-0	01	1	0610-0712	●
29	04.591 LEVER; PARKING BRK 4JB1-TC ENG(RDT)	8-94128-765-0	01	1	0801-	●	●
30	05.605 STRUT; PARKING BRK	8-94311-779-0	01	1	0211-0507	●	●
30	05.605 STRUT; PARKING BRK 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-94311-779-0	01	1	0508-0611	●	●
30	05.605 STRUT; PARKING BRK 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-98043-953-0	01	1	0612-0702	●	●
30	05.605 STRUT; PARKING BRK 4HF1-N ENG(RJZ)	8-98043-953-0	01	1	0703-	●
30	05.605 STRUT; PARKING BRK 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-98043-953-0	01	1	0703-		●
30	05.605 STRUT; PARKING BRK 4JB1-TC ENG(RDT)	5-46251-007-0	01	1	0610-0712	●
30	05.605 STRUT; PARKING BRK 4JB1-TC ENG(RDT)	5-46251-007-0	01	1	0801-	●	●
31	05.605 SPRING; SHOE TO STRUT	8-94132-158-0	01	1	0211-0507	●	●
31	05.605 SPRING; SHOE TO STRUT 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-94132-158-0	01	1	0508-0702	●	●
31	05.605 SPRING; SHOE TO STRUT 4HF1-N ENG(RJZ)	8-94132-158-0	01	1	0703-	●
31	05.605 SPRING; SHOE TO STRUT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-94132-158-0	01	1	0703-		●
31	05.605 SPRING; SHOE TO STRUT 4JB1-TC ENG(RDT) 05.606	9-09942-521-1	01	1	0610-0712	●
31	05.605 SPRING; SHOE TO STRUT 4JB1-TC ENG(RDT) 05.606	9-09942-521-1	01	1	0801-	●	●
32	05.610 PLATE; SUPPORT,PARKING BRK	8-97308-176-0	01	1	0211-0507	●	●
32	05.610 PLATE; SUPPORT,PARKING BRK 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-97308-176-0	01	1	0508-0702	●	●
32	05.610 PLATE; SUPPORT,PARKING BRK 4HF1-N ENG(RJZ)	8-97308-176-0	01	1	0703-	●
32	05.610 PLATE; SUPPORT,PARKING BRK 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-97308-176-0	01	1	0703-		●
32	05.610 PLATE; SUPPORT,PARKING BRK 4JB1-TC ENG(RDT)	9-46213-601-2	01	1	0610-0712	●
32	05.610 PLATE; SUPPORT,PARKING BRK 4JB1-TC ENG(RDT)	9-46213-601-2	01	1	0801-	●	●
34	05.605 PIN; BRK SHOE	8-94132-159-0	02	1	0211-0507	●	●
34	05.605 PIN; BRK SHOE 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-94132-159-0	02	1	0508-0611	●	●
34	05.605 PIN; BRK SHOE 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-98043-955-0	02	1	0612-0702	●	●
34	05.605 PIN; BRK SHOE 4HF1-N ENG(RJZ)	8-98043-955-0	02	1	0703-	●
34	05.605 PIN; BRK SHOE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-98043-955-0	02	1	0703-		●
34	05.605 PIN; BRK SHOE 4JB1-TC ENG(RDT) 05.043	9-47162-034-0	02	1	0610-0712	●
34	05.605 PIN; BRK SHOE 4JB1-TC ENG(RDT) 05.043	9-47162-034-0	02	1	0801-	●	●
37	05.610 NUT; SUPPORT PLATE M12 LOCK NUT	8-97248-173-0	04	1	0211-0507	●	●
37	05.610 NUT; SUPPORT PLATE 4HG1 ENG(RJH),4HF1-N ENG(RJZ) M12 LOCK NUT	8-97248-173-0	04	1	0508-0604	●	●
37	05.610 NUT; SUPPORT PLATE 4HG1 ENG(RJH),4HF1-N ENG(RJZ) M12 LOCK NUT	8-98029-927-0	04	1	0605-0702	●	●
37	05.610 NUT; SUPPORT PLATE 4HF1-N ENG(RJZ) M12 LOCK NUT	8-98029-927-0	04	1	0703-	●
37	05.610 NUT; SUPPORT PLATE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) M12 LOCK NUT	8-98029-927-0	04	1	0703-		●
37	05.610 NUT; SUPPORT PLATE 4JB1-TC ENG(RDT) M12	8-97033-122-0	01	1	0610-0712	●
37	05.610 NUT; SUPPORT PLATE 4JB1-TC ENG(RDT) M12	8-97033-122-0	01	1	0801-	●	●
48	05.605 RETAINER; PIN,PARKING BRK 05.158 IDN	9-46349-005-1	01	1	0211-0507	●	●
48	05.605 RETAINER; PIN,PARKING BRK 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 05.158 IDN	9-46349-005-1	01	1	0508-0609	●	●
48	05.605 RETAINER; PIN,PARKING BRK 05.158 IDN	9-46349-005-1	01	1	0610-0611	●	●
48	05.605 RETAINER; PIN,PARKING BRK 4JB1-TC ENG(RDT) 05.158 IDN	9-46349-005-1	01	1	0612-0712	●
48	05.605 RETAINER; PIN,PARKING BRK 4JB1-TC ENG(RDT) 05.158 IDN	9-46349-005-1	01	1	0801-	●	●
48	05.605 RETAINER; PIN,PARKING BRK 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-98043-958-0	01	1	0612-0702	●	●
48	05.605 RETAINER; PIN,PARKING BRK 4HF1-N ENG(RJZ)	8-98043-958-0	01	1	0703-	●
48	05.605 RETAINER; PIN,PARKING BRK 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-98043-958-0	01	1	0703-		●
112	05.606 BOLT; COVER TO BRK DRUM 04.686 M6X16 W/LK WASHER	0-50040-616-0	01	1	0211-0507	●	●
112	05.606 BOLT; COVER TO BRK DRUM 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 04.686 M6X16 W/LK WASHER	0-50040-616-0	01	1	0508-0512	●	●
112	05.606 BOLT; COVER TO BRK DRUM 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 00.662 M6X16 W/LK WASHER	0-50540-616-0	01	1	0601-0609	●	●
112	05.606 BOLT; COVER TO BRK DRUM 00.662 M6X16 W/LK WASHER	0-50540-616-0	01	1	0610-	●	●
114	05.605 STUD; SUPPORT PLATE	8-97289-280-0	04	1	0211-0507	●	●
114	05.605 STUD; SUPPORT PLATE 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-97289-280-0	04	1	0508-0604	●	●
114	05.605 STUD; SUPPORT PLATE 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-98029-929-0	04	1	0605-0702	●	●
114	05.605 STUD; SUPPORT PLATE 4HF1-N ENG(RJZ)	8-98029-929-0	04	1	0703-	●
114	05.605 STUD; SUPPORT PLATE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-98029-929-0	04	1	0703-		●
172	05.605 CUP; SHOE HOLD 05.043 IDN	9-47162-033-0	04	1	0211-0507	●	●
172	05.605 CUP; SHOE HOLD 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 05.043 IDN	9-47162-033-0	04	1	0508-0611	●	●
172	05.605 CUP; SHOE HOLD 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-98043-956-0	04	1	0612-0702	●	●
172	05.605 CUP; SHOE HOLD 4HF1-N ENG(RJZ)	8-98043-956-0	04	1	0703-	●
172	05.605 CUP; SHOE HOLD 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-98043-956-0	04	1	0703-		●
172	05.605 CUP; SHOE HOLD 4JB1-TC ENG(RDT)	8-94378-404-0	04	1	0610-0712	●
172	05.605 CUP; SHOE HOLD 4JB1-TC ENG(RDT)	8-94378-404-0	04	1	0801-	●	●

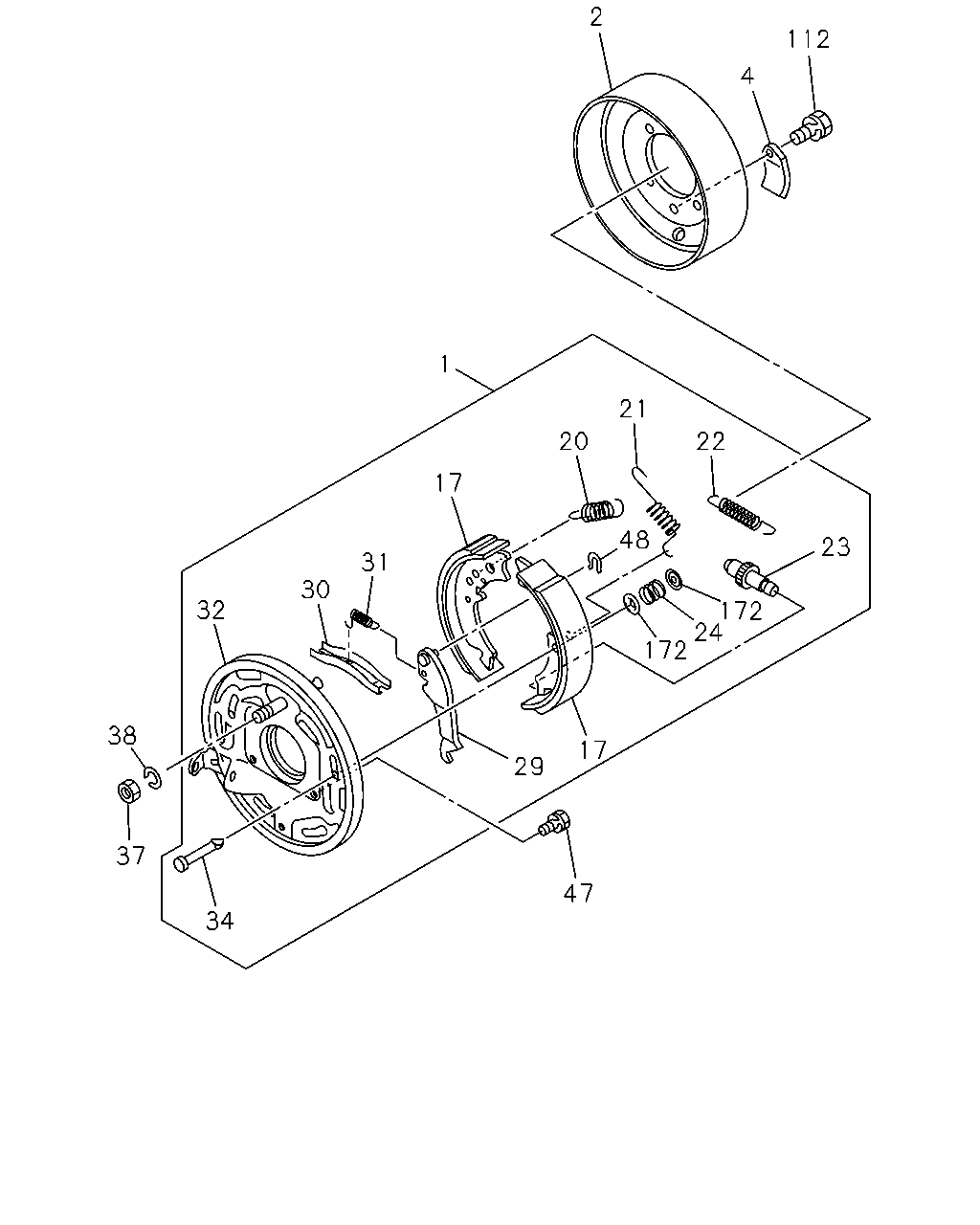

2 112 4 1 21 20 22 17 48 23 31 30 32 172 24 172 38 17 29 37 47 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	05.610 BRAKE ASM; CENTER,PARKING	8-97308-175-0	01	1	0211-0507	●	●
1	05.610 BRAKE ASM; CENTER,PARKING 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-97308-175-0	01	1	0508-0611	●	●
1	05.610 BRAKE ASM; CENTER,PARKING 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-98029-922-0	01	1	0612-0702	●	●
1	05.610 BRAKE ASM; CENTER,PARKING 4HF1-N ENG(RJZ)	8-98029-922-0	01	1	0703-	●
1	05.610 BRAKE ASM; CENTER,PARKING 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-98029-922-0	01	1	0703-		●
1	05.610 BRAKE ASM; CENTER,PARKING 4JB1-TC ENG(RDT)	8-97034-553-2	01	1	0610-0712	●
1	05.610 BRAKE ASM; CENTER,PARKING 4JB1-TC ENG(RDT)	8-97034-553-2	01	1	0801-	●	●
2	05.605 DRUM; PARKING BRK IDN	8-97033-989-1	01	1	0211-0507	●	●
2	05.605 DRUM; PARKING BRK 4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97033-989-1	01	1	0508-0702	●	●
2	05.605 DRUM; PARKING BRK 4HF1-N ENG(RJZ) IDN	8-97033-989-1	01	1	0703-	●
2	05.605 DRUM; PARKING BRK 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97033-989-1	01	1	0703-		●
2	05.605 DRUM; PARKING BRK 4JB1-TC ENG(RDT) IDN	5-46210-005-3	01	1	0610-0712	●
2	05.605 DRUM; PARKING BRK 4JB1-TC ENG(RDT) IDN	5-46210-005-3	01	1	0801-	●	●
4	05.606 COVER; ADJ HOLE	5-46219-001-0	01	1	0211-0507	●	●
4	05.606 COVER; ADJ HOLE 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	5-46219-001-0	01	1	0508-0604	●	●
4	05.606 COVER; ADJ HOLE 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-98029-820-0	01	1	0605-0702	●	●
4	05.606 COVER; ADJ HOLE 4HF1-N ENG(RJZ)	8-98029-820-0	01	1	0703-	●
4	05.606 COVER; ADJ HOLE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-98029-820-0	01	1	0703-		●
4	05.606 COVER; ADJ HOLE 4JB1-TC ENG(RDT) IDN	5-42319-003-0	01	1	0610-0712	●
4	05.606 COVER; ADJ HOLE 4JB1-TC ENG(RDT) IDN	5-42319-003-0	01	1	0801-	●	●
17	05.606 SHOE; PARKING BRK	8-97020-250-2	02	1	0211-0507	●	●
17	05.606 SHOE; PARKING BRK 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-97020-250-2	02	1	0508-0702	●	●
17	05.606 SHOE; PARKING BRK 4HF1-N ENG(RJZ)	8-97020-250-2	02	1	0703-	●
17	05.606 SHOE; PARKING BRK 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-97020-250-2	02	1	0703-		●
17	05.606 SHOE; PARKING BRK 4JB1-TC ENG(RDT)	8-97042-933-1	02	1	0610-0712	●
17	05.606 SHOE; PARKING BRK 4JB1-TC ENG(RDT)	8-97042-933-1	02	1	0801-	●	●
20	05.606 SPRING; RETURN,SECONDARY,PARKING 4JB1-TC ENG(RDT)	9-09942-553-1	01	1	0610-0712	●
20	05.606 SPRING; RETURN,SECONDARY,PARKING 4JB1-TC ENG(RDT)	9-09942-553-1	01	1	0801-	●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE 05.605	8-94132-157-0	02	1	0211-0507	●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 05.605	8-94132-157-0	02	1	0508-0702	●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE 4HF1-N ENG(RJZ) 05.605	8-94132-157-0	02	1	0703-	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 05.605	8-94132-157-0	02	1	0703-		●
21	05.606 SPRING; RETURN,PARKING BRK SHOE 4JB1-TC ENG(RDT)	9-09942-552-1	01	1	0610-0712	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE 4JB1-TC ENG(RDT)	9-09942-552-1	01	1	0801-	●	●
22	05.606 SPRING; ADJ SCREW,PARKING BRK 05.605	8-94107-618-0	01	1	0211-0507	●	●
22	05.606 SPRING; ADJ SCREW,PARKING BRK 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 05.605	8-94107-618-0	01	1	0508-0702	●	●
22	05.606 SPRING; ADJ SCREW,PARKING BRK 4HF1-N ENG(RJZ) 05.605	8-94107-618-0	01	1	0703-	●
22	05.606 SPRING; ADJ SCREW,PARKING BRK 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 05.605	8-94107-618-0	01	1	0703-		●
22	05.606 SPRING; ADJ SCREW,PARKING BRK 4JB1-TC ENG(RDT)	9-09942-340-1	01	1	0610-0712	●
22	05.606 SPRING; ADJ SCREW,PARKING BRK 4JB1-TC ENG(RDT)	9-09942-340-1	01	1	0801-	●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE	5-47165-025-0	01	1	0211-0507	●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	5-47165-025-0	01	1	0508-0609	●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE	5-47165-025-0	01	1	0610-0611	●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE 4JB1-TC ENG(RDT)	5-47165-025-0	01	1	0612-0712	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE 4JB1-TC ENG(RDT)	5-47165-025-0	01	1	0801-	●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-98043-954-0	01	1	0612-0702	●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE 4HF1-N ENG(RJZ)	8-98043-954-0	01	1	0703-	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-98043-954-0	01	1	0703-		●
24	05.605 SPRING; BRK SHOE	8-94132-155-0	02	1	0211-0507	●	●
24	05.605 SPRING; BRK SHOE 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-94132-155-0	02	1	0508-0702	●	●
24	05.605 SPRING; BRK SHOE 4HF1-N ENG(RJZ)	8-94132-155-1	02	1	0703-	●
24	05.605 SPRING; BRK SHOE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-94132-155-1	02	1	0703-		●
24	05.605 SPRING; BRK SHOE 4JB1-TC ENG(RDT)	9-09941-062-1	02	1	0610-0712	●
24	05.605 SPRING; BRK SHOE 4JB1-TC ENG(RDT)	9-09941-062-1	02	1	0801-	●	●
29	04.591 LEVER; PARKING BRK 05.605	8-97027-125-0	01	1	0211-0507	●	●
29	04.591 LEVER; PARKING BRK 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 05.605	8-97027-125-0	01	1	0508-0611	●	●
29	04.591 LEVER; PARKING BRK 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-98043-949-0	01	1	0612-0702	●	●
29	04.591 LEVER; PARKING BRK 4HF1-N ENG(RJZ)	8-98043-949-0	01	1	0703-	●
29	04.591 LEVER; PARKING BRK 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-98043-949-0	01	1	0703-		●
29	04.591 LEVER; PARKING BRK 4JB1-TC ENG(RDT)	8-94128-765-0	01	1	0610-0712	●
29	04.591 LEVER; PARKING BRK 4JB1-TC ENG(RDT)	8-94128-765-0	01	1	0801-	●	●
30	05.605 STRUT; PARKING BRK	8-94311-779-0	01	1	0211-0507	●	●
30	05.605 STRUT; PARKING BRK 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-94311-779-0	01	1	0508-0611	●	●
30	05.605 STRUT; PARKING BRK 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-98043-953-0	01	1	0612-0702	●	●
30	05.605 STRUT; PARKING BRK 4HF1-N ENG(RJZ)	8-98043-953-0	01	1	0703-	●
30	05.605 STRUT; PARKING BRK 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-98043-953-0	01	1	0703-		●
30	05.605 STRUT; PARKING BRK 4JB1-TC ENG(RDT)	5-46251-007-0	01	1	0610-0712	●
30	05.605 STRUT; PARKING BRK 4JB1-TC ENG(RDT)	5-46251-007-0	01	1	0801-	●	●
31	05.605 SPRING; SHOE TO STRUT	8-94132-158-0	01	1	0211-0507	●	●
31	05.605 SPRING; SHOE TO STRUT 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-94132-158-0	01	1	0508-0702	●	●
31	05.605 SPRING; SHOE TO STRUT 4HF1-N ENG(RJZ)	8-94132-158-0	01	1	0703-	●
31	05.605 SPRING; SHOE TO STRUT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-94132-158-0	01	1	0703-		●
31	05.605 SPRING; SHOE TO STRUT 4JB1-TC ENG(RDT) 05.606	9-09942-521-1	01	1	0610-0712	●
31	05.605 SPRING; SHOE TO STRUT 4JB1-TC ENG(RDT) 05.606	9-09942-521-1	01	1	0801-	●	●
32	05.610 PLATE; SUPPORT,PARKING BRK	8-97308-176-0	01	1	0211-0507	●	●
32	05.610 PLATE; SUPPORT,PARKING BRK 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-97308-176-0	01	1	0508-0702	●	●
32	05.610 PLATE; SUPPORT,PARKING BRK 4HF1-N ENG(RJZ)	8-97308-176-0	01	1	0703-	●
32	05.610 PLATE; SUPPORT,PARKING BRK 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-97308-176-0	01	1	0703-		●
32	05.610 PLATE; SUPPORT,PARKING BRK 4JB1-TC ENG(RDT)	9-46213-601-2	01	1	0610-0712	●
32	05.610 PLATE; SUPPORT,PARKING BRK 4JB1-TC ENG(RDT)	9-46213-601-2	01	1	0801-	●	●
34	05.605 PIN; BRK SHOE	8-94132-159-0	02	1	0211-0507	●	●
34	05.605 PIN; BRK SHOE 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-94132-159-0	02	1	0508-0611	●	●
34	05.605 PIN; BRK SHOE 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-98043-955-0	02	1	0612-0702	●	●
34	05.605 PIN; BRK SHOE 4HF1-N ENG(RJZ)	8-98043-955-0	02	1	0703-	●
34	05.605 PIN; BRK SHOE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-98043-955-0	02	1	0703-		●
34	05.605 PIN; BRK SHOE 4JB1-TC ENG(RDT) 05.043	9-47162-034-0	02	1	0610-0712	●
34	05.605 PIN; BRK SHOE 4JB1-TC ENG(RDT) 05.043	9-47162-034-0	02	1	0801-	●	●
37	05.610 NUT; SUPPORT PLATE M12 LOCK NUT	8-97248-173-0	04	1	0211-0507	●	●
37	05.610 NUT; SUPPORT PLATE 4HG1 ENG(RJH),4HF1-N ENG(RJZ) M12 LOCK NUT	8-97248-173-0	04	1	0508-0604	●	●
37	05.610 NUT; SUPPORT PLATE 4HG1 ENG(RJH),4HF1-N ENG(RJZ) M12 LOCK NUT	8-98029-927-0	04	1	0605-0702	●	●
37	05.610 NUT; SUPPORT PLATE 4HF1-N ENG(RJZ) M12 LOCK NUT	8-98029-927-0	04	1	0703-	●
37	05.610 NUT; SUPPORT PLATE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) M12 LOCK NUT	8-98029-927-0	04	1	0703-		●
37	05.610 NUT; SUPPORT PLATE 4JB1-TC ENG(RDT) M12	8-97033-122-0	01	1	0610-0712	●
37	05.610 NUT; SUPPORT PLATE 4JB1-TC ENG(RDT) M12	8-97033-122-0	01	1	0801-	●	●
38	05.610 WASHER; LK,SUPPORT PLATE 4JB1-TC ENG(RDT) 02.559 ID=8.2	0-91510-808-0	02	1	0610-0712	●
38	05.610 WASHER; LK,SUPPORT PLATE 4JB1-TC ENG(RDT) 02.559 ID=8.2	0-91510-808-0	02	1	0801-	●	●
47	05.610 BOLT; SUPPORT PLATE 4JB1-TC ENG(RDT)	9-02060-814-0	02	1	0610-0712	●
47	05.610 BOLT; SUPPORT PLATE 4JB1-TC ENG(RDT)	9-02060-814-0	02	1	0801-0805	●	●
47	05.610 BOLT; SUPPORT PLATE 4JB1-TC ENG(RDT)	8-98073-190-0	02	1	0806-	●	●
48	05.605 RETAINER; PIN,PARKING BRK 05.158 IDN	9-46349-005-1	01	1	0211-0507	●	●
48	05.605 RETAINER; PIN,PARKING BRK 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 05.158 IDN	9-46349-005-1	01	1	0508-0609	●	●
48	05.605 RETAINER; PIN,PARKING BRK 05.158 IDN	9-46349-005-1	01	1	0610-0611	●	●
48	05.605 RETAINER; PIN,PARKING BRK 4JB1-TC ENG(RDT) 05.158 IDN	9-46349-005-1	01	1	0612-0712	●
48	05.605 RETAINER; PIN,PARKING BRK 4JB1-TC ENG(RDT) 05.158 IDN	9-46349-005-1	01	1	0801-	●	●
48	05.605 RETAINER; PIN,PARKING BRK 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-98043-958-0	01	1	0612-0702	●	●
48	05.605 RETAINER; PIN,PARKING BRK 4HF1-N ENG(RJZ)	8-98043-958-0	01	1	0703-	●
48	05.605 RETAINER; PIN,PARKING BRK 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-98043-958-0	01	1	0703-		●
112	05.606 BOLT; COVER TO BRK DRUM 04.686 M6X16 W/LK WASHER	0-50040-616-0	01	1	0211-0507	●	●
112	05.606 BOLT; COVER TO BRK DRUM 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 04.686 M6X16 W/LK WASHER	0-50040-616-0	01	1	0508-0512	●	●
112	05.606 BOLT; COVER TO BRK DRUM 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 00.662 M6X16 W/LK WASHER	0-50540-616-0	01	1	0601-0609	●	●
112	05.606 BOLT; COVER TO BRK DRUM 00.662 M6X16 W/LK WASHER	0-50540-616-0	01	1	0610-	●	●
172	05.605 CUP; SHOE HOLD 05.043 IDN	9-47162-033-0	04	1	0211-0507	●	●
172	05.605 CUP; SHOE HOLD 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 05.043 IDN	9-47162-033-0	04	1	0508-0611	●	●
172	05.605 CUP; SHOE HOLD 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-98043-956-0	04	1	0612-0702	●	●
172	05.605 CUP; SHOE HOLD 4HF1-N ENG(RJZ)	8-98043-956-0	04	1	0703-	●
172	05.605 CUP; SHOE HOLD 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-98043-956-0	04	1	0703-		●
172	05.605 CUP; SHOE HOLD 4JB1-TC ENG(RDT)	8-94378-404-0	04	1	0610-0712	●
172	05.605 CUP; SHOE HOLD 4JB1-TC ENG(RDT)	8-94378-404-0	04	1	0801-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
