2-85 — POWER TAKE OFF CONTROL (#78940) — 114 parça

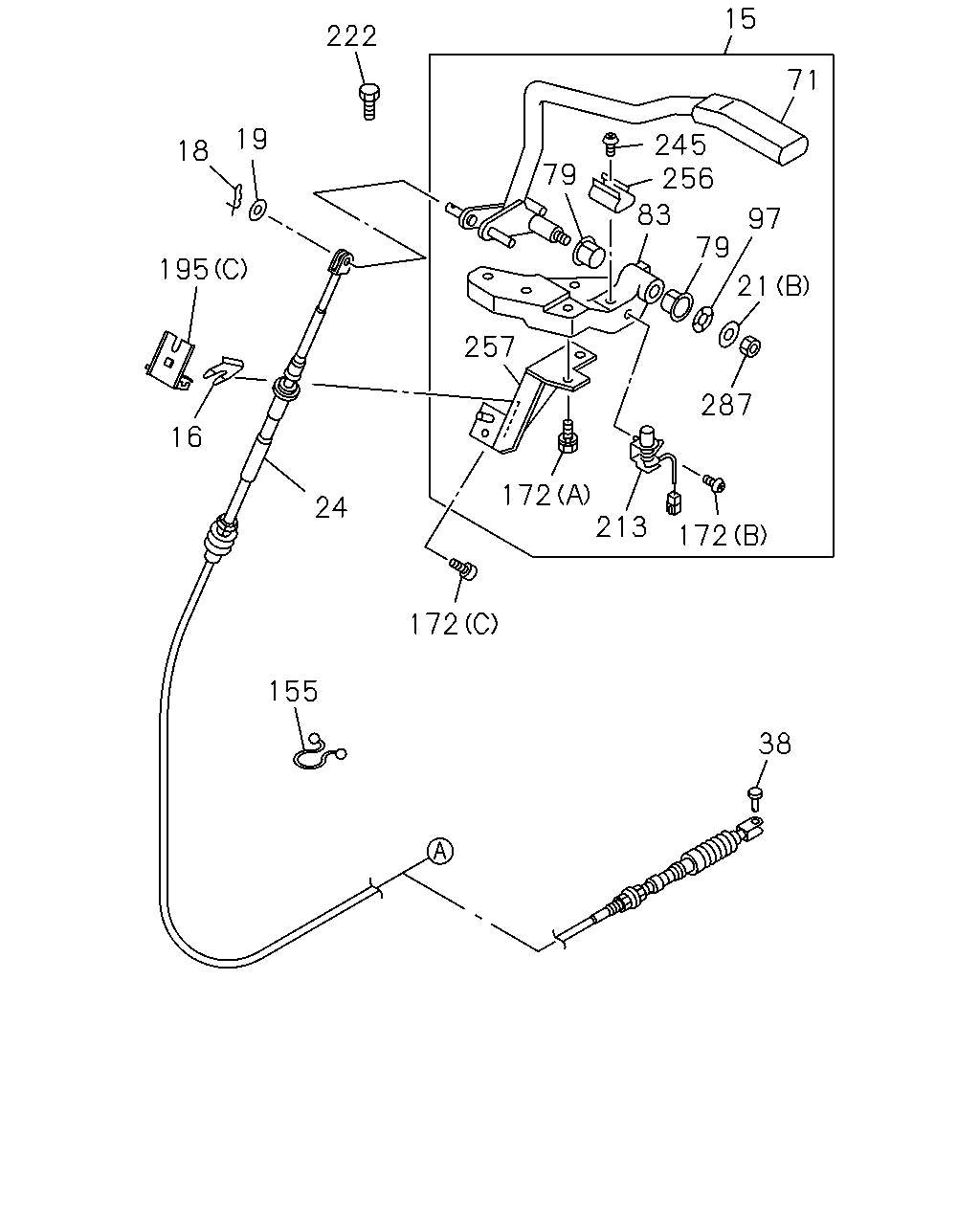

15 222 71 19 245 256 18 79 83 97 79 195 21 257 287 16 172 213 24 172 172 155 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	04.439 LEVER ASM; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97177-805-3	01	1	0211-	●	●
16	04.439 CLIP; CABLE,PTO PTO TRANSMISSION SIDE(V66) 04.027	8-94152-900-0	01	1	0211-	●	●
18	04.439 PIN; SNAP,PTO CABLE PTO TRANSMISSION SIDE(V66) 00.833 L=27.7	8-94111-137-0	01	1	0211-	●	●
19	04.439 WASHER; PL,PTO CABLE PTO TRANSMISSION SIDE(V66) 16.674 ID=8.4	9-09160-508-0	01	1	0211-0605	●	●
19	04.439 WASHER; PL,PTO CABLE PTO TRANSMISSION SIDE(V66) 03.417 ID=8.4 OD=16 IDN	0-91610-508-0	01	1	0606-	●	●
21	04.439 WASHER; PL,CONT LEVER 4HG1 ENG(RJH),4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) 07.633 (B) ID=8.4 OD=22	9-09164-708-0	01	1	0211-0507		●
21	04.439 WASHER; PL,CONT LEVER 4HG1 ENG(RJH),4HF1-N ENG(RJZ) PTO TRANSMISSION SIDE(V66) 07.633 (B) ID=8.4 OD=22	9-09164-708-0	01	1	0508-0605		●
21	04.439 WASHER; PL,CONT LEVER 4HG1 ENG(RJH),4HF1-N ENG(RJZ) PTO TRANSMISSION SIDE(V66) 02.277 (B) ID=8.4 OD=22 IDN	0-91614-708-0	01	1	0606-		●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 06.760 (B) ID=8.4 OD=22	9-09160-708-0	01	1	0211-0605	●	●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 04.595 (B) ID=8.4 OD=22	0-91610-708-0	01	1	0606-	●	●
21	04.439 WASHER; PL,CONT LEVER 4JB1-TC ENG(RDT) PTO TRANSMISSION SIDE(V66) 03.417 (A) ID=8.4 OD=16 IDN	0-91610-508-0	01	1	0610-	●
24	04.439 CABLE; PTO CONT . 4HG1 ENG(RJH),4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) L=2760	8-97351-942-0	01	1	0211-0507		●
24	04.439 CABLE; PTO CONT . 4HG1 ENG(RJH),4HF1-N ENG(RJZ) PTO TRANSMISSION SIDE(V66) L=2760	8-97351-942-1	01	1	0508-		●
24	04.439 CABLE; PTO CONT . 4JB1-TC ENG(RDT) PTO TRANSMISSION SIDE(V66) L=2690	8-97142-482-0	01	1	0610-	●
38	04.439 PIN; JOINT,CABLE TO LEVER 4JB1-TC ENG(RDT) PTO TRANSMISSION SIDE(V66) 04.047	8-94153-035-0	01	1	0610-	●
71	04.439 LEVER; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97177-806-1	01	1	0211-	●	●
79	04.439 BUSHING; CONT LEVER PTO TRANSMISSION SIDE(V66) 04.792	8-94238-596-0	02	1	0211-	●	●
83	04.439 BRACKET; CONT LEVER PTO TRANSMISSION SIDE(V66)	8-97117-352-0	01	1	0211-	●	●
97	04.439 WASHER; LK PTO TRANSMISSION SIDE(V66) 00.832 ID=15 OD=25	8-11053-111-0	01	1	0211-	●	●
155	04.439 CLIP; CABLE PTO TRANSMISSION SIDE(V66) 09.663 ID=15	1-09709-003-0	01	1	0211-	●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 01.062 (C) M8X16 FLANGE	0-28080-816-0	01	1	0211-0512	●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 02.343 (C) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 02.559 (D) M8X25 FLANGE IDN	0-28680-825-0	02	1	0211-0512	●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 06.216 (D) M8X25 FLANGE IDN	0-28650-825-0	02	1	0601-	●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 03.704 (A) M8X16 W/LK WASHER	0-50040-816-0	02	1	0211-0512	●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 01.531 (A) M8X16 W/LK WASHER	0-50540-816-0	02	1	0601-	●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 16.270 (B) M6X12 W/LK&PL WASHER	9-03920-612-0	01	1	0211-0604	●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) (B) M6X12 W/LK&PL WASHER	0-36230-612-0	01	1	0605-	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (A)	8-97076-429-6	01	1	0211-	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (D)	8-97079-557-3	01	1	0211-	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (E)	8-97079-558-3	01	1	0211-	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (B)	8-97085-695-3	01	1	0211-	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) 04.027 (C)	8-97088-407-1	01	1	0211-	●	●
213	04.439 SWITCH; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97041-412-1	01	1	0211-0308	●	●
213	04.439 SWITCH; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97370-568-0	01	1	0309-	●	●
222	04.439 BOLT; LEVER PTO TRANSMISSION SIDE(V66) 00.662 M8X14 FLANGE	0-28080-814-0	04	1	0211-	●	●
245	04.439 SCREW; COVER,CONT LEVER BRKT PTO TRANSMISSION SIDE(V66) 03.320 M4X10 W/LK&PL WASHER	9-03920-410-0	01	1	0211-0604	●	●
245	04.439 SCREW; COVER,CONT LEVER BRKT PTO TRANSMISSION SIDE(V66) 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	0605-	●	●
256	04.439 PLATE; LOCK PTO TRANSMISSION SIDE(V66)	8-97117-351-0	01	1	0211-	●	●
257	04.439 REINFORCEMENT; PTO PTO TRANSMISSION SIDE(V66)	8-97088-406-3	01	1	0211-	●	●
287	04.439 NUT; SWITCH,CONT LEVER PTO TRANSMISSION SIDE(V66) 00.777 M8 W/LK WASHER	8-94279-050-0	01	1	0211-	●	●

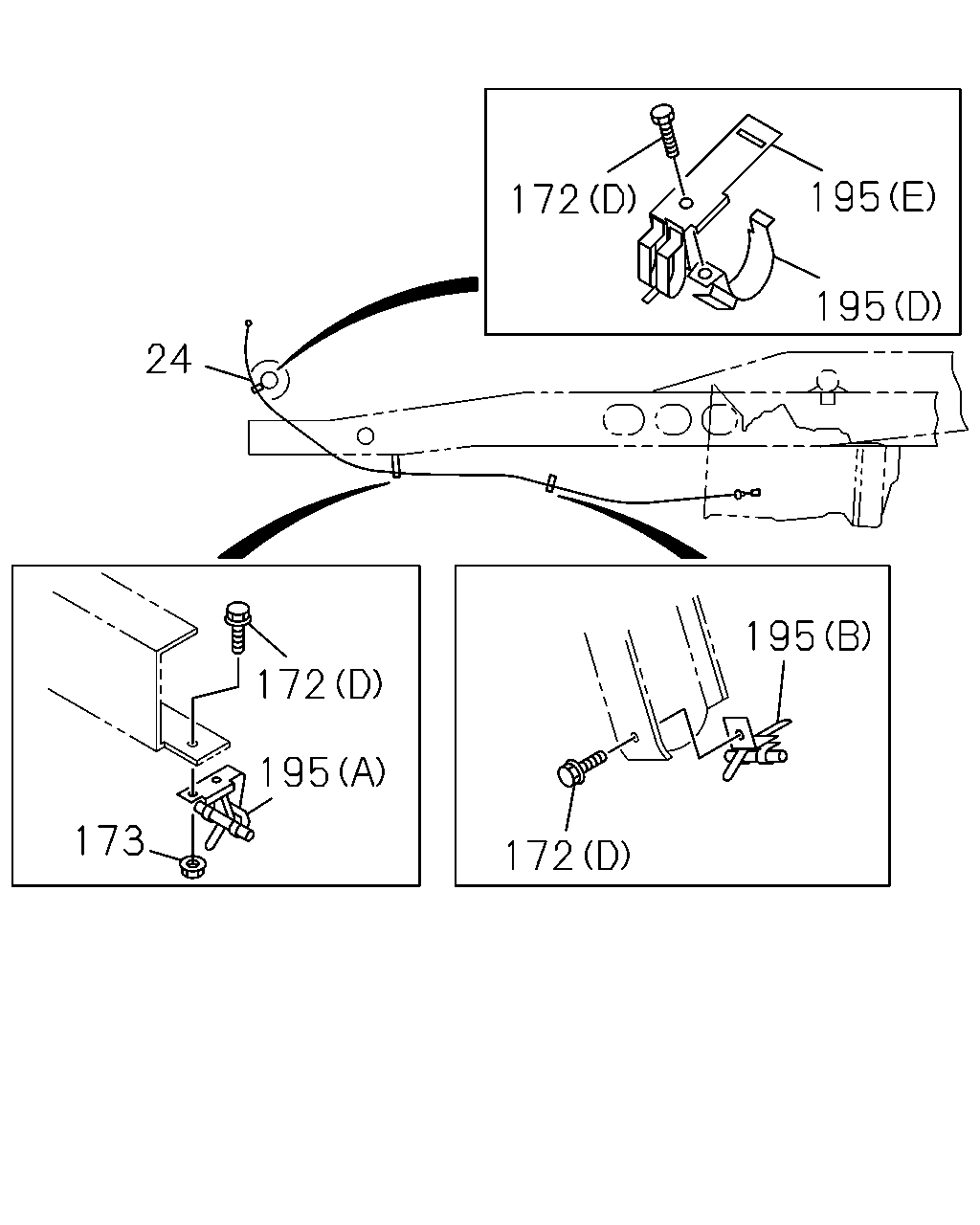

195 172 195 24 195 172 195 173 172

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	04.439 CABLE; PTO CONT . 4HG1 ENG(RJH),4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) L=2760	8-97351-942-0	01	1	0211-0507		●
24	04.439 CABLE; PTO CONT . 4HG1 ENG(RJH),4HF1-N ENG(RJZ) PTO TRANSMISSION SIDE(V66) L=2760	8-97351-942-1	01	1	0508-		●
24	04.439 CABLE; PTO CONT . 4JB1-TC ENG(RDT) PTO TRANSMISSION SIDE(V66) L=2690	8-97142-482-0	01	1	0610-	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 01.062 (C) M8X16 FLANGE	0-28080-816-0	01	1	0211-0512	●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 02.343 (C) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 02.559 (D) M8X25 FLANGE IDN	0-28680-825-0	02	1	0211-0512	●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 06.216 (D) M8X25 FLANGE IDN	0-28650-825-0	02	1	0601-	●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 03.704 (A) M8X16 W/LK WASHER	0-50040-816-0	02	1	0211-0512	●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 01.531 (A) M8X16 W/LK WASHER	0-50540-816-0	02	1	0601-	●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 16.270 (B) M6X12 W/LK&PL WASHER	9-03920-612-0	01	1	0211-0604	●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) (B) M6X12 W/LK&PL WASHER	0-36230-612-0	01	1	0605-	●	●
173	04.439 NUT; BRKT PTO TRANSMISSION SIDE(V66) 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0602	●	●
173	04.439 NUT; BRKT PTO TRANSMISSION SIDE(V66) 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0603-	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (A)	8-97076-429-6	01	1	0211-	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (D)	8-97079-557-3	01	1	0211-	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (E)	8-97079-558-3	01	1	0211-	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (B)	8-97085-695-3	01	1	0211-	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) 04.027 (C)	8-97088-407-1	01	1	0211-	●	●

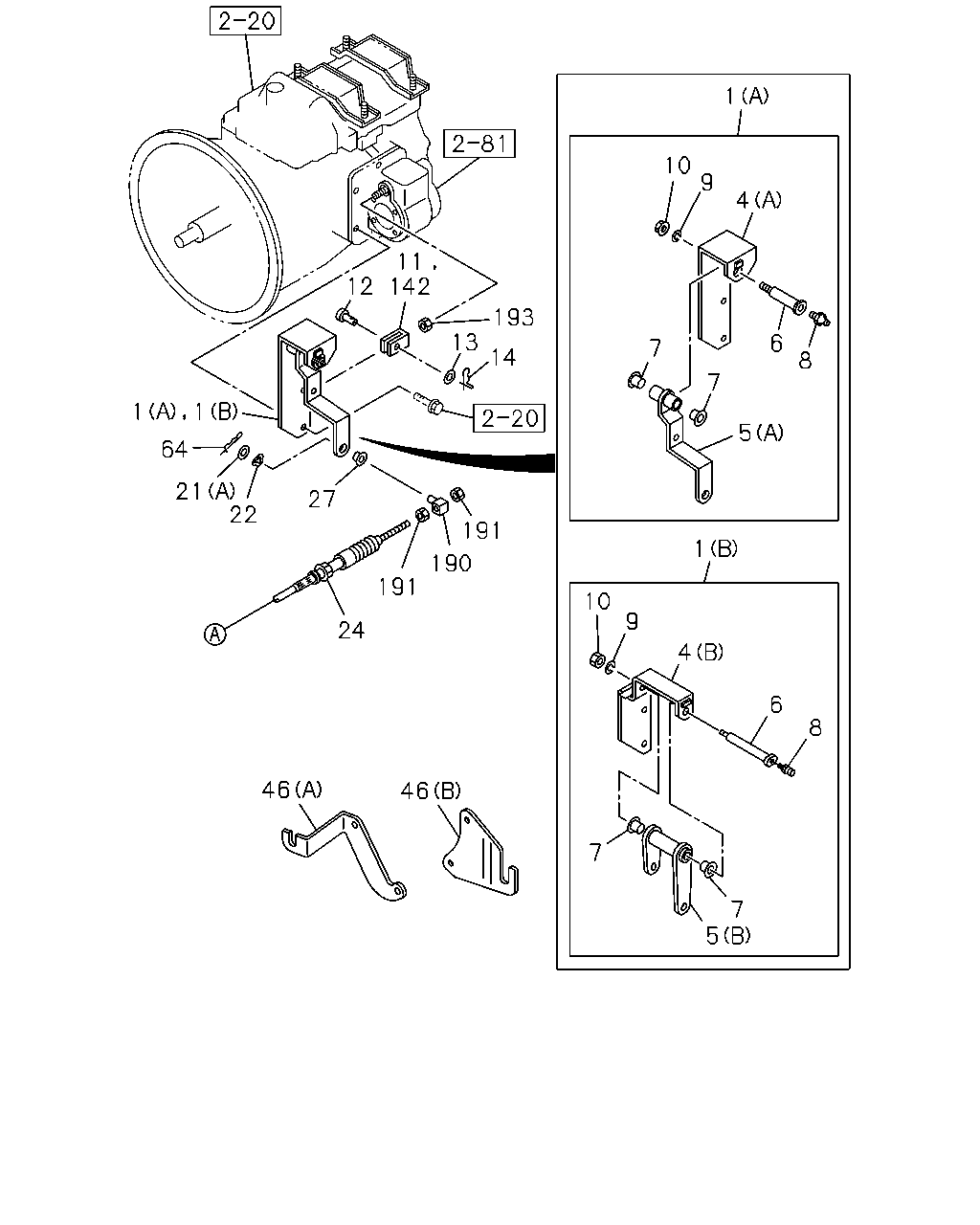

1 10 9 4 11 142 12 193 13 6 7 14 8 7 1 1 5 64 21 22 27 191 1 190 191 10 9 24 4 6 8 46 46 7 7 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) (A)	8-97310-741-0	01	1	0211-		●
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) (B)	8-94169-638-3	01	1	0610-	●
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) (A)	8-97310-740-0	01	1	0211-		●
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) (B)	8-94169-639-0	01	1	0610-	●
5	04.439 LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66) (A)	8-97310-747-0	01	1	0211-		●
5	04.439 LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66) (B)	8-94147-828-0	01	1	0610-	●
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97204-596-0	01	1	0211-		●
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66)	8-94147-829-1	01	1	0610-	●
7	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66)	5-33659-053-0	02	1	0211-0609		●
7	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66)	5-33659-053-0	02	1	0610-	●	●
8	04.439 NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0211-0607		●
8	04.439 NIPPLE; GREASE 4HG1 ENG(RJH),4HF1-N ENG(RJZ) PTO TRANSMISSION SIDE(V66) 05.601 M6 STRAIGHT IDN	0-90301-406-0	01	1	0608-0609		●
8	04.439 NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) 05.601 M6 STRAIGHT IDN	0-90301-406-0	01	1	0610-	●	●
9	04.439 WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) 00.002 ID=8.2	9-09150-508-0	01	1	0211-0603		●
9	04.439 WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) ID=8.2	0-91510-508-0	01	1	0604-0609		●
9	04.439 WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) ID=8.2	0-91510-508-0	01	1	0610-	●	●
10	04.439 NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) 02.559 M8	9-09110-408-0	01	1	0211-0512		●
10	04.439 NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) 02.334 M8 IDN	0-91110-508-0	01	1	0601-0609		●
10	04.439 NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) 02.334 M8 IDN	0-91110-508-0	01	1	0610-	●	●
11	04.439 JOINT; JAW,YOKE PTO TRANSMISSION SIDE(V66)	8-94342-085-0	01	1	0610-	●
12	04.439 JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66)	8-94174-099-0	01	1	0211-0609		●
12	04.439 JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66)	8-94174-099-0	01	1	0610-0610	●	●
12	04.439 JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66)	8-98031-692-0	01	1	0611-	●	●
13	04.439 WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) 03.430 ID=12.5	9-09160-512-0	01	1	0211-0605		●
13	04.439 WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) ID=12.5 OD=22 IDN	0-91610-512-0	01	1	0606-0609		●
13	04.439 WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) ID=12.5 OD=22 IDN	0-91610-512-0	01	1	0610-	●	●
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) 09.003	1-09987-158-1	01	1	0211-0609		●
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) 09.003	1-09987-158-1	01	1	0610-0805	●	●
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66)	8-97581-216-0	01	1	0806-	●	●
21	04.439 WASHER; PL,CONT LEVER 4HG1 ENG(RJH),4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) 07.633 (B) ID=8.4 OD=22	9-09164-708-0	01	1	0211-0507		●
21	04.439 WASHER; PL,CONT LEVER 4HG1 ENG(RJH),4HF1-N ENG(RJZ) PTO TRANSMISSION SIDE(V66) 07.633 (B) ID=8.4 OD=22	9-09164-708-0	01	1	0508-0605		●
21	04.439 WASHER; PL,CONT LEVER 4HG1 ENG(RJH),4HF1-N ENG(RJZ) PTO TRANSMISSION SIDE(V66) 02.277 (B) ID=8.4 OD=22 IDN	0-91614-708-0	01	1	0606-		●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 06.760 (B) ID=8.4 OD=22	9-09160-708-0	01	1	0211-0605	●	●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 04.595 (B) ID=8.4 OD=22	0-91610-708-0	01	1	0606-	●	●
21	04.439 WASHER; PL,CONT LEVER 4JB1-TC ENG(RDT) PTO TRANSMISSION SIDE(V66) 03.417 (A) ID=8.4 OD=16 IDN	0-91610-508-0	01	1	0610-	●
22	04.439 WASHER; LK,LEVER 4HG1 ENG(RJH),4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) 04.037 ID=8.5 T=0.3	5-09509-001-0	01	1	0211-0507		●
22	04.439 WASHER; LK,LEVER 4HG1 ENG(RJH),4HF1-N ENG(RJZ) PTO TRANSMISSION SIDE(V66) 04.037 ID=8.5 T=0.3	5-09509-001-0	01	1	0508-		●
24	04.439 CABLE; PTO CONT . 4HG1 ENG(RJH),4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) L=2760	8-97351-942-0	01	1	0211-0507		●
24	04.439 CABLE; PTO CONT . 4HG1 ENG(RJH),4HF1-N ENG(RJZ) PTO TRANSMISSION SIDE(V66) L=2760	8-97351-942-1	01	1	0508-		●
24	04.439 CABLE; PTO CONT . 4JB1-TC ENG(RDT) PTO TRANSMISSION SIDE(V66) L=2690	8-97142-482-0	01	1	0610-	●
27	04.439 BUSHING; LEVER,PTO 4HG1 ENG(RJH),4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) 04.042	8-94367-367-0	01	1	0211-0507		●
27	04.439 BUSHING; LEVER,PTO 4HG1 ENG(RJH),4HF1-N ENG(RJZ) PTO TRANSMISSION SIDE(V66) 04.042	8-94367-367-0	01	1	0508-		●
46	04.439 BRACKET; PTO,TRANS SIDE 4HG1 ENG(RJH),4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) (A)	8-97264-954-1	01	1	0211-0507		●
46	04.439 BRACKET; PTO,TRANS SIDE 4HG1 ENG(RJH),4HF1-N ENG(RJZ) PTO TRANSMISSION SIDE(V66) (A)	8-97264-954-1	01	1	0508-		●
46	04.439 BRACKET; PTO,TRANS SIDE 4JB1-TC ENG(RDT) PTO TRANSMISSION SIDE(V66) (B)	8-94157-541-0	01	1	0610-	●
64	04.439 PIN; SNAP,CONT CABLE JOINT PTO TRANSMISSION SIDE(V66) 00.833 L=27.7	8-94111-137-0	01	1	0211-	●	●
142	04.439 CLEVIS; CONT BOX PTO TRANSMISSION SIDE(V66)	8-97327-588-0	01	1	0211-		●
190	04.439 BOSS; LEVER,PTO 4HG1 ENG(RJH),4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) 04.307	8-94366-842-1	01	1	0211-0507		●
190	04.439 BOSS; LEVER,PTO 4HG1 ENG(RJH),4HF1-N ENG(RJZ) PTO TRANSMISSION SIDE(V66) 04.307	8-94366-842-2	01	1	0508-		●
191	04.439 NUT; BOSS 4HG1 ENG(RJH),4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) 00.413 M6	9-09110-506-0	02	1	0211-0507		●
191	04.439 NUT; BOSS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) PTO TRANSMISSION SIDE(V66) 00.413 M6	9-09110-506-0	02	1	0508-0512		●
191	04.439 NUT; BOSS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) PTO TRANSMISSION SIDE(V66) 03.330 M6	0-91110-506-0	02	1	0601-		●
193	04.439 NUT PTO TRANSMISSION SIDE(V66) 07.347 M12	9-99111-412-0	01	1	0211-0512		●
193	04.439 NUT PTO TRANSMISSION SIDE(V66) M12	0-91111-512-0	01	1	0601-0609		●
193	04.439 NUT PTO TRANSMISSION SIDE(V66) M12	0-91111-512-0	01	1	0610-	●	●
