Sayfa 2-36 - Isuzu EPC

2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#78937) — 323 parça

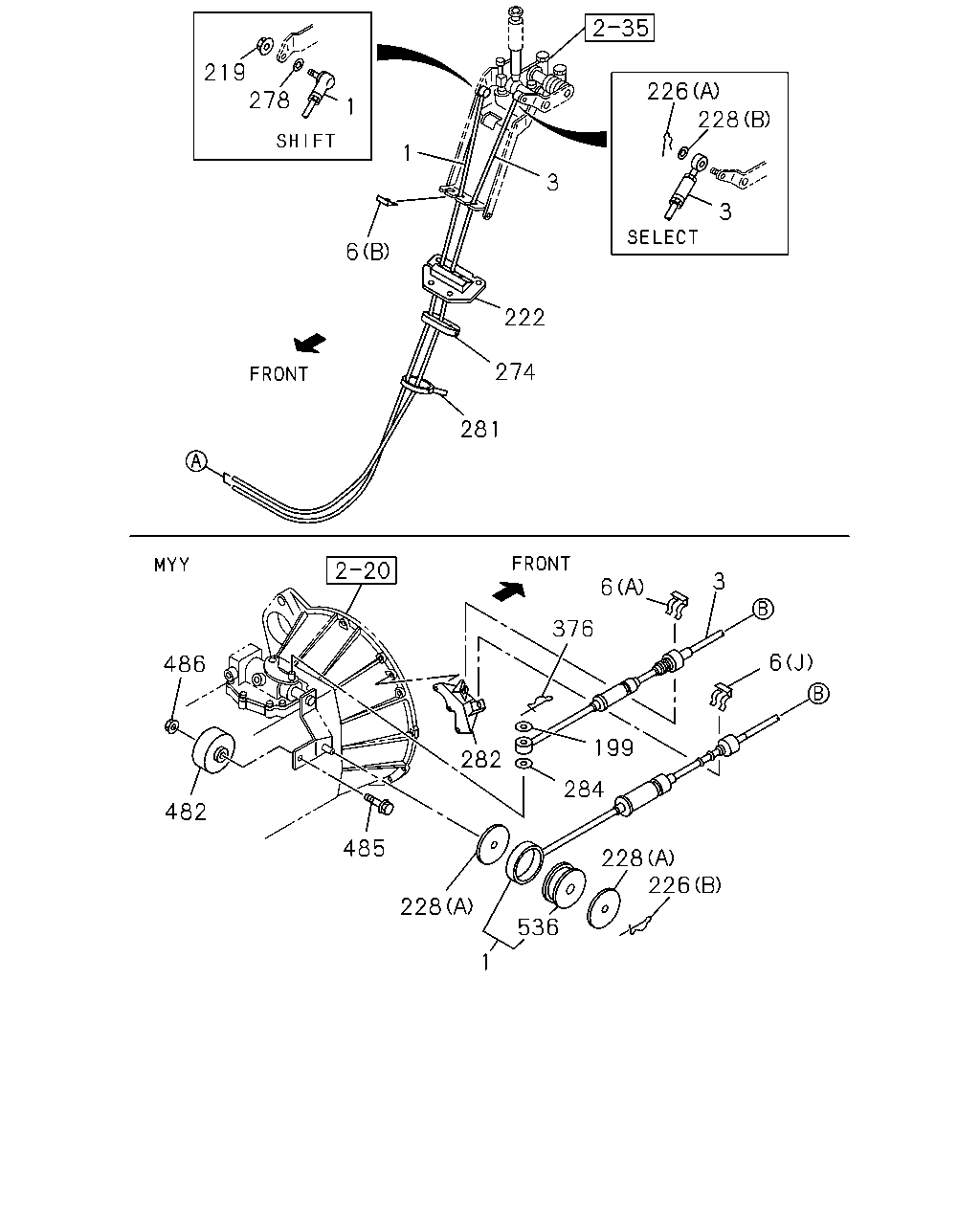

219 1 278 3 1 6 222 274 281 3 228 226 3 6 6 376 199 284 282 485 228 536 228 226 482 486 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.854 CABLE; SHIFT,TRANS CONT L=2805 IDN	8-97351-820-1	01	1	0211-0606	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) L=2805 IDN	8-97351-820-1	01	1	0607-0609	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FLOOR REMOTE SHIFT<M11> L=2805 IDN	8-97351-820-1	01	1	0610-	●
1	00.854 CABLE; SHIFT,TRANS CONT FLOOR REMOTE SHIFT<M11> L=2643 IDN	8-97176-466-1	01	1	0610-0911		●
1	00.854 CABLE; SHIFT,TRANS CONT FLOOR REMOTE SHIFT<M11> L=2643 IDN	8-98146-810-0	01	1	0912-		●
1	00.854 CABLE; SHIFT,TRANS CONT 4HG1-T ENG(RDP) L=2855 IDN	8-97361-330-1	01	1	0610-0712	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> L=2855 IDN	8-97361-330-1	01	1	0801-	●
3	00.852 CABLE; SELECT,TRANS CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) L=2882	8-97351-821-0	01	1	0211-0507	●
3	00.852 CABLE; SELECT,TRANS CONT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) L=2882	8-97351-821-0	01	1	0508-0609	●
3	00.852 CABLE; SELECT,TRANS CONT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FLOOR REMOTE SHIFT<M11> L=2882	8-97351-821-0	01	1	0610-	●
3	00.852 CABLE; SELECT,TRANS CONT FLOOR REMOTE SHIFT<M11> L=2810 IDN	8-97176-474-0	01	1	0610-		●
3	00.852 CABLE; SELECT,TRANS CONT 4HG1-T ENG(RDP) L=2917 IDN	8-97361-331-0	01	1	0610-0712	●
3	00.852 CABLE; SELECT,TRANS CONT 4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> L=2917 IDN	8-97361-331-0	01	1	0801-	●
6	04.047 CLIP; CABLE 4JB1-TC ENG(RDT) FLOOR REMOTE SHIFT<M11> POWER STEERING<N40> (K)	8-98023-697-0	01	1	1212-	●	●
6	04.047 CLIP; CABLE POWER STEERING<N40> (H)	8-97036-334-2	01	1	0211-	●	●
6	04.047 CLIP; CABLE 4HG1 ENG(RJH),4HF1-S ENG(RLS) (F)	8-97036-331-1	01	1	0211-0507	●
6	04.047 CLIP; CABLE 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (F)	8-97036-331-1	01	1	0508-	●
6	04.047 CLIP; CABLE 4HG1 ENG(RJH),4HF1-S ENG(RLS) (E)	8-97039-295-0	01	1	0211-0507	●
6	04.047 CLIP; CABLE 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (E)	8-97039-295-0	01	1	0508-0609	●
6	04.047 CLIP; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) FLOOR REMOTE SHIFT<M11> (E)	8-97039-295-0	01	1	0610-	●
6	04.047 CLIP; CABLE 00.854 (J) ID=22.2	1-09701-209-1	01	1	0211-0609	●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> 00.854 (J) ID=22.2	1-09701-209-1	01	1	0610-	●
6	04.047 CLIP; CABLE (A) ID=19.2	8-97211-011-0	01	1	0211-0609	●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> (A) ID=19.2	8-97211-011-0	01	1	0610-	●
6	04.047 CLIP; CABLE (C)	8-97036-333-1	01	1	0211-0606	●
6	04.047 CLIP; CABLE EXC. POWER STEERING<N40> (C)	8-97036-333-1	01	1	0211-0606	●
6	04.047 CLIP; CABLE 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FLOOR REMOTE SHIFT<M11> (C)	8-97036-333-1	01	1	0607-0609	●
6	04.047 CLIP; CABLE EXC. POWER STEERING<N40> (C)	8-97036-333-1	01	1	0607-0609	●
6	04.047 CLIP; CABLE 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) FLOOR REMOTE SHIFT<M11> (C)	8-97036-333-1	01	1	0610-	●	●
6	04.047 CLIP; CABLE EXC. POWER STEERING<N40> (C)	8-97036-333-1	01	1	0610-	●	●
6	04.047 CLIP; CABLE (B)	8-97011-448-0	02	1	0211-0609	●	●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> (B)	8-97011-448-0	02	1	0610-	●	●
6	04.047 CLIP; CABLE (I)	8-97147-985-0	01	1	0211-	●	●
6	04.047 CLIP; CABLE 4HG1-T ENG(RDP) (G)	8-97039-296-1	01	1	0610-	●
6	04.047 CLIP; CABLE 4HG1-T ENG(RDP) (G)	8-97039-517-1	01	1	0703-	●
6	04.047 CLIP; CABLE 4JB1-TC ENG(RDT) (D)	8-97036-329-2	01	1	0610-		●
6	04.047 CLIP; CABLE 4JB1-TC ENG(RDT) FLOOR REMOTE SHIFT<M11> (G)	8-97036-332-1	01	1	0610-1211		●
6	04.047 CLIP; CABLE 4JB1-TC ENG(RDT) FLOOR REMOTE SHIFT<M11> EXC. POWER STEERING<N40> (G)	8-97036-332-1	01	1	1212-	●	●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> (A) ID=19.2	8-97211-011-0	02	1	0610-		●
199	04.012 WASHER; PL,SELECT 16.674 ID=8.4	9-09160-508-0	01	1	0211-0605	●	●
199	04.012 WASHER; PL,SELECT 03.417 ID=8.4 OD=16 IDN	0-91610-508-0	01	1	0606-0609	●	●
199	04.012 WASHER; PL,SELECT FLOOR REMOTE SHIFT<M11> 03.417 ID=8.4 OD=16 IDN	0-91610-508-0	01	1	0610-	●	●
219	04.047 NUT; FLANGE,SHAFT CABLE 04.037 M8 T=8.0	8-94363-045-0	01	1	0211-0609	●	●
219	04.047 NUT; FLANGE,SHAFT CABLE FLOOR REMOTE SHIFT<M11> 04.037 M8 T=8.0	8-94363-045-0	01	1	0610-	●	●
222	04.010 GROMMET; CABLE IDN	8-97061-403-2	01	1	0211-0609	●	●
222	04.010 GROMMET; CABLE FLOOR REMOTE SHIFT<M11> IDN	8-97061-403-2	01	1	0610-	●	●
226	04.047 PIN; SHIFT CABLE 00.833 (A) L=27.7	8-94111-137-0	01	1	0211-0609	●	●
226	04.047 PIN; SHIFT CABLE FLOOR REMOTE SHIFT<M11> 00.833 (A) L=27.7	8-94111-137-0	01	1	0610-	●	●
226	04.047 PIN; SHIFT CABLE (B) L=23	8-94170-378-0	01	1	0211-0609	●	●
226	04.047 PIN; SHIFT CABLE FLOOR REMOTE SHIFT<M11> (B) L=23	8-94170-378-0	01	1	0610-	●	●
228	04.047 WASHER; PL,SHIFT CABLE (A) ID=8.2 OD=40	8-97182-975-0	02	1	0211-0609	●	●
228	04.047 WASHER; PL,SHIFT CABLE FLOOR REMOTE SHIFT<M11> (A) ID=8.2 OD=40	8-97182-975-0	02	1	0610-	●	●
228	04.047 WASHER; PL,SHIFT CABLE 00.206 (B) ID=8.4	9-09164-508-0	01	1	0211-0605	●	●
228	04.047 WASHER; PL,SHIFT CABLE 06.056 (B) ID=8.4 OD=16	0-91614-508-0	01	1	0606-0609	●	●
228	04.047 WASHER; PL,SHIFT CABLE FLOOR REMOTE SHIFT<M11> 06.056 (B) ID=8.4 OD=16	0-91614-508-0	01	1	0610-	●	●
274	04.008 CLIP; CONT CABLE IDN	8-97093-491-1	01	1	0211-0609	●	●
274	04.008 CLIP; CONT CABLE FLOOR REMOTE SHIFT<M11> EXC. MANUAL TILT CAB<RWZ> IDN	8-97093-491-1	01	1	0610-	●	●
278	00.854 WASHER; LK,SHIFT WIRE 01.276 ID=8.4 TOOTH LK INT	9-09151-208-0	01	1	0211-0604	●	●
278	00.854 WASHER; LK,SHIFT WIRE ID=8.4 TOOTH LK INT	0-91541-208-0	01	1	0605-0609	●	●
278	00.854 WASHER; LK,SHIFT WIRE FLOOR REMOTE SHIFT<M11> ID=8.4 TOOTH LK INT	0-91541-208-0	01	1	0610-	●	●
281	04.042 CLIP; BAND 03.162 L=140 IDN	5-09707-031-1	01	1	0211-	●	●
282	04.010 BRACKET; TRANS SIDE 4HG1 ENG(RJH),4HF1-S ENG(RLS)	8-97311-441-1	01	1	0211-0507	●
282	04.010 BRACKET; TRANS SIDE 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-97311-441-1	01	1	0508-0609	●
282	04.010 BRACKET; TRANS SIDE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) FLOOR REMOTE SHIFT<M11>	8-97311-441-1	01	1	0610-	●
282	04.010 BRACKET; TRANS SIDE FLOOR REMOTE SHIFT<M11> IDN	8-97034-142-1	01	1	0610-		●
284	00.854 WASHER; WAVE,SELECT CABLE,CAB ID=8.4 OD=14	5-09550-002-0	01	1	0211-0609	●	●
284	00.854 WASHER; WAVE,SELECT CABLE,CAB FLOOR REMOTE SHIFT<M11> ID=8.4 OD=14	5-09550-002-0	01	1	0610-	●	●
376	04.047 PIN; SNAP,SELECT CABLE L=23	8-94170-378-0	01	1	0211-0609	●	●
376	04.047 PIN; SNAP,SELECT CABLE FLOOR REMOTE SHIFT<M11> L=23	8-94170-378-0	01	1	0610-	●	●
482	04.047 WEIGHT; SHIFT CABLE	8-97066-730-2	01	1	0211-0305	●
485	04.047 BOLT; WEIGHT M12X60 FLANGE	0-28091-260-0	01	1	0211-0305	●
486	04.047 NUT; WEIGHT 06.509 M12 FLANGE	8-94436-194-0	01	1	0211-0305	●
536	00.854 DAMPER; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) FLOOR REMOTE SHIFT<M11> IDN	8-98097-681-0	01	1	0711-	●
536	00.854 DAMPER; CABLE FLOOR REMOTE SHIFT<M11> IDN	8-98097-681-0	01	1	0711-		●

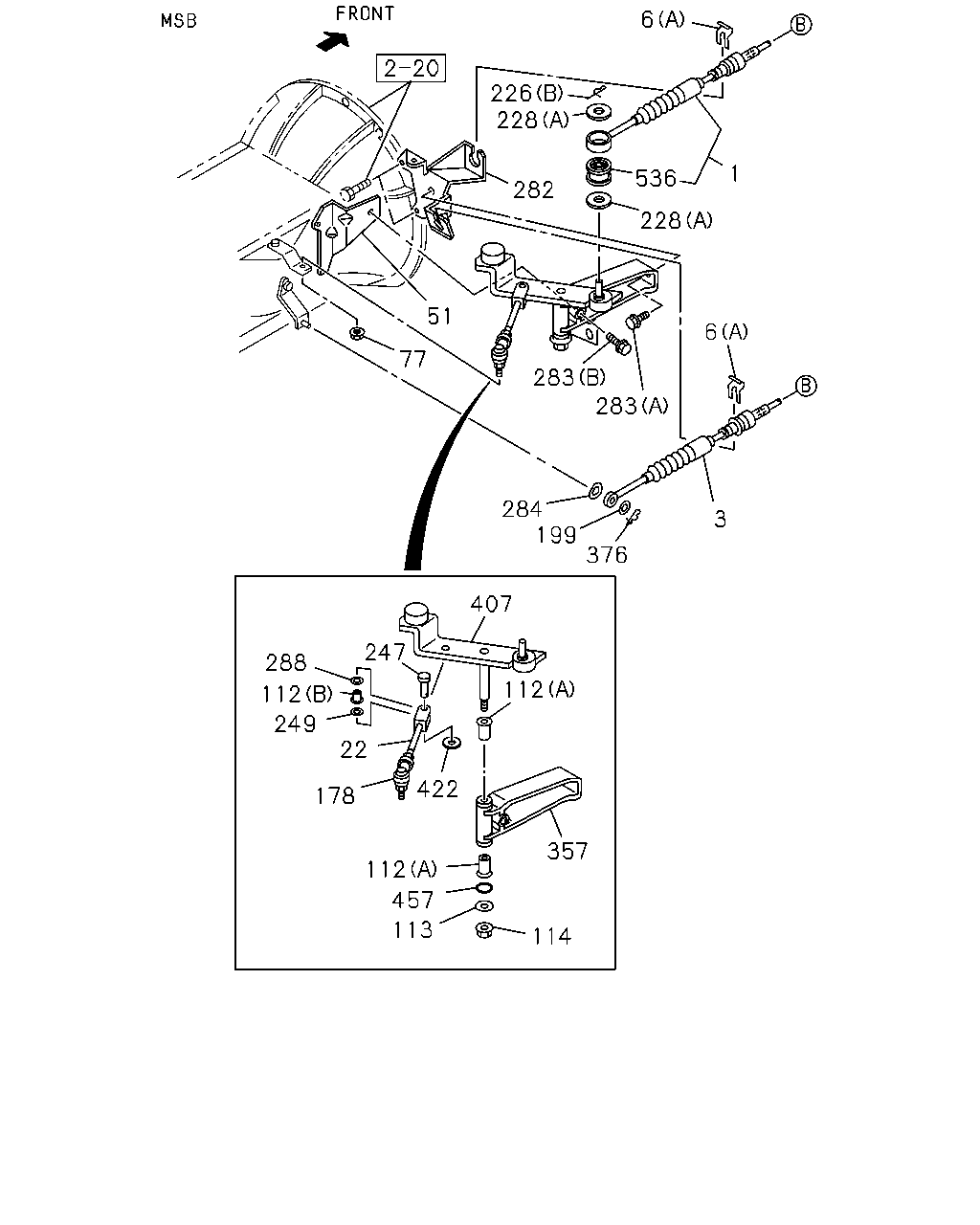

6 226 228 1 536 282 228 51 6 77 283 283 284 199 3 376 407 247 288 112 112 249 22 422 178 357 112 457 113 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.854 CABLE; SHIFT,TRANS CONT L=2805 IDN	8-97351-820-1	01	1	0211-0606	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) L=2805 IDN	8-97351-820-1	01	1	0607-0609	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FLOOR REMOTE SHIFT<M11> L=2805 IDN	8-97351-820-1	01	1	0610-	●
1	00.854 CABLE; SHIFT,TRANS CONT FLOOR REMOTE SHIFT<M11> L=2643 IDN	8-97176-466-1	01	1	0610-0911		●
1	00.854 CABLE; SHIFT,TRANS CONT FLOOR REMOTE SHIFT<M11> L=2643 IDN	8-98146-810-0	01	1	0912-		●
1	00.854 CABLE; SHIFT,TRANS CONT 4HG1-T ENG(RDP) L=2855 IDN	8-97361-330-1	01	1	0610-0712	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> L=2855 IDN	8-97361-330-1	01	1	0801-	●
3	00.852 CABLE; SELECT,TRANS CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) L=2882	8-97351-821-0	01	1	0211-0507	●
3	00.852 CABLE; SELECT,TRANS CONT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) L=2882	8-97351-821-0	01	1	0508-0609	●
3	00.852 CABLE; SELECT,TRANS CONT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FLOOR REMOTE SHIFT<M11> L=2882	8-97351-821-0	01	1	0610-	●
3	00.852 CABLE; SELECT,TRANS CONT FLOOR REMOTE SHIFT<M11> L=2810 IDN	8-97176-474-0	01	1	0610-		●
3	00.852 CABLE; SELECT,TRANS CONT 4HG1-T ENG(RDP) L=2917 IDN	8-97361-331-0	01	1	0610-0712	●
3	00.852 CABLE; SELECT,TRANS CONT 4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> L=2917 IDN	8-97361-331-0	01	1	0801-	●
6	04.047 CLIP; CABLE 4JB1-TC ENG(RDT) FLOOR REMOTE SHIFT<M11> POWER STEERING<N40> (K)	8-98023-697-0	01	1	1212-	●	●
6	04.047 CLIP; CABLE POWER STEERING<N40> (H)	8-97036-334-2	01	1	0211-	●	●
6	04.047 CLIP; CABLE 4HG1 ENG(RJH),4HF1-S ENG(RLS) (F)	8-97036-331-1	01	1	0211-0507	●
6	04.047 CLIP; CABLE 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (F)	8-97036-331-1	01	1	0508-	●
6	04.047 CLIP; CABLE 4HG1 ENG(RJH),4HF1-S ENG(RLS) (E)	8-97039-295-0	01	1	0211-0507	●
6	04.047 CLIP; CABLE 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (E)	8-97039-295-0	01	1	0508-0609	●
6	04.047 CLIP; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) FLOOR REMOTE SHIFT<M11> (E)	8-97039-295-0	01	1	0610-	●
6	04.047 CLIP; CABLE 00.854 (J) ID=22.2	1-09701-209-1	01	1	0211-0609	●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> 00.854 (J) ID=22.2	1-09701-209-1	01	1	0610-	●
6	04.047 CLIP; CABLE (A) ID=19.2	8-97211-011-0	01	1	0211-0609	●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> (A) ID=19.2	8-97211-011-0	01	1	0610-	●
6	04.047 CLIP; CABLE (C)	8-97036-333-1	01	1	0211-0606	●
6	04.047 CLIP; CABLE EXC. POWER STEERING<N40> (C)	8-97036-333-1	01	1	0211-0606	●
6	04.047 CLIP; CABLE 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FLOOR REMOTE SHIFT<M11> (C)	8-97036-333-1	01	1	0607-0609	●
6	04.047 CLIP; CABLE EXC. POWER STEERING<N40> (C)	8-97036-333-1	01	1	0607-0609	●
6	04.047 CLIP; CABLE 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) FLOOR REMOTE SHIFT<M11> (C)	8-97036-333-1	01	1	0610-	●	●
6	04.047 CLIP; CABLE EXC. POWER STEERING<N40> (C)	8-97036-333-1	01	1	0610-	●	●
6	04.047 CLIP; CABLE (B)	8-97011-448-0	02	1	0211-0609	●	●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> (B)	8-97011-448-0	02	1	0610-	●	●
6	04.047 CLIP; CABLE (I)	8-97147-985-0	01	1	0211-	●	●
6	04.047 CLIP; CABLE 4HG1-T ENG(RDP) (G)	8-97039-296-1	01	1	0610-	●
6	04.047 CLIP; CABLE 4HG1-T ENG(RDP) (G)	8-97039-517-1	01	1	0703-	●
6	04.047 CLIP; CABLE 4JB1-TC ENG(RDT) (D)	8-97036-329-2	01	1	0610-		●
6	04.047 CLIP; CABLE 4JB1-TC ENG(RDT) FLOOR REMOTE SHIFT<M11> (G)	8-97036-332-1	01	1	0610-1211		●
6	04.047 CLIP; CABLE 4JB1-TC ENG(RDT) FLOOR REMOTE SHIFT<M11> EXC. POWER STEERING<N40> (G)	8-97036-332-1	01	1	1212-	●	●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> (A) ID=19.2	8-97211-011-0	02	1	0610-		●
22	04.035 ROD; CONT,SHIFT FLOOR REMOTE SHIFT<M11>	8-97134-286-1	01	1	0610-		●
51	04.010 BRACKET; GEAR CONT 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-335-1	01	1	1210-1210		●
51	04.010 BRACKET; GEAR CONT 4JB1-TC ENG(RDT) IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-335-1	01	1	1211-		●
51	04.010 BRACKET; GEAR CONT	8-97029-286-0	01	1	0610-1209		●
51	04.010 BRACKET; GEAR CONT 4JB1-TC ENG(RDT) IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8>	8-97029-286-0	01	1	1210-1210		●
51	04.010 BRACKET; GEAR CONT 4JB1-TC ENG(RDT) EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97029-286-0	01	1	1210-1210		●
51	04.010 BRACKET; GEAR CONT 4JB1-TC ENG(RDT) EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97029-286-0	01	1	1211-		●
77	04.037 NUT; LK,BALL JOINT,CONT ROD FLOOR REMOTE SHIFT<M11> M8 T=8.0	8-94363-045-0	01	1	0610-1506		●
77	04.037 NUT; LK,BALL JOINT,CONT ROD M8 T=8.0	8-94363-045-0	01	1	1507-		●
112	04.046 BUSHING; RELAY LEVER FLOOR REMOTE SHIFT<M11> (B)	8-97085-157-0	01	1	0610-		●
112	04.046 BUSHING; RELAY LEVER FLOOR REMOTE SHIFT<M11> (A)	8-97174-057-0	02	1	0610-		●
113	04.046 WASHER; RELAY LEVER FLOOR REMOTE SHIFT<M11> ID=10.5 OD=22 T=1.6	0-91610-610-0	01	1	0610-		●
114	04.037 NUT; RELAY LEVER FLOOR REMOTE SHIFT<M11> 03.162 M10 FLANGE IDN	0-91180-110-0	01	1	0610-		●
178	04.040 JOINT; BALL,LINK ROD FLOOR REMOTE SHIFT<M11> 04.037 L=45.5	1-09760-118-1	01	1	0610-		●
199	04.012 WASHER; PL,SELECT 16.674 ID=8.4	9-09160-508-0	01	1	0211-0605	●	●
199	04.012 WASHER; PL,SELECT 03.417 ID=8.4 OD=16 IDN	0-91610-508-0	01	1	0606-0609	●	●
199	04.012 WASHER; PL,SELECT FLOOR REMOTE SHIFT<M11> 03.417 ID=8.4 OD=16 IDN	0-91610-508-0	01	1	0610-	●	●
226	04.047 PIN; SHIFT CABLE 00.833 (A) L=27.7	8-94111-137-0	01	1	0211-0609	●	●
226	04.047 PIN; SHIFT CABLE FLOOR REMOTE SHIFT<M11> 00.833 (A) L=27.7	8-94111-137-0	01	1	0610-	●	●
226	04.047 PIN; SHIFT CABLE (B) L=23	8-94170-378-0	01	1	0211-0609	●	●
226	04.047 PIN; SHIFT CABLE FLOOR REMOTE SHIFT<M11> (B) L=23	8-94170-378-0	01	1	0610-	●	●
228	04.047 WASHER; PL,SHIFT CABLE (A) ID=8.2 OD=40	8-97182-975-0	02	1	0211-0609	●	●
228	04.047 WASHER; PL,SHIFT CABLE FLOOR REMOTE SHIFT<M11> (A) ID=8.2 OD=40	8-97182-975-0	02	1	0610-	●	●
228	04.047 WASHER; PL,SHIFT CABLE 00.206 (B) ID=8.4	9-09164-508-0	01	1	0211-0605	●	●
228	04.047 WASHER; PL,SHIFT CABLE 06.056 (B) ID=8.4 OD=16	0-91614-508-0	01	1	0606-0609	●	●
228	04.047 WASHER; PL,SHIFT CABLE FLOOR REMOTE SHIFT<M11> 06.056 (B) ID=8.4 OD=16	0-91614-508-0	01	1	0610-	●	●
247	04.010 PIN; CONT ROD TO LEVER FLOOR REMOTE SHIFT<M11>	8-97373-728-0	01	1	0610-		●
249	04.010 WASHER; RUBBER,CONT ROD TO LEVER FLOOR REMOTE SHIFT<M11> 04.037 ID=8.5 T=1.5	9-09851-889-0	01	1	0610-		●
282	04.010 BRACKET; TRANS SIDE 4HG1 ENG(RJH),4HF1-S ENG(RLS)	8-97311-441-1	01	1	0211-0507	●
282	04.010 BRACKET; TRANS SIDE 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-97311-441-1	01	1	0508-0609	●
282	04.010 BRACKET; TRANS SIDE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) FLOOR REMOTE SHIFT<M11>	8-97311-441-1	01	1	0610-	●
282	04.010 BRACKET; TRANS SIDE FLOOR REMOTE SHIFT<M11> IDN	8-97034-142-1	01	1	0610-		●
283	04.037 BOLT; RELAY LEVER FLOOR REMOTE SHIFT<M11> 00.029 (A) M10X25 FLANGE IDN	0-28651-025-0	01	1	0610-1506		●
283	04.037 BOLT; RELAY LEVER 00.029 (A) M10X25 FLANGE IDN	0-28651-025-0	01	1	1507-		●
283	04.037 BOLT; RELAY LEVER FLOOR REMOTE SHIFT<M11> 02.277 (B) M10X35 FLANGE IDN	0-28651-035-0	01	1	0610-1506		●
283	04.037 BOLT; RELAY LEVER 02.277 (B) M10X35 FLANGE IDN	0-28651-035-0	01	1	1507-		●
284	00.854 WASHER; WAVE,SELECT CABLE,CAB ID=8.4 OD=14	5-09550-002-0	01	1	0211-0609	●	●
284	00.854 WASHER; WAVE,SELECT CABLE,CAB FLOOR REMOTE SHIFT<M11> ID=8.4 OD=14	5-09550-002-0	01	1	0610-	●	●
288	04.047 WASHER; CABLE TO RELAY LEVER FLOOR REMOTE SHIFT<M11>	8-97373-819-0	01	1	0610-		●
357	04.010 BRACKET; RELAY LEVER FLOOR REMOTE SHIFT<M11>	8-97182-166-0	01	1	0610-		●
376	04.047 PIN; SNAP,SELECT CABLE L=23	8-94170-378-0	01	1	0211-0609	●	●
376	04.047 PIN; SNAP,SELECT CABLE FLOOR REMOTE SHIFT<M11> L=23	8-94170-378-0	01	1	0610-	●	●
407	04.030 LEVER; RELAY,SHIFT FLOOR REMOTE SHIFT<M11>	8-97174-055-2	01	1	0610-		●
422	04.032 NUT; CONT ROD TO LEVER FLOOR REMOTE SHIFT<M11> 04.047	8-97373-729-0	01	1	0610-		●
457	04.010 GASKET FLOOR REMOTE SHIFT<M11> ID=13.8	9-09561-114-0	02	1	0610-		●
536	00.854 DAMPER; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) FLOOR REMOTE SHIFT<M11> IDN	8-98097-681-0	01	1	0711-	●
536	00.854 DAMPER; CABLE FLOOR REMOTE SHIFT<M11> IDN	8-98097-681-0	01	1	0711-		●

6 300 300 6 300 203 6 303 488 474 279 201 279 201 6 300 300 6 303 201 279 203 6 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	04.047 CLIP; CABLE 4JB1-TC ENG(RDT) FLOOR REMOTE SHIFT<M11> POWER STEERING<N40> (K)	8-98023-697-0	01	1	1212-	●	●
6	04.047 CLIP; CABLE POWER STEERING<N40> (H)	8-97036-334-2	01	1	0211-	●	●
6	04.047 CLIP; CABLE 4HG1 ENG(RJH),4HF1-S ENG(RLS) (F)	8-97036-331-1	01	1	0211-0507	●
6	04.047 CLIP; CABLE 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (F)	8-97036-331-1	01	1	0508-	●
6	04.047 CLIP; CABLE 4HG1 ENG(RJH),4HF1-S ENG(RLS) (E)	8-97039-295-0	01	1	0211-0507	●
6	04.047 CLIP; CABLE 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (E)	8-97039-295-0	01	1	0508-0609	●
6	04.047 CLIP; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) FLOOR REMOTE SHIFT<M11> (E)	8-97039-295-0	01	1	0610-	●
6	04.047 CLIP; CABLE 00.854 (J) ID=22.2	1-09701-209-1	01	1	0211-0609	●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> 00.854 (J) ID=22.2	1-09701-209-1	01	1	0610-	●
6	04.047 CLIP; CABLE (A) ID=19.2	8-97211-011-0	01	1	0211-0609	●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> (A) ID=19.2	8-97211-011-0	01	1	0610-	●
6	04.047 CLIP; CABLE (C)	8-97036-333-1	01	1	0211-0606	●
6	04.047 CLIP; CABLE EXC. POWER STEERING<N40> (C)	8-97036-333-1	01	1	0211-0606	●
6	04.047 CLIP; CABLE 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FLOOR REMOTE SHIFT<M11> (C)	8-97036-333-1	01	1	0607-0609	●
6	04.047 CLIP; CABLE EXC. POWER STEERING<N40> (C)	8-97036-333-1	01	1	0607-0609	●
6	04.047 CLIP; CABLE 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) FLOOR REMOTE SHIFT<M11> (C)	8-97036-333-1	01	1	0610-	●	●
6	04.047 CLIP; CABLE EXC. POWER STEERING<N40> (C)	8-97036-333-1	01	1	0610-	●	●
6	04.047 CLIP; CABLE (B)	8-97011-448-0	02	1	0211-0609	●	●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> (B)	8-97011-448-0	02	1	0610-	●	●
6	04.047 CLIP; CABLE (I)	8-97147-985-0	01	1	0211-	●	●
6	04.047 CLIP; CABLE 4HG1-T ENG(RDP) (G)	8-97039-296-1	01	1	0610-	●
6	04.047 CLIP; CABLE 4HG1-T ENG(RDP) (G)	8-97039-517-1	01	1	0703-	●
6	04.047 CLIP; CABLE 4JB1-TC ENG(RDT) (D)	8-97036-329-2	01	1	0610-		●
6	04.047 CLIP; CABLE 4JB1-TC ENG(RDT) FLOOR REMOTE SHIFT<M11> (G)	8-97036-332-1	01	1	0610-1211		●
6	04.047 CLIP; CABLE 4JB1-TC ENG(RDT) FLOOR REMOTE SHIFT<M11> EXC. POWER STEERING<N40> (G)	8-97036-332-1	01	1	1212-	●	●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> (A) ID=19.2	8-97211-011-0	02	1	0610-		●
201	04.032 BOLT; BRKT 4HG1 ENG(RJH),4HF1-S ENG(RLS) 02.559 (B) M8X25 FLANGE IDN	0-28680-825-0	01	1	0211-0507	●
201	04.032 BOLT; BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.559 (B) M8X25 FLANGE IDN	0-28680-825-0	01	1	0508-0512	●
201	04.032 BOLT; BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 06.216 (B) M8X25 FLANGE IDN	0-28650-825-0	01	1	0601-0609	●
201	04.032 BOLT; BRKT 4HG1-T ENG(RDP) POWER STEERING<N40> 06.216 (B) M8X25 FLANGE IDN	0-28650-825-0	01	1	0610-	●
201	04.032 BOLT; BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 06.216 (B) M8X25 FLANGE IDN	0-28650-825-0	01	1	0610-	●
201	04.032 BOLT; BRKT 4JB1-TC ENG(RDT) EXC. POWER STEERING<N40> 06.216 (B) M8X25 FLANGE IDN	0-28650-825-0	01	1	0610-		●
201	04.032 BOLT; BRKT 4HG1 ENG(RJH),4HF1-S ENG(RLS) 02.559 (A) M8X25 FLANGE IDN	0-28680-825-0	02	1	0211-0507	●
201	04.032 BOLT; BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.559 (A) M8X25 FLANGE IDN	0-28680-825-0	02	1	0508-0512	●
201	04.032 BOLT; BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 06.216 (A) M8X25 FLANGE IDN	0-28650-825-0	02	1	0601-0609	●
201	04.032 BOLT; BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 06.216 (A) M8X25 FLANGE IDN	0-28650-825-0	02	1	0610-	●
201	04.032 BOLT; BRKT 4JB1-TC ENG(RDT) EXC. POWER STEERING<N40> 06.216 (A) M8X25 FLANGE IDN	0-28650-825-0	02	1	0610-		●
203	04.032 NUT; BRKT FIX 4HG1 ENG(RJH),4HF1-S ENG(RLS) 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0507	●
203	04.032 NUT; BRKT FIX 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 07.633 M8 FLANGE	0-91150-108-0	01	1	0508-0602	●
203	04.032 NUT; BRKT FIX 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0603-0609	●
203	04.032 NUT; BRKT FIX 4HG1-T ENG(RDP) POWER STEERING<N40> 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0610-	●
203	04.032 NUT; BRKT FIX 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0610-	●
203	04.032 NUT; BRKT FIX 4JB1-TC ENG(RDT) EXC. POWER STEERING<N40> 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0610-		●
279	04.047 BRACKET; CABLE TO FRAME 4HG1 ENG(RJH),4HF1-S ENG(RLS) (A)	8-97028-496-1	01	1	0211-0507	●
279	04.047 BRACKET; CABLE TO FRAME 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A)	8-97028-496-1	01	1	0508-0609	●
279	04.047 BRACKET; CABLE TO FRAME 4HG1-T ENG(RDP) POWER STEERING<N40> (A)	8-97028-496-1	01	1	0610-	●
279	04.047 BRACKET; CABLE TO FRAME 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A)	8-97028-496-1	01	1	0610-	●
279	04.047 BRACKET; CABLE TO FRAME 4HG1 ENG(RJH),4HF1-S ENG(RLS) (B)	8-97047-898-0	01	1	0211-0507	●
279	04.047 BRACKET; CABLE TO FRAME 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B)	8-97047-898-0	01	1	0508-0609	●
279	04.047 BRACKET; CABLE TO FRAME 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B)	8-97047-898-0	01	1	0610-	●
279	04.047 BRACKET; CABLE TO FRAME 4JB1-TC ENG(RDT) EXC. POWER STEERING<N40> (B)	8-97047-898-0	01	1	0610-		●
279	04.047 BRACKET; CABLE TO FRAME 4HG1-T ENG(RDP) (D)	8-97205-549-1	01	1	0610-	●
279	04.047 BRACKET; CABLE TO FRAME 4JB1-TC ENG(RDT) EXC. POWER STEERING<N40> (C)	8-97103-234-0	01	1	0610-		●
300	00.854 BOLT; CLIP 4HG1 ENG(RJH),4HF1-S ENG(RLS) 02.559 M8X25 FLANGE IDN	0-28680-825-0	01	1	0211-0507	●
300	00.854 BOLT; CLIP 02.559 M8X25 FLANGE IDN	0-28680-825-0	01	1	0211-0507	●
300	00.854 BOLT; CLIP 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.559 M8X25 FLANGE IDN	0-28680-825-0	01	1	0508-0512	●
300	00.854 BOLT; CLIP 02.559 M8X25 FLANGE IDN	0-28680-825-0	01	1	0508-0512	●
300	00.854 BOLT; CLIP 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	0601-0606	●
300	00.854 BOLT; CLIP 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	0601-0606	●
300	00.854 BOLT; CLIP 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	0607-0609	●
300	00.854 BOLT; CLIP 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	0607-0609	●
300	00.854 BOLT; CLIP 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	0610-	●	●
300	00.854 BOLT; CLIP 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	0610-	●	●
300	00.854 BOLT; CLIP 4HG1-T ENG(RDP) EXC. POWER STEERING<N40> 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	0610-	●
300	00.854 BOLT; CLIP 4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	0610-		●
300	00.854 BOLT; CLIP EXC. POWER STEERING<N40> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0211-0512	●	●
300	00.854 BOLT; CLIP EXC. POWER STEERING<N40> 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●
303	00.855 NUT; CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0602	●
303	00.855 NUT; CLIP POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0602	●
303	00.855 NUT; CLIP 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0603-0606	●
303	00.855 NUT; CLIP POWER STEERING<N40> 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0603-0606	●
303	00.855 NUT; CLIP 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0607-0609	●
303	00.855 NUT; CLIP POWER STEERING<N40> 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0607-0609	●
303	00.855 NUT; CLIP 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0610-0702	●	●
303	00.855 NUT; CLIP POWER STEERING<N40> 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0610-0702	●	●
303	00.855 NUT; CLIP 4HG1-T ENG(RDP) EXC. POWER STEERING<N40> 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0610-0702	●
303	00.855 NUT; CLIP 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0703-	●	●
303	00.855 NUT; CLIP POWER STEERING<N40> 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0703-	●	●
303	00.855 NUT; CLIP 4HG1-T ENG(RDP) EXC. POWER STEERING<N40> 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0703-	●
303	00.855 NUT; CLIP 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0602	●	●
303	00.855 NUT; CLIP 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	0603-	●	●
474	00.854 BOLT; BRKT 4HG1-T ENG(RDP) 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	0610-	●
488	04.047 NUT; CABLE 4HG1-T ENG(RDP) 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0610-	●

6 52 6 201 279 303 300 303 6 6 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	04.047 CLIP; CABLE 4JB1-TC ENG(RDT) FLOOR REMOTE SHIFT<M11> POWER STEERING<N40> (K)	8-98023-697-0	01	1	1212-	●	●
6	04.047 CLIP; CABLE POWER STEERING<N40> (H)	8-97036-334-2	01	1	0211-	●	●
6	04.047 CLIP; CABLE 4HG1 ENG(RJH),4HF1-S ENG(RLS) (F)	8-97036-331-1	01	1	0211-0507	●
6	04.047 CLIP; CABLE 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (F)	8-97036-331-1	01	1	0508-	●
6	04.047 CLIP; CABLE 4HG1 ENG(RJH),4HF1-S ENG(RLS) (E)	8-97039-295-0	01	1	0211-0507	●
6	04.047 CLIP; CABLE 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (E)	8-97039-295-0	01	1	0508-0609	●
6	04.047 CLIP; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) FLOOR REMOTE SHIFT<M11> (E)	8-97039-295-0	01	1	0610-	●
6	04.047 CLIP; CABLE 00.854 (J) ID=22.2	1-09701-209-1	01	1	0211-0609	●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> 00.854 (J) ID=22.2	1-09701-209-1	01	1	0610-	●
6	04.047 CLIP; CABLE (A) ID=19.2	8-97211-011-0	01	1	0211-0609	●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> (A) ID=19.2	8-97211-011-0	01	1	0610-	●
6	04.047 CLIP; CABLE (C)	8-97036-333-1	01	1	0211-0606	●
6	04.047 CLIP; CABLE EXC. POWER STEERING<N40> (C)	8-97036-333-1	01	1	0211-0606	●
6	04.047 CLIP; CABLE 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FLOOR REMOTE SHIFT<M11> (C)	8-97036-333-1	01	1	0607-0609	●
6	04.047 CLIP; CABLE EXC. POWER STEERING<N40> (C)	8-97036-333-1	01	1	0607-0609	●
6	04.047 CLIP; CABLE 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) FLOOR REMOTE SHIFT<M11> (C)	8-97036-333-1	01	1	0610-	●	●
6	04.047 CLIP; CABLE EXC. POWER STEERING<N40> (C)	8-97036-333-1	01	1	0610-	●	●
6	04.047 CLIP; CABLE (B)	8-97011-448-0	02	1	0211-0609	●	●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> (B)	8-97011-448-0	02	1	0610-	●	●
6	04.047 CLIP; CABLE (I)	8-97147-985-0	01	1	0211-	●	●
6	04.047 CLIP; CABLE 4HG1-T ENG(RDP) (G)	8-97039-296-1	01	1	0610-	●
6	04.047 CLIP; CABLE 4HG1-T ENG(RDP) (G)	8-97039-517-1	01	1	0703-	●
6	04.047 CLIP; CABLE 4JB1-TC ENG(RDT) (D)	8-97036-329-2	01	1	0610-		●
6	04.047 CLIP; CABLE 4JB1-TC ENG(RDT) FLOOR REMOTE SHIFT<M11> (G)	8-97036-332-1	01	1	0610-1211		●
6	04.047 CLIP; CABLE 4JB1-TC ENG(RDT) FLOOR REMOTE SHIFT<M11> EXC. POWER STEERING<N40> (G)	8-97036-332-1	01	1	1212-	●	●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> (A) ID=19.2	8-97211-011-0	02	1	0610-		●
52	04.047 NUT; BRKT 4HG1 ENG(RJH),4HF1-S ENG(RLS) 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0507	●
52	04.047 NUT; BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 07.633 M8 FLANGE	0-91150-108-0	02	1	0508-0602	●
52	04.047 NUT; BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	0603-0609	●
52	04.047 NUT; BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	0610-	●
52	04.047 NUT; BRKT 4JB1-TC ENG(RDT) EXC. POWER STEERING<N40> 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	0610-		●
201	04.032 BOLT; BRKT 4HG1 ENG(RJH),4HF1-S ENG(RLS) 02.559 (B) M8X25 FLANGE IDN	0-28680-825-0	01	1	0211-0507	●
201	04.032 BOLT; BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.559 (B) M8X25 FLANGE IDN	0-28680-825-0	01	1	0508-0512	●
201	04.032 BOLT; BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 06.216 (B) M8X25 FLANGE IDN	0-28650-825-0	01	1	0601-0609	●
201	04.032 BOLT; BRKT 4HG1-T ENG(RDP) POWER STEERING<N40> 06.216 (B) M8X25 FLANGE IDN	0-28650-825-0	01	1	0610-	●
201	04.032 BOLT; BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 06.216 (B) M8X25 FLANGE IDN	0-28650-825-0	01	1	0610-	●
201	04.032 BOLT; BRKT 4JB1-TC ENG(RDT) EXC. POWER STEERING<N40> 06.216 (B) M8X25 FLANGE IDN	0-28650-825-0	01	1	0610-		●
201	04.032 BOLT; BRKT 4HG1 ENG(RJH),4HF1-S ENG(RLS) 02.559 (A) M8X25 FLANGE IDN	0-28680-825-0	02	1	0211-0507	●
201	04.032 BOLT; BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.559 (A) M8X25 FLANGE IDN	0-28680-825-0	02	1	0508-0512	●
201	04.032 BOLT; BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 06.216 (A) M8X25 FLANGE IDN	0-28650-825-0	02	1	0601-0609	●
201	04.032 BOLT; BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 06.216 (A) M8X25 FLANGE IDN	0-28650-825-0	02	1	0610-	●
201	04.032 BOLT; BRKT 4JB1-TC ENG(RDT) EXC. POWER STEERING<N40> 06.216 (A) M8X25 FLANGE IDN	0-28650-825-0	02	1	0610-		●
279	04.047 BRACKET; CABLE TO FRAME 4HG1 ENG(RJH),4HF1-S ENG(RLS) (A)	8-97028-496-1	01	1	0211-0507	●
279	04.047 BRACKET; CABLE TO FRAME 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A)	8-97028-496-1	01	1	0508-0609	●
279	04.047 BRACKET; CABLE TO FRAME 4HG1-T ENG(RDP) POWER STEERING<N40> (A)	8-97028-496-1	01	1	0610-	●
279	04.047 BRACKET; CABLE TO FRAME 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A)	8-97028-496-1	01	1	0610-	●
279	04.047 BRACKET; CABLE TO FRAME 4HG1 ENG(RJH),4HF1-S ENG(RLS) (B)	8-97047-898-0	01	1	0211-0507	●
279	04.047 BRACKET; CABLE TO FRAME 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B)	8-97047-898-0	01	1	0508-0609	●
279	04.047 BRACKET; CABLE TO FRAME 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B)	8-97047-898-0	01	1	0610-	●
279	04.047 BRACKET; CABLE TO FRAME 4JB1-TC ENG(RDT) EXC. POWER STEERING<N40> (B)	8-97047-898-0	01	1	0610-		●
279	04.047 BRACKET; CABLE TO FRAME 4HG1-T ENG(RDP) (D)	8-97205-549-1	01	1	0610-	●
279	04.047 BRACKET; CABLE TO FRAME 4JB1-TC ENG(RDT) EXC. POWER STEERING<N40> (C)	8-97103-234-0	01	1	0610-		●
300	00.854 BOLT; CLIP 4HG1 ENG(RJH),4HF1-S ENG(RLS) 02.559 M8X25 FLANGE IDN	0-28680-825-0	01	1	0211-0507	●
300	00.854 BOLT; CLIP 02.559 M8X25 FLANGE IDN	0-28680-825-0	01	1	0211-0507	●
300	00.854 BOLT; CLIP 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.559 M8X25 FLANGE IDN	0-28680-825-0	01	1	0508-0512	●
300	00.854 BOLT; CLIP 02.559 M8X25 FLANGE IDN	0-28680-825-0	01	1	0508-0512	●
300	00.854 BOLT; CLIP 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	0601-0606	●
300	00.854 BOLT; CLIP 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	0601-0606	●
300	00.854 BOLT; CLIP 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	0607-0609	●
300	00.854 BOLT; CLIP 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	0607-0609	●
300	00.854 BOLT; CLIP 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	0610-	●	●
300	00.854 BOLT; CLIP 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	0610-	●	●
300	00.854 BOLT; CLIP 4HG1-T ENG(RDP) EXC. POWER STEERING<N40> 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	0610-	●
300	00.854 BOLT; CLIP 4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	0610-		●
300	00.854 BOLT; CLIP EXC. POWER STEERING<N40> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0211-0512	●	●
300	00.854 BOLT; CLIP EXC. POWER STEERING<N40> 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●
303	00.855 NUT; CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0602	●
303	00.855 NUT; CLIP POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0602	●
303	00.855 NUT; CLIP 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0603-0606	●
303	00.855 NUT; CLIP POWER STEERING<N40> 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0603-0606	●
303	00.855 NUT; CLIP 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0607-0609	●
303	00.855 NUT; CLIP POWER STEERING<N40> 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0607-0609	●
303	00.855 NUT; CLIP 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0610-0702	●	●
303	00.855 NUT; CLIP POWER STEERING<N40> 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0610-0702	●	●
303	00.855 NUT; CLIP 4HG1-T ENG(RDP) EXC. POWER STEERING<N40> 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0610-0702	●
303	00.855 NUT; CLIP 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0703-	●	●
303	00.855 NUT; CLIP POWER STEERING<N40> 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0703-	●	●
303	00.855 NUT; CLIP 4HG1-T ENG(RDP) EXC. POWER STEERING<N40> 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0703-	●
303	00.855 NUT; CLIP 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0602	●	●
303	00.855 NUT; CLIP 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	0603-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
