◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10808 - FRR-G/FSR/FTR TAIWAN ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#7893) — 92 parça

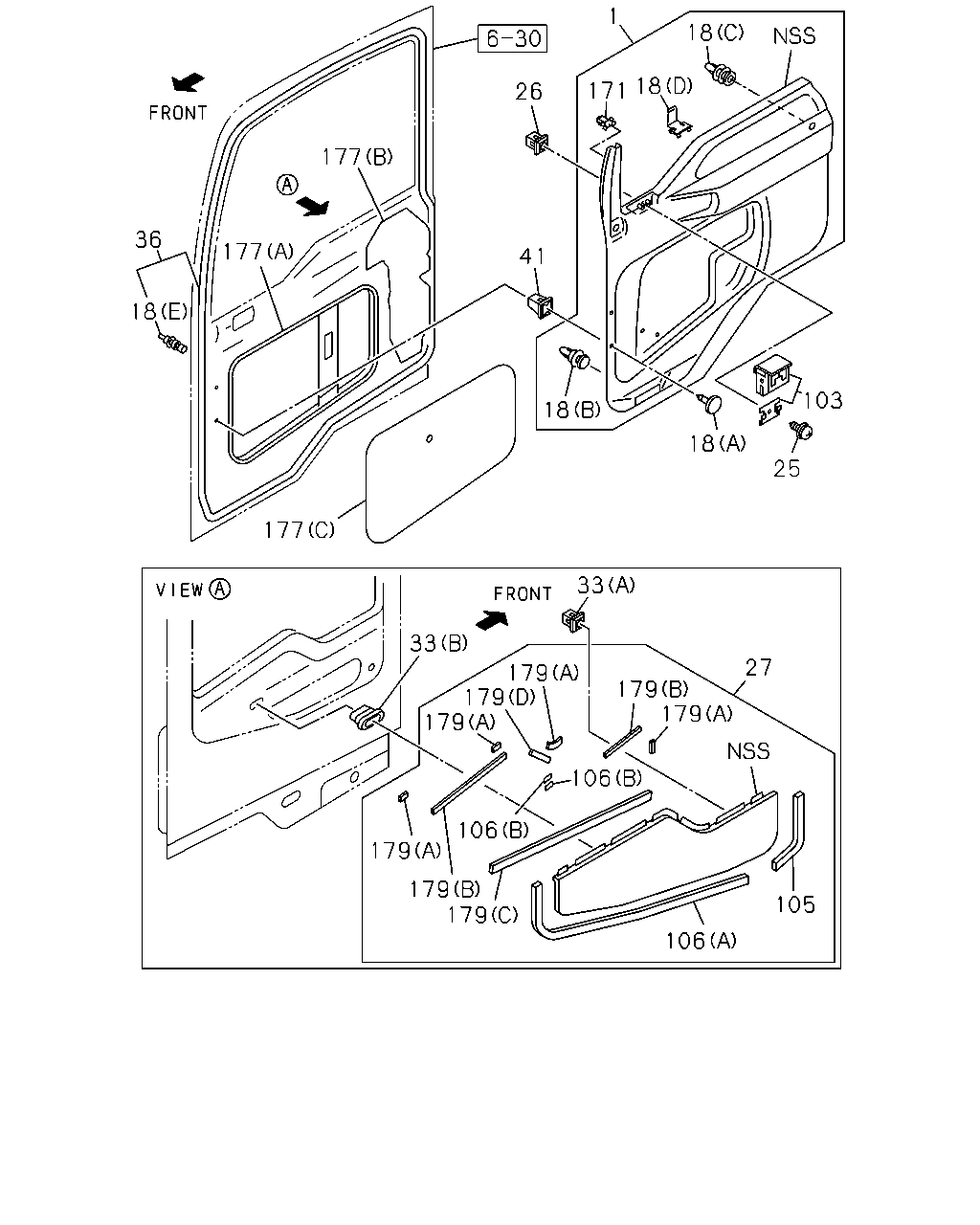

çizim 27012
1 18 18 171 26 177 36 177 41 18 103 18 18 25 177 33 33 27 179 179 179 179 179 106 106 179 179 179 105 106
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PAD; TRIM,FRT DOOR 1-73338-506-0 01 1 9905-0012 ●
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MAN CONT<SKF> 		1-73338-506-0 01 1 9905-0012 ●
1 PAD; TRIM,FRT DOOR 1-73338-538-0 01 1 0101- ●
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MAN CONT<SKF> 		1-73338-538-0 01 1 0101- ●
1 PAD; TRIM,FRT DOOR 1-73337-485-0 01 1 9905-0012 ●
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MAN CONT<SKF> 		1-73337-485-0 01 1 9905-0012 ●
1 PAD; TRIM,FRT DOOR 1-73337-510-0 01 1 0101- ●
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MAN CONT<SKF> 		1-73337-510-0 01 1 0101- ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73338-509-0 01 1 9905-0012 ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73338-539-0 01 1 0101-0301 ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73338-539-0 01 1 0302- ●
1 PAD; TRIM,FRT DOOR 1-73338-539-0 01 1 0302- ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73337-484-0 01 1 9905-0012 ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73337-509-0 01 1 0101-0301 ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73337-509-0 01 1 0302- ●
1 PAD; TRIM,FRT DOOR 1-73337-509-0 01 1 0302- ●
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 08 1 9905-9906 ●
18 CLIP; DOOR PAD
DOOR WINDOW MAN CONT<SKF> (D) 		1-09987-262-0 08 1 9905-9906 ●
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 08 1 9907-0005 ● ●
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 10 1 0006-0301 ● ●
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 10 1 0302- ● ● ●
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-94126-768-0 10 1 9905-9906 ●
18 CLIP; DOOR PAD
DOOR WINDOW MAN CONT<SKF> (B) OD=8.5 GRAY 		8-94126-768-0 10 1 9905-9906 ●
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-94126-768-0 10 1 9907-0012 ● ●
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-97893-482-0 10 1 0101-0301 ● ●
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-97893-482-0 10 1 0302- ● ● ●
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK 		8-94279-974-1 02 1 9905-9906 ●
18 CLIP; DOOR PAD
DOOR WINDOW MAN CONT<SKF> (C) OD=7.9 BLACK 		8-94279-974-1 02 1 9905-9906 ●
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK 		8-94279-974-1 02 1 9907-0301 ● ●
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK 		8-94279-974-1 02 1 0302- ● ● ●
18 CLIP; DOOR PAD
(A) D4.2X19.9 GRAY 		1-09987-272-0 04 1 9905-0301 ● ●
18 CLIP; DOOR PAD
(A) D4.2X19.9 GRAY 		1-09987-272-0 04 1 0302- ● ● ●
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 9905-0301 ● ●
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 0302- ● ● ●
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 9905-0301 ● ●
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 0302- ● ● ●
18 CLIP; DOOR PAD
POWER WINDOW<A30> (D) 		1-09987-262-0 08 1 9905-9906 ●
18 CLIP; DOOR PAD
POWER WINDOW<A30> (B) OD=8.5 GRAY 		8-94126-768-0 10 1 9905-9906 ●
18 CLIP; DOOR PAD
POWER WINDOW<A30> (C) OD=7.9 BLACK 		8-94279-974-1 02 1 9905-9906 ●
25 SCREW; ASH TRAY,DOOR
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 9905-0301 ● ●
25 SCREW; ASH TRAY,DOOR
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 0302- ● ● ●
26 GROMMET; SCREW,ASH TRAY DOOR
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 9905-0301 ● ●
26 GROMMET; SCREW,ASH TRAY DOOR
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0302- ● ● ●
27 PANEL; ORNAMENT,DOOR 1-76218-096-7 01 1 9905-0301 ● ●
27 PANEL; ORNAMENT,DOOR 1-76218-096-7 01 1 0302- ● ● ●
27 PANEL; ORNAMENT,DOOR 1-76218-125-7 01 1 9905-0301 ● ●
27 PANEL; ORNAMENT,DOOR 1-76218-125-7 01 1 0302- ● ● ●
33 GROMMET; DOOR ORNAMENT
(A) 		1-09983-149-1 02 1 9905-0301 ● ●
33 GROMMET; DOOR ORNAMENT
(A) 		1-09983-149-1 02 1 0302- ● ● ●
33 GROMMET; DOOR ORNAMENT
(B) 		1-74998-111-0 02 1 9905-0301 ● ●
33 GROMMET; DOOR ORNAMENT
(B) 		1-74998-111-0 02 1 0302- ● ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-177-9 01 1 9905-0301 ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-177-9 01 1 0302- ● ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-176-9 01 1 9905-0301 ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-176-9 01 1 0302- ● ● ●
41 GROMMET; SCREW,DOOR PAD
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 04 1 9905-0301 ● ●
41 GROMMET; SCREW,DOOR PAD
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 04 1 0302- ● ● ●
103 TRAY ASM; ASH,DOOR 1-76457-054-0 01 1 9905-0111 ● ●
103 TRAY ASM; ASH,DOOR 1-76458-086-1 01 1 0112-0301 ● ●
103 TRAY ASM; ASH,DOOR 1-76458-086-1 01 1 0302- ● ● ●
103 TRAY ASM; ASH,DOOR 1-76457-053-0 01 1 9905-0111 ● ●
103 TRAY ASM; ASH,DOOR 1-76458-085-1 01 1 0112-0301 ● ●
103 TRAY ASM; ASH,DOOR 1-76458-085-1 01 1 0302- ● ● ●
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 02 1 9905-0301 ● ●
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 02 1 0302- ● ● ●
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 02 1 9905-0301 ● ●
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 02 1 0302- ● ● ●
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 02 1 9905-0301 ● ●
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 02 1 0302- ● ● ●
171 RETAINER; DOOR PAD 1-09987-264-0 02 1 9905-9906 ●
171 RETAINER; DOOR PAD
DOOR WINDOW MAN CONT<SKF> 		1-09987-264-0 02 1 9905-9906 ●
171 RETAINER; DOOR PAD 1-09987-264-0 02 1 9907-0301 ● ●
171 RETAINER; DOOR PAD 1-09987-264-0 02 1 0302- ● ● ●
171 RETAINER; DOOR PAD
POWER WINDOW<A30> 		1-09987-264-0 02 1 9905-9906 ●
177 SEAL; WATER,DOOR
(C) 		1-76778-047-3 02 1 9905- ●
177 SEAL; WATER,DOOR
DOOR WINDOW MAN CONT<SKF> (C) 		1-76778-047-3 02 1 9905- ●
177 SEAL; WATER,DOOR
(B) 		1-76778-055-2 02 1 9905-0301 ● ●
177 SEAL; WATER,DOOR
(B) 		1-76778-055-2 02 1 0302- ● ● ●
177 SEAL; WATER,DOOR
POWER WINDOW<A30> (A) 		1-76778-052-2 01 1 9905-0301 ●
177 SEAL; WATER,DOOR
POWER WINDOW<A30> (A) 		1-76778-052-2 01 1 0302- ●
177 SEAL; WATER,DOOR
(A) 		1-76778-052-2 01 1 0302- ●
177 SEAL; WATER,DOOR
POWER WINDOW<A30> (A) 		1-76778-035-6 01 1 9905-0301 ●
177 SEAL; WATER,DOOR
POWER WINDOW<A30> (A) 		1-76778-035-6 01 1 0302- ●
177 SEAL; WATER,DOOR
(A) 		1-76778-035-6 01 1 0302- ●
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-2 08 1 9905-0301 ● ●
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-2 08 1 0302- ● ● ●
179 TAPE; ORNAMENT
(C) L=770 		1-76218-091-2 02 1 9905-0301 ● ●
179 TAPE; ORNAMENT
(C) L=770 		1-76218-091-2 02 1 0302- ● ● ●
179 TAPE; ORNAMENT
(D) L=160 		1-76218-094-1 02 1 9905-0301 ● ●
179 TAPE; ORNAMENT
(D) L=160 		1-76218-094-1 02 1 0302- ● ● ●
179 TAPE; ORNAMENT
(B) L=235 		1-76218-127-1 04 1 9905-0301 ● ●
179 TAPE; ORNAMENT
(B) L=235 		1-76218-127-1 04 1 0302- ● ● ●
