2-05 — CLUTCH PIPING (#78927) — 92 parça

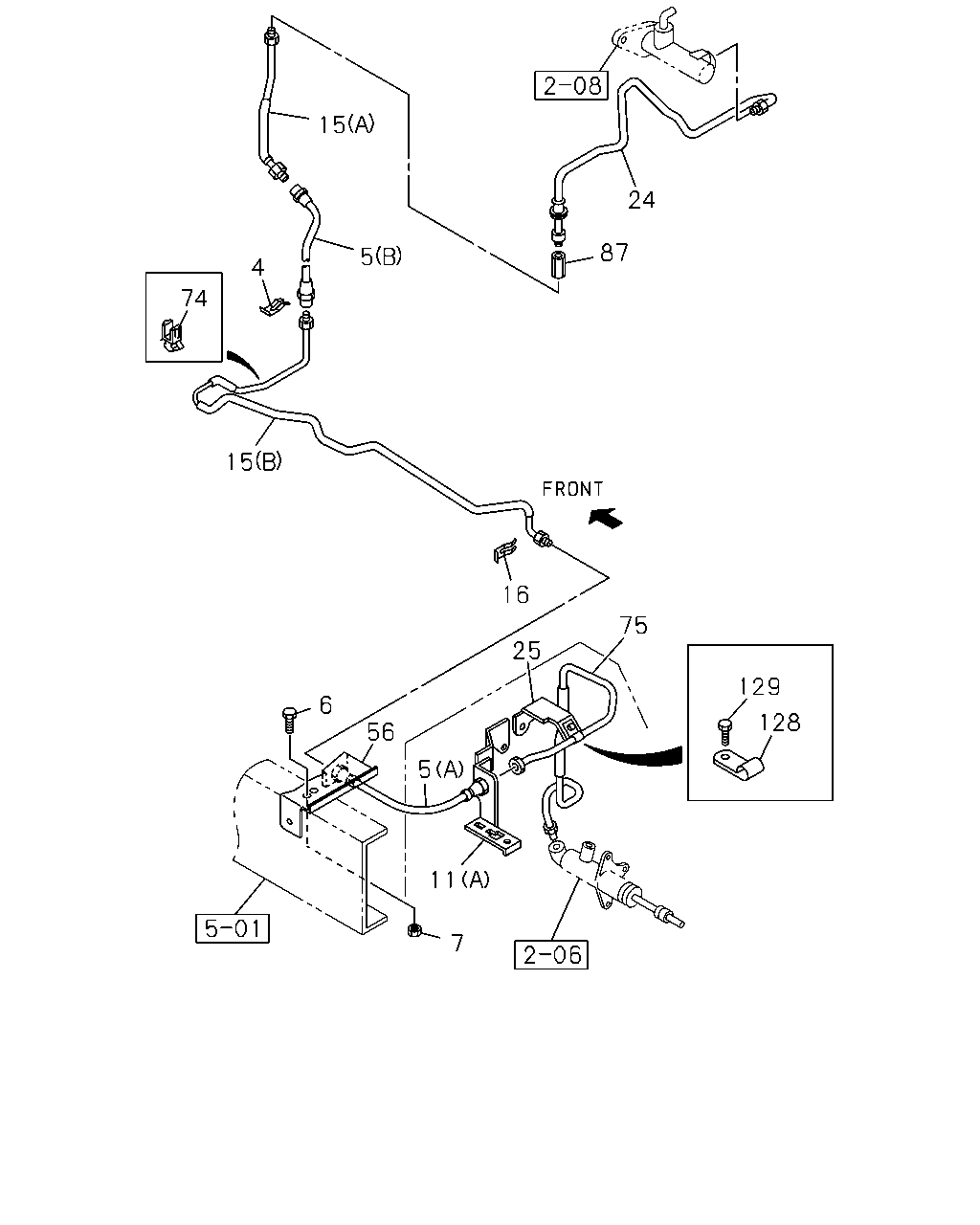

çizim 102442
15 24 87 5 4 74 15 16 75 25 129 6 128 56 5 11 7
BalonParca AdiParca NoAdetTipApplied Date A B
4 00.785 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 0211-0610 ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
04.681 		8-97365-304-0 02 1 0611- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) 		8-94482-265-1 01 1 0211-0507 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) 		8-94482-265-1 01 1 0508-0609 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) 		8-94482-265-1 01 1 0610- ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 0211-0609 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98004-775-0 01 1 0610-0706 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98090-655-0 01 1 0707- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JB1-TC ENG(RDT) (A) 		8-94374-552-1 01 1 0610- ●
6 00.785 BOLT; BRKT,FLEX HOSE
4HG1 ENG(RJH),4HF1-S ENG(RLS) 02.559 M8X25 FLANGE IDN 		0-28680-825-0 01 1 0211-0507 ●
6 00.785 BOLT; BRKT,FLEX HOSE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.559 M8X25 FLANGE IDN 		0-28680-825-0 01 1 0508-0512 ●
6 00.785 BOLT; BRKT,FLEX HOSE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 06.216 M8X25 FLANGE IDN 		0-28650-825-0 01 1 0601-0609 ●
6 00.785 BOLT; BRKT,FLEX HOSE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 06.216 M8X25 FLANGE IDN 		0-28650-825-0 01 1 0610- ●
6 00.785 BOLT; BRKT,FLEX HOSE
4JB1-TC ENG(RDT) 01.531 M8X20 FLANGE IDN 		0-28650-820-0 01 1 0610- ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4HG1 ENG(RJH),4HF1-S ENG(RLS) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0507 ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0508-0602 ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 M8 FLANGE IDN 		0-91180-108-0 01 1 0603-0609 ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 M8 FLANGE IDN 		0-91180-108-0 01 1 0610- ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HG1 ENG(RJH),4HF1-S ENG(RLS) (B) 		8-97063-755-0 01 1 0211-0507 ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) 		8-97063-755-0 01 1 0508-0609 ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) 		8-97063-755-0 01 1 0610- ●
11 00.785 BRACKET; FLEX HOSE,CLU
4JB1-TC ENG(RDT) (A) 		8-97091-929-0 01 1 0610- ●
15 00.785 PIPE; CLU,FLEX HOSE
4HG1 ENG(RJH),4HF1-S ENG(RLS) (B) IDN 		8-97326-003-0 01 1 0211-0304 ●
15 00.785 PIPE; CLU,FLEX HOSE
4HG1 ENG(RJH),4HF1-S ENG(RLS) (B) IDN 		8-97362-192-0 01 1 0305-0507 ●
15 00.785 PIPE; CLU,FLEX HOSE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) IDN 		8-97362-192-0 01 1 0508- ●
15 00.785 PIPE; CLU,FLEX HOSE
(A) IDN 		8-97035-987-0 01 1 0211- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4HG1-T ENG(RDP) (B) IDN 		8-97367-551-0 01 1 0610- ●
15 00.785 PIPE; CLU,FLEX HOSE
4JB1-TC ENG(RDT) (B) IDN 		8-97122-637-0 01 1 0610- ●
16 00.785 CLIP; FLEX HOSE
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-94167-006-0 01 1 0211-0507 ●
16 00.785 CLIP; FLEX HOSE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-94167-006-0 01 1 0508-0609 ●
16 00.785 CLIP; FLEX HOSE
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-94167-006-0 01 1 0610-0610 ● ●
16 00.785 CLIP; FLEX HOSE
4JB1-TC ENG(RDT) 		8-94167-006-0 01 1 0610-0610 ●
16 00.785 CLIP; FLEX HOSE
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 04.681 		8-97365-304-0 01 1 0611- ● ●
16 00.785 CLIP; FLEX HOSE
4JB1-TC ENG(RDT) 04.681 		8-97365-304-0 01 1 0611- ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH<S2T> 		8-97035-973-0 01 1 0211-0609 ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH<S2T> 		8-97035-973-0 01 1 0610- ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH<S2T> 		8-97035-986-0 01 1 0211-0609 ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH<S2T> 		8-97035-986-0 01 1 0610- ● ●
25 00.785 BRACKET; OIL PIPE
4JB1-TC ENG(RDT) 		8-97013-211-1 01 1 0610- ●
56 00.785 BRACKET; FLEX HOSE
4JB1-TC ENG(RDT) 		8-97090-299-0 01 1 0610- ●
74 00.785 CLIP; CLU OIL PIPE
4JB1-TC ENG(RDT) 03.162 H=28.5 		8-94486-808-0 02 1 0610- ●
75 00.785 PIPE ASM; CLU,HSG
4JB1-TC ENG(RDT) 		8-97063-756-2 01 1 0610- ●
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 0211-0607 ● ●
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		0-92107-006-0 01 1 0608-0609 ● ●
87 00.785 UNION; OIL PIPE
FLOOR REMOTE SHIFT<M11> M12 STRAIGHT 		0-92107-006-0 01 1 0610- ● ●
128 00.785 CLIP; AIR PIPE
4JB1-TC ENG(RDT) ID=7 L=16 		0-95234-622-0 02 1 0610- ●
129 00.785 BOLT; PIPE CLIP
4JB1-TC ENG(RDT) 03.162 M6X12 FLANGE 		0-28050-612-0 02 1 0610- ●

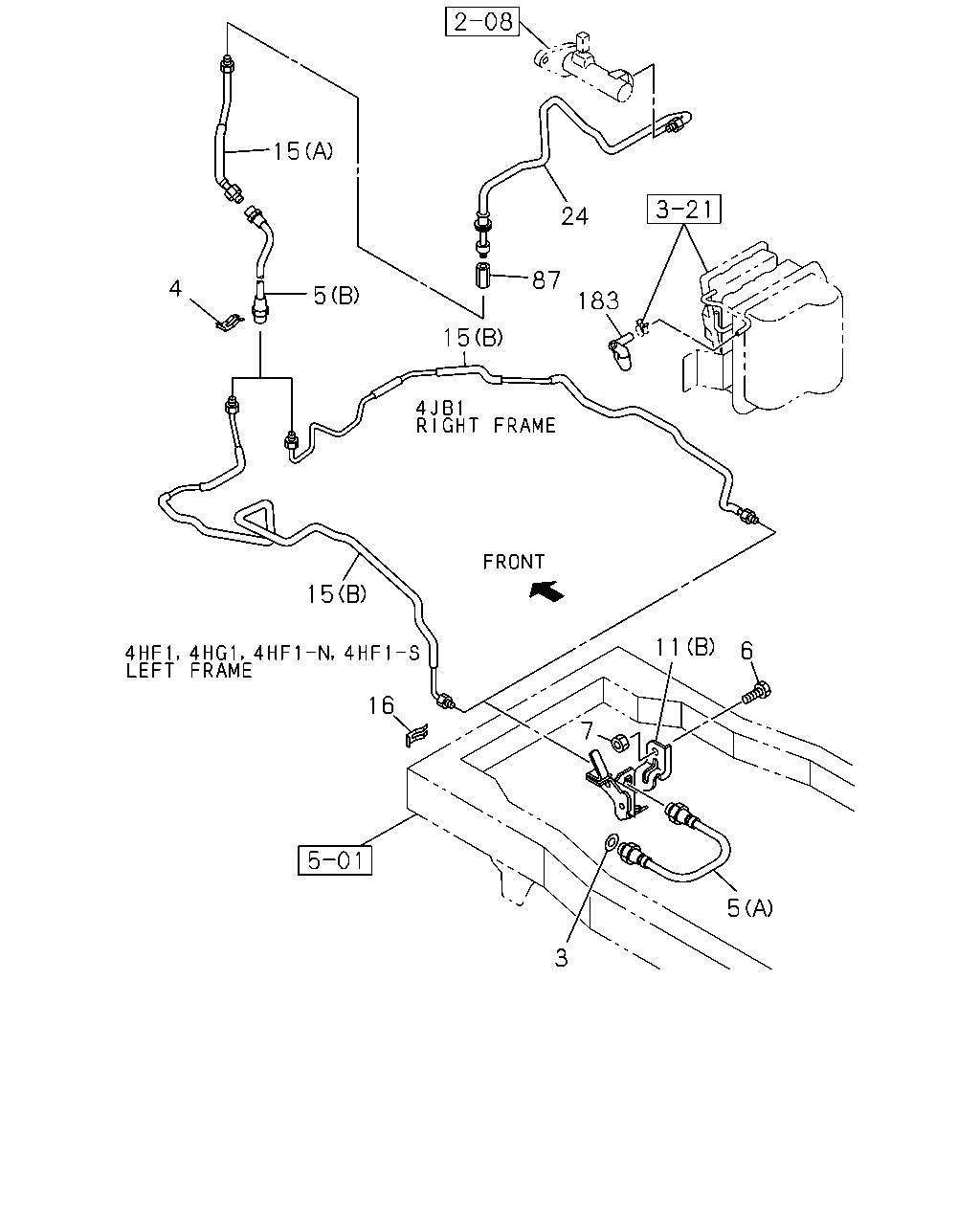

çizim 102458
15 24 87 4 5 183 15 15 11 6 16 7 5 3
BalonParca AdiParca NoAdetTipApplied Date A B
3 00.785 GASKET; FLEX HOSE,CLU
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		9-09920-873-1 01 1 0211-0507 ●
3 00.785 GASKET; FLEX HOSE,CLU
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		9-09920-873-1 01 1 0508-0609 ●
3 00.785 GASKET; FLEX HOSE,CLU
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		9-09920-873-1 01 1 0610- ●
4 00.785 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 0211-0610 ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
04.681 		8-97365-304-0 02 1 0611- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) 		8-94482-265-1 01 1 0211-0507 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) 		8-94482-265-1 01 1 0508-0609 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) 		8-94482-265-1 01 1 0610- ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 0211-0609 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98004-775-0 01 1 0610-0706 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98090-655-0 01 1 0707- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JB1-TC ENG(RDT) (A) 		8-94374-552-1 01 1 0610- ●
6 00.785 BOLT; BRKT,FLEX HOSE
4HG1 ENG(RJH),4HF1-S ENG(RLS) 02.559 M8X25 FLANGE IDN 		0-28680-825-0 01 1 0211-0507 ●
6 00.785 BOLT; BRKT,FLEX HOSE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.559 M8X25 FLANGE IDN 		0-28680-825-0 01 1 0508-0512 ●
6 00.785 BOLT; BRKT,FLEX HOSE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 06.216 M8X25 FLANGE IDN 		0-28650-825-0 01 1 0601-0609 ●
6 00.785 BOLT; BRKT,FLEX HOSE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 06.216 M8X25 FLANGE IDN 		0-28650-825-0 01 1 0610- ●
6 00.785 BOLT; BRKT,FLEX HOSE
4JB1-TC ENG(RDT) 01.531 M8X20 FLANGE IDN 		0-28650-820-0 01 1 0610- ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4HG1 ENG(RJH),4HF1-S ENG(RLS) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0507 ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0508-0602 ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 M8 FLANGE IDN 		0-91180-108-0 01 1 0603-0609 ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 M8 FLANGE IDN 		0-91180-108-0 01 1 0610- ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HG1 ENG(RJH),4HF1-S ENG(RLS) (B) 		8-97063-755-0 01 1 0211-0507 ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) 		8-97063-755-0 01 1 0508-0609 ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) 		8-97063-755-0 01 1 0610- ●
11 00.785 BRACKET; FLEX HOSE,CLU
4JB1-TC ENG(RDT) (A) 		8-97091-929-0 01 1 0610- ●
15 00.785 PIPE; CLU,FLEX HOSE
4HG1 ENG(RJH),4HF1-S ENG(RLS) (B) IDN 		8-97326-003-0 01 1 0211-0304 ●
15 00.785 PIPE; CLU,FLEX HOSE
4HG1 ENG(RJH),4HF1-S ENG(RLS) (B) IDN 		8-97362-192-0 01 1 0305-0507 ●
15 00.785 PIPE; CLU,FLEX HOSE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) IDN 		8-97362-192-0 01 1 0508- ●
15 00.785 PIPE; CLU,FLEX HOSE
(A) IDN 		8-97035-987-0 01 1 0211- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4HG1-T ENG(RDP) (B) IDN 		8-97367-551-0 01 1 0610- ●
15 00.785 PIPE; CLU,FLEX HOSE
4JB1-TC ENG(RDT) (B) IDN 		8-97122-637-0 01 1 0610- ●
16 00.785 CLIP; FLEX HOSE
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-94167-006-0 01 1 0211-0507 ●
16 00.785 CLIP; FLEX HOSE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-94167-006-0 01 1 0508-0609 ●
16 00.785 CLIP; FLEX HOSE
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-94167-006-0 01 1 0610-0610 ● ●
16 00.785 CLIP; FLEX HOSE
4JB1-TC ENG(RDT) 		8-94167-006-0 01 1 0610-0610 ●
16 00.785 CLIP; FLEX HOSE
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 04.681 		8-97365-304-0 01 1 0611- ● ●
16 00.785 CLIP; FLEX HOSE
4JB1-TC ENG(RDT) 04.681 		8-97365-304-0 01 1 0611- ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH<S2T> 		8-97035-973-0 01 1 0211-0609 ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH<S2T> 		8-97035-973-0 01 1 0610- ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH<S2T> 		8-97035-986-0 01 1 0211-0609 ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH<S2T> 		8-97035-986-0 01 1 0610- ● ●
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 0211-0607 ● ●
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		0-92107-006-0 01 1 0608-0609 ● ●
87 00.785 UNION; OIL PIPE
FLOOR REMOTE SHIFT<M11> M12 STRAIGHT 		0-92107-006-0 01 1 0610- ● ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH<S2T> 		8-97129-874-0 01 1 0211- ● ●
