◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51280 - NKR INDONESIA ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-01 - CLUTCH ▶
2-01 — CLUTCH (#78925) — 58 parça

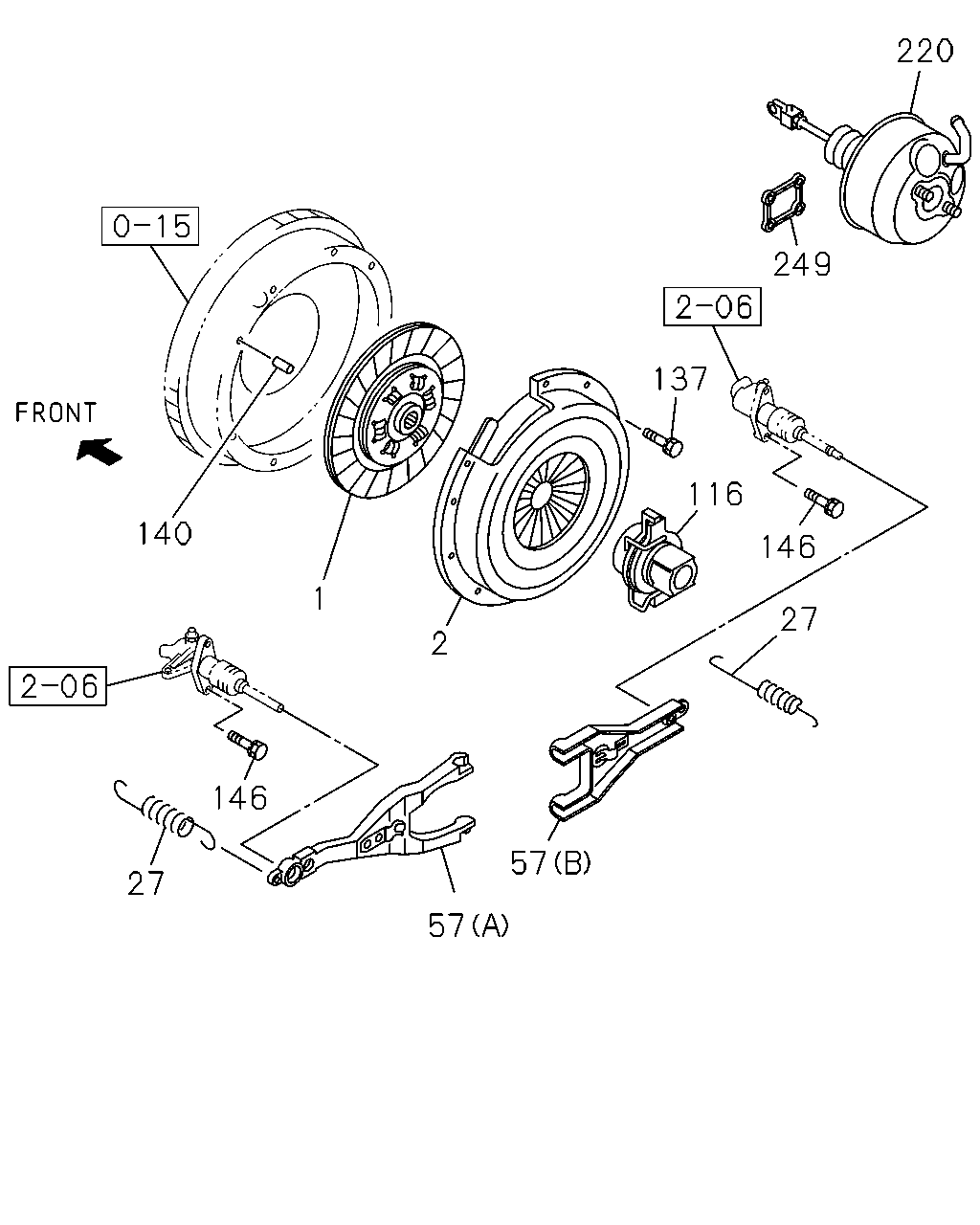

çizim 97979
220 249 137 116 140 146 1 27 2 146 57 27 57
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.886 DISC; CLUTCH
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-98211-334-0 01 1 1210-1402 ●
1 00.886 DISC; CLUTCH
4HG1-T ENG(RDP) GLOW SYSTEM DELETE<7RK> 		8-98211-334-0 01 1 1210-1402 ●
1 00.886 DISC; CLUTCH
4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN 		8-98256-285-0 01 1 1403- ●
1 00.886 DISC; CLUTCH
4HG1-T ENG(RDP) GLOW SYSTEM DELETE<7RK> IDN 		8-98256-285-0 01 1 1403- ●
1 00.886 DISC; CLUTCH
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97320-355-0 01 1 0211-0412 ●
1 00.886 DISC; CLUTCH
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97377-149-0 01 1 0501-0507 ●
1 00.886 DISC; CLUTCH
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97377-149-0 01 1 0508-0609 ●
1 00.886 DISC; CLUTCH
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97377-149-0 01 1 0610-1209 ●
1 00.886 DISC; CLUTCH
4HG1-T ENG(RDP) FAST GLOW SYSTEM<KM6> 		8-97377-149-0 01 1 1210-1402 ●
1 00.886 DISC; CLUTCH
4HG1-T ENG(RDP) FAST GLOW SYSTEM<KM6> 		8-98255-959-1 01 1 1403- ●
1 00.886 DISC; CLUTCH
4JB1-TC ENG(RDT) 		8-97377-899-0 01 1 0610-0705 ●
1 00.886 DISC; CLUTCH
4JB1-TC ENG(RDT) 		8-98080-661-0 01 1 0706- ●
1 00.886 DISC; CLUTCH
4HG1 ENG(RJH),4HF1-S ENG(RLS) BEST VALUE PARTS 		5-87610-049-0 01 1 0501-0507 ●
1 00.886 DISC; CLUTCH
4HG1 ENG(RJH),4HF1-N ENG(RJZ) BEST VALUE PARTS 		5-87610-049-0 01 1 0508-0609 ●
1 00.886 DISC; CLUTCH
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) BEST VALUE PARTS 		5-87610-049-0 01 1 0610-1209 ●
1 00.886 DISC; CLUTCH
4HG1-T ENG(RDP) FAST GLOW SYSTEM<KM6> BEST VALUE PARTS 		5-87610-049-0 01 1 1210-1402 ●
1 00.886 DISC; CLUTCH
4HG1-T ENG(RDP) FAST GLOW SYSTEM<KM6> BEST VALUE PARTS 		5-87610-049-2 01 1 1403- ●
1 00.886 DISC; CLUTCH
4JB1-TC ENG(RDT) BEST VALUE PARTS 		5-87610-083-0 01 1 0706- ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HG1-T ENG(RDP) GLOW SYSTEM DELETE<7RK> IDN 		8-98211-371-0 01 1 1210- ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97310-796-0 01 1 0211-0302 ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97351-833-0 01 1 0303-0412 ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97310-796-0 01 1 0501-0507 ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97310-796-0 01 1 0508-0609 ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JB1-TC ENG(RDT) 		8-97310-796-0 01 1 0610- ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JB1-TC ENG(RDT) 		8-97109-246-0 01 1 0610- ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HG1-T ENG(RDP) 		8-97169-534-0 01 1 0610-1209 ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HG1-T ENG(RDP) FAST GLOW SYSTEM<KM6> 		8-97169-534-0 01 1 1210- ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HG1 ENG(RJH),4HF1-N ENG(RJZ) BEST VALUE PARTS 		5-87610-050-1 01 1 0508-0609 ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JB1-TC ENG(RDT) BEST VALUE PARTS 		5-87610-050-1 01 1 0610- ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JB1-TC ENG(RDT) BEST VALUE PARTS 		5-87610-082-0 01 1 0610- ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HG1-T ENG(RDP) BEST VALUE PARTS 		5-87610-079-0 01 1 0610-1209 ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HG1-T ENG(RDP) FAST GLOW SYSTEM<KM6> BEST VALUE PARTS 		5-87610-079-0 01 1 1210- ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HG1 ENG(RJH),4HF1-S ENG(RLS) BEST VALUE PARTS 		5-87610-050-1 01 1 0211-0507 ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97184-359-0 01 1 0211-0507 ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97184-359-0 01 1 0508-0609 ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97184-359-0 01 1 0610-0812 ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-98025-313-0 01 1 0901- ●
27 00.837 SPRING; RETURN,SHIFT FORK
4JB1-TC ENG(RDT) 		8-97184-358-0 01 1 0610-0812 ●
27 00.837 SPRING; RETURN,SHIFT FORK
4JB1-TC ENG(RDT) 		8-98025-314-0 01 1 0901- ●
57 00.795 FORK; SHIFT,CLU
(A) 		8-97255-303-0 01 1 0211- ●
57 00.795 FORK; SHIFT,CLU
(B) 		8-97033-701-0 01 1 0610- ●
116 00.799 BLOCK; SHIFT,CLU 8-97255-313-0 01 1 0211- ●
116 00.799 BLOCK; SHIFT,CLU 8-97316-602-0 01 1 0610- ●
116 00.799 BLOCK; SHIFT,CLU
BEST VALUE PARTS 		5-87610-110-0 01 1 0211- ●
116 00.799 BLOCK; SHIFT,CLU
BEST VALUE PARTS 		5-87610-116-0 01 1 0610- ●
137 00.862 BOLT; CLU COVER
4HG1 ENG(RJH),4HF1-S ENG(RLS) 02.559 M10X16 FLANGE 		0-28081-016-0 10 1 0211-0507 ●
137 00.862 BOLT; CLU COVER
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.559 M10X16 FLANGE 		0-28081-016-0 10 1 0508-0512 ●
137 00.862 BOLT; CLU COVER
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.483 M10X16 FLANGE 		0-28051-016-0 10 1 0601-0609 ●
137 00.862 BOLT; CLU COVER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.483 M10X16 FLANGE 		0-28051-016-0 10 1 0610- ●
137 00.862 BOLT; CLU COVER
4JB1-TC ENG(RDT) 02.343 M8X16 FLANGE 		0-28050-816-0 06 1 0610- ●
140 00.862 PIN; STRAIGHT
4HG1 ENG(RJH),4HF1-S ENG(RLS) L=25 		8-94410-361-0 02 1 0211-0507 ●
140 00.862 PIN; STRAIGHT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) L=25 		8-94410-361-0 02 1 0508-0609 ●
140 00.862 PIN; STRAIGHT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) L=25 		8-94410-361-0 02 1 0610- ●
140 00.862 PIN; STRAIGHT
4JB1-TC ENG(RDT) OD=6 L=24 		9-09878-532-0 02 1 0610- ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
04.686 M8X30 FLANGE 		0-28680-830-0 02 1 0211-0512 ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
03.403 M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH<S2T> 		8-97162-962-1 01 1 0211- ● ●
249 00.864 SPACER; CLU BOOSTER
POWER ASSIST CLUTCH<S2T> 		8-97167-489-0 01 1 0211- ● ●
