Sayfa 1-31 - Isuzu EPC

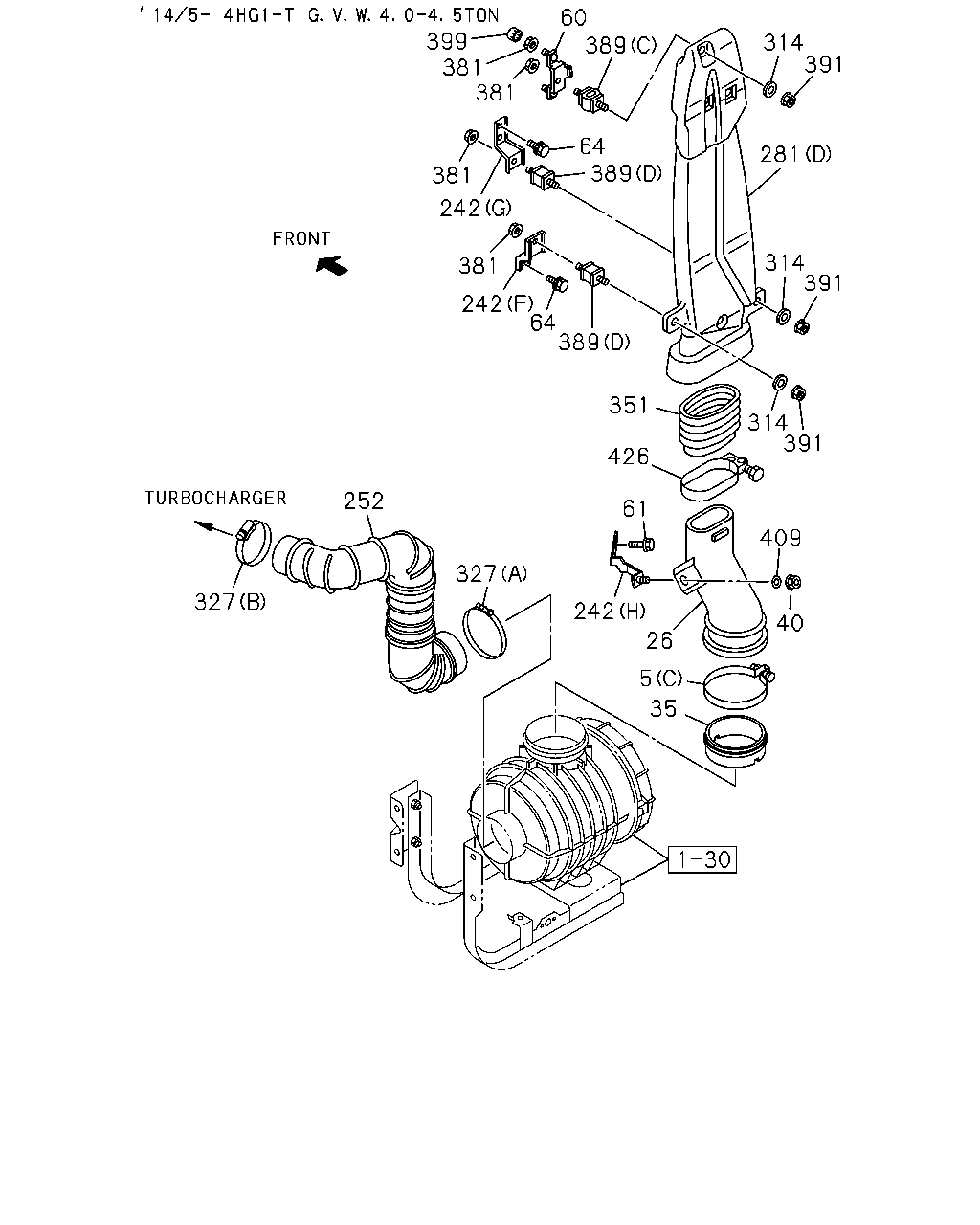

1-31 — AIR DUCT (#78917) — 892 parça

391 314 281 389 60 399 381 381 64 381 389 242 381 242 389 351 426 61 242 26 5 35 40 409 391 314 391 314 252 327 327 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	03.407 CLIP; AIR DUCT 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) (C) ID=127	1-14239-263-0	01	1	1405-	●
5	03.407 CLIP; AIR DUCT 4HF1-S ENG(RLS) (A) D=101.6 IDN	9-09915-502-1	01	1	0211-0507		●
5	03.407 CLIP; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) D=101.6 IDN	9-09915-502-1	01	1	0211-0507	●
5	03.407 CLIP; AIR DUCT 4HF1-N ENG(RJZ) (A) D=101.6 IDN	9-09915-502-1	01	1	0508-0609		●
5	03.407 CLIP; AIR DUCT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) D=101.6 IDN	9-09915-502-1	01	1	0508-0609	●
5	03.407 CLIP; AIR DUCT 4HF1-N ENG(RJZ) (A) D=101.6 IDN	9-09915-502-1	01	1	0610-1404		●
5	03.407 CLIP; AIR DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) D=101.6 IDN	9-09915-502-1	01	1	0610-1404	●
5	03.407 CLIP; AIR DUCT 4HF1-N ENG(RJZ) (A) D=101.6 IDN	9-09915-502-1	01	1	1405-		●
5	03.407 CLIP; AIR DUCT 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) (A) D=101.6 IDN	9-09915-502-1	01	1	1405-	●
5	03.407 CLIP; AIR DUCT 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) (A) D=101.6 IDN	9-09915-502-1	01	1	1405-	●
5	03.407 CLIP; AIR DUCT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) D=101.6 IDN	9-09915-502-1	01	1	1405-	●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) (B) ID=87	8-97087-432-0	01	1	0610-0712		●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) (B) ID=87	8-97087-432-0	01	1	0801-	●	●
26	03.417 DUCT; AIR INT 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B)	8-98177-803-0	01	1	1405-	●
35	03.406 SEAL; DUCT,INT 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B)	8-98029-332-0	01	1	1405-	●
40	03.417 NUT; AIR INT DUCT 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) 03.162 M10 FLANGE IDN	0-91180-110-0	01	1	1405-	●
60	03.417 BRACKET; AIR DUCT,UPR 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) IDN	8-97329-306-0	01	1	1405-	●
60	03.417 BRACKET; AIR DUCT,UPR 4HF1-S ENG(RLS) IDN	8-97856-957-0	01	1	0211-0507		●
60	03.417 BRACKET; AIR DUCT,UPR 4HG1 ENG(RJH),4HF1-S ENG(RLS) IDN	8-97856-957-0	01	1	0211-0507	●
60	03.417 BRACKET; AIR DUCT,UPR 4HF1-N ENG(RJZ) IDN	8-97856-957-1	01	1	0508-0609		●
60	03.417 BRACKET; AIR DUCT,UPR 4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97856-957-1	01	1	0508-0609	●
60	03.417 BRACKET; AIR DUCT,UPR 4HF1-N ENG(RJZ) IDN	8-97856-957-1	01	1	0610-1404		●
60	03.417 BRACKET; AIR DUCT,UPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97856-957-1	01	1	0610-1404	●
60	03.417 BRACKET; AIR DUCT,UPR 4HF1-N ENG(RJZ) IDN	8-97856-957-1	01	1	1405-		●
60	03.417 BRACKET; AIR DUCT,UPR 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) IDN	8-97856-957-1	01	1	1405-	●
60	03.417 BRACKET; AIR DUCT,UPR 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) IDN	8-97856-957-1	01	1	1405-	●
60	03.417 BRACKET; AIR DUCT,UPR 4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97856-957-1	01	1	1405-	●
60	03.417 BRACKET; AIR DUCT,UPR 4JB1-TC ENG(RDT)	8-97856-956-1	01	1	0610-0712		●
60	03.417 BRACKET; AIR DUCT,UPR 4JB1-TC ENG(RDT)	8-97856-956-1	01	1	0801-	●	●
61	03.417 BOLT; BRKT,AIR DUCT 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) 06.216 M8X25 FLANGE IDN	0-28650-825-0	02	1	1405-	●
64	03.417 BOLT; BRKT,AIR DUCT 4HF1-S ENG(RLS) 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0211-0507		●
64	03.417 BOLT; BRKT,AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0211-0507	●
64	03.417 BOLT; BRKT,AIR DUCT 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0508-	●	●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) (F) IDN	8-97312-894-1	01	1	1405-	●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) (G) IDN	8-97329-201-0	01	1	1405-	●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) (H) IDN	8-98177-804-0	01	1	1405-	●
242	03.417 BRACKET; AIR DUCT 4HF1-S ENG(RLS) (A) IDN	8-97853-633-1	01	1	0211-0507		●
242	03.417 BRACKET; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) IDN	8-97853-633-1	01	1	0211-0507	●
242	03.417 BRACKET; AIR DUCT 4HF1-N ENG(RJZ) (A) IDN	8-97853-633-2	01	1	0508-0609		●
242	03.417 BRACKET; AIR DUCT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) IDN	8-97853-633-2	01	1	0508-0609	●
242	03.417 BRACKET; AIR DUCT 4HF1-N ENG(RJZ) (A) IDN	8-97853-633-2	01	1	0610-1404		●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) IDN	8-97853-633-2	01	1	0610-1404	●
242	03.417 BRACKET; AIR DUCT 4HF1-N ENG(RJZ) (A) IDN	8-97853-633-2	01	1	1405-		●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) (A) IDN	8-97853-633-2	01	1	1405-	●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) (A) IDN	8-97853-633-2	01	1	1405-	●
242	03.417 BRACKET; AIR DUCT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) IDN	8-97853-633-2	01	1	1405-	●
242	03.417 BRACKET; AIR DUCT 4HF1-S ENG(RLS) (B) IDN	8-97857-844-0	01	1	0211-0507		●
242	03.417 BRACKET; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) (B) IDN	8-97857-844-0	01	1	0211-0507	●
242	03.417 BRACKET; AIR DUCT 4HF1-N ENG(RJZ) (B) IDN	8-97857-844-1	01	1	0508-0609		●
242	03.417 BRACKET; AIR DUCT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) IDN	8-97857-844-1	01	1	0508-0609	●
242	03.417 BRACKET; AIR DUCT 4HF1-N ENG(RJZ) (B) IDN	8-97857-844-1	01	1	0610-1404		●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) IDN	8-97857-844-1	01	1	0610-1404	●
242	03.417 BRACKET; AIR DUCT 4HF1-N ENG(RJZ) (B) IDN	8-97857-844-1	01	1	1405-		●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) (B) IDN	8-97857-844-1	01	1	1405-	●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) (B) IDN	8-97857-844-1	01	1	1405-	●
242	03.417 BRACKET; AIR DUCT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) IDN	8-97857-844-1	01	1	1405-	●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (D)	8-97856-932-0	01	1	0610-0712		●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (D)	8-97856-932-0	01	1	0801-	●	●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (E)	8-97856-933-0	01	1	0610-0712		●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (E)	8-97856-933-0	01	1	0801-	●	●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (C)	8-97856-958-0	01	1	0610-0712		●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (C)	8-97856-958-0	01	1	0801-	●	●
252	03.417 DUCT; AIR INT 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B)	8-98166-942-0	01	1	1405-	●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) (D) IDN	8-97369-706-0	01	1	1405-	●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1-S ENG(RLS) HEAVY DUTY AIR CLEANER<K46> (B)	8-97120-084-1	01	1	0211-0507	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1-N ENG(RJZ) HEAVY DUTY AIR CLEANER<K46> (B)	8-97120-084-2	01	1	0508-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1-S ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> (A) IDN	8-97161-847-1	01	1	0211-0507		●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> (A) IDN	8-97161-847-1	01	1	0211-0507	●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1-N ENG(RJZ) EXC. HEAVY DUTY AIR CLEANER<K46> (A) IDN	8-97161-847-2	01	1	0508-		●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. HEAVY DUTY AIR CLEANER<K46> (A) IDN	8-97161-847-2	01	1	0508-	●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1-T ENG(RDP) (A)	8-97125-174-2	01	1	0610-1404	●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) (A)	8-97125-174-2	01	1	1405-	●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) (A)	8-97125-174-2	01	1	1405-	●
281	03.417 DUCT; AIR,VERTICAL INT 4JB1-TC ENG(RDT) (C)	8-97300-255-1	01	1	0610-0712		●
281	03.417 DUCT; AIR,VERTICAL INT 4JB1-TC ENG(RDT) (C)	8-97300-255-1	01	1	0801-	●	●
314	03.417 WASHER; PL,AIR INT DUCT 4HF1-S ENG(RLS) 16.335 ID=10.2 T=3.2 IDN	8-94279-642-0	03	1	0211-0507		●
314	03.417 WASHER; PL,AIR INT DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) 16.335 ID=10.2 T=3.2 IDN	8-94279-642-0	03	1	0211-0507	●
314	03.417 WASHER; PL,AIR INT DUCT 4HF1-N ENG(RJZ) 16.335 ID=10.2 T=3.2 IDN	8-94279-642-0	03	1	0508-0609		●
314	03.417 WASHER; PL,AIR INT DUCT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 16.335 ID=10.2 T=3.2 IDN	8-94279-642-0	03	1	0508-0609	●
314	03.417 WASHER; PL,AIR INT DUCT 4HF1-N ENG(RJZ) 16.335 ID=10.2 T=3.2 IDN	8-94279-642-0	03	1	0610-1204		●
314	03.417 WASHER; PL,AIR INT DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 16.335 ID=10.2 T=3.2 IDN	8-94279-642-0	03	1	0610-1204	●
314	03.417 WASHER; PL,AIR INT DUCT 4HF1-N ENG(RJZ) 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1205-		●
314	03.417 WASHER; PL,AIR INT DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1205-	●
327	03.417 CLIP; AIR INT 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) 03.407 (A) ID=117	9-09915-075-1	01	1	1405-	●
327	03.417 CLIP; AIR INT 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=55-75	8-98133-349-0	01	1	1405-	●
327	03.417 CLIP; AIR INT 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=58-79	1-09707-136-0	01	1	1405-	●
351	03.407 DUCT; AIR 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) IDN	8-98115-594-0	01	1	1405-	●
381	03.417 NUT; BRKT,AIR DUCT 4HF1-S ENG(RLS) 16.800 M6 FLANGE IDN	1-09984-018-0	02	1	0211-0507		●
381	03.417 NUT; BRKT,AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) 16.800 M6 FLANGE IDN	1-09984-018-0	02	1	0211-0507	●
381	03.417 NUT; BRKT,AIR DUCT 16.800 M6 FLANGE IDN	1-09984-018-0	02	1	0508-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) (C) IDN	8-98036-825-0	01	1	1405-	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) 03.417 (D) IDN	8-98036-826-0	02	1	1405-	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HF1-S ENG(RLS) 03.417 (A) IDN	8-97080-149-0	01	1	0211-0507		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1 ENG(RJH),4HF1-S ENG(RLS) 03.417 (A) IDN	8-97080-149-0	01	1	0211-0507	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HF1-N ENG(RJZ) 03.417 (A) IDN	8-97080-149-0	01	1	0508-0609		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.417 (A) IDN	8-97080-149-0	01	1	0508-0609	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 03.417 (A) IDN	8-97080-149-0	01	1	0610-0712		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.417 (A) IDN	8-97080-149-0	01	1	0610-0712	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 03.417 (A) IDN	8-97080-149-0	01	1	0801-1404		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.417 (A) IDN	8-97080-149-0	01	1	0801-1404	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 03.417 (A) IDN	8-97080-149-0	01	1	1405-		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) 03.417 (A) IDN	8-97080-149-0	01	1	1405-	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) 03.417 (A) IDN	8-97080-149-0	01	1	1405-	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.417 (A) IDN	8-97080-149-0	01	1	1405-	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HF1-S ENG(RLS) 03.417 (B) IDN	8-97081-886-0	02	1	0211-0507		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1 ENG(RJH),4HF1-S ENG(RLS) 03.417 (B) IDN	8-97081-886-0	02	1	0211-0507	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HF1-N ENG(RJZ) 03.417 (B) IDN	8-97081-886-0	02	1	0508-0609		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.417 (B) IDN	8-97081-886-0	02	1	0508-0609	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 03.417 (B) IDN	8-97081-886-0	02	1	0610-0712		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.417 (B) IDN	8-97081-886-0	02	1	0610-0712	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 03.417 (B) IDN	8-97081-886-0	02	1	0801-1404		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.417 (B) IDN	8-97081-886-0	02	1	0801-1404	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 03.417 (B) IDN	8-97081-886-0	02	1	1405-		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) 03.417 (B) IDN	8-97081-886-0	02	1	1405-	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) 03.417 (B) IDN	8-97081-886-0	02	1	1405-	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.417 (B) IDN	8-97081-886-0	02	1	1405-	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HF1-S ENG(RLS) M8 FLANGE IDN	8-94279-517-0	06	1	0211-0507		●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HG1 ENG(RJH),4HF1-S ENG(RLS) M8 FLANGE IDN	8-94279-517-0	06	1	0211-0507	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HF1-N ENG(RJZ) M8 FLANGE IDN	8-94279-517-0	06	1	0508-0609		●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HG1 ENG(RJH),4HF1-N ENG(RJZ) M8 FLANGE IDN	8-94279-517-0	06	1	0508-0609	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JB1-TC ENG(RDT) M8 FLANGE IDN	8-94279-517-0	07	1	0610-0712		●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JB1-TC ENG(RDT) M8 FLANGE IDN	8-94279-517-0	07	1	0801-0910	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JB1-TC ENG(RDT) M8 W/LK WASHER IDN	8-97581-234-0	07	1	0911-	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HF1-N ENG(RJZ) M8 FLANGE IDN	8-94279-517-0	06	1	0610-0910		●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) M8 FLANGE IDN	8-94279-517-0	06	1	0610-0910	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HF1-N ENG(RJZ) M8 W/LK WASHER IDN	8-97581-234-0	06	1	0911-		●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) M8 W/LK WASHER IDN	8-97581-234-0	06	1	0911-	●
399	03.417 CAP; BRKT,AIR DUCT 4HF1-S ENG(RLS) IDN	8-94273-605-0	02	1	0211-0507		●
399	03.417 CAP; BRKT,AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) IDN	8-94273-605-0	02	1	0211-0507	●
399	03.417 CAP; BRKT,AIR DUCT IDN	8-94273-605-0	02	1	0508-	●	●
409	03.417 WASHER; PL,BRKT 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1405-	●
426	03.417 CLIP; DUCT 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) 03.407 D=101.6 IDN	9-09915-502-1	01	1	1405-	●

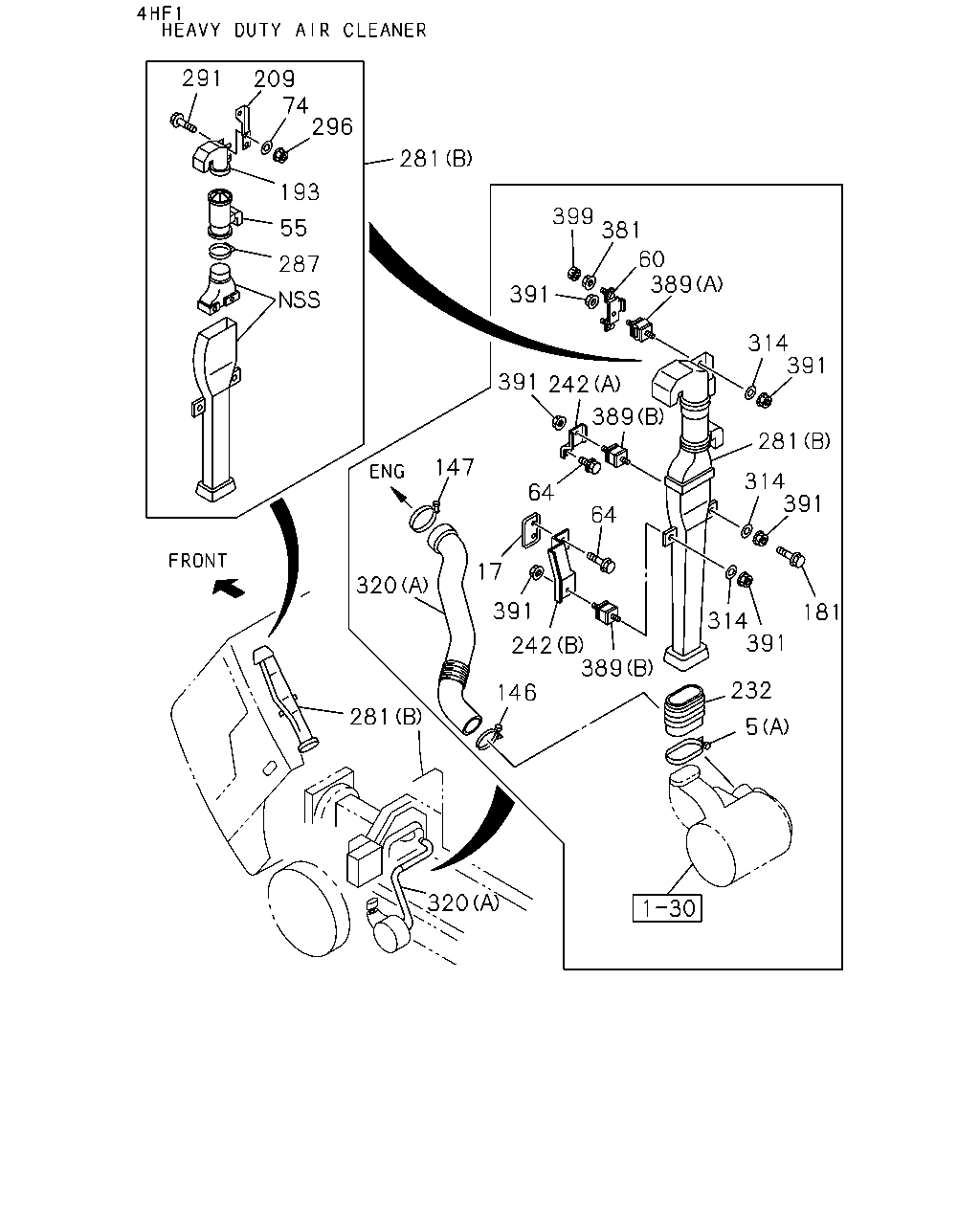

291 209 74 296 193 55 287 281 399 381 60 389 314 391 281 314 391 181 391 314 232 5 389 242 146 391 17 64 64 147 391 391 242 389 320 281 320

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	03.407 CLIP; AIR DUCT 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) (C) ID=127	1-14239-263-0	01	1	1405-	●
5	03.407 CLIP; AIR DUCT 4HF1-S ENG(RLS) (A) D=101.6 IDN	9-09915-502-1	01	1	0211-0507		●
5	03.407 CLIP; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) D=101.6 IDN	9-09915-502-1	01	1	0211-0507	●
5	03.407 CLIP; AIR DUCT 4HF1-N ENG(RJZ) (A) D=101.6 IDN	9-09915-502-1	01	1	0508-0609		●
5	03.407 CLIP; AIR DUCT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) D=101.6 IDN	9-09915-502-1	01	1	0508-0609	●
5	03.407 CLIP; AIR DUCT 4HF1-N ENG(RJZ) (A) D=101.6 IDN	9-09915-502-1	01	1	0610-1404		●
5	03.407 CLIP; AIR DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) D=101.6 IDN	9-09915-502-1	01	1	0610-1404	●
5	03.407 CLIP; AIR DUCT 4HF1-N ENG(RJZ) (A) D=101.6 IDN	9-09915-502-1	01	1	1405-		●
5	03.407 CLIP; AIR DUCT 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) (A) D=101.6 IDN	9-09915-502-1	01	1	1405-	●
5	03.407 CLIP; AIR DUCT 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) (A) D=101.6 IDN	9-09915-502-1	01	1	1405-	●
5	03.407 CLIP; AIR DUCT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) D=101.6 IDN	9-09915-502-1	01	1	1405-	●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) (B) ID=87	8-97087-432-0	01	1	0610-0712		●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) (B) ID=87	8-97087-432-0	01	1	0801-	●	●
17	03.403 GASKET; AIR DUCT 4HF1-S ENG(RLS) IDN	8-97853-699-2	01	1	0211-0507		●
17	03.403 GASKET; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) IDN	8-97853-699-2	01	1	0211-0507	●
17	03.403 GASKET; AIR DUCT IDN	8-97853-699-2	01	1	0508-	●	●
55	03.402 CLEANER ASM; AIR,PRE 4HF1-S ENG(RLS) HEAVY DUTY AIR CLEANER<K46>	8-97126-267-0	01	1	0211-0507	●	●
55	03.402 CLEANER ASM; AIR,PRE 4HF1-N ENG(RJZ) HEAVY DUTY AIR CLEANER<K46>	8-97126-267-0	01	1	0508-	●	●
60	03.417 BRACKET; AIR DUCT,UPR 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) IDN	8-97329-306-0	01	1	1405-	●
60	03.417 BRACKET; AIR DUCT,UPR 4HF1-S ENG(RLS) IDN	8-97856-957-0	01	1	0211-0507		●
60	03.417 BRACKET; AIR DUCT,UPR 4HG1 ENG(RJH),4HF1-S ENG(RLS) IDN	8-97856-957-0	01	1	0211-0507	●
60	03.417 BRACKET; AIR DUCT,UPR 4HF1-N ENG(RJZ) IDN	8-97856-957-1	01	1	0508-0609		●
60	03.417 BRACKET; AIR DUCT,UPR 4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97856-957-1	01	1	0508-0609	●
60	03.417 BRACKET; AIR DUCT,UPR 4HF1-N ENG(RJZ) IDN	8-97856-957-1	01	1	0610-1404		●
60	03.417 BRACKET; AIR DUCT,UPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97856-957-1	01	1	0610-1404	●
60	03.417 BRACKET; AIR DUCT,UPR 4HF1-N ENG(RJZ) IDN	8-97856-957-1	01	1	1405-		●
60	03.417 BRACKET; AIR DUCT,UPR 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) IDN	8-97856-957-1	01	1	1405-	●
60	03.417 BRACKET; AIR DUCT,UPR 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) IDN	8-97856-957-1	01	1	1405-	●
60	03.417 BRACKET; AIR DUCT,UPR 4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97856-957-1	01	1	1405-	●

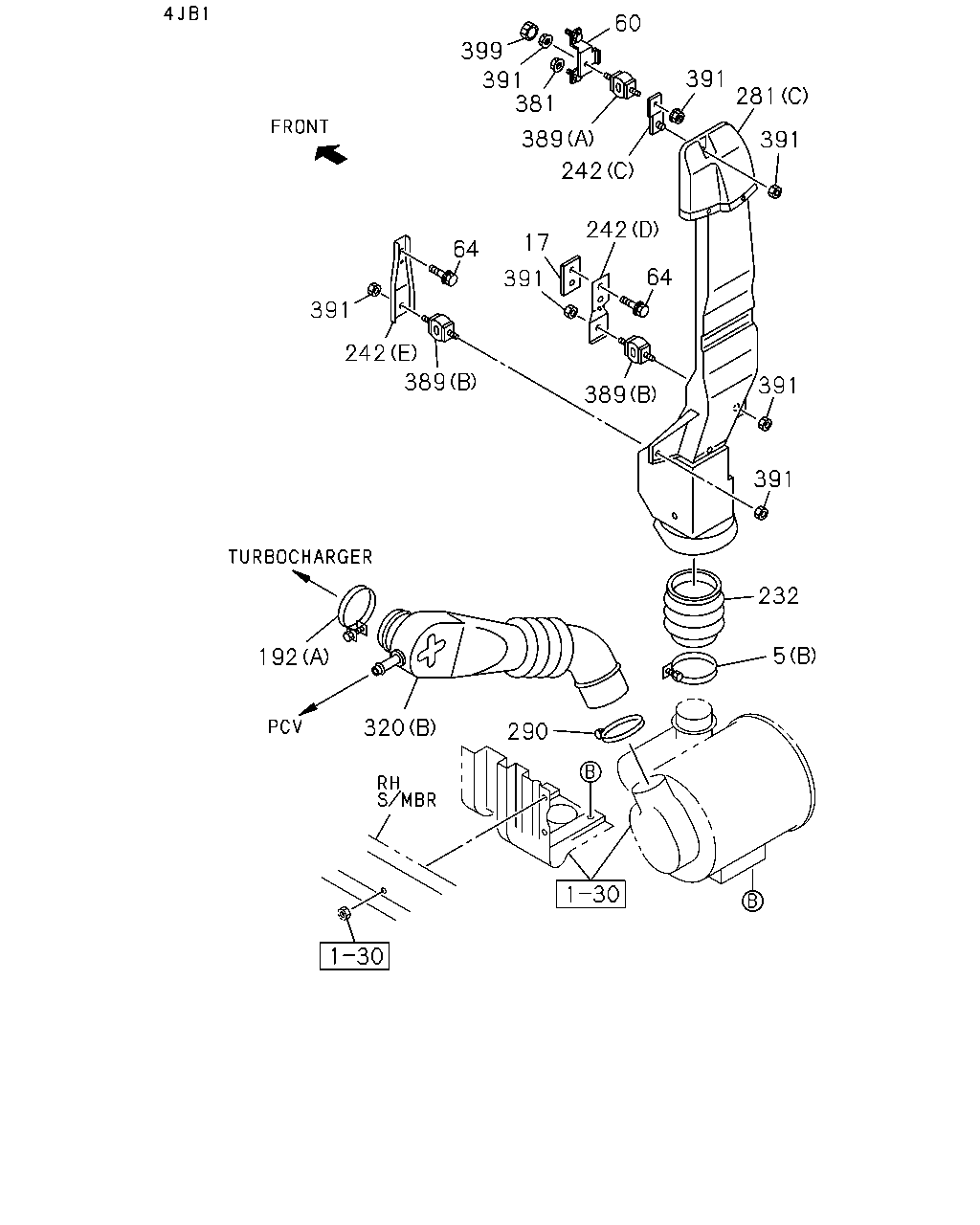

60	03.417 BRACKET; AIR DUCT,UPR 4JB1-TC ENG(RDT)	8-97856-956-1	01	1	0610-0712		●
60	03.417 BRACKET; AIR DUCT,UPR 4JB1-TC ENG(RDT)	8-97856-956-1	01	1	0801-	●	●
64	03.417 BOLT; BRKT,AIR DUCT 4HF1-S ENG(RLS) 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0211-0507		●
64	03.417 BOLT; BRKT,AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0211-0507	●
64	03.417 BOLT; BRKT,AIR DUCT 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0508-	●	●
74	03.417 WASHER; PL,ACL 4HF1-S ENG(RLS) HEAVY DUTY AIR CLEANER<K46> 06.760 ID=8.4 OD=22	9-09160-708-0	02	1	0211-0507	●	●
74	03.417 WASHER; PL,ACL 4HF1-N ENG(RJZ) HEAVY DUTY AIR CLEANER<K46> 06.760 ID=8.4 OD=22	9-09160-708-0	02	1	0508-0605	●	●
74	03.417 WASHER; PL,ACL 4HF1-N ENG(RJZ) HEAVY DUTY AIR CLEANER<K46> 04.595 ID=8.4 OD=22	0-91610-708-0	02	1	0606-	●	●
146	03.417 CLIP; HOSE,ACL 4HF1-S ENG(RLS) 03.008 ID=95	9-09915-733-1	01	1	0211-0507		●
146	03.417 CLIP; HOSE,ACL 4HG1 ENG(RJH),4HF1-S ENG(RLS) 03.008 ID=95	9-09915-733-1	01	1	0211-0507	●
146	03.417 CLIP; HOSE,ACL 4HF1-N ENG(RJZ) 03.008 ID=95	9-09915-733-1	01	1	0508-0609		●
146	03.417 CLIP; HOSE,ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.008 ID=95	9-09915-733-1	01	1	0508-0609	●
146	03.417 CLIP; HOSE,ACL 4HF1-N ENG(RJZ) 03.008 ID=95	9-09915-733-1	01	1	0610-1404		●
146	03.417 CLIP; HOSE,ACL 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.008 ID=95	9-09915-733-1	01	1	0610-1404	●
146	03.417 CLIP; HOSE,ACL 4HF1-N ENG(RJZ) 03.008 ID=95	9-09915-733-1	01	1	1405-		●
146	03.417 CLIP; HOSE,ACL 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) 03.008 ID=95	9-09915-733-1	01	1	1405-	●
146	03.417 CLIP; HOSE,ACL 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) 03.008 ID=95	9-09915-733-1	01	1	1405-	●
146	03.417 CLIP; HOSE,ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.008 ID=95	9-09915-733-1	01	1	1405-	●
147	03.417 CLIP; HOSE TO ENG 4HF1-S ENG(RLS) 03.008 ID=95	9-09915-733-1	01	1	0211-0507		●
147	03.417 CLIP; HOSE TO ENG 4HG1 ENG(RJH),4HF1-S ENG(RLS) 03.008 ID=95	9-09915-733-1	01	1	0211-0507	●
147	03.417 CLIP; HOSE TO ENG 4HF1-N ENG(RJZ) 03.008 ID=95	9-09915-733-1	01	1	0508-		●
147	03.417 CLIP; HOSE TO ENG 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.008 ID=95	9-09915-733-1	01	1	0508-	●
181	03.407 BOLT; AIR DUCT TO RAD 4HF1-S ENG(RLS) 02.559 M8X25 FLANGE IDN	0-28680-825-0	01	1	0211-0507		●
181	03.407 BOLT; AIR DUCT TO RAD 4HG1 ENG(RJH),4HF1-S ENG(RLS) 02.559 M8X25 FLANGE IDN	0-28680-825-0	01	1	0211-0507	●
181	03.407 BOLT; AIR DUCT TO RAD 4HF1-N ENG(RJZ) 02.559 M8X25 FLANGE IDN	0-28680-825-0	01	1	0508-0512		●
181	03.407 BOLT; AIR DUCT TO RAD 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.559 M8X25 FLANGE IDN	0-28680-825-0	01	1	0508-0512	●
181	03.407 BOLT; AIR DUCT TO RAD 4HF1-N ENG(RJZ) 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	0601-0609		●
181	03.407 BOLT; AIR DUCT TO RAD 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	0601-0609	●
181	03.407 BOLT; AIR DUCT TO RAD 4HF1-N ENG(RJZ) 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	0610-1404		●
181	03.407 BOLT; AIR DUCT TO RAD 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	0610-1404	●
181	03.407 BOLT; AIR DUCT TO RAD 4HF1-N ENG(RJZ) 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	1405-		●
181	03.407 BOLT; AIR DUCT TO RAD 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	1405-	●
181	03.407 BOLT; AIR DUCT TO RAD 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	1405-	●
181	03.407 BOLT; AIR DUCT TO RAD 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	1405-	●

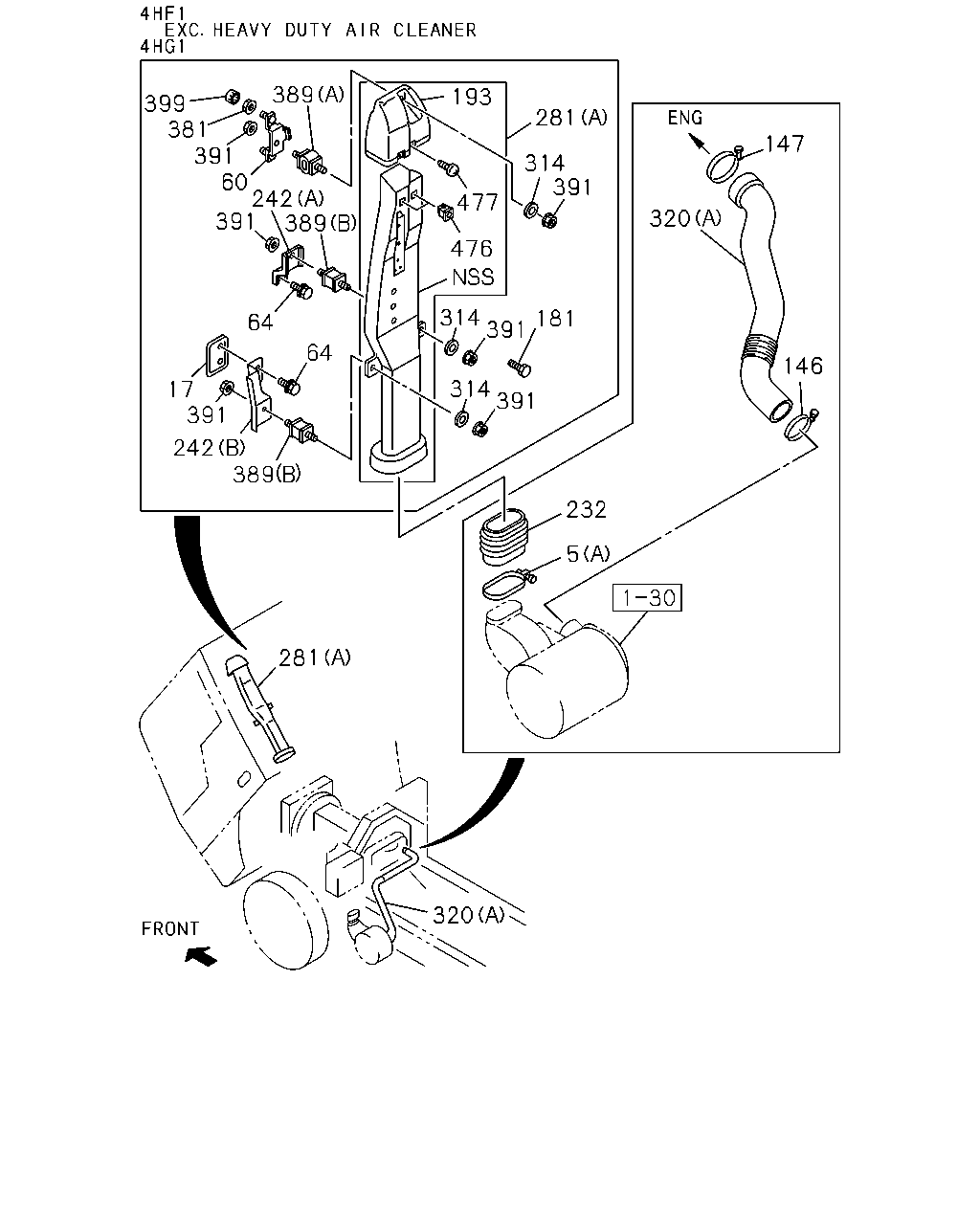

193	03.417 COVER; DUCT,AIR INT 4HF1-S ENG(RLS) HEAVY DUTY AIR CLEANER<K46>	8-97120-078-1	01	1	0211-0507	●	●
193	03.417 COVER; DUCT,AIR INT 4HF1-N ENG(RJZ) HEAVY DUTY AIR CLEANER<K46>	8-97120-078-2	01	1	0508-	●	●
193	03.417 COVER; DUCT,AIR INT 4HF1-S ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> IDN	8-97138-604-0	01	1	0211-0507		●
193	03.417 COVER; DUCT,AIR INT 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> IDN	8-97138-604-0	01	1	0211-0507	●
193	03.417 COVER; DUCT,AIR INT 4HF1-N ENG(RJZ) EXC. HEAVY DUTY AIR CLEANER<K46> IDN	8-97138-604-1	01	1	0508-		●
193	03.417 COVER; DUCT,AIR INT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. HEAVY DUTY AIR CLEANER<K46> IDN	8-97138-604-1	01	1	0508-	●
209	03.405 BRACKET; ACL 4HF1-S ENG(RLS) HEAVY DUTY AIR CLEANER<K46>	8-97120-080-1	01	1	0211-0507	●	●
209	03.405 BRACKET; ACL 4HF1-N ENG(RJZ) HEAVY DUTY AIR CLEANER<K46>	8-97120-080-1	01	1	0508-	●	●
232	03.417 HOSE; CONN 4HF1-S ENG(RLS) IDN	8-97109-423-0	01	1	0211-0507		●
232	03.417 HOSE; CONN 4HG1 ENG(RJH),4HF1-S ENG(RLS) IDN	8-97109-423-0	01	1	0211-0507	●
232	03.417 HOSE; CONN 4HF1-N ENG(RJZ) IDN	8-97109-423-0	01	1	0508-0609		●
232	03.417 HOSE; CONN 4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97109-423-0	01	1	0508-0609	●
232	03.417 HOSE; CONN 4HF1-N ENG(RJZ) IDN	8-97109-423-0	01	1	0610-0802		●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97109-423-0	01	1	0610-0802	●
232	03.417 HOSE; CONN 4HF1-N ENG(RJZ) 03.407 IDN	8-98115-594-0	01	1	0803-1404		●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.407 IDN	8-98115-594-0	01	1	0803-1404	●
232	03.417 HOSE; CONN 4HF1-N ENG(RJZ) 03.407 IDN	8-98115-594-0	01	1	1405-		●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) 03.407 IDN	8-98115-594-0	01	1	1405-	●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) 03.407 IDN	8-98115-594-0	01	1	1405-	●
232	03.417 HOSE; CONN 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.407 IDN	8-98115-594-0	01	1	1405-	●
232	03.417 HOSE; CONN 4JB1-TC ENG(RDT)	8-97224-994-0	01	1	0610-0712		●
232	03.417 HOSE; CONN 4JB1-TC ENG(RDT)	8-97224-994-0	01	1	0801-	●	●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) (F) IDN	8-97312-894-1	01	1	1405-	●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) (G) IDN	8-97329-201-0	01	1	1405-	●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) (H) IDN	8-98177-804-0	01	1	1405-	●
242	03.417 BRACKET; AIR DUCT 4HF1-S ENG(RLS) (A) IDN	8-97853-633-1	01	1	0211-0507		●
242	03.417 BRACKET; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) IDN	8-97853-633-1	01	1	0211-0507	●
242	03.417 BRACKET; AIR DUCT 4HF1-N ENG(RJZ) (A) IDN	8-97853-633-2	01	1	0508-0609		●
242	03.417 BRACKET; AIR DUCT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) IDN	8-97853-633-2	01	1	0508-0609	●
242	03.417 BRACKET; AIR DUCT 4HF1-N ENG(RJZ) (A) IDN	8-97853-633-2	01	1	0610-1404		●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) IDN	8-97853-633-2	01	1	0610-1404	●
242	03.417 BRACKET; AIR DUCT 4HF1-N ENG(RJZ) (A) IDN	8-97853-633-2	01	1	1405-		●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) (A) IDN	8-97853-633-2	01	1	1405-	●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) (A) IDN	8-97853-633-2	01	1	1405-	●
242	03.417 BRACKET; AIR DUCT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) IDN	8-97853-633-2	01	1	1405-	●
242	03.417 BRACKET; AIR DUCT 4HF1-S ENG(RLS) (B) IDN	8-97857-844-0	01	1	0211-0507		●
242	03.417 BRACKET; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) (B) IDN	8-97857-844-0	01	1	0211-0507	●
242	03.417 BRACKET; AIR DUCT 4HF1-N ENG(RJZ) (B) IDN	8-97857-844-1	01	1	0508-0609		●
242	03.417 BRACKET; AIR DUCT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) IDN	8-97857-844-1	01	1	0508-0609	●
242	03.417 BRACKET; AIR DUCT 4HF1-N ENG(RJZ) (B) IDN	8-97857-844-1	01	1	0610-1404		●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) IDN	8-97857-844-1	01	1	0610-1404	●
242	03.417 BRACKET; AIR DUCT 4HF1-N ENG(RJZ) (B) IDN	8-97857-844-1	01	1	1405-		●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) (B) IDN	8-97857-844-1	01	1	1405-	●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) (B) IDN	8-97857-844-1	01	1	1405-	●
242	03.417 BRACKET; AIR DUCT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) IDN	8-97857-844-1	01	1	1405-	●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (D)	8-97856-932-0	01	1	0610-0712		●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (D)	8-97856-932-0	01	1	0801-	●	●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (E)	8-97856-933-0	01	1	0610-0712		●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (E)	8-97856-933-0	01	1	0801-	●	●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (C)	8-97856-958-0	01	1	0610-0712		●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (C)	8-97856-958-0	01	1	0801-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) (D) IDN	8-97369-706-0	01	1	1405-	●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1-S ENG(RLS) HEAVY DUTY AIR CLEANER<K46> (B)	8-97120-084-1	01	1	0211-0507	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1-N ENG(RJZ) HEAVY DUTY AIR CLEANER<K46> (B)	8-97120-084-2	01	1	0508-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1-S ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> (A) IDN	8-97161-847-1	01	1	0211-0507		●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> (A) IDN	8-97161-847-1	01	1	0211-0507	●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1-N ENG(RJZ) EXC. HEAVY DUTY AIR CLEANER<K46> (A) IDN	8-97161-847-2	01	1	0508-		●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. HEAVY DUTY AIR CLEANER<K46> (A) IDN	8-97161-847-2	01	1	0508-	●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1-T ENG(RDP) (A)	8-97125-174-2	01	1	0610-1404	●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) (A)	8-97125-174-2	01	1	1405-	●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) (A)	8-97125-174-2	01	1	1405-	●
281	03.417 DUCT; AIR,VERTICAL INT 4JB1-TC ENG(RDT) (C)	8-97300-255-1	01	1	0610-0712		●
281	03.417 DUCT; AIR,VERTICAL INT 4JB1-TC ENG(RDT) (C)	8-97300-255-1	01	1	0801-	●	●
287	03.417 CLIP; AIR DUCT 4HF1-S ENG(RLS) HEAVY DUTY AIR CLEANER<K46> 03.407 ID=87	9-09915-071-1	01	1	0211-0507	●	●
287	03.417 CLIP; AIR DUCT 4HF1-N ENG(RJZ) HEAVY DUTY AIR CLEANER<K46> 03.407 ID=87	9-09915-071-1	01	1	0508-	●	●
291	03.405 BOLT; ACL 4HF1-S ENG(RLS) HEAVY DUTY AIR CLEANER<K46> 04.686 M8X30 FLANGE	0-28680-830-0	02	1	0211-0507	●	●
291	03.405 BOLT; ACL 4HF1-N ENG(RJZ) HEAVY DUTY AIR CLEANER<K46> 04.686 M8X30 FLANGE	0-28680-830-0	02	1	0508-0512	●	●
291	03.405 BOLT; ACL 4HF1-N ENG(RJZ) HEAVY DUTY AIR CLEANER<K46> 03.403 M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
296	03.405 NUT; ACL 4HF1-S ENG(RLS) HEAVY DUTY AIR CLEANER<K46> 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0507	●	●
296	03.405 NUT; ACL 4HF1-N ENG(RJZ) HEAVY DUTY AIR CLEANER<K46> 07.633 M8 FLANGE	0-91150-108-0	02	1	0508-0602	●	●
296	03.405 NUT; ACL 4HF1-N ENG(RJZ) HEAVY DUTY AIR CLEANER<K46> 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	0603-	●	●
314	03.417 WASHER; PL,AIR INT DUCT 4HF1-S ENG(RLS) 16.335 ID=10.2 T=3.2 IDN	8-94279-642-0	03	1	0211-0507		●
314	03.417 WASHER; PL,AIR INT DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) 16.335 ID=10.2 T=3.2 IDN	8-94279-642-0	03	1	0211-0507	●
314	03.417 WASHER; PL,AIR INT DUCT 4HF1-N ENG(RJZ) 16.335 ID=10.2 T=3.2 IDN	8-94279-642-0	03	1	0508-0609		●
314	03.417 WASHER; PL,AIR INT DUCT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 16.335 ID=10.2 T=3.2 IDN	8-94279-642-0	03	1	0508-0609	●
314	03.417 WASHER; PL,AIR INT DUCT 4HF1-N ENG(RJZ) 16.335 ID=10.2 T=3.2 IDN	8-94279-642-0	03	1	0610-1204		●
314	03.417 WASHER; PL,AIR INT DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 16.335 ID=10.2 T=3.2 IDN	8-94279-642-0	03	1	0610-1204	●
314	03.417 WASHER; PL,AIR INT DUCT 4HF1-N ENG(RJZ) 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1205-		●
314	03.417 WASHER; PL,AIR INT DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1205-	●
320	03.417 HOSE; CONN,ACL 4HF1-S ENG(RLS) (A)	8-97217-471-0	01	1	0211-0507		●
320	03.417 HOSE; CONN,ACL 4HF1-N ENG(RJZ) (A)	8-97217-471-1	01	1	0508-		●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH),4HF1-S ENG(RLS) (A)	8-97069-875-1	01	1	0211-0507	●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A)	8-97069-875-2	01	1	0508-	●
320	03.417 HOSE; CONN,ACL 4JB1-TC ENG(RDT) (B)	8-97205-771-0	01	1	0610-0712		●
320	03.417 HOSE; CONN,ACL 4JB1-TC ENG(RDT) (B)	8-97205-771-0	01	1	0801-	●	●
381	03.417 NUT; BRKT,AIR DUCT 4HF1-S ENG(RLS) 16.800 M6 FLANGE IDN	1-09984-018-0	02	1	0211-0507		●
381	03.417 NUT; BRKT,AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) 16.800 M6 FLANGE IDN	1-09984-018-0	02	1	0211-0507	●
381	03.417 NUT; BRKT,AIR DUCT 16.800 M6 FLANGE IDN	1-09984-018-0	02	1	0508-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) (C) IDN	8-98036-825-0	01	1	1405-	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) 03.417 (D) IDN	8-98036-826-0	02	1	1405-	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HF1-S ENG(RLS) 03.417 (A) IDN	8-97080-149-0	01	1	0211-0507		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1 ENG(RJH),4HF1-S ENG(RLS) 03.417 (A) IDN	8-97080-149-0	01	1	0211-0507	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HF1-N ENG(RJZ) 03.417 (A) IDN	8-97080-149-0	01	1	0508-0609		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.417 (A) IDN	8-97080-149-0	01	1	0508-0609	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 03.417 (A) IDN	8-97080-149-0	01	1	0610-0712		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.417 (A) IDN	8-97080-149-0	01	1	0610-0712	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 03.417 (A) IDN	8-97080-149-0	01	1	0801-1404		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.417 (A) IDN	8-97080-149-0	01	1	0801-1404	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 03.417 (A) IDN	8-97080-149-0	01	1	1405-		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) 03.417 (A) IDN	8-97080-149-0	01	1	1405-	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) 03.417 (A) IDN	8-97080-149-0	01	1	1405-	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.417 (A) IDN	8-97080-149-0	01	1	1405-	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HF1-S ENG(RLS) 03.417 (B) IDN	8-97081-886-0	02	1	0211-0507		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1 ENG(RJH),4HF1-S ENG(RLS) 03.417 (B) IDN	8-97081-886-0	02	1	0211-0507	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HF1-N ENG(RJZ) 03.417 (B) IDN	8-97081-886-0	02	1	0508-0609		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.417 (B) IDN	8-97081-886-0	02	1	0508-0609	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 03.417 (B) IDN	8-97081-886-0	02	1	0610-0712		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.417 (B) IDN	8-97081-886-0	02	1	0610-0712	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 03.417 (B) IDN	8-97081-886-0	02	1	0801-1404		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.417 (B) IDN	8-97081-886-0	02	1	0801-1404	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 03.417 (B) IDN	8-97081-886-0	02	1	1405-		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) 03.417 (B) IDN	8-97081-886-0	02	1	1405-	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) 03.417 (B) IDN	8-97081-886-0	02	1	1405-	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.417 (B) IDN	8-97081-886-0	02	1	1405-	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HF1-S ENG(RLS) M8 FLANGE IDN	8-94279-517-0	06	1	0211-0507		●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HG1 ENG(RJH),4HF1-S ENG(RLS) M8 FLANGE IDN	8-94279-517-0	06	1	0211-0507	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HF1-N ENG(RJZ) M8 FLANGE IDN	8-94279-517-0	06	1	0508-0609		●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HG1 ENG(RJH),4HF1-N ENG(RJZ) M8 FLANGE IDN	8-94279-517-0	06	1	0508-0609	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JB1-TC ENG(RDT) M8 FLANGE IDN	8-94279-517-0	07	1	0610-0712		●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JB1-TC ENG(RDT) M8 FLANGE IDN	8-94279-517-0	07	1	0801-0910	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JB1-TC ENG(RDT) M8 W/LK WASHER IDN	8-97581-234-0	07	1	0911-	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HF1-N ENG(RJZ) M8 FLANGE IDN	8-94279-517-0	06	1	0610-0910		●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) M8 FLANGE IDN	8-94279-517-0	06	1	0610-0910	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HF1-N ENG(RJZ) M8 W/LK WASHER IDN	8-97581-234-0	06	1	0911-		●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) M8 W/LK WASHER IDN	8-97581-234-0	06	1	0911-	●
399	03.417 CAP; BRKT,AIR DUCT 4HF1-S ENG(RLS) IDN	8-94273-605-0	02	1	0211-0507		●
399	03.417 CAP; BRKT,AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) IDN	8-94273-605-0	02	1	0211-0507	●
399	03.417 CAP; BRKT,AIR DUCT IDN	8-94273-605-0	02	1	0508-	●	●

399 381 391 60 391 242 389 389 64 64 389 242 391 17 193 281 314 391 477 476 314 391 181 314 391 320 147 146 232 5 320 281

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	03.407 CLIP; AIR DUCT 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) (C) ID=127	1-14239-263-0	01	1	1405-	●
5	03.407 CLIP; AIR DUCT 4HF1-S ENG(RLS) (A) D=101.6 IDN	9-09915-502-1	01	1	0211-0507		●
5	03.407 CLIP; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) D=101.6 IDN	9-09915-502-1	01	1	0211-0507	●
5	03.407 CLIP; AIR DUCT 4HF1-N ENG(RJZ) (A) D=101.6 IDN	9-09915-502-1	01	1	0508-0609		●
5	03.407 CLIP; AIR DUCT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) D=101.6 IDN	9-09915-502-1	01	1	0508-0609	●
5	03.407 CLIP; AIR DUCT 4HF1-N ENG(RJZ) (A) D=101.6 IDN	9-09915-502-1	01	1	0610-1404		●
5	03.407 CLIP; AIR DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) D=101.6 IDN	9-09915-502-1	01	1	0610-1404	●
5	03.407 CLIP; AIR DUCT 4HF1-N ENG(RJZ) (A) D=101.6 IDN	9-09915-502-1	01	1	1405-		●
5	03.407 CLIP; AIR DUCT 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) (A) D=101.6 IDN	9-09915-502-1	01	1	1405-	●
5	03.407 CLIP; AIR DUCT 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) (A) D=101.6 IDN	9-09915-502-1	01	1	1405-	●
5	03.407 CLIP; AIR DUCT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) D=101.6 IDN	9-09915-502-1	01	1	1405-	●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) (B) ID=87	8-97087-432-0	01	1	0610-0712		●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) (B) ID=87	8-97087-432-0	01	1	0801-	●	●
17	03.403 GASKET; AIR DUCT 4HF1-S ENG(RLS) IDN	8-97853-699-2	01	1	0211-0507		●
17	03.403 GASKET; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) IDN	8-97853-699-2	01	1	0211-0507	●
17	03.403 GASKET; AIR DUCT IDN	8-97853-699-2	01	1	0508-	●	●
60	03.417 BRACKET; AIR DUCT,UPR 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) IDN	8-97329-306-0	01	1	1405-	●
60	03.417 BRACKET; AIR DUCT,UPR 4HF1-S ENG(RLS) IDN	8-97856-957-0	01	1	0211-0507		●
60	03.417 BRACKET; AIR DUCT,UPR 4HG1 ENG(RJH),4HF1-S ENG(RLS) IDN	8-97856-957-0	01	1	0211-0507	●
60	03.417 BRACKET; AIR DUCT,UPR 4HF1-N ENG(RJZ) IDN	8-97856-957-1	01	1	0508-0609		●
60	03.417 BRACKET; AIR DUCT,UPR 4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97856-957-1	01	1	0508-0609	●
60	03.417 BRACKET; AIR DUCT,UPR 4HF1-N ENG(RJZ) IDN	8-97856-957-1	01	1	0610-1404		●
60	03.417 BRACKET; AIR DUCT,UPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97856-957-1	01	1	0610-1404	●
60	03.417 BRACKET; AIR DUCT,UPR 4HF1-N ENG(RJZ) IDN	8-97856-957-1	01	1	1405-		●
60	03.417 BRACKET; AIR DUCT,UPR 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) IDN	8-97856-957-1	01	1	1405-	●
60	03.417 BRACKET; AIR DUCT,UPR 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) IDN	8-97856-957-1	01	1	1405-	●
60	03.417 BRACKET; AIR DUCT,UPR 4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97856-957-1	01	1	1405-	●
60	03.417 BRACKET; AIR DUCT,UPR 4JB1-TC ENG(RDT)	8-97856-956-1	01	1	0610-0712		●
60	03.417 BRACKET; AIR DUCT,UPR 4JB1-TC ENG(RDT)	8-97856-956-1	01	1	0801-	●	●
64	03.417 BOLT; BRKT,AIR DUCT 4HF1-S ENG(RLS) 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0211-0507		●
64	03.417 BOLT; BRKT,AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0211-0507	●
64	03.417 BOLT; BRKT,AIR DUCT 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0508-	●	●
146	03.417 CLIP; HOSE,ACL 4HF1-S ENG(RLS) 03.008 ID=95	9-09915-733-1	01	1	0211-0507		●
146	03.417 CLIP; HOSE,ACL 4HG1 ENG(RJH),4HF1-S ENG(RLS) 03.008 ID=95	9-09915-733-1	01	1	0211-0507	●
146	03.417 CLIP; HOSE,ACL 4HF1-N ENG(RJZ) 03.008 ID=95	9-09915-733-1	01	1	0508-0609		●
146	03.417 CLIP; HOSE,ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.008 ID=95	9-09915-733-1	01	1	0508-0609	●
146	03.417 CLIP; HOSE,ACL 4HF1-N ENG(RJZ) 03.008 ID=95	9-09915-733-1	01	1	0610-1404		●
146	03.417 CLIP; HOSE,ACL 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.008 ID=95	9-09915-733-1	01	1	0610-1404	●
146	03.417 CLIP; HOSE,ACL 4HF1-N ENG(RJZ) 03.008 ID=95	9-09915-733-1	01	1	1405-		●
146	03.417 CLIP; HOSE,ACL 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) 03.008 ID=95	9-09915-733-1	01	1	1405-	●
146	03.417 CLIP; HOSE,ACL 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) 03.008 ID=95	9-09915-733-1	01	1	1405-	●
146	03.417 CLIP; HOSE,ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.008 ID=95	9-09915-733-1	01	1	1405-	●
147	03.417 CLIP; HOSE TO ENG 4HF1-S ENG(RLS) 03.008 ID=95	9-09915-733-1	01	1	0211-0507		●
147	03.417 CLIP; HOSE TO ENG 4HG1 ENG(RJH),4HF1-S ENG(RLS) 03.008 ID=95	9-09915-733-1	01	1	0211-0507	●
147	03.417 CLIP; HOSE TO ENG 4HF1-N ENG(RJZ) 03.008 ID=95	9-09915-733-1	01	1	0508-		●
147	03.417 CLIP; HOSE TO ENG 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.008 ID=95	9-09915-733-1	01	1	0508-	●
181	03.407 BOLT; AIR DUCT TO RAD 4HF1-S ENG(RLS) 02.559 M8X25 FLANGE IDN	0-28680-825-0	01	1	0211-0507		●
181	03.407 BOLT; AIR DUCT TO RAD 4HG1 ENG(RJH),4HF1-S ENG(RLS) 02.559 M8X25 FLANGE IDN	0-28680-825-0	01	1	0211-0507	●
181	03.407 BOLT; AIR DUCT TO RAD 4HF1-N ENG(RJZ) 02.559 M8X25 FLANGE IDN	0-28680-825-0	01	1	0508-0512		●
181	03.407 BOLT; AIR DUCT TO RAD 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.559 M8X25 FLANGE IDN	0-28680-825-0	01	1	0508-0512	●
181	03.407 BOLT; AIR DUCT TO RAD 4HF1-N ENG(RJZ) 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	0601-0609		●
181	03.407 BOLT; AIR DUCT TO RAD 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	0601-0609	●
181	03.407 BOLT; AIR DUCT TO RAD 4HF1-N ENG(RJZ) 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	0610-1404		●
181	03.407 BOLT; AIR DUCT TO RAD 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	0610-1404	●
181	03.407 BOLT; AIR DUCT TO RAD 4HF1-N ENG(RJZ) 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	1405-		●
181	03.407 BOLT; AIR DUCT TO RAD 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	1405-	●
181	03.407 BOLT; AIR DUCT TO RAD 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	1405-	●
181	03.407 BOLT; AIR DUCT TO RAD 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	1405-	●
193	03.417 COVER; DUCT,AIR INT 4HF1-S ENG(RLS) HEAVY DUTY AIR CLEANER<K46>	8-97120-078-1	01	1	0211-0507	●	●
193	03.417 COVER; DUCT,AIR INT 4HF1-N ENG(RJZ) HEAVY DUTY AIR CLEANER<K46>	8-97120-078-2	01	1	0508-	●	●
193	03.417 COVER; DUCT,AIR INT 4HF1-S ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> IDN	8-97138-604-0	01	1	0211-0507		●
193	03.417 COVER; DUCT,AIR INT 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> IDN	8-97138-604-0	01	1	0211-0507	●
193	03.417 COVER; DUCT,AIR INT 4HF1-N ENG(RJZ) EXC. HEAVY DUTY AIR CLEANER<K46> IDN	8-97138-604-1	01	1	0508-		●
193	03.417 COVER; DUCT,AIR INT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. HEAVY DUTY AIR CLEANER<K46> IDN	8-97138-604-1	01	1	0508-	●
232	03.417 HOSE; CONN 4HF1-S ENG(RLS) IDN	8-97109-423-0	01	1	0211-0507		●
232	03.417 HOSE; CONN 4HG1 ENG(RJH),4HF1-S ENG(RLS) IDN	8-97109-423-0	01	1	0211-0507	●
232	03.417 HOSE; CONN 4HF1-N ENG(RJZ) IDN	8-97109-423-0	01	1	0508-0609		●
232	03.417 HOSE; CONN 4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97109-423-0	01	1	0508-0609	●
232	03.417 HOSE; CONN 4HF1-N ENG(RJZ) IDN	8-97109-423-0	01	1	0610-0802		●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97109-423-0	01	1	0610-0802	●
232	03.417 HOSE; CONN 4HF1-N ENG(RJZ) 03.407 IDN	8-98115-594-0	01	1	0803-1404		●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.407 IDN	8-98115-594-0	01	1	0803-1404	●
232	03.417 HOSE; CONN 4HF1-N ENG(RJZ) 03.407 IDN	8-98115-594-0	01	1	1405-		●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) 03.407 IDN	8-98115-594-0	01	1	1405-	●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) 03.407 IDN	8-98115-594-0	01	1	1405-	●
232	03.417 HOSE; CONN 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.407 IDN	8-98115-594-0	01	1	1405-	●
232	03.417 HOSE; CONN 4JB1-TC ENG(RDT)	8-97224-994-0	01	1	0610-0712		●
232	03.417 HOSE; CONN 4JB1-TC ENG(RDT)	8-97224-994-0	01	1	0801-	●	●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) (F) IDN	8-97312-894-1	01	1	1405-	●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) (G) IDN	8-97329-201-0	01	1	1405-	●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) (H) IDN	8-98177-804-0	01	1	1405-	●
242	03.417 BRACKET; AIR DUCT 4HF1-S ENG(RLS) (A) IDN	8-97853-633-1	01	1	0211-0507		●
242	03.417 BRACKET; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) IDN	8-97853-633-1	01	1	0211-0507	●
242	03.417 BRACKET; AIR DUCT 4HF1-N ENG(RJZ) (A) IDN	8-97853-633-2	01	1	0508-0609		●
242	03.417 BRACKET; AIR DUCT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) IDN	8-97853-633-2	01	1	0508-0609	●
242	03.417 BRACKET; AIR DUCT 4HF1-N ENG(RJZ) (A) IDN	8-97853-633-2	01	1	0610-1404		●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) IDN	8-97853-633-2	01	1	0610-1404	●
242	03.417 BRACKET; AIR DUCT 4HF1-N ENG(RJZ) (A) IDN	8-97853-633-2	01	1	1405-		●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) (A) IDN	8-97853-633-2	01	1	1405-	●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) (A) IDN	8-97853-633-2	01	1	1405-	●
242	03.417 BRACKET; AIR DUCT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) IDN	8-97853-633-2	01	1	1405-	●
242	03.417 BRACKET; AIR DUCT 4HF1-S ENG(RLS) (B) IDN	8-97857-844-0	01	1	0211-0507		●
242	03.417 BRACKET; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) (B) IDN	8-97857-844-0	01	1	0211-0507	●
242	03.417 BRACKET; AIR DUCT 4HF1-N ENG(RJZ) (B) IDN	8-97857-844-1	01	1	0508-0609		●
242	03.417 BRACKET; AIR DUCT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) IDN	8-97857-844-1	01	1	0508-0609	●
242	03.417 BRACKET; AIR DUCT 4HF1-N ENG(RJZ) (B) IDN	8-97857-844-1	01	1	0610-1404		●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) IDN	8-97857-844-1	01	1	0610-1404	●
242	03.417 BRACKET; AIR DUCT 4HF1-N ENG(RJZ) (B) IDN	8-97857-844-1	01	1	1405-		●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) (B) IDN	8-97857-844-1	01	1	1405-	●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) (B) IDN	8-97857-844-1	01	1	1405-	●
242	03.417 BRACKET; AIR DUCT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) IDN	8-97857-844-1	01	1	1405-	●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (D)	8-97856-932-0	01	1	0610-0712		●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (D)	8-97856-932-0	01	1	0801-	●	●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (E)	8-97856-933-0	01	1	0610-0712		●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (E)	8-97856-933-0	01	1	0801-	●	●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (C)	8-97856-958-0	01	1	0610-0712		●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (C)	8-97856-958-0	01	1	0801-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) (D) IDN	8-97369-706-0	01	1	1405-	●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1-S ENG(RLS) HEAVY DUTY AIR CLEANER<K46> (B)	8-97120-084-1	01	1	0211-0507	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1-N ENG(RJZ) HEAVY DUTY AIR CLEANER<K46> (B)	8-97120-084-2	01	1	0508-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1-S ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> (A) IDN	8-97161-847-1	01	1	0211-0507		●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> (A) IDN	8-97161-847-1	01	1	0211-0507	●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1-N ENG(RJZ) EXC. HEAVY DUTY AIR CLEANER<K46> (A) IDN	8-97161-847-2	01	1	0508-		●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. HEAVY DUTY AIR CLEANER<K46> (A) IDN	8-97161-847-2	01	1	0508-	●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1-T ENG(RDP) (A)	8-97125-174-2	01	1	0610-1404	●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) (A)	8-97125-174-2	01	1	1405-	●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) (A)	8-97125-174-2	01	1	1405-	●
281	03.417 DUCT; AIR,VERTICAL INT 4JB1-TC ENG(RDT) (C)	8-97300-255-1	01	1	0610-0712		●
281	03.417 DUCT; AIR,VERTICAL INT 4JB1-TC ENG(RDT) (C)	8-97300-255-1	01	1	0801-	●	●
314	03.417 WASHER; PL,AIR INT DUCT 4HF1-S ENG(RLS) 16.335 ID=10.2 T=3.2 IDN	8-94279-642-0	03	1	0211-0507		●
314	03.417 WASHER; PL,AIR INT DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) 16.335 ID=10.2 T=3.2 IDN	8-94279-642-0	03	1	0211-0507	●
314	03.417 WASHER; PL,AIR INT DUCT 4HF1-N ENG(RJZ) 16.335 ID=10.2 T=3.2 IDN	8-94279-642-0	03	1	0508-0609		●
314	03.417 WASHER; PL,AIR INT DUCT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 16.335 ID=10.2 T=3.2 IDN	8-94279-642-0	03	1	0508-0609	●
314	03.417 WASHER; PL,AIR INT DUCT 4HF1-N ENG(RJZ) 16.335 ID=10.2 T=3.2 IDN	8-94279-642-0	03	1	0610-1204		●
314	03.417 WASHER; PL,AIR INT DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 16.335 ID=10.2 T=3.2 IDN	8-94279-642-0	03	1	0610-1204	●
314	03.417 WASHER; PL,AIR INT DUCT 4HF1-N ENG(RJZ) 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1205-		●
314	03.417 WASHER; PL,AIR INT DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1205-	●
320	03.417 HOSE; CONN,ACL 4HF1-S ENG(RLS) (A)	8-97217-471-0	01	1	0211-0507		●
320	03.417 HOSE; CONN,ACL 4HF1-N ENG(RJZ) (A)	8-97217-471-1	01	1	0508-		●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH),4HF1-S ENG(RLS) (A)	8-97069-875-1	01	1	0211-0507	●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A)	8-97069-875-2	01	1	0508-	●
320	03.417 HOSE; CONN,ACL 4JB1-TC ENG(RDT) (B)	8-97205-771-0	01	1	0610-0712		●
320	03.417 HOSE; CONN,ACL 4JB1-TC ENG(RDT) (B)	8-97205-771-0	01	1	0801-	●	●
381	03.417 NUT; BRKT,AIR DUCT 4HF1-S ENG(RLS) 16.800 M6 FLANGE IDN	1-09984-018-0	02	1	0211-0507		●
381	03.417 NUT; BRKT,AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) 16.800 M6 FLANGE IDN	1-09984-018-0	02	1	0211-0507	●
381	03.417 NUT; BRKT,AIR DUCT 16.800 M6 FLANGE IDN	1-09984-018-0	02	1	0508-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) (C) IDN	8-98036-825-0	01	1	1405-	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) 03.417 (D) IDN	8-98036-826-0	02	1	1405-	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HF1-S ENG(RLS) 03.417 (A) IDN	8-97080-149-0	01	1	0211-0507		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1 ENG(RJH),4HF1-S ENG(RLS) 03.417 (A) IDN	8-97080-149-0	01	1	0211-0507	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HF1-N ENG(RJZ) 03.417 (A) IDN	8-97080-149-0	01	1	0508-0609		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.417 (A) IDN	8-97080-149-0	01	1	0508-0609	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 03.417 (A) IDN	8-97080-149-0	01	1	0610-0712		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.417 (A) IDN	8-97080-149-0	01	1	0610-0712	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 03.417 (A) IDN	8-97080-149-0	01	1	0801-1404		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.417 (A) IDN	8-97080-149-0	01	1	0801-1404	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 03.417 (A) IDN	8-97080-149-0	01	1	1405-		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) 03.417 (A) IDN	8-97080-149-0	01	1	1405-	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) 03.417 (A) IDN	8-97080-149-0	01	1	1405-	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.417 (A) IDN	8-97080-149-0	01	1	1405-	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HF1-S ENG(RLS) 03.417 (B) IDN	8-97081-886-0	02	1	0211-0507		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1 ENG(RJH),4HF1-S ENG(RLS) 03.417 (B) IDN	8-97081-886-0	02	1	0211-0507	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HF1-N ENG(RJZ) 03.417 (B) IDN	8-97081-886-0	02	1	0508-0609		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.417 (B) IDN	8-97081-886-0	02	1	0508-0609	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 03.417 (B) IDN	8-97081-886-0	02	1	0610-0712		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.417 (B) IDN	8-97081-886-0	02	1	0610-0712	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 03.417 (B) IDN	8-97081-886-0	02	1	0801-1404		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.417 (B) IDN	8-97081-886-0	02	1	0801-1404	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 03.417 (B) IDN	8-97081-886-0	02	1	1405-		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) 03.417 (B) IDN	8-97081-886-0	02	1	1405-	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) 03.417 (B) IDN	8-97081-886-0	02	1	1405-	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.417 (B) IDN	8-97081-886-0	02	1	1405-	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HF1-S ENG(RLS) M8 FLANGE IDN	8-94279-517-0	06	1	0211-0507		●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HG1 ENG(RJH),4HF1-S ENG(RLS) M8 FLANGE IDN	8-94279-517-0	06	1	0211-0507	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HF1-N ENG(RJZ) M8 FLANGE IDN	8-94279-517-0	06	1	0508-0609		●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HG1 ENG(RJH),4HF1-N ENG(RJZ) M8 FLANGE IDN	8-94279-517-0	06	1	0508-0609	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JB1-TC ENG(RDT) M8 FLANGE IDN	8-94279-517-0	07	1	0610-0712		●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JB1-TC ENG(RDT) M8 FLANGE IDN	8-94279-517-0	07	1	0801-0910	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JB1-TC ENG(RDT) M8 W/LK WASHER IDN	8-97581-234-0	07	1	0911-	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HF1-N ENG(RJZ) M8 FLANGE IDN	8-94279-517-0	06	1	0610-0910		●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) M8 FLANGE IDN	8-94279-517-0	06	1	0610-0910	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HF1-N ENG(RJZ) M8 W/LK WASHER IDN	8-97581-234-0	06	1	0911-		●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) M8 W/LK WASHER IDN	8-97581-234-0	06	1	0911-	●
399	03.417 CAP; BRKT,AIR DUCT 4HF1-S ENG(RLS) IDN	8-94273-605-0	02	1	0211-0507		●
399	03.417 CAP; BRKT,AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) IDN	8-94273-605-0	02	1	0211-0507	●
399	03.417 CAP; BRKT,AIR DUCT IDN	8-94273-605-0	02	1	0508-	●	●
476	03.417 GROMMET; SCREW,COVER 4HG1-T ENG(RDP) 16.445	1-09983-081-0	04	1	0610-1404	●
476	03.417 GROMMET; SCREW,COVER 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) 16.445	1-09983-081-0	04	1	1405-	●
476	03.417 GROMMET; SCREW,COVER 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) 16.445	1-09983-081-0	04	1	1405-	●
477	03.417 SCREW; COVER 4HF1-S ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> 16.802 M5X16 TAPPING W/PL WASHER IDN	0-74110-516-0	04	1	0211-0507		●
477	03.417 SCREW; COVER 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> 16.802 M5X16 TAPPING W/PL WASHER IDN	0-74110-516-0	04	1	0211-0507	●
477	03.417 SCREW; COVER 4HF1-N ENG(RJZ) EXC. HEAVY DUTY AIR CLEANER<K46> 16.802 M5X16 TAPPING W/PL WASHER IDN	0-74110-516-0	04	1	0508-0604		●
477	03.417 SCREW; COVER 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. HEAVY DUTY AIR CLEANER<K46> 16.802 M5X16 TAPPING W/PL WASHER IDN	0-74110-516-0	04	1	0508-0604	●
477	03.417 SCREW; COVER 4HF1-N ENG(RJZ) EXC. HEAVY DUTY AIR CLEANER<K46> 02.895 M5X16 TAPPING W/PL WASHER IDN	0-74160-516-0	04	1	0605-0609		●
477	03.417 SCREW; COVER 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. HEAVY DUTY AIR CLEANER<K46> 02.895 M5X16 TAPPING W/PL WASHER IDN	0-74160-516-0	04	1	0605-0609	●
477	03.417 SCREW; COVER 4HF1-N ENG(RJZ) EXC. HEAVY DUTY AIR CLEANER<K46> 02.895 M5X16 TAPPING W/PL WASHER IDN	0-74160-516-0	04	1	0610-1404		●
477	03.417 SCREW; COVER 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. HEAVY DUTY AIR CLEANER<K46> 02.895 M5X16 TAPPING W/PL WASHER IDN	0-74160-516-0	04	1	0610-1404	●
477	03.417 SCREW; COVER 4HG1-T ENG(RDP) 02.895 M5X16 TAPPING W/PL WASHER IDN	0-74160-516-0	04	1	0610-1404	●
477	03.417 SCREW; COVER 4HF1-N ENG(RJZ) EXC. HEAVY DUTY AIR CLEANER<K46> 02.895 M5X16 TAPPING W/PL WASHER IDN	0-74160-516-0	04	1	1405-		●
477	03.417 SCREW; COVER 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) 02.895 M5X16 TAPPING W/PL WASHER IDN	0-74160-516-0	04	1	1405-	●
477	03.417 SCREW; COVER 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) 02.895 M5X16 TAPPING W/PL WASHER IDN	0-74160-516-0	04	1	1405-	●
477	03.417 SCREW; COVER 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. HEAVY DUTY AIR CLEANER<K46> 02.895 M5X16 TAPPING W/PL WASHER IDN	0-74160-516-0	04	1	1405-	●

193 281 314 391 477 476 314 391 181 314 391 64 64 389 242 60 391 391 381 399 389 17 391 242 389 281 190 232 5 146 23 190 345

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	03.407 CLIP; AIR DUCT 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) (C) ID=127	1-14239-263-0	01	1	1405-	●
5	03.407 CLIP; AIR DUCT 4HF1-S ENG(RLS) (A) D=101.6 IDN	9-09915-502-1	01	1	0211-0507		●
5	03.407 CLIP; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) D=101.6 IDN	9-09915-502-1	01	1	0211-0507	●
5	03.407 CLIP; AIR DUCT 4HF1-N ENG(RJZ) (A) D=101.6 IDN	9-09915-502-1	01	1	0508-0609		●
5	03.407 CLIP; AIR DUCT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) D=101.6 IDN	9-09915-502-1	01	1	0508-0609	●
5	03.407 CLIP; AIR DUCT 4HF1-N ENG(RJZ) (A) D=101.6 IDN	9-09915-502-1	01	1	0610-1404		●
5	03.407 CLIP; AIR DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) D=101.6 IDN	9-09915-502-1	01	1	0610-1404	●
5	03.407 CLIP; AIR DUCT 4HF1-N ENG(RJZ) (A) D=101.6 IDN	9-09915-502-1	01	1	1405-		●
5	03.407 CLIP; AIR DUCT 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) (A) D=101.6 IDN	9-09915-502-1	01	1	1405-	●
5	03.407 CLIP; AIR DUCT 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) (A) D=101.6 IDN	9-09915-502-1	01	1	1405-	●
5	03.407 CLIP; AIR DUCT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) D=101.6 IDN	9-09915-502-1	01	1	1405-	●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) (B) ID=87	8-97087-432-0	01	1	0610-0712		●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) (B) ID=87	8-97087-432-0	01	1	0801-	●	●
17	03.403 GASKET; AIR DUCT 4HF1-S ENG(RLS) IDN	8-97853-699-2	01	1	0211-0507		●
17	03.403 GASKET; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) IDN	8-97853-699-2	01	1	0211-0507	●
17	03.403 GASKET; AIR DUCT IDN	8-97853-699-2	01	1	0508-	●	●
23	03.417 CLIP; HOSE 4HG1-T ENG(RDP) 03.407 ID=87	8-97087-432-0	01	1	0610-1404	●
23	03.417 CLIP; HOSE 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) 03.407 ID=87	8-97087-432-0	01	1	1405-	●
23	03.417 CLIP; HOSE 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) 03.407 ID=87	8-97087-432-0	01	1	1405-	●
60	03.417 BRACKET; AIR DUCT,UPR 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) IDN	8-97329-306-0	01	1	1405-	●
60	03.417 BRACKET; AIR DUCT,UPR 4HF1-S ENG(RLS) IDN	8-97856-957-0	01	1	0211-0507		●
60	03.417 BRACKET; AIR DUCT,UPR 4HG1 ENG(RJH),4HF1-S ENG(RLS) IDN	8-97856-957-0	01	1	0211-0507	●
60	03.417 BRACKET; AIR DUCT,UPR 4HF1-N ENG(RJZ) IDN	8-97856-957-1	01	1	0508-0609		●
60	03.417 BRACKET; AIR DUCT,UPR 4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97856-957-1	01	1	0508-0609	●
60	03.417 BRACKET; AIR DUCT,UPR 4HF1-N ENG(RJZ) IDN	8-97856-957-1	01	1	0610-1404		●
60	03.417 BRACKET; AIR DUCT,UPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97856-957-1	01	1	0610-1404	●
60	03.417 BRACKET; AIR DUCT,UPR 4HF1-N ENG(RJZ) IDN	8-97856-957-1	01	1	1405-		●
60	03.417 BRACKET; AIR DUCT,UPR 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) IDN	8-97856-957-1	01	1	1405-	●
60	03.417 BRACKET; AIR DUCT,UPR 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) IDN	8-97856-957-1	01	1	1405-	●
60	03.417 BRACKET; AIR DUCT,UPR 4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97856-957-1	01	1	1405-	●
60	03.417 BRACKET; AIR DUCT,UPR 4JB1-TC ENG(RDT)	8-97856-956-1	01	1	0610-0712		●
60	03.417 BRACKET; AIR DUCT,UPR 4JB1-TC ENG(RDT)	8-97856-956-1	01	1	0801-	●	●
64	03.417 BOLT; BRKT,AIR DUCT 4HF1-S ENG(RLS) 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0211-0507		●
64	03.417 BOLT; BRKT,AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0211-0507	●
64	03.417 BOLT; BRKT,AIR DUCT 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0508-	●	●
146	03.417 CLIP; HOSE,ACL 4HF1-S ENG(RLS) 03.008 ID=95	9-09915-733-1	01	1	0211-0507		●
146	03.417 CLIP; HOSE,ACL 4HG1 ENG(RJH),4HF1-S ENG(RLS) 03.008 ID=95	9-09915-733-1	01	1	0211-0507	●
146	03.417 CLIP; HOSE,ACL 4HF1-N ENG(RJZ) 03.008 ID=95	9-09915-733-1	01	1	0508-0609		●
146	03.417 CLIP; HOSE,ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.008 ID=95	9-09915-733-1	01	1	0508-0609	●
146	03.417 CLIP; HOSE,ACL 4HF1-N ENG(RJZ) 03.008 ID=95	9-09915-733-1	01	1	0610-1404		●
146	03.417 CLIP; HOSE,ACL 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.008 ID=95	9-09915-733-1	01	1	0610-1404	●
146	03.417 CLIP; HOSE,ACL 4HF1-N ENG(RJZ) 03.008 ID=95	9-09915-733-1	01	1	1405-		●
146	03.417 CLIP; HOSE,ACL 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) 03.008 ID=95	9-09915-733-1	01	1	1405-	●
146	03.417 CLIP; HOSE,ACL 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) 03.008 ID=95	9-09915-733-1	01	1	1405-	●
146	03.417 CLIP; HOSE,ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.008 ID=95	9-09915-733-1	01	1	1405-	●
181	03.407 BOLT; AIR DUCT TO RAD 4HF1-S ENG(RLS) 02.559 M8X25 FLANGE IDN	0-28680-825-0	01	1	0211-0507		●
181	03.407 BOLT; AIR DUCT TO RAD 4HG1 ENG(RJH),4HF1-S ENG(RLS) 02.559 M8X25 FLANGE IDN	0-28680-825-0	01	1	0211-0507	●
181	03.407 BOLT; AIR DUCT TO RAD 4HF1-N ENG(RJZ) 02.559 M8X25 FLANGE IDN	0-28680-825-0	01	1	0508-0512		●
181	03.407 BOLT; AIR DUCT TO RAD 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.559 M8X25 FLANGE IDN	0-28680-825-0	01	1	0508-0512	●
181	03.407 BOLT; AIR DUCT TO RAD 4HF1-N ENG(RJZ) 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	0601-0609		●
181	03.407 BOLT; AIR DUCT TO RAD 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	0601-0609	●
181	03.407 BOLT; AIR DUCT TO RAD 4HF1-N ENG(RJZ) 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	0610-1404		●
181	03.407 BOLT; AIR DUCT TO RAD 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	0610-1404	●
181	03.407 BOLT; AIR DUCT TO RAD 4HF1-N ENG(RJZ) 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	1405-		●
181	03.407 BOLT; AIR DUCT TO RAD 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	1405-	●
181	03.407 BOLT; AIR DUCT TO RAD 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	1405-	●
181	03.407 BOLT; AIR DUCT TO RAD 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	1405-	●
190	03.417 HOSE; CONN,DUCT TO ACL 4HG1-T ENG(RDP)	8-97178-749-1	01	1	0610-1404	●
190	03.417 HOSE; CONN,DUCT TO ACL 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B)	8-97178-749-1	01	1	1405-	●
190	03.417 HOSE; CONN,DUCT TO ACL 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B)	8-97178-749-1	01	1	1405-	●
193	03.417 COVER; DUCT,AIR INT 4HF1-S ENG(RLS) HEAVY DUTY AIR CLEANER<K46>	8-97120-078-1	01	1	0211-0507	●	●
193	03.417 COVER; DUCT,AIR INT 4HF1-N ENG(RJZ) HEAVY DUTY AIR CLEANER<K46>	8-97120-078-2	01	1	0508-	●	●
193	03.417 COVER; DUCT,AIR INT 4HF1-S ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> IDN	8-97138-604-0	01	1	0211-0507		●
193	03.417 COVER; DUCT,AIR INT 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> IDN	8-97138-604-0	01	1	0211-0507	●
193	03.417 COVER; DUCT,AIR INT 4HF1-N ENG(RJZ) EXC. HEAVY DUTY AIR CLEANER<K46> IDN	8-97138-604-1	01	1	0508-		●
193	03.417 COVER; DUCT,AIR INT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. HEAVY DUTY AIR CLEANER<K46> IDN	8-97138-604-1	01	1	0508-	●
232	03.417 HOSE; CONN 4HF1-S ENG(RLS) IDN	8-97109-423-0	01	1	0211-0507		●
232	03.417 HOSE; CONN 4HG1 ENG(RJH),4HF1-S ENG(RLS) IDN	8-97109-423-0	01	1	0211-0507	●
232	03.417 HOSE; CONN 4HF1-N ENG(RJZ) IDN	8-97109-423-0	01	1	0508-0609		●
232	03.417 HOSE; CONN 4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97109-423-0	01	1	0508-0609	●
232	03.417 HOSE; CONN 4HF1-N ENG(RJZ) IDN	8-97109-423-0	01	1	0610-0802		●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97109-423-0	01	1	0610-0802	●
232	03.417 HOSE; CONN 4HF1-N ENG(RJZ) 03.407 IDN	8-98115-594-0	01	1	0803-1404		●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.407 IDN	8-98115-594-0	01	1	0803-1404	●
232	03.417 HOSE; CONN 4HF1-N ENG(RJZ) 03.407 IDN	8-98115-594-0	01	1	1405-		●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) 03.407 IDN	8-98115-594-0	01	1	1405-	●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) 03.407 IDN	8-98115-594-0	01	1	1405-	●
232	03.417 HOSE; CONN 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.407 IDN	8-98115-594-0	01	1	1405-	●
232	03.417 HOSE; CONN 4JB1-TC ENG(RDT)	8-97224-994-0	01	1	0610-0712		●
232	03.417 HOSE; CONN 4JB1-TC ENG(RDT)	8-97224-994-0	01	1	0801-	●	●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) (F) IDN	8-97312-894-1	01	1	1405-	●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) (G) IDN	8-97329-201-0	01	1	1405-	●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) (H) IDN	8-98177-804-0	01	1	1405-	●
242	03.417 BRACKET; AIR DUCT 4HF1-S ENG(RLS) (A) IDN	8-97853-633-1	01	1	0211-0507		●
242	03.417 BRACKET; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) IDN	8-97853-633-1	01	1	0211-0507	●
242	03.417 BRACKET; AIR DUCT 4HF1-N ENG(RJZ) (A) IDN	8-97853-633-2	01	1	0508-0609		●
242	03.417 BRACKET; AIR DUCT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) IDN	8-97853-633-2	01	1	0508-0609	●
242	03.417 BRACKET; AIR DUCT 4HF1-N ENG(RJZ) (A) IDN	8-97853-633-2	01	1	0610-1404		●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) IDN	8-97853-633-2	01	1	0610-1404	●
242	03.417 BRACKET; AIR DUCT 4HF1-N ENG(RJZ) (A) IDN	8-97853-633-2	01	1	1405-		●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) (A) IDN	8-97853-633-2	01	1	1405-	●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) (A) IDN	8-97853-633-2	01	1	1405-	●
242	03.417 BRACKET; AIR DUCT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) IDN	8-97853-633-2	01	1	1405-	●
242	03.417 BRACKET; AIR DUCT 4HF1-S ENG(RLS) (B) IDN	8-97857-844-0	01	1	0211-0507		●
242	03.417 BRACKET; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) (B) IDN	8-97857-844-0	01	1	0211-0507	●
242	03.417 BRACKET; AIR DUCT 4HF1-N ENG(RJZ) (B) IDN	8-97857-844-1	01	1	0508-0609		●
242	03.417 BRACKET; AIR DUCT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) IDN	8-97857-844-1	01	1	0508-0609	●
242	03.417 BRACKET; AIR DUCT 4HF1-N ENG(RJZ) (B) IDN	8-97857-844-1	01	1	0610-1404		●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) IDN	8-97857-844-1	01	1	0610-1404	●
242	03.417 BRACKET; AIR DUCT 4HF1-N ENG(RJZ) (B) IDN	8-97857-844-1	01	1	1405-		●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) (B) IDN	8-97857-844-1	01	1	1405-	●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) (B) IDN	8-97857-844-1	01	1	1405-	●
242	03.417 BRACKET; AIR DUCT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) IDN	8-97857-844-1	01	1	1405-	●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (D)	8-97856-932-0	01	1	0610-0712		●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (D)	8-97856-932-0	01	1	0801-	●	●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (E)	8-97856-933-0	01	1	0610-0712		●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (E)	8-97856-933-0	01	1	0801-	●	●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (C)	8-97856-958-0	01	1	0610-0712		●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (C)	8-97856-958-0	01	1	0801-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) (D) IDN	8-97369-706-0	01	1	1405-	●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1-S ENG(RLS) HEAVY DUTY AIR CLEANER<K46> (B)	8-97120-084-1	01	1	0211-0507	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1-N ENG(RJZ) HEAVY DUTY AIR CLEANER<K46> (B)	8-97120-084-2	01	1	0508-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1-S ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> (A) IDN	8-97161-847-1	01	1	0211-0507		●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> (A) IDN	8-97161-847-1	01	1	0211-0507	●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1-N ENG(RJZ) EXC. HEAVY DUTY AIR CLEANER<K46> (A) IDN	8-97161-847-2	01	1	0508-		●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. HEAVY DUTY AIR CLEANER<K46> (A) IDN	8-97161-847-2	01	1	0508-	●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1-T ENG(RDP) (A)	8-97125-174-2	01	1	0610-1404	●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) (A)	8-97125-174-2	01	1	1405-	●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) (A)	8-97125-174-2	01	1	1405-	●
281	03.417 DUCT; AIR,VERTICAL INT 4JB1-TC ENG(RDT) (C)	8-97300-255-1	01	1	0610-0712		●
281	03.417 DUCT; AIR,VERTICAL INT 4JB1-TC ENG(RDT) (C)	8-97300-255-1	01	1	0801-	●	●
314	03.417 WASHER; PL,AIR INT DUCT 4HF1-S ENG(RLS) 16.335 ID=10.2 T=3.2 IDN	8-94279-642-0	03	1	0211-0507		●
314	03.417 WASHER; PL,AIR INT DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) 16.335 ID=10.2 T=3.2 IDN	8-94279-642-0	03	1	0211-0507	●
314	03.417 WASHER; PL,AIR INT DUCT 4HF1-N ENG(RJZ) 16.335 ID=10.2 T=3.2 IDN	8-94279-642-0	03	1	0508-0609		●
314	03.417 WASHER; PL,AIR INT DUCT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 16.335 ID=10.2 T=3.2 IDN	8-94279-642-0	03	1	0508-0609	●
314	03.417 WASHER; PL,AIR INT DUCT 4HF1-N ENG(RJZ) 16.335 ID=10.2 T=3.2 IDN	8-94279-642-0	03	1	0610-1204		●
314	03.417 WASHER; PL,AIR INT DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 16.335 ID=10.2 T=3.2 IDN	8-94279-642-0	03	1	0610-1204	●
314	03.417 WASHER; PL,AIR INT DUCT 4HF1-N ENG(RJZ) 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1205-		●
314	03.417 WASHER; PL,AIR INT DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1205-	●
345	03.417 CLIP; PCV HOSE 4HG1-T ENG(RDP)	8-97369-959-0	01	1	0610-1404	●
381	03.417 NUT; BRKT,AIR DUCT 4HF1-S ENG(RLS) 16.800 M6 FLANGE IDN	1-09984-018-0	02	1	0211-0507		●
381	03.417 NUT; BRKT,AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) 16.800 M6 FLANGE IDN	1-09984-018-0	02	1	0211-0507	●
381	03.417 NUT; BRKT,AIR DUCT 16.800 M6 FLANGE IDN	1-09984-018-0	02	1	0508-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) (C) IDN	8-98036-825-0	01	1	1405-	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) 03.417 (D) IDN	8-98036-826-0	02	1	1405-	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HF1-S ENG(RLS) 03.417 (A) IDN	8-97080-149-0	01	1	0211-0507		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1 ENG(RJH),4HF1-S ENG(RLS) 03.417 (A) IDN	8-97080-149-0	01	1	0211-0507	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HF1-N ENG(RJZ) 03.417 (A) IDN	8-97080-149-0	01	1	0508-0609		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.417 (A) IDN	8-97080-149-0	01	1	0508-0609	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 03.417 (A) IDN	8-97080-149-0	01	1	0610-0712		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.417 (A) IDN	8-97080-149-0	01	1	0610-0712	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 03.417 (A) IDN	8-97080-149-0	01	1	0801-1404		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.417 (A) IDN	8-97080-149-0	01	1	0801-1404	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 03.417 (A) IDN	8-97080-149-0	01	1	1405-		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) 03.417 (A) IDN	8-97080-149-0	01	1	1405-	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) 03.417 (A) IDN	8-97080-149-0	01	1	1405-	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.417 (A) IDN	8-97080-149-0	01	1	1405-	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HF1-S ENG(RLS) 03.417 (B) IDN	8-97081-886-0	02	1	0211-0507		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1 ENG(RJH),4HF1-S ENG(RLS) 03.417 (B) IDN	8-97081-886-0	02	1	0211-0507	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HF1-N ENG(RJZ) 03.417 (B) IDN	8-97081-886-0	02	1	0508-0609		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.417 (B) IDN	8-97081-886-0	02	1	0508-0609	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 03.417 (B) IDN	8-97081-886-0	02	1	0610-0712		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.417 (B) IDN	8-97081-886-0	02	1	0610-0712	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 03.417 (B) IDN	8-97081-886-0	02	1	0801-1404		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.417 (B) IDN	8-97081-886-0	02	1	0801-1404	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 03.417 (B) IDN	8-97081-886-0	02	1	1405-		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) 03.417 (B) IDN	8-97081-886-0	02	1	1405-	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) 03.417 (B) IDN	8-97081-886-0	02	1	1405-	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.417 (B) IDN	8-97081-886-0	02	1	1405-	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HF1-S ENG(RLS) M8 FLANGE IDN	8-94279-517-0	06	1	0211-0507		●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HG1 ENG(RJH),4HF1-S ENG(RLS) M8 FLANGE IDN	8-94279-517-0	06	1	0211-0507	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HF1-N ENG(RJZ) M8 FLANGE IDN	8-94279-517-0	06	1	0508-0609		●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HG1 ENG(RJH),4HF1-N ENG(RJZ) M8 FLANGE IDN	8-94279-517-0	06	1	0508-0609	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JB1-TC ENG(RDT) M8 FLANGE IDN	8-94279-517-0	07	1	0610-0712		●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JB1-TC ENG(RDT) M8 FLANGE IDN	8-94279-517-0	07	1	0801-0910	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JB1-TC ENG(RDT) M8 W/LK WASHER IDN	8-97581-234-0	07	1	0911-	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HF1-N ENG(RJZ) M8 FLANGE IDN	8-94279-517-0	06	1	0610-0910		●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) M8 FLANGE IDN	8-94279-517-0	06	1	0610-0910	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HF1-N ENG(RJZ) M8 W/LK WASHER IDN	8-97581-234-0	06	1	0911-		●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) M8 W/LK WASHER IDN	8-97581-234-0	06	1	0911-	●
399	03.417 CAP; BRKT,AIR DUCT 4HF1-S ENG(RLS) IDN	8-94273-605-0	02	1	0211-0507		●
399	03.417 CAP; BRKT,AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) IDN	8-94273-605-0	02	1	0211-0507	●
399	03.417 CAP; BRKT,AIR DUCT IDN	8-94273-605-0	02	1	0508-	●	●
476	03.417 GROMMET; SCREW,COVER 4HG1-T ENG(RDP) 16.445	1-09983-081-0	04	1	0610-1404	●
476	03.417 GROMMET; SCREW,COVER 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) 16.445	1-09983-081-0	04	1	1405-	●
476	03.417 GROMMET; SCREW,COVER 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) 16.445	1-09983-081-0	04	1	1405-	●
477	03.417 SCREW; COVER 4HF1-S ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> 16.802 M5X16 TAPPING W/PL WASHER IDN	0-74110-516-0	04	1	0211-0507		●
477	03.417 SCREW; COVER 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> 16.802 M5X16 TAPPING W/PL WASHER IDN	0-74110-516-0	04	1	0211-0507	●
477	03.417 SCREW; COVER 4HF1-N ENG(RJZ) EXC. HEAVY DUTY AIR CLEANER<K46> 16.802 M5X16 TAPPING W/PL WASHER IDN	0-74110-516-0	04	1	0508-0604		●
477	03.417 SCREW; COVER 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. HEAVY DUTY AIR CLEANER<K46> 16.802 M5X16 TAPPING W/PL WASHER IDN	0-74110-516-0	04	1	0508-0604	●
477	03.417 SCREW; COVER 4HF1-N ENG(RJZ) EXC. HEAVY DUTY AIR CLEANER<K46> 02.895 M5X16 TAPPING W/PL WASHER IDN	0-74160-516-0	04	1	0605-0609		●
477	03.417 SCREW; COVER 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. HEAVY DUTY AIR CLEANER<K46> 02.895 M5X16 TAPPING W/PL WASHER IDN	0-74160-516-0	04	1	0605-0609	●
477	03.417 SCREW; COVER 4HF1-N ENG(RJZ) EXC. HEAVY DUTY AIR CLEANER<K46> 02.895 M5X16 TAPPING W/PL WASHER IDN	0-74160-516-0	04	1	0610-1404		●
477	03.417 SCREW; COVER 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. HEAVY DUTY AIR CLEANER<K46> 02.895 M5X16 TAPPING W/PL WASHER IDN	0-74160-516-0	04	1	0610-1404	●
477	03.417 SCREW; COVER 4HG1-T ENG(RDP) 02.895 M5X16 TAPPING W/PL WASHER IDN	0-74160-516-0	04	1	0610-1404	●
477	03.417 SCREW; COVER 4HF1-N ENG(RJZ) EXC. HEAVY DUTY AIR CLEANER<K46> 02.895 M5X16 TAPPING W/PL WASHER IDN	0-74160-516-0	04	1	1405-		●
477	03.417 SCREW; COVER 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) 02.895 M5X16 TAPPING W/PL WASHER IDN	0-74160-516-0	04	1	1405-	●
477	03.417 SCREW; COVER 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) 02.895 M5X16 TAPPING W/PL WASHER IDN	0-74160-516-0	04	1	1405-	●
477	03.417 SCREW; COVER 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. HEAVY DUTY AIR CLEANER<K46> 02.895 M5X16 TAPPING W/PL WASHER IDN	0-74160-516-0	04	1	1405-	●

511 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
15	03.417 INSULATOR 4HG1-T ENG(RDP) 03.407	8-94454-802-0	01	1	0610-1404	●
15	03.417 INSULATOR 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) 03.407	8-94454-802-0	01	1	1405-	●
15	03.417 INSULATOR 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) 03.407	8-94454-802-0	01	1	1405-	●
511	03.417 NUT; PIPE 4HG1-T ENG(RDP) 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	0610-1404	●
511	03.417 NUT; PIPE 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	1405-	●
511	03.417 NUT; PIPE 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	1405-	●

399 391 381 60 391 281 391 64 242 242 389 17 64 391 389 391 242 389 391 391 232 5 290 320 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	03.407 CLIP; AIR DUCT 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) (C) ID=127	1-14239-263-0	01	1	1405-	●
5	03.407 CLIP; AIR DUCT 4HF1-S ENG(RLS) (A) D=101.6 IDN	9-09915-502-1	01	1	0211-0507		●
5	03.407 CLIP; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) D=101.6 IDN	9-09915-502-1	01	1	0211-0507	●
5	03.407 CLIP; AIR DUCT 4HF1-N ENG(RJZ) (A) D=101.6 IDN	9-09915-502-1	01	1	0508-0609		●
5	03.407 CLIP; AIR DUCT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) D=101.6 IDN	9-09915-502-1	01	1	0508-0609	●
5	03.407 CLIP; AIR DUCT 4HF1-N ENG(RJZ) (A) D=101.6 IDN	9-09915-502-1	01	1	0610-1404		●
5	03.407 CLIP; AIR DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) D=101.6 IDN	9-09915-502-1	01	1	0610-1404	●
5	03.407 CLIP; AIR DUCT 4HF1-N ENG(RJZ) (A) D=101.6 IDN	9-09915-502-1	01	1	1405-		●
5	03.407 CLIP; AIR DUCT 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) (A) D=101.6 IDN	9-09915-502-1	01	1	1405-	●
5	03.407 CLIP; AIR DUCT 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) (A) D=101.6 IDN	9-09915-502-1	01	1	1405-	●
5	03.407 CLIP; AIR DUCT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) D=101.6 IDN	9-09915-502-1	01	1	1405-	●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) (B) ID=87	8-97087-432-0	01	1	0610-0712		●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) (B) ID=87	8-97087-432-0	01	1	0801-	●	●
17	03.403 GASKET; AIR DUCT 4HF1-S ENG(RLS) IDN	8-97853-699-2	01	1	0211-0507		●
17	03.403 GASKET; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) IDN	8-97853-699-2	01	1	0211-0507	●
17	03.403 GASKET; AIR DUCT IDN	8-97853-699-2	01	1	0508-	●	●
60	03.417 BRACKET; AIR DUCT,UPR 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) IDN	8-97329-306-0	01	1	1405-	●
60	03.417 BRACKET; AIR DUCT,UPR 4HF1-S ENG(RLS) IDN	8-97856-957-0	01	1	0211-0507		●
60	03.417 BRACKET; AIR DUCT,UPR 4HG1 ENG(RJH),4HF1-S ENG(RLS) IDN	8-97856-957-0	01	1	0211-0507	●
60	03.417 BRACKET; AIR DUCT,UPR 4HF1-N ENG(RJZ) IDN	8-97856-957-1	01	1	0508-0609		●
60	03.417 BRACKET; AIR DUCT,UPR 4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97856-957-1	01	1	0508-0609	●
60	03.417 BRACKET; AIR DUCT,UPR 4HF1-N ENG(RJZ) IDN	8-97856-957-1	01	1	0610-1404		●
60	03.417 BRACKET; AIR DUCT,UPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97856-957-1	01	1	0610-1404	●
60	03.417 BRACKET; AIR DUCT,UPR 4HF1-N ENG(RJZ) IDN	8-97856-957-1	01	1	1405-		●
60	03.417 BRACKET; AIR DUCT,UPR 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) IDN	8-97856-957-1	01	1	1405-	●
60	03.417 BRACKET; AIR DUCT,UPR 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) IDN	8-97856-957-1	01	1	1405-	●
60	03.417 BRACKET; AIR DUCT,UPR 4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97856-957-1	01	1	1405-	●
60	03.417 BRACKET; AIR DUCT,UPR 4JB1-TC ENG(RDT)	8-97856-956-1	01	1	0610-0712		●
60	03.417 BRACKET; AIR DUCT,UPR 4JB1-TC ENG(RDT)	8-97856-956-1	01	1	0801-	●	●
64	03.417 BOLT; BRKT,AIR DUCT 4HF1-S ENG(RLS) 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0211-0507		●
64	03.417 BOLT; BRKT,AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0211-0507	●
64	03.417 BOLT; BRKT,AIR DUCT 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0508-	●	●
192	03.407 CLIP; HOSE 4JB1-TC ENG(RDT) 01.159 (B) ID=58-76	1-09707-203-0	02	1	0610-0712		●
192	03.407 CLIP; HOSE 4JB1-TC ENG(RDT) 01.159 (B) ID=58-76	1-09707-203-0	02	1	0801-0811	●	●
192	03.407 CLIP; HOSE 4JB1-TC ENG(RDT) (B) ID=55-75	8-98133-349-0	02	1	0812-1001	●	●
192	03.407 CLIP; HOSE 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75	8-98133-349-0	02	1	1002-	●	●
192	03.407 CLIP; HOSE 4JB1-TC ENG(RDT) (A) ID=44-57	1-09707-207-0	07	1	0610-0712		●
192	03.407 CLIP; HOSE 4JB1-TC ENG(RDT) (A) ID=44-57	1-09707-207-0	07	1	0801-0810	●	●
192	03.407 CLIP; HOSE 4JB1-TC ENG(RDT) 03.417 (A) ID=40-50	8-98133-347-0	07	1	0811-1001	●	●
192	03.407 CLIP; HOSE 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> 03.417 (A) ID=40-50	8-98133-347-0	07	1	1002-	●	●
192	03.407 CLIP; HOSE 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79	1-09707-136-0	02	1	1002-	●	●
192	03.407 CLIP; HOSE 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (A) ID=44-60	8-94175-940-0	07	1	1002-	●	●
232	03.417 HOSE; CONN 4HF1-S ENG(RLS) IDN	8-97109-423-0	01	1	0211-0507		●
232	03.417 HOSE; CONN 4HG1 ENG(RJH),4HF1-S ENG(RLS) IDN	8-97109-423-0	01	1	0211-0507	●
232	03.417 HOSE; CONN 4HF1-N ENG(RJZ) IDN	8-97109-423-0	01	1	0508-0609		●
232	03.417 HOSE; CONN 4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97109-423-0	01	1	0508-0609	●
232	03.417 HOSE; CONN 4HF1-N ENG(RJZ) IDN	8-97109-423-0	01	1	0610-0802		●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97109-423-0	01	1	0610-0802	●
232	03.417 HOSE; CONN 4HF1-N ENG(RJZ) 03.407 IDN	8-98115-594-0	01	1	0803-1404		●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.407 IDN	8-98115-594-0	01	1	0803-1404	●
232	03.417 HOSE; CONN 4HF1-N ENG(RJZ) 03.407 IDN	8-98115-594-0	01	1	1405-		●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) 03.407 IDN	8-98115-594-0	01	1	1405-	●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) 03.407 IDN	8-98115-594-0	01	1	1405-	●
232	03.417 HOSE; CONN 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.407 IDN	8-98115-594-0	01	1	1405-	●
232	03.417 HOSE; CONN 4JB1-TC ENG(RDT)	8-97224-994-0	01	1	0610-0712		●
232	03.417 HOSE; CONN 4JB1-TC ENG(RDT)	8-97224-994-0	01	1	0801-	●	●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) (F) IDN	8-97312-894-1	01	1	1405-	●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) (G) IDN	8-97329-201-0	01	1	1405-	●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) (H) IDN	8-98177-804-0	01	1	1405-	●
242	03.417 BRACKET; AIR DUCT 4HF1-S ENG(RLS) (A) IDN	8-97853-633-1	01	1	0211-0507		●
242	03.417 BRACKET; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) IDN	8-97853-633-1	01	1	0211-0507	●
242	03.417 BRACKET; AIR DUCT 4HF1-N ENG(RJZ) (A) IDN	8-97853-633-2	01	1	0508-0609		●
242	03.417 BRACKET; AIR DUCT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) IDN	8-97853-633-2	01	1	0508-0609	●
242	03.417 BRACKET; AIR DUCT 4HF1-N ENG(RJZ) (A) IDN	8-97853-633-2	01	1	0610-1404		●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) IDN	8-97853-633-2	01	1	0610-1404	●
242	03.417 BRACKET; AIR DUCT 4HF1-N ENG(RJZ) (A) IDN	8-97853-633-2	01	1	1405-		●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) (A) IDN	8-97853-633-2	01	1	1405-	●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) (A) IDN	8-97853-633-2	01	1	1405-	●
242	03.417 BRACKET; AIR DUCT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) IDN	8-97853-633-2	01	1	1405-	●
242	03.417 BRACKET; AIR DUCT 4HF1-S ENG(RLS) (B) IDN	8-97857-844-0	01	1	0211-0507		●
242	03.417 BRACKET; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) (B) IDN	8-97857-844-0	01	1	0211-0507	●
242	03.417 BRACKET; AIR DUCT 4HF1-N ENG(RJZ) (B) IDN	8-97857-844-1	01	1	0508-0609		●
242	03.417 BRACKET; AIR DUCT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) IDN	8-97857-844-1	01	1	0508-0609	●
242	03.417 BRACKET; AIR DUCT 4HF1-N ENG(RJZ) (B) IDN	8-97857-844-1	01	1	0610-1404		●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) IDN	8-97857-844-1	01	1	0610-1404	●
242	03.417 BRACKET; AIR DUCT 4HF1-N ENG(RJZ) (B) IDN	8-97857-844-1	01	1	1405-		●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) (B) IDN	8-97857-844-1	01	1	1405-	●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) (B) IDN	8-97857-844-1	01	1	1405-	●
242	03.417 BRACKET; AIR DUCT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) IDN	8-97857-844-1	01	1	1405-	●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (D)	8-97856-932-0	01	1	0610-0712		●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (D)	8-97856-932-0	01	1	0801-	●	●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (E)	8-97856-933-0	01	1	0610-0712		●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (E)	8-97856-933-0	01	1	0801-	●	●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (C)	8-97856-958-0	01	1	0610-0712		●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (C)	8-97856-958-0	01	1	0801-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) (D) IDN	8-97369-706-0	01	1	1405-	●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1-S ENG(RLS) HEAVY DUTY AIR CLEANER<K46> (B)	8-97120-084-1	01	1	0211-0507	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1-N ENG(RJZ) HEAVY DUTY AIR CLEANER<K46> (B)	8-97120-084-2	01	1	0508-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1-S ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> (A) IDN	8-97161-847-1	01	1	0211-0507		●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> (A) IDN	8-97161-847-1	01	1	0211-0507	●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1-N ENG(RJZ) EXC. HEAVY DUTY AIR CLEANER<K46> (A) IDN	8-97161-847-2	01	1	0508-		●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. HEAVY DUTY AIR CLEANER<K46> (A) IDN	8-97161-847-2	01	1	0508-	●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1-T ENG(RDP) (A)	8-97125-174-2	01	1	0610-1404	●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) (A)	8-97125-174-2	01	1	1405-	●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) (A)	8-97125-174-2	01	1	1405-	●
281	03.417 DUCT; AIR,VERTICAL INT 4JB1-TC ENG(RDT) (C)	8-97300-255-1	01	1	0610-0712		●
281	03.417 DUCT; AIR,VERTICAL INT 4JB1-TC ENG(RDT) (C)	8-97300-255-1	01	1	0801-	●	●
290	03.374 CLIP; ACL TO AIR DUCT 4JB1-TC ENG(RDT) 03.407 ID=87	8-97087-432-0	01	1	0610-0712		●
290	03.374 CLIP; ACL TO AIR DUCT 4JB1-TC ENG(RDT) 03.407 ID=87	8-97087-432-0	01	1	0801-	●	●
320	03.417 HOSE; CONN,ACL 4HF1-S ENG(RLS) (A)	8-97217-471-0	01	1	0211-0507		●
320	03.417 HOSE; CONN,ACL 4HF1-N ENG(RJZ) (A)	8-97217-471-1	01	1	0508-		●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH),4HF1-S ENG(RLS) (A)	8-97069-875-1	01	1	0211-0507	●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A)	8-97069-875-2	01	1	0508-	●
320	03.417 HOSE; CONN,ACL 4JB1-TC ENG(RDT) (B)	8-97205-771-0	01	1	0610-0712		●
320	03.417 HOSE; CONN,ACL 4JB1-TC ENG(RDT) (B)	8-97205-771-0	01	1	0801-	●	●
381	03.417 NUT; BRKT,AIR DUCT 4HF1-S ENG(RLS) 16.800 M6 FLANGE IDN	1-09984-018-0	02	1	0211-0507		●
381	03.417 NUT; BRKT,AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) 16.800 M6 FLANGE IDN	1-09984-018-0	02	1	0211-0507	●
381	03.417 NUT; BRKT,AIR DUCT 16.800 M6 FLANGE IDN	1-09984-018-0	02	1	0508-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) (C) IDN	8-98036-825-0	01	1	1405-	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) 03.417 (D) IDN	8-98036-826-0	02	1	1405-	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HF1-S ENG(RLS) 03.417 (A) IDN	8-97080-149-0	01	1	0211-0507		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1 ENG(RJH),4HF1-S ENG(RLS) 03.417 (A) IDN	8-97080-149-0	01	1	0211-0507	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HF1-N ENG(RJZ) 03.417 (A) IDN	8-97080-149-0	01	1	0508-0609		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.417 (A) IDN	8-97080-149-0	01	1	0508-0609	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 03.417 (A) IDN	8-97080-149-0	01	1	0610-0712		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.417 (A) IDN	8-97080-149-0	01	1	0610-0712	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 03.417 (A) IDN	8-97080-149-0	01	1	0801-1404		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.417 (A) IDN	8-97080-149-0	01	1	0801-1404	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 03.417 (A) IDN	8-97080-149-0	01	1	1405-		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) 03.417 (A) IDN	8-97080-149-0	01	1	1405-	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) 03.417 (A) IDN	8-97080-149-0	01	1	1405-	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.417 (A) IDN	8-97080-149-0	01	1	1405-	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HF1-S ENG(RLS) 03.417 (B) IDN	8-97081-886-0	02	1	0211-0507		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1 ENG(RJH),4HF1-S ENG(RLS) 03.417 (B) IDN	8-97081-886-0	02	1	0211-0507	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HF1-N ENG(RJZ) 03.417 (B) IDN	8-97081-886-0	02	1	0508-0609		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.417 (B) IDN	8-97081-886-0	02	1	0508-0609	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 03.417 (B) IDN	8-97081-886-0	02	1	0610-0712		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.417 (B) IDN	8-97081-886-0	02	1	0610-0712	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 03.417 (B) IDN	8-97081-886-0	02	1	0801-1404		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.417 (B) IDN	8-97081-886-0	02	1	0801-1404	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 03.417 (B) IDN	8-97081-886-0	02	1	1405-		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) 03.417 (B) IDN	8-97081-886-0	02	1	1405-	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) 03.417 (B) IDN	8-97081-886-0	02	1	1405-	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.417 (B) IDN	8-97081-886-0	02	1	1405-	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HF1-S ENG(RLS) M8 FLANGE IDN	8-94279-517-0	06	1	0211-0507		●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HG1 ENG(RJH),4HF1-S ENG(RLS) M8 FLANGE IDN	8-94279-517-0	06	1	0211-0507	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HF1-N ENG(RJZ) M8 FLANGE IDN	8-94279-517-0	06	1	0508-0609		●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HG1 ENG(RJH),4HF1-N ENG(RJZ) M8 FLANGE IDN	8-94279-517-0	06	1	0508-0609	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JB1-TC ENG(RDT) M8 FLANGE IDN	8-94279-517-0	07	1	0610-0712		●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JB1-TC ENG(RDT) M8 FLANGE IDN	8-94279-517-0	07	1	0801-0910	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JB1-TC ENG(RDT) M8 W/LK WASHER IDN	8-97581-234-0	07	1	0911-	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HF1-N ENG(RJZ) M8 FLANGE IDN	8-94279-517-0	06	1	0610-0910		●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) M8 FLANGE IDN	8-94279-517-0	06	1	0610-0910	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HF1-N ENG(RJZ) M8 W/LK WASHER IDN	8-97581-234-0	06	1	0911-		●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) M8 W/LK WASHER IDN	8-97581-234-0	06	1	0911-	●
399	03.417 CAP; BRKT,AIR DUCT 4HF1-S ENG(RLS) IDN	8-94273-605-0	02	1	0211-0507		●
399	03.417 CAP; BRKT,AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) IDN	8-94273-605-0	02	1	0211-0507	●
399	03.417 CAP; BRKT,AIR DUCT IDN	8-94273-605-0	02	1	0508-	●	●

192 508 192 192 510 32 9 13 10 507 192 13 509 192 192 509 297 192 297 192 487 297

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	03.417 BRACKET; INT PIPE 4JB1-TC ENG(RDT)	8-97226-059-0	01	1	0610-0712		●
9	03.417 BRACKET; INT PIPE 4JB1-TC ENG(RDT)	8-97226-059-0	01	1	0801-	●	●
10	03.417 BOLT; BRKT FIX 4JB1-TC ENG(RDT) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0610-0712		●
10	03.417 BOLT; BRKT FIX 4JB1-TC ENG(RDT) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0801-	●	●
13	03.417 NUT; BRKT FIX 4JB1-TC ENG(RDT) 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	0610-0712		●
13	03.417 NUT; BRKT FIX 4JB1-TC ENG(RDT) 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	0801-	●	●
32	03.417 RUBBER; AIR DUCT MTG 4JB1-TC ENG(RDT) 03.405	8-94158-155-1	01	1	0610-0712		●
32	03.417 RUBBER; AIR DUCT MTG 4JB1-TC ENG(RDT) 03.405	8-94158-155-1	01	1	0801-	●	●
192	03.407 CLIP; HOSE 4JB1-TC ENG(RDT) 01.159 (B) ID=58-76	1-09707-203-0	02	1	0610-0712		●
192	03.407 CLIP; HOSE 4JB1-TC ENG(RDT) 01.159 (B) ID=58-76	1-09707-203-0	02	1	0801-0811	●	●
192	03.407 CLIP; HOSE 4JB1-TC ENG(RDT) (B) ID=55-75	8-98133-349-0	02	1	0812-1001	●	●
192	03.407 CLIP; HOSE 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75	8-98133-349-0	02	1	1002-	●	●
192	03.407 CLIP; HOSE 4JB1-TC ENG(RDT) (A) ID=44-57	1-09707-207-0	07	1	0610-0712		●
192	03.407 CLIP; HOSE 4JB1-TC ENG(RDT) (A) ID=44-57	1-09707-207-0	07	1	0801-0810	●	●
192	03.407 CLIP; HOSE 4JB1-TC ENG(RDT) 03.417 (A) ID=40-50	8-98133-347-0	07	1	0811-1001	●	●
192	03.407 CLIP; HOSE 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> 03.417 (A) ID=40-50	8-98133-347-0	07	1	1002-	●	●
192	03.407 CLIP; HOSE 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79	1-09707-136-0	02	1	1002-	●	●
192	03.407 CLIP; HOSE 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (A) ID=44-60	8-94175-940-0	07	1	1002-	●	●
297	03.417 BOLT; DUCT 4JB1-TC ENG(RDT) 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	0610-0712		●
297	03.417 BOLT; DUCT 4JB1-TC ENG(RDT) 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	0801-	●	●
297	03.417 BOLT; DUCT 4JB1-TC ENG(RDT) 06.225 (B) M10X12 FLANGE	0-28051-012-0	01	1	0610-0712		●
297	03.417 BOLT; DUCT 4JB1-TC ENG(RDT) 06.225 (B) M10X12 FLANGE	0-28051-012-0	01	1	0801-	●	●
487	03.417 PIPE; TURBO TO CHARGE AIR COOLER 4JB1-TC ENG(RDT)	8-97216-223-0	01	1	0610-0712		●
487	03.417 PIPE; TURBO TO CHARGE AIR COOLER 4JB1-TC ENG(RDT)	8-97216-223-0	01	1	0801-	●	●
507	03.417 PIPE; CHARGE AIR COOLER TO INL M 4JB1-TC ENG(RDT) IDN	8-97228-660-0	01	1	0610-0712		●
507	03.417 PIPE; CHARGE AIR COOLER TO INL M 4JB1-TC ENG(RDT) IDN	8-97228-660-0	01	1	0801-	●	●
508	03.417 HOSE; AIR,TURBO TO PIPE 4JB1-TC ENG(RDT) IDN	8-97217-911-3	01	1	0610-0712		●
508	03.417 HOSE; AIR,TURBO TO PIPE 4JB1-TC ENG(RDT) IDN	8-97217-911-3	01	1	0801-	●	●
509	03.417 HOSE; AIR,PIPE TO CHARGE AIR COO 4JB1-TC ENG(RDT) (A)	8-97221-914-3	01	1	0610-0712		●
509	03.417 HOSE; AIR,PIPE TO CHARGE AIR COO 4JB1-TC ENG(RDT) (A)	8-97221-914-3	01	1	0801-	●	●
509	03.417 HOSE; AIR,PIPE TO CHARGE AIR COO 4JB1-TC ENG(RDT) (B) IDN	8-97228-657-1	01	1	0610-0712		●
509	03.417 HOSE; AIR,PIPE TO CHARGE AIR COO 4JB1-TC ENG(RDT) (B) IDN	8-97228-657-1	01	1	0801-	●	●
510	03.417 HOSE; AIR,PIPE TO INL MANIF 4JB1-TC ENG(RDT)	8-97228-658-2	01	1	0610-0712		●
510	03.417 HOSE; AIR,PIPE TO INL MANIF 4JB1-TC ENG(RDT)	8-97228-658-2	01	1	0801-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
