Sayfa 1-30 - Isuzu EPC

1-30 — AIR CLEANER (#78916) — 428 parça

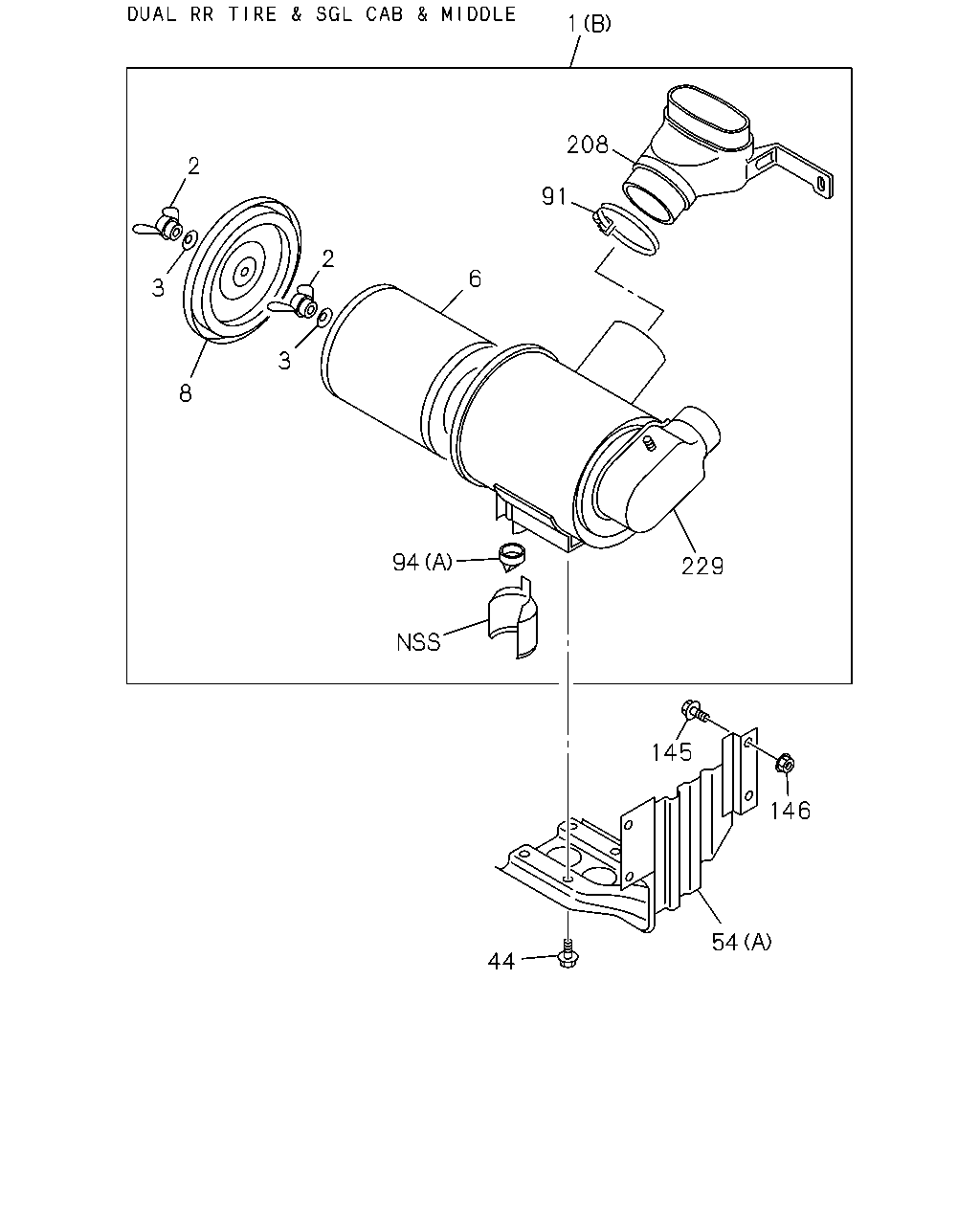

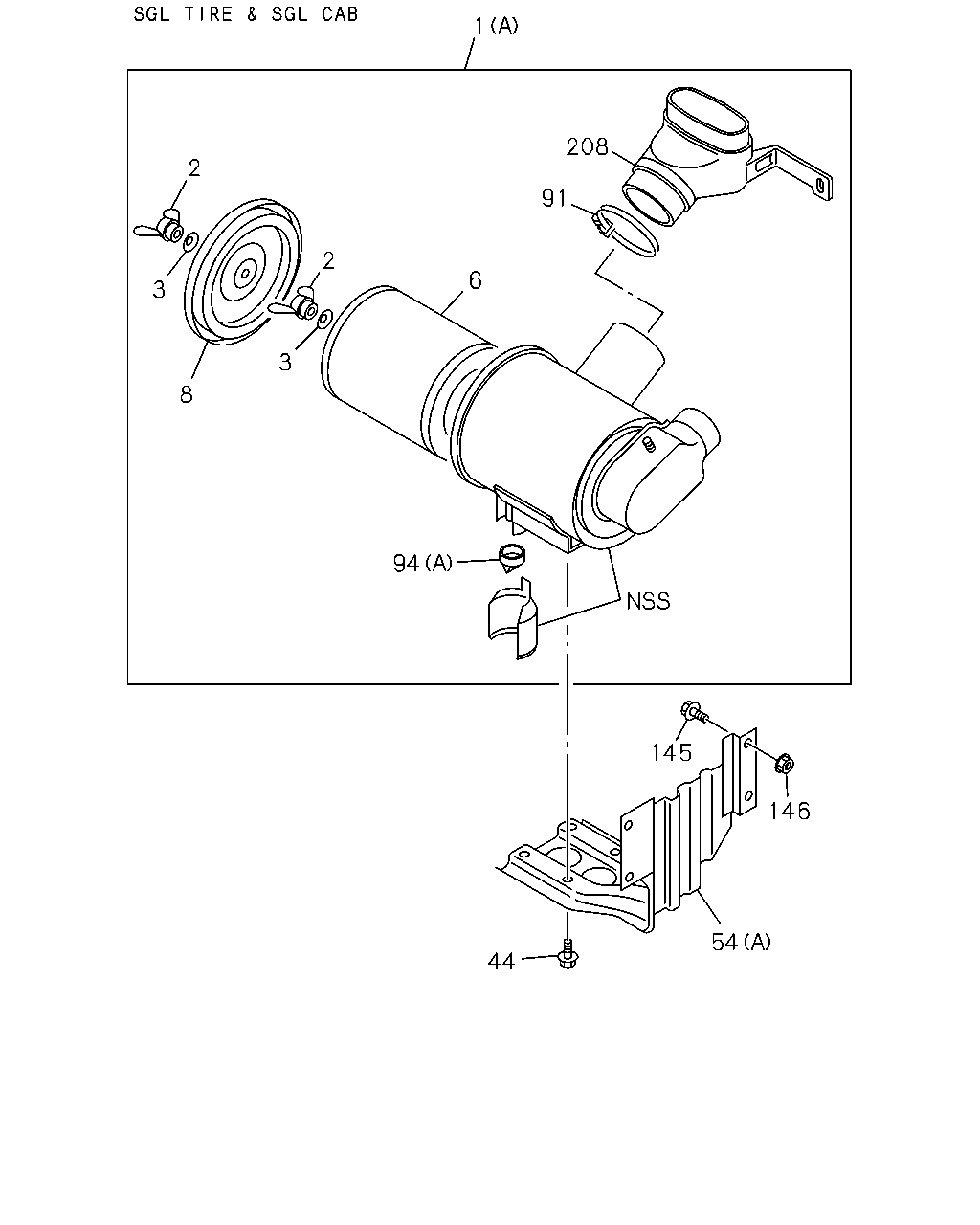

1 208 2 91 2 6 3 3 8 94 145 146 54 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.402 CLEANER ASM; AIR 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) (D)	8-98050-415-2	01	1	1405-	●
1	03.402 CLEANER ASM; AIR 4HF1-S ENG(RLS) (A) IDN	8-97217-441-0	01	1	0211-0507		●
1	03.402 CLEANER ASM; AIR 4HF1-N ENG(RJZ) (A) IDN	8-97217-441-0	01	1	0508-		●
1	03.402 CLEANER ASM; AIR 4HG1 ENG(RJH),4HF1-S ENG(RLS) (B)	8-97162-699-2	01	1	0211-0507	●
1	03.402 CLEANER ASM; AIR 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B)	8-97162-699-2	01	1	0508-0609	●
1	03.402 CLEANER ASM; AIR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B)	8-97162-699-2	01	1	0610-1404	●
1	03.402 CLEANER ASM; AIR 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) (B)	8-97162-699-2	01	1	1405-	●
1	03.402 CLEANER ASM; AIR 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) (B)	8-97162-699-2	01	1	1405-	●
1	03.402 CLEANER ASM; AIR 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B)	8-97162-699-2	01	1	1405-	●
1	03.402 CLEANER ASM; AIR 4JB1-TC ENG(RDT) (C) IDN	8-97062-053-1	01	1	0610-0712		●
1	03.402 CLEANER ASM; AIR 4JB1-TC ENG(RDT) (C) IDN	8-97062-053-1	01	1	0801-	●	●
2	03.403 NUT; WING,ELEMENT IDN	1-14217-068-0	02	1	0211-	●	●
3	03.403 WASHER; SEAL,WING NUT IDN	1-14219-225-0	02	1	0211-	●	●
6	03.410 FILTER; ACL 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B)	8-97062-294-0	01	1	1405-	●
6	03.410 FILTER; ACL IDN	8-94156-052-0	01	1	0211-	●	●
6	03.410 FILTER; ACL BEST VALUE PARTS IDN	5-87610-029-3	01	1	0211-	●	●
6	03.410 FILTER; ACL 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) BEST VALUE PARTS	5-87610-020-0	01	1	1405-	●
8	03.410 COVER ASM; ACL 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B)	8-98050-434-1	01	1	1405-	●
8	03.410 COVER ASM; ACL IDN	8-97093-023-0	01	1	0211-0609	●	●
8	03.410 COVER ASM; ACL 4HF1-N ENG(RJZ) IDN	8-97093-023-0	01	1	0610-1404		●
8	03.410 COVER ASM; ACL 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97093-023-0	01	1	0610-1404	●
8	03.410 COVER ASM; ACL 4HF1-N ENG(RJZ) IDN	8-97093-023-0	01	1	1405-		●
8	03.410 COVER ASM; ACL 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) IDN	8-97093-023-0	01	1	1405-	●
8	03.410 COVER ASM; ACL 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) IDN	8-97093-023-0	01	1	1405-	●
8	03.410 COVER ASM; ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97093-023-0	01	1	1405-	●
8	03.410 COVER ASM; ACL 4JB1-TC ENG(RDT)	8-94156-050-0	01	1	0610-0712		●
8	03.410 COVER ASM; ACL 4JB1-TC ENG(RDT)	8-94156-050-0	01	1	0801-	●	●
44	03.403 BOLT; ACL 4HF1-S ENG(RLS) 02.510 M8X25 W/LK&PL WASHER IDN	0-50140-825-0	04	1	0211-0507		●
44	03.403 BOLT; ACL 4HG1 ENG(RJH),4HF1-S ENG(RLS) 02.510 M8X25 W/LK&PL WASHER IDN	0-50140-825-0	04	1	0211-0507	●
44	03.403 BOLT; ACL 4HF1-N ENG(RJZ) 02.510 M8X25 W/LK&PL WASHER IDN	0-50140-825-0	04	1	0508-0512		●
44	03.403 BOLT; ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.510 M8X25 W/LK&PL WASHER IDN	0-50140-825-0	04	1	0508-0512	●
44	03.403 BOLT; ACL 4HF1-N ENG(RJZ) M8X25 W/LK&PL WASHER IDN	0-50640-825-0	04	1	0601-0702		●
44	03.403 BOLT; ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ) M8X25 W/LK&PL WASHER IDN	0-50640-825-0	04	1	0601-0702	●
44	03.403 BOLT; ACL 4HF1-N ENG(RJZ) M8X25 W/LK&PL WASHER IDN	0-50640-825-0	04	1	0703-1404		●
44	03.403 BOLT; ACL 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) M8X25 W/LK&PL WASHER IDN	0-50640-825-0	04	1	0703-1404	●
44	03.403 BOLT; ACL 4HF1-N ENG(RJZ) M8X25 W/LK&PL WASHER IDN	0-50640-825-0	04	1	1405-		●
44	03.403 BOLT; ACL 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) M8X25 W/LK&PL WASHER IDN	0-50640-825-0	04	1	1405-	●
44	03.403 BOLT; ACL 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) M8X25 W/LK&PL WASHER IDN	0-50640-825-0	04	1	1405-	●
44	03.403 BOLT; ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ) M8X25 W/LK&PL WASHER IDN	0-50640-825-0	04	1	1405-	●
44	03.403 BOLT; ACL 4JB1-TC ENG(RDT) 04.785 M8X18 W/LK WASHER	0-50040-818-0	04	1	0610-0712		●
44	03.403 BOLT; ACL 4JB1-TC ENG(RDT) 04.785 M8X18 W/LK WASHER	0-50040-818-0	04	1	0801-0909	●	●
44	03.403 BOLT; ACL 4JB1-TC ENG(RDT) 09.171 M8X18 W/LK WASHER	0-50540-818-0	04	1	0910-	●	●
54	03.405 BRACKET; ACL 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) (D) IDN	8-98272-213-0	01	1	1405-	●
54	03.405 BRACKET; ACL 4HF1-S ENG(RLS) (A)	8-97216-715-0	01	1	0211-0507		●
54	03.405 BRACKET; ACL 4HF1-N ENG(RJZ) (A)	8-97216-715-0	01	1	0508-		●
54	03.405 BRACKET; ACL 4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) IDN	8-97091-040-1	01	1	0211-0507	●
54	03.405 BRACKET; ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) IDN	8-97091-040-1	01	1	0508-0609	●
54	03.405 BRACKET; ACL 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) IDN	8-97091-040-1	01	1	0610-1404	●
54	03.405 BRACKET; ACL 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) (A) IDN	8-97091-040-1	01	1	1405-	●
54	03.405 BRACKET; ACL 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) (A) IDN	8-97091-040-1	01	1	1405-	●
54	03.405 BRACKET; ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) IDN	8-97091-040-1	01	1	1405-	●
54	03.405 BRACKET; ACL 4JB1-TC ENG(RDT) (B)	8-97107-139-0	01	1	0610-0612		●
54	03.405 BRACKET; ACL 4JB1-TC ENG(RDT) (C)	8-94140-144-3	01	1	0701-		●
54	03.405 BRACKET; ACL 4JB1-TC ENG(RDT) (B)	8-97107-139-0	01	1	0801-	●
91	03.403 CLAMP IDN	8-97093-696-2	01	1	0211-0609	●	●
91	03.403 CLAMP 4HF1-N ENG(RJZ) IDN	8-97093-696-2	01	1	0610-1404		●
91	03.403 CLAMP 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97093-696-2	01	1	0610-1404	●
91	03.403 CLAMP 4HF1-N ENG(RJZ) IDN	8-97093-696-2	01	1	1405-		●
91	03.403 CLAMP 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) IDN	8-97093-696-2	01	1	1405-	●
91	03.403 CLAMP 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) IDN	8-97093-696-2	01	1	1405-	●
91	03.403 CLAMP 4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97093-696-2	01	1	1405-	●
94	03.415 VALVE; VACUATOR 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) (C)	8-97093-694-0	01	1	1405-	●
94	03.415 VALVE; VACUATOR (A)	8-94447-157-0	01	1	0211-0609	●	●
94	03.415 VALVE; VACUATOR 4HF1-N ENG(RJZ) (A)	8-94447-157-0	01	1	0610-1404		●
94	03.415 VALVE; VACUATOR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A)	8-94447-157-0	01	1	0610-1404	●
94	03.415 VALVE; VACUATOR 4HF1-N ENG(RJZ) (A)	8-94447-157-0	01	1	1405-		●
94	03.415 VALVE; VACUATOR 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) (A)	8-94447-157-0	01	1	1405-	●
94	03.415 VALVE; VACUATOR 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) (A)	8-94447-157-0	01	1	1405-	●
94	03.415 VALVE; VACUATOR 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A)	8-94447-157-0	01	1	1405-	●
94	03.415 VALVE; VACUATOR 4JB1-TC ENG(RDT) (B)	8-94160-187-0	01	1	0610-0712		●
94	03.415 VALVE; VACUATOR 4JB1-TC ENG(RDT) (B)	8-94160-187-0	01	1	0801-	●	●
145	03.405 BOLT; BRKT TO FRAME 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1405-	●
145	03.405 BOLT; BRKT TO FRAME 4HF1-S ENG(RLS) 03.162 M10X35 FLANGE IDN	0-28681-035-0	04	1	0211-0507		●
145	03.405 BOLT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-S ENG(RLS) 03.162 M10X35 FLANGE IDN	0-28681-035-0	04	1	0211-0507	●
145	03.405 BOLT; BRKT TO FRAME 4HF1-N ENG(RJZ) 03.162 M10X35 FLANGE IDN	0-28681-035-0	04	1	0508-0512		●
145	03.405 BOLT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.162 M10X35 FLANGE IDN	0-28681-035-0	04	1	0508-0512	●
145	03.405 BOLT; BRKT TO FRAME 4HF1-N ENG(RJZ) 02.277 M10X35 FLANGE IDN	0-28651-035-0	04	1	0601-0609		●
145	03.405 BOLT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.277 M10X35 FLANGE IDN	0-28651-035-0	04	1	0601-0609	●
145	03.405 BOLT; BRKT TO FRAME 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 02.277 M10X35 FLANGE IDN	0-28651-035-0	04	1	0610-0712		●
145	03.405 BOLT; BRKT TO FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.277 M10X35 FLANGE IDN	0-28651-035-0	04	1	0610-0712	●
145	03.405 BOLT; BRKT TO FRAME 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 02.277 M10X35 FLANGE IDN	0-28651-035-0	04	1	0801-1404		●
145	03.405 BOLT; BRKT TO FRAME 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.277 M10X35 FLANGE IDN	0-28651-035-0	04	1	0801-1404	●
145	03.405 BOLT; BRKT TO FRAME 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 02.277 M10X35 FLANGE IDN	0-28651-035-0	04	1	1405-		●
145	03.405 BOLT; BRKT TO FRAME 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) 02.277 M10X35 FLANGE IDN	0-28651-035-0	04	1	1405-	●
145	03.405 BOLT; BRKT TO FRAME 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) 02.277 M10X35 FLANGE IDN	0-28651-035-0	04	1	1405-	●
145	03.405 BOLT; BRKT TO FRAME 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.277 M10X35 FLANGE IDN	0-28651-035-0	04	1	1405-	●
146	03.405 NUT; BRKT TO FRAME 4HF1-S ENG(RLS) 04.785 M10 FLANGE	0-91150-110-0	04	1	0211-0507		●
146	03.405 NUT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-S ENG(RLS) 04.785 M10 FLANGE	0-91150-110-0	04	1	0211-0507	●
146	03.405 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) 04.785 M10 FLANGE	0-91150-110-0	04	1	0508-0602		●
146	03.405 NUT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 04.785 M10 FLANGE	0-91150-110-0	04	1	0508-0602	●
146	03.405 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	0603-0609		●
146	03.405 NUT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	0603-0609	●
146	03.405 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	0610-0702		●
146	03.405 NUT; BRKT TO FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	0610-0702	●
146	03.405 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	0703-0712		●
146	03.405 NUT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	0703-0712	●
146	03.405 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	0801-1003		●
146	03.405 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	0801-1003	●
146	03.405 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	1004-1404		●
146	03.405 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	1004-1404	●
146	03.405 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	1405-		●
146	03.405 NUT; BRKT TO FRAME 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	1405-	●
146	03.405 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	1405-	●
146	03.405 NUT; BRKT TO FRAME 4HG1-T ENG(RDP) 03.162 M10 FLANGE IDN	0-91180-110-0	02	1	0703-1404	●
146	03.405 NUT; BRKT TO FRAME 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) 03.162 M10 FLANGE IDN	0-91180-110-0	02	1	1405-	●
146	03.405 NUT; BRKT TO FRAME 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) 03.162 M10 FLANGE IDN	0-91180-110-0	02	1	1405-	●
146	03.405 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) 03.162 M10 FLANGE IDN	0-91180-110-0	01	1	1004-		●
208	03.407 DUCT; ACL IDN	8-97074-904-1	01	1	0211-0609	●	●
208	03.407 DUCT; ACL 4HF1-N ENG(RJZ) IDN	8-97074-904-1	01	1	0610-1404		●
208	03.407 DUCT; ACL 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97074-904-1	01	1	0610-1404	●
208	03.407 DUCT; ACL 4HF1-N ENG(RJZ) IDN	8-97074-904-1	01	1	1405-		●
208	03.407 DUCT; ACL 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) IDN	8-97074-904-1	01	1	1405-	●
208	03.407 DUCT; ACL 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) IDN	8-97074-904-1	01	1	1405-	●
208	03.407 DUCT; ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97074-904-1	01	1	1405-	●

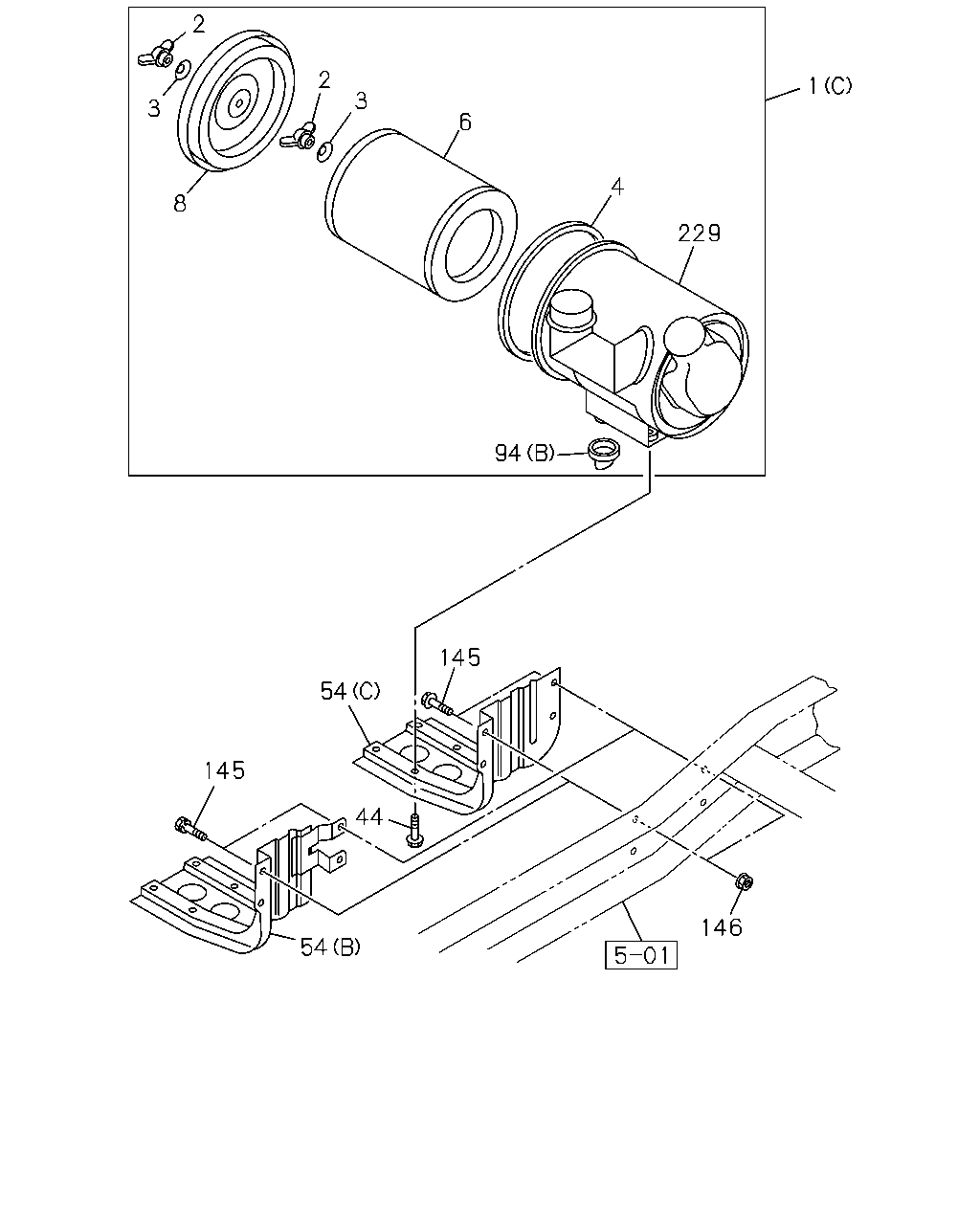

1 208 2 91 2 6 3 3 8 94 229 145 146 54 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.402 CLEANER ASM; AIR 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) (D)	8-98050-415-2	01	1	1405-	●
1	03.402 CLEANER ASM; AIR 4HF1-S ENG(RLS) (A) IDN	8-97217-441-0	01	1	0211-0507		●
1	03.402 CLEANER ASM; AIR 4HF1-N ENG(RJZ) (A) IDN	8-97217-441-0	01	1	0508-		●
1	03.402 CLEANER ASM; AIR 4HG1 ENG(RJH),4HF1-S ENG(RLS) (B)	8-97162-699-2	01	1	0211-0507	●
1	03.402 CLEANER ASM; AIR 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B)	8-97162-699-2	01	1	0508-0609	●
1	03.402 CLEANER ASM; AIR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B)	8-97162-699-2	01	1	0610-1404	●
1	03.402 CLEANER ASM; AIR 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) (B)	8-97162-699-2	01	1	1405-	●
1	03.402 CLEANER ASM; AIR 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) (B)	8-97162-699-2	01	1	1405-	●
1	03.402 CLEANER ASM; AIR 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B)	8-97162-699-2	01	1	1405-	●
1	03.402 CLEANER ASM; AIR 4JB1-TC ENG(RDT) (C) IDN	8-97062-053-1	01	1	0610-0712		●
1	03.402 CLEANER ASM; AIR 4JB1-TC ENG(RDT) (C) IDN	8-97062-053-1	01	1	0801-	●	●
2	03.403 NUT; WING,ELEMENT IDN	1-14217-068-0	02	1	0211-	●	●
3	03.403 WASHER; SEAL,WING NUT IDN	1-14219-225-0	02	1	0211-	●	●
6	03.410 FILTER; ACL 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B)	8-97062-294-0	01	1	1405-	●
6	03.410 FILTER; ACL IDN	8-94156-052-0	01	1	0211-	●	●
6	03.410 FILTER; ACL BEST VALUE PARTS IDN	5-87610-029-3	01	1	0211-	●	●
6	03.410 FILTER; ACL 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) BEST VALUE PARTS	5-87610-020-0	01	1	1405-	●
8	03.410 COVER ASM; ACL 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B)	8-98050-434-1	01	1	1405-	●
8	03.410 COVER ASM; ACL IDN	8-97093-023-0	01	1	0211-0609	●	●
8	03.410 COVER ASM; ACL 4HF1-N ENG(RJZ) IDN	8-97093-023-0	01	1	0610-1404		●
8	03.410 COVER ASM; ACL 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97093-023-0	01	1	0610-1404	●
8	03.410 COVER ASM; ACL 4HF1-N ENG(RJZ) IDN	8-97093-023-0	01	1	1405-		●
8	03.410 COVER ASM; ACL 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) IDN	8-97093-023-0	01	1	1405-	●
8	03.410 COVER ASM; ACL 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) IDN	8-97093-023-0	01	1	1405-	●
8	03.410 COVER ASM; ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97093-023-0	01	1	1405-	●
8	03.410 COVER ASM; ACL 4JB1-TC ENG(RDT)	8-94156-050-0	01	1	0610-0712		●
8	03.410 COVER ASM; ACL 4JB1-TC ENG(RDT)	8-94156-050-0	01	1	0801-	●	●
44	03.403 BOLT; ACL 4HF1-S ENG(RLS) 02.510 M8X25 W/LK&PL WASHER IDN	0-50140-825-0	04	1	0211-0507		●
44	03.403 BOLT; ACL 4HG1 ENG(RJH),4HF1-S ENG(RLS) 02.510 M8X25 W/LK&PL WASHER IDN	0-50140-825-0	04	1	0211-0507	●
44	03.403 BOLT; ACL 4HF1-N ENG(RJZ) 02.510 M8X25 W/LK&PL WASHER IDN	0-50140-825-0	04	1	0508-0512		●
44	03.403 BOLT; ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.510 M8X25 W/LK&PL WASHER IDN	0-50140-825-0	04	1	0508-0512	●
44	03.403 BOLT; ACL 4HF1-N ENG(RJZ) M8X25 W/LK&PL WASHER IDN	0-50640-825-0	04	1	0601-0702		●
44	03.403 BOLT; ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ) M8X25 W/LK&PL WASHER IDN	0-50640-825-0	04	1	0601-0702	●
44	03.403 BOLT; ACL 4HF1-N ENG(RJZ) M8X25 W/LK&PL WASHER IDN	0-50640-825-0	04	1	0703-1404		●
44	03.403 BOLT; ACL 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) M8X25 W/LK&PL WASHER IDN	0-50640-825-0	04	1	0703-1404	●
44	03.403 BOLT; ACL 4HF1-N ENG(RJZ) M8X25 W/LK&PL WASHER IDN	0-50640-825-0	04	1	1405-		●
44	03.403 BOLT; ACL 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) M8X25 W/LK&PL WASHER IDN	0-50640-825-0	04	1	1405-	●
44	03.403 BOLT; ACL 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) M8X25 W/LK&PL WASHER IDN	0-50640-825-0	04	1	1405-	●
44	03.403 BOLT; ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ) M8X25 W/LK&PL WASHER IDN	0-50640-825-0	04	1	1405-	●
44	03.403 BOLT; ACL 4JB1-TC ENG(RDT) 04.785 M8X18 W/LK WASHER	0-50040-818-0	04	1	0610-0712		●
44	03.403 BOLT; ACL 4JB1-TC ENG(RDT) 04.785 M8X18 W/LK WASHER	0-50040-818-0	04	1	0801-0909	●	●
44	03.403 BOLT; ACL 4JB1-TC ENG(RDT) 09.171 M8X18 W/LK WASHER	0-50540-818-0	04	1	0910-	●	●
54	03.405 BRACKET; ACL 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) (D) IDN	8-98272-213-0	01	1	1405-	●
54	03.405 BRACKET; ACL 4HF1-S ENG(RLS) (A)	8-97216-715-0	01	1	0211-0507		●
54	03.405 BRACKET; ACL 4HF1-N ENG(RJZ) (A)	8-97216-715-0	01	1	0508-		●
54	03.405 BRACKET; ACL 4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) IDN	8-97091-040-1	01	1	0211-0507	●
54	03.405 BRACKET; ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) IDN	8-97091-040-1	01	1	0508-0609	●
54	03.405 BRACKET; ACL 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) IDN	8-97091-040-1	01	1	0610-1404	●
54	03.405 BRACKET; ACL 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) (A) IDN	8-97091-040-1	01	1	1405-	●
54	03.405 BRACKET; ACL 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) (A) IDN	8-97091-040-1	01	1	1405-	●
54	03.405 BRACKET; ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) IDN	8-97091-040-1	01	1	1405-	●
54	03.405 BRACKET; ACL 4JB1-TC ENG(RDT) (B)	8-97107-139-0	01	1	0610-0612		●
54	03.405 BRACKET; ACL 4JB1-TC ENG(RDT) (C)	8-94140-144-3	01	1	0701-		●
54	03.405 BRACKET; ACL 4JB1-TC ENG(RDT) (B)	8-97107-139-0	01	1	0801-	●
91	03.403 CLAMP IDN	8-97093-696-2	01	1	0211-0609	●	●
91	03.403 CLAMP 4HF1-N ENG(RJZ) IDN	8-97093-696-2	01	1	0610-1404		●
91	03.403 CLAMP 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97093-696-2	01	1	0610-1404	●
91	03.403 CLAMP 4HF1-N ENG(RJZ) IDN	8-97093-696-2	01	1	1405-		●
91	03.403 CLAMP 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) IDN	8-97093-696-2	01	1	1405-	●
91	03.403 CLAMP 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) IDN	8-97093-696-2	01	1	1405-	●
91	03.403 CLAMP 4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97093-696-2	01	1	1405-	●
94	03.415 VALVE; VACUATOR 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) (C)	8-97093-694-0	01	1	1405-	●
94	03.415 VALVE; VACUATOR (A)	8-94447-157-0	01	1	0211-0609	●	●
94	03.415 VALVE; VACUATOR 4HF1-N ENG(RJZ) (A)	8-94447-157-0	01	1	0610-1404		●
94	03.415 VALVE; VACUATOR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A)	8-94447-157-0	01	1	0610-1404	●
94	03.415 VALVE; VACUATOR 4HF1-N ENG(RJZ) (A)	8-94447-157-0	01	1	1405-		●
94	03.415 VALVE; VACUATOR 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) (A)	8-94447-157-0	01	1	1405-	●
94	03.415 VALVE; VACUATOR 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) (A)	8-94447-157-0	01	1	1405-	●
94	03.415 VALVE; VACUATOR 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A)	8-94447-157-0	01	1	1405-	●
94	03.415 VALVE; VACUATOR 4JB1-TC ENG(RDT) (B)	8-94160-187-0	01	1	0610-0712		●
94	03.415 VALVE; VACUATOR 4JB1-TC ENG(RDT) (B)	8-94160-187-0	01	1	0801-	●	●
145	03.405 BOLT; BRKT TO FRAME 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1405-	●
145	03.405 BOLT; BRKT TO FRAME 4HF1-S ENG(RLS) 03.162 M10X35 FLANGE IDN	0-28681-035-0	04	1	0211-0507		●
145	03.405 BOLT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-S ENG(RLS) 03.162 M10X35 FLANGE IDN	0-28681-035-0	04	1	0211-0507	●
145	03.405 BOLT; BRKT TO FRAME 4HF1-N ENG(RJZ) 03.162 M10X35 FLANGE IDN	0-28681-035-0	04	1	0508-0512		●
145	03.405 BOLT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.162 M10X35 FLANGE IDN	0-28681-035-0	04	1	0508-0512	●
145	03.405 BOLT; BRKT TO FRAME 4HF1-N ENG(RJZ) 02.277 M10X35 FLANGE IDN	0-28651-035-0	04	1	0601-0609		●
145	03.405 BOLT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.277 M10X35 FLANGE IDN	0-28651-035-0	04	1	0601-0609	●
145	03.405 BOLT; BRKT TO FRAME 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 02.277 M10X35 FLANGE IDN	0-28651-035-0	04	1	0610-0712		●
145	03.405 BOLT; BRKT TO FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.277 M10X35 FLANGE IDN	0-28651-035-0	04	1	0610-0712	●
145	03.405 BOLT; BRKT TO FRAME 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 02.277 M10X35 FLANGE IDN	0-28651-035-0	04	1	0801-1404		●
145	03.405 BOLT; BRKT TO FRAME 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.277 M10X35 FLANGE IDN	0-28651-035-0	04	1	0801-1404	●
145	03.405 BOLT; BRKT TO FRAME 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 02.277 M10X35 FLANGE IDN	0-28651-035-0	04	1	1405-		●
145	03.405 BOLT; BRKT TO FRAME 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) 02.277 M10X35 FLANGE IDN	0-28651-035-0	04	1	1405-	●
145	03.405 BOLT; BRKT TO FRAME 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) 02.277 M10X35 FLANGE IDN	0-28651-035-0	04	1	1405-	●
145	03.405 BOLT; BRKT TO FRAME 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.277 M10X35 FLANGE IDN	0-28651-035-0	04	1	1405-	●
146	03.405 NUT; BRKT TO FRAME 4HF1-S ENG(RLS) 04.785 M10 FLANGE	0-91150-110-0	04	1	0211-0507		●
146	03.405 NUT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-S ENG(RLS) 04.785 M10 FLANGE	0-91150-110-0	04	1	0211-0507	●
146	03.405 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) 04.785 M10 FLANGE	0-91150-110-0	04	1	0508-0602		●
146	03.405 NUT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 04.785 M10 FLANGE	0-91150-110-0	04	1	0508-0602	●
146	03.405 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	0603-0609		●
146	03.405 NUT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	0603-0609	●
146	03.405 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	0610-0702		●
146	03.405 NUT; BRKT TO FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	0610-0702	●
146	03.405 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	0703-0712		●
146	03.405 NUT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	0703-0712	●
146	03.405 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	0801-1003		●
146	03.405 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	0801-1003	●
146	03.405 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	1004-1404		●
146	03.405 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	1004-1404	●
146	03.405 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	1405-		●
146	03.405 NUT; BRKT TO FRAME 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	1405-	●
146	03.405 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	1405-	●
146	03.405 NUT; BRKT TO FRAME 4HG1-T ENG(RDP) 03.162 M10 FLANGE IDN	0-91180-110-0	02	1	0703-1404	●
146	03.405 NUT; BRKT TO FRAME 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) 03.162 M10 FLANGE IDN	0-91180-110-0	02	1	1405-	●
146	03.405 NUT; BRKT TO FRAME 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) 03.162 M10 FLANGE IDN	0-91180-110-0	02	1	1405-	●
146	03.405 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) 03.162 M10 FLANGE IDN	0-91180-110-0	01	1	1004-		●
208	03.407 DUCT; ACL IDN	8-97074-904-1	01	1	0211-0609	●	●
208	03.407 DUCT; ACL 4HF1-N ENG(RJZ) IDN	8-97074-904-1	01	1	0610-1404		●
208	03.407 DUCT; ACL 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97074-904-1	01	1	0610-1404	●
208	03.407 DUCT; ACL 4HF1-N ENG(RJZ) IDN	8-97074-904-1	01	1	1405-		●
208	03.407 DUCT; ACL 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) IDN	8-97074-904-1	01	1	1405-	●
208	03.407 DUCT; ACL 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) IDN	8-97074-904-1	01	1	1405-	●
208	03.407 DUCT; ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97074-904-1	01	1	1405-	●
229	03.406 BODY ASM; ACL 4HG1 ENG(RJH),4HF1-S ENG(RLS)	5-87411-847-0	01	1	0211-0507	●
229	03.406 BODY ASM; ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	5-87411-847-0	01	1	0508-0609	●
229	03.406 BODY ASM; ACL 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ)	5-87411-847-0	01	1	0610-	●
229	03.406 BODY ASM; ACL 4JB1-TC ENG(RDT)	5-87411-854-0	01	1	0610-0712		●
229	03.406 BODY ASM; ACL 4JB1-TC ENG(RDT)	5-87411-854-0	01	1	0801-	●	●

1 8 6 4 94 145 146 54 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.402 CLEANER ASM; AIR 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) (D)	8-98050-415-2	01	1	1405-	●
1	03.402 CLEANER ASM; AIR 4HF1-S ENG(RLS) (A) IDN	8-97217-441-0	01	1	0211-0507		●
1	03.402 CLEANER ASM; AIR 4HF1-N ENG(RJZ) (A) IDN	8-97217-441-0	01	1	0508-		●
1	03.402 CLEANER ASM; AIR 4HG1 ENG(RJH),4HF1-S ENG(RLS) (B)	8-97162-699-2	01	1	0211-0507	●
1	03.402 CLEANER ASM; AIR 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B)	8-97162-699-2	01	1	0508-0609	●
1	03.402 CLEANER ASM; AIR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B)	8-97162-699-2	01	1	0610-1404	●
1	03.402 CLEANER ASM; AIR 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) (B)	8-97162-699-2	01	1	1405-	●
1	03.402 CLEANER ASM; AIR 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) (B)	8-97162-699-2	01	1	1405-	●
1	03.402 CLEANER ASM; AIR 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B)	8-97162-699-2	01	1	1405-	●
1	03.402 CLEANER ASM; AIR 4JB1-TC ENG(RDT) (C) IDN	8-97062-053-1	01	1	0610-0712		●
1	03.402 CLEANER ASM; AIR 4JB1-TC ENG(RDT) (C) IDN	8-97062-053-1	01	1	0801-	●	●
4	03.403 GASKET; COVER TO BODY 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B)	8-97352-113-0	01	1	1405-	●
4	03.403 GASKET; COVER TO BODY 4JB1-TC ENG(RDT) 03.410	8-94156-051-0	01	1	0610-0712		●
4	03.403 GASKET; COVER TO BODY 4JB1-TC ENG(RDT) 03.410	8-94156-051-0	01	1	0801-	●	●
6	03.410 FILTER; ACL 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B)	8-97062-294-0	01	1	1405-	●
6	03.410 FILTER; ACL IDN	8-94156-052-0	01	1	0211-	●	●
6	03.410 FILTER; ACL BEST VALUE PARTS IDN	5-87610-029-3	01	1	0211-	●	●
6	03.410 FILTER; ACL 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) BEST VALUE PARTS	5-87610-020-0	01	1	1405-	●
8	03.410 COVER ASM; ACL 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B)	8-98050-434-1	01	1	1405-	●
8	03.410 COVER ASM; ACL IDN	8-97093-023-0	01	1	0211-0609	●	●
8	03.410 COVER ASM; ACL 4HF1-N ENG(RJZ) IDN	8-97093-023-0	01	1	0610-1404		●
8	03.410 COVER ASM; ACL 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97093-023-0	01	1	0610-1404	●
8	03.410 COVER ASM; ACL 4HF1-N ENG(RJZ) IDN	8-97093-023-0	01	1	1405-		●
8	03.410 COVER ASM; ACL 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) IDN	8-97093-023-0	01	1	1405-	●
8	03.410 COVER ASM; ACL 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) IDN	8-97093-023-0	01	1	1405-	●
8	03.410 COVER ASM; ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97093-023-0	01	1	1405-	●
8	03.410 COVER ASM; ACL 4JB1-TC ENG(RDT)	8-94156-050-0	01	1	0610-0712		●
8	03.410 COVER ASM; ACL 4JB1-TC ENG(RDT)	8-94156-050-0	01	1	0801-	●	●
49	03.403 NUT; ACL 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) 01.062 M8 FLANGE IDN	0-91180-108-0	04	1	1405-	●
54	03.405 BRACKET; ACL 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) (D) IDN	8-98272-213-0	01	1	1405-	●
54	03.405 BRACKET; ACL 4HF1-S ENG(RLS) (A)	8-97216-715-0	01	1	0211-0507		●
54	03.405 BRACKET; ACL 4HF1-N ENG(RJZ) (A)	8-97216-715-0	01	1	0508-		●
54	03.405 BRACKET; ACL 4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) IDN	8-97091-040-1	01	1	0211-0507	●
54	03.405 BRACKET; ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) IDN	8-97091-040-1	01	1	0508-0609	●
54	03.405 BRACKET; ACL 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) IDN	8-97091-040-1	01	1	0610-1404	●
54	03.405 BRACKET; ACL 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) (A) IDN	8-97091-040-1	01	1	1405-	●
54	03.405 BRACKET; ACL 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) (A) IDN	8-97091-040-1	01	1	1405-	●
54	03.405 BRACKET; ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) IDN	8-97091-040-1	01	1	1405-	●
54	03.405 BRACKET; ACL 4JB1-TC ENG(RDT) (B)	8-97107-139-0	01	1	0610-0612		●
54	03.405 BRACKET; ACL 4JB1-TC ENG(RDT) (C)	8-94140-144-3	01	1	0701-		●
54	03.405 BRACKET; ACL 4JB1-TC ENG(RDT) (B)	8-97107-139-0	01	1	0801-	●
94	03.415 VALVE; VACUATOR 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) (C)	8-97093-694-0	01	1	1405-	●
94	03.415 VALVE; VACUATOR (A)	8-94447-157-0	01	1	0211-0609	●	●
94	03.415 VALVE; VACUATOR 4HF1-N ENG(RJZ) (A)	8-94447-157-0	01	1	0610-1404		●
94	03.415 VALVE; VACUATOR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A)	8-94447-157-0	01	1	0610-1404	●
94	03.415 VALVE; VACUATOR 4HF1-N ENG(RJZ) (A)	8-94447-157-0	01	1	1405-		●
94	03.415 VALVE; VACUATOR 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) (A)	8-94447-157-0	01	1	1405-	●
94	03.415 VALVE; VACUATOR 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) (A)	8-94447-157-0	01	1	1405-	●
94	03.415 VALVE; VACUATOR 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A)	8-94447-157-0	01	1	1405-	●
94	03.415 VALVE; VACUATOR 4JB1-TC ENG(RDT) (B)	8-94160-187-0	01	1	0610-0712		●
94	03.415 VALVE; VACUATOR 4JB1-TC ENG(RDT) (B)	8-94160-187-0	01	1	0801-	●	●
145	03.405 BOLT; BRKT TO FRAME 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1405-	●
145	03.405 BOLT; BRKT TO FRAME 4HF1-S ENG(RLS) 03.162 M10X35 FLANGE IDN	0-28681-035-0	04	1	0211-0507		●
145	03.405 BOLT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-S ENG(RLS) 03.162 M10X35 FLANGE IDN	0-28681-035-0	04	1	0211-0507	●
145	03.405 BOLT; BRKT TO FRAME 4HF1-N ENG(RJZ) 03.162 M10X35 FLANGE IDN	0-28681-035-0	04	1	0508-0512		●
145	03.405 BOLT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.162 M10X35 FLANGE IDN	0-28681-035-0	04	1	0508-0512	●
145	03.405 BOLT; BRKT TO FRAME 4HF1-N ENG(RJZ) 02.277 M10X35 FLANGE IDN	0-28651-035-0	04	1	0601-0609		●
145	03.405 BOLT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.277 M10X35 FLANGE IDN	0-28651-035-0	04	1	0601-0609	●
145	03.405 BOLT; BRKT TO FRAME 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 02.277 M10X35 FLANGE IDN	0-28651-035-0	04	1	0610-0712		●
145	03.405 BOLT; BRKT TO FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.277 M10X35 FLANGE IDN	0-28651-035-0	04	1	0610-0712	●
145	03.405 BOLT; BRKT TO FRAME 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 02.277 M10X35 FLANGE IDN	0-28651-035-0	04	1	0801-1404		●
145	03.405 BOLT; BRKT TO FRAME 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.277 M10X35 FLANGE IDN	0-28651-035-0	04	1	0801-1404	●
145	03.405 BOLT; BRKT TO FRAME 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 02.277 M10X35 FLANGE IDN	0-28651-035-0	04	1	1405-		●
145	03.405 BOLT; BRKT TO FRAME 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) 02.277 M10X35 FLANGE IDN	0-28651-035-0	04	1	1405-	●
145	03.405 BOLT; BRKT TO FRAME 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) 02.277 M10X35 FLANGE IDN	0-28651-035-0	04	1	1405-	●
145	03.405 BOLT; BRKT TO FRAME 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.277 M10X35 FLANGE IDN	0-28651-035-0	04	1	1405-	●
146	03.405 NUT; BRKT TO FRAME 4HF1-S ENG(RLS) 04.785 M10 FLANGE	0-91150-110-0	04	1	0211-0507		●
146	03.405 NUT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-S ENG(RLS) 04.785 M10 FLANGE	0-91150-110-0	04	1	0211-0507	●
146	03.405 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) 04.785 M10 FLANGE	0-91150-110-0	04	1	0508-0602		●
146	03.405 NUT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 04.785 M10 FLANGE	0-91150-110-0	04	1	0508-0602	●
146	03.405 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	0603-0609		●
146	03.405 NUT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	0603-0609	●
146	03.405 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	0610-0702		●
146	03.405 NUT; BRKT TO FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	0610-0702	●
146	03.405 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	0703-0712		●
146	03.405 NUT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	0703-0712	●
146	03.405 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	0801-1003		●
146	03.405 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	0801-1003	●
146	03.405 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	1004-1404		●
146	03.405 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	1004-1404	●
146	03.405 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	1405-		●
146	03.405 NUT; BRKT TO FRAME 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	1405-	●
146	03.405 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	1405-	●
146	03.405 NUT; BRKT TO FRAME 4HG1-T ENG(RDP) 03.162 M10 FLANGE IDN	0-91180-110-0	02	1	0703-1404	●
146	03.405 NUT; BRKT TO FRAME 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) 03.162 M10 FLANGE IDN	0-91180-110-0	02	1	1405-	●
146	03.405 NUT; BRKT TO FRAME 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) 03.162 M10 FLANGE IDN	0-91180-110-0	02	1	1405-	●
146	03.405 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) 03.162 M10 FLANGE IDN	0-91180-110-0	01	1	1004-		●

2 3 8 2 3 6 4 229 1 94 145 54 145 44 54 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.402 CLEANER ASM; AIR 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) (D)	8-98050-415-2	01	1	1405-	●
1	03.402 CLEANER ASM; AIR 4HF1-S ENG(RLS) (A) IDN	8-97217-441-0	01	1	0211-0507		●
1	03.402 CLEANER ASM; AIR 4HF1-N ENG(RJZ) (A) IDN	8-97217-441-0	01	1	0508-		●
1	03.402 CLEANER ASM; AIR 4HG1 ENG(RJH),4HF1-S ENG(RLS) (B)	8-97162-699-2	01	1	0211-0507	●
1	03.402 CLEANER ASM; AIR 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B)	8-97162-699-2	01	1	0508-0609	●
1	03.402 CLEANER ASM; AIR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B)	8-97162-699-2	01	1	0610-1404	●
1	03.402 CLEANER ASM; AIR 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) (B)	8-97162-699-2	01	1	1405-	●
1	03.402 CLEANER ASM; AIR 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) (B)	8-97162-699-2	01	1	1405-	●
1	03.402 CLEANER ASM; AIR 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B)	8-97162-699-2	01	1	1405-	●
1	03.402 CLEANER ASM; AIR 4JB1-TC ENG(RDT) (C) IDN	8-97062-053-1	01	1	0610-0712		●
1	03.402 CLEANER ASM; AIR 4JB1-TC ENG(RDT) (C) IDN	8-97062-053-1	01	1	0801-	●	●
2	03.403 NUT; WING,ELEMENT IDN	1-14217-068-0	02	1	0211-	●	●
3	03.403 WASHER; SEAL,WING NUT IDN	1-14219-225-0	02	1	0211-	●	●
4	03.403 GASKET; COVER TO BODY 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B)	8-97352-113-0	01	1	1405-	●
4	03.403 GASKET; COVER TO BODY 4JB1-TC ENG(RDT) 03.410	8-94156-051-0	01	1	0610-0712		●
4	03.403 GASKET; COVER TO BODY 4JB1-TC ENG(RDT) 03.410	8-94156-051-0	01	1	0801-	●	●
6	03.410 FILTER; ACL 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B)	8-97062-294-0	01	1	1405-	●
6	03.410 FILTER; ACL IDN	8-94156-052-0	01	1	0211-	●	●
6	03.410 FILTER; ACL BEST VALUE PARTS IDN	5-87610-029-3	01	1	0211-	●	●
6	03.410 FILTER; ACL 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) BEST VALUE PARTS	5-87610-020-0	01	1	1405-	●
8	03.410 COVER ASM; ACL 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B)	8-98050-434-1	01	1	1405-	●
8	03.410 COVER ASM; ACL IDN	8-97093-023-0	01	1	0211-0609	●	●
8	03.410 COVER ASM; ACL 4HF1-N ENG(RJZ) IDN	8-97093-023-0	01	1	0610-1404		●
8	03.410 COVER ASM; ACL 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97093-023-0	01	1	0610-1404	●
8	03.410 COVER ASM; ACL 4HF1-N ENG(RJZ) IDN	8-97093-023-0	01	1	1405-		●
8	03.410 COVER ASM; ACL 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) IDN	8-97093-023-0	01	1	1405-	●
8	03.410 COVER ASM; ACL 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) IDN	8-97093-023-0	01	1	1405-	●
8	03.410 COVER ASM; ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97093-023-0	01	1	1405-	●
8	03.410 COVER ASM; ACL 4JB1-TC ENG(RDT)	8-94156-050-0	01	1	0610-0712		●
8	03.410 COVER ASM; ACL 4JB1-TC ENG(RDT)	8-94156-050-0	01	1	0801-	●	●
44	03.403 BOLT; ACL 4HF1-S ENG(RLS) 02.510 M8X25 W/LK&PL WASHER IDN	0-50140-825-0	04	1	0211-0507		●
44	03.403 BOLT; ACL 4HG1 ENG(RJH),4HF1-S ENG(RLS) 02.510 M8X25 W/LK&PL WASHER IDN	0-50140-825-0	04	1	0211-0507	●
44	03.403 BOLT; ACL 4HF1-N ENG(RJZ) 02.510 M8X25 W/LK&PL WASHER IDN	0-50140-825-0	04	1	0508-0512		●
44	03.403 BOLT; ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.510 M8X25 W/LK&PL WASHER IDN	0-50140-825-0	04	1	0508-0512	●
44	03.403 BOLT; ACL 4HF1-N ENG(RJZ) M8X25 W/LK&PL WASHER IDN	0-50640-825-0	04	1	0601-0702		●
44	03.403 BOLT; ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ) M8X25 W/LK&PL WASHER IDN	0-50640-825-0	04	1	0601-0702	●
44	03.403 BOLT; ACL 4HF1-N ENG(RJZ) M8X25 W/LK&PL WASHER IDN	0-50640-825-0	04	1	0703-1404		●
44	03.403 BOLT; ACL 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) M8X25 W/LK&PL WASHER IDN	0-50640-825-0	04	1	0703-1404	●
44	03.403 BOLT; ACL 4HF1-N ENG(RJZ) M8X25 W/LK&PL WASHER IDN	0-50640-825-0	04	1	1405-		●
44	03.403 BOLT; ACL 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) M8X25 W/LK&PL WASHER IDN	0-50640-825-0	04	1	1405-	●
44	03.403 BOLT; ACL 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) M8X25 W/LK&PL WASHER IDN	0-50640-825-0	04	1	1405-	●
44	03.403 BOLT; ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ) M8X25 W/LK&PL WASHER IDN	0-50640-825-0	04	1	1405-	●
44	03.403 BOLT; ACL 4JB1-TC ENG(RDT) 04.785 M8X18 W/LK WASHER	0-50040-818-0	04	1	0610-0712		●
44	03.403 BOLT; ACL 4JB1-TC ENG(RDT) 04.785 M8X18 W/LK WASHER	0-50040-818-0	04	1	0801-0909	●	●
44	03.403 BOLT; ACL 4JB1-TC ENG(RDT) 09.171 M8X18 W/LK WASHER	0-50540-818-0	04	1	0910-	●	●
54	03.405 BRACKET; ACL 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) (D) IDN	8-98272-213-0	01	1	1405-	●
54	03.405 BRACKET; ACL 4HF1-S ENG(RLS) (A)	8-97216-715-0	01	1	0211-0507		●
54	03.405 BRACKET; ACL 4HF1-N ENG(RJZ) (A)	8-97216-715-0	01	1	0508-		●
54	03.405 BRACKET; ACL 4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) IDN	8-97091-040-1	01	1	0211-0507	●
54	03.405 BRACKET; ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) IDN	8-97091-040-1	01	1	0508-0609	●
54	03.405 BRACKET; ACL 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) IDN	8-97091-040-1	01	1	0610-1404	●
54	03.405 BRACKET; ACL 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) (A) IDN	8-97091-040-1	01	1	1405-	●
54	03.405 BRACKET; ACL 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) (A) IDN	8-97091-040-1	01	1	1405-	●
54	03.405 BRACKET; ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) IDN	8-97091-040-1	01	1	1405-	●
54	03.405 BRACKET; ACL 4JB1-TC ENG(RDT) (B)	8-97107-139-0	01	1	0610-0612		●
54	03.405 BRACKET; ACL 4JB1-TC ENG(RDT) (C)	8-94140-144-3	01	1	0701-		●
54	03.405 BRACKET; ACL 4JB1-TC ENG(RDT) (B)	8-97107-139-0	01	1	0801-	●
94	03.415 VALVE; VACUATOR 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) (C)	8-97093-694-0	01	1	1405-	●
94	03.415 VALVE; VACUATOR (A)	8-94447-157-0	01	1	0211-0609	●	●
94	03.415 VALVE; VACUATOR 4HF1-N ENG(RJZ) (A)	8-94447-157-0	01	1	0610-1404		●
94	03.415 VALVE; VACUATOR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A)	8-94447-157-0	01	1	0610-1404	●
94	03.415 VALVE; VACUATOR 4HF1-N ENG(RJZ) (A)	8-94447-157-0	01	1	1405-		●
94	03.415 VALVE; VACUATOR 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) (A)	8-94447-157-0	01	1	1405-	●
94	03.415 VALVE; VACUATOR 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) (A)	8-94447-157-0	01	1	1405-	●
94	03.415 VALVE; VACUATOR 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A)	8-94447-157-0	01	1	1405-	●
94	03.415 VALVE; VACUATOR 4JB1-TC ENG(RDT) (B)	8-94160-187-0	01	1	0610-0712		●
94	03.415 VALVE; VACUATOR 4JB1-TC ENG(RDT) (B)	8-94160-187-0	01	1	0801-	●	●
145	03.405 BOLT; BRKT TO FRAME 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1405-	●
145	03.405 BOLT; BRKT TO FRAME 4HF1-S ENG(RLS) 03.162 M10X35 FLANGE IDN	0-28681-035-0	04	1	0211-0507		●
145	03.405 BOLT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-S ENG(RLS) 03.162 M10X35 FLANGE IDN	0-28681-035-0	04	1	0211-0507	●
145	03.405 BOLT; BRKT TO FRAME 4HF1-N ENG(RJZ) 03.162 M10X35 FLANGE IDN	0-28681-035-0	04	1	0508-0512		●
145	03.405 BOLT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.162 M10X35 FLANGE IDN	0-28681-035-0	04	1	0508-0512	●
145	03.405 BOLT; BRKT TO FRAME 4HF1-N ENG(RJZ) 02.277 M10X35 FLANGE IDN	0-28651-035-0	04	1	0601-0609		●
145	03.405 BOLT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.277 M10X35 FLANGE IDN	0-28651-035-0	04	1	0601-0609	●
145	03.405 BOLT; BRKT TO FRAME 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 02.277 M10X35 FLANGE IDN	0-28651-035-0	04	1	0610-0712		●
145	03.405 BOLT; BRKT TO FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.277 M10X35 FLANGE IDN	0-28651-035-0	04	1	0610-0712	●
145	03.405 BOLT; BRKT TO FRAME 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 02.277 M10X35 FLANGE IDN	0-28651-035-0	04	1	0801-1404		●
145	03.405 BOLT; BRKT TO FRAME 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.277 M10X35 FLANGE IDN	0-28651-035-0	04	1	0801-1404	●
145	03.405 BOLT; BRKT TO FRAME 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 02.277 M10X35 FLANGE IDN	0-28651-035-0	04	1	1405-		●
145	03.405 BOLT; BRKT TO FRAME 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) 02.277 M10X35 FLANGE IDN	0-28651-035-0	04	1	1405-	●
145	03.405 BOLT; BRKT TO FRAME 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) 02.277 M10X35 FLANGE IDN	0-28651-035-0	04	1	1405-	●
145	03.405 BOLT; BRKT TO FRAME 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.277 M10X35 FLANGE IDN	0-28651-035-0	04	1	1405-	●
146	03.405 NUT; BRKT TO FRAME 4HF1-S ENG(RLS) 04.785 M10 FLANGE	0-91150-110-0	04	1	0211-0507		●
146	03.405 NUT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-S ENG(RLS) 04.785 M10 FLANGE	0-91150-110-0	04	1	0211-0507	●
146	03.405 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) 04.785 M10 FLANGE	0-91150-110-0	04	1	0508-0602		●
146	03.405 NUT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 04.785 M10 FLANGE	0-91150-110-0	04	1	0508-0602	●
146	03.405 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	0603-0609		●
146	03.405 NUT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	0603-0609	●
146	03.405 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	0610-0702		●
146	03.405 NUT; BRKT TO FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	0610-0702	●
146	03.405 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	0703-0712		●
146	03.405 NUT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	0703-0712	●
146	03.405 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	0801-1003		●
146	03.405 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	0801-1003	●
146	03.405 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	1004-1404		●
146	03.405 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	1004-1404	●
146	03.405 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	1405-		●
146	03.405 NUT; BRKT TO FRAME 4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	1405-	●
146	03.405 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	1405-	●
146	03.405 NUT; BRKT TO FRAME 4HG1-T ENG(RDP) 03.162 M10 FLANGE IDN	0-91180-110-0	02	1	0703-1404	●
146	03.405 NUT; BRKT TO FRAME 4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) 03.162 M10 FLANGE IDN	0-91180-110-0	02	1	1405-	●
146	03.405 NUT; BRKT TO FRAME 4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) 03.162 M10 FLANGE IDN	0-91180-110-0	02	1	1405-	●
146	03.405 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) 03.162 M10 FLANGE IDN	0-91180-110-0	01	1	1004-		●
229	03.406 BODY ASM; ACL 4HG1 ENG(RJH),4HF1-S ENG(RLS)	5-87411-847-0	01	1	0211-0507	●
229	03.406 BODY ASM; ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	5-87411-847-0	01	1	0508-0609	●
229	03.406 BODY ASM; ACL 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ)	5-87411-847-0	01	1	0610-	●
229	03.406 BODY ASM; ACL 4JB1-TC ENG(RDT)	5-87411-854-0	01	1	0610-0712		●
229	03.406 BODY ASM; ACL 4JB1-TC ENG(RDT)	5-87411-854-0	01	1	0801-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
