Sayfa 1-11 - Isuzu EPC

1-11 — RADIATOR HOSE AND SUB TANK (#78915) — 180 parça

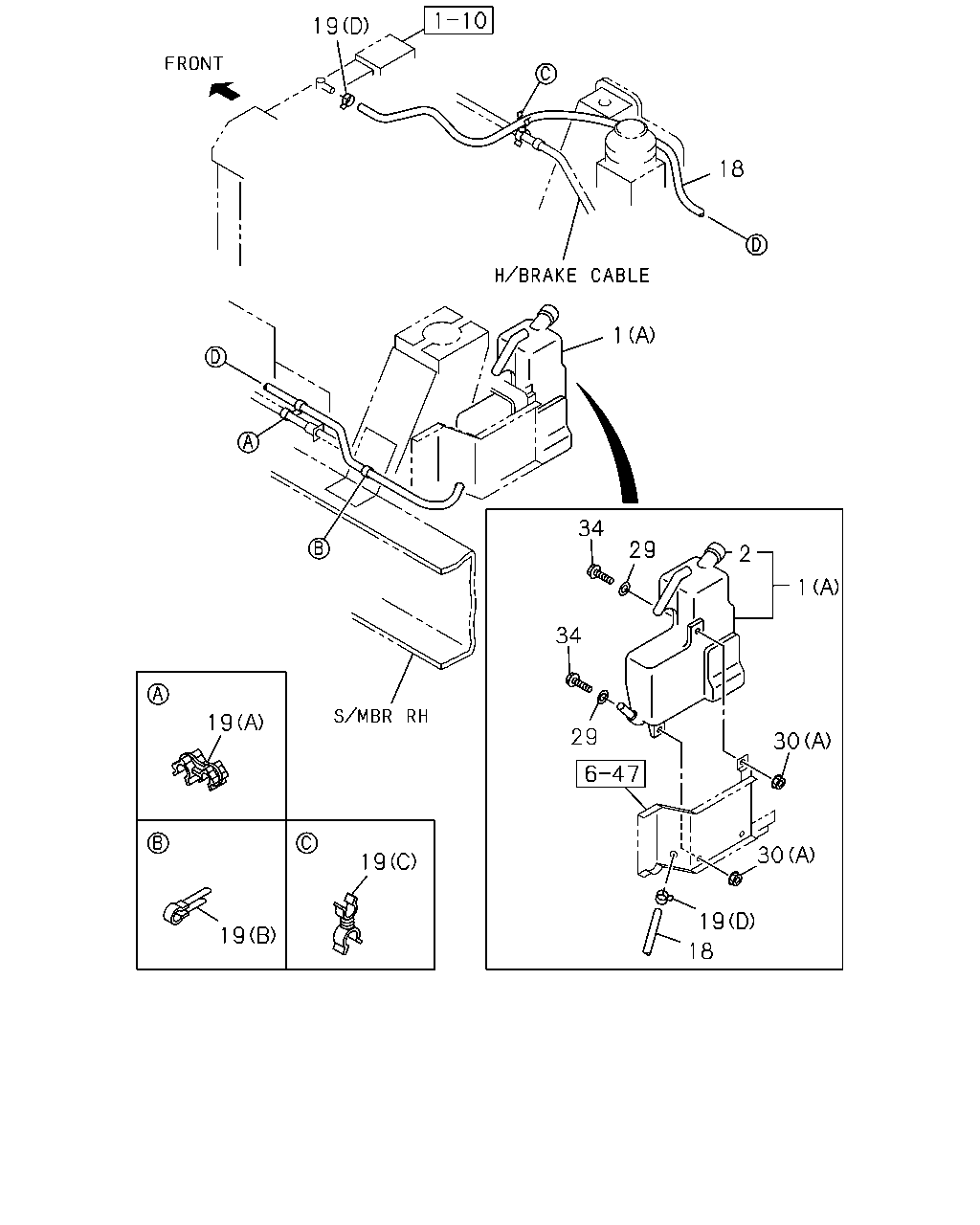

19 18 1 34 29 2 1 34 19 29 30 30 19 19 19 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.219 TANK; SURGE,RAD 4HF1-S ENG(RLS) (A)	8-97210-844-0	01	1	0211-0507	●
1	01.219 TANK; SURGE,RAD 4HG1 ENG(RJH),4HF1-S ENG(RLS) (A)	8-97210-844-0	01	1	0211-0507		●
1	01.219 TANK; SURGE,RAD 4HF1-N ENG(RJZ) (A)	8-97210-844-0	01	1	0508-0609	●
1	01.219 TANK; SURGE,RAD 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A)	8-97210-844-0	01	1	0508-0609		●
1	01.219 TANK; SURGE,RAD 4HF1-N ENG(RJZ) (A)	8-97210-844-0	01	1	0610-1010	●
1	01.219 TANK; SURGE,RAD 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A)	8-97210-844-0	01	1	0610-1010		●
1	01.219 TANK; SURGE,RAD 4HF1-N ENG(RJZ) (A)	8-98178-177-0	01	1	1011-	●
1	01.219 TANK; SURGE,RAD 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A)	8-98178-177-0	01	1	1011-		●
1	01.219 TANK; SURGE,RAD 4JB1-TC ENG(RDT) (B) IDN	8-97205-136-1	01	1	0610-0712	●
1	01.219 TANK; SURGE,RAD 4JB1-TC ENG(RDT) (B) IDN	8-97205-136-1	01	1	0801-	●	●
2	01.203 CAP; SURGE TANK 4HF1-S ENG(RLS)	8-97217-796-0	01	1	0211-0507	●
2	01.203 CAP; SURGE TANK 4HG1 ENG(RJH),4HF1-S ENG(RLS)	8-97217-796-0	01	1	0211-0507		●
2	01.203 CAP; SURGE TANK 4HF1-N ENG(RJZ)	8-97217-796-0	01	1	0508-0609	●
2	01.203 CAP; SURGE TANK 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-97217-796-0	01	1	0508-0609		●
2	01.203 CAP; SURGE TANK 4HF1-N ENG(RJZ)	8-97217-796-0	01	1	0610-1010	●
2	01.203 CAP; SURGE TANK 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-97217-796-0	01	1	0610-1010		●
2	01.203 CAP; SURGE TANK 4HF1-N ENG(RJZ)	8-98178-074-0	01	1	1011-	●
2	01.203 CAP; SURGE TANK 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-98178-074-0	01	1	1011-		●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1-S ENG(RLS) L=1595 IDN	8-97162-125-1	01	1	0211-0507	●
18	01.240 HOSE; RAD TO SURGE TANK 4HG1 ENG(RJH),4HF1-S ENG(RLS) L=1595 IDN	8-97162-125-1	01	1	0211-0507		●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1-N ENG(RJZ) L=1595 IDN	8-97162-125-1	01	1	0508-0609	●
18	01.240 HOSE; RAD TO SURGE TANK 4HG1 ENG(RJH),4HF1-N ENG(RJZ) L=1595 IDN	8-97162-125-1	01	1	0508-0609		●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1-N ENG(RJZ) L=1595 IDN	8-97162-125-1	01	1	0610-	●
18	01.240 HOSE; RAD TO SURGE TANK 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) L=1595 IDN	8-97162-125-1	01	1	0610-		●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1-TC ENG(RDT) L=1740 IDN	8-97225-444-1	01	1	0610-0712	●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1-TC ENG(RDT) L=1740 IDN	8-97225-444-1	01	1	0801-	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1-S ENG(RLS) (B) ID=14 L=47 IDN	5-09700-319-0	01	1	0211-0507	●
19	01.240 CLIP; HOSE,SURGE TANK 4HG1 ENG(RJH),4HF1-S ENG(RLS) (B) ID=14 L=47 IDN	5-09700-319-0	01	1	0211-0507		●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1-N ENG(RJZ) (B) ID=14 L=47 IDN	5-09700-319-0	01	1	0508-0609	●
19	01.240 CLIP; HOSE,SURGE TANK 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) ID=14 L=47 IDN	5-09700-319-0	01	1	0508-0609		●
19	01.240 CLIP; HOSE,SURGE TANK 4JB1-TC ENG(RDT) (B) ID=14 L=47 IDN	5-09700-319-0	02	1	0610-0712	●
19	01.240 CLIP; HOSE,SURGE TANK 4JB1-TC ENG(RDT) (B) ID=14 L=47 IDN	5-09700-319-0	02	1	0801-	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1-S ENG(RLS) (A) ID=10 & 12	8-94416-613-0	01	1	0211-0507	●
19	01.240 CLIP; HOSE,SURGE TANK 4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) ID=10 & 12	8-94416-613-0	01	1	0211-0507		●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1-N ENG(RJZ) (A) ID=10 & 12	8-94416-613-0	01	1	0508-0609	●
19	01.240 CLIP; HOSE,SURGE TANK 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) ID=10 & 12	8-94416-613-0	01	1	0508-0609		●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1-N ENG(RJZ) (A) ID=10 & 12	8-94416-613-0	01	1	0610-	●
19	01.240 CLIP; HOSE,SURGE TANK 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) ID=10 & 12	8-94416-613-0	01	1	0610-		●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1-S ENG(RLS) 02.559 (C) ID=10 & 11	8-94438-996-0	01	1	0211-0507	●
19	01.240 CLIP; HOSE,SURGE TANK 4HG1 ENG(RJH),4HF1-S ENG(RLS) 02.559 (C) ID=10 & 11	8-94438-996-0	01	1	0211-0507		●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1-N ENG(RJZ) 02.559 (C) ID=10 & 11	8-94438-996-0	01	1	0508-0609	●
19	01.240 CLIP; HOSE,SURGE TANK 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.559 (C) ID=10 & 11	8-94438-996-0	01	1	0508-0609		●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1-N ENG(RJZ) 02.559 (C) ID=10 & 11	8-94438-996-0	01	1	0610-	●
19	01.240 CLIP; HOSE,SURGE TANK 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.559 (C) ID=10 & 11	8-94438-996-0	01	1	0610-		●
19	01.240 CLIP; HOSE,SURGE TANK 01.219 (D) ID=12 IDN	8-94238-610-0	02	1	0211-0911	●	●
19	01.240 CLIP; HOSE,SURGE TANK (D) ID=12	8-98150-358-0	02	1	0912-	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1-N ENG(RJZ) (B) ID=14 L=47 IDN	5-09700-319-0	01	1	0610-	●
19	01.240 CLIP; HOSE,SURGE TANK 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) ID=14 L=47 IDN	5-09700-319-0	01	1	0610-		●
29	01.203 WASHER; PL,RESERVE TANK 4HF1-S ENG(RLS) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	0211-0507	●
29	01.203 WASHER; PL,RESERVE TANK 4HG1 ENG(RJH),4HF1-S ENG(RLS) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	0211-0507		●
29	01.203 WASHER; PL,RESERVE TANK 4HF1-N ENG(RJZ) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	0508-0605	●
29	01.203 WASHER; PL,RESERVE TANK 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	0508-0605		●
29	01.203 WASHER; PL,RESERVE TANK 4HF1-N ENG(RJZ) 00.413 ID=6.4 OD=18	0-91610-706-0	03	1	0606-0609	●
29	01.203 WASHER; PL,RESERVE TANK 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 00.413 ID=6.4 OD=18	0-91610-706-0	03	1	0606-0609		●
29	01.203 WASHER; PL,RESERVE TANK 4HF1-N ENG(RJZ) 00.413 ID=6.4 OD=18	0-91610-706-0	03	1	0610-	●
29	01.203 WASHER; PL,RESERVE TANK 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 00.413 ID=6.4 OD=18	0-91610-706-0	03	1	0610-		●
30	01.203 NUT 4HF1-S ENG(RLS) 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	0211-0507	●
30	01.203 NUT 4HG1 ENG(RJH),4HF1-S ENG(RLS) 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	0211-0507		●
30	01.203 NUT 4HF1-N ENG(RJZ) 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	0508-0602	●
30	01.203 NUT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	0508-0602		●
30	01.203 NUT 4HF1-N ENG(RJZ) 01.062 (A) M6 FLANGE IDN	0-91180-106-0	03	1	0603-0609	●
30	01.203 NUT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 (A) M6 FLANGE IDN	0-91180-106-0	03	1	0603-0609		●
30	01.203 NUT 4HF1-N ENG(RJZ) 01.062 (A) M6 FLANGE IDN	0-91180-106-0	03	1	0610-	●
30	01.203 NUT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 (A) M6 FLANGE IDN	0-91180-106-0	03	1	0610-		●
30	01.203 NUT 4JB1-TC ENG(RDT) 01.062 (C) M8 FLANGE IDN	0-91180-108-0	04	1	0610-0712	●
30	01.203 NUT 4JB1-TC ENG(RDT) 01.062 (C) M8 FLANGE IDN	0-91180-108-0	04	1	0801-	●	●
30	01.203 NUT 4JB1-TC ENG(RDT) 01.540 (B) M8 FLANGE IDN	0-91180-208-0	03	1	0610-0712	●
30	01.203 NUT 4JB1-TC ENG(RDT) 01.540 (B) M8 FLANGE IDN	0-91180-208-0	03	1	0801-	●	●
34	01.203 BOLT; RESERVE TANK 4HF1-S ENG(RLS) 03.670 M6X20 FLANGE	0-28080-620-0	03	1	0211-0507	●
34	01.203 BOLT; RESERVE TANK 4HG1 ENG(RJH),4HF1-S ENG(RLS) 03.670 M6X20 FLANGE	0-28080-620-0	03	1	0211-0507		●
34	01.203 BOLT; RESERVE TANK 4HF1-N ENG(RJZ) 03.670 M6X20 FLANGE	0-28080-620-0	03	1	0508-0512	●
34	01.203 BOLT; RESERVE TANK 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.670 M6X20 FLANGE	0-28080-620-0	03	1	0508-0512		●
34	01.203 BOLT; RESERVE TANK 4HF1-N ENG(RJZ) 00.386 M6X20 FLANGE	0-28050-620-0	03	1	0601-0609	●
34	01.203 BOLT; RESERVE TANK 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 00.386 M6X20 FLANGE	0-28050-620-0	03	1	0601-0609		●
34	01.203 BOLT; RESERVE TANK 4HF1-N ENG(RJZ) 00.386 M6X20 FLANGE	0-28050-620-0	03	1	0610-	●
34	01.203 BOLT; RESERVE TANK 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 00.386 M6X20 FLANGE	0-28050-620-0	03	1	0610-		●
34	01.203 BOLT; RESERVE TANK 4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE IDN	0-28650-825-0	04	1	0610-0712	●
34	01.203 BOLT; RESERVE TANK 4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE IDN	0-28650-825-0	04	1	0801-	●	●

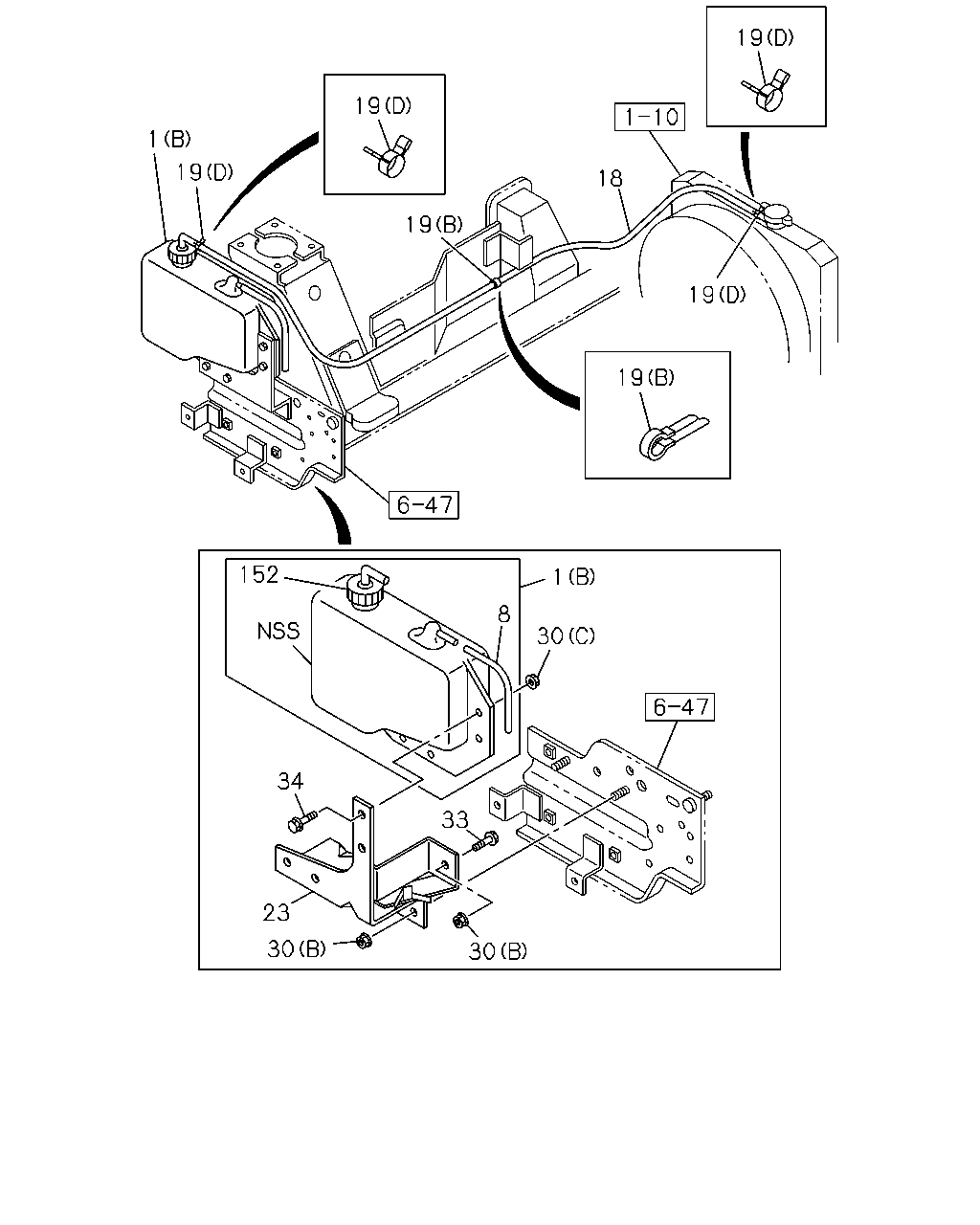

19 19 1 19 18 19 19 19 152 1 8 30 34 33 23 30 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.219 TANK; SURGE,RAD 4HF1-S ENG(RLS) (A)	8-97210-844-0	01	1	0211-0507	●
1	01.219 TANK; SURGE,RAD 4HG1 ENG(RJH),4HF1-S ENG(RLS) (A)	8-97210-844-0	01	1	0211-0507		●
1	01.219 TANK; SURGE,RAD 4HF1-N ENG(RJZ) (A)	8-97210-844-0	01	1	0508-0609	●
1	01.219 TANK; SURGE,RAD 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A)	8-97210-844-0	01	1	0508-0609		●
1	01.219 TANK; SURGE,RAD 4HF1-N ENG(RJZ) (A)	8-97210-844-0	01	1	0610-1010	●
1	01.219 TANK; SURGE,RAD 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A)	8-97210-844-0	01	1	0610-1010		●
1	01.219 TANK; SURGE,RAD 4HF1-N ENG(RJZ) (A)	8-98178-177-0	01	1	1011-	●
1	01.219 TANK; SURGE,RAD 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A)	8-98178-177-0	01	1	1011-		●
1	01.219 TANK; SURGE,RAD 4JB1-TC ENG(RDT) (B) IDN	8-97205-136-1	01	1	0610-0712	●
1	01.219 TANK; SURGE,RAD 4JB1-TC ENG(RDT) (B) IDN	8-97205-136-1	01	1	0801-	●	●
8	01.166 HOSE; VINYL 4JB1-TC ENG(RDT) 01.240 L=500 IDN	1-09366-179-0	01	1	0610-0712	●
8	01.166 HOSE; VINYL 4JB1-TC ENG(RDT) 01.240 L=500 IDN	1-09366-179-0	01	1	0801-	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1-S ENG(RLS) L=1595 IDN	8-97162-125-1	01	1	0211-0507	●
18	01.240 HOSE; RAD TO SURGE TANK 4HG1 ENG(RJH),4HF1-S ENG(RLS) L=1595 IDN	8-97162-125-1	01	1	0211-0507		●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1-N ENG(RJZ) L=1595 IDN	8-97162-125-1	01	1	0508-0609	●
18	01.240 HOSE; RAD TO SURGE TANK 4HG1 ENG(RJH),4HF1-N ENG(RJZ) L=1595 IDN	8-97162-125-1	01	1	0508-0609		●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1-N ENG(RJZ) L=1595 IDN	8-97162-125-1	01	1	0610-	●
18	01.240 HOSE; RAD TO SURGE TANK 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) L=1595 IDN	8-97162-125-1	01	1	0610-		●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1-TC ENG(RDT) L=1740 IDN	8-97225-444-1	01	1	0610-0712	●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1-TC ENG(RDT) L=1740 IDN	8-97225-444-1	01	1	0801-	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1-S ENG(RLS) (B) ID=14 L=47 IDN	5-09700-319-0	01	1	0211-0507	●
19	01.240 CLIP; HOSE,SURGE TANK 4HG1 ENG(RJH),4HF1-S ENG(RLS) (B) ID=14 L=47 IDN	5-09700-319-0	01	1	0211-0507		●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1-N ENG(RJZ) (B) ID=14 L=47 IDN	5-09700-319-0	01	1	0508-0609	●
19	01.240 CLIP; HOSE,SURGE TANK 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) ID=14 L=47 IDN	5-09700-319-0	01	1	0508-0609		●
19	01.240 CLIP; HOSE,SURGE TANK 4JB1-TC ENG(RDT) (B) ID=14 L=47 IDN	5-09700-319-0	02	1	0610-0712	●
19	01.240 CLIP; HOSE,SURGE TANK 4JB1-TC ENG(RDT) (B) ID=14 L=47 IDN	5-09700-319-0	02	1	0801-	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1-S ENG(RLS) (A) ID=10 & 12	8-94416-613-0	01	1	0211-0507	●
19	01.240 CLIP; HOSE,SURGE TANK 4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) ID=10 & 12	8-94416-613-0	01	1	0211-0507		●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1-N ENG(RJZ) (A) ID=10 & 12	8-94416-613-0	01	1	0508-0609	●
19	01.240 CLIP; HOSE,SURGE TANK 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) ID=10 & 12	8-94416-613-0	01	1	0508-0609		●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1-N ENG(RJZ) (A) ID=10 & 12	8-94416-613-0	01	1	0610-	●
19	01.240 CLIP; HOSE,SURGE TANK 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) ID=10 & 12	8-94416-613-0	01	1	0610-		●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1-S ENG(RLS) 02.559 (C) ID=10 & 11	8-94438-996-0	01	1	0211-0507	●
19	01.240 CLIP; HOSE,SURGE TANK 4HG1 ENG(RJH),4HF1-S ENG(RLS) 02.559 (C) ID=10 & 11	8-94438-996-0	01	1	0211-0507		●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1-N ENG(RJZ) 02.559 (C) ID=10 & 11	8-94438-996-0	01	1	0508-0609	●
19	01.240 CLIP; HOSE,SURGE TANK 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.559 (C) ID=10 & 11	8-94438-996-0	01	1	0508-0609		●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1-N ENG(RJZ) 02.559 (C) ID=10 & 11	8-94438-996-0	01	1	0610-	●
19	01.240 CLIP; HOSE,SURGE TANK 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.559 (C) ID=10 & 11	8-94438-996-0	01	1	0610-		●
19	01.240 CLIP; HOSE,SURGE TANK 01.219 (D) ID=12 IDN	8-94238-610-0	02	1	0211-0911	●	●
19	01.240 CLIP; HOSE,SURGE TANK (D) ID=12	8-98150-358-0	02	1	0912-	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1-N ENG(RJZ) (B) ID=14 L=47 IDN	5-09700-319-0	01	1	0610-	●
19	01.240 CLIP; HOSE,SURGE TANK 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) ID=14 L=47 IDN	5-09700-319-0	01	1	0610-		●
23	01.219 BRACKET; RESERVE TANK 4JB1-TC ENG(RDT) IDN	8-97225-271-1	01	1	0610-0712	●
23	01.219 BRACKET; RESERVE TANK 4JB1-TC ENG(RDT) IDN	8-97225-271-1	01	1	0801-	●	●
30	01.203 NUT 4HF1-S ENG(RLS) 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	0211-0507	●
30	01.203 NUT 4HG1 ENG(RJH),4HF1-S ENG(RLS) 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	0211-0507		●
30	01.203 NUT 4HF1-N ENG(RJZ) 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	0508-0602	●
30	01.203 NUT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	0508-0602		●
30	01.203 NUT 4HF1-N ENG(RJZ) 01.062 (A) M6 FLANGE IDN	0-91180-106-0	03	1	0603-0609	●
30	01.203 NUT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 (A) M6 FLANGE IDN	0-91180-106-0	03	1	0603-0609		●
30	01.203 NUT 4HF1-N ENG(RJZ) 01.062 (A) M6 FLANGE IDN	0-91180-106-0	03	1	0610-	●
30	01.203 NUT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 (A) M6 FLANGE IDN	0-91180-106-0	03	1	0610-		●
30	01.203 NUT 4JB1-TC ENG(RDT) 01.062 (C) M8 FLANGE IDN	0-91180-108-0	04	1	0610-0712	●
30	01.203 NUT 4JB1-TC ENG(RDT) 01.062 (C) M8 FLANGE IDN	0-91180-108-0	04	1	0801-	●	●
30	01.203 NUT 4JB1-TC ENG(RDT) 01.540 (B) M8 FLANGE IDN	0-91180-208-0	03	1	0610-0712	●
30	01.203 NUT 4JB1-TC ENG(RDT) 01.540 (B) M8 FLANGE IDN	0-91180-208-0	03	1	0801-	●	●
33	01.277 BOLT; BRKT 4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	0610-0712	●
33	01.277 BOLT; BRKT 4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	0801-	●	●
34	01.203 BOLT; RESERVE TANK 4HF1-S ENG(RLS) 03.670 M6X20 FLANGE	0-28080-620-0	03	1	0211-0507	●
34	01.203 BOLT; RESERVE TANK 4HG1 ENG(RJH),4HF1-S ENG(RLS) 03.670 M6X20 FLANGE	0-28080-620-0	03	1	0211-0507		●
34	01.203 BOLT; RESERVE TANK 4HF1-N ENG(RJZ) 03.670 M6X20 FLANGE	0-28080-620-0	03	1	0508-0512	●
34	01.203 BOLT; RESERVE TANK 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.670 M6X20 FLANGE	0-28080-620-0	03	1	0508-0512		●
34	01.203 BOLT; RESERVE TANK 4HF1-N ENG(RJZ) 00.386 M6X20 FLANGE	0-28050-620-0	03	1	0601-0609	●
34	01.203 BOLT; RESERVE TANK 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 00.386 M6X20 FLANGE	0-28050-620-0	03	1	0601-0609		●
34	01.203 BOLT; RESERVE TANK 4HF1-N ENG(RJZ) 00.386 M6X20 FLANGE	0-28050-620-0	03	1	0610-	●
34	01.203 BOLT; RESERVE TANK 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 00.386 M6X20 FLANGE	0-28050-620-0	03	1	0610-		●
34	01.203 BOLT; RESERVE TANK 4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE IDN	0-28650-825-0	04	1	0610-0712	●
34	01.203 BOLT; RESERVE TANK 4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE IDN	0-28650-825-0	04	1	0801-	●	●
152	01.203 CAP ASM; SURGE TANK 4JB1-TC ENG(RDT) IDN	8-97217-799-0	01	1	0610-0712	●
152	01.203 CAP ASM; SURGE TANK 4JB1-TC ENG(RDT) IDN	8-97217-799-0	01	1	0801-	●	●

128 56 56 56 55 56 128 56 56 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
55	01.173 HOSE; WATER,RAD OUTLET 4HF1-S ENG(RLS) IDN	8-97124-740-0	01	1	0211-0507	●
55	01.173 HOSE; WATER,RAD OUTLET 4HG1 ENG(RJH),4HF1-S ENG(RLS) IDN	8-97124-740-0	01	1	0211-0507		●
55	01.173 HOSE; WATER,RAD OUTLET 4HF1-N ENG(RJZ) IDN	8-97124-740-0	01	1	0508-0609	●
55	01.173 HOSE; WATER,RAD OUTLET 4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97124-740-0	01	1	0508-0609		●
55	01.173 HOSE; WATER,RAD OUTLET 4HF1-N ENG(RJZ) IDN	8-97124-740-0	01	1	0610-	●
55	01.173 HOSE; WATER,RAD OUTLET 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97124-740-0	01	1	0610-		●
55	01.173 HOSE; WATER,RAD OUTLET 4JB1-TC ENG(RDT) IDN	8-97089-916-1	01	1	0610-0712	●
55	01.173 HOSE; WATER,RAD OUTLET 4JB1-TC ENG(RDT) IDN	8-97089-916-1	01	1	0801-	●	●
56	01.166 CLIP; WATER HOSE,RAD 4HF1-S ENG(RLS) (A) ID=40	8-97245-216-0	02	1	0211-0507	●
56	01.166 CLIP; WATER HOSE,RAD 4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) ID=40	8-97245-216-0	02	1	0211-0507		●
56	01.166 CLIP; WATER HOSE,RAD 4HF1-N ENG(RJZ) (A) ID=40	8-97245-216-0	02	1	0508-0609	●
56	01.166 CLIP; WATER HOSE,RAD 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) ID=40	8-97245-216-0	02	1	0508-0609		●
56	01.166 CLIP; WATER HOSE,RAD 4HF1-N ENG(RJZ) (A) ID=40	8-97245-216-0	02	1	0610-	●
56	01.166 CLIP; WATER HOSE,RAD 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) ID=40	8-97245-216-0	02	1	0610-		●
56	01.166 CLIP; WATER HOSE,RAD 4HF1-S ENG(RLS) (B) ID=50	8-97245-217-0	01	1	0211-0507	●
56	01.166 CLIP; WATER HOSE,RAD 4HG1 ENG(RJH),4HF1-S ENG(RLS) (B) ID=50	8-97245-217-0	01	1	0211-0507		●
56	01.166 CLIP; WATER HOSE,RAD 4HF1-N ENG(RJZ) (B) ID=50	8-97245-217-0	01	1	0508-0609	●
56	01.166 CLIP; WATER HOSE,RAD 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) ID=50	8-97245-217-0	01	1	0508-0609		●
56	01.166 CLIP; WATER HOSE,RAD 4HF1-N ENG(RJZ) (B) ID=50	8-97245-217-0	01	1	0610-	●
56	01.166 CLIP; WATER HOSE,RAD 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) ID=50	8-97245-217-0	01	1	0610-		●
56	01.166 CLIP; WATER HOSE,RAD 4JB1-TC ENG(RDT) (C) ID=48	5-09704-049-0	03	1	0610-0610	●
56	01.166 CLIP; WATER HOSE,RAD 4JB1-TC ENG(RDT) (C) ID=48	8-98036-282-0	03	1	0611-0712	●
56	01.166 CLIP; WATER HOSE,RAD 4JB1-TC ENG(RDT) (C) ID=48	8-98036-282-0	03	1	0801-0901	●	●
56	01.166 CLIP; WATER HOSE,RAD 4JB1-TC ENG(RDT) (C) ID=48	8-98133-956-0	03	1	0902-	●	●
128	01.159 HOSE; WATER,RAD INL 4HF1-S ENG(RLS) IDN	8-97162-163-0	01	1	0211-0507	●
128	01.159 HOSE; WATER,RAD INL 4HG1 ENG(RJH),4HF1-S ENG(RLS) IDN	8-97162-163-0	01	1	0211-0507		●
128	01.159 HOSE; WATER,RAD INL 4HF1-N ENG(RJZ) IDN	8-97162-163-0	01	1	0508-0609	●
128	01.159 HOSE; WATER,RAD INL 4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97162-163-0	01	1	0508-0609		●
128	01.159 HOSE; WATER,RAD INL 4HF1-N ENG(RJZ) IDN	8-97162-163-0	01	1	0610-	●
128	01.159 HOSE; WATER,RAD INL 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97162-163-0	01	1	0610-		●
128	01.159 HOSE; WATER,RAD INL 4JB1-TC ENG(RDT) IDN	8-97177-853-0	01	1	0610-0712	●
128	01.159 HOSE; WATER,RAD INL 4JB1-TC ENG(RDT) IDN	8-97177-853-0	01	1	0801-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
