Sayfa 1-10 - Isuzu EPC

1-10 — RADIATOR (#78914) — 234 parça

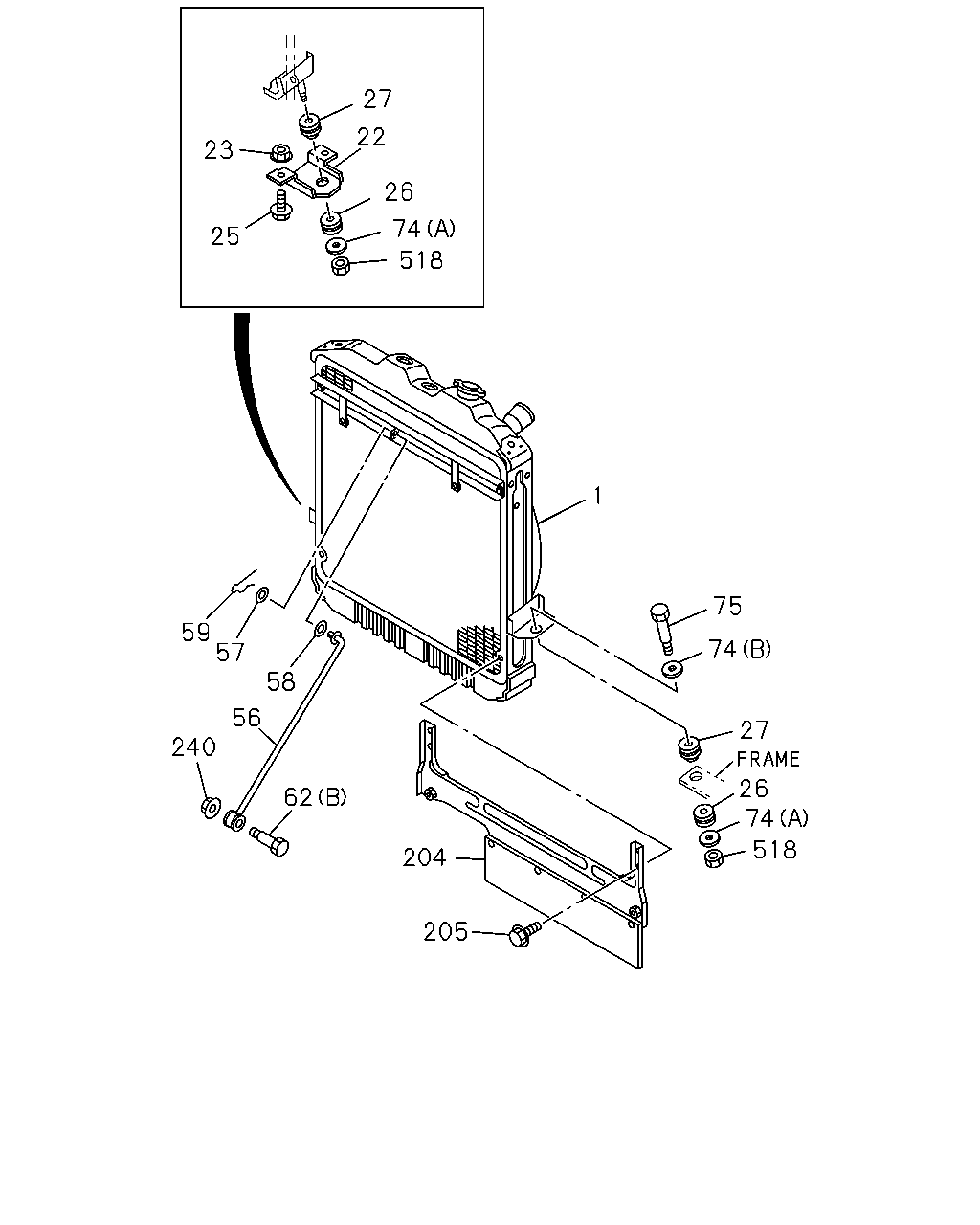

27 22 23 26 74 25 518 1 75 59 57 74 58 56 27 240 26 74 62 518 204 205

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.219 RADIATOR ASM 4HF1-S ENG(RLS) IDN	8-97162-142-2	01	1	0211-0507	●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH),4HF1-S ENG(RLS) IDN	8-97162-142-2	01	1	0211-0507		●
1	01.219 RADIATOR ASM 4HF1-N ENG(RJZ) IDN	8-97162-142-2	01	1	0508-0609	●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97162-142-2	01	1	0508-0609		●
1	01.219 RADIATOR ASM 4HF1-N ENG(RJZ) IDN	8-97162-142-2	01	1	0610-	●
1	01.219 RADIATOR ASM 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97162-142-2	01	1	0610-		●
1	01.219 RADIATOR ASM 4JB1-TC ENG(RDT)	8-97178-662-2	01	1	0610-0712	●
1	01.219 RADIATOR ASM 4JB1-TC ENG(RDT)	8-97178-662-2	01	1	0801-	●	●
22	01.270 BRACKET; RAD MTG IDN	8-94257-949-1	01	1	0211-	●	●
23	01.271 NUT; RAD MTG 07.874 M10 FLANGE IDN	5-09440-006-0	02	1	0211-	●	●
25	01.271 BOLT; BRKT 03.405 M10X30 FLANGE	0-28681-030-0	02	1	0211-0512	●	●
25	01.271 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0601-	●	●
26	01.270 BUFFER; RAD,LWR IDN	8-94249-347-0	02	1	0211-	●	●
27	01.270 BUFFER; RAD,UPR IDN	8-94249-346-0	02	1	0211-	●	●
56	01.270 STAY; RAD 4HF1-S ENG(RLS)	8-97350-322-0	01	1	0211-0507	●
56	01.270 STAY; RAD 4HG1 ENG(RJH),4HF1-S ENG(RLS)	8-97350-322-0	01	1	0211-0507		●
56	01.270 STAY; RAD 4HF1-N ENG(RJZ)	8-97350-322-0	01	1	0508-0609	●
56	01.270 STAY; RAD 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-97350-322-0	01	1	0508-0609		●
56	01.270 STAY; RAD 4HF1-N ENG(RJZ)	8-97350-322-0	01	1	0610-	●
56	01.270 STAY; RAD 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-97350-322-0	01	1	0610-		●
56	01.270 STAY; RAD 4JB1-TC ENG(RDT) IDN	8-97350-324-0	01	1	0610-0712	●
56	01.270 STAY; RAD 4JB1-TC ENG(RDT) IDN	8-97350-324-0	01	1	0801-	●	●
57	01.271 WASHER; PL,STAY 4HF1-S ENG(RLS) 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	0211-0507	●
57	01.271 WASHER; PL,STAY 4HG1 ENG(RJH),4HF1-S ENG(RLS) 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	0211-0507		●
57	01.271 WASHER; PL,STAY 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	0508-0605	●	●
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	01	1	0606-	●	●
58	01.271 WASHER; CURVED,STAY 4HF1-S ENG(RLS) ID=12	8-97011-676-0	01	1	0211-0507	●
58	01.271 WASHER; CURVED,STAY 4HG1 ENG(RJH),4HF1-S ENG(RLS) ID=12	8-97011-676-0	01	1	0211-0507		●
58	01.271 WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	0508-	●	●
59	01.271 PIN; SNAP,STAY 4HF1-S ENG(RLS) 03.452 L=32.6	8-94202-777-0	01	1	0211-0507	●
59	01.271 PIN; SNAP,STAY 4HG1 ENG(RJH),4HF1-S ENG(RLS) 03.452 L=32.6	8-94202-777-0	01	1	0211-0507		●
59	01.271 PIN; SNAP,STAY 03.452 L=32.6	8-94202-777-0	01	1	0508-0610	●	●
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	01	1	0611-	●	●
62	01.271 BOLT; STAY 4HF1-S ENG(RLS) 08.900 (A) M8X12 FLANGE IDN	0-28080-812-0	02	1	0211-0507	●
62	01.271 BOLT; STAY 4HG1 ENG(RJH),4HF1-S ENG(RLS) 08.900 (A) M8X12 FLANGE IDN	0-28080-812-0	02	1	0211-0507		●
62	01.271 BOLT; STAY 4HF1-N ENG(RJZ) 08.900 (A) M8X12 FLANGE IDN	0-28080-812-0	02	1	0508-0609	●
62	01.271 BOLT; STAY 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 08.900 (A) M8X12 FLANGE IDN	0-28080-812-0	02	1	0508-0609		●
62	01.271 BOLT; STAY 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 08.900 (A) M8X12 FLANGE IDN	0-28080-812-0	02	1	0610-0712	●
62	01.271 BOLT; STAY 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 08.900 (A) M8X12 FLANGE IDN	0-28080-812-0	02	1	0610-0712		●
62	01.271 BOLT; STAY 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 08.900 (A) M8X12 FLANGE IDN	0-28080-812-0	02	1	0801-	●
62	01.271 BOLT; STAY 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 08.900 (A) M8X12 FLANGE IDN	0-28080-812-0	02	1	0801-		●
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0211-	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 03.405 (A) ID=8.5 OD=36	8-94221-082-0	02	1	0211-0610	●	●
74	01.270 WASHER; PL,CUSHION RUBBER (A) ID=8.5 OD=36	8-97359-049-1	02	1	0611-	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0211-	●	●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 01.274 M8X63	8-94249-446-0	01	1	0211-	●	●
204	01.267 GUIDE ASM; AIR AIR CONDITIONER MANUAL CONT(C60) IDN	8-97035-512-3	01	1	0211-0609	●	●
204	01.267 GUIDE ASM; AIR 4HG1 ENG(RJH) EXC. AIR CONDITIONER MANUAL CONT(C60) IDN	8-97035-512-3	01	1	0211-0609		●
204	01.267 GUIDE ASM; AIR AIR CONDITIONER MANUAL CONT(C60) IDN	8-97035-512-3	01	1	0610-	●	●
204	01.267 GUIDE ASM; AIR 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. AIR CONDITIONER MANUAL CONT(C60) IDN	8-97035-512-3	01	1	0610-		●
205	01.267 BOLT; AIR GUIDE AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	04	1	0211-0512	●	●
205	01.267 BOLT; AIR GUIDE 4HG1 ENG(RJH) EXC. AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	04	1	0211-0512		●
205	01.267 BOLT; AIR GUIDE AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	04	1	0601-0609	●	●
205	01.267 BOLT; AIR GUIDE 4HG1 ENG(RJH) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	04	1	0601-0609		●
205	01.267 BOLT; AIR GUIDE AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	04	1	0610-	●	●
205	01.267 BOLT; AIR GUIDE 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	04	1	0610-		●
240	01.271 NUT; STAY M8 FLANGE	8-94178-701-0	01	1	0211-	●	●
518	01.270 NUT 00.854 M8 FLANGE	5-09440-005-0	02	1	0211-0610	●	●
518	01.270 NUT 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	0611-	●	●

1 1 131 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.219 RADIATOR ASM 4HF1-S ENG(RLS) IDN	8-97162-142-2	01	1	0211-0507	●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH),4HF1-S ENG(RLS) IDN	8-97162-142-2	01	1	0211-0507		●
1	01.219 RADIATOR ASM 4HF1-N ENG(RJZ) IDN	8-97162-142-2	01	1	0508-0609	●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97162-142-2	01	1	0508-0609		●
1	01.219 RADIATOR ASM 4HF1-N ENG(RJZ) IDN	8-97162-142-2	01	1	0610-	●
1	01.219 RADIATOR ASM 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97162-142-2	01	1	0610-		●
1	01.219 RADIATOR ASM 4JB1-TC ENG(RDT)	8-97178-662-2	01	1	0610-0712	●
1	01.219 RADIATOR ASM 4JB1-TC ENG(RDT)	8-97178-662-2	01	1	0801-	●	●
131	01.166 CLIP; ENG SIDE TOP 4HF1-S ENG(RLS) ID=40	8-97245-216-0	01	1	0211-0507	●
131	01.166 CLIP; ENG SIDE TOP 4HG1 ENG(RJH),4HF1-S ENG(RLS) ID=40	8-97245-216-0	01	1	0211-0507		●
131	01.166 CLIP; ENG SIDE TOP 4HF1-N ENG(RJZ) ID=40	8-97245-216-0	01	1	0508-0609	●
131	01.166 CLIP; ENG SIDE TOP 4HG1 ENG(RJH),4HF1-N ENG(RJZ) ID=40	8-97245-216-0	01	1	0508-0609		●
131	01.166 CLIP; ENG SIDE TOP 4HF1-N ENG(RJZ) ID=40	8-97245-216-0	01	1	0610-	●
131	01.166 CLIP; ENG SIDE TOP 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) ID=40	8-97245-216-0	01	1	0610-		●
131	01.166 CLIP; ENG SIDE TOP 4JB1-TC ENG(RDT) ID=42	5-09704-047-1	01	1	0610-0712	●
131	01.166 CLIP; ENG SIDE TOP 4JB1-TC ENG(RDT) ID=42	5-09704-047-1	01	1	0801-0901	●	●
131	01.166 CLIP; ENG SIDE TOP 4JB1-TC ENG(RDT) ID=42	8-98133-958-0	01	1	0902-	●	●

1 81 2 16 62 70 52 51 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.219 RADIATOR ASM 4HF1-S ENG(RLS) IDN	8-97162-142-2	01	1	0211-0507	●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH),4HF1-S ENG(RLS) IDN	8-97162-142-2	01	1	0211-0507		●
1	01.219 RADIATOR ASM 4HF1-N ENG(RJZ) IDN	8-97162-142-2	01	1	0508-0609	●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97162-142-2	01	1	0508-0609		●
1	01.219 RADIATOR ASM 4HF1-N ENG(RJZ) IDN	8-97162-142-2	01	1	0610-	●
1	01.219 RADIATOR ASM 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97162-142-2	01	1	0610-		●
1	01.219 RADIATOR ASM 4JB1-TC ENG(RDT)	8-97178-662-2	01	1	0610-0712	●
1	01.219 RADIATOR ASM 4JB1-TC ENG(RDT)	8-97178-662-2	01	1	0801-	●	●
2	01.277 GUIDE; FAN 4HF1-S ENG(RLS)	8-97203-091-0	01	1	0211-0507	●
2	01.277 GUIDE; FAN 4HG1 ENG(RJH),4HF1-S ENG(RLS)	8-97203-091-0	01	1	0211-0507		●
2	01.277 GUIDE; FAN 4HF1-N ENG(RJZ)	8-97203-091-0	01	1	0508-0609	●
2	01.277 GUIDE; FAN 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-97203-091-0	01	1	0508-0609		●
2	01.277 GUIDE; FAN 4HF1-N ENG(RJZ)	8-97203-091-0	01	1	0610-	●
2	01.277 GUIDE; FAN 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-97203-091-0	01	1	0610-		●
2	01.277 GUIDE; FAN 4JB1-TC ENG(RDT) IDN	8-97066-011-0	01	1	0610-0712	●
2	01.277 GUIDE; FAN 4JB1-TC ENG(RDT) IDN	8-97066-011-0	01	1	0801-	●	●
16	01.203 CAP; RAD 4HF1-S ENG(RLS)	8-97177-872-0	01	1	0211-0507	●
16	01.203 CAP; RAD 4HG1 ENG(RJH),4HF1-S ENG(RLS)	8-97177-872-0	01	1	0211-0507		●
16	01.203 CAP; RAD 4HF1-N ENG(RJZ)	8-97177-872-0	01	1	0508-0609	●
16	01.203 CAP; RAD 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-97177-872-0	01	1	0508-0609		●
16	01.203 CAP; RAD 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ)	8-97177-872-0	01	1	0610-0712	●
16	01.203 CAP; RAD 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-97177-872-0	01	1	0610-0712		●
16	01.203 CAP; RAD 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ)	8-97177-872-0	01	1	0801-	●
16	01.203 CAP; RAD 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-97177-872-0	01	1	0801-		●
21	01.276 SEAL; RAD 4HF1-S ENG(RLS) (A)	8-97164-332-0	01	1	0211-0507	●
21	01.276 SEAL; RAD 4HG1 ENG(RJH),4HF1-S ENG(RLS) (A)	8-97164-332-0	01	1	0211-0507		●
21	01.276 SEAL; RAD 4HF1-N ENG(RJZ) (A)	8-97164-332-0	01	1	0508-0609	●
21	01.276 SEAL; RAD 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A)	8-97164-332-0	01	1	0508-0609		●
21	01.276 SEAL; RAD 4HF1-N ENG(RJZ) (A)	8-97164-332-0	01	1	0610-	●
21	01.276 SEAL; RAD 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A)	8-97164-332-0	01	1	0610-		●
21	01.276 SEAL; RAD 4HF1-S ENG(RLS) (B)	8-97164-333-0	01	1	0211-0507	●
21	01.276 SEAL; RAD 4HG1 ENG(RJH),4HF1-S ENG(RLS) (B)	8-97164-333-0	01	1	0211-0507		●
21	01.276 SEAL; RAD 4HF1-N ENG(RJZ) (B)	8-97164-333-0	01	1	0508-0609	●
21	01.276 SEAL; RAD 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B)	8-97164-333-0	01	1	0508-0609		●
21	01.276 SEAL; RAD 4HF1-N ENG(RJZ) (B)	8-97164-333-0	01	1	0610-	●
21	01.276 SEAL; RAD 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B)	8-97164-333-0	01	1	0610-		●
21	01.276 SEAL; RAD 4JB1-TC ENG(RDT) (C)	8-97219-806-1	01	1	0610-0712	●
21	01.276 SEAL; RAD 4JB1-TC ENG(RDT) (C)	8-97219-806-1	01	1	0801-	●	●
51	08.951 PLUG; DRAIN 4HF1-S ENG(RLS) 08.915 W/GASKET	8-94321-236-0	01	1	0211-0507	●
51	08.951 PLUG; DRAIN 4HG1 ENG(RJH),4HF1-S ENG(RLS) 08.915 W/GASKET	8-94321-236-0	01	1	0211-0507		●
51	08.951 PLUG; DRAIN 4HF1-N ENG(RJZ) 08.915 W/GASKET	8-94321-236-0	01	1	0508-0609	●
51	08.951 PLUG; DRAIN 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 08.915 W/GASKET	8-94321-236-0	01	1	0508-0609		●
51	08.951 PLUG; DRAIN 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 08.915 W/GASKET	8-94321-236-0	01	1	0610-0712	●
51	08.951 PLUG; DRAIN 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 08.915 W/GASKET	8-94321-236-0	01	1	0610-0712		●
51	08.951 PLUG; DRAIN 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 08.915 W/GASKET	8-94321-236-0	01	1	0801-	●
51	08.951 PLUG; DRAIN 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 08.915 W/GASKET	8-94321-236-0	01	1	0801-		●
52	08.951 GASKET; DRAIN PLUG 4HF1-S ENG(RLS) 01.203 ID=10	9-09720-557-0	01	1	0211-0507	●
52	08.951 GASKET; DRAIN PLUG 4HG1 ENG(RJH),4HF1-S ENG(RLS) 01.203 ID=10	9-09720-557-0	01	1	0211-0507		●
52	08.951 GASKET; DRAIN PLUG 4HF1-N ENG(RJZ) 01.203 ID=10	9-09720-557-0	01	1	0508-0609	●
52	08.951 GASKET; DRAIN PLUG 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.203 ID=10	9-09720-557-0	01	1	0508-0609		●
52	08.951 GASKET; DRAIN PLUG 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 01.203 ID=10	9-09720-557-0	01	1	0610-0712	●
52	08.951 GASKET; DRAIN PLUG 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.203 ID=10	9-09720-557-0	01	1	0610-0712		●
52	08.951 GASKET; DRAIN PLUG 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 01.203 ID=10	9-09720-557-0	01	1	0801-	●
52	08.951 GASKET; DRAIN PLUG 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.203 ID=10	9-09720-557-0	01	1	0801-		●
62	01.271 BOLT; STAY 4HF1-S ENG(RLS) 08.900 (A) M8X12 FLANGE IDN	0-28080-812-0	02	1	0211-0507	●
62	01.271 BOLT; STAY 4HG1 ENG(RJH),4HF1-S ENG(RLS) 08.900 (A) M8X12 FLANGE IDN	0-28080-812-0	02	1	0211-0507		●
62	01.271 BOLT; STAY 4HF1-N ENG(RJZ) 08.900 (A) M8X12 FLANGE IDN	0-28080-812-0	02	1	0508-0609	●
62	01.271 BOLT; STAY 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 08.900 (A) M8X12 FLANGE IDN	0-28080-812-0	02	1	0508-0609		●
62	01.271 BOLT; STAY 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 08.900 (A) M8X12 FLANGE IDN	0-28080-812-0	02	1	0610-0712	●
62	01.271 BOLT; STAY 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 08.900 (A) M8X12 FLANGE IDN	0-28080-812-0	02	1	0610-0712		●
62	01.271 BOLT; STAY 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 08.900 (A) M8X12 FLANGE IDN	0-28080-812-0	02	1	0801-	●
62	01.271 BOLT; STAY 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 08.900 (A) M8X12 FLANGE IDN	0-28080-812-0	02	1	0801-		●
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0211-	●	●
70	01.271 STAY; RAD 4HF1-S ENG(RLS) IDN	8-97047-899-0	01	1	0211-0507	●
70	01.271 STAY; RAD 4HG1 ENG(RJH),4HF1-S ENG(RLS) IDN	8-97047-899-0	01	1	0211-0507		●
70	01.271 STAY; RAD 4HF1-N ENG(RJZ) IDN	8-97047-899-0	01	1	0508-0609	●
70	01.271 STAY; RAD 4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97047-899-0	01	1	0508-0609		●
70	01.271 STAY; RAD 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) IDN	8-97047-899-0	01	1	0610-0712	●
70	01.271 STAY; RAD 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97047-899-0	01	1	0610-0712		●
70	01.271 STAY; RAD 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) IDN	8-97047-899-0	01	1	0801-	●
70	01.271 STAY; RAD 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97047-899-0	01	1	0801-		●
81	01.277 SCREW; FAN GUIDE,RAD 4HF1-S ENG(RLS) IDN	8-97088-810-0	04	1	0211-0507	●
81	01.277 SCREW; FAN GUIDE,RAD 4HG1 ENG(RJH),4HF1-S ENG(RLS) IDN	8-97088-810-0	04	1	0211-0507		●
81	01.277 SCREW; FAN GUIDE,RAD 4HF1-N ENG(RJZ) IDN	8-97088-810-0	04	1	0508-0609	●
81	01.277 SCREW; FAN GUIDE,RAD 4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97088-810-0	04	1	0508-0609		●
81	01.277 SCREW; FAN GUIDE,RAD 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) IDN	8-97088-810-0	04	1	0610-0712	●
81	01.277 SCREW; FAN GUIDE,RAD 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97088-810-0	04	1	0610-0712		●
81	01.277 SCREW; FAN GUIDE,RAD 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) IDN	8-97088-810-0	04	1	0801-	●
81	01.277 SCREW; FAN GUIDE,RAD 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97088-810-0	04	1	0801-		●

21 21 81 2 16 70 51 52 62 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.219 RADIATOR ASM 4HF1-S ENG(RLS) IDN	8-97162-142-2	01	1	0211-0507	●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH),4HF1-S ENG(RLS) IDN	8-97162-142-2	01	1	0211-0507		●
1	01.219 RADIATOR ASM 4HF1-N ENG(RJZ) IDN	8-97162-142-2	01	1	0508-0609	●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97162-142-2	01	1	0508-0609		●
1	01.219 RADIATOR ASM 4HF1-N ENG(RJZ) IDN	8-97162-142-2	01	1	0610-	●
1	01.219 RADIATOR ASM 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97162-142-2	01	1	0610-		●
1	01.219 RADIATOR ASM 4JB1-TC ENG(RDT)	8-97178-662-2	01	1	0610-0712	●
1	01.219 RADIATOR ASM 4JB1-TC ENG(RDT)	8-97178-662-2	01	1	0801-	●	●
2	01.277 GUIDE; FAN 4HF1-S ENG(RLS)	8-97203-091-0	01	1	0211-0507	●
2	01.277 GUIDE; FAN 4HG1 ENG(RJH),4HF1-S ENG(RLS)	8-97203-091-0	01	1	0211-0507		●
2	01.277 GUIDE; FAN 4HF1-N ENG(RJZ)	8-97203-091-0	01	1	0508-0609	●
2	01.277 GUIDE; FAN 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-97203-091-0	01	1	0508-0609		●
2	01.277 GUIDE; FAN 4HF1-N ENG(RJZ)	8-97203-091-0	01	1	0610-	●
2	01.277 GUIDE; FAN 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-97203-091-0	01	1	0610-		●
2	01.277 GUIDE; FAN 4JB1-TC ENG(RDT) IDN	8-97066-011-0	01	1	0610-0712	●
2	01.277 GUIDE; FAN 4JB1-TC ENG(RDT) IDN	8-97066-011-0	01	1	0801-	●	●
16	01.203 CAP; RAD 4HF1-S ENG(RLS)	8-97177-872-0	01	1	0211-0507	●
16	01.203 CAP; RAD 4HG1 ENG(RJH),4HF1-S ENG(RLS)	8-97177-872-0	01	1	0211-0507		●
16	01.203 CAP; RAD 4HF1-N ENG(RJZ)	8-97177-872-0	01	1	0508-0609	●
16	01.203 CAP; RAD 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-97177-872-0	01	1	0508-0609		●
16	01.203 CAP; RAD 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ)	8-97177-872-0	01	1	0610-0712	●
16	01.203 CAP; RAD 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-97177-872-0	01	1	0610-0712		●
16	01.203 CAP; RAD 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ)	8-97177-872-0	01	1	0801-	●
16	01.203 CAP; RAD 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-97177-872-0	01	1	0801-		●
21	01.276 SEAL; RAD 4HF1-S ENG(RLS) (A)	8-97164-332-0	01	1	0211-0507	●
21	01.276 SEAL; RAD 4HG1 ENG(RJH),4HF1-S ENG(RLS) (A)	8-97164-332-0	01	1	0211-0507		●
21	01.276 SEAL; RAD 4HF1-N ENG(RJZ) (A)	8-97164-332-0	01	1	0508-0609	●
21	01.276 SEAL; RAD 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A)	8-97164-332-0	01	1	0508-0609		●
21	01.276 SEAL; RAD 4HF1-N ENG(RJZ) (A)	8-97164-332-0	01	1	0610-	●
21	01.276 SEAL; RAD 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A)	8-97164-332-0	01	1	0610-		●
21	01.276 SEAL; RAD 4HF1-S ENG(RLS) (B)	8-97164-333-0	01	1	0211-0507	●
21	01.276 SEAL; RAD 4HG1 ENG(RJH),4HF1-S ENG(RLS) (B)	8-97164-333-0	01	1	0211-0507		●
21	01.276 SEAL; RAD 4HF1-N ENG(RJZ) (B)	8-97164-333-0	01	1	0508-0609	●
21	01.276 SEAL; RAD 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B)	8-97164-333-0	01	1	0508-0609		●
21	01.276 SEAL; RAD 4HF1-N ENG(RJZ) (B)	8-97164-333-0	01	1	0610-	●
21	01.276 SEAL; RAD 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B)	8-97164-333-0	01	1	0610-		●
21	01.276 SEAL; RAD 4JB1-TC ENG(RDT) (C)	8-97219-806-1	01	1	0610-0712	●
21	01.276 SEAL; RAD 4JB1-TC ENG(RDT) (C)	8-97219-806-1	01	1	0801-	●	●
51	08.951 PLUG; DRAIN 4HF1-S ENG(RLS) 08.915 W/GASKET	8-94321-236-0	01	1	0211-0507	●
51	08.951 PLUG; DRAIN 4HG1 ENG(RJH),4HF1-S ENG(RLS) 08.915 W/GASKET	8-94321-236-0	01	1	0211-0507		●
51	08.951 PLUG; DRAIN 4HF1-N ENG(RJZ) 08.915 W/GASKET	8-94321-236-0	01	1	0508-0609	●
51	08.951 PLUG; DRAIN 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 08.915 W/GASKET	8-94321-236-0	01	1	0508-0609		●
51	08.951 PLUG; DRAIN 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 08.915 W/GASKET	8-94321-236-0	01	1	0610-0712	●
51	08.951 PLUG; DRAIN 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 08.915 W/GASKET	8-94321-236-0	01	1	0610-0712		●
51	08.951 PLUG; DRAIN 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 08.915 W/GASKET	8-94321-236-0	01	1	0801-	●
51	08.951 PLUG; DRAIN 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 08.915 W/GASKET	8-94321-236-0	01	1	0801-		●
52	08.951 GASKET; DRAIN PLUG 4HF1-S ENG(RLS) 01.203 ID=10	9-09720-557-0	01	1	0211-0507	●
52	08.951 GASKET; DRAIN PLUG 4HG1 ENG(RJH),4HF1-S ENG(RLS) 01.203 ID=10	9-09720-557-0	01	1	0211-0507		●
52	08.951 GASKET; DRAIN PLUG 4HF1-N ENG(RJZ) 01.203 ID=10	9-09720-557-0	01	1	0508-0609	●
52	08.951 GASKET; DRAIN PLUG 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.203 ID=10	9-09720-557-0	01	1	0508-0609		●
52	08.951 GASKET; DRAIN PLUG 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 01.203 ID=10	9-09720-557-0	01	1	0610-0712	●
52	08.951 GASKET; DRAIN PLUG 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.203 ID=10	9-09720-557-0	01	1	0610-0712		●
52	08.951 GASKET; DRAIN PLUG 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 01.203 ID=10	9-09720-557-0	01	1	0801-	●
52	08.951 GASKET; DRAIN PLUG 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.203 ID=10	9-09720-557-0	01	1	0801-		●
62	01.271 BOLT; STAY 4HF1-S ENG(RLS) 08.900 (A) M8X12 FLANGE IDN	0-28080-812-0	02	1	0211-0507	●
62	01.271 BOLT; STAY 4HG1 ENG(RJH),4HF1-S ENG(RLS) 08.900 (A) M8X12 FLANGE IDN	0-28080-812-0	02	1	0211-0507		●
62	01.271 BOLT; STAY 4HF1-N ENG(RJZ) 08.900 (A) M8X12 FLANGE IDN	0-28080-812-0	02	1	0508-0609	●
62	01.271 BOLT; STAY 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 08.900 (A) M8X12 FLANGE IDN	0-28080-812-0	02	1	0508-0609		●
62	01.271 BOLT; STAY 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 08.900 (A) M8X12 FLANGE IDN	0-28080-812-0	02	1	0610-0712	●
62	01.271 BOLT; STAY 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 08.900 (A) M8X12 FLANGE IDN	0-28080-812-0	02	1	0610-0712		●
62	01.271 BOLT; STAY 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 08.900 (A) M8X12 FLANGE IDN	0-28080-812-0	02	1	0801-	●
62	01.271 BOLT; STAY 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 08.900 (A) M8X12 FLANGE IDN	0-28080-812-0	02	1	0801-		●
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0211-	●	●
70	01.271 STAY; RAD 4HF1-S ENG(RLS) IDN	8-97047-899-0	01	1	0211-0507	●
70	01.271 STAY; RAD 4HG1 ENG(RJH),4HF1-S ENG(RLS) IDN	8-97047-899-0	01	1	0211-0507		●
70	01.271 STAY; RAD 4HF1-N ENG(RJZ) IDN	8-97047-899-0	01	1	0508-0609	●
70	01.271 STAY; RAD 4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97047-899-0	01	1	0508-0609		●
70	01.271 STAY; RAD 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) IDN	8-97047-899-0	01	1	0610-0712	●
70	01.271 STAY; RAD 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97047-899-0	01	1	0610-0712		●
70	01.271 STAY; RAD 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) IDN	8-97047-899-0	01	1	0801-	●
70	01.271 STAY; RAD 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97047-899-0	01	1	0801-		●
81	01.277 SCREW; FAN GUIDE,RAD 4HF1-S ENG(RLS) IDN	8-97088-810-0	04	1	0211-0507	●
81	01.277 SCREW; FAN GUIDE,RAD 4HG1 ENG(RJH),4HF1-S ENG(RLS) IDN	8-97088-810-0	04	1	0211-0507		●
81	01.277 SCREW; FAN GUIDE,RAD 4HF1-N ENG(RJZ) IDN	8-97088-810-0	04	1	0508-0609	●
81	01.277 SCREW; FAN GUIDE,RAD 4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97088-810-0	04	1	0508-0609		●
81	01.277 SCREW; FAN GUIDE,RAD 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) IDN	8-97088-810-0	04	1	0610-0712	●
81	01.277 SCREW; FAN GUIDE,RAD 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97088-810-0	04	1	0610-0712		●
81	01.277 SCREW; FAN GUIDE,RAD 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) IDN	8-97088-810-0	04	1	0801-	●
81	01.277 SCREW; FAN GUIDE,RAD 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97088-810-0	04	1	0801-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
