Sayfa 1-01 - Isuzu EPC

1-01 — ACCELERATOR PEDAL AND CONTROL (#78913) — 313 parça

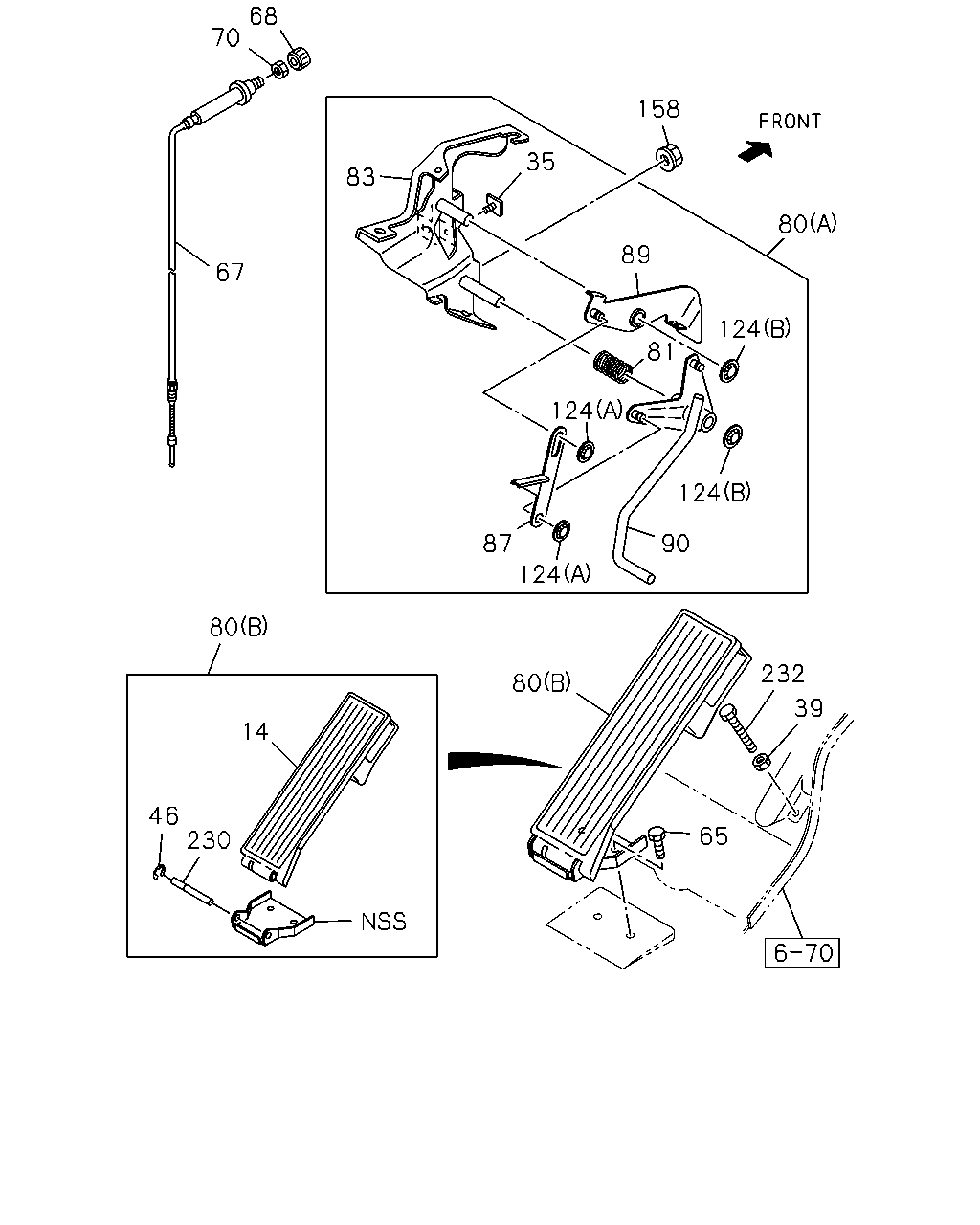

68 70 158 35 83 80 89 67 124 81 124 124 87 90 124 80 232 80 39 14 46 230 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	03.451 PAD; PEDAL,ACCEL IDN	8-97853-062-2	01	1	0211-	●	●
35	03.459 STOPPER; ACCEL PEDAL 4HF1-S ENG(RLS)	8-97302-305-0	01	1	0211-0507	●
35	03.459 STOPPER; ACCEL PEDAL 4HG1 ENG(RJH),4HF1-S ENG(RLS)	8-97302-305-0	01	1	0211-0507		●
35	03.459 STOPPER; ACCEL PEDAL 4HF1-N ENG(RJZ)	8-97302-305-0	01	1	0508-0609	●
35	03.459 STOPPER; ACCEL PEDAL 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-97302-305-0	01	1	0508-0609		●
35	03.459 STOPPER; ACCEL PEDAL 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ)	8-97302-305-0	01	1	0610-0712	●
35	03.459 STOPPER; ACCEL PEDAL 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-97302-305-0	01	1	0610-0712		●
35	03.459 STOPPER; ACCEL PEDAL 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ)	8-97302-305-0	01	1	0801-	●
35	03.459 STOPPER; ACCEL PEDAL 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-97302-305-0	01	1	0801-		●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.559 M8	9-09110-408-0	01	1	0211-0512	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.334 M8 IDN	0-91110-508-0	01	1	0601-	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	0211-0604	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4 IDN	0-91805-504-0	01	1	0605-	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	0211-	●	●
67	03.480 CABLE ASM; IDLE CONT 4HF1-S ENG(RLS) L=439 IDN	8-97853-058-1	01	1	0211-0507	●
67	03.480 CABLE ASM; IDLE CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) L=439 IDN	8-97853-058-1	01	1	0211-0507		●
67	03.480 CABLE ASM; IDLE CONT 4HF1-N ENG(RJZ) L=439 IDN	8-97853-058-1	01	1	0508-0609	●
67	03.480 CABLE ASM; IDLE CONT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) L=439 IDN	8-97853-058-1	01	1	0508-0609		●
67	03.480 CABLE ASM; IDLE CONT 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) L=439 IDN	8-97853-058-1	01	1	0610-0712	●
67	03.480 CABLE ASM; IDLE CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) L=439 IDN	8-97853-058-1	01	1	0610-0712		●
67	03.480 CABLE ASM; IDLE CONT 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) L=439 IDN	8-97853-058-1	01	1	0801-	●
67	03.480 CABLE ASM; IDLE CONT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) L=439 IDN	8-97853-058-1	01	1	0801-		●
68	03.480 KNOB; IDLE CONT 4HF1-S ENG(RLS) IDN	8-97853-765-1	01	1	0211-0507	●
68	03.480 KNOB; IDLE CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) IDN	8-97853-765-1	01	1	0211-0507		●
68	03.480 KNOB; IDLE CONT 4HF1-N ENG(RJZ) IDN	8-97853-765-1	01	1	0508-0609	●
68	03.480 KNOB; IDLE CONT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97853-765-1	01	1	0508-0609		●
68	03.480 KNOB; IDLE CONT 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) IDN	8-97853-765-1	01	1	0610-0712	●
68	03.480 KNOB; IDLE CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97853-765-1	01	1	0610-0712		●
68	03.480 KNOB; IDLE CONT 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) IDN	8-97853-765-1	01	1	0801-	●
68	03.480 KNOB; IDLE CONT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97853-765-1	01	1	0801-		●
70	03.483 NUT; CONT CABLE 4HF1-S ENG(RLS) M18 IDN	8-97853-233-0	01	1	0211-0507	●
70	03.483 NUT; CONT CABLE 4HG1 ENG(RJH),4HF1-S ENG(RLS) M18 IDN	8-97853-233-0	01	1	0211-0507		●
70	03.483 NUT; CONT CABLE 4HF1-N ENG(RJZ) M18 IDN	8-97853-233-0	01	1	0508-0609	●
70	03.483 NUT; CONT CABLE 4HG1 ENG(RJH),4HF1-N ENG(RJZ) M18 IDN	8-97853-233-0	01	1	0508-0609		●
70	03.483 NUT; CONT CABLE 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) M18 IDN	8-97853-233-0	01	1	0610-0712	●
70	03.483 NUT; CONT CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) M18 IDN	8-97853-233-0	01	1	0610-0712		●
70	03.483 NUT; CONT CABLE 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) M18 IDN	8-97853-233-0	01	1	0801-	●
70	03.483 NUT; CONT CABLE 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) M18 IDN	8-97853-233-0	01	1	0801-		●
80	03.452 LINK ASM; ENG CONT 4HF1-S ENG(RLS) (A)	8-97853-057-9	01	1	0211-0507	●
80	03.452 LINK ASM; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) (A)	8-97853-057-9	01	1	0211-0507		●
80	03.452 LINK ASM; ENG CONT 4HF1-N ENG(RJZ) (A)	8-97853-057-9	01	1	0508-0609	●
80	03.452 LINK ASM; ENG CONT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A)	8-97853-057-9	01	1	0508-0609		●
80	03.452 LINK ASM; ENG CONT 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (A)	8-97853-057-9	01	1	0610-0712	●
80	03.452 LINK ASM; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A)	8-97853-057-9	01	1	0610-0712		●
80	03.452 LINK ASM; ENG CONT 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (A)	8-97853-057-9	01	1	0801-	●
80	03.452 LINK ASM; ENG CONT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A)	8-97853-057-9	01	1	0801-		●
80	03.452 LINK ASM; ENG CONT (B) IDN	8-97853-061-2	01	1	0211-	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4HF1-S ENG(RLS)	8-97853-205-1	01	1	0211-0507	●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4HG1 ENG(RJH),4HF1-S ENG(RLS)	8-97853-205-1	01	1	0211-0507		●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4HF1-N ENG(RJZ)	8-97853-205-1	01	1	0508-0609	●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-97853-205-1	01	1	0508-0609		●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ)	8-97853-205-1	01	1	0610-0712	●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-97853-205-1	01	1	0610-0712		●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ)	8-97853-205-1	01	1	0801-	●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-97853-205-1	01	1	0801-		●
83	03.452 BRACKET; CONT LINK 4HF1-S ENG(RLS)	8-97853-201-4	01	1	0211-0507	●
83	03.452 BRACKET; CONT LINK 4HG1 ENG(RJH),4HF1-S ENG(RLS)	8-97853-201-4	01	1	0211-0507		●
83	03.452 BRACKET; CONT LINK 4HF1-N ENG(RJZ)	8-97853-201-4	01	1	0508-0609	●
83	03.452 BRACKET; CONT LINK 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-97853-201-4	01	1	0508-0609		●
83	03.452 BRACKET; CONT LINK 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ)	8-97853-201-4	01	1	0610-0712	●
83	03.452 BRACKET; CONT LINK 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-97853-201-4	01	1	0610-0712		●
83	03.452 BRACKET; CONT LINK 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ)	8-97853-201-4	01	1	0801-	●
83	03.452 BRACKET; CONT LINK 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-97853-201-4	01	1	0801-		●
87	03.454 LINK; ENG CONT 4HF1-S ENG(RLS)	8-97853-204-1	01	1	0211-0507	●
87	03.454 LINK; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS)	8-97853-204-1	01	1	0211-0507		●
87	03.454 LINK; ENG CONT 4HF1-N ENG(RJZ)	8-97853-204-1	01	1	0508-0609	●
87	03.454 LINK; ENG CONT 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-97853-204-1	01	1	0508-0609		●
87	03.454 LINK; ENG CONT 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ)	8-97853-204-1	01	1	0610-0712	●
87	03.454 LINK; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-97853-204-1	01	1	0610-0712		●
87	03.454 LINK; ENG CONT 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ)	8-97853-204-1	01	1	0801-	●
87	03.454 LINK; ENG CONT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-97853-204-1	01	1	0801-		●
89	03.454 LEVER; RELAY 4HF1-S ENG(RLS)	8-97868-042-0	01	1	0211-0507	●
89	03.454 LEVER; RELAY 4HG1 ENG(RJH),4HF1-S ENG(RLS)	8-97868-042-0	01	1	0211-0507		●
89	03.454 LEVER; RELAY 4HF1-N ENG(RJZ)	8-97868-042-0	01	1	0508-0609	●
89	03.454 LEVER; RELAY 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-97868-042-0	01	1	0508-0609		●
89	03.454 LEVER; RELAY 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ)	8-97868-042-0	01	1	0610-0712	●
89	03.454 LEVER; RELAY 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-97868-042-0	01	1	0610-0712		●
89	03.454 LEVER; RELAY 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ)	8-97868-042-0	01	1	0801-	●
89	03.454 LEVER; RELAY 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-97868-042-0	01	1	0801-		●
90	03.454 LEVER; RELAY,ENG CONT 4HF1-S ENG(RLS)	8-97868-039-0	01	1	0211-0507	●
90	03.454 LEVER; RELAY,ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS)	8-97868-039-0	01	1	0211-0507		●
90	03.454 LEVER; RELAY,ENG CONT 4HF1-N ENG(RJZ)	8-97868-039-0	01	1	0508-0609	●
90	03.454 LEVER; RELAY,ENG CONT 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-97868-039-0	01	1	0508-0609		●
90	03.454 LEVER; RELAY,ENG CONT 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ)	8-97868-039-0	01	1	0610-0712	●
90	03.454 LEVER; RELAY,ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-97868-039-0	01	1	0610-0712		●
90	03.454 LEVER; RELAY,ENG CONT 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ)	8-97868-039-0	01	1	0801-	●
90	03.454 LEVER; RELAY,ENG CONT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-97868-039-0	01	1	0801-		●
124	03.463 NUT; LEVER 4HF1-S ENG(RLS) (A) ID=4.9 PUSH NUT	8-94279-042-0	02	1	0211-0507	●
124	03.463 NUT; LEVER 4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) ID=4.9 PUSH NUT	8-94279-042-0	02	1	0211-0507		●
124	03.463 NUT; LEVER 4HF1-N ENG(RJZ) (A) ID=4.9 PUSH NUT	8-94279-042-0	02	1	0508-0609	●
124	03.463 NUT; LEVER 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) ID=4.9 PUSH NUT	8-94279-042-0	02	1	0508-0609		●
124	03.463 NUT; LEVER 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (A) ID=4.9 PUSH NUT	8-94279-042-0	02	1	0610-0712	●
124	03.463 NUT; LEVER 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) ID=4.9 PUSH NUT	8-94279-042-0	02	1	0610-0712		●
124	03.463 NUT; LEVER 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (A) ID=4.9 PUSH NUT	8-94279-042-0	02	1	0801-	●
124	03.463 NUT; LEVER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) ID=4.9 PUSH NUT	8-94279-042-0	02	1	0801-		●
124	03.463 NUT; LEVER 4HF1-S ENG(RLS) 09.011 (B) ID=9.9 PUSH NUT	8-97012-098-0	02	1	0211-0507	●
124	03.463 NUT; LEVER 4HG1 ENG(RJH),4HF1-S ENG(RLS) 09.011 (B) ID=9.9 PUSH NUT	8-97012-098-0	02	1	0211-0507		●
124	03.463 NUT; LEVER 4HF1-N ENG(RJZ) 09.011 (B) ID=9.9 PUSH NUT	8-97012-098-0	02	1	0508-0609	●
124	03.463 NUT; LEVER 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 09.011 (B) ID=9.9 PUSH NUT	8-97012-098-0	02	1	0508-0609		●
124	03.463 NUT; LEVER 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 09.011 (B) ID=9.9 PUSH NUT	8-97012-098-0	02	1	0610-0712	●
124	03.463 NUT; LEVER 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 09.011 (B) ID=9.9 PUSH NUT	8-97012-098-0	02	1	0610-0712		●
124	03.463 NUT; LEVER 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 09.011 (B) ID=9.9 PUSH NUT	8-97012-098-0	02	1	0801-	●
124	03.463 NUT; LEVER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 09.011 (B) ID=9.9 PUSH NUT	8-97012-098-0	02	1	0801-		●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0211-	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT IDN	8-97853-064-0	01	1	0211-	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL 04.642 M8X65	0-20800-865-0	01	1	0211-0404	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	0405-	●	●

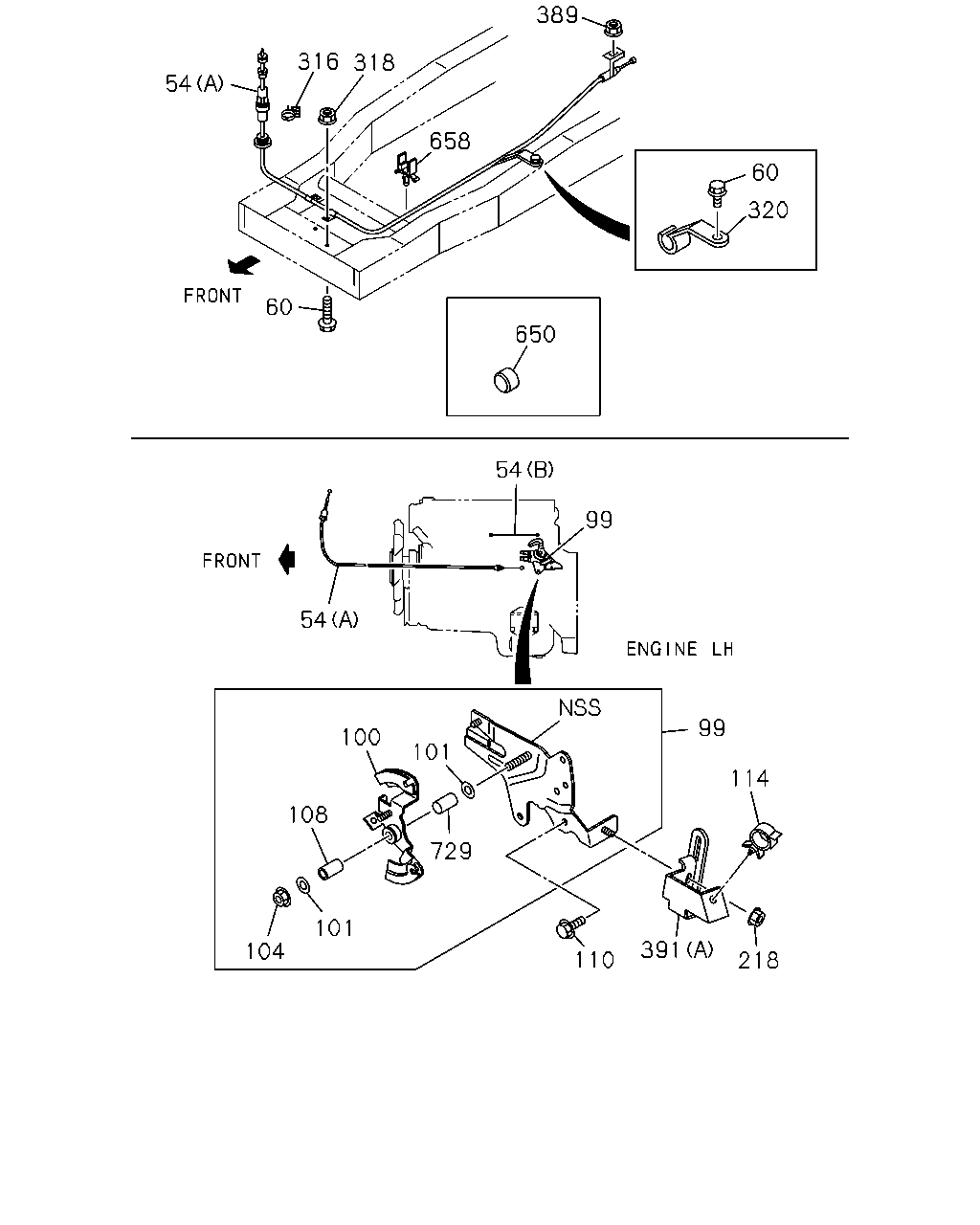

389 318 316 54 60 658 650 60 320 54 99 54 100 101 108 101 104 729 99 114 218 391 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	03.430 CABLE; ENG CONT 4HF1-S ENG(RLS) (A) L=2600 IDN	8-97118-865-2	01	1	0211-0507	●
54	03.430 CABLE; ENG CONT 4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) (A) L=2600 IDN	8-97118-865-2	01	1	0211-0507		●
54	03.430 CABLE; ENG CONT 4HF1-N ENG(RJZ) (A) L=2600 IDN	8-97118-865-2	01	1	0508-	●	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) (A) L=2703	8-97071-711-5	01	1	0211-0507		●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH) (A) L=2703	8-97071-711-5	01	1	0508-0609		●
54	03.430 CABLE; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A) L=2703	8-97071-711-5	01	1	0610-		●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) (B) L=293 IDN	8-97115-730-0	01	1	0211-0507		●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH) (B) L=293 IDN	8-97115-730-0	01	1	0508-0609		●
54	03.430 CABLE; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B) L=293 IDN	8-97115-730-0	01	1	0610-		●

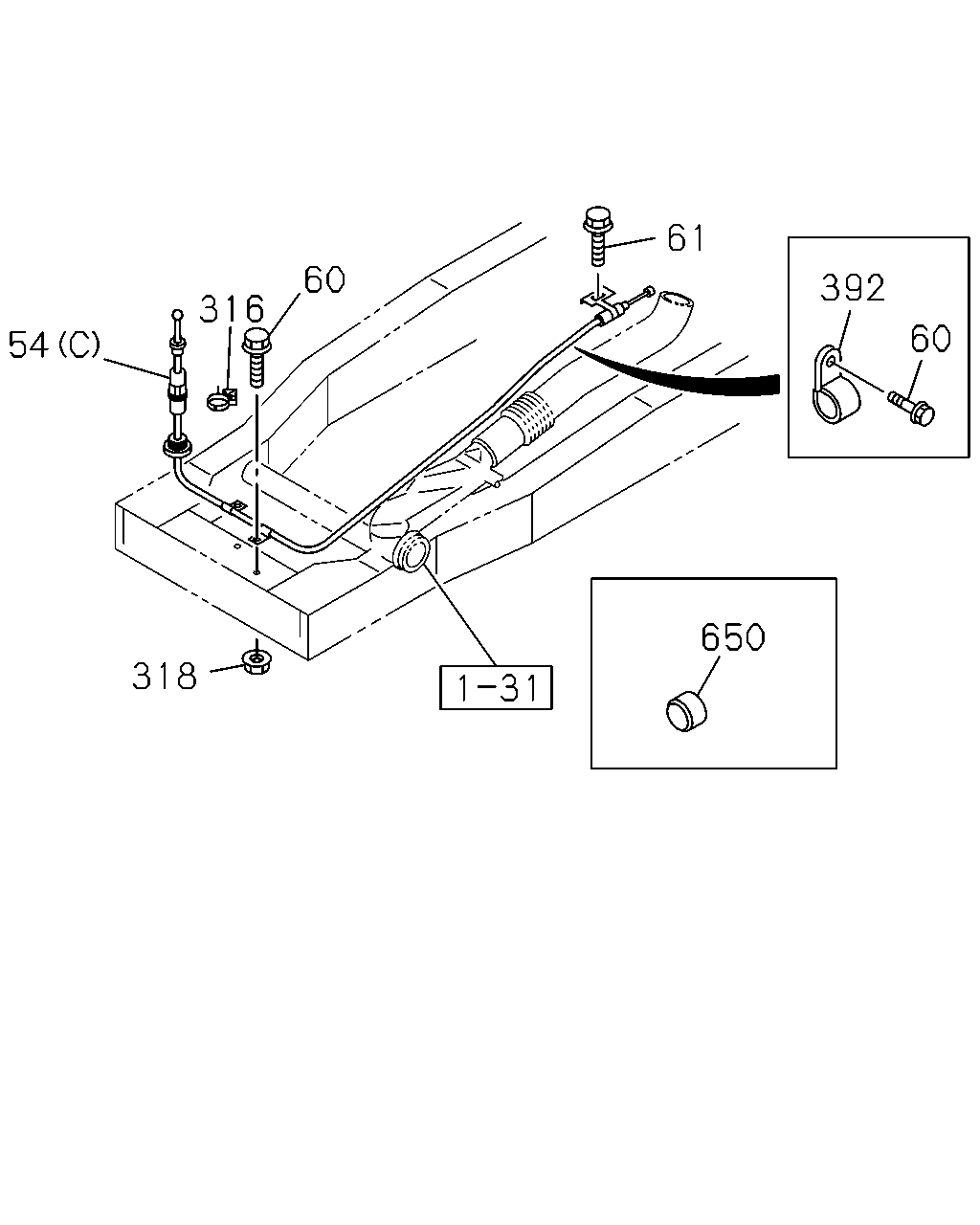

54	03.430 CABLE; ENG CONT 4JB1-TC ENG(RDT) (C) L=2330 IDN	8-97387-019-0	01	1	0610-0712	●
54	03.430 CABLE; ENG CONT 4JB1-TC ENG(RDT) (C) L=2330 IDN	8-97387-019-0	01	1	0801-	●	●
60	08.155 BOLT; CABLE 4HF1-S ENG(RLS) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0211-0507	●
60	08.155 BOLT; CABLE 4HG1 ENG(RJH),4HF1-S ENG(RLS) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0211-0507		●
60	08.155 BOLT; CABLE 4HF1-N ENG(RJZ) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0508-0512	●
60	08.155 BOLT; CABLE 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0508-0512		●
60	08.155 BOLT; CABLE 4HF1-N ENG(RJZ) 01.531 M8X20 FLANGE IDN	0-28650-820-0	01	1	0601-0609	●
60	08.155 BOLT; CABLE 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.531 M8X20 FLANGE IDN	0-28650-820-0	01	1	0601-0609		●
60	08.155 BOLT; CABLE 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 01.531 M8X20 FLANGE IDN	0-28650-820-0	02	1	0610-0712	●
60	08.155 BOLT; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.531 M8X20 FLANGE IDN	0-28650-820-0	02	1	0610-0712		●
60	08.155 BOLT; CABLE 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 01.531 M8X20 FLANGE IDN	0-28650-820-0	02	1	0801-	●
60	08.155 BOLT; CABLE 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.531 M8X20 FLANGE IDN	0-28650-820-0	02	1	0801-		●
60	08.155 BOLT; CABLE 4HF1-S ENG(RLS) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0211-0507	●
60	08.155 BOLT; CABLE 4HG1 ENG(RJH),4HF1-S ENG(RLS) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0211-0507		●
60	08.155 BOLT; CABLE 4HF1-N ENG(RJZ) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0508-0512	●
60	08.155 BOLT; CABLE 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0508-0512		●
60	08.155 BOLT; CABLE 4HF1-N ENG(RJZ) 01.531 M8X20 FLANGE IDN	0-28650-820-0	02	1	0601-0609	●
60	08.155 BOLT; CABLE 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.531 M8X20 FLANGE IDN	0-28650-820-0	02	1	0601-0609		●
60	08.155 BOLT; CABLE 4HF1-N ENG(RJZ) 01.531 M8X20 FLANGE IDN	0-28650-820-0	01	1	0610-	●
60	08.155 BOLT; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.531 M8X20 FLANGE IDN	0-28650-820-0	01	1	0610-		●
60	08.155 BOLT; CABLE 4JB1-TC ENG(RDT) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0610-0712	●
60	08.155 BOLT; CABLE 4JB1-TC ENG(RDT) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0801-	●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV)	8-97118-729-0	01	1	0211-0507		●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HG1 ENG(RJH)	8-97118-729-0	01	1	0508-0609		●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97118-729-0	01	1	0610-		●
100	03.463 SHAFT ASM; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV)	8-97118-737-0	01	1	0211-0507		●
100	03.463 SHAFT ASM; ENG CONT 4HG1 ENG(RJH)	8-97118-737-0	01	1	0508-0609		●
100	03.463 SHAFT ASM; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97118-737-0	01	1	0610-		●
101	03.463 WASHER; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 01.276	8-94142-117-0	02	1	0211-0507		●
101	03.463 WASHER; ENG CONT 4HG1 ENG(RJH) 01.276	8-94142-117-0	02	1	0508-0609		●
101	03.463 WASHER; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.276	8-94142-117-0	02	1	0610-		●
104	03.463 NUT; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0507		●
104	03.463 NUT; ENG CONT 4HG1 ENG(RJH) 07.633 M8 FLANGE	0-91150-108-0	01	1	0508-0602		●
104	03.463 NUT; ENG CONT 4HG1 ENG(RJH) 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0603-0609		●
104	03.463 NUT; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0610-		●
108	03.463 BUSHING; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV)	8-97120-004-0	01	1	0211-0507		●
108	03.463 BUSHING; ENG CONT 4HG1 ENG(RJH)	8-97120-004-0	01	1	0508-0609		●
108	03.463 BUSHING; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97120-004-0	01	1	0610-		●
110	03.463 BOLT; BRKT TO HANGER 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	0211-0507		●
110	03.463 BOLT; BRKT TO HANGER 4HG1 ENG(RJH) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	0508-0512		●
110	03.463 BOLT; BRKT TO HANGER 4HG1 ENG(RJH) 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0601-0609		●
110	03.463 BOLT; BRKT TO HANGER 4HG1-T ENG(RDP),4HG1 ENG(RJH) 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0610-		●
114	03.483 CLIP; HARNESS CONNECTOR 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 02.559 ID=7-10	8-94472-578-0	01	1	0211-0507		●
114	03.483 CLIP; HARNESS CONNECTOR 4HG1 ENG(RJH) 02.559 ID=7-10	8-94472-578-0	01	1	0508-0609		●
114	03.483 CLIP; HARNESS CONNECTOR 4HG1-T ENG(RDP),4HG1 ENG(RJH) 02.559 ID=7-10	8-94472-578-0	01	1	0610-		●
218	03.452 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0211	●	●
218	03.452 NUT; BRKT M/T MYY5T(RSM) 07.633 M8 FLANGE	0-91150-108-0	02	1	0212-0507	●	●
218	03.452 NUT; BRKT 4HF1-N ENG(RJZ) 07.633 M8 FLANGE	0-91150-108-0	02	1	0508-0602	●
218	03.452 NUT; BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 07.633 M8 FLANGE	0-91150-108-0	02	1	0508-0602		●
218	03.452 NUT; BRKT 4HF1-N ENG(RJZ) 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	0603-0609	●
218	03.452 NUT; BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	0603-0609		●
218	03.452 NUT; BRKT 4HF1-N ENG(RJZ) 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	0610-	●
218	03.452 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	0610-		●
218	03.452 NUT; BRKT 4HF1-S ENG(RLS) 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0507	●
218	03.452 NUT; BRKT 4HG1 ENG(RJH),4HF1-S ENG(RLS) 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0507		●
218	03.452 NUT; BRKT 4HF1-N ENG(RJZ) 07.633 M8 FLANGE	0-91150-108-0	01	1	0508-0602	●
218	03.452 NUT; BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 07.633 M8 FLANGE	0-91150-108-0	01	1	0508-0602		●
218	03.452 NUT; BRKT 4HF1-N ENG(RJZ) 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0603-0609	●
218	03.452 NUT; BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0603-0609		●
218	03.452 NUT; BRKT 4HF1-N ENG(RJZ) 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0610-	●
218	03.452 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0610-		●
316	03.425 CLIP; LAMP BRKT 4HF1-S ENG(RLS) 16.065 ID=9	5-09707-027-0	01	1	0211-0507	●
316	03.425 CLIP; LAMP BRKT 4HG1 ENG(RJH),4HF1-S ENG(RLS) 16.065 ID=9	5-09707-027-0	01	1	0211-0507		●
316	03.425 CLIP; LAMP BRKT 4HF1-N ENG(RJZ) 16.065 ID=9	5-09707-027-0	01	1	0508-0609	●
316	03.425 CLIP; LAMP BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 16.065 ID=9	5-09707-027-0	01	1	0508-0609		●
316	03.425 CLIP; LAMP BRKT 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 16.065 ID=9	5-09707-027-0	01	1	0610-0712	●
316	03.425 CLIP; LAMP BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 16.065 ID=9	5-09707-027-0	01	1	0610-0712		●
316	03.425 CLIP; LAMP BRKT 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 16.065 ID=9	5-09707-027-0	01	1	0801-	●
316	03.425 CLIP; LAMP BRKT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 16.065 ID=9	5-09707-027-0	01	1	0801-		●
318	03.275 NUT; LAMP BRKT 4HF1-S ENG(RLS) 07.833 M8 W/LK WASHER IDN	8-94327-073-0	02	1	0211-0507	●
318	03.275 NUT; LAMP BRKT 4HG1 ENG(RJH),4HF1-S ENG(RLS) 07.833 M8 W/LK WASHER IDN	8-94327-073-0	02	1	0211-0507		●
318	03.275 NUT; LAMP BRKT 4HF1-N ENG(RJZ) 07.833 M8 W/LK WASHER IDN	8-94327-073-0	02	1	0508-0609	●
318	03.275 NUT; LAMP BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 07.833 M8 W/LK WASHER IDN	8-94327-073-0	02	1	0508-0609		●
318	03.275 NUT; LAMP BRKT 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 07.833 M8 W/LK WASHER IDN	8-94327-073-0	02	1	0610-0712	●
318	03.275 NUT; LAMP BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 07.833 M8 W/LK WASHER IDN	8-94327-073-0	02	1	0610-0712		●
318	03.275 NUT; LAMP BRKT 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 07.833 M8 W/LK WASHER IDN	8-94327-073-0	02	1	0801-0805	●
318	03.275 NUT; LAMP BRKT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 07.833 M8 W/LK WASHER IDN	8-94327-073-0	02	1	0801-0805		●
318	03.275 NUT; LAMP BRKT 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 03.417 M8 W/LK WASHER IDN	8-97581-234-0	02	1	0806-	●
318	03.275 NUT; LAMP BRKT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.417 M8 W/LK WASHER IDN	8-97581-234-0	02	1	0806-		●
320	03.483 CLIP; FRAME 4HF1-S ENG(RLS) 06.672	8-94178-110-0	01	1	0211-0507	●
320	03.483 CLIP; FRAME 4HG1 ENG(RJH),4HF1-S ENG(RLS) 06.672	8-94178-110-0	01	1	0211-0507		●
320	03.483 CLIP; FRAME 4HF1-N ENG(RJZ) 06.672	8-94178-110-0	01	1	0508-0609	●
320	03.483 CLIP; FRAME 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 06.672	8-94178-110-0	01	1	0508-0609		●
320	03.483 CLIP; FRAME 4HF1-N ENG(RJZ) 06.672	8-94178-110-0	01	1	0610-	●
320	03.483 CLIP; FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 06.672	8-94178-110-0	01	1	0610-		●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HF1-S ENG(RLS) 04.594 M6 FLANGE	0-91150-106-0	01	1	0211-0507	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1 ENG(RJH),4HF1-S ENG(RLS) 04.594 M6 FLANGE	0-91150-106-0	01	1	0211-0507		●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HF1-N ENG(RJZ) 04.594 M6 FLANGE	0-91150-106-0	01	1	0508-0602	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 04.594 M6 FLANGE	0-91150-106-0	01	1	0508-0602		●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HF1-N ENG(RJZ) 01.062 M6 FLANGE IDN	0-91180-106-0	01	1	0603-0609	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 M6 FLANGE IDN	0-91180-106-0	01	1	0603-0609		●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HF1-N ENG(RJZ) 01.062 M6 FLANGE IDN	0-91180-106-0	01	1	0610-	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 M6 FLANGE IDN	0-91180-106-0	01	1	0610-		●
391	03.452 BRACKET; ENG CONT 4HF1-S ENG(RLS) (A)	8-97172-882-0	01	1	0211-0507	●
391	03.452 BRACKET; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) (A)	8-97172-882-0	01	1	0211-0507		●
391	03.452 BRACKET; ENG CONT 4HF1-N ENG(RJZ) (A)	8-97172-882-0	01	1	0508-0609	●
391	03.452 BRACKET; ENG CONT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A)	8-97172-882-0	01	1	0508-0609		●
391	03.452 BRACKET; ENG CONT 4HF1-N ENG(RJZ) (A)	8-97172-882-0	01	1	0610-	●
391	03.452 BRACKET; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A)	8-97172-882-0	01	1	0610-		●
391	03.452 BRACKET; ENG CONT 4HF1-S ENG(RLS) (B)	8-97357-141-0	01	1	0211-0507	●
391	03.452 BRACKET; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) (B)	8-97357-141-0	01	1	0211-0507		●
391	03.452 BRACKET; ENG CONT 4HF1-N ENG(RJZ) (B)	8-97357-141-0	01	1	0508-0609	●
391	03.452 BRACKET; ENG CONT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B)	8-97357-141-0	01	1	0508-0609		●
391	03.452 BRACKET; ENG CONT 4HF1-N ENG(RJZ) (B)	8-97357-141-0	01	1	0610-	●
391	03.452 BRACKET; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B)	8-97357-141-0	01	1	0610-		●
650	06.672 PROTECTOR; ACCEL CABLE IDENTIFICATION LABEL FOR KD<6UT>	8-98185-066-0	01	1	1209-	●	●
658	03.430 CLIP; ENG CONT CABLE 4HF1-S ENG(RLS) 04.930 ID=10 H=40 IDN	8-94462-219-0	01	1	0211-0507	●
658	03.430 CLIP; ENG CONT CABLE 4HG1 ENG(RJH),4HF1-S ENG(RLS) 04.930 ID=10 H=40 IDN	8-94462-219-0	01	1	0211-0507		●
658	03.430 CLIP; ENG CONT CABLE 4HF1-N ENG(RJZ) 04.930 ID=10 H=40 IDN	8-94462-219-0	01	1	0508-0609	●
658	03.430 CLIP; ENG CONT CABLE 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 04.930 ID=10 H=40 IDN	8-94462-219-0	01	1	0508-0609		●
658	03.430 CLIP; ENG CONT CABLE 4HF1-N ENG(RJZ) 04.930 ID=10 H=40 IDN	8-94462-219-0	01	1	0610-	●
658	03.430 CLIP; ENG CONT CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 04.930 ID=10 H=40 IDN	8-94462-219-0	01	1	0610-		●
729	03.451 COLLAR; JOINT 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV)	8-97118-760-0	01	1	0211-0507		●
729	03.451 COLLAR; JOINT 4HG1 ENG(RJH)	8-97118-760-0	01	1	0508-0609		●
729	03.451 COLLAR; JOINT 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97118-760-0	01	1	0610-		●

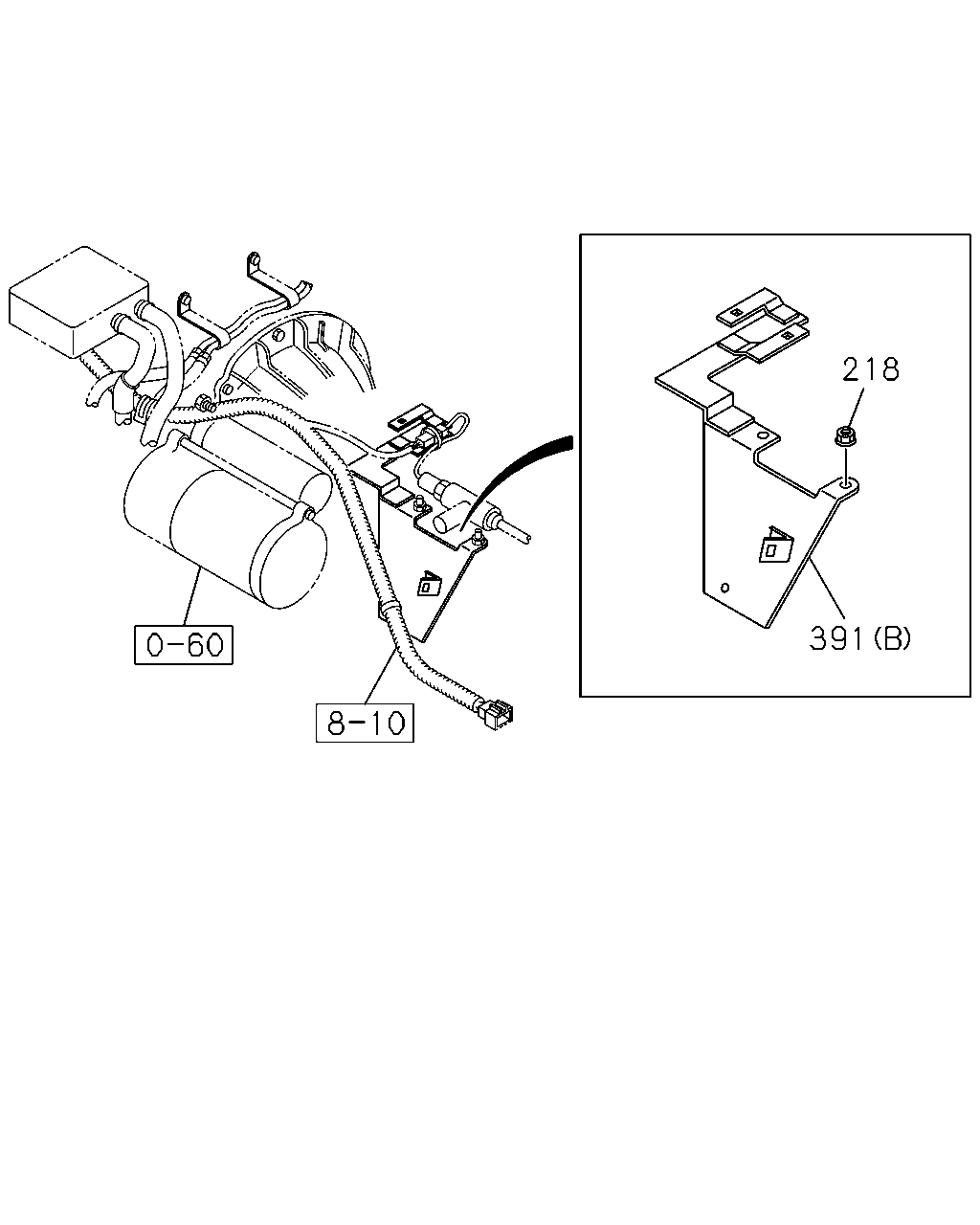

218 391

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
218	03.452 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0211	●	●
218	03.452 NUT; BRKT M/T MYY5T(RSM) 07.633 M8 FLANGE	0-91150-108-0	02	1	0212-0507	●	●
218	03.452 NUT; BRKT 4HF1-N ENG(RJZ) 07.633 M8 FLANGE	0-91150-108-0	02	1	0508-0602	●
218	03.452 NUT; BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 07.633 M8 FLANGE	0-91150-108-0	02	1	0508-0602		●
218	03.452 NUT; BRKT 4HF1-N ENG(RJZ) 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	0603-0609	●
218	03.452 NUT; BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	0603-0609		●
218	03.452 NUT; BRKT 4HF1-N ENG(RJZ) 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	0610-	●
218	03.452 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	0610-		●
218	03.452 NUT; BRKT 4HF1-S ENG(RLS) 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0507	●
218	03.452 NUT; BRKT 4HG1 ENG(RJH),4HF1-S ENG(RLS) 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0507		●
218	03.452 NUT; BRKT 4HF1-N ENG(RJZ) 07.633 M8 FLANGE	0-91150-108-0	01	1	0508-0602	●
218	03.452 NUT; BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 07.633 M8 FLANGE	0-91150-108-0	01	1	0508-0602		●
218	03.452 NUT; BRKT 4HF1-N ENG(RJZ) 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0603-0609	●
218	03.452 NUT; BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0603-0609		●
218	03.452 NUT; BRKT 4HF1-N ENG(RJZ) 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0610-	●
218	03.452 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0610-		●
391	03.452 BRACKET; ENG CONT 4HF1-S ENG(RLS) (A)	8-97172-882-0	01	1	0211-0507	●
391	03.452 BRACKET; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) (A)	8-97172-882-0	01	1	0211-0507		●
391	03.452 BRACKET; ENG CONT 4HF1-N ENG(RJZ) (A)	8-97172-882-0	01	1	0508-0609	●
391	03.452 BRACKET; ENG CONT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A)	8-97172-882-0	01	1	0508-0609		●
391	03.452 BRACKET; ENG CONT 4HF1-N ENG(RJZ) (A)	8-97172-882-0	01	1	0610-	●
391	03.452 BRACKET; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A)	8-97172-882-0	01	1	0610-		●
391	03.452 BRACKET; ENG CONT 4HF1-S ENG(RLS) (B)	8-97357-141-0	01	1	0211-0507	●
391	03.452 BRACKET; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) (B)	8-97357-141-0	01	1	0211-0507		●
391	03.452 BRACKET; ENG CONT 4HF1-N ENG(RJZ) (B)	8-97357-141-0	01	1	0508-0609	●
391	03.452 BRACKET; ENG CONT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B)	8-97357-141-0	01	1	0508-0609		●
391	03.452 BRACKET; ENG CONT 4HF1-N ENG(RJZ) (B)	8-97357-141-0	01	1	0610-	●
391	03.452 BRACKET; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B)	8-97357-141-0	01	1	0610-		●

61 60 392 650 318 60 316 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	03.430 CABLE; ENG CONT 4HF1-S ENG(RLS) (A) L=2600 IDN	8-97118-865-2	01	1	0211-0507	●
54	03.430 CABLE; ENG CONT 4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) (A) L=2600 IDN	8-97118-865-2	01	1	0211-0507		●
54	03.430 CABLE; ENG CONT 4HF1-N ENG(RJZ) (A) L=2600 IDN	8-97118-865-2	01	1	0508-	●	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) (A) L=2703	8-97071-711-5	01	1	0211-0507		●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH) (A) L=2703	8-97071-711-5	01	1	0508-0609		●
54	03.430 CABLE; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A) L=2703	8-97071-711-5	01	1	0610-		●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) (B) L=293 IDN	8-97115-730-0	01	1	0211-0507		●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH) (B) L=293 IDN	8-97115-730-0	01	1	0508-0609		●
54	03.430 CABLE; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B) L=293 IDN	8-97115-730-0	01	1	0610-		●
54	03.430 CABLE; ENG CONT 4JB1-TC ENG(RDT) (C) L=2330 IDN	8-97387-019-0	01	1	0610-0712	●
54	03.430 CABLE; ENG CONT 4JB1-TC ENG(RDT) (C) L=2330 IDN	8-97387-019-0	01	1	0801-	●	●
60	08.155 BOLT; CABLE 4HF1-S ENG(RLS) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0211-0507	●
60	08.155 BOLT; CABLE 4HG1 ENG(RJH),4HF1-S ENG(RLS) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0211-0507		●
60	08.155 BOLT; CABLE 4HF1-N ENG(RJZ) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0508-0512	●
60	08.155 BOLT; CABLE 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0508-0512		●
60	08.155 BOLT; CABLE 4HF1-N ENG(RJZ) 01.531 M8X20 FLANGE IDN	0-28650-820-0	01	1	0601-0609	●
60	08.155 BOLT; CABLE 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.531 M8X20 FLANGE IDN	0-28650-820-0	01	1	0601-0609		●
60	08.155 BOLT; CABLE 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 01.531 M8X20 FLANGE IDN	0-28650-820-0	02	1	0610-0712	●
60	08.155 BOLT; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.531 M8X20 FLANGE IDN	0-28650-820-0	02	1	0610-0712		●
60	08.155 BOLT; CABLE 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 01.531 M8X20 FLANGE IDN	0-28650-820-0	02	1	0801-	●
60	08.155 BOLT; CABLE 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.531 M8X20 FLANGE IDN	0-28650-820-0	02	1	0801-		●
60	08.155 BOLT; CABLE 4HF1-S ENG(RLS) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0211-0507	●
60	08.155 BOLT; CABLE 4HG1 ENG(RJH),4HF1-S ENG(RLS) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0211-0507		●
60	08.155 BOLT; CABLE 4HF1-N ENG(RJZ) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0508-0512	●
60	08.155 BOLT; CABLE 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0508-0512		●
60	08.155 BOLT; CABLE 4HF1-N ENG(RJZ) 01.531 M8X20 FLANGE IDN	0-28650-820-0	02	1	0601-0609	●
60	08.155 BOLT; CABLE 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.531 M8X20 FLANGE IDN	0-28650-820-0	02	1	0601-0609		●
60	08.155 BOLT; CABLE 4HF1-N ENG(RJZ) 01.531 M8X20 FLANGE IDN	0-28650-820-0	01	1	0610-	●
60	08.155 BOLT; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.531 M8X20 FLANGE IDN	0-28650-820-0	01	1	0610-		●
60	08.155 BOLT; CABLE 4JB1-TC ENG(RDT) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0610-0712	●
60	08.155 BOLT; CABLE 4JB1-TC ENG(RDT) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0801-	●	●
61	03.483 BOLT; BRKT TO FRAME ENG CONT CAB 4JB1-TC ENG(RDT) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0610-0712	●
61	03.483 BOLT; BRKT TO FRAME ENG CONT CAB 4JB1-TC ENG(RDT) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0801-	●	●
316	03.425 CLIP; LAMP BRKT 4HF1-S ENG(RLS) 16.065 ID=9	5-09707-027-0	01	1	0211-0507	●
316	03.425 CLIP; LAMP BRKT 4HG1 ENG(RJH),4HF1-S ENG(RLS) 16.065 ID=9	5-09707-027-0	01	1	0211-0507		●
316	03.425 CLIP; LAMP BRKT 4HF1-N ENG(RJZ) 16.065 ID=9	5-09707-027-0	01	1	0508-0609	●
316	03.425 CLIP; LAMP BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 16.065 ID=9	5-09707-027-0	01	1	0508-0609		●
316	03.425 CLIP; LAMP BRKT 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 16.065 ID=9	5-09707-027-0	01	1	0610-0712	●
316	03.425 CLIP; LAMP BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 16.065 ID=9	5-09707-027-0	01	1	0610-0712		●
316	03.425 CLIP; LAMP BRKT 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 16.065 ID=9	5-09707-027-0	01	1	0801-	●
316	03.425 CLIP; LAMP BRKT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 16.065 ID=9	5-09707-027-0	01	1	0801-		●
318	03.275 NUT; LAMP BRKT 4HF1-S ENG(RLS) 07.833 M8 W/LK WASHER IDN	8-94327-073-0	02	1	0211-0507	●
318	03.275 NUT; LAMP BRKT 4HG1 ENG(RJH),4HF1-S ENG(RLS) 07.833 M8 W/LK WASHER IDN	8-94327-073-0	02	1	0211-0507		●
318	03.275 NUT; LAMP BRKT 4HF1-N ENG(RJZ) 07.833 M8 W/LK WASHER IDN	8-94327-073-0	02	1	0508-0609	●
318	03.275 NUT; LAMP BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 07.833 M8 W/LK WASHER IDN	8-94327-073-0	02	1	0508-0609		●
318	03.275 NUT; LAMP BRKT 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 07.833 M8 W/LK WASHER IDN	8-94327-073-0	02	1	0610-0712	●
318	03.275 NUT; LAMP BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 07.833 M8 W/LK WASHER IDN	8-94327-073-0	02	1	0610-0712		●
318	03.275 NUT; LAMP BRKT 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 07.833 M8 W/LK WASHER IDN	8-94327-073-0	02	1	0801-0805	●
318	03.275 NUT; LAMP BRKT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 07.833 M8 W/LK WASHER IDN	8-94327-073-0	02	1	0801-0805		●
318	03.275 NUT; LAMP BRKT 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 03.417 M8 W/LK WASHER IDN	8-97581-234-0	02	1	0806-	●
318	03.275 NUT; LAMP BRKT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.417 M8 W/LK WASHER IDN	8-97581-234-0	02	1	0806-		●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1-TC ENG(RDT) 04.785 ID=16 L=28	0-95235-552-0	01	1	0610-0712	●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1-TC ENG(RDT) 04.785 ID=16 L=28	0-95235-552-0	01	1	0801-	●	●
650	06.672 PROTECTOR; ACCEL CABLE IDENTIFICATION LABEL FOR KD<6UT>	8-98185-066-0	01	1	1209-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
