Sayfa 0-85 - Isuzu EPC

0-85 — AUTO TIMER; INJECTION PUMP (#78911) — 322 parça

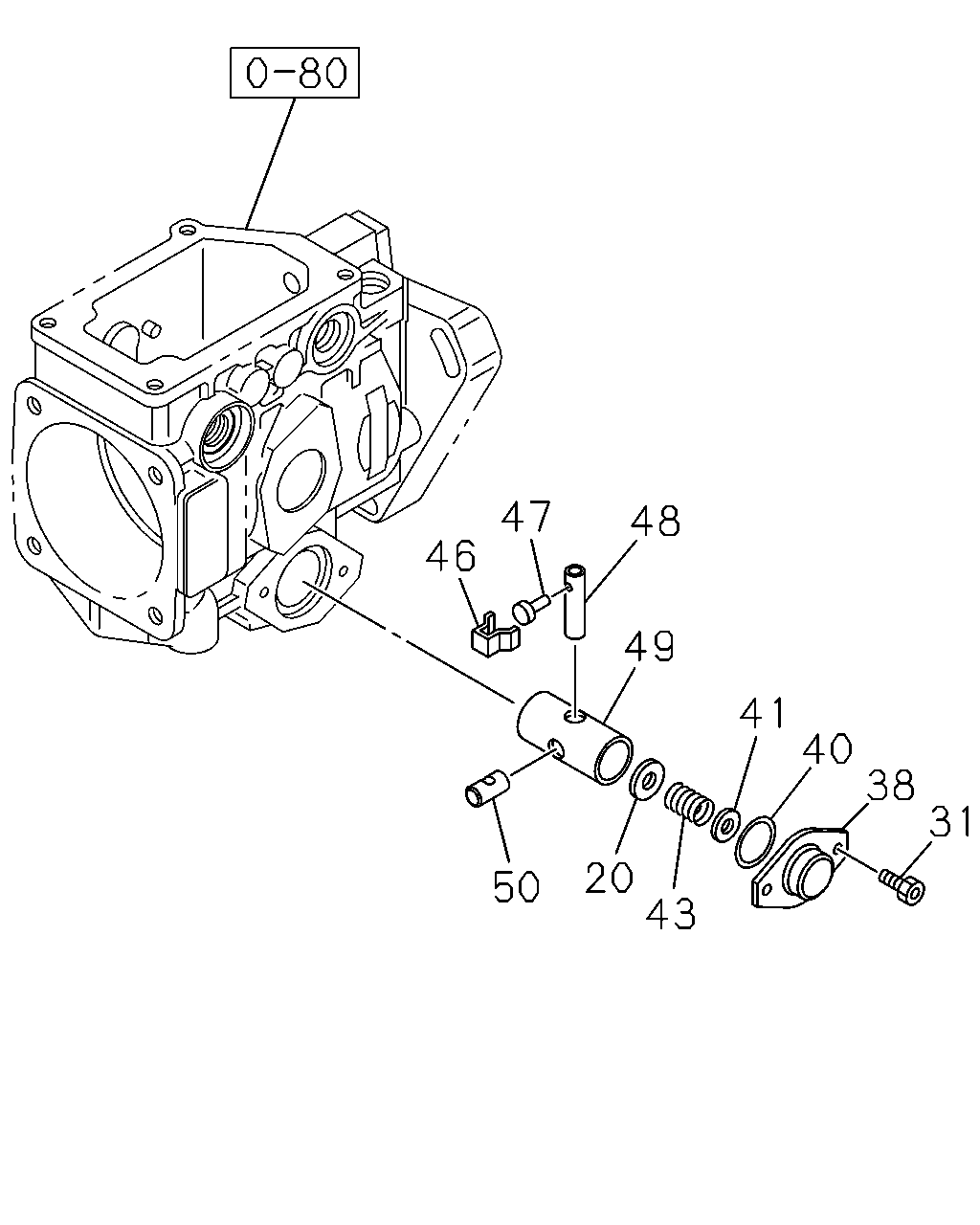

47 48 46 49 41 40 38 31 20 43 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=0.60 ASM PART: A = 8-97178-485-5, 97178485, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15748-013-0	AR	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=0.80 ASM PART: A = 8-97178-485-5, 97178485, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15748-014-0	AR	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=0.90 ASM PART: A = 8-97178-485-5, 97178485, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15748-015-0	AR	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=0.10 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15749-394-0	AR	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=0.30 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15749-395-0	AR	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=0.50 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15749-396-0	AR	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=1.00 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15749-397-0	AR	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=0.40 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15749-495-0	AR	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=0.70 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15749-496-0	AR	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM ASM PART: H = 8-98253-290-0, 98253290	8-94174-746-0	01	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=0.60 ASM PART: C = 8-97204-201-9, 97204201, E = 8-97223-104-1, 97223104, F = 8-97263-086-3, 97263086	8-94227-495-0	01	1	-
31	03.330 SCREW; TIMER COVER,INJ PUMP ASM PART: E = 8-97223-104-1, 97223104	8-94313-276-0	02	1	-
31	03.330 SCREW; TIMER COVER,INJ PUMP ASM PART: C = 8-97204-201-9, 97204201, F = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-97231-933-0	02	1	-
38	03.318 COVER; TIMER,INJ PUMP ASM PART: C = 8-97204-201-9, 97204201, F = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-94227-500-0	01	1	-
38	03.318 COVER; TIMER,INJ PUMP ASM PART: E = 8-97223-104-1, 97223104	8-94473-120-0	01	1	-
38	03.318 COVER; TIMER,INJ PUMP ASM PART: B = 8-97203-380-0, 97203380	8-97026-945-0	01	1	-
38	03.318 COVER; TIMER,INJ PUMP ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	8-97085-037-0	01	1	-
40	03.330 GASKET; TIMER COVER,INJ PUMP 03.306 ASM PART: E = 8-97223-104-1, 97223104	8-94227-491-0	01	1	-
40	03.330 GASKET; TIMER COVER,INJ PUMP 03.306 ASM PART: C = 8-97204-201-9, 97204201, F = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-97383-765-0	01	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.60 ASM PART: A = 8-97178-485-5, 97178485, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15748-010-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.80 ASM PART: A = 8-97178-485-5, 97178485, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15748-011-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.90 ASM PART: A = 8-97178-485-5, 97178485, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15748-012-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.10 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15749-390-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.30 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15749-391-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.50 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15749-392-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=1.00 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15749-393-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.40 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15749-493-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.70 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15749-494-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM 03.320, T=2.40 ASM PART: C = 8-97204-201-9, 97204201, E = 8-97223-104-1, 97223104, F = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-94121-620-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.60 ASM PART: C = 8-97204-201-9, 97204201, E = 8-97223-104-1, 97223104, F = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-94227-495-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.70 ASM PART: C = 8-97204-201-9, 97204201, E = 8-97223-104-1, 97223104, F = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-94227-496-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.90 ASM PART: C = 8-97204-201-9, 97204201, E = 8-97223-104-1, 97223104, F = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-94227-497-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=1.00 ASM PART: C = 8-97204-201-9, 97204201, E = 8-97223-104-1, 97223104, F = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-94227-498-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=1.20 ASM PART: C = 8-97204-201-9, 97204201, E = 8-97223-104-1, 97223104, F = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-94227-499-0	AR	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=38.8 K=1.75 KG/MM ASM PART: E = 8-97223-104-1, 97223104	8-94313-669-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=38.5 EFFECT TURN=5.9 ASM PART: E = 8-97223-104-1, 97223104	8-94343-340-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=35.0 OD=11.9 ASM PART: B = 8-97203-380-0, 97203380	8-97115-737-0	04	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=39.7 ASM PART: E = 8-97223-104-1, 97223104	8-97175-324-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=44.0 ASM PART: C = 8-97204-201-9, 97204201, F = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-97231-929-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=41.7 ASM PART: C = 8-97204-201-9, 97204201, F = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-97231-930-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=42.0 ASM PART: C = 8-97204-201-9, 97204201, F = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-97231-931-0	01	1	-
46	03.330 CLIP; HOLDER PIN,TIMER,INJ PUMP ASM PART: C = 8-97204-201-9, 97204201, E = 8-97223-104-1, 97223104, F = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-94227-488-0	01	1	-
47	03.340 PIN; HOLDER PIN,TIMER,INJ PUMP ASM PART: C = 8-97204-201-9, 97204201, E = 8-97223-104-1, 97223104, F = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-94227-487-0	01	1	-
48	03.340 PIN; ROLLER HOLDER,TIMER,INJ PUM ASM PART: E = 8-97223-104-1, 97223104	8-94227-486-0	01	1	-
48	03.340 PIN; ROLLER HOLDER,TIMER,INJ PUM ASM PART: C = 8-97204-201-9, 97204201, F = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-97214-493-0	01	1	-
49	03.330 PISTON; TIMER,INJ PUMP ASM PART: E = 8-97223-104-1, 97223104	8-97119-169-0	01	1	-
49	03.330 PISTON; TIMER,INJ PUMP ASM PART: C = 8-97204-201-9, 97204201, F = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-97231-928-0	01	1	-
50	03.340 SLIDER; TIMER PISTON,INJ PUMP ASM PART: E = 8-97223-104-1, 97223104	8-94227-493-0	01	1	-
50	03.340 SLIDER; TIMER PISTON,INJ PUMP ASM PART: C = 8-97204-201-9, 97204201, F = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-97218-961-0	01	1	-

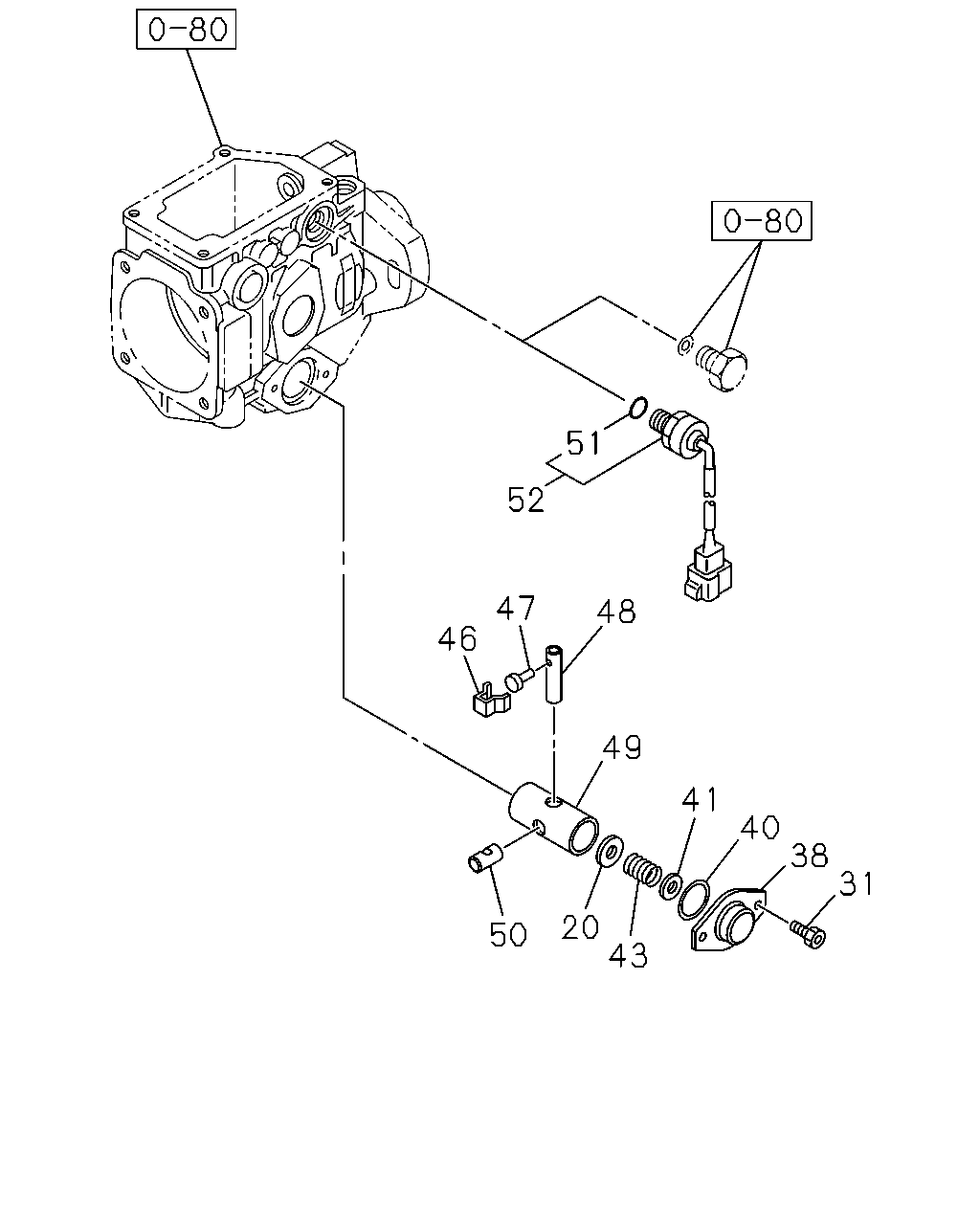

1 51 52 47 48 46 49 41 40 38 31 20 43 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.340 TIMER ASM; INJ PUMP ASM PART: B = 8-97203-380-0, 97203380	8-97223-286-0	01	1	-
1	03.340 TIMER ASM; INJ PUMP ASM PART: A = 8-97178-485-5, 97178485, G = 8-98192-953-0, 98192953	8-97223-287-0	01	1	-
1	03.340 TIMER ASM; INJ PUMP ASM PART: D = 8-97212-102-0, 97212102	8-97224-581-0	01	1	-
1	03.340 TIMER ASM; INJ PUMP ASM PART: I = 8-98268-832-0, 98268832	8-98272-999-0	01	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=0.60 ASM PART: A = 8-97178-485-5, 97178485, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15748-013-0	AR	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=0.80 ASM PART: A = 8-97178-485-5, 97178485, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15748-014-0	AR	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=0.90 ASM PART: A = 8-97178-485-5, 97178485, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15748-015-0	AR	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=0.10 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15749-394-0	AR	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=0.30 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15749-395-0	AR	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=0.50 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15749-396-0	AR	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=1.00 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15749-397-0	AR	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=0.40 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15749-495-0	AR	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=0.70 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15749-496-0	AR	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM ASM PART: H = 8-98253-290-0, 98253290	8-94174-746-0	01	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=0.60 ASM PART: C = 8-97204-201-9, 97204201, E = 8-97223-104-1, 97223104, F = 8-97263-086-3, 97263086	8-94227-495-0	01	1	-
31	03.330 SCREW; TIMER COVER,INJ PUMP ASM PART: E = 8-97223-104-1, 97223104	8-94313-276-0	02	1	-
31	03.330 SCREW; TIMER COVER,INJ PUMP ASM PART: C = 8-97204-201-9, 97204201, F = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-97231-933-0	02	1	-
38	03.318 COVER; TIMER,INJ PUMP ASM PART: C = 8-97204-201-9, 97204201, F = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-94227-500-0	01	1	-
38	03.318 COVER; TIMER,INJ PUMP ASM PART: E = 8-97223-104-1, 97223104	8-94473-120-0	01	1	-
38	03.318 COVER; TIMER,INJ PUMP ASM PART: B = 8-97203-380-0, 97203380	8-97026-945-0	01	1	-
38	03.318 COVER; TIMER,INJ PUMP ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	8-97085-037-0	01	1	-
40	03.330 GASKET; TIMER COVER,INJ PUMP 03.306 ASM PART: E = 8-97223-104-1, 97223104	8-94227-491-0	01	1	-
40	03.330 GASKET; TIMER COVER,INJ PUMP 03.306 ASM PART: C = 8-97204-201-9, 97204201, F = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-97383-765-0	01	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.60 ASM PART: A = 8-97178-485-5, 97178485, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15748-010-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.80 ASM PART: A = 8-97178-485-5, 97178485, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15748-011-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.90 ASM PART: A = 8-97178-485-5, 97178485, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15748-012-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.10 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15749-390-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.30 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15749-391-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.50 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15749-392-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=1.00 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15749-393-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.40 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15749-493-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.70 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15749-494-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM 03.320, T=2.40 ASM PART: C = 8-97204-201-9, 97204201, E = 8-97223-104-1, 97223104, F = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-94121-620-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.60 ASM PART: C = 8-97204-201-9, 97204201, E = 8-97223-104-1, 97223104, F = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-94227-495-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.70 ASM PART: C = 8-97204-201-9, 97204201, E = 8-97223-104-1, 97223104, F = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-94227-496-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.90 ASM PART: C = 8-97204-201-9, 97204201, E = 8-97223-104-1, 97223104, F = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-94227-497-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=1.00 ASM PART: C = 8-97204-201-9, 97204201, E = 8-97223-104-1, 97223104, F = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-94227-498-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=1.20 ASM PART: C = 8-97204-201-9, 97204201, E = 8-97223-104-1, 97223104, F = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-94227-499-0	AR	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=38.8 K=1.75 KG/MM ASM PART: E = 8-97223-104-1, 97223104	8-94313-669-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=38.5 EFFECT TURN=5.9 ASM PART: E = 8-97223-104-1, 97223104	8-94343-340-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=35.0 OD=11.9 ASM PART: B = 8-97203-380-0, 97203380	8-97115-737-0	04	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=39.7 ASM PART: E = 8-97223-104-1, 97223104	8-97175-324-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=44.0 ASM PART: C = 8-97204-201-9, 97204201, F = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-97231-929-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=41.7 ASM PART: C = 8-97204-201-9, 97204201, F = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-97231-930-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=42.0 ASM PART: C = 8-97204-201-9, 97204201, F = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-97231-931-0	01	1	-
46	03.330 CLIP; HOLDER PIN,TIMER,INJ PUMP ASM PART: C = 8-97204-201-9, 97204201, E = 8-97223-104-1, 97223104, F = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-94227-488-0	01	1	-
47	03.340 PIN; HOLDER PIN,TIMER,INJ PUMP ASM PART: C = 8-97204-201-9, 97204201, E = 8-97223-104-1, 97223104, F = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-94227-487-0	01	1	-
48	03.340 PIN; ROLLER HOLDER,TIMER,INJ PUM ASM PART: E = 8-97223-104-1, 97223104	8-94227-486-0	01	1	-
48	03.340 PIN; ROLLER HOLDER,TIMER,INJ PUM ASM PART: C = 8-97204-201-9, 97204201, F = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-97214-493-0	01	1	-
49	03.330 PISTON; TIMER,INJ PUMP ASM PART: E = 8-97223-104-1, 97223104	8-97119-169-0	01	1	-
49	03.330 PISTON; TIMER,INJ PUMP ASM PART: C = 8-97204-201-9, 97204201, F = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-97231-928-0	01	1	-
50	03.340 SLIDER; TIMER PISTON,INJ PUMP ASM PART: E = 8-97223-104-1, 97223104	8-94227-493-0	01	1	-
50	03.340 SLIDER; TIMER PISTON,INJ PUMP ASM PART: C = 8-97204-201-9, 97204201, F = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-97218-961-0	01	1	-
51	03.340 GASKET; TIMING SENSOR,INJ PUMP 03.306 ASM PART: C = 8-97204-201-9, 97204201, F = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-94227-671-0	01	1	-
52	03.340 SENSOR; TIMING,TACHOMETER,INJ PU ASM PART: C = 8-97204-201-9, 97204201, F = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-94343-307-0	01	1	-

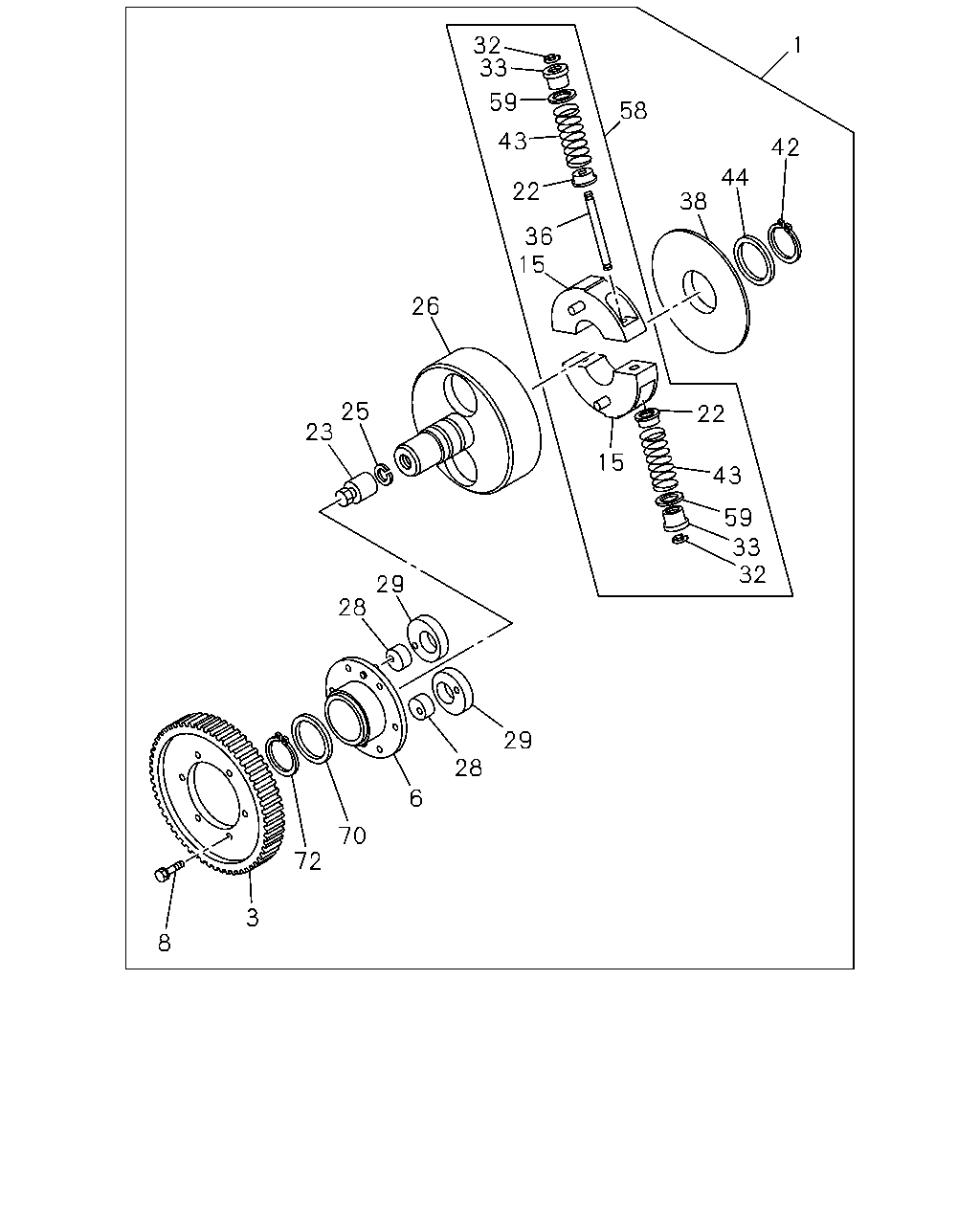

1 32 33 59 58 43 42 44 22 38 36 15 26 25 23 22 15 43 59 33 32 29 28 29 28 6 70 72 3 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.340 TIMER ASM; INJ PUMP ASM PART: B = 8-97203-380-0, 97203380	8-97223-286-0	01	1	-
1	03.340 TIMER ASM; INJ PUMP ASM PART: A = 8-97178-485-5, 97178485, G = 8-98192-953-0, 98192953	8-97223-287-0	01	1	-
1	03.340 TIMER ASM; INJ PUMP ASM PART: D = 8-97212-102-0, 97212102	8-97224-581-0	01	1	-
1	03.340 TIMER ASM; INJ PUMP ASM PART: I = 8-98268-832-0, 98268832	8-98272-999-0	01	1	-
3	03.340 GEAR; DRIVE,INJ PUMP ASM PART: D = 8-97212-102-0, 97212102	8-97203-920-0	01	1	-
3	03.340 GEAR; DRIVE,INJ PUMP ASM PART: B = 8-97203-380-0, 97203380	8-97203-921-1	01	1	-
3	03.340 GEAR; DRIVE,INJ PUMP ASM PART: A = 8-97178-485-5, 97178485, G = 8-98192-953-0, 98192953	8-97214-465-0	01	1	-
3	03.340 GEAR; DRIVE,INJ PUMP ASM PART: I = 8-98268-832-0, 98268832	8-98269-497-0	01	1	-
6	03.340 FLANGE; DRIVE GEAR,INJ PUMP 03.330 ASM PART: B = 8-97203-380-0, 97203380	8-97026-947-0	01	1	-
6	03.340 FLANGE; DRIVE GEAR,INJ PUMP ASM PART: D = 8-97212-102-0, 97212102	8-97085-031-0	01	1	-
6	03.340 FLANGE; DRIVE GEAR,INJ PUMP ASM PART: A = 8-97178-485-5, 97178485, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	8-97223-409-0	01	1	-
8	03.340 BOLT; DRIVE GEAR FIX,INJ PUMP ASM PART: D = 8-97212-102-0, 97212102	8-97085-049-0	04	1	-
8	03.340 BOLT; DRIVE GEAR FIX,INJ PUMP ASM PART: A = 8-97178-485-5, 97178485, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	8-97223-410-0	04	1	-
8	03.340 BOLT; DRIVE GEAR FIX,INJ PUMP 01.062, M6X16 W/LK WASHER ASM PART: B = 8-97203-380-0, 97203380	9-01910-616-0	06	1	-
15	03.340 FLYWEIGHT; TIMER,INJ PUMP ASM PART: B = 8-97203-380-0, 97203380	8-97037-308-0	02	1	-
15	03.340 FLYWEIGHT; TIMER,INJ PUMP ASM PART: D = 8-97212-102-0, 97212102	8-97125-962-0	02	1	-
15	03.340 FLYWEIGHT; TIMER,INJ PUMP ASM PART: A = 8-97178-485-5, 97178485, G = 8-98192-953-0, 98192953	8-97223-402-0	02	1	-
15	03.340 FLYWEIGHT; TIMER,INJ PUMP ASM PART: I = 8-98268-832-0, 98268832	8-98283-547-0	02	1	-
22	03.340 SEAT; INNER SPRING,TIMER,INJ PUM ASM PART: B = 8-97203-380-0, 97203380	8-94132-763-0	04	1	-
22	03.340 SEAT; INNER SPRING,TIMER,INJ PUM ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	8-97085-026-0	04	1	-
23	03.340 NUT; TIMER FLANGE,INJ PUMP ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15749-144-0	01	1	-
23	03.340 NUT; TIMER FLANGE,INJ PUMP ASM PART: B = 8-97203-380-0, 97203380	8-94472-290-1	01	1	-
25	03.340 WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15749-145-0	01	1	-
25	03.340 WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: B = 8-97203-380-0, 97203380	8-94472-289-0	01	1	-
26	03.330 FLANGE; TIMER,INJ PUMP ASM PART: D = 8-97212-102-0, 97212102	8-97125-966-0	01	1	-
26	03.330 FLANGE; TIMER,INJ PUMP ASM PART: B = 8-97203-380-0, 97203380	8-97127-576-0	01	1	-
26	03.330 FLANGE; TIMER,INJ PUMP ASM PART: A = 8-97178-485-5, 97178485, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	8-97223-399-0	01	1	-
28	03.330 CAM; INNER,ECCENTRIC,TIMER,INJ P ASM PART: A = 8-97178-485-5, 97178485, B = 8-97203-380-0, 97203380, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	8-94172-269-0	02	1	-
29	03.330 CAM; OUTER,ECCENTRIC,TIMER,INJ P ASM PART: B = 8-97203-380-0, 97203380	8-94172-268-0	02	1	-
29	03.330 CAM; OUTER,ECCENTRIC,TIMER,INJ P ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	8-97085-030-0	02	1	-
32	03.330 RING; SNAP,SPRING SEAT,TIMER,INJ ASM PART: B = 8-97203-380-0, 97203380	1-15749-135-0	04	1	-
32	03.330 RING; SNAP,SPRING SEAT,TIMER,INJ ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15749-159-0	04	1	-
33	03.340 SEAT; OUTER SPRING,TIMER,INJ PUM ASM PART: B = 8-97203-380-0, 97203380	1-15749-134-0	04	1	-
33	03.340 SEAT; OUTER SPRING,TIMER,INJ PUM ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	8-97085-026-0	04	1	-
36	03.340 PIN; PILOT,TIMER SPRING,INJ PUMP ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	8-97085-029-0	02	1	-
36	03.340 PIN; PILOT,TIMER SPRING,INJ PUMP ASM PART: B = 8-97203-380-0, 97203380	9-84132-749-0	02	1	-
38	03.318 COVER; TIMER,INJ PUMP ASM PART: C = 8-97204-201-9, 97204201, F = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-94227-500-0	01	1	-
38	03.318 COVER; TIMER,INJ PUMP ASM PART: E = 8-97223-104-1, 97223104	8-94473-120-0	01	1	-
38	03.318 COVER; TIMER,INJ PUMP ASM PART: B = 8-97203-380-0, 97203380	8-97026-945-0	01	1	-
38	03.318 COVER; TIMER,INJ PUMP ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	8-97085-037-0	01	1	-
42	03.340 RING; SNAP,TIMER COVER,INJ PUMP ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15749-185-0	01	1	-
42	03.340 RING; SNAP,TIMER COVER,INJ PUMP ASM PART: B = 8-97203-380-0, 97203380	8-97026-946-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=38.8 K=1.75 KG/MM ASM PART: E = 8-97223-104-1, 97223104	8-94313-669-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=38.5 EFFECT TURN=5.9 ASM PART: E = 8-97223-104-1, 97223104	8-94343-340-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=35.0 OD=11.9 ASM PART: B = 8-97203-380-0, 97203380	8-97115-737-0	04	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=39.7 ASM PART: E = 8-97223-104-1, 97223104	8-97175-324-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=44.0 ASM PART: C = 8-97204-201-9, 97204201, F = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-97231-929-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=41.7 ASM PART: C = 8-97204-201-9, 97204201, F = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-97231-930-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=42.0 ASM PART: C = 8-97204-201-9, 97204201, F = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-97231-931-0	01	1	-
44	03.340 SHIM; TIMER COVER,INJ PUMP T=0.10 ASM PART: B = 8-97203-380-0, 97203380	8-97026-948-0	AR	1	-
44	03.340 SHIM; TIMER COVER,INJ PUMP T=0.12 ASM PART: B = 8-97203-380-0, 97203380	8-97026-949-0	AR	1	-
44	03.340 SHIM; TIMER COVER,INJ PUMP T=0.14 ASM PART: B = 8-97203-380-0, 97203380	8-97026-950-0	AR	1	-
44	03.340 SHIM; TIMER COVER,INJ PUMP T=0.16 ASM PART: B = 8-97203-380-0, 97203380	8-97026-951-0	AR	1	-
44	03.340 SHIM; TIMER COVER,INJ PUMP T=0.18 ASM PART: B = 8-97203-380-0, 97203380	8-97026-952-0	AR	1	-
44	03.340 SHIM; TIMER COVER,INJ PUMP T=0.90 ASM PART: B = 8-97203-380-0, 97203380	8-97026-953-0	AR	1	-
44	03.340 SHIM; TIMER COVER,INJ PUMP T=1.10 ASM PART: B = 8-97203-380-0, 97203380	8-97026-954-0	AR	1	-
44	03.340 SHIM; TIMER COVER,INJ PUMP T=1.30 ASM PART: B = 8-97203-380-0, 97203380	8-97026-955-0	AR	1	-
44	03.340 SHIM; TIMER COVER,INJ PUMP T=1.50 ASM PART: B = 8-97203-380-0, 97203380	8-97026-956-0	AR	1	-
44	03.340 SHIM; TIMER COVER,INJ PUMP T=1.70 ASM PART: B = 8-97203-380-0, 97203380	8-97026-957-0	AR	1	-
44	03.340 SHIM; TIMER COVER,INJ PUMP T=0.10 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	8-97085-038-0	AR	1	-
44	03.340 SHIM; TIMER COVER,INJ PUMP T=0.12 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	8-97085-039-0	AR	1	-
44	03.340 SHIM; TIMER COVER,INJ PUMP T=0.14 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	8-97085-040-0	AR	1	-
44	03.340 SHIM; TIMER COVER,INJ PUMP T=0.16 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	8-97085-041-0	AR	1	-
44	03.340 SHIM; TIMER COVER,INJ PUMP T=0.18 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	8-97085-042-0	AR	1	-
44	03.340 SHIM; TIMER COVER,INJ PUMP T=0.90 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	8-97085-043-0	AR	1	-
44	03.340 SHIM; TIMER COVER,INJ PUMP T=1.10 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	8-97085-044-0	AR	1	-
44	03.340 SHIM; TIMER COVER,INJ PUMP T=1.30 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	8-97085-045-0	AR	1	-
44	03.340 SHIM; TIMER COVER,INJ PUMP T=1.50 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	8-97085-046-0	AR	1	-
44	03.340 SHIM; TIMER COVER,INJ PUMP T=1.70 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	8-97085-047-0	AR	1	-
58	03.340 FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: D = 8-97212-102-0, 97212102	8-97125-961-0	01	1	-
58	03.340 FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: B = 8-97203-380-0, 97203380	8-97137-786-0	01	1	-
58	03.340 FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: A = 8-97178-485-5, 97178485, G = 8-98192-953-0, 98192953	8-97223-400-0	01	1	-
58	03.340 FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: I = 8-98268-832-0, 98268832	8-98283-546-0	01	1	-
59	03.330 SHIM; SPR,TIMER T=0.10 ASM PART: B = 8-97203-380-0, 97203380	8-94339-983-0	AR	1	-
59	03.330 SHIM; SPR,TIMER T=0.20 ASM PART: B = 8-97203-380-0, 97203380	8-94339-984-0	AR	1	-
59	03.330 SHIM; SPR,TIMER T=0.30 ASM PART: B = 8-97203-380-0, 97203380	8-94339-985-0	AR	1	-
59	03.330 SHIM; SPR,TIMER T=0.40 ASM PART: B = 8-97203-380-0, 97203380	8-94339-986-0	AR	1	-
59	03.330 SHIM; SPR,TIMER T=0.50 ASM PART: B = 8-97203-380-0, 97203380	8-94339-987-0	AR	1	-
59	03.330 SHIM; SPR,TIMER T=0.60 ASM PART: B = 8-97203-380-0, 97203380	8-94339-988-0	AR	1	-
59	03.330 SHIM; SPR,TIMER T=0.70 ASM PART: B = 8-97203-380-0, 97203380	8-94339-989-0	AR	1	-
59	03.330 SHIM; SPR,TIMER T=0.80 ASM PART: B = 8-97203-380-0, 97203380	8-94339-990-0	AR	1	-
59	03.330 SHIM; SPR,TIMER T=0.90 ASM PART: B = 8-97203-380-0, 97203380	8-94339-991-0	AR	1	-
59	03.330 SHIM; SPR,TIMER T=1.00 ASM PART: B = 8-97203-380-0, 97203380	8-94339-992-0	AR	1	-
70	03.340 SHIM; FLANGE,TIMER T=0.10 ASM PART: B = 8-97203-380-0, 97203380	8-97026-948-0	AR	1	-
70	03.340 SHIM; FLANGE,TIMER T=0.12 ASM PART: B = 8-97203-380-0, 97203380	8-97026-949-0	AR	1	-
70	03.340 SHIM; FLANGE,TIMER T=0.14 ASM PART: B = 8-97203-380-0, 97203380	8-97026-950-0	AR	1	-
70	03.340 SHIM; FLANGE,TIMER T=0.16 ASM PART: B = 8-97203-380-0, 97203380	8-97026-951-0	AR	1	-
70	03.340 SHIM; FLANGE,TIMER T=0.18 ASM PART: B = 8-97203-380-0, 97203380	8-97026-952-0	AR	1	-
70	03.340 SHIM; FLANGE,TIMER T=0.90 ASM PART: B = 8-97203-380-0, 97203380	8-97026-953-0	AR	1	-
70	03.340 SHIM; FLANGE,TIMER T=1.10 ASM PART: B = 8-97203-380-0, 97203380	8-97026-954-0	AR	1	-
70	03.340 SHIM; FLANGE,TIMER T=1.30 ASM PART: B = 8-97203-380-0, 97203380	8-97026-955-0	AR	1	-
70	03.340 SHIM; FLANGE,TIMER T=1.50 ASM PART: B = 8-97203-380-0, 97203380	8-97026-956-0	AR	1	-
70	03.340 SHIM; FLANGE,TIMER T=1.70 ASM PART: B = 8-97203-380-0, 97203380	8-97026-957-0	AR	1	-
70	03.340 SHIM; FLANGE,TIMER T=0.20 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	8-97085-032-0	AR	1	-
70	03.340 SHIM; FLANGE,TIMER T=0.30 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	8-97085-033-0	AR	1	-
70	03.340 SHIM; FLANGE,TIMER T=0.40 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	8-97085-034-0	AR	1	-
70	03.340 SHIM; FLANGE,TIMER T=0.50 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	8-97085-035-0	AR	1	-
70	03.340 SHIM; FLANGE,TIMER T=0.80 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	8-97085-036-0	AR	1	-
72	03.340 RING; SNAP,FLANGE TIMER ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15749-205-0	01	1	-
72	03.340 RING; SNAP,FLANGE TIMER ASM PART: B = 8-97203-380-0, 97203380	8-97026-946-0	01	1	-

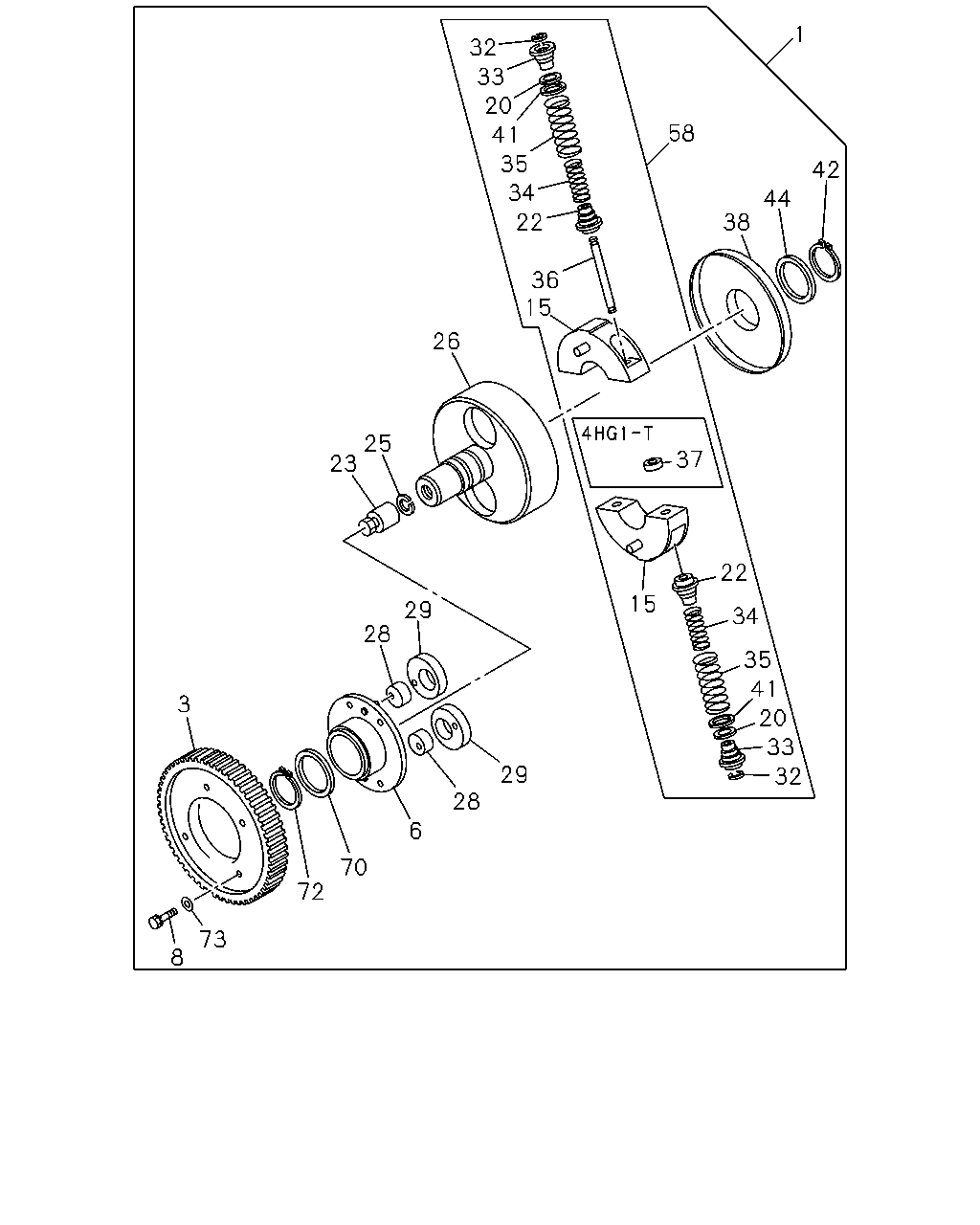

1 32 33 20 58 41 35 42 34 44 22 38 36 15 26 25 23 37 22 29 15 34 28 35 41 3 20 33 29 32 28 6 70 72 73 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.340 TIMER ASM; INJ PUMP ASM PART: B = 8-97203-380-0, 97203380	8-97223-286-0	01	1	-
1	03.340 TIMER ASM; INJ PUMP ASM PART: A = 8-97178-485-5, 97178485, G = 8-98192-953-0, 98192953	8-97223-287-0	01	1	-
1	03.340 TIMER ASM; INJ PUMP ASM PART: D = 8-97212-102-0, 97212102	8-97224-581-0	01	1	-
1	03.340 TIMER ASM; INJ PUMP ASM PART: I = 8-98268-832-0, 98268832	8-98272-999-0	01	1	-
3	03.340 GEAR; DRIVE,INJ PUMP ASM PART: D = 8-97212-102-0, 97212102	8-97203-920-0	01	1	-
3	03.340 GEAR; DRIVE,INJ PUMP ASM PART: B = 8-97203-380-0, 97203380	8-97203-921-1	01	1	-
3	03.340 GEAR; DRIVE,INJ PUMP ASM PART: A = 8-97178-485-5, 97178485, G = 8-98192-953-0, 98192953	8-97214-465-0	01	1	-
3	03.340 GEAR; DRIVE,INJ PUMP ASM PART: I = 8-98268-832-0, 98268832	8-98269-497-0	01	1	-
6	03.340 FLANGE; DRIVE GEAR,INJ PUMP 03.330 ASM PART: B = 8-97203-380-0, 97203380	8-97026-947-0	01	1	-
6	03.340 FLANGE; DRIVE GEAR,INJ PUMP ASM PART: D = 8-97212-102-0, 97212102	8-97085-031-0	01	1	-
6	03.340 FLANGE; DRIVE GEAR,INJ PUMP ASM PART: A = 8-97178-485-5, 97178485, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	8-97223-409-0	01	1	-
8	03.340 BOLT; DRIVE GEAR FIX,INJ PUMP ASM PART: D = 8-97212-102-0, 97212102	8-97085-049-0	04	1	-
8	03.340 BOLT; DRIVE GEAR FIX,INJ PUMP ASM PART: A = 8-97178-485-5, 97178485, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	8-97223-410-0	04	1	-
8	03.340 BOLT; DRIVE GEAR FIX,INJ PUMP 01.062, M6X16 W/LK WASHER ASM PART: B = 8-97203-380-0, 97203380	9-01910-616-0	06	1	-
15	03.340 FLYWEIGHT; TIMER,INJ PUMP ASM PART: B = 8-97203-380-0, 97203380	8-97037-308-0	02	1	-
15	03.340 FLYWEIGHT; TIMER,INJ PUMP ASM PART: D = 8-97212-102-0, 97212102	8-97125-962-0	02	1	-
15	03.340 FLYWEIGHT; TIMER,INJ PUMP ASM PART: A = 8-97178-485-5, 97178485, G = 8-98192-953-0, 98192953	8-97223-402-0	02	1	-
15	03.340 FLYWEIGHT; TIMER,INJ PUMP ASM PART: I = 8-98268-832-0, 98268832	8-98283-547-0	02	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=0.60 ASM PART: A = 8-97178-485-5, 97178485, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15748-013-0	AR	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=0.80 ASM PART: A = 8-97178-485-5, 97178485, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15748-014-0	AR	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=0.90 ASM PART: A = 8-97178-485-5, 97178485, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15748-015-0	AR	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=0.10 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15749-394-0	AR	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=0.30 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15749-395-0	AR	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=0.50 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15749-396-0	AR	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=1.00 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15749-397-0	AR	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=0.40 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15749-495-0	AR	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=0.70 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15749-496-0	AR	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM ASM PART: H = 8-98253-290-0, 98253290	8-94174-746-0	01	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=0.60 ASM PART: C = 8-97204-201-9, 97204201, E = 8-97223-104-1, 97223104, F = 8-97263-086-3, 97263086	8-94227-495-0	01	1	-
22	03.340 SEAT; INNER SPRING,TIMER,INJ PUM ASM PART: B = 8-97203-380-0, 97203380	8-94132-763-0	04	1	-
22	03.340 SEAT; INNER SPRING,TIMER,INJ PUM ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	8-97085-026-0	04	1	-
23	03.340 NUT; TIMER FLANGE,INJ PUMP ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15749-144-0	01	1	-
23	03.340 NUT; TIMER FLANGE,INJ PUMP ASM PART: B = 8-97203-380-0, 97203380	8-94472-290-1	01	1	-
25	03.340 WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15749-145-0	01	1	-
25	03.340 WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: B = 8-97203-380-0, 97203380	8-94472-289-0	01	1	-
26	03.330 FLANGE; TIMER,INJ PUMP ASM PART: D = 8-97212-102-0, 97212102	8-97125-966-0	01	1	-
26	03.330 FLANGE; TIMER,INJ PUMP ASM PART: B = 8-97203-380-0, 97203380	8-97127-576-0	01	1	-
26	03.330 FLANGE; TIMER,INJ PUMP ASM PART: A = 8-97178-485-5, 97178485, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	8-97223-399-0	01	1	-
28	03.330 CAM; INNER,ECCENTRIC,TIMER,INJ P ASM PART: A = 8-97178-485-5, 97178485, B = 8-97203-380-0, 97203380, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	8-94172-269-0	02	1	-
29	03.330 CAM; OUTER,ECCENTRIC,TIMER,INJ P ASM PART: B = 8-97203-380-0, 97203380	8-94172-268-0	02	1	-
29	03.330 CAM; OUTER,ECCENTRIC,TIMER,INJ P ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	8-97085-030-0	02	1	-
32	03.330 RING; SNAP,SPRING SEAT,TIMER,INJ ASM PART: B = 8-97203-380-0, 97203380	1-15749-135-0	04	1	-
32	03.330 RING; SNAP,SPRING SEAT,TIMER,INJ ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15749-159-0	04	1	-
33	03.340 SEAT; OUTER SPRING,TIMER,INJ PUM ASM PART: B = 8-97203-380-0, 97203380	1-15749-134-0	04	1	-
33	03.340 SEAT; OUTER SPRING,TIMER,INJ PUM ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	8-97085-026-0	04	1	-
34	03.340 SPRING; TIMER,INNER,INJ PUMP ASM PART: D = 8-97212-102-0, 97212102	8-97125-963-0	04	1	-
34	03.340 SPRING; TIMER,INNER,INJ PUMP ASM PART: A = 8-97178-485-5, 97178485, G = 8-98192-953-0, 98192953	8-97223-405-0	04	1	-
34	03.340 SPRING; TIMER,INNER,INJ PUMP ASM PART: I = 8-98268-832-0, 98268832	8-98283-549-0	04	1	-
35	03.340 SPRING; TIMER,OUTER,INJ PUMP ASM PART: D = 8-97212-102-0, 97212102	8-97125-967-0	04	1	-
35	03.340 SPRING; TIMER,OUTER,INJ PUMP ASM PART: A = 8-97178-485-5, 97178485, G = 8-98192-953-0, 98192953	8-97223-404-0	04	1	-
35	03.340 SPRING; TIMER,OUTER,INJ PUMP ASM PART: I = 8-98268-832-0, 98268832	8-98283-548-0	04	1	-
36	03.340 PIN; PILOT,TIMER SPRING,INJ PUMP ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	8-97085-029-0	02	1	-
36	03.340 PIN; PILOT,TIMER SPRING,INJ PUMP ASM PART: B = 8-97203-380-0, 97203380	9-84132-749-0	02	1	-
37	03.340 SPACER; FLYWEIGHT,TIMER,INJ PUMP ASM PART: A = 8-97178-485-5, 97178485, G = 8-98192-953-0, 98192953	1-15749-402-0	02	1	-
38	03.318 COVER; TIMER,INJ PUMP ASM PART: C = 8-97204-201-9, 97204201, F = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-94227-500-0	01	1	-
38	03.318 COVER; TIMER,INJ PUMP ASM PART: E = 8-97223-104-1, 97223104	8-94473-120-0	01	1	-
38	03.318 COVER; TIMER,INJ PUMP ASM PART: B = 8-97203-380-0, 97203380	8-97026-945-0	01	1	-
38	03.318 COVER; TIMER,INJ PUMP ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	8-97085-037-0	01	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.60 ASM PART: A = 8-97178-485-5, 97178485, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15748-010-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.80 ASM PART: A = 8-97178-485-5, 97178485, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15748-011-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.90 ASM PART: A = 8-97178-485-5, 97178485, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15748-012-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.10 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15749-390-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.30 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15749-391-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.50 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15749-392-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=1.00 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15749-393-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.40 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15749-493-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.70 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15749-494-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM 03.320, T=2.40 ASM PART: C = 8-97204-201-9, 97204201, E = 8-97223-104-1, 97223104, F = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-94121-620-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.60 ASM PART: C = 8-97204-201-9, 97204201, E = 8-97223-104-1, 97223104, F = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-94227-495-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.70 ASM PART: C = 8-97204-201-9, 97204201, E = 8-97223-104-1, 97223104, F = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-94227-496-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.90 ASM PART: C = 8-97204-201-9, 97204201, E = 8-97223-104-1, 97223104, F = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-94227-497-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=1.00 ASM PART: C = 8-97204-201-9, 97204201, E = 8-97223-104-1, 97223104, F = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-94227-498-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=1.20 ASM PART: C = 8-97204-201-9, 97204201, E = 8-97223-104-1, 97223104, F = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-94227-499-0	AR	1	-
42	03.340 RING; SNAP,TIMER COVER,INJ PUMP ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15749-185-0	01	1	-
42	03.340 RING; SNAP,TIMER COVER,INJ PUMP ASM PART: B = 8-97203-380-0, 97203380	8-97026-946-0	01	1	-
44	03.340 SHIM; TIMER COVER,INJ PUMP T=0.10 ASM PART: B = 8-97203-380-0, 97203380	8-97026-948-0	AR	1	-
44	03.340 SHIM; TIMER COVER,INJ PUMP T=0.12 ASM PART: B = 8-97203-380-0, 97203380	8-97026-949-0	AR	1	-
44	03.340 SHIM; TIMER COVER,INJ PUMP T=0.14 ASM PART: B = 8-97203-380-0, 97203380	8-97026-950-0	AR	1	-
44	03.340 SHIM; TIMER COVER,INJ PUMP T=0.16 ASM PART: B = 8-97203-380-0, 97203380	8-97026-951-0	AR	1	-
44	03.340 SHIM; TIMER COVER,INJ PUMP T=0.18 ASM PART: B = 8-97203-380-0, 97203380	8-97026-952-0	AR	1	-
44	03.340 SHIM; TIMER COVER,INJ PUMP T=0.90 ASM PART: B = 8-97203-380-0, 97203380	8-97026-953-0	AR	1	-
44	03.340 SHIM; TIMER COVER,INJ PUMP T=1.10 ASM PART: B = 8-97203-380-0, 97203380	8-97026-954-0	AR	1	-
44	03.340 SHIM; TIMER COVER,INJ PUMP T=1.30 ASM PART: B = 8-97203-380-0, 97203380	8-97026-955-0	AR	1	-
44	03.340 SHIM; TIMER COVER,INJ PUMP T=1.50 ASM PART: B = 8-97203-380-0, 97203380	8-97026-956-0	AR	1	-
44	03.340 SHIM; TIMER COVER,INJ PUMP T=1.70 ASM PART: B = 8-97203-380-0, 97203380	8-97026-957-0	AR	1	-
44	03.340 SHIM; TIMER COVER,INJ PUMP T=0.10 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	8-97085-038-0	AR	1	-
44	03.340 SHIM; TIMER COVER,INJ PUMP T=0.12 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	8-97085-039-0	AR	1	-
44	03.340 SHIM; TIMER COVER,INJ PUMP T=0.14 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	8-97085-040-0	AR	1	-
44	03.340 SHIM; TIMER COVER,INJ PUMP T=0.16 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	8-97085-041-0	AR	1	-
44	03.340 SHIM; TIMER COVER,INJ PUMP T=0.18 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	8-97085-042-0	AR	1	-
44	03.340 SHIM; TIMER COVER,INJ PUMP T=0.90 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	8-97085-043-0	AR	1	-
44	03.340 SHIM; TIMER COVER,INJ PUMP T=1.10 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	8-97085-044-0	AR	1	-
44	03.340 SHIM; TIMER COVER,INJ PUMP T=1.30 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	8-97085-045-0	AR	1	-
44	03.340 SHIM; TIMER COVER,INJ PUMP T=1.50 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	8-97085-046-0	AR	1	-
44	03.340 SHIM; TIMER COVER,INJ PUMP T=1.70 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	8-97085-047-0	AR	1	-
58	03.340 FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: D = 8-97212-102-0, 97212102	8-97125-961-0	01	1	-
58	03.340 FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: B = 8-97203-380-0, 97203380	8-97137-786-0	01	1	-
58	03.340 FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: A = 8-97178-485-5, 97178485, G = 8-98192-953-0, 98192953	8-97223-400-0	01	1	-
58	03.340 FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: I = 8-98268-832-0, 98268832	8-98283-546-0	01	1	-
70	03.340 SHIM; FLANGE,TIMER T=0.10 ASM PART: B = 8-97203-380-0, 97203380	8-97026-948-0	AR	1	-
70	03.340 SHIM; FLANGE,TIMER T=0.12 ASM PART: B = 8-97203-380-0, 97203380	8-97026-949-0	AR	1	-
70	03.340 SHIM; FLANGE,TIMER T=0.14 ASM PART: B = 8-97203-380-0, 97203380	8-97026-950-0	AR	1	-
70	03.340 SHIM; FLANGE,TIMER T=0.16 ASM PART: B = 8-97203-380-0, 97203380	8-97026-951-0	AR	1	-
70	03.340 SHIM; FLANGE,TIMER T=0.18 ASM PART: B = 8-97203-380-0, 97203380	8-97026-952-0	AR	1	-
70	03.340 SHIM; FLANGE,TIMER T=0.90 ASM PART: B = 8-97203-380-0, 97203380	8-97026-953-0	AR	1	-
70	03.340 SHIM; FLANGE,TIMER T=1.10 ASM PART: B = 8-97203-380-0, 97203380	8-97026-954-0	AR	1	-
70	03.340 SHIM; FLANGE,TIMER T=1.30 ASM PART: B = 8-97203-380-0, 97203380	8-97026-955-0	AR	1	-
70	03.340 SHIM; FLANGE,TIMER T=1.50 ASM PART: B = 8-97203-380-0, 97203380	8-97026-956-0	AR	1	-
70	03.340 SHIM; FLANGE,TIMER T=1.70 ASM PART: B = 8-97203-380-0, 97203380	8-97026-957-0	AR	1	-
70	03.340 SHIM; FLANGE,TIMER T=0.20 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	8-97085-032-0	AR	1	-
70	03.340 SHIM; FLANGE,TIMER T=0.30 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	8-97085-033-0	AR	1	-
70	03.340 SHIM; FLANGE,TIMER T=0.40 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	8-97085-034-0	AR	1	-
70	03.340 SHIM; FLANGE,TIMER T=0.50 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	8-97085-035-0	AR	1	-
70	03.340 SHIM; FLANGE,TIMER T=0.80 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	8-97085-036-0	AR	1	-
72	03.340 RING; SNAP,FLANGE TIMER ASM PART: A = 8-97178-485-5, 97178485, D = 8-97212-102-0, 97212102, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	1-15749-205-0	01	1	-
72	03.340 RING; SNAP,FLANGE TIMER ASM PART: B = 8-97203-380-0, 97203380	8-97026-946-0	01	1	-
73	03.340 WASHER; DRIVE GEAR,INJ PUMP 00.669, ID=8 ASM PART: D = 8-97212-102-0, 97212102	1-14319-034-0	04	1	-
73	03.340 WASHER; DRIVE GEAR,INJ PUMP ASM PART: A = 8-97178-485-5, 97178485, G = 8-98192-953-0, 98192953, I = 8-98268-832-0, 98268832	8-97211-797-0	04	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
