0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#78904) — 146 parça

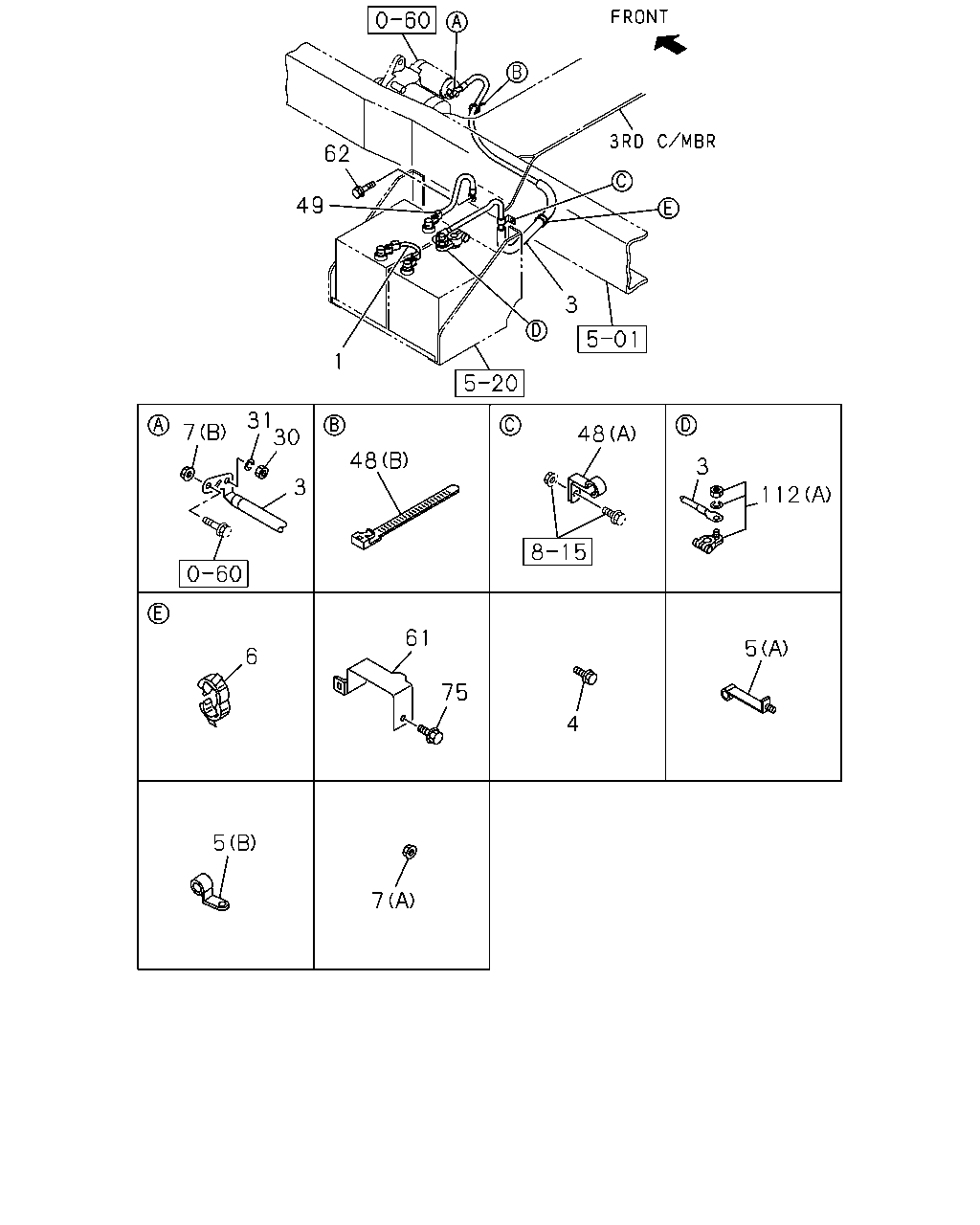

62 49 3 1 31 30 7 48 48 3 3 112 61 5 6 75 4 5 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	02.341 CABLE; BATTERY L=280	8-97230-719-1	01	1	0211-0507	●	●
1	02.341 CABLE; BATTERY L=280 IDN	8-97230-719-2	01	1	0508-0609	●		●
1	02.341 CABLE; BATTERY L=280 IDN	8-97230-719-2	01	1	0610-	●		●	●
1	02.341 CABLE; BATTERY BATTERY 80D26R<6KC> L=180	8-97230-530-2	01	1	0610-					●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE SHORT(NK***C) IDN	8-97351-857-2	01	1	0211-0507		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE SHORT(NK***C) IDN	8-97377-774-0	01	1	0508-			●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE MIDDLE(NK***F) IDN	8-97357-079-2	01	1	0211-0507	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE MIDDLE(NK***F) IDN	8-97377-767-2	01	1	0508-0609	●		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE MIDDLE(NK***F) IDN	8-97377-767-2	01	1	0610-	●		●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE SHORT(NK***C) BATTERY 95D31R<6DN> L=900 IDN	8-97351-862-0	01	1	0610-					●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE SHORT(NK***C) BATTERY 80D26R<6KC>	8-98003-119-0	01	1	0610-					●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE MIDDLE(NK***F) BATTERY NX200-10<S9C> L=1100	8-98003-121-0	01	1	0801-					●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE MIDDLE(NK***F) BATTERY 95D31R<6DN> L=800 IDN	8-98003-122-0	01	1	0801-					●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE MIDDLE(NK***F) BATTERY 80D26R<6KC>	8-98003-120-0	01	1	0801-					●
4	02.559 BOLT; BATTERY CABLE 02.334 M6X25 FLANGE IDN	0-28680-625-0	01	1	0307-0507	●	●
4	02.559 BOLT; BATTERY CABLE MIDDLE(NK***F) M8X25 FLANGE IDN	0-28680-825-0	01	1	0508-0512	●		●
4	02.559 BOLT; BATTERY CABLE MIDDLE(NK***F) 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	0601-0609	●		●
4	02.559 BOLT; BATTERY CABLE MIDDLE(NK***F) 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	0610-	●		●	●
5	02.559 CLIP; BATTERY CABLE TO BODY SHORT(NK***C) (A) ID=13 L=90	8-97015-782-1	01	1	0508-0609			●
5	02.559 CLIP; BATTERY CABLE TO BODY SHORT(NK***C) (A) ID=13 L=90	8-97015-782-1	01	1	0610-0712			●		●
5	02.559 CLIP; BATTERY CABLE TO BODY SHORT(NK***C) (A) ID=13 L=90	8-97015-782-1	01	1	0801-			●
5	02.559 CLIP; BATTERY CABLE TO BODY (A) ID=13 L=90	8-97015-782-1	01	1	0801-					●
5	02.559 CLIP; BATTERY CABLE TO BODY MIDDLE(NK***F) 03.483 (B) ID=13 H=18 L=20 IDN	1-09700-813-0	01	1	0508-0609	●		●
5	02.559 CLIP; BATTERY CABLE TO BODY MIDDLE(NK***F) 03.483 (B) ID=13 H=18 L=20 IDN	1-09700-813-0	01	1	0610-	●		●	●
5	02.559 CLIP; BATTERY CABLE TO BODY SHORT(NK***C) BATTERY 80D26R<6KC> 03.430 (B) ID=13 H=15 L=25 IDN	1-09700-888-0	01	1	0610-0712					●
5	02.559 CLIP; BATTERY CABLE TO BODY SHORT(NK***C) BATTERY 80D26R<6KC> 03.430 (B) ID=13 H=15 L=25 IDN	1-09700-888-0	01	1	0801-					●
5	02.559 CLIP; BATTERY CABLE TO BODY MIDDLE(NK***F) 03.430 (B) ID=13 H=15 L=25 IDN	1-09700-888-0	01	1	0801-					●
6	02.343 GROMMET; BATTERY CABLE ID=17 IDN	8-94128-319-2	01	1	0211-0507	●	●	●	●	●
6	02.343 GROMMET; BATTERY CABLE ID=17 IDN	8-94128-319-2	01	1	0610-					●
7	02.343 NUT; (+) CABLE 00.002 (B) M8	9-09110-508-0	01	1	0211-0507	●	●
7	02.343 NUT; (+) CABLE 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0307-0507	●	●
7	02.343 NUT; (+) CABLE 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0508-0602	●		●
7	02.343 NUT; (+) CABLE 01.062 (A) M8 FLANGE IDN	0-91180-108-0	01	1	0603-0609	●		●
7	02.343 NUT; (+) CABLE 01.062 (A) M8 FLANGE IDN	0-91180-108-0	01	1	0610-	●		●	●
30	02.334 NUT; CABLE,STARTER TO BATTERY 02.559 M8	9-09110-408-0	01	1	0211-0507	●	●
30	02.334 NUT; CABLE,STARTER TO BATTERY 02.559 M8	9-09110-408-0	01	1	0508-0512	●		●
30	02.334 NUT; CABLE,STARTER TO BATTERY M8 IDN	0-91110-508-0	01	1	0601-0609	●		●
30	02.334 NUT; CABLE,STARTER TO BATTERY M8 IDN	0-91110-508-0	01	1	0610-	●		●	●	●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 00.002 ID=8.2	9-09150-508-0	01	1	0211-0507	●	●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 00.002 ID=8.2	9-09150-508-0	01	1	0508-0603	●		●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 04.439 ID=8.2	0-91510-508-0	01	1	0604-0609	●		●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 04.439 ID=8.2	0-91510-508-0	01	1	0610-	●		●	●	●
48	02.343 CLIP; CABLE 03.162 (B) L=140 IDN	5-09707-031-1	02	1	0211-0507	●	●
48	02.343 CLIP; CABLE 03.430 (A) ID=13 H=15 L=25 IDN	1-09700-888-0	01	1	0211-0507	●	●
48	02.343 CLIP; CABLE 03.162 (B) L=140 IDN	5-09707-031-1	02	1	0508-0609	●		●
48	02.343 CLIP; CABLE SHORT(NK***C) BATTERY 80D26R<6KC> 03.162 (B) L=140 IDN	5-09707-031-1	01	1	0610-0712					●
48	02.343 CLIP; CABLE SHORT(NK***C) BATTERY 80D26R<6KC> 03.162 (B) L=140 IDN	5-09707-031-1	01	1	0801-					●
48	02.343 CLIP; CABLE MIDDLE(NK***F) BATTERY NX200-10<S9C> 03.162 (B) L=140 IDN	5-09707-031-1	01	1	0801-					●
48	02.343 CLIP; CABLE 03.162 (B) L=140 IDN	5-09707-031-1	02	1	0610-0712	●		●	●
48	02.343 CLIP; CABLE 03.162 (B) L=140 IDN	5-09707-031-1	02	1	0801-	●		●	●
48	02.343 CLIP; CABLE MIDDLE(NK***F) BATTERY 80D26R<6KC> 03.162 (B) L=140 IDN	5-09707-031-1	02	1	0801-					●
49	02.342 CABLE; BATTERY TO S/MBR,RH SHORT(NK***C) L=300 IDN	8-97230-536-1	01	1	0211-0507		●
49	02.342 CABLE; BATTERY TO S/MBR,RH SHORT(NK***C) L=300 IDN	8-97230-536-1	01	1	0508-			●
49	02.342 CABLE; BATTERY TO S/MBR,RH MIDDLE(NK***F) L=200 IDN	8-97231-243-1	01	1	0211-0507	●	●
49	02.342 CABLE; BATTERY TO S/MBR,RH MIDDLE(NK***F) L=200 IDN	8-97231-243-1	01	1	0508-0609	●		●
49	02.342 CABLE; BATTERY TO S/MBR,RH MIDDLE(NK***F) L=200 IDN	8-97231-243-1	01	1	0610-	●		●	●
49	02.342 CABLE; BATTERY TO S/MBR,RH SHORT(NK***C) BATTERY 95D31R<6DN> L=300	8-94166-037-0	01	1	0610-0712					●
49	02.342 CABLE; BATTERY TO S/MBR,RH SHORT(NK***C) BATTERY 80D26R<6KC> L=500	8-97035-845-3	01	1	0610-0712					●
49	02.342 CABLE; BATTERY TO S/MBR,RH BATTERY 80D26R<6KC> L=500	8-97035-845-3	01	1	0801-					●
49	02.342 CABLE; BATTERY TO S/MBR,RH MIDDLE(NK***F) BATTERY 95D31R<6DN> L=400	8-97230-533-1	01	1	0801-					●
49	02.342 CABLE; BATTERY TO S/MBR,RH MIDDLE(NK***F) BATTERY NX200-10<S9C> L=300 IDN	8-97231-242-1	01	1	0801-0801					●
49	02.342 CABLE; BATTERY TO S/MBR,RH SHORT(NK***C) BATTERY 95D31R<6DN> L=300 IDN	8-97231-242-1	01	1	0801-					●
49	02.342 CABLE; BATTERY TO S/MBR,RH MIDDLE(NK***F) BATTERY NX200-10<S9C> L=300 IDN	8-97231-242-1	01	1	0801-					●
61	02.333 BRACKET; BATTERY CABLE SHORT(NK***C)	8-97369-198-1	01	1	0508-			●
62	02.343 BOLT; EARTH CABLE FIX M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0211-1004	●	●	●	●	●
62	02.343 BOLT; EARTH CABLE FIX M8X24 W/PL WASHER	8-98141-256-1	01	1	1005-	●	●	●	●	●
75	02.333 BOLT; BRKT SHORT(NK***C) 02.334 M6X25 FLANGE IDN	0-28680-625-0	01	1	0508-0512			●
75	02.333 BOLT; BRKT SHORT(NK***C) 00.685 M6X25 FLANGE IDN	0-28650-625-0	01	1	0601-			●
112	02.343 TERMINAL; BATTERY MIDDLE(NK***F) (A) <+> IDN	8-97356-925-1	01	1	0211-0507	●	●
112	02.343 TERMINAL; BATTERY MIDDLE(NK***F) (A) <+> IDN	8-97356-925-1	01	1	0508-0609	●		●
112	02.343 TERMINAL; BATTERY MIDDLE(NK***F) (A) <+> IDN	8-97356-925-1	01	1	0610-0712	●		●	●
112	02.343 TERMINAL; BATTERY SHORT(NK***C) BATTERY 80D26R<6KC> (A) <+> IDN	8-97356-925-1	01	1	0610-0712					●
112	02.343 TERMINAL; BATTERY MIDDLE(NK***F) (A) <+> IDN	8-97356-925-1	01	1	0801-	●		●	●
112	02.343 TERMINAL; BATTERY BATTERY 80D26R<6KC> (A) <+> IDN	8-97356-925-1	01	1	0801-					●
112	02.343 TERMINAL; BATTERY BATTERY 80D26R<6KC> (B) <->	8-97356-926-1	01	1	0610-					●

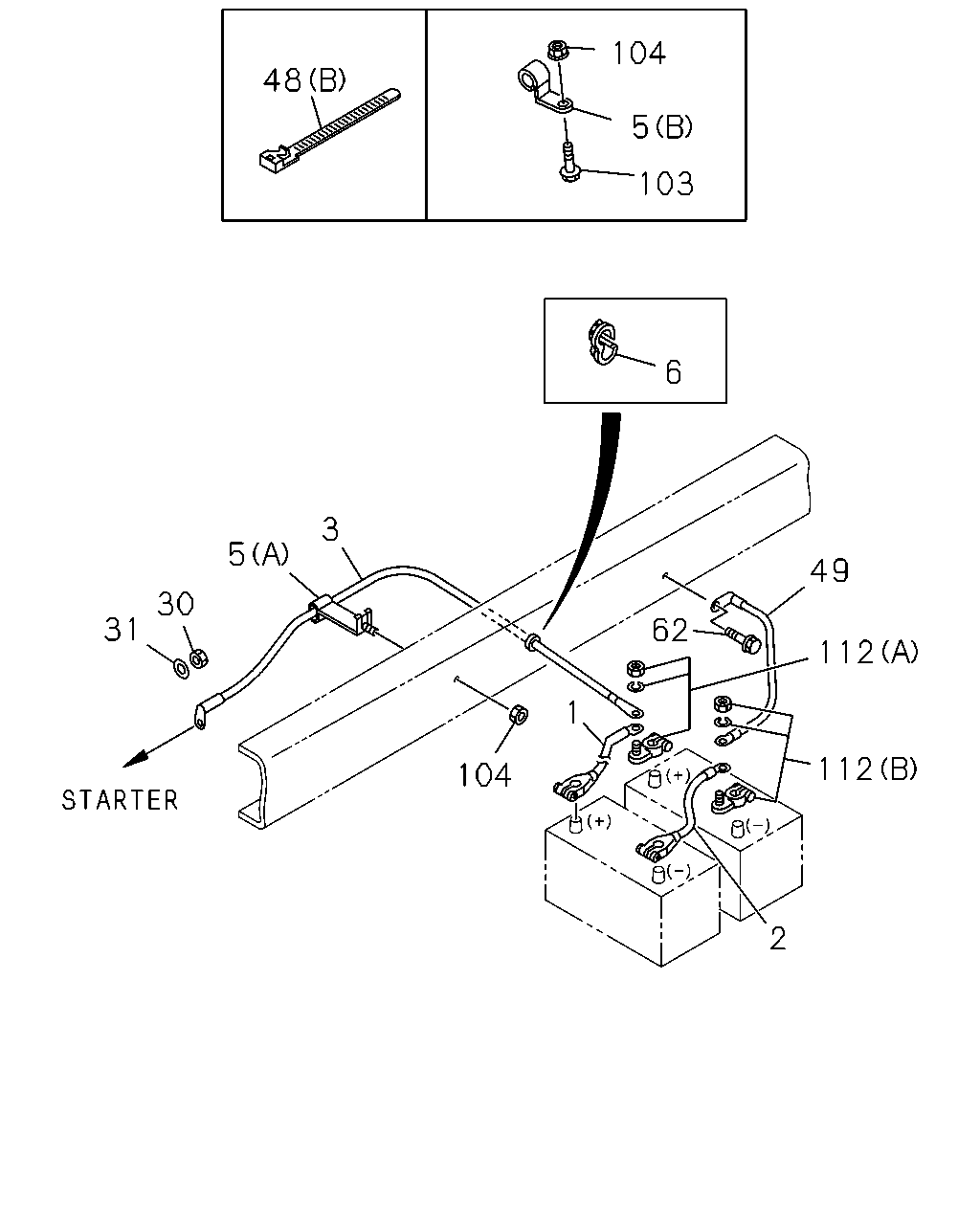

104 48 5 103 6 3 5 49 30 31 62 112 1 112 104 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	02.341 CABLE; BATTERY L=280	8-97230-719-1	01	1	0211-0507	●	●
1	02.341 CABLE; BATTERY L=280 IDN	8-97230-719-2	01	1	0508-0609	●		●
1	02.341 CABLE; BATTERY L=280 IDN	8-97230-719-2	01	1	0610-	●		●	●
1	02.341 CABLE; BATTERY BATTERY 80D26R<6KC> L=180	8-97230-530-2	01	1	0610-					●
2	02.341 CABLE; BATTERY BATTERY 80D26R<6KC> L=180	8-97230-538-1	01	1	0610-					●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE SHORT(NK***C) IDN	8-97351-857-2	01	1	0211-0507		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE SHORT(NK***C) IDN	8-97377-774-0	01	1	0508-			●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE MIDDLE(NK***F) IDN	8-97357-079-2	01	1	0211-0507	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE MIDDLE(NK***F) IDN	8-97377-767-2	01	1	0508-0609	●		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE MIDDLE(NK***F) IDN	8-97377-767-2	01	1	0610-	●		●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE SHORT(NK***C) BATTERY 95D31R<6DN> L=900 IDN	8-97351-862-0	01	1	0610-					●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE SHORT(NK***C) BATTERY 80D26R<6KC>	8-98003-119-0	01	1	0610-					●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE MIDDLE(NK***F) BATTERY NX200-10<S9C> L=1100	8-98003-121-0	01	1	0801-					●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE MIDDLE(NK***F) BATTERY 95D31R<6DN> L=800 IDN	8-98003-122-0	01	1	0801-					●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE MIDDLE(NK***F) BATTERY 80D26R<6KC>	8-98003-120-0	01	1	0801-					●
5	02.559 CLIP; BATTERY CABLE TO BODY SHORT(NK***C) (A) ID=13 L=90	8-97015-782-1	01	1	0508-0609			●
5	02.559 CLIP; BATTERY CABLE TO BODY SHORT(NK***C) (A) ID=13 L=90	8-97015-782-1	01	1	0610-0712			●		●
5	02.559 CLIP; BATTERY CABLE TO BODY SHORT(NK***C) (A) ID=13 L=90	8-97015-782-1	01	1	0801-			●
5	02.559 CLIP; BATTERY CABLE TO BODY (A) ID=13 L=90	8-97015-782-1	01	1	0801-					●
5	02.559 CLIP; BATTERY CABLE TO BODY MIDDLE(NK***F) 03.483 (B) ID=13 H=18 L=20 IDN	1-09700-813-0	01	1	0508-0609	●		●
5	02.559 CLIP; BATTERY CABLE TO BODY MIDDLE(NK***F) 03.483 (B) ID=13 H=18 L=20 IDN	1-09700-813-0	01	1	0610-	●		●	●
5	02.559 CLIP; BATTERY CABLE TO BODY SHORT(NK***C) BATTERY 80D26R<6KC> 03.430 (B) ID=13 H=15 L=25 IDN	1-09700-888-0	01	1	0610-0712					●
5	02.559 CLIP; BATTERY CABLE TO BODY SHORT(NK***C) BATTERY 80D26R<6KC> 03.430 (B) ID=13 H=15 L=25 IDN	1-09700-888-0	01	1	0801-					●
5	02.559 CLIP; BATTERY CABLE TO BODY MIDDLE(NK***F) 03.430 (B) ID=13 H=15 L=25 IDN	1-09700-888-0	01	1	0801-					●
6	02.343 GROMMET; BATTERY CABLE ID=17 IDN	8-94128-319-2	01	1	0211-0507	●	●	●	●	●
6	02.343 GROMMET; BATTERY CABLE ID=17 IDN	8-94128-319-2	01	1	0610-					●
30	02.334 NUT; CABLE,STARTER TO BATTERY 02.559 M8	9-09110-408-0	01	1	0211-0507	●	●
30	02.334 NUT; CABLE,STARTER TO BATTERY 02.559 M8	9-09110-408-0	01	1	0508-0512	●		●
30	02.334 NUT; CABLE,STARTER TO BATTERY M8 IDN	0-91110-508-0	01	1	0601-0609	●		●
30	02.334 NUT; CABLE,STARTER TO BATTERY M8 IDN	0-91110-508-0	01	1	0610-	●		●	●	●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 00.002 ID=8.2	9-09150-508-0	01	1	0211-0507	●	●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 00.002 ID=8.2	9-09150-508-0	01	1	0508-0603	●		●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 04.439 ID=8.2	0-91510-508-0	01	1	0604-0609	●		●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 04.439 ID=8.2	0-91510-508-0	01	1	0610-	●		●	●	●
48	02.343 CLIP; CABLE 03.162 (B) L=140 IDN	5-09707-031-1	02	1	0211-0507	●	●
48	02.343 CLIP; CABLE 03.430 (A) ID=13 H=15 L=25 IDN	1-09700-888-0	01	1	0211-0507	●	●
48	02.343 CLIP; CABLE 03.162 (B) L=140 IDN	5-09707-031-1	02	1	0508-0609	●		●
48	02.343 CLIP; CABLE SHORT(NK***C) BATTERY 80D26R<6KC> 03.162 (B) L=140 IDN	5-09707-031-1	01	1	0610-0712					●
48	02.343 CLIP; CABLE SHORT(NK***C) BATTERY 80D26R<6KC> 03.162 (B) L=140 IDN	5-09707-031-1	01	1	0801-					●
48	02.343 CLIP; CABLE MIDDLE(NK***F) BATTERY NX200-10<S9C> 03.162 (B) L=140 IDN	5-09707-031-1	01	1	0801-					●
48	02.343 CLIP; CABLE 03.162 (B) L=140 IDN	5-09707-031-1	02	1	0610-0712	●		●	●
48	02.343 CLIP; CABLE 03.162 (B) L=140 IDN	5-09707-031-1	02	1	0801-	●		●	●
48	02.343 CLIP; CABLE MIDDLE(NK***F) BATTERY 80D26R<6KC> 03.162 (B) L=140 IDN	5-09707-031-1	02	1	0801-					●
49	02.342 CABLE; BATTERY TO S/MBR,RH SHORT(NK***C) L=300 IDN	8-97230-536-1	01	1	0211-0507		●
49	02.342 CABLE; BATTERY TO S/MBR,RH SHORT(NK***C) L=300 IDN	8-97230-536-1	01	1	0508-			●
49	02.342 CABLE; BATTERY TO S/MBR,RH MIDDLE(NK***F) L=200 IDN	8-97231-243-1	01	1	0211-0507	●	●
49	02.342 CABLE; BATTERY TO S/MBR,RH MIDDLE(NK***F) L=200 IDN	8-97231-243-1	01	1	0508-0609	●		●
49	02.342 CABLE; BATTERY TO S/MBR,RH MIDDLE(NK***F) L=200 IDN	8-97231-243-1	01	1	0610-	●		●	●
49	02.342 CABLE; BATTERY TO S/MBR,RH SHORT(NK***C) BATTERY 95D31R<6DN> L=300	8-94166-037-0	01	1	0610-0712					●
49	02.342 CABLE; BATTERY TO S/MBR,RH SHORT(NK***C) BATTERY 80D26R<6KC> L=500	8-97035-845-3	01	1	0610-0712					●
49	02.342 CABLE; BATTERY TO S/MBR,RH BATTERY 80D26R<6KC> L=500	8-97035-845-3	01	1	0801-					●
49	02.342 CABLE; BATTERY TO S/MBR,RH MIDDLE(NK***F) BATTERY 95D31R<6DN> L=400	8-97230-533-1	01	1	0801-					●
49	02.342 CABLE; BATTERY TO S/MBR,RH MIDDLE(NK***F) BATTERY NX200-10<S9C> L=300 IDN	8-97231-242-1	01	1	0801-0801					●
49	02.342 CABLE; BATTERY TO S/MBR,RH SHORT(NK***C) BATTERY 95D31R<6DN> L=300 IDN	8-97231-242-1	01	1	0801-					●
49	02.342 CABLE; BATTERY TO S/MBR,RH MIDDLE(NK***F) BATTERY NX200-10<S9C> L=300 IDN	8-97231-242-1	01	1	0801-					●
62	02.343 BOLT; EARTH CABLE FIX M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0211-1004	●	●	●	●	●
62	02.343 BOLT; EARTH CABLE FIX M8X24 W/PL WASHER	8-98141-256-1	01	1	1005-	●	●	●	●	●
103	02.343 BOLT; BATTERY CABLE SHORT(NK***C) BATTERY 80D26R<6KC> 00.685 M6X25 FLANGE IDN	0-28650-625-0	01	1	0610-0712					●
103	02.343 BOLT; BATTERY CABLE SHORT(NK***C) BATTERY 80D26R<6KC> 00.685 M6X25 FLANGE IDN	0-28650-625-0	01	1	0801-					●
103	02.343 BOLT; BATTERY CABLE MIDDLE(NK***F) 00.685 M6X25 FLANGE IDN	0-28650-625-0	01	1	0801-					●
104	02.343 NUT; BATTERY CABLE 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0610-					●
104	02.343 NUT; BATTERY CABLE SHORT(NK***C) BATTERY 80D26R<6KC> 01.062 M6 FLANGE IDN	0-91180-106-0	01	1	0610-0712					●
104	02.343 NUT; BATTERY CABLE SHORT(NK***C) BATTERY 80D26R<6KC> 01.062 M6 FLANGE IDN	0-91180-106-0	01	1	0801-					●
104	02.343 NUT; BATTERY CABLE MIDDLE(NK***F) 01.062 M6 FLANGE IDN	0-91180-106-0	01	1	0801-					●
112	02.343 TERMINAL; BATTERY MIDDLE(NK***F) (A) <+> IDN	8-97356-925-1	01	1	0211-0507	●	●
112	02.343 TERMINAL; BATTERY MIDDLE(NK***F) (A) <+> IDN	8-97356-925-1	01	1	0508-0609	●		●
112	02.343 TERMINAL; BATTERY MIDDLE(NK***F) (A) <+> IDN	8-97356-925-1	01	1	0610-0712	●		●	●
112	02.343 TERMINAL; BATTERY SHORT(NK***C) BATTERY 80D26R<6KC> (A) <+> IDN	8-97356-925-1	01	1	0610-0712					●
112	02.343 TERMINAL; BATTERY MIDDLE(NK***F) (A) <+> IDN	8-97356-925-1	01	1	0801-	●		●	●
112	02.343 TERMINAL; BATTERY BATTERY 80D26R<6KC> (A) <+> IDN	8-97356-925-1	01	1	0801-					●
112	02.343 TERMINAL; BATTERY BATTERY 80D26R<6KC> (B) <->	8-97356-926-1	01	1	0610-					●
