◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51280 - NKR INDONESIA ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#78903) — 207 parça

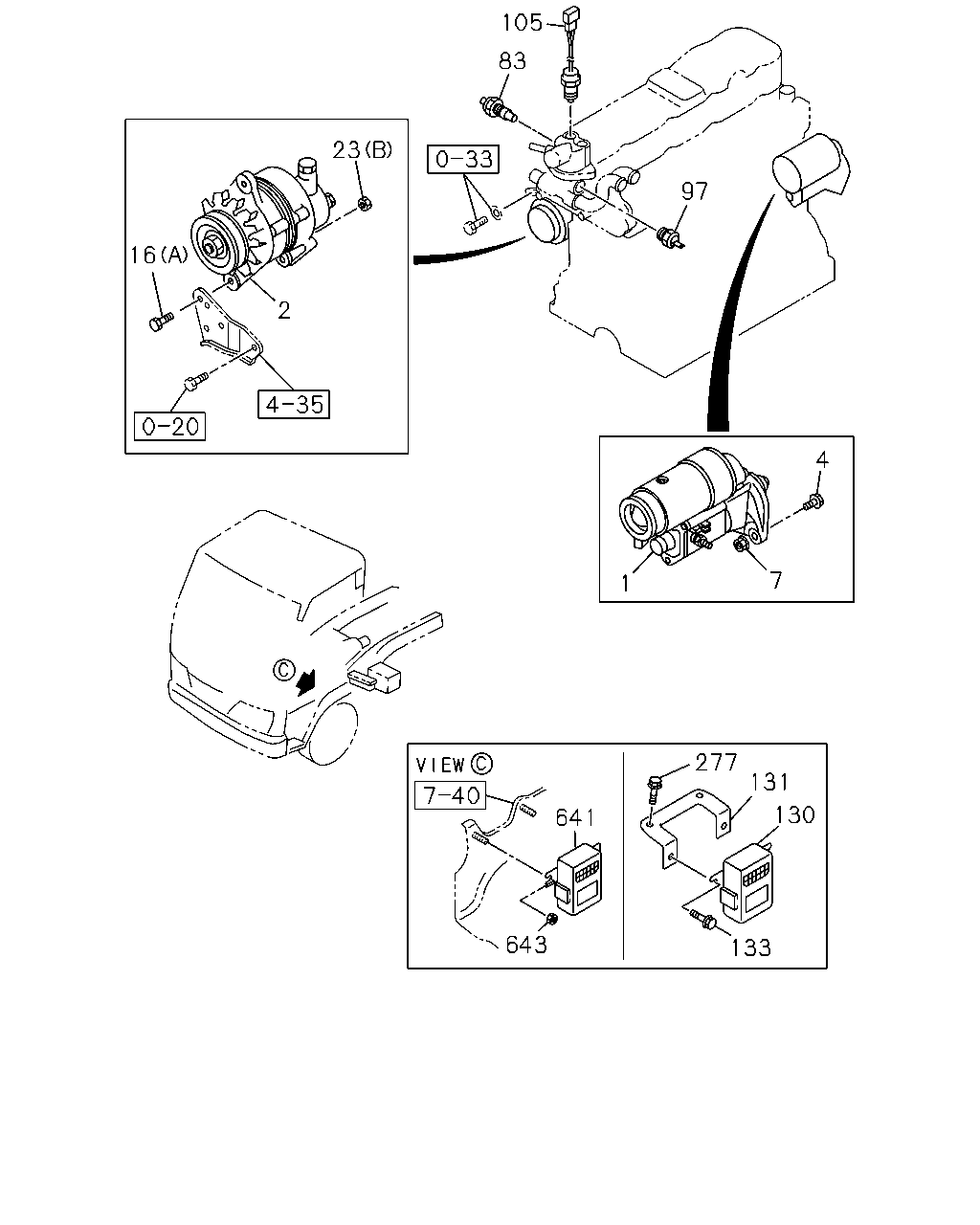

çizim 72772
105 83 23 97 16 2 4 7 1 277 131 130 641 643 133
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97323-935-2 01 1 0211-0507 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97323-935-4 01 1 0508-0609 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97323-935-4 01 1 0610-1207 ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-98222-019-0 01 1 1208-1311 ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-98245-259-1 01 1 1312- ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI IDN 		8-97172-211-2 01 1 0211-0507 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI IDN 		8-97172-211-2 01 1 0508-0609 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI IDN 		8-97172-211-2 01 1 0610-1006 ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI IDN 		8-98055-279-1 01 1 1007-1207 ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI IDN 		8-98222-018-2 01 1 1208- ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 0610- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. INJ PUMP Q SET SPECIAL +5%Q<T1A> 12V 60A IDN 		8-97695-602-0 01 1 1507- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A HITACHI 		8-97351-573-0 01 1 1505- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) 24V 80A HITACHI 		8-97351-574-1 01 1 1405- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 35A IDN 		8-97075-882-3 01 1 0211-0507 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 35A IDN 		8-97075-882-3 01 1 0508-0609 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V35A(K83) 24V 35A IDN 		8-97075-882-3 01 1 0610-1509 ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V35A(K83) 24V 35A IDN 		8-97695-742-0 01 1 1510- ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A 		8-97187-658-2 01 1 0610-1408 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A IDN 		8-98284-007-0 01 1 1409-1505 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A IDN 		8-98300-335-0 01 1 1506-1506 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. INJ PUMP Q SET SPECIAL +5%Q<T1A> 12V 60A IDN 		8-98300-335-0 01 1 1507- ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0211-0507 ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0508-0609 ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0610- ● ● ●
4 02.042 BOLT; STARTER
00.685 M12X80 FLANGE 		0-28051-280-0 02 1 0610- ●
7 02.042 NUT; STARTER
M12 FLANGE IDN 		0-91180-112-0 02 1 0610- ●
16 02.277 BOLT; GEN
(B) M10X133 		8-97146-998-0 01 1 0211-0507 ● ●
16 02.277 BOLT; GEN
(B) M10X133 		8-97146-998-0 01 1 0508-0609 ● ●
16 02.277 BOLT; GEN
(B) M10X133 		8-97146-998-0 01 1 0610- ● ● ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 (C) M8X40 W/WASHER 		8-97011-792-4 01 1 0211-0507 ● ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 (C) M8X40 W/WASHER 		8-97011-792-4 01 1 0508-0609 ● ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 (C) M8X40 W/WASHER 		8-97011-792-4 01 1 0610- ● ● ●
16 02.277 BOLT; GEN
(A) M10X130 FLANGE 		0-28056-013-0 01 1 0610- ●
23 02.277 NUT; GEN
07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0211-0507 ● ●
23 02.277 NUT; GEN
07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0508-0602 ● ●
23 02.277 NUT; GEN
01.062 (A) M8 FLANGE IDN 		0-91180-108-0 01 1 0603-0609 ● ●
23 02.277 NUT; GEN
01.062 (A) M8 FLANGE IDN 		0-91180-108-0 01 1 0610- ● ● ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 0211-0507 ● ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 0508-0602 ● ●
23 02.277 NUT; GEN
04.085 (B) M10 FLANGE 		0-91180-210-0 01 1 0603-0609 ● ●
23 02.277 NUT; GEN
04.085 (B) M10 FLANGE 		0-91180-210-0 01 1 0610- ● ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0211-0507 ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0508-0609 ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0610-1404 ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 1405- ● ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0211-0507 ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0508-0609 ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0610-1404 ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 1405- ● ● ● ●
97 01.150 SWITCH; THERMO,EGR CONT 8-94368-591-0 01 1 0610- ●
105 01.150 SWITCH; THERMO,QOS 8-94121-152-1 01 1 0211-0507 ● ●
105 01.150 SWITCH; THERMO,QOS 8-94121-152-1 01 1 0508-1404 ● ●
105 01.150 SWITCH; THERMO,QOS 8-94121-152-1 01 1 1405-1409 ● ● ●
105 01.150 SWITCH; THERMO,QOS 8-94121-152-1 01 1 1410- ● ●
105 01.150 SWITCH; THERMO,QOS 8-94336-668-0 01 1 0610- ●
105 01.150 SWITCH; THERMO,QOS 8-94457-511-0 01 1 0610- ●
130 02.510 CONTROLLER; EGR 8-97201-734-3 01 1 0610- ●
131 03.670 BRACKET; EGR 8-97217-813-1 01 1 0610- ●
133 02.500 BOLT; EGR CONTROLLER
03.162 M6X20 FLANGE IDN 		0-28650-620-0 02 1 0610- ●
277 02.510 BOLT; BRKT
03.162 M6X20 FLANGE IDN 		0-28650-620-0 02 1 0610- ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> IDN 		8-97361-317-3 01 1 0610- ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97361-318-3 01 1 0610- ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> 01.062 M6 FLANGE IDN 		0-91180-106-0 02 1 0610- ● ●
çizim 72802
211 553 489 209 211 403
BalonParca AdiParca NoAdetTipApplied Date A B C D E
209 02.483 NUT; BRKT TO BODY
EXC. ENGINE POWER N-SPEC(7QV) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0211-0507 ● ●
209 02.483 NUT; BRKT TO BODY
04.785 M10 FLANGE 		0-91150-110-0 02 1 0508-0602 ●
209 02.483 NUT; BRKT TO BODY
03.162 M10 FLANGE IDN 		0-91180-110-0 02 1 0603-0609 ●
209 02.483 NUT; BRKT TO BODY
03.162 M10 FLANGE IDN 		0-91180-110-0 02 1 0610- ● ●
211 02.343 NUT; CABLE FIX
EXC. ENGINE POWER N-SPEC(7QV) 08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 0211-0507 ● ●
211 02.343 NUT; CABLE FIX
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 0508-0602 ●
211 02.343 NUT; CABLE FIX
04.085 (B) M10 FLANGE 		0-91180-210-0 01 1 0603-0609 ●
211 02.343 NUT; CABLE FIX
04.085 (B) M10 FLANGE 		0-91180-210-0 01 1 0610- ● ●
211 02.343 NUT; CABLE FIX
EXC. ENGINE POWER N-SPEC(7QV) 04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 0211-0507 ● ●
211 02.343 NUT; CABLE FIX
EXC. ENGINE POWER N-SPEC(7QV) 04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 0211-0507 ● ●
211 02.343 NUT; CABLE FIX
04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 0508-0602 ●
211 02.343 NUT; CABLE FIX
04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 0508-0602 ●
211 02.343 NUT; CABLE FIX
01.062 (A) M6 FLANGE IDN 		0-91180-106-0 01 1 0603-0609 ●
211 02.343 NUT; CABLE FIX
01.062 (A) M6 FLANGE IDN 		0-91180-106-0 01 1 0603-0609 ●
211 02.343 NUT; CABLE FIX
01.062 (A) M6 FLANGE IDN 		0-91180-106-0 01 1 0610- ● ●
211 02.343 NUT; CABLE FIX
01.062 (A) M6 FLANGE IDN 		0-91180-106-0 01 1 0610- ● ●
403 02.343 CLIP; CABLE
EXC. ENGINE POWER N-SPEC(7QV) 		8-97125-981-0 01 1 0211-0507 ● ●
403 02.343 CLIP; CABLE 8-97125-981-0 01 1 0508-0609 ●
403 02.343 CLIP; CABLE 8-97125-981-0 01 1 0610- ● ●
489 03.483 BOLT; ENG STOPPER
EXC. ENGINE POWER N-SPEC(7QV) 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0211-0507 ● ●
489 03.483 BOLT; ENG STOPPER
03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0508-0512 ●
489 03.483 BOLT; ENG STOPPER
00.029 M10X25 FLANGE IDN 		0-28651-025-0 01 1 0601-0609 ●
489 03.483 BOLT; ENG STOPPER
00.029 M10X25 FLANGE IDN 		0-28651-025-0 01 1 0610- ● ●
553 03.485 MOTOR ASM; ENG STOP
EXC. ENGINE POWER N-SPEC(7QV) 		8-97255-066-0 01 1 0211-0507 ● ●
553 03.485 MOTOR ASM; ENG STOP 8-97255-066-1 01 1 0508-0609 ●
553 03.485 MOTOR ASM; ENG STOP 8-97255-066-1 01 1 0610- ● ●

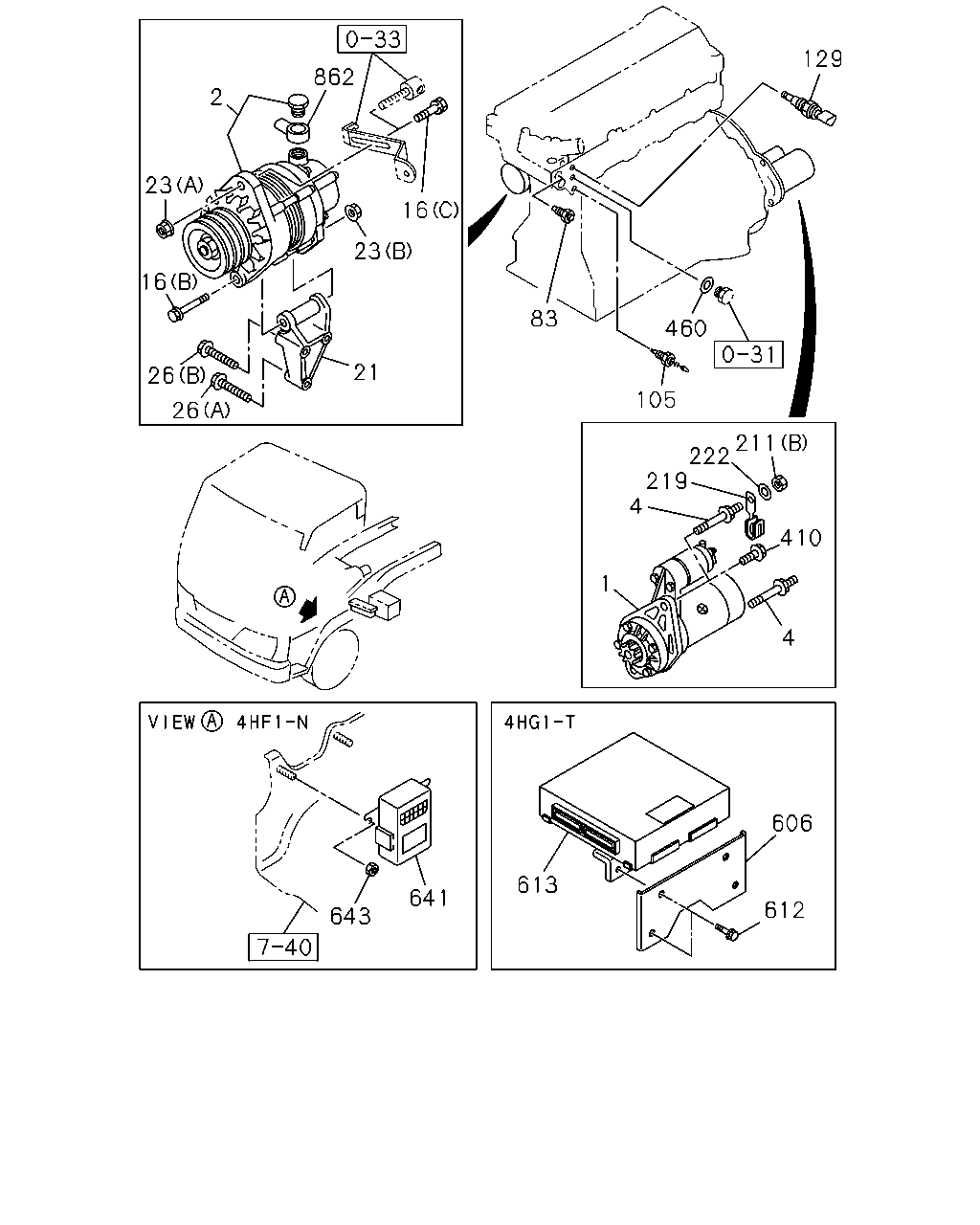

çizim 72890
2 23 16 26 26 862 16 23 21 83 460 129 105 211 222 219 4 410 4 1 606 612 613 641 643
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97323-935-2 01 1 0211-0507 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97323-935-4 01 1 0508-0609 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97323-935-4 01 1 0610-1207 ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-98222-019-0 01 1 1208-1311 ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-98245-259-1 01 1 1312- ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI IDN 		8-97172-211-2 01 1 0211-0507 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI IDN 		8-97172-211-2 01 1 0508-0609 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI IDN 		8-97172-211-2 01 1 0610-1006 ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI IDN 		8-98055-279-1 01 1 1007-1207 ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI IDN 		8-98222-018-2 01 1 1208- ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 0610- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. INJ PUMP Q SET SPECIAL +5%Q<T1A> 12V 60A IDN 		8-97695-602-0 01 1 1507- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A HITACHI 		8-97351-573-0 01 1 1505- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) 24V 80A HITACHI 		8-97351-574-1 01 1 1405- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 35A IDN 		8-97075-882-3 01 1 0211-0507 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 35A IDN 		8-97075-882-3 01 1 0508-0609 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V35A(K83) 24V 35A IDN 		8-97075-882-3 01 1 0610-1509 ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V35A(K83) 24V 35A IDN 		8-97695-742-0 01 1 1510- ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A 		8-97187-658-2 01 1 0610-1408 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A IDN 		8-98284-007-0 01 1 1409-1505 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A IDN 		8-98300-335-0 01 1 1506-1506 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. INJ PUMP Q SET SPECIAL +5%Q<T1A> 12V 60A IDN 		8-98300-335-0 01 1 1507- ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0211-0507 ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0508-0609 ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0610- ● ● ●
4 02.042 BOLT; STARTER
00.685 M12X80 FLANGE 		0-28051-280-0 02 1 0610- ●
16 02.277 BOLT; GEN
(B) M10X133 		8-97146-998-0 01 1 0211-0507 ● ●
16 02.277 BOLT; GEN
(B) M10X133 		8-97146-998-0 01 1 0508-0609 ● ●
16 02.277 BOLT; GEN
(B) M10X133 		8-97146-998-0 01 1 0610- ● ● ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 (C) M8X40 W/WASHER 		8-97011-792-4 01 1 0211-0507 ● ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 (C) M8X40 W/WASHER 		8-97011-792-4 01 1 0508-0609 ● ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 (C) M8X40 W/WASHER 		8-97011-792-4 01 1 0610- ● ● ●
16 02.277 BOLT; GEN
(A) M10X130 FLANGE 		0-28056-013-0 01 1 0610- ●
21 02.277 BRACKET; GEN 8-97075-884-2 01 1 0211-0507 ● ●
21 02.277 BRACKET; GEN 8-97075-884-2 01 1 0508-0609 ● ●
21 02.277 BRACKET; GEN 8-97075-884-2 01 1 0610- ● ● ●
23 02.277 NUT; GEN
07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0211-0507 ● ●
23 02.277 NUT; GEN
07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0508-0602 ● ●
23 02.277 NUT; GEN
01.062 (A) M8 FLANGE IDN 		0-91180-108-0 01 1 0603-0609 ● ●
23 02.277 NUT; GEN
01.062 (A) M8 FLANGE IDN 		0-91180-108-0 01 1 0610- ● ● ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 0211-0507 ● ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 0508-0602 ● ●
23 02.277 NUT; GEN
04.085 (B) M10 FLANGE 		0-91180-210-0 01 1 0603-0609 ● ●
23 02.277 NUT; GEN
04.085 (B) M10 FLANGE 		0-91180-210-0 01 1 0610- ● ● ● ●
26 02.277 BOLT; GEN BRKT
08.900 (A) M10X50 FLANGE 		0-28181-050-0 01 1 0211-0507 ● ●
26 02.277 BOLT; GEN BRKT
08.900 (A) M10X50 FLANGE 		0-28181-050-0 01 1 0508-0512 ● ●
26 02.277 BOLT; GEN BRKT
02.042 (A) M10X50 FLANGE 		0-28151-050-0 01 1 0601-0609 ● ●
26 02.277 BOLT; GEN BRKT
02.042 (A) M10X50 FLANGE 		0-28151-050-0 01 1 0610- ● ● ●
26 02.277 BOLT; GEN BRKT
03.890 (B) M10X70 FLANGE 		0-28181-070-0 02 1 0211-0507 ● ●
26 02.277 BOLT; GEN BRKT
03.890 (B) M10X70 FLANGE 		0-28181-070-0 02 1 0508-0512 ● ●
26 02.277 BOLT; GEN BRKT
(B) M10X70 FLANGE 		0-28151-070-0 02 1 0601-0609 ● ●
26 02.277 BOLT; GEN BRKT
(B) M10X70 FLANGE 		0-28151-070-0 02 1 0610- ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0211-0507 ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0508-0609 ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0610-1404 ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 1405- ● ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0211-0507 ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0508-0609 ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0610-1404 ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 1405- ● ● ● ●
105 01.150 SWITCH; THERMO,QOS 8-94121-152-1 01 1 0211-0507 ● ●
105 01.150 SWITCH; THERMO,QOS 8-94121-152-1 01 1 0508-1404 ● ●
105 01.150 SWITCH; THERMO,QOS 8-94121-152-1 01 1 1405-1409 ● ● ●
105 01.150 SWITCH; THERMO,QOS 8-94121-152-1 01 1 1410- ● ●
105 01.150 SWITCH; THERMO,QOS 8-94336-668-0 01 1 0610- ●
105 01.150 SWITCH; THERMO,QOS 8-94457-511-0 01 1 0610- ●
129 01.150 SENSOR; GLOW PLUG,THERMO
HITACHI 		8-97167-008-0 01 1 0610-1404 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
EXC. VIN MODEL YEAR 2014(VZE) HITACHI 		8-97167-008-0 01 1 1405-1405 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
EXC. VIN MODEL YEAR 2015(VZF) HITACHI 		8-97167-008-0 01 1 1406- ●
129 01.150 SENSOR; GLOW PLUG,THERMO
TRANSTRON 		8-97170-327-0 01 1 0610-1007 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 1008-1404 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
EXC. VIN MODEL YEAR 2014(VZE) NIPPON THERMOSTAT 		8-98023-717-0 01 1 1405-1405 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
EXC. VIN MODEL YEAR 2015(VZF) NIPPON THERMOSTAT 		8-98023-717-0 01 1 1406- ●
211 02.343 NUT; CABLE FIX
EXC. ENGINE POWER N-SPEC(7QV) 08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 0211-0507 ● ●
211 02.343 NUT; CABLE FIX
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 0508-0602 ●
211 02.343 NUT; CABLE FIX
04.085 (B) M10 FLANGE 		0-91180-210-0 01 1 0603-0609 ●
211 02.343 NUT; CABLE FIX
04.085 (B) M10 FLANGE 		0-91180-210-0 01 1 0610- ● ●
211 02.343 NUT; CABLE FIX
EXC. ENGINE POWER N-SPEC(7QV) 04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 0211-0507 ● ●
211 02.343 NUT; CABLE FIX
EXC. ENGINE POWER N-SPEC(7QV) 04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 0211-0507 ● ●
211 02.343 NUT; CABLE FIX
04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 0508-0602 ●
211 02.343 NUT; CABLE FIX
04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 0508-0602 ●
211 02.343 NUT; CABLE FIX
01.062 (A) M6 FLANGE IDN 		0-91180-106-0 01 1 0603-0609 ●
211 02.343 NUT; CABLE FIX
01.062 (A) M6 FLANGE IDN 		0-91180-106-0 01 1 0603-0609 ●
211 02.343 NUT; CABLE FIX
01.062 (A) M6 FLANGE IDN 		0-91180-106-0 01 1 0610- ● ●
211 02.343 NUT; CABLE FIX
01.062 (A) M6 FLANGE IDN 		0-91180-106-0 01 1 0610- ● ●
219 03.483 CLIP; ENG STOP CABLE
EXC. ENGINE POWER N-SPEC(7QV) 		8-97101-436-0 01 1 0211-0507 ● ●
219 03.483 CLIP; ENG STOP CABLE 8-97101-436-0 01 1 0508-0609 ●
219 03.483 CLIP; ENG STOP CABLE 8-97101-436-0 01 1 0610- ● ●
222 03.485 WASHER; PL,CONT CABLE
EXC. ENGINE POWER N-SPEC(7QV) 04.085 ID=10.5 OD=26 		9-09164-710-0 01 1 0211-0507 ● ●
222 03.485 WASHER; PL,CONT CABLE
04.085 ID=10.5 OD=26 		9-09164-710-0 01 1 0508-0605 ●
222 03.485 WASHER; PL,CONT CABLE
04.085 ID=10.5 OD=26 		0-91614-710-0 01 1 0606-0609 ●
222 03.485 WASHER; PL,CONT CABLE
04.085 ID=10.5 OD=26 		0-91614-710-0 01 1 0610- ● ●
410 02.343 BOLT; BRKT,GRAND
12.187 M8X20 W/LK&PL WASHER 		0-50140-820-0 01 1 0211-0507 ● ●
460 02.363 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). 04.868 ID=16.2 		1-09630-086-0 01 1 0610- ●
606 03.680 BRACKET; CONT UNIT
IDN 		8-97187-422-1 01 1 0610-1404 ●
606 03.680 BRACKET; CONT UNIT
EXC. VIN MODEL YEAR 2014(VZE) IDN 		8-97187-422-1 01 1 1405-1405 ●
606 03.680 BRACKET; CONT UNIT
EXC. VIN MODEL YEAR 2015(VZF) IDN 		8-97187-422-1 01 1 1406- ●
612 02.510 BOLT; BRKT
03.162 M6X12 FLANGE 		0-28050-612-0 02 1 0610-1404 ●
612 02.510 BOLT; BRKT
EXC. VIN MODEL YEAR 2014(VZE) 03.162 M6X12 FLANGE 		0-28050-612-0 02 1 1405-1405 ●
612 02.510 BOLT; BRKT
EXC. VIN MODEL YEAR 2015(VZF) 03.162 M6X12 FLANGE 		0-28050-612-0 02 1 1406- ●
613 03.670 CONTROL UNIT; ENG 8-97187-466-7 01 1 0610-1404 ●
613 03.670 CONTROL UNIT; ENG
EXC. VIN MODEL YEAR 2014(VZE) 		8-97187-466-7 01 1 1405-1405 ●
613 03.670 CONTROL UNIT; ENG
EXC. VIN MODEL YEAR 2015(VZF) 		8-97187-466-7 01 1 1406- ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> IDN 		8-97361-317-3 01 1 0610- ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97361-318-3 01 1 0610- ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> 01.062 M6 FLANGE IDN 		0-91180-106-0 02 1 0610- ● ●
862 02.313 CONNECTOR; GEN
GENERATOR 24V80A(7YN) 		8-97351-626-0 01 1 1405-1504 ●
862 02.313 CONNECTOR; GEN
GENERATOR 24V60A(KG2),GENERATOR 24V80A(7YN) 		8-97351-626-0 01 1 1505- ●

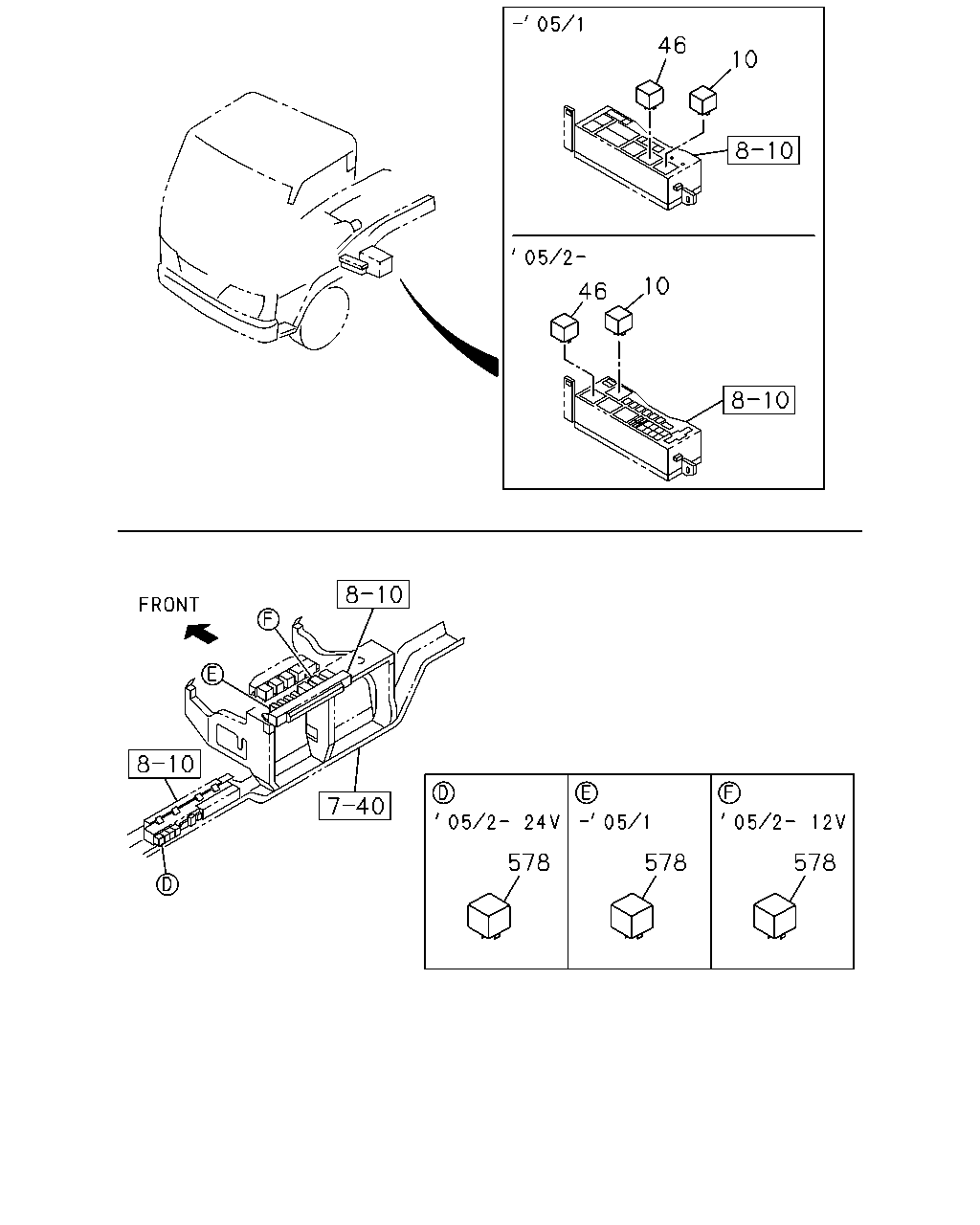

çizim 190708
46 10 10 46 578 578 578
BalonParca AdiParca NoAdetTipApplied Date A B C D E
10 02.100 RELAY; STARTER
24V 50A 		8-97264-947-0 01 1 0211-0609 ● ● ● ● ●
10 02.100 RELAY; STARTER
VOLTAGE 24V<7AE> 24V 50A 		8-97264-947-0 01 1 0610- ● ● ● ● ●
10 02.100 RELAY; STARTER
EXC. VOLTAGE 24V<7AE> 02.510 12V 80A IDN 		8-97173-951-0 01 1 0610- ● ● ● ● ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> VOLTAGE 24V<7AE> 24V 50A IDN 		8-97173-947-0 01 1 0610- ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 12V 80A IDN 		8-97173-951-0 01 1 0610- ●
578 02.510 RELAY; CHARGE WARNING 8-97063-440-2 01 1 0211-0507 ● ● ● ● ●
578 02.510 RELAY; CHARGE WARNING
08.852 24V 10A PANASONIC IDN 		8-97173-035-1 01 1 0508-0609 ● ● ● ● ●
578 02.510 RELAY; CHARGE WARNING
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC IDN 		8-97173-035-1 01 1 0610- ● ● ● ● ●
578 02.510 RELAY; CHARGE WARNING
EXC. VOLTAGE 24V<7AE> 12V 		8-97063-441-2 01 1 0610- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
